Pioneer® 9,000 BTU 21.7 SEER2 Ductless
Mini-Split Inverter++ Energy-Star Air
Conditioner Heat Pump System Full Set 230V
Elevate your indoor climate with the Pioneer® 9,000 BTU 21.7 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System. This advanced system combines energy-efficient cooling and heating with cutting-edge inverter technology for superior comfort. With a high SEER2 rating of 21.7, you can enjoy optimal performance while keeping energy costs low.
Designed for homes or small spaces, the Pioneer® Ductless Mini-Split provides precise temperature control, ensuring your room stays comfortable year-round. The 230V power compatibility makes installation straightforward, and its quiet operation ensures a peaceful environment.
Whether it's a hot summer day or a cold winter night, the Pioneer® 9,000 BTU system is the perfect solution for reliable, cost-effective climate control.
Features of Pioneer® 9,000 BTU 21.7 SEER2 Ductless
Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V:
Technical Information
Certifications
Performance Data
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 9,000 BTU/h
-
Cooling Capacity Range: 2,900~10,200 BTU/h
-
Cooling SEER2: 21.7 BTU/W.h
-
Cooling EER2: 12.6 BTU/W.h
-
Heating Rated Capacity: 10,000 BTU/h
-
Heating Capacity Range: 2,400~10,900 BTU/h
-
Heating HSPF2 (Region IV/V): 9.1 / 6.9 BTU/W.h
-
Heating C.O.P.2 (47°F/5°F): 3.29 / 1.96 W/W
-
Refrigerant Type: R410A
-
Suitable Area: 100~350 Sq.F

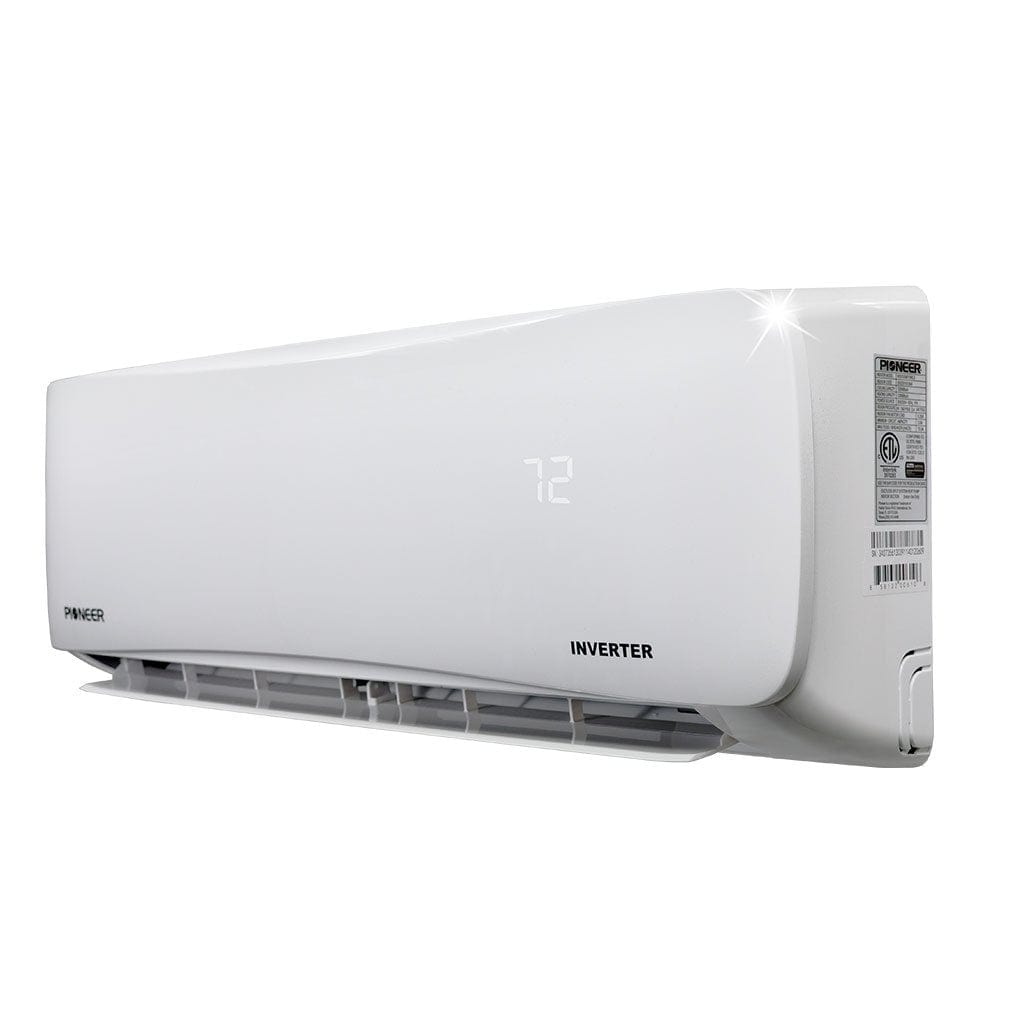

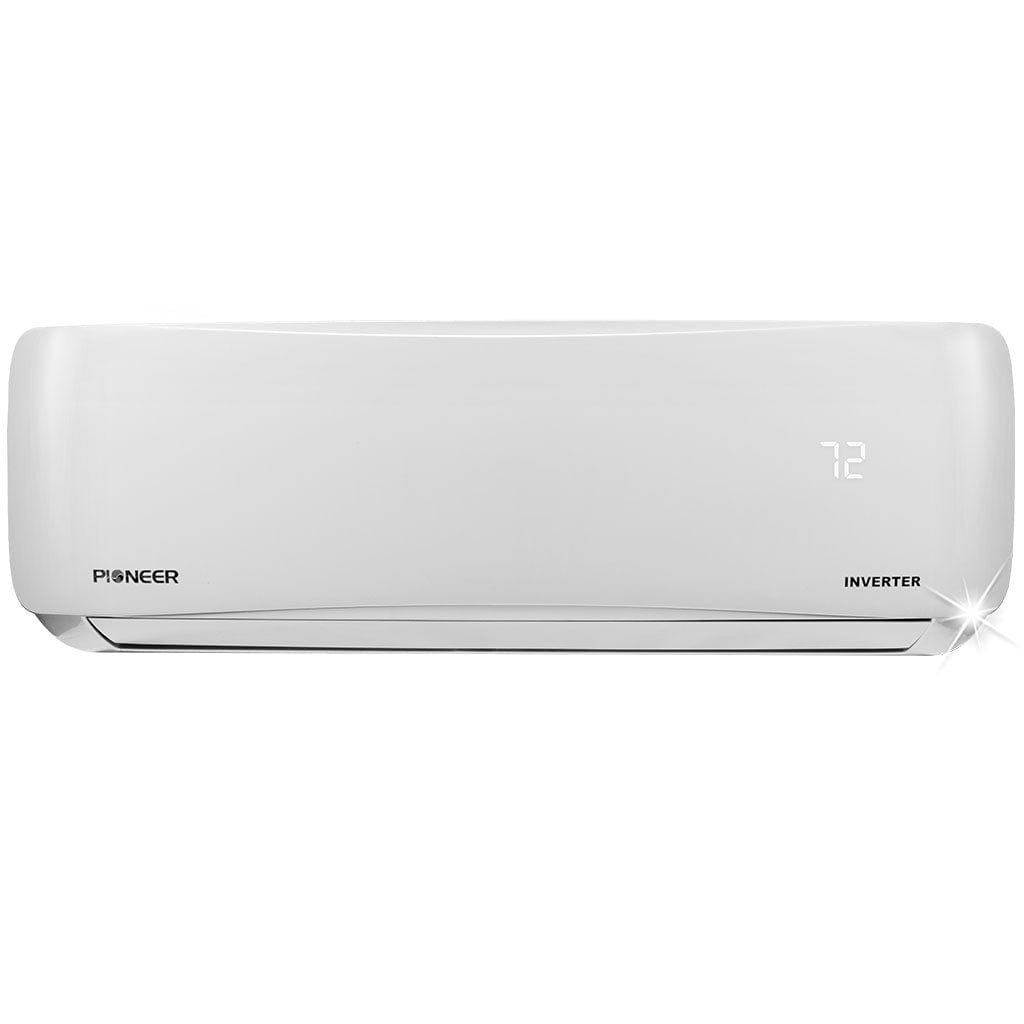

Indoor Unit Data
-
Model Number: WS009GMFI20HLD
-
Air Flow (Hi/Med/Lo): 259 / 193 / 136 CFM
-
Sound Level (Hi/Med/Lo): 40.5 / 30.5 / 24 dB(A)
-
Net Dimensions (WDH): 28.5 x 7.3 x 11.4 Inches
-
Carton Dimensions (WDH): 31.2 x 10.6 x 14.75 Inches
-
Net / Gross Weight: 17 / 22.3 lbs

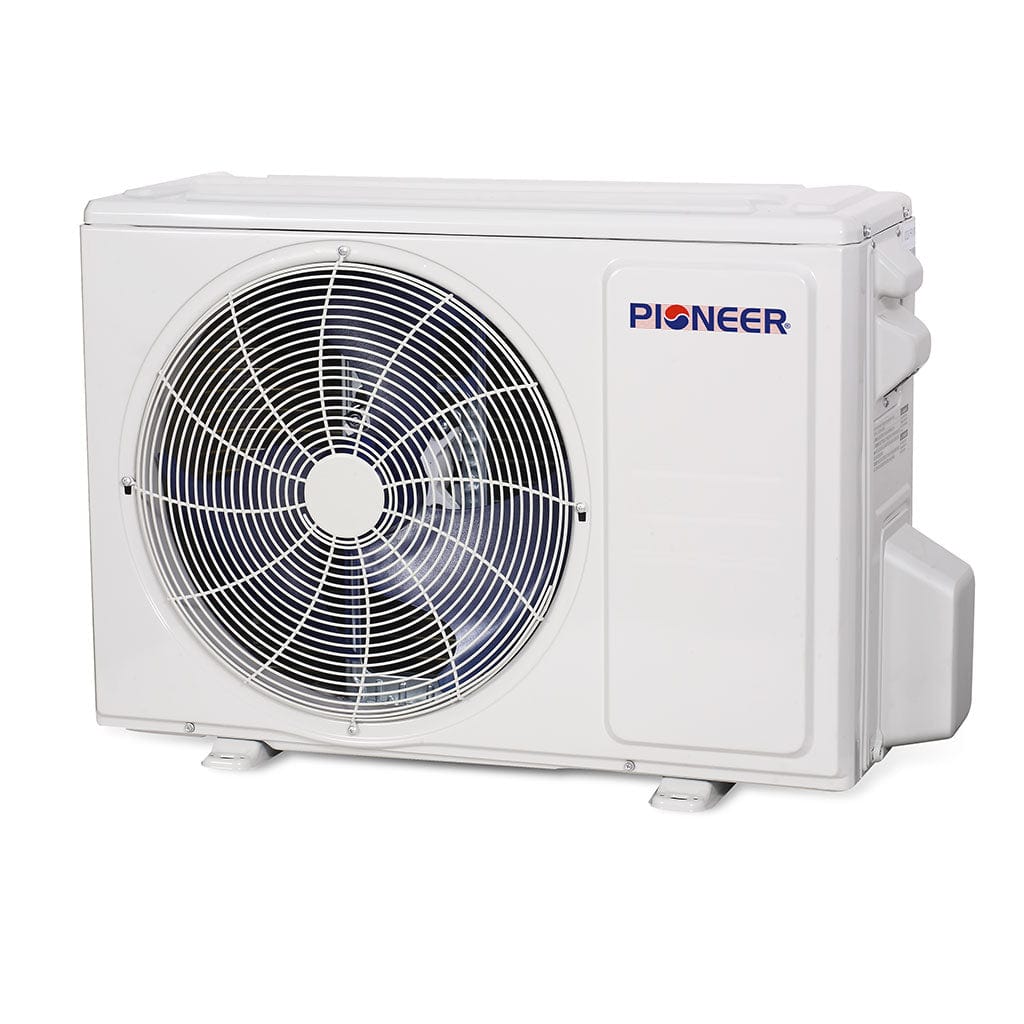

Outdoor Unit Data
-
Model Number: YN009GMFI20RPD
-
Sound Level: 53 dB(A)
-
Breaker Needed: 15A (double-pole)
-
Net Dimensions (WDH): 31.3 x 10.6 x 21.8 Inches
-
Carton Dimensions (WDH): 34.8 x 13.2 x 24 Inches
-
Net / Gross Weight: 55.1 / 60.9 lbs
Manuals & Downloads
Pioneer® 9,000 BTU 21.7 SEER2 Ductless
Mini-Split Inverter++ Energy-Star Air
Conditioner Heat Pump System Full
Set 230V
Summary
-
High-Efficiency Quantum Series Inverter+ ductless mini split heat pump system
- Cooling capacity: 9,000 BTU/H with 21.7 SEER2 / 12.6 EER2 efficiency
- Heating capacity: 10,000 BTU/H with 9.1 HSPF2 / 3.29 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
-
Customizable length copper line set with flare connections
-
Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $55.00
- Heating: $211.00

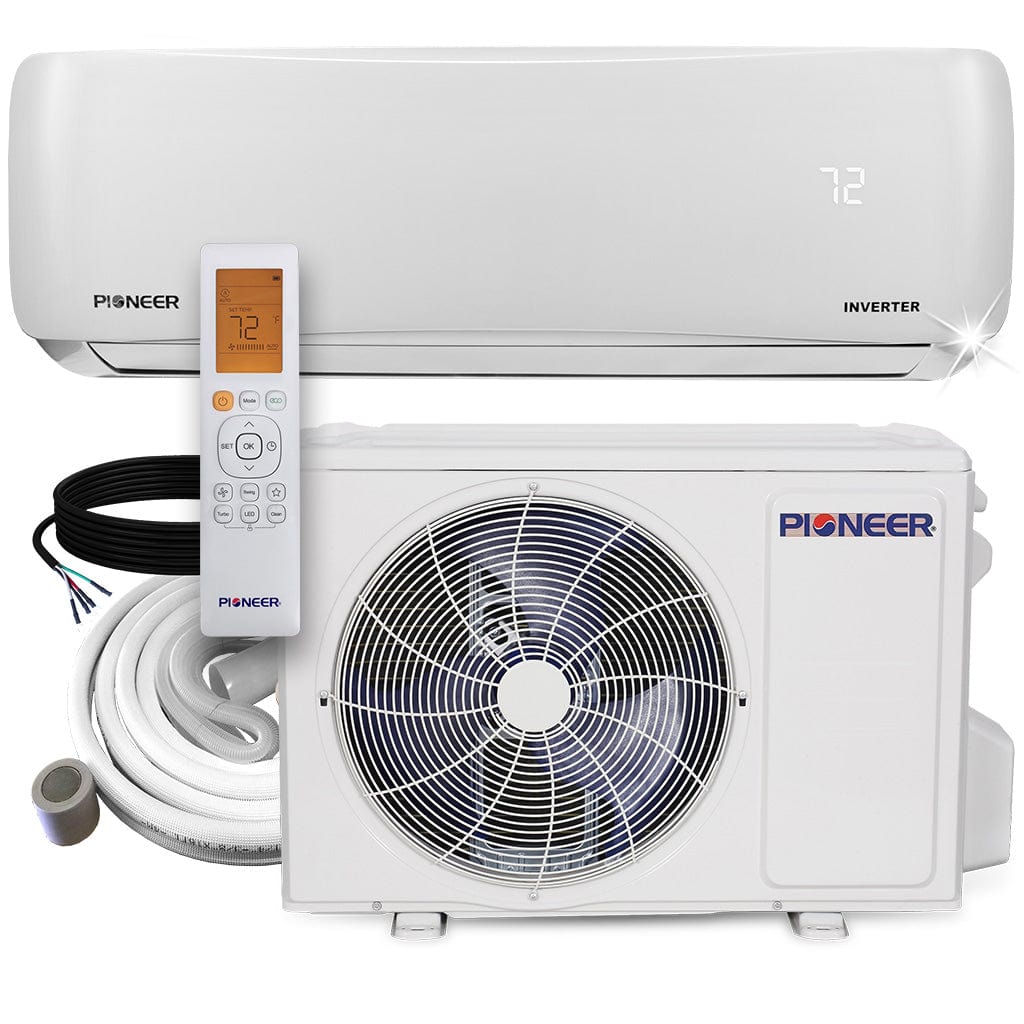

What's Included
- Indoor Unit
- Outdoor Unit

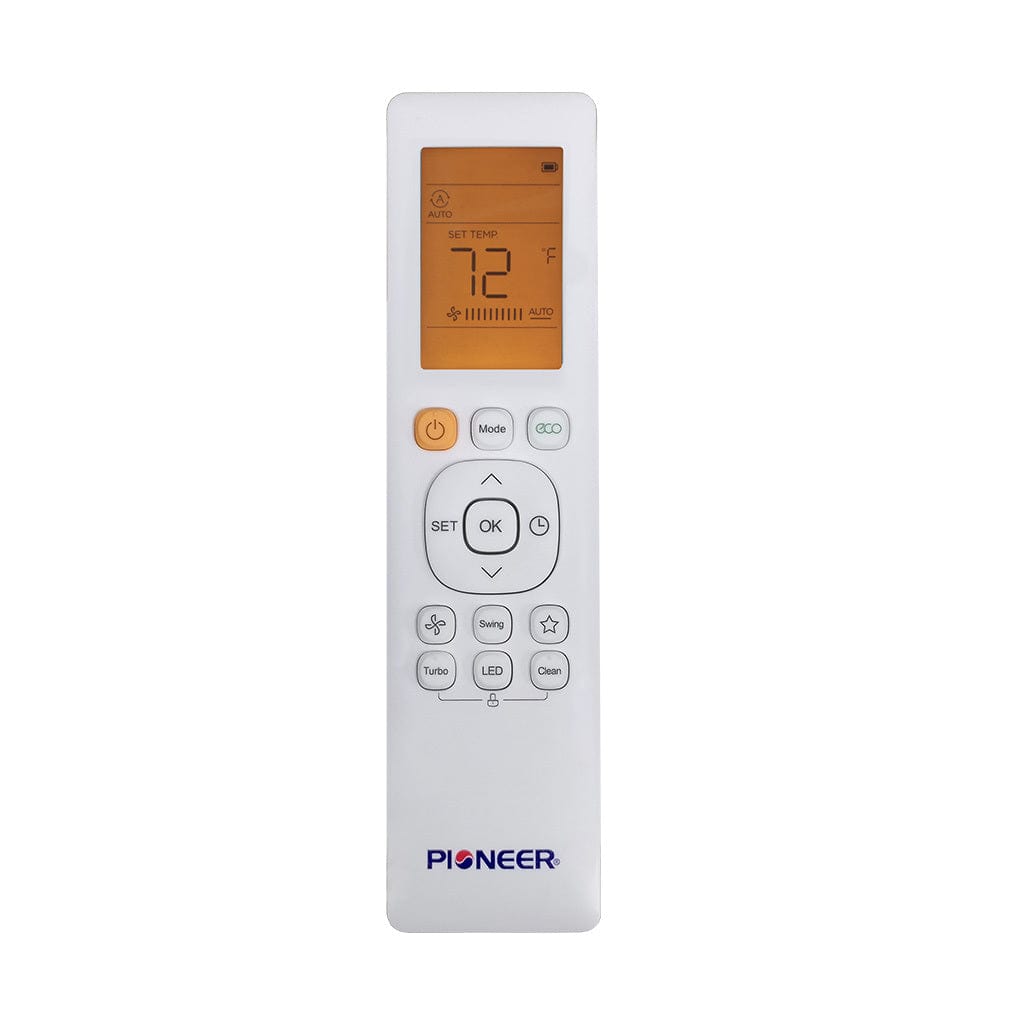

- Wireless Remote Control

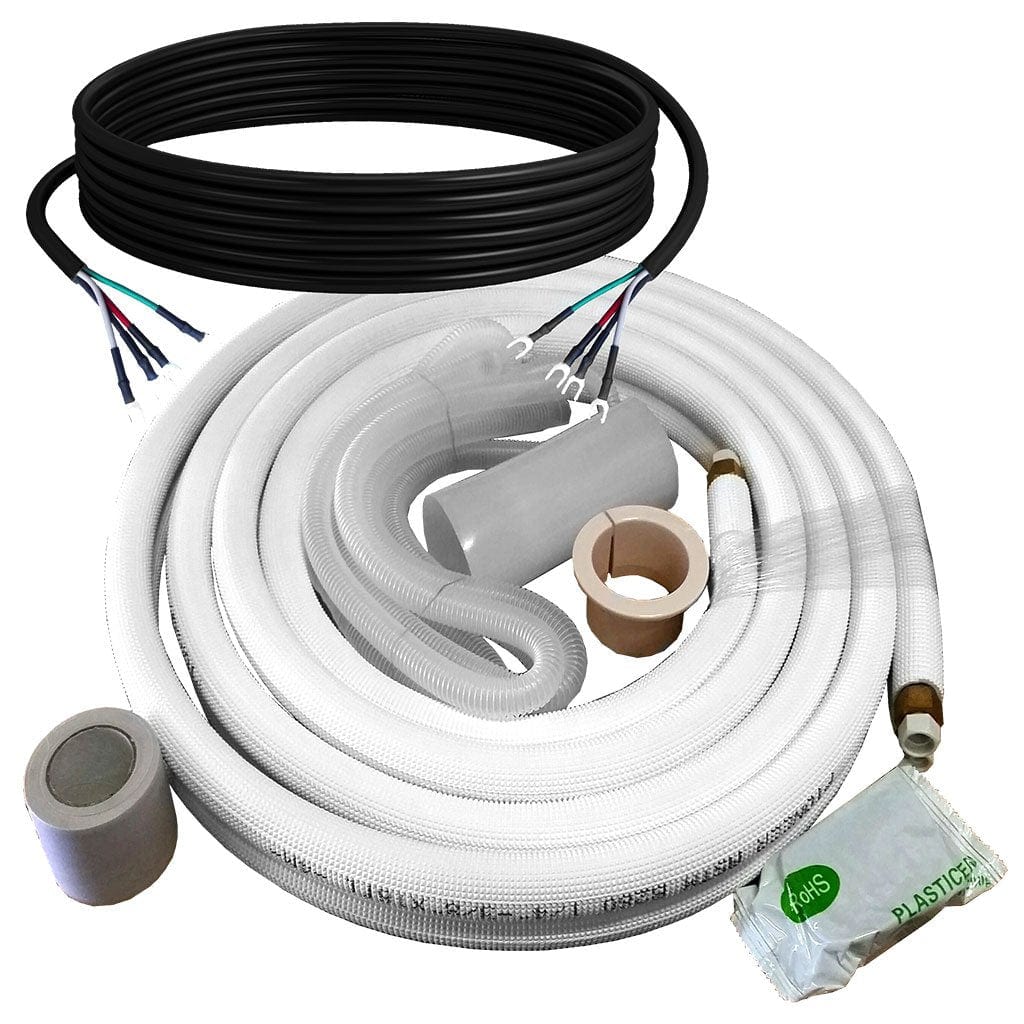

- Various Ductless Mini Split Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5-year parts limited warranty
- 5-year compressor limited warranty
