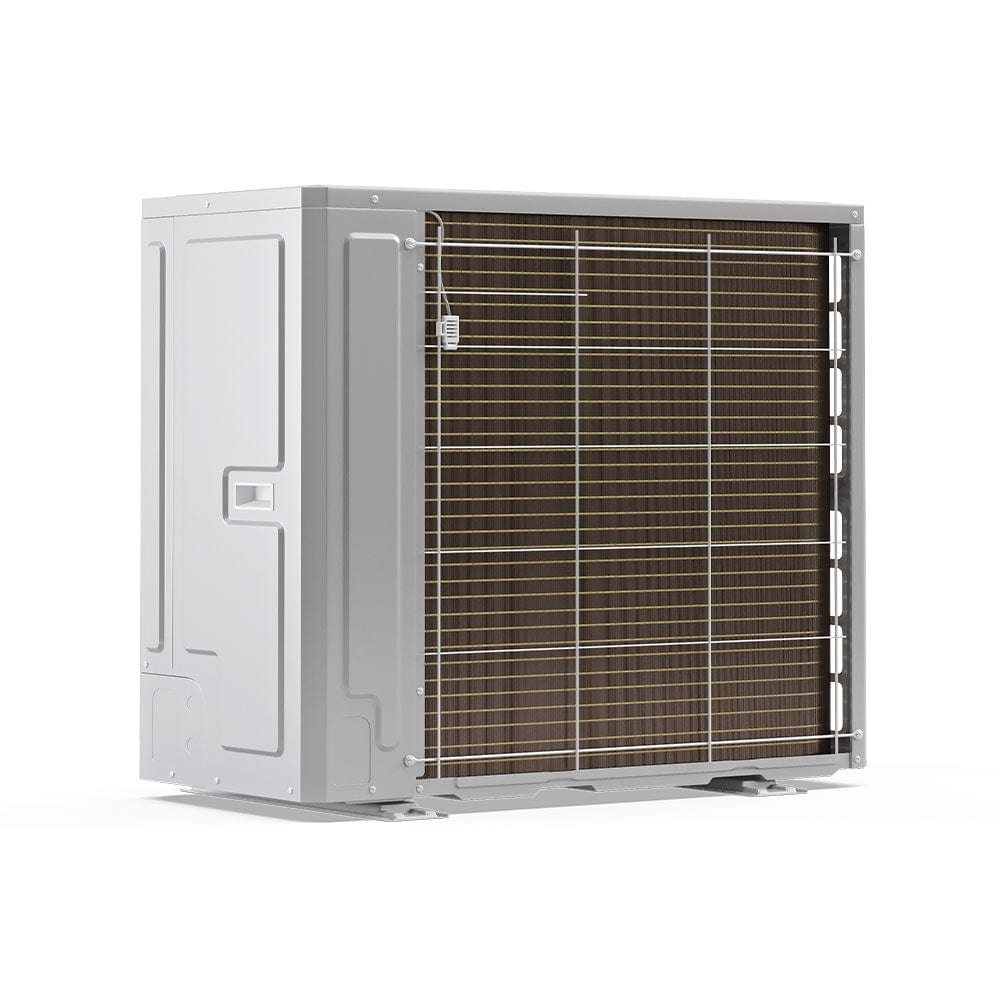

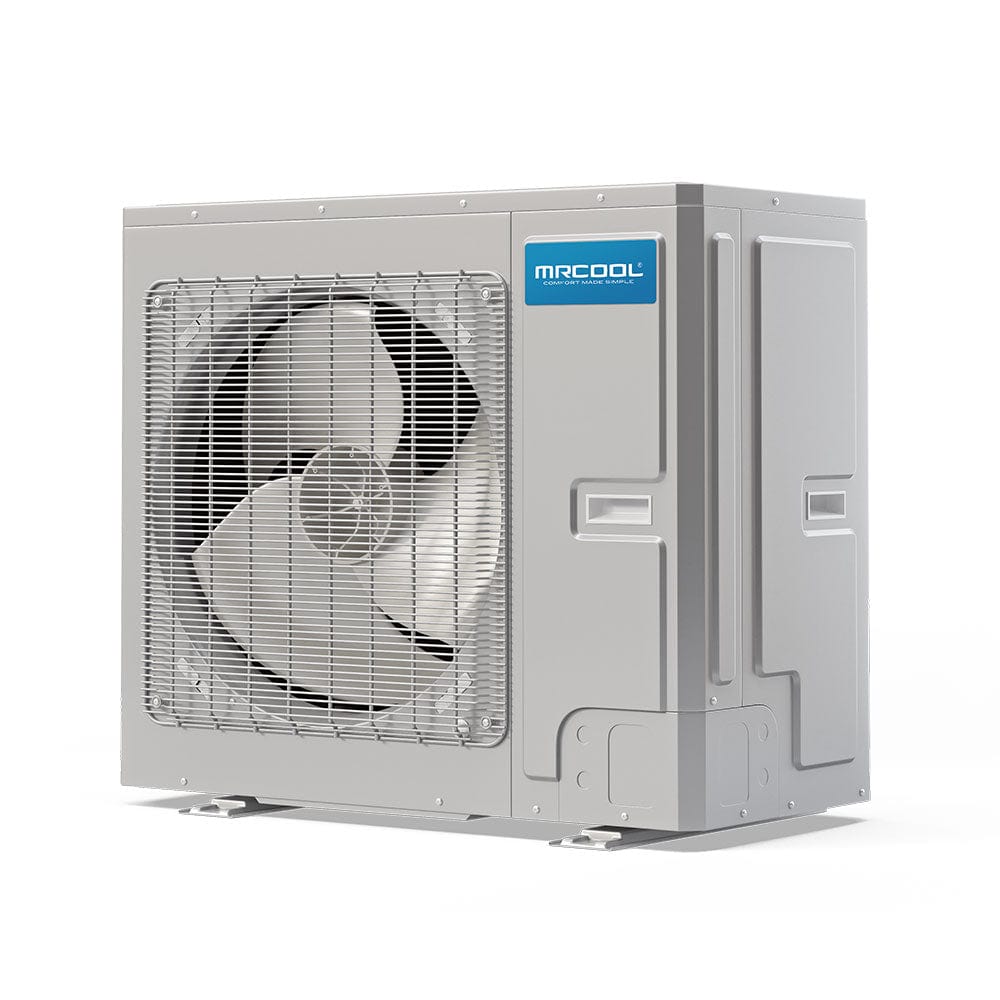

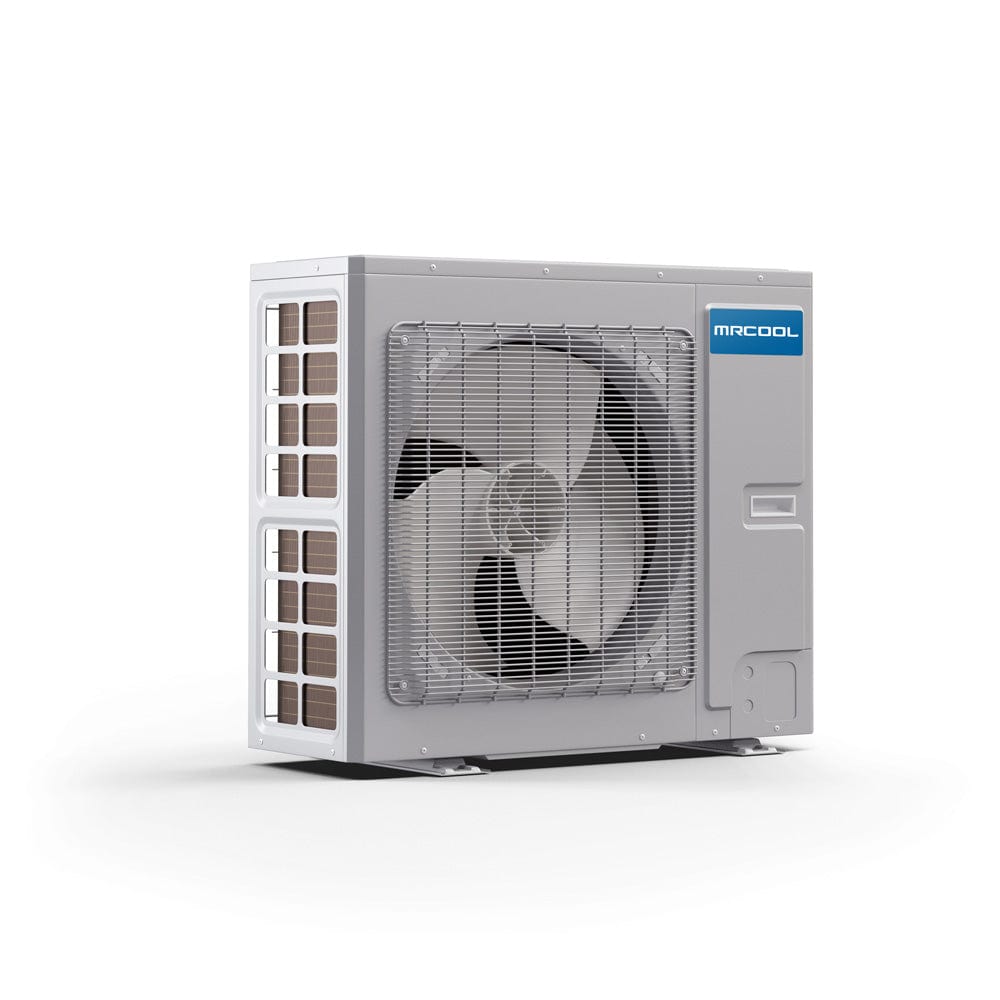

MRCOOL Universal Series 2 or 3 Ton DC Inverter Initary Cooling Only Condenser

Experience superior cooling efficiency with the MRCOOL Universal Series 2 or 3 Ton DC Inverter Cooling Only Condenser (MDUCO18024036). This unit is designed with versatility in mind, featuring a compact side-discharge design that makes it perfect for installations in limited spaces.

Installation is a breeze thanks to multiple connection options, including soldering, flared-screw connections, or the innovative MRCOOL No-Vac Quick-Connect Line Set, ideal for DIY enthusiasts looking to streamline the installation process. With built-in safeguards to monitor and protect the unit, you can enjoy peace of mind knowing that your system is designed for safe and smooth operation throughout its lifespan. Plus, with an impressive 20 SEER rating, this condenser ensures you stay cool without breaking the bank.

Key Features

Up to 20 SEER in 2 Ton Mode, Up to 18 SEER in 3 Ton Mode

Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest

Low Ambient Cooling Down to 39.2 Degrees F

Condensers Can Be Field Converted to smaller size using Dip Switch Setting

AHRI Certified & ETL listed

Slim Design

Quiet 55-58dB(a) Operation

Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion

Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection

10 Year Registered Limited Warranty

PRODUCT SPECIFICATIONS:

Product Dimensions

37"W x 18-1/8"D x 32-1/4"H

Product Weight

185.2 lbs

SEER

20 in 2 Ton Mode
18 in 3 Ton Mode

EER

12.5 in 2 Ton Mode
12.2 in 3 Ton mode

CFM

3,000 in 3 Ton Mode
34,70 in 4 Ton Mode

Tonnage

2-3 Ton

Cooling Capacity

24,000, 36,000 BTU

Electrical Requirements

Requires a minimum of 208V-230V/60HZ/24A-35A (please check your home meets this electrical requirement prior to purchase)

Phase

Cycle

60 Hz

Max Fuse Breaker

35 A

Min Circuit Ampacity

24 A

Color

Gray

Refrigerant Type

R-410A

Refrigerant Volume

118.24 oz

Decibel Rating

55-57 dBA

Liquid Line Size

3/8 in

Suction Line Size

3/4in

Certifications

ETL
AHRI

Warranty

10 Year Limited Warranty
