Specifications of MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM448HPW09C217:

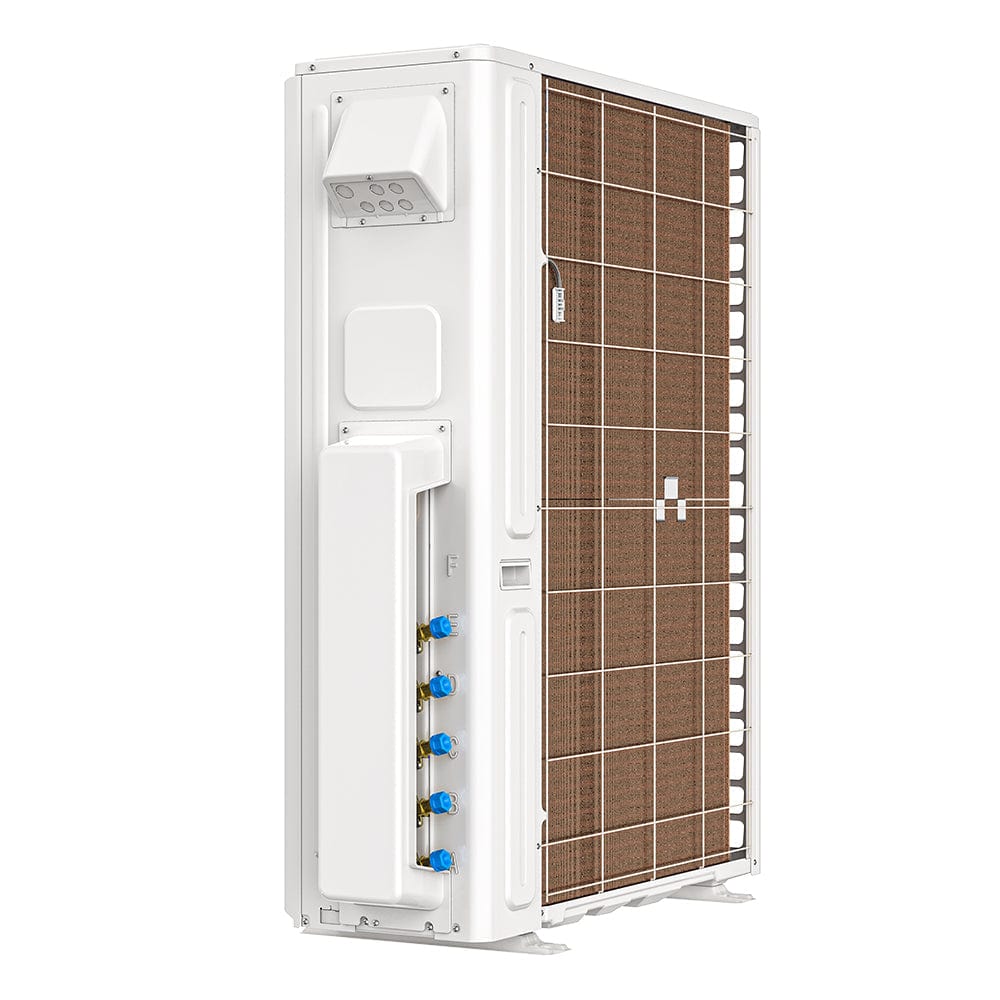

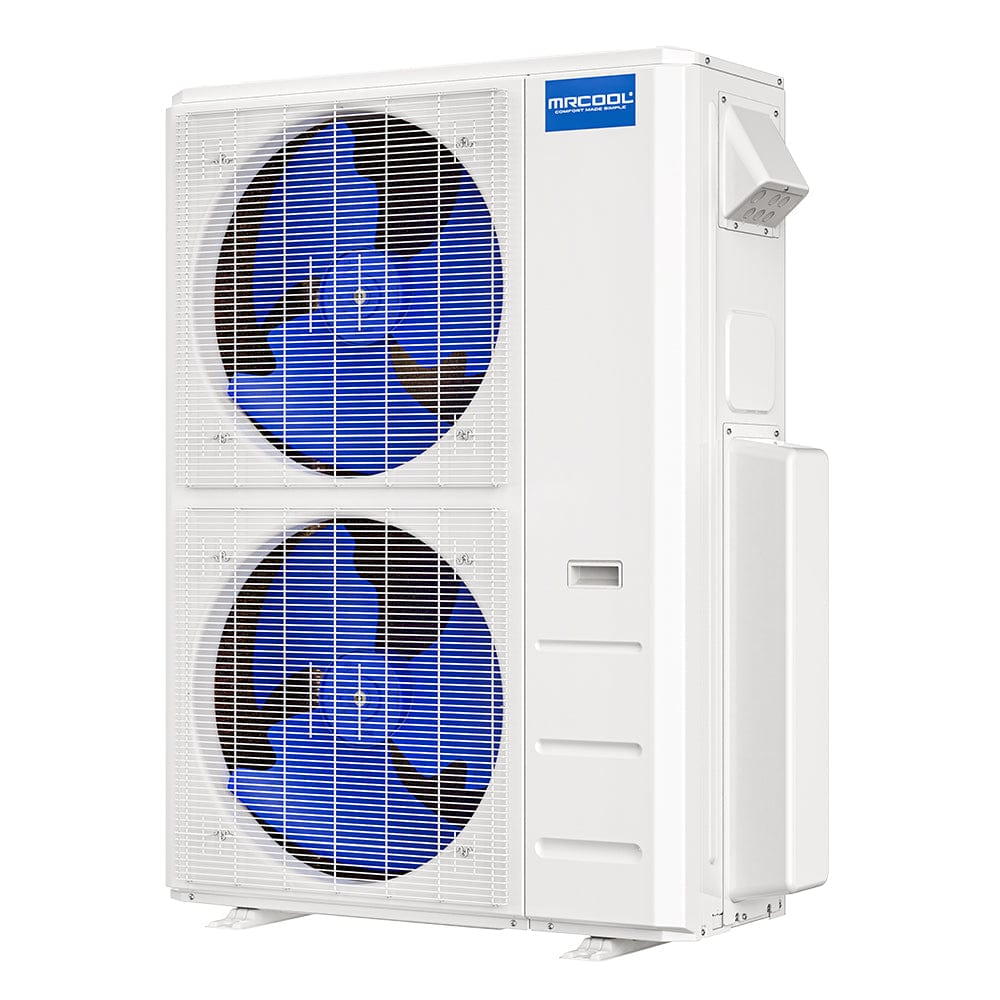

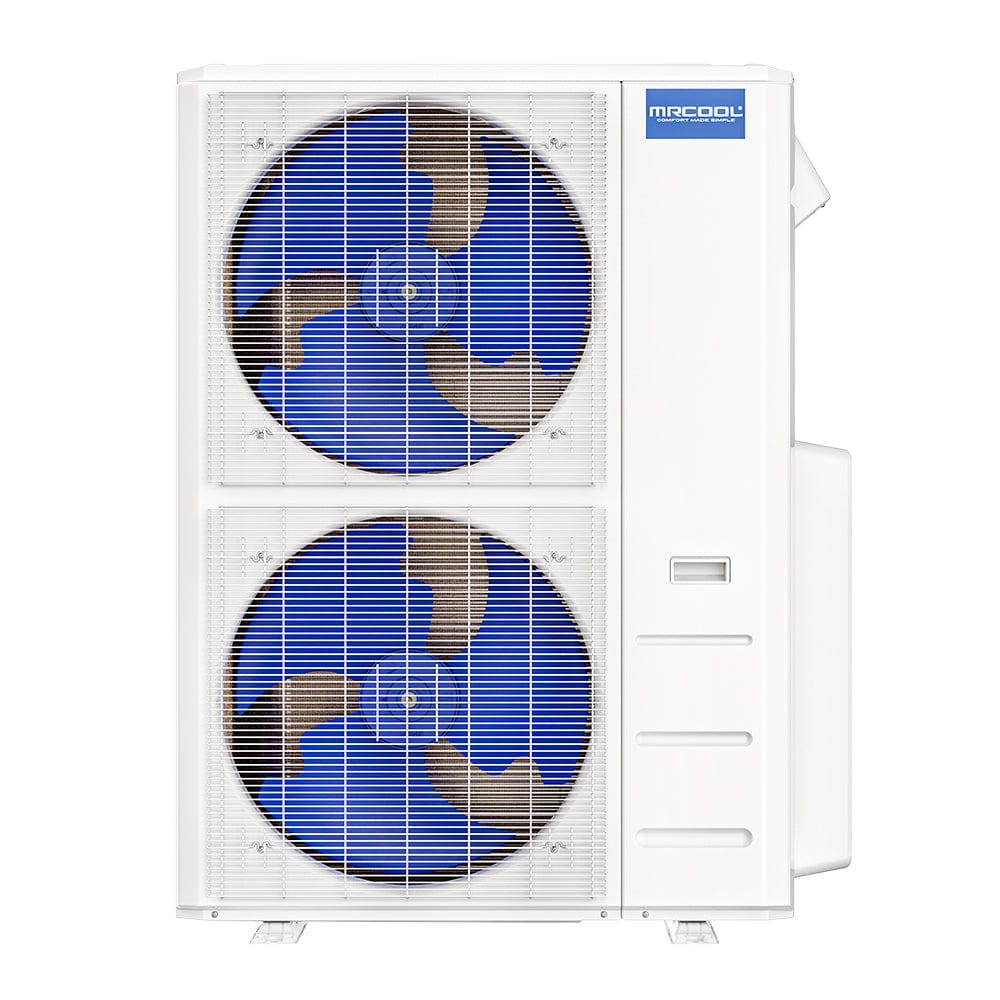

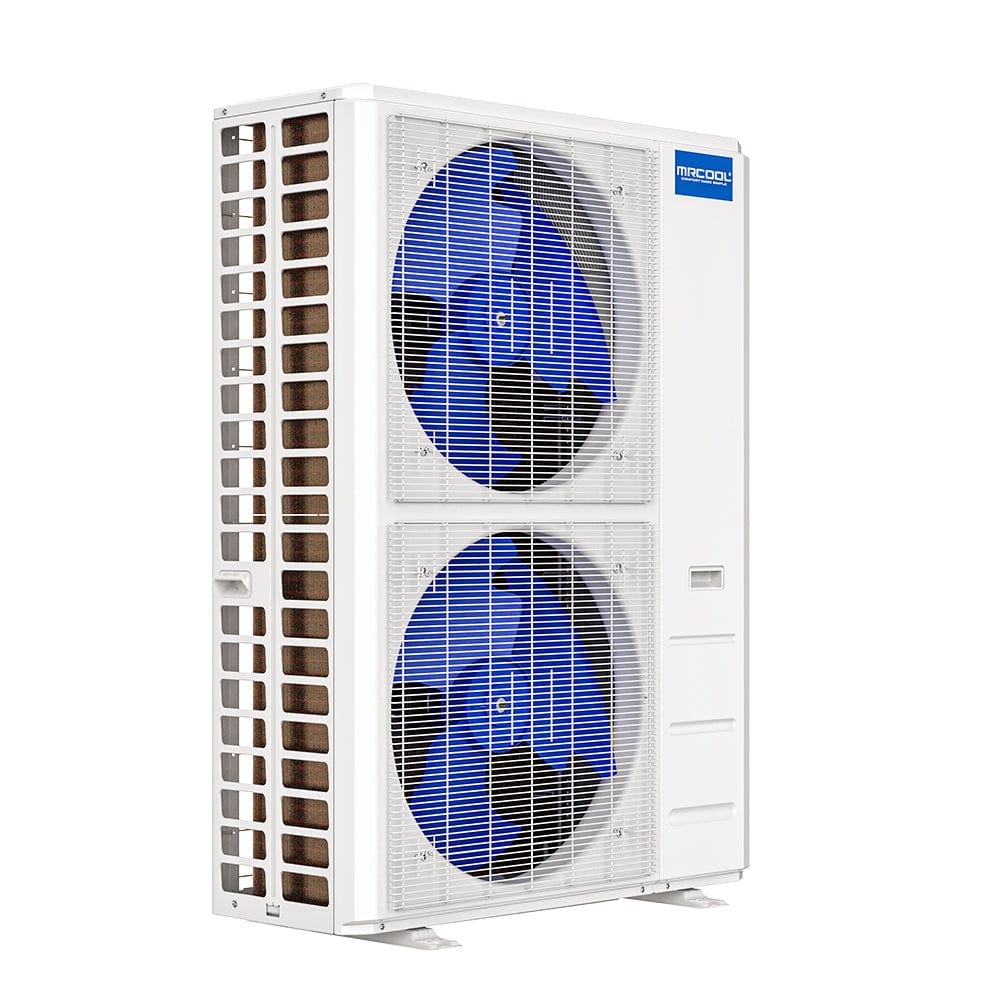

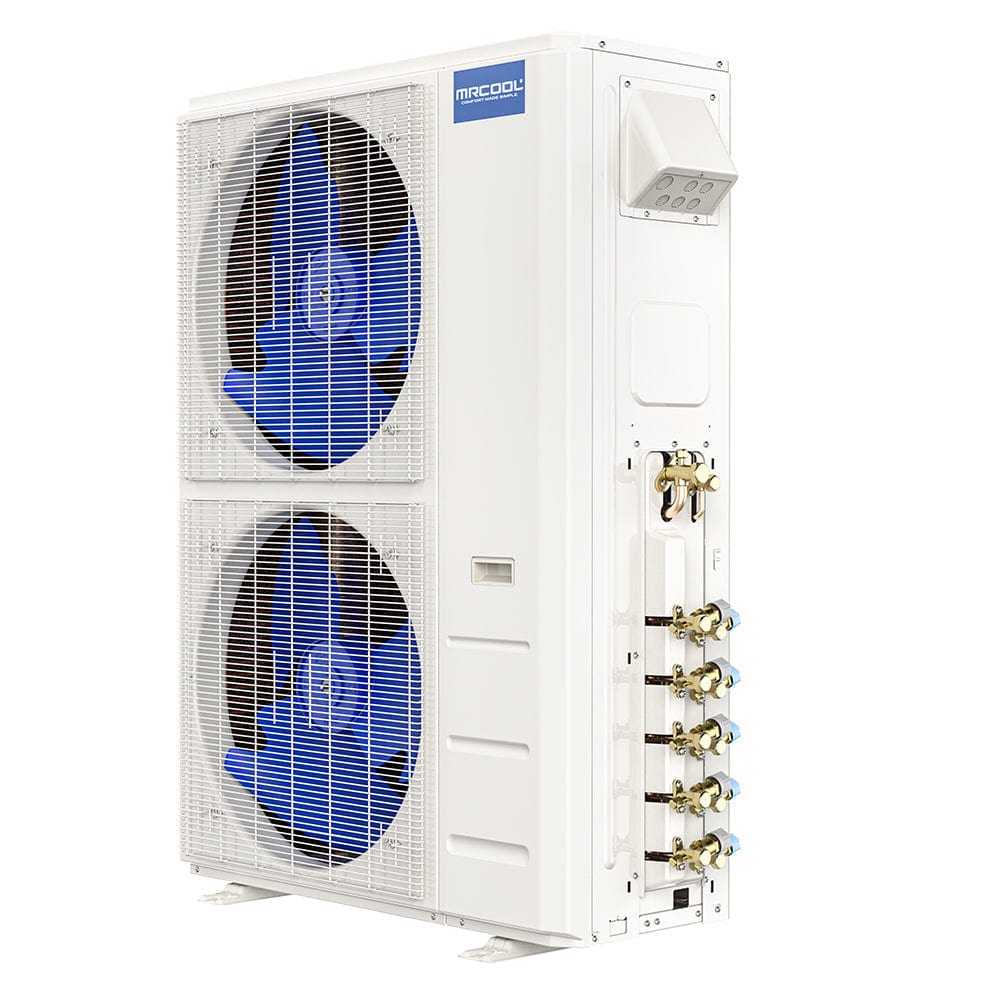

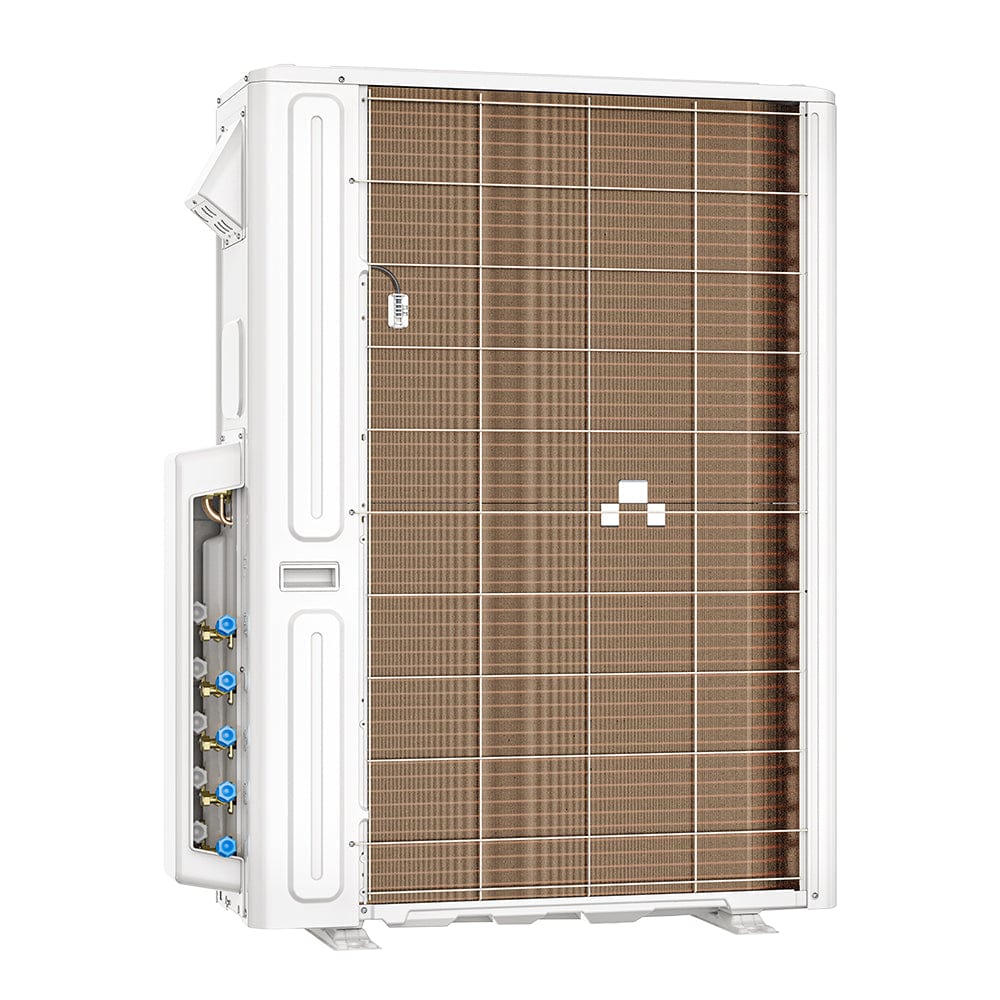

Condenser Specifications
Product Dimensions |
37.48"W x 16.34"D x 52.48"H
|
Cooling Capacity |
48,000 BTU |
Heating Capacity |
48,000 BTU |
Zone Capacity |
5 |
Min Ambient Cool |
5F ~ 122F |
Min Ambient Heat |
5F ~ 75.2F |
SEER |
20.5
|
EER |
11
|
Voltage |
Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
|
Registered Warranty
|
7 Years Replacement on Condenser, 5 Years Parts
|

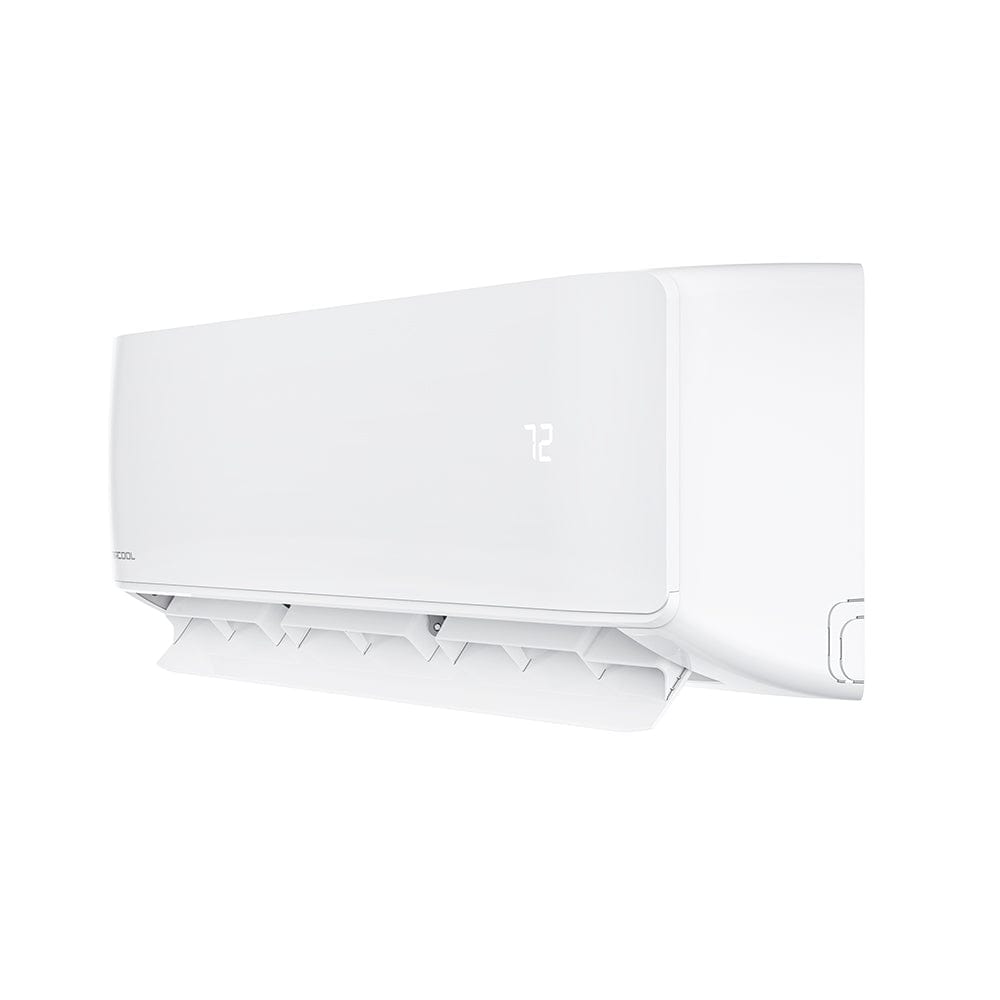

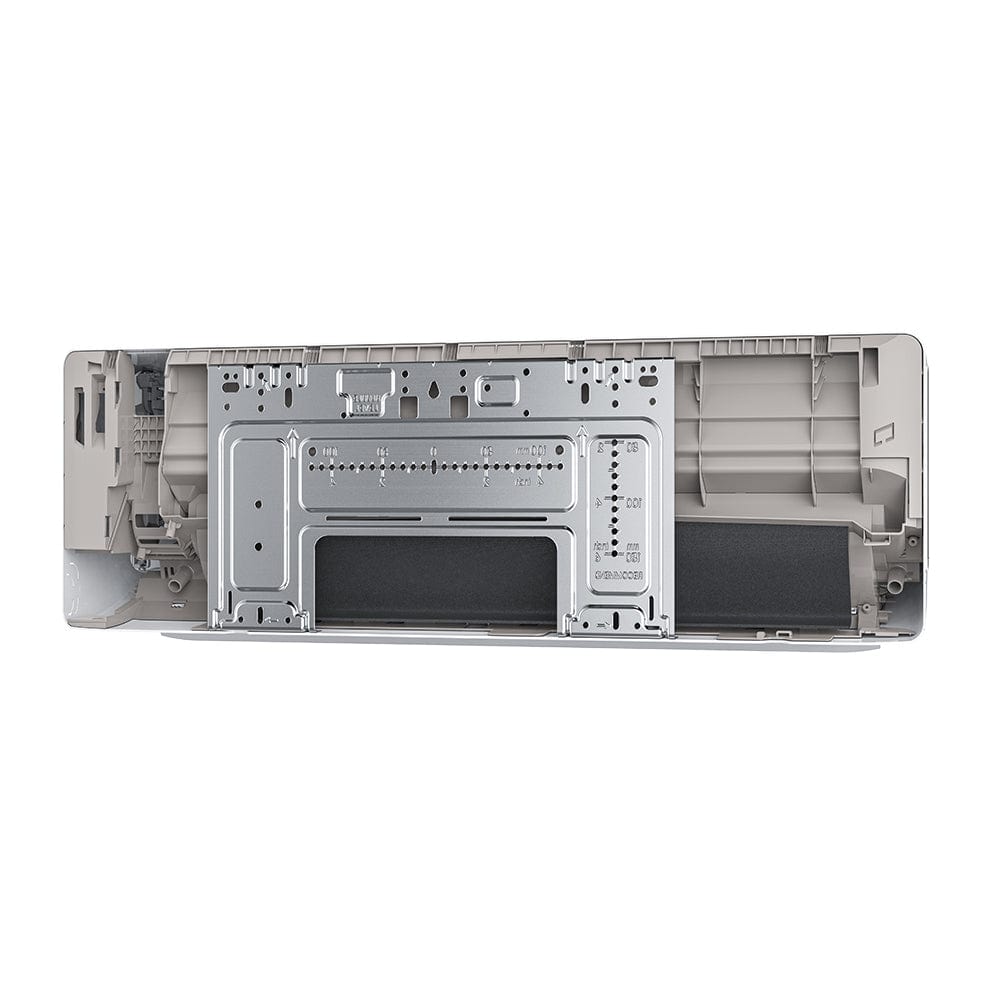

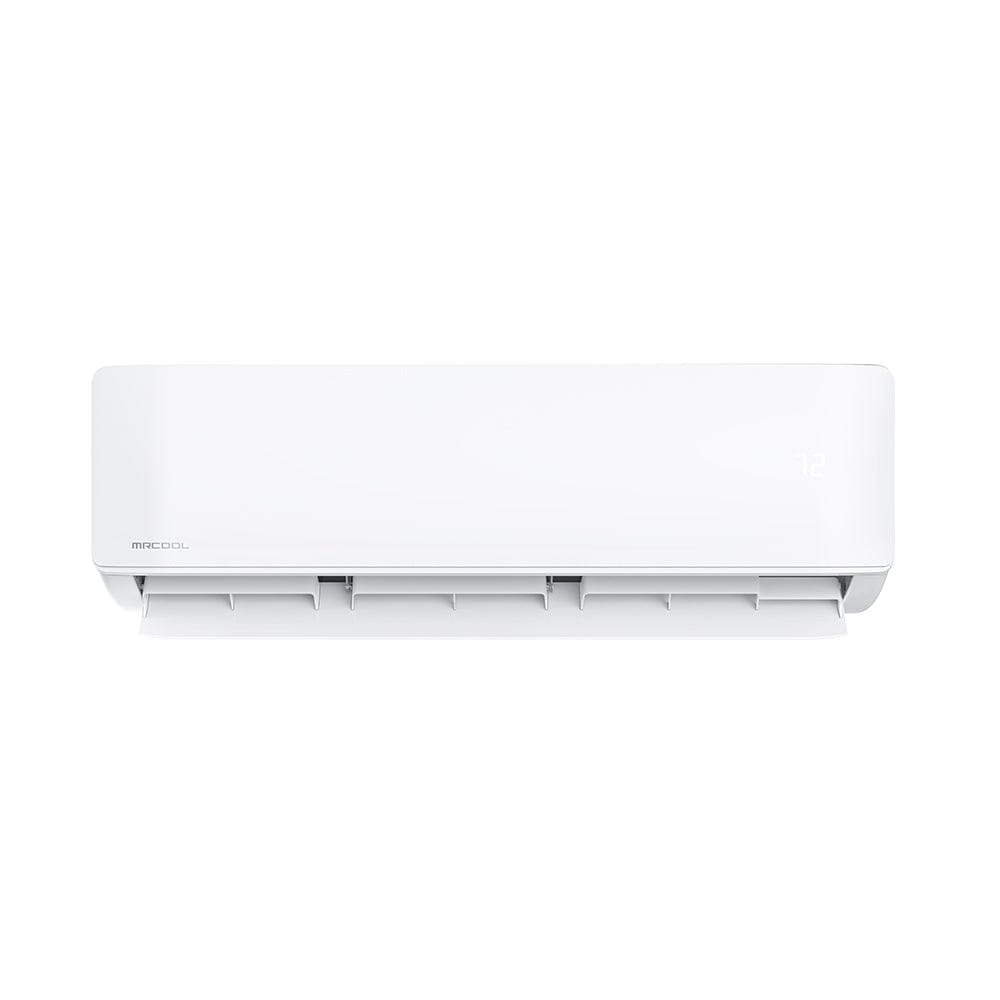

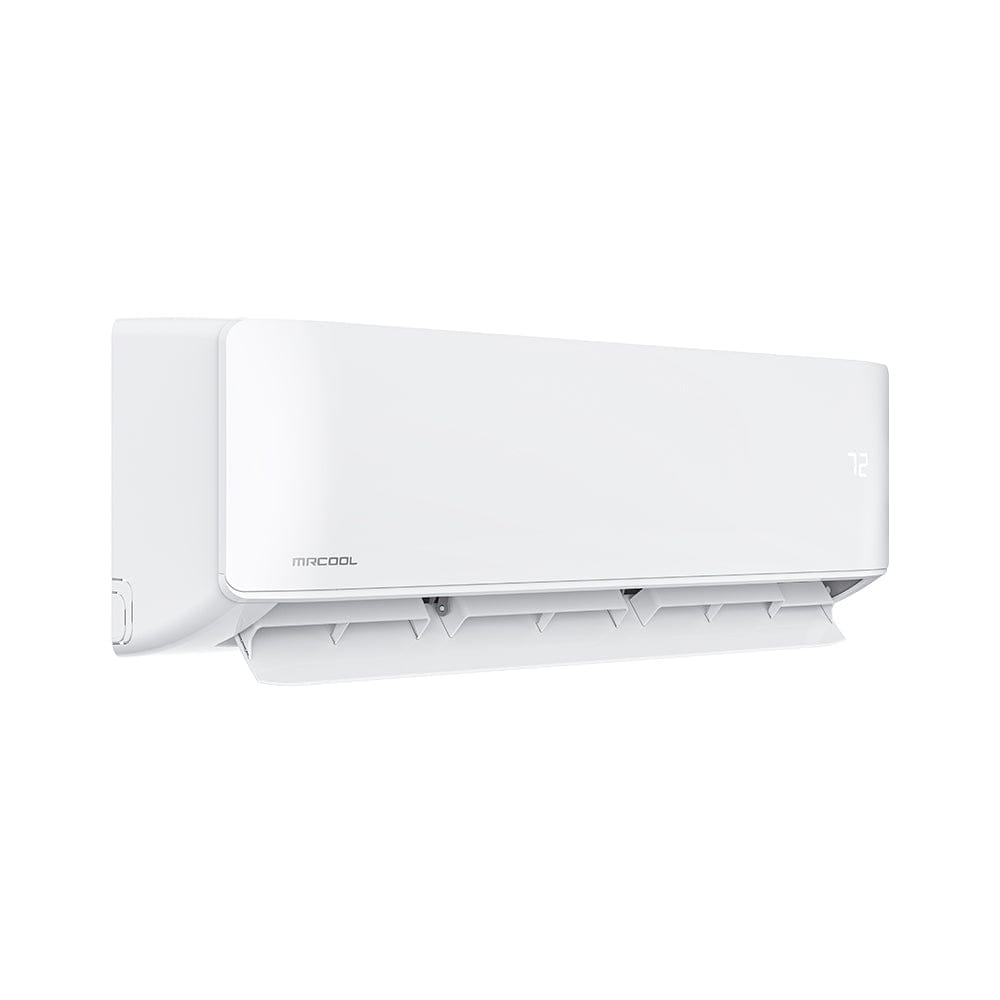

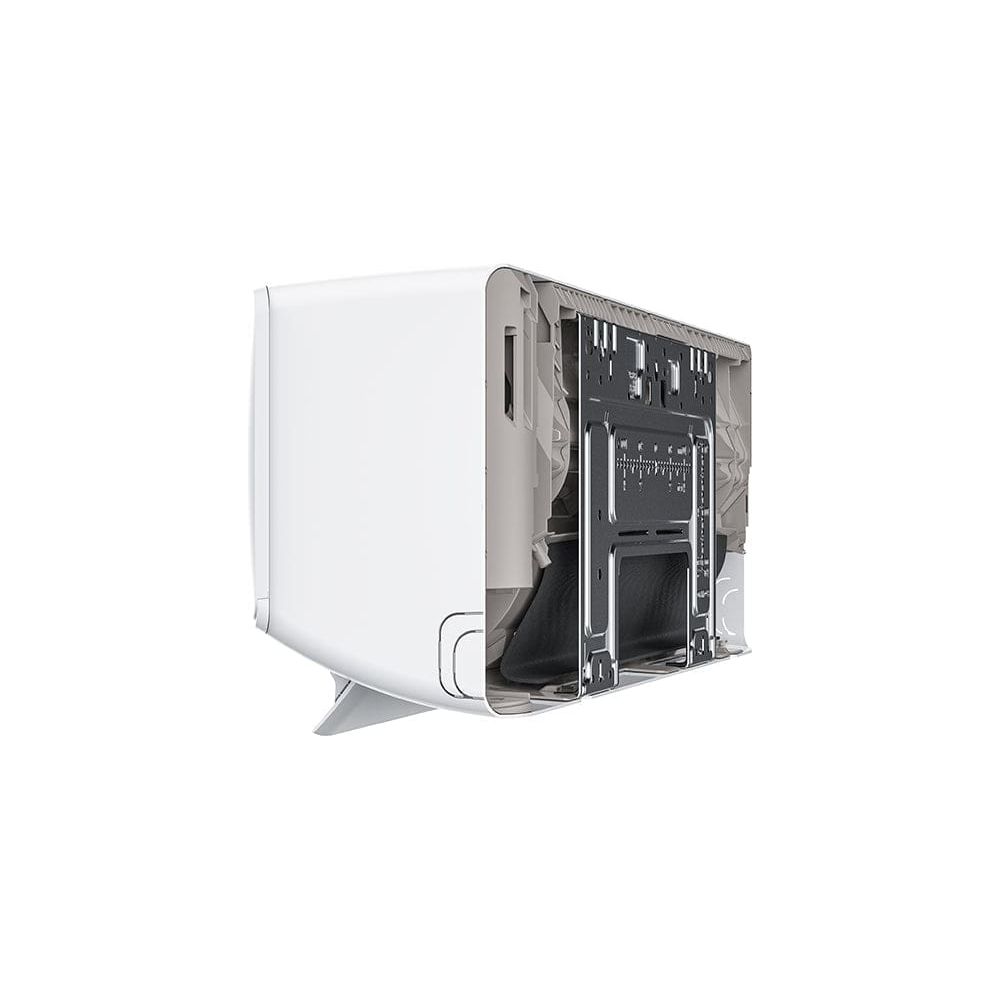

Air Handler 9K BTU
Product Dimensions |
31.57"W x 7.44"D x 11.69"H
|
Mount Type |
Wall |
Cooling Capacity |
9,000 BTU |
Heating Capacity |
9,000 BTU
|
Registered Warranty
|
5 Years Parts
|
Modes |
Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Air Handler 12K BTU
Product Dimensions |
31.57"W x 7.44"D x 11.69"H
|
Mount Type |
Wall |
Cooling Capacity |
12,000 BTU |
Heating Capacity |
12,000 BTU
|
Registered Warranty
|
5 Years Parts
|
Modes |
Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Air Handler 24K BTU
Product Dimensions |
42.52"W x 8.90"D x 13.19"H
|
Mount Type |
Wall |
Cooling Capacity |
23,000 BTU |
Heating Capacity |
25,000 BTU |
Registered Warranty |
5 Years Parts
|
Modes |
Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Line Set
Length |
35 Feet |
Liquid Line Size |
3/8" |
Suction Line Size |
5/8" |
Line Set
Length |
35 Feet |
Liquid Line Size |
1/4"
|
Suction Line Size |
1/2"
|
Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate

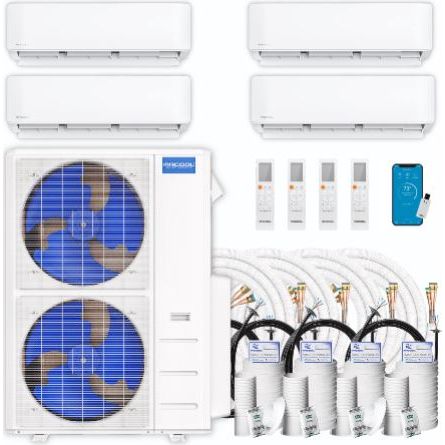

This 4th Generation MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM448HPW09C217 includes everything you need to cool and heat four different rooms. MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM448HPW09C217 be sent: DIY 48,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handler, one 12,000 BTU Wall Mounted Air Handler, one 24,000 BTU Wall Mounted Air Handler, four Remotes, and four 35 ft. Installation Kits. The best part about all of MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM448HPW09C217 is that you can install it yourself!
Package Includes
- MRCOOL DIY Multi Zone 5-Zone Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
-
MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x2)
- MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25
- MRCOOL DIY 4th Generation 24K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-24-HP-WMAH-230C25
- MRCOOL DIY 35ft 3/8 x 5/8 Lineset for DIY 24K, 36K Indoor, 4th Generation, DIY35-3858C
-
MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C (x3)
If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU rating of the Condenser.
Condenser
Air Handler, 9K BTU, Quantity 2
Air Handler, 12K BTU, Quantity 1
Air Handler, 24K BTU, Quantity 1
Line Set 35 ft., Quantity 4

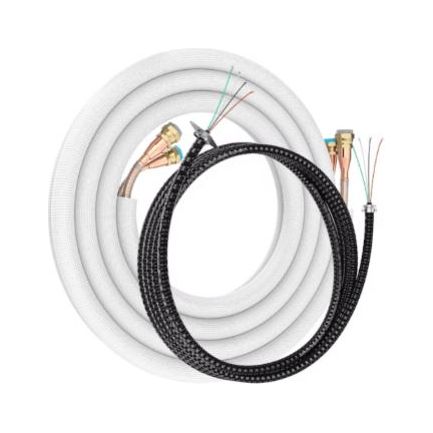

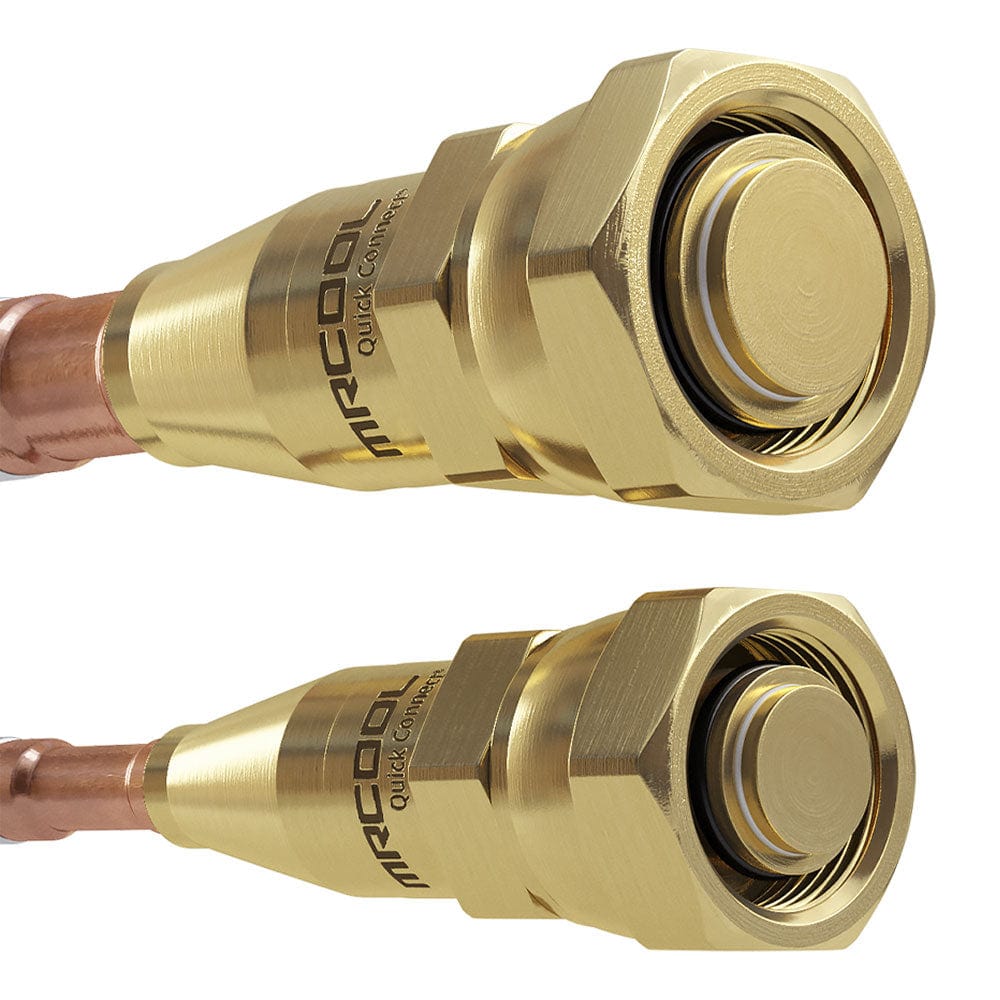

- This 35 ft. copper line set connects the MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM448HPW09C217 Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
- Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
