MRCOOL DIY Mini Split - 51,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump

 MRCOOL DIY Mini Split - 51,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump, DIY-B-548HP0909091212

Enhance your home’s comfort with the MRCOOL DIY Mini Split - 51,000 BTU 5 Zone Ductless Air Conditioner and Heat Pump, DIY-B-548HP0909091212. Imagine easily managing the temperature in five distinct spaces, giving your family the personalized comfort they desire all year round. This innovative system not only offers high energy efficiency but also features the convenience of DIY installation, making it the perfect solution for modern living.

This fourth-generation MRCOOL Mini Split comes equipped with a powerful DIY 51,000 BTU Multi-Zone Condenser, alongside three 9,000 BTU Wall Mounted Air Handlers and two 12,000 BTU Wall Mounted Air Handlers. Each component is designed to deliver outstanding heating and cooling performance, tailored specifically for each room. With five included remotes, adjusting the climate in your home is as simple as a click. Best of all, you can install the entire system yourself, saving both time and money.

With the MRCOOL DIY Mini Split, you have total control over your home's climate with ease and confidence. The straightforward installation instructions make it simple for you to set up and operate this cutting-edge heating and cooling solution. Don’t miss out on the chance to elevate your home’s comfort and energy efficiency—experience the benefits of this innovative system today!

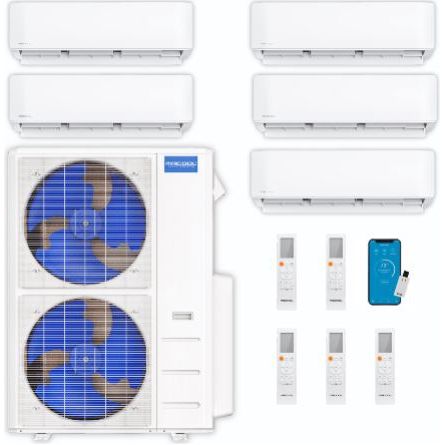

Package Includes

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU rating of the Condenser.

This package does not include linesets, don't forgot to scroll up and add them!

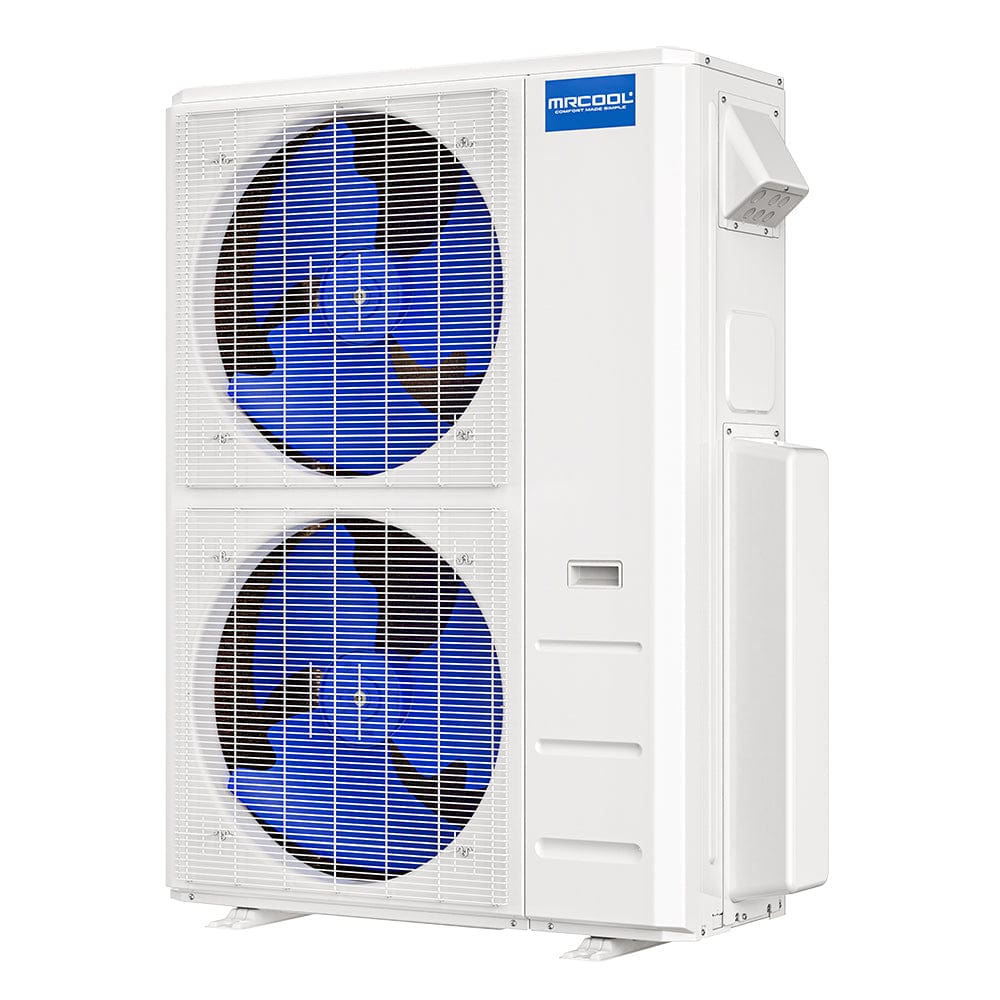

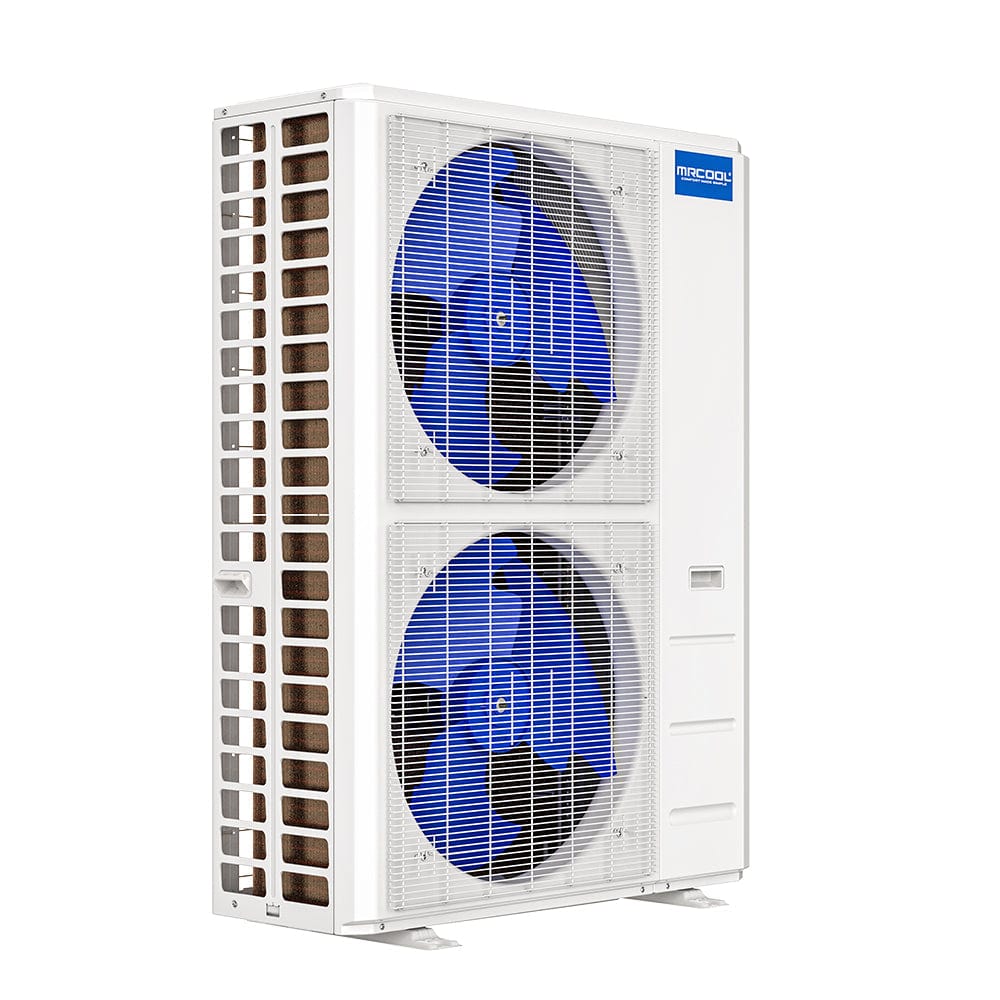

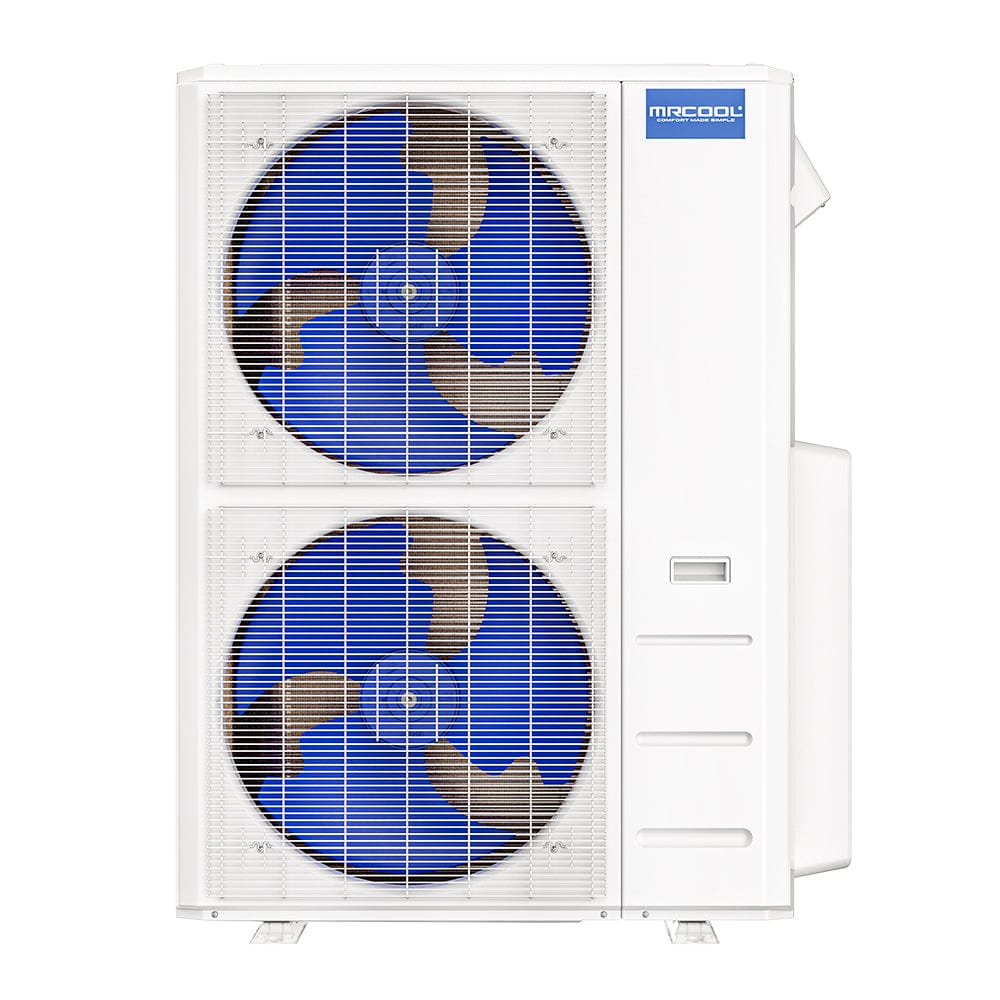

Condenser
  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive
  • 20.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to 5°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

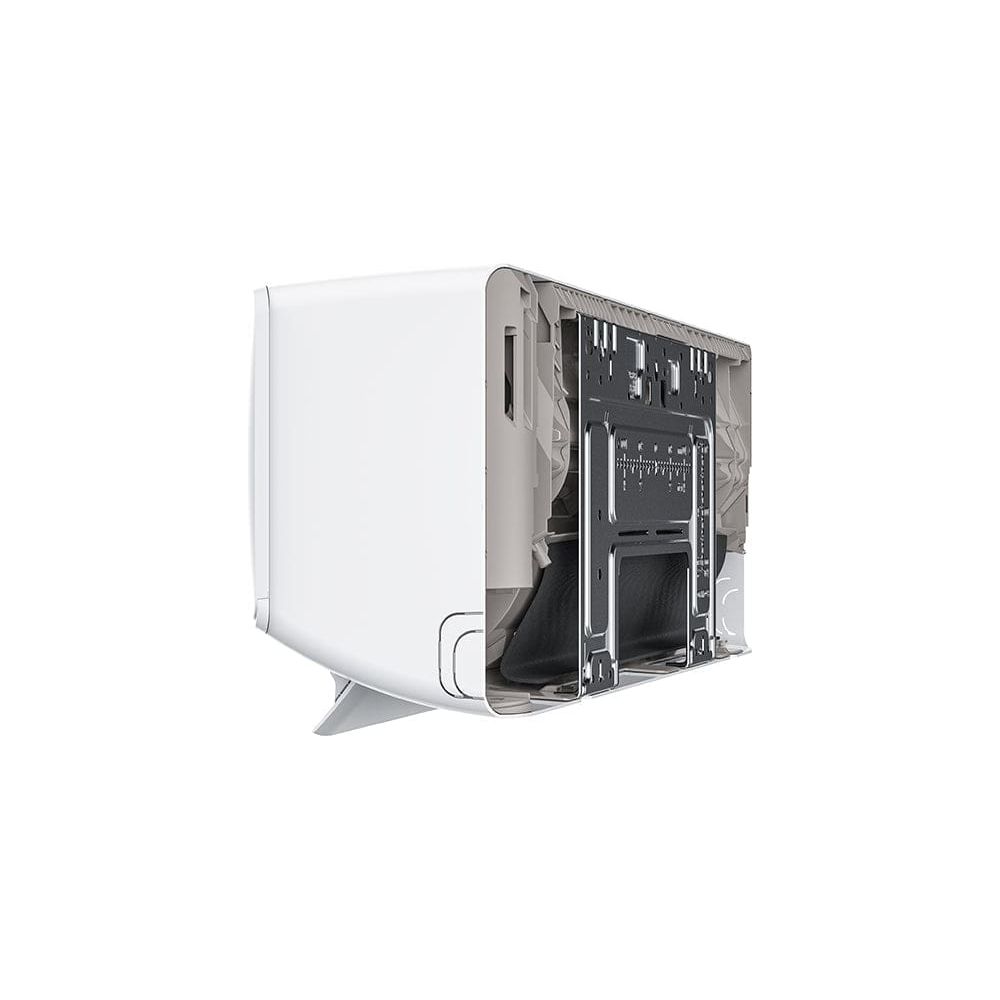

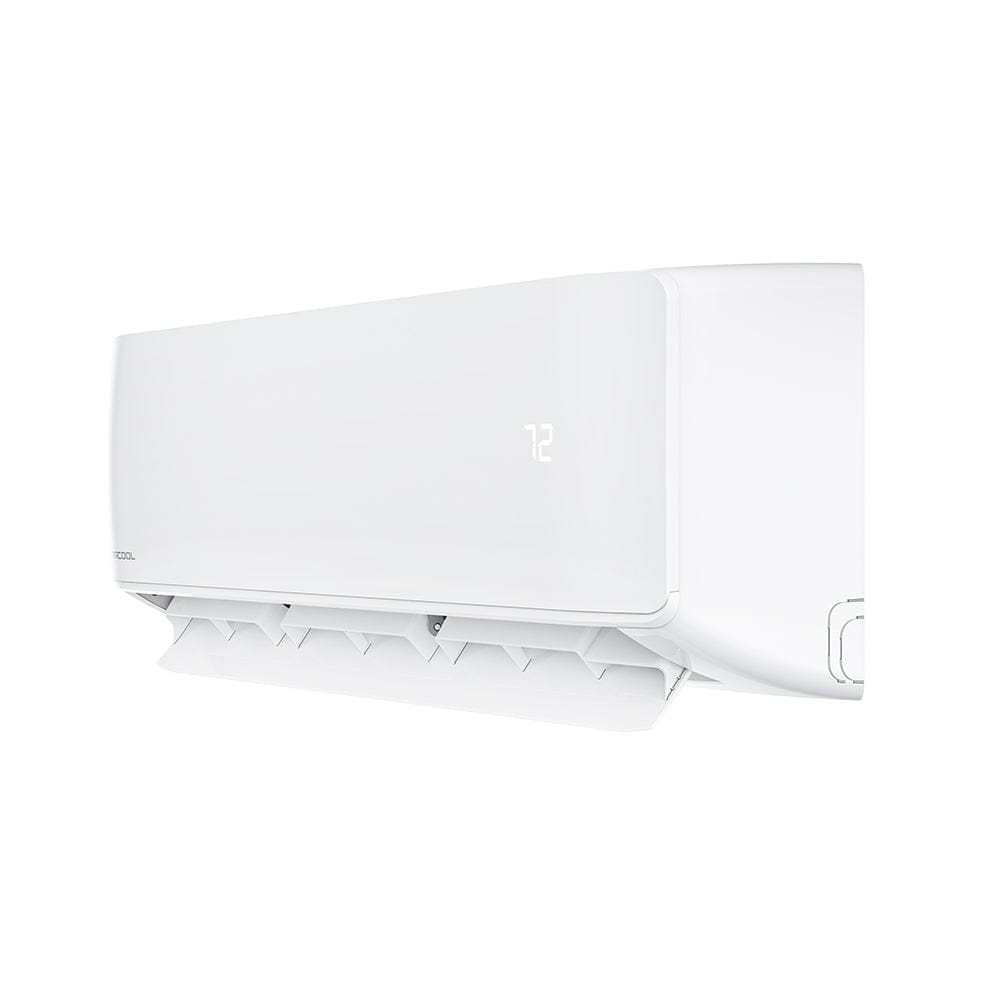

    Air Handler, 9K BTU, Quantity 3

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

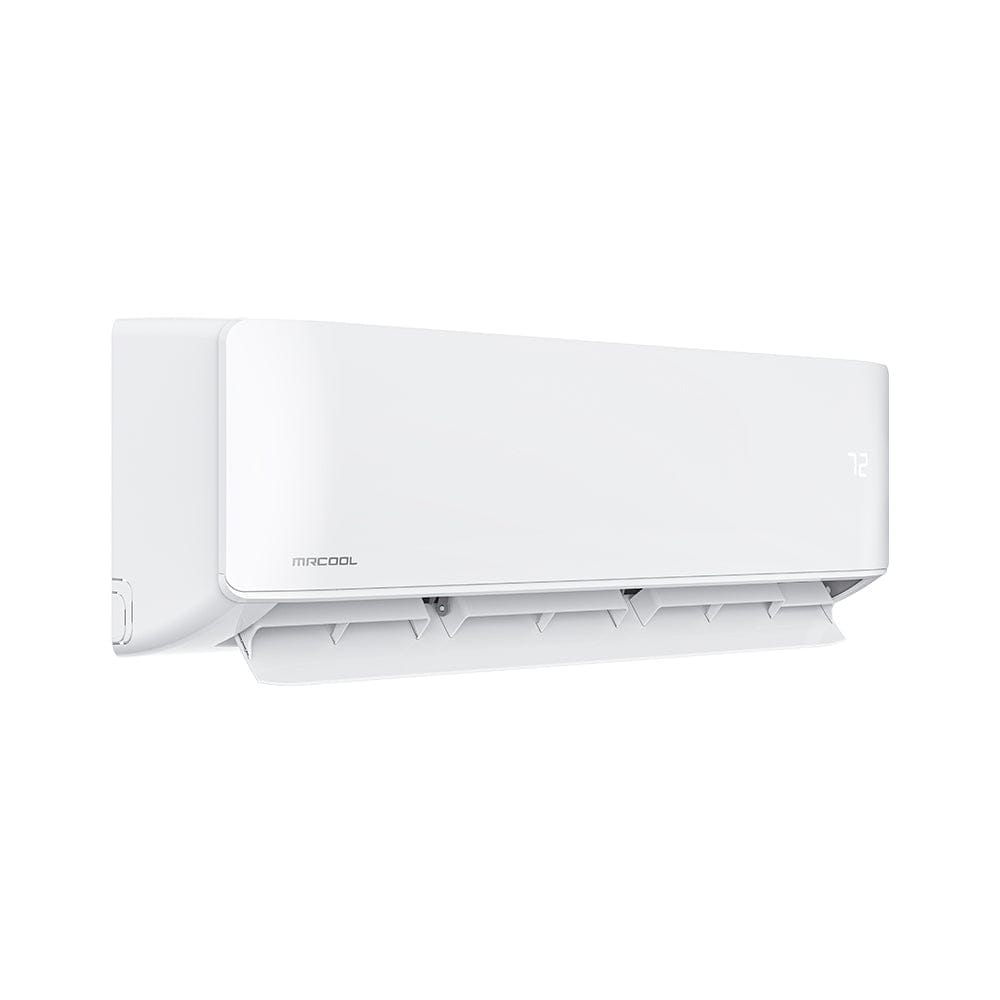

    Air Handler, 12K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.



          PRODUCT SPECIFICATIONS:
          Condenser

          Product Dimensions
          37.48"W x 16.34"D x 52.48"H
          Cooling Capacity
          48,000 BTU
          Heating Capacity
          48,000 BTU
          Zone Capacity 5
          Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
          Heat Mode - Outdoor Operating Temperature Range 5F ~ 75.2F
          SEER
          20.5
          EER
          11
          Voltage
          Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
          Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


          Air Handler 9K BTU

          Product Dimensions
          31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity
          9,000 BTU
          Heating Capacity
          9,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Air Handler 12K BTU

          Product Dimensions
          31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity
          12,000 BTU
          Heating Capacity
          12,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep
          Installation Manual
          Product Brochure
          Performance Specifications
          Warranty
          Energy Guide
          AHRI Certificate

          Free Express Shipping on All orders within the USA

          Read Our Shipping Policy Here

          30 Day Free Returns on all orders

          Read about our Returns Policy Here

          Request A Quote
