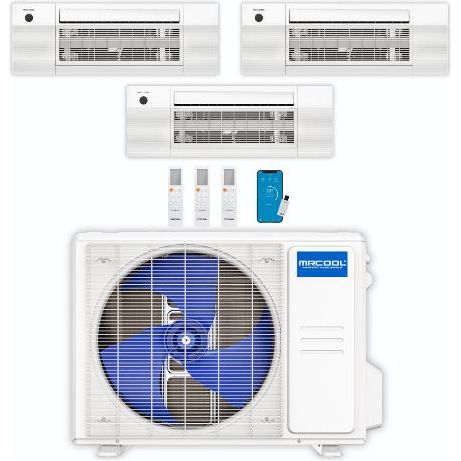

MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump

MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-327HP090912 COMPLETE SET

MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump provides customizable, energy-efficient heating and cooling for your home. This 4th-generation system includes a 27,000 BTU multi-zone condenser that powers three ceiling cassette air handlers—two at 9,000 BTU and one at 12,000 BTU—allowing you to set personalized comfort across three zones. Each zone comes with a remote, so you can control temperatures independently in different rooms without the need for professional installation.

The MRCOOL DIY Mini Split is engineered for easy, do-it-yourself setup, saving you money and offering flexibility. Its multi-zone capabilities and individual air handlers enable efficient, targeted heating and cooling, ensuring each room or zone is comfortable year-round. With a streamlined, modern design and quiet operation, this system blends effortlessly into any space, providing optimal comfort without disruption.

Equipped with convenient remote control access and MRCOOL’s advanced ductless technology, this mini split system is ideal for homeowners looking to upgrade their comfort. Enjoy powerful, hassle-free climate control with MRCOOL DIY Mini Split, designed to suit your home’s unique needs while providing energy savings and reliability.
Package Includes

This package does not include linesets, don't forgot to scroll up and add them!

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 27K BTU rating of the Condenser.

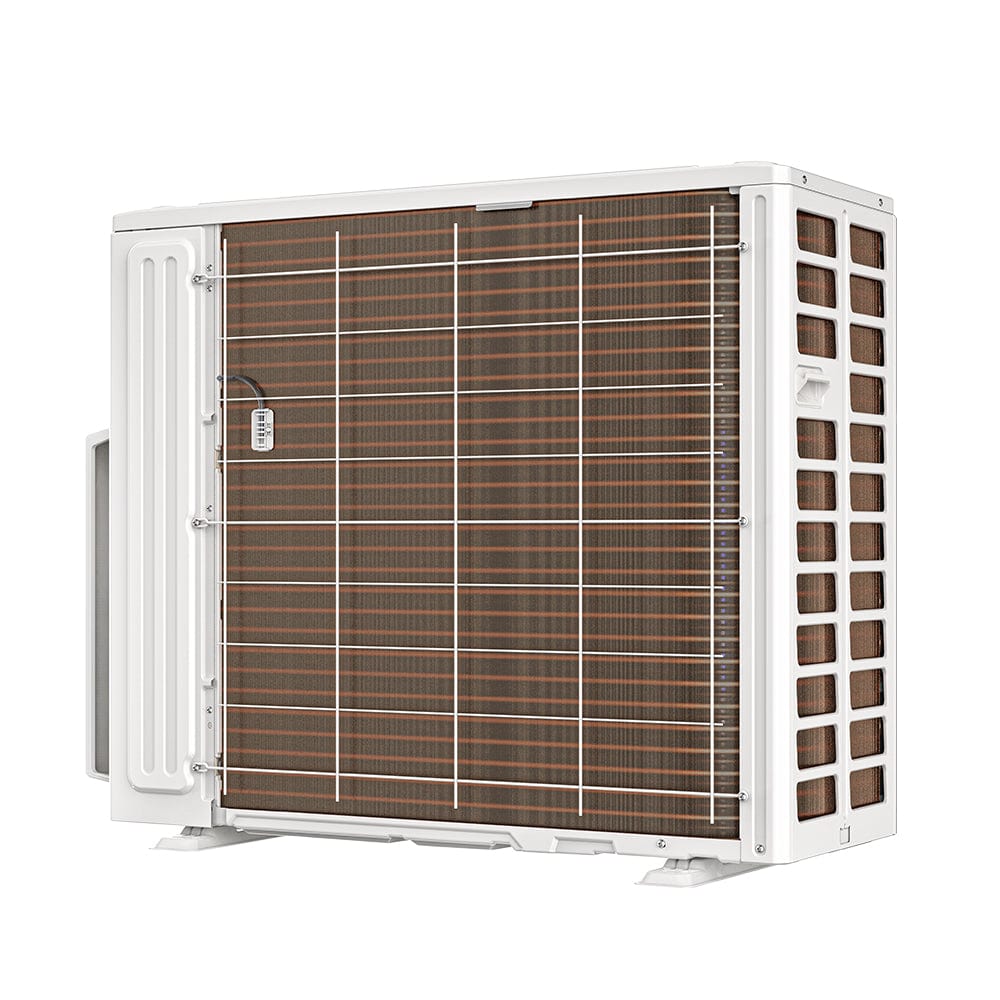

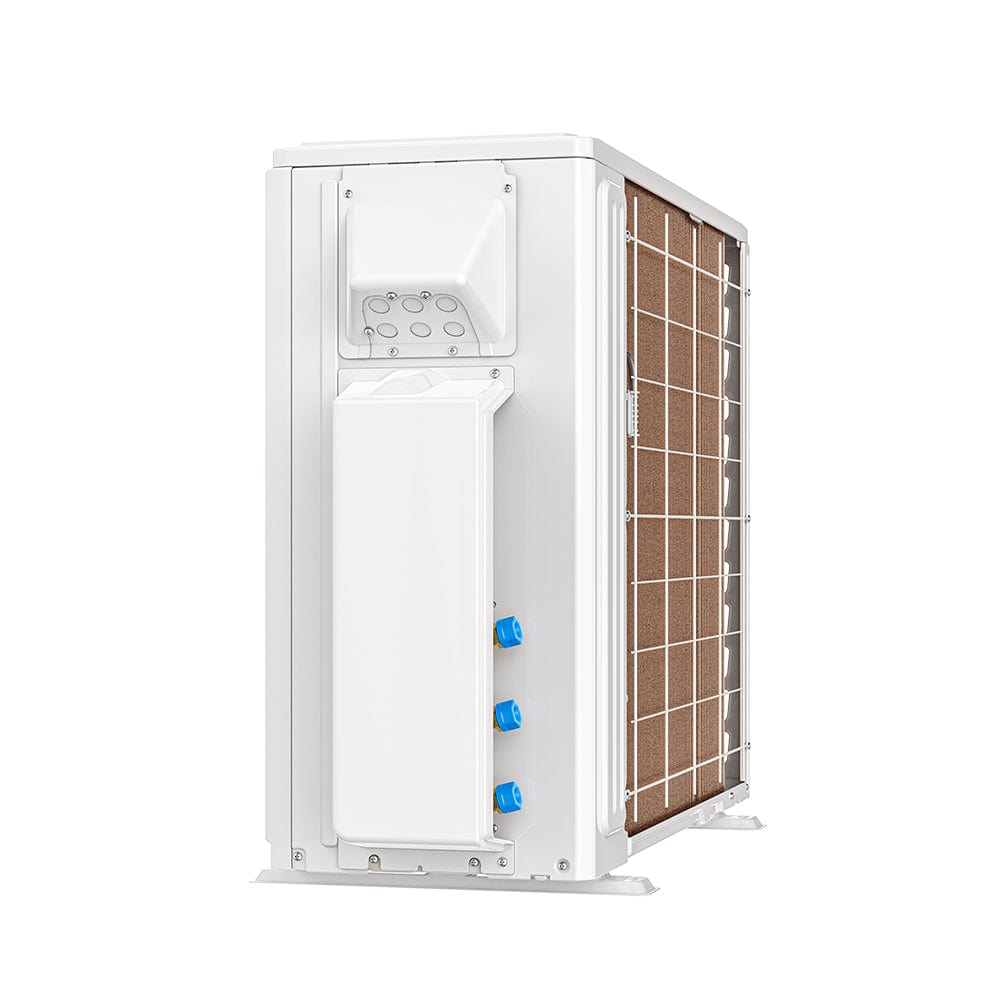

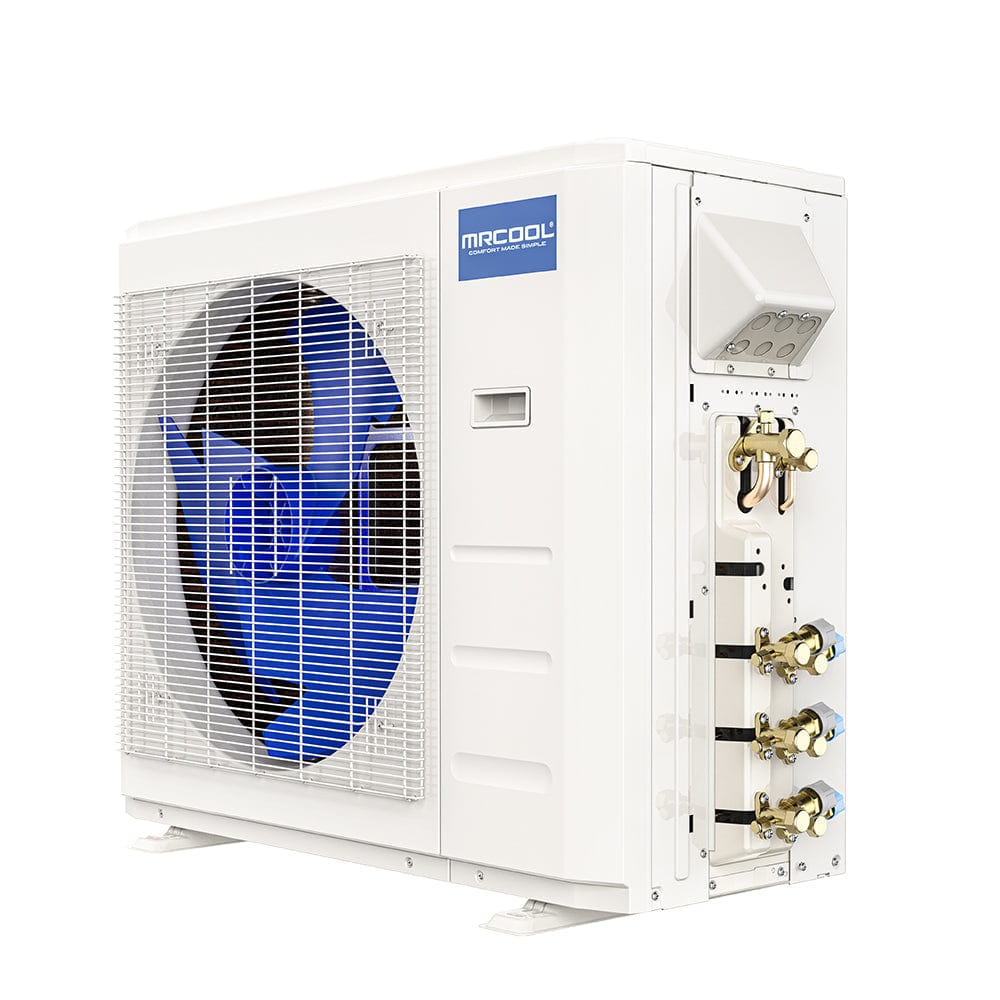

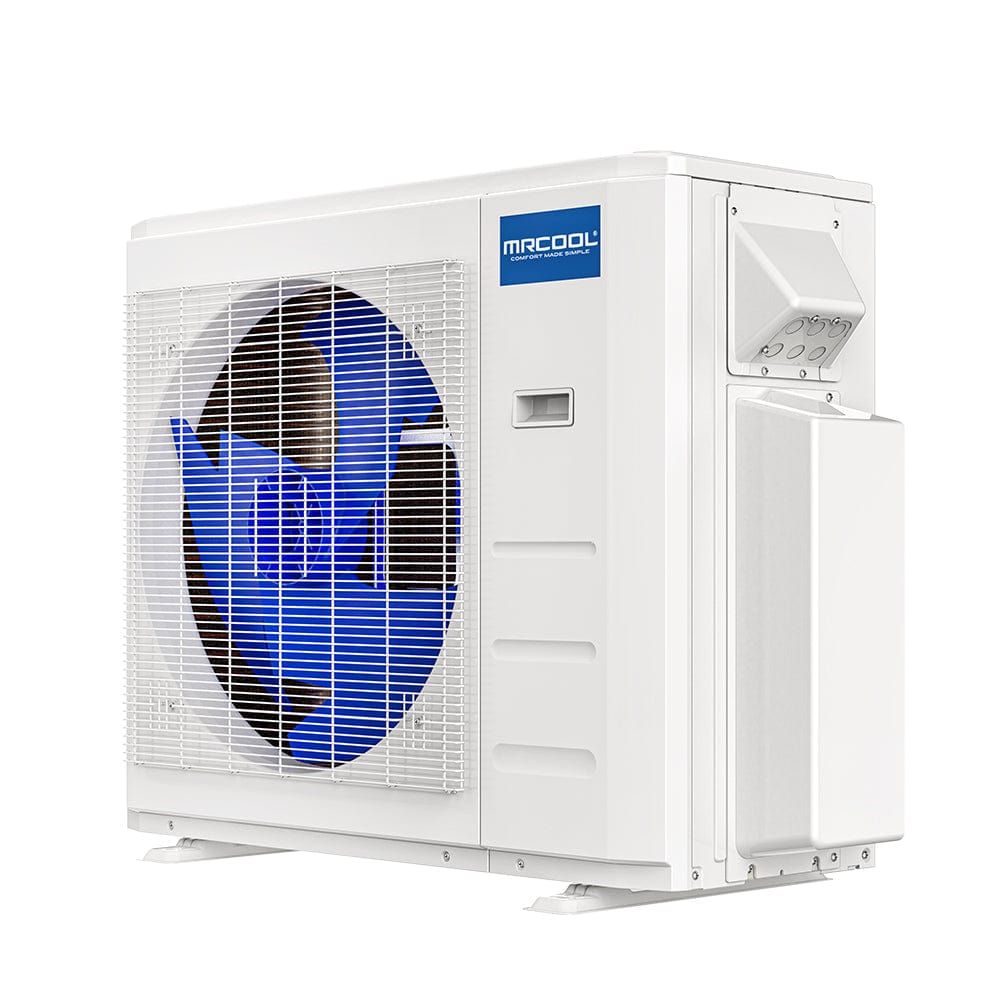

Condenser

  • Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

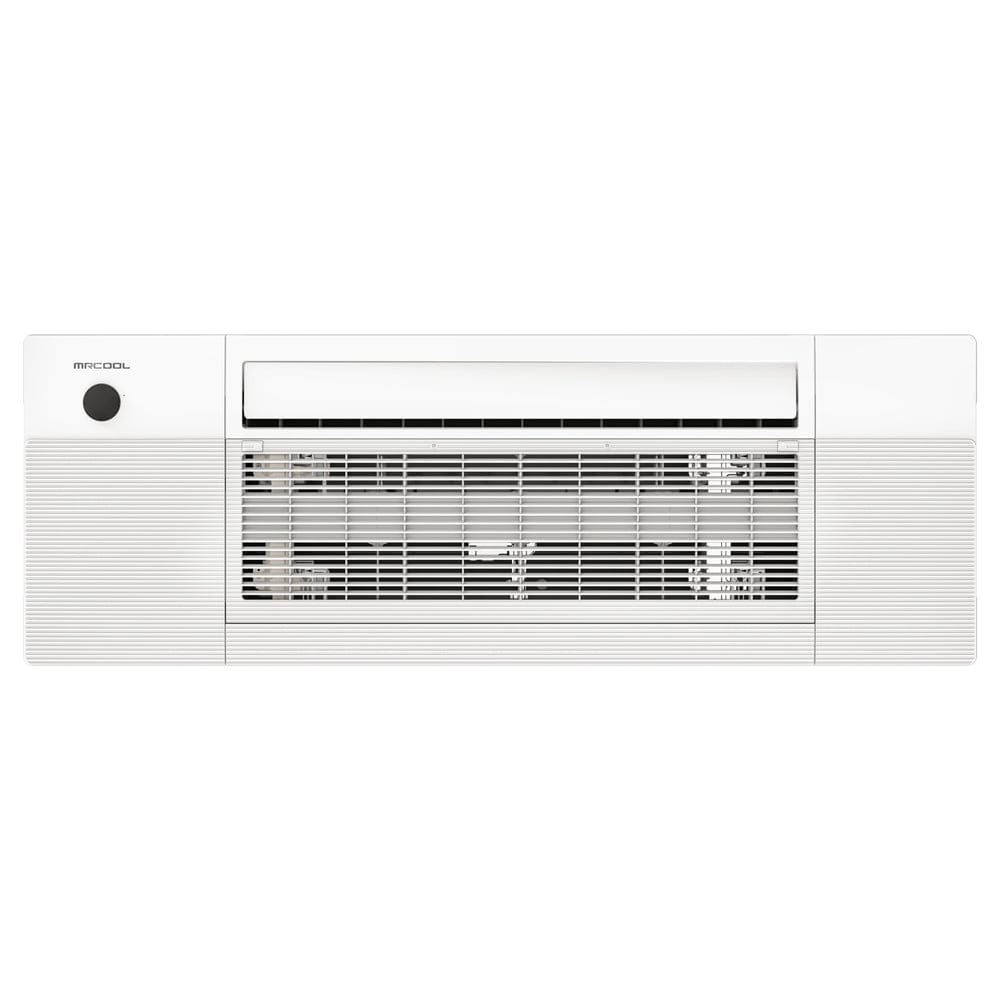

    Air Handler, 9K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

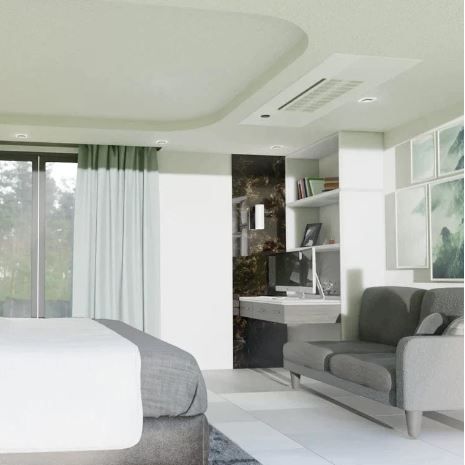

    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.

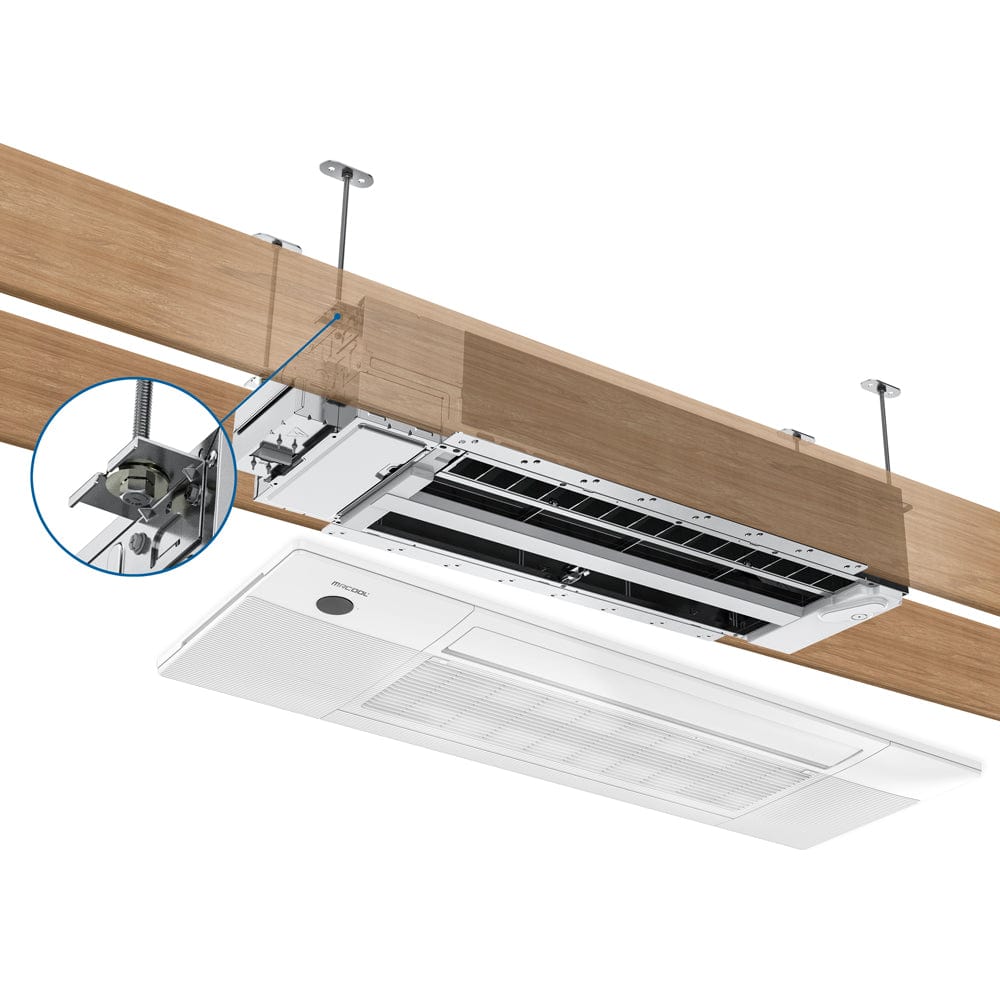

    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists

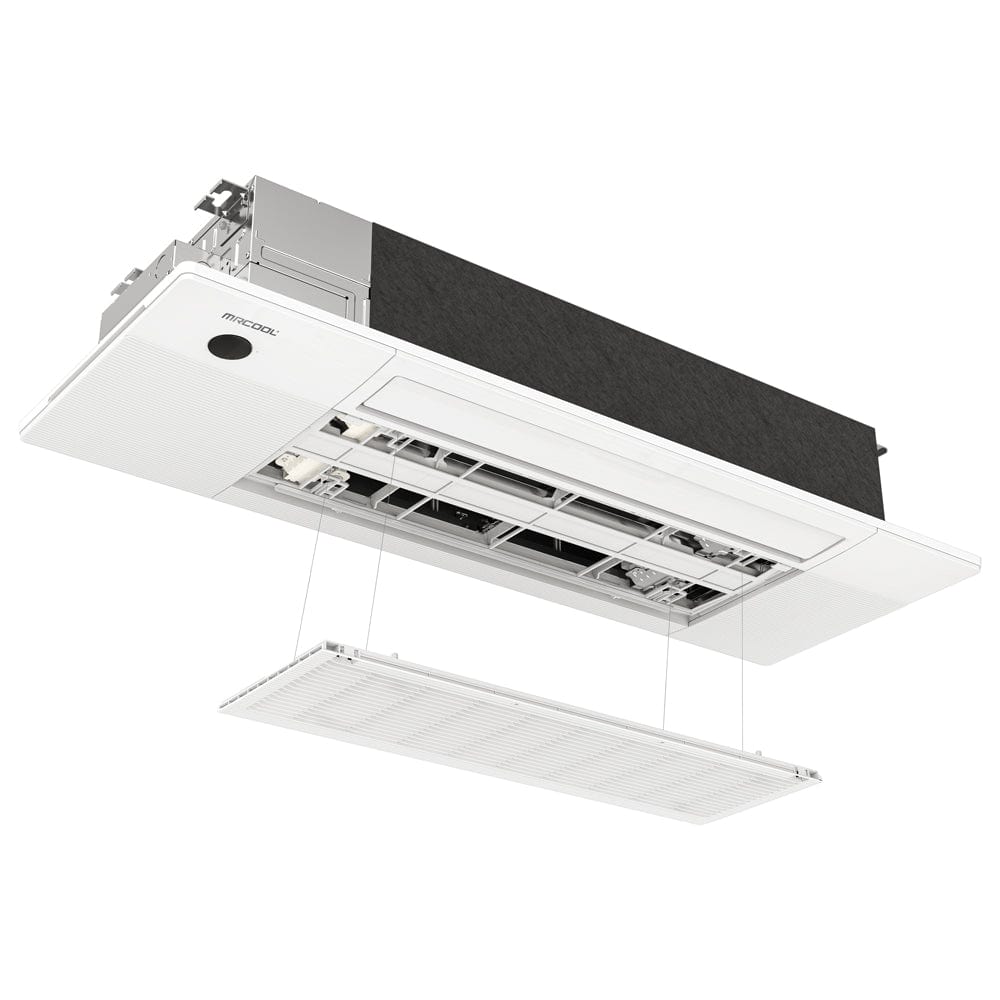

    • Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

    Air Handler, 12K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists
    • Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

            PRODUCT SPECIFICATIONS:
            Condenser

            Product Dimensions 37.24"W x 16.14"D x 31.89"H
            Cooling Capacity 27,000 BTU
            Heating Capacity 27,000 BTU
            Zone Capacity 3
            Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
            Heat Mode - Outdoor Operating Temperature Range -13F ~ 75.2F
            SEER 22
            EER 12
            Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
            Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts

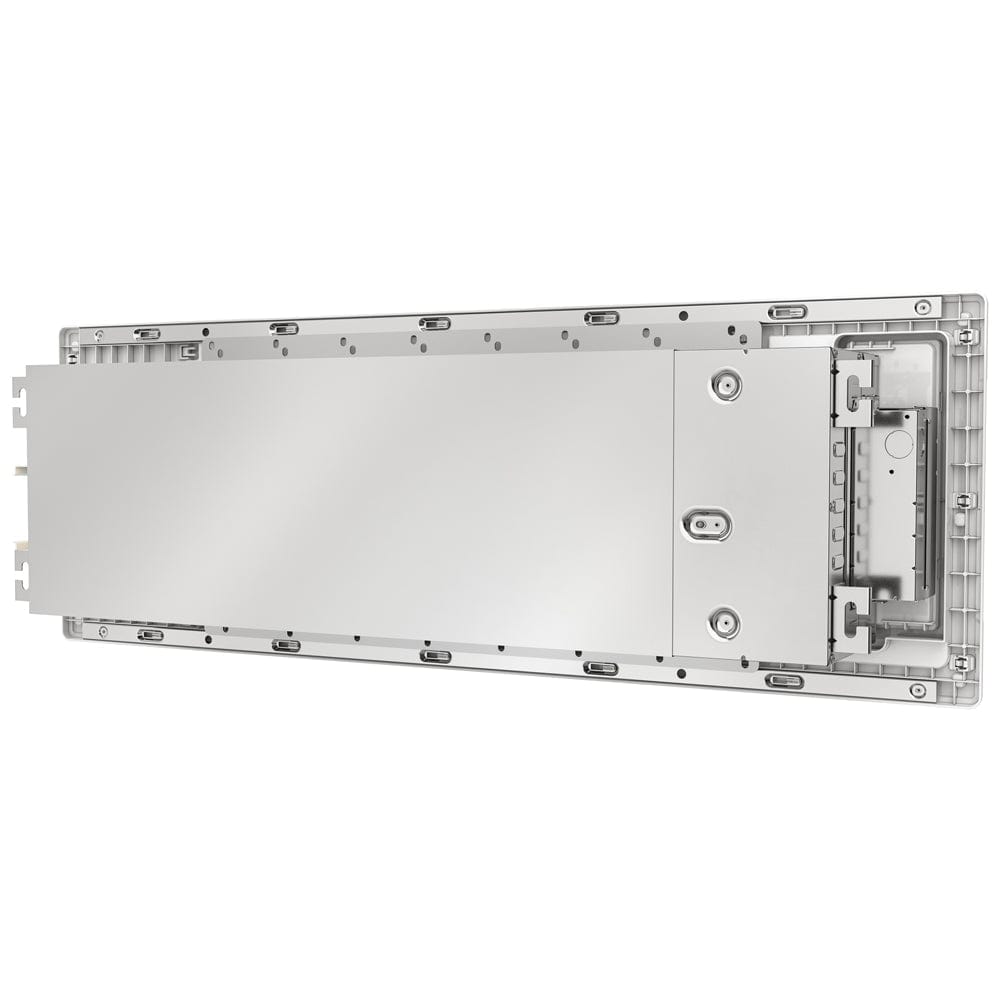

            Air Handler 9K BTU

            Product Dimensions 50.31"W x 13.19"D x 8.98"H
            Mount Type Ceiling Cassette
            Cooling Capacity 9,000 BTU
            Heating Capacity 9,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - Auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep


            Air Handler 12K BTU

            Product Dimensions 50.31"W x  13.19"D x  8.98"H
            Mount Type Ceiling Cassette
            Cooling Capacity 12,000 BTU
            Heating Capacity 12,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - Auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep
            Installation Manual
            Product Brochure
            Performance Specifications
            Warranty
            Energy Guide
            AHRI Certificate
