Description

MRCOOL DIY Mini Split - 30,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. and 35 ft. Install Kit,


 MRCOOL DIY Mini Split - 30,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. and 35 ft. Install Kit, DIYM227HPW03C08

Transform your home's climate control with the MRCOOL DIY Mini Split - 30,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. and 35 ft. Install Kit, DIYM227HPW03C08. This advanced 4th Generation system provides everything you need to efficiently cool and heat two distinct rooms. With a powerful 30,000 BTU capacity, you can enjoy optimal comfort throughout your home, no matter the weather outside.

Included in this package are a DIY 27,000 BTU Multi-Zone Condenser, a 12,000 BTU Wall Mounted Air Handler, an 18,000 BTU Wall Mounted Air Handler, two remote controls, and one set of installation kits measuring 25 ft. and 35 ft. This versatility allows you to customize the setup according to your home’s layout and heating/cooling needs, ensuring a seamless fit in any space.

The true highlight of the MRCOOL DIY Mini Split system is its user-friendly installation process. Designed for DIY enthusiasts, this system eliminates the need for specialized tools or professional installation. Enhanced Wi-Fi capabilities enable remote control from your smartphone, giving you convenient access to adjust settings from anywhere in your home. Enjoy the perfect blend of comfort, flexibility, and efficiency with this state-of-the-art heating and cooling solution.
Package Includes

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 27K BTU rating of the Condenser.

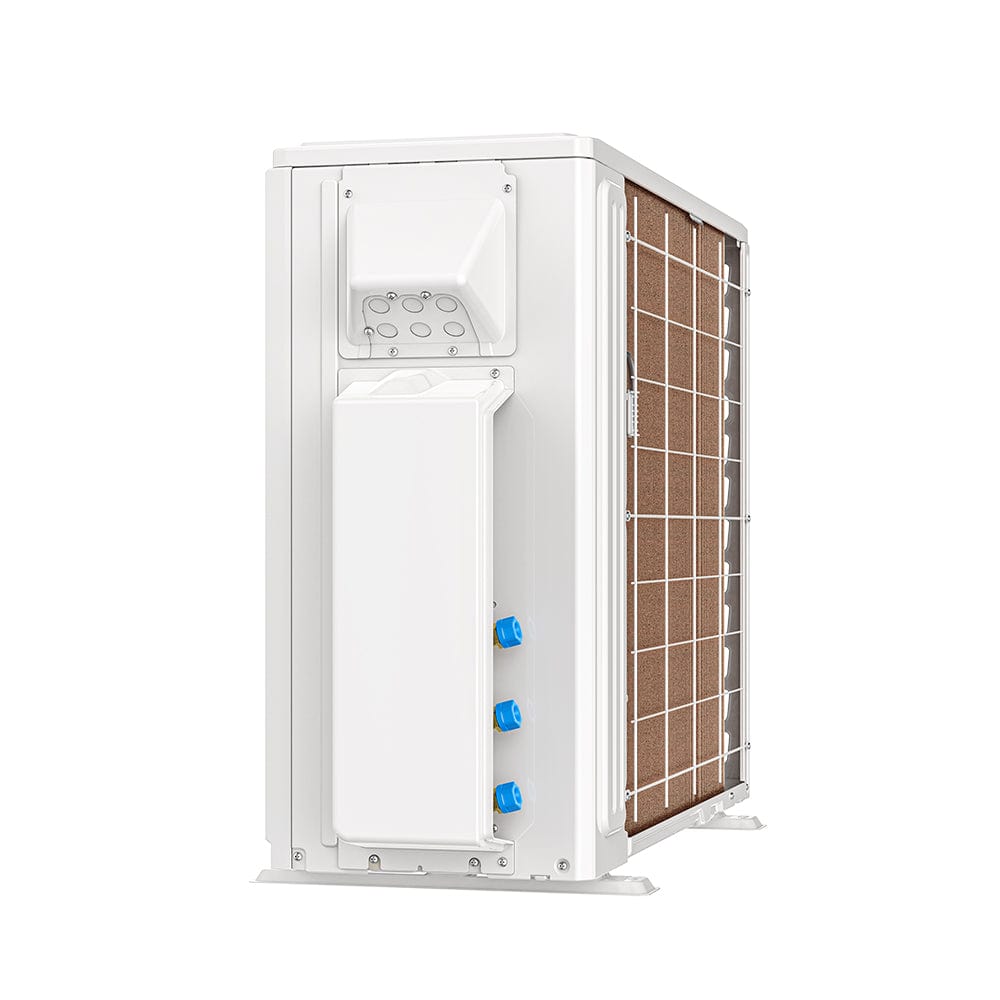

Condenser

  • Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -13°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

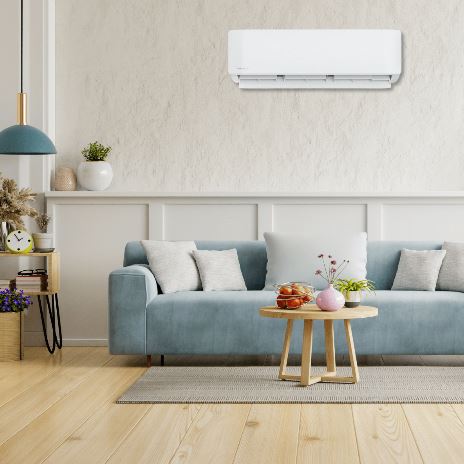

    Air Handler, 12K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 18K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 750 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

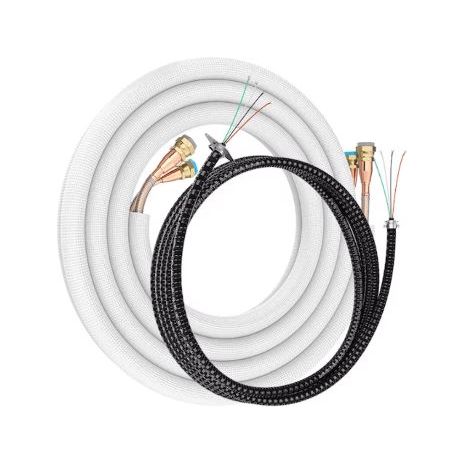

        Line Set 25 ft., Quantity 1
        • This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

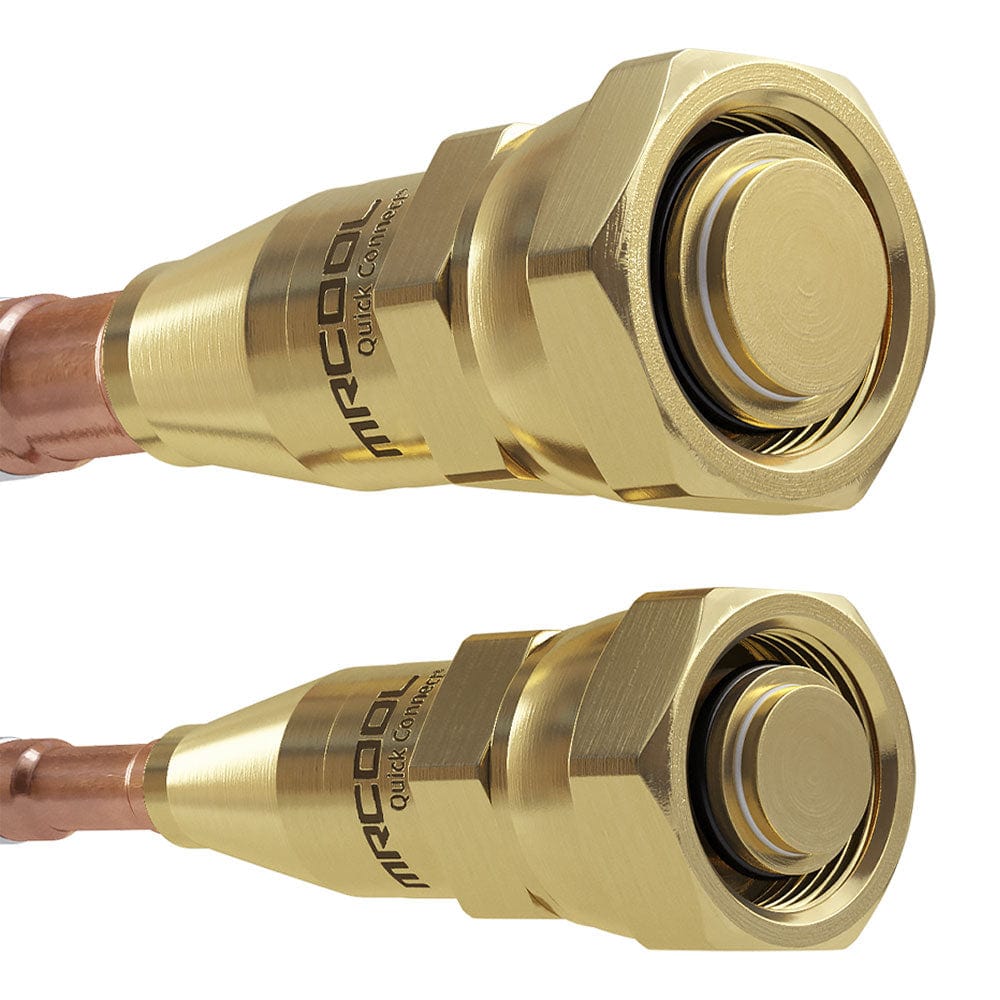

        • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
        • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

        Line Set 35 ft., Quantity 1
        • This 35 ft. copper line set connects the MRCOOL DIY Condenser to the MR COOL DIY Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
        • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
        • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

        Additional Line Sets & Coupler

        If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.



            PRODUCT SPECIFICATIONS:
            Condenser Specifications

            Product Dimensions 37.24"W x 16.14"D x 31.89"H
            Cooling Capacity 27,000 BTU
            Heating Capacity 27,000 BTU
            Zone Capacity 3
            Min Ambient Cool 5F ~ 122F
            Min Ambient Heat -13F ~ 75.2F
            SEER 22
            EER 12
            Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
            Registered Warranty
            		 7 Years Replacement on Condenser, 5 Years Parts


            Air Handler 12K BTU

            Product Dimensions 31.57"W x 7.44"D x 11.69"H
            Mount Type Wall
            Cooling Capacity 12,000 BTU
            Heating Capacity 12,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep


            Air Handler 18K BTU

            Product Dimensions 42.52"W x 8.90"D x 13.19"H
            Mount Type Wall
            Cooling Capacity 18,000 BTU
            Heating Capacity 18,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep


            Line Set

            Length 25 Feet
            Liquid Line Size 1/4"
            Suction Line Size 1/2"


            Line Set

            Length 35 Feet
            Liquid Line Size 1/4"
            Suction Line Size 1/2"
            Installation Manual
            Product Brochure
            Performance Specifications
            Warranty
            Energy Guide
            AHRI Certificate
