MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit, DIYM227HPW01C15

MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit, DIYM227HPW01C15

by MRCOOL
SKU DIYM227HPW01C15
In stock | ETA: to
Save $500.00
$4,317.00
$3,817.00

Notify me when back in stock

FREE EXPRESS SHIPPING Process orders in 1 business day
STRESS FREE RETURNS 2 Year Returns
Primum Quality Top Tier Products, Even Better Customer Care
5 Year Warranty We Believe In Our Products & Our Team
Professional Services Get service quotes the same day
Product Image
MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit, DIYM227HPW01C15
$4,317.00 $3,817.00

CUSTOMER SPOTLIGHT
FREE EXPRESS SHIPPING

Process orders in 1 business day

Stress Free Returns

2 Year Returns

Primum Quality

Top Tier Products, Even Better Customer Care

5 Year Warranty

We Believe In Our Products & Our Team

       MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit

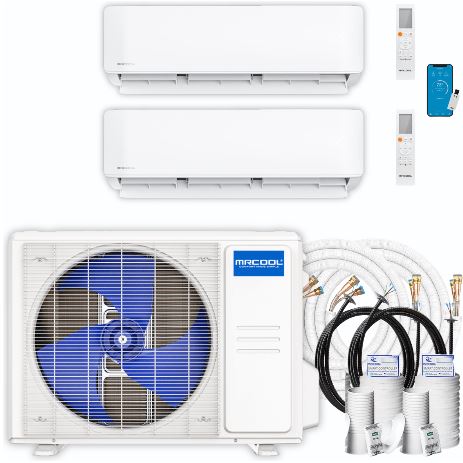

This 4th Generation MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit, DIYM227HPW01C15 includes everything you need to cool and heat two different rooms. You'll be sent: DIY 27,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, one 18,000 BTU Wall Mounted Air Handler, two Remotes, and one 35 ft. and 50 ft. Installation Kits. The best part about all of MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit, DIYM227HPW01C15 is that you can install it yourself!  MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit, DIYM227HPW01C15
Package Includes

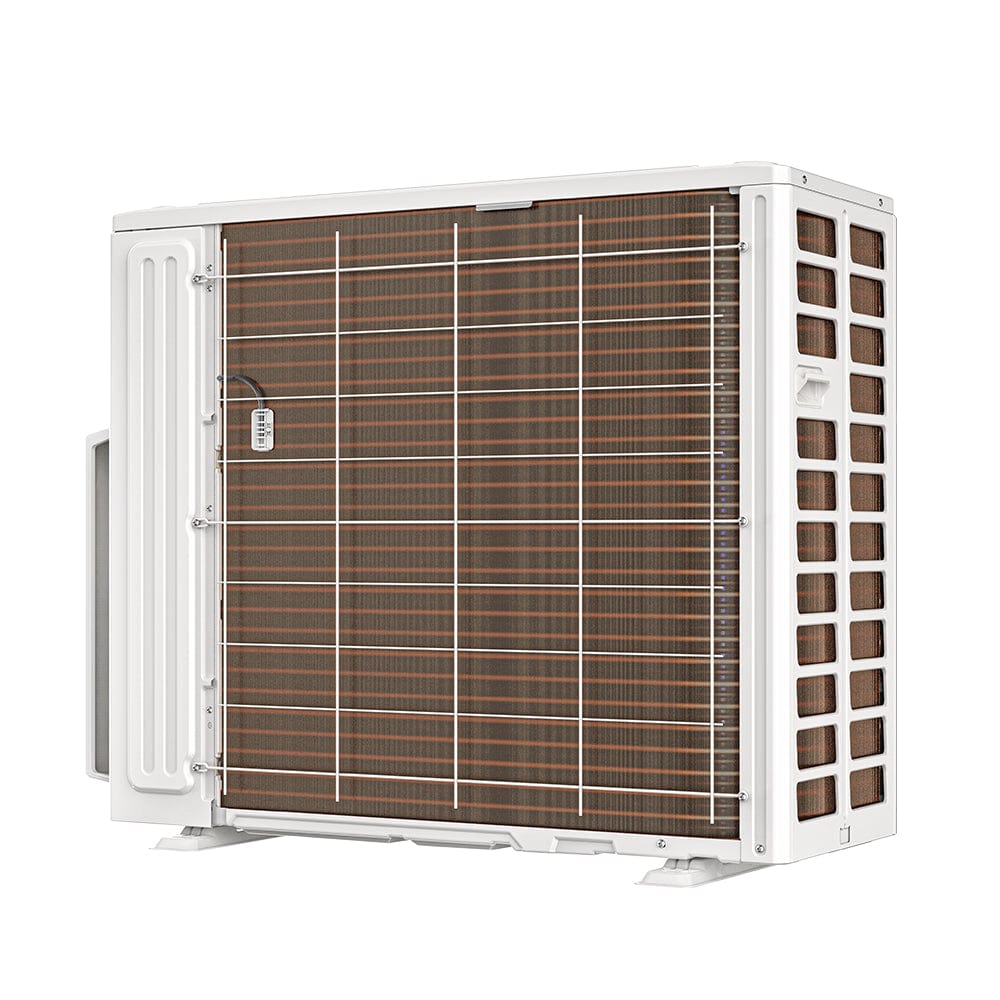

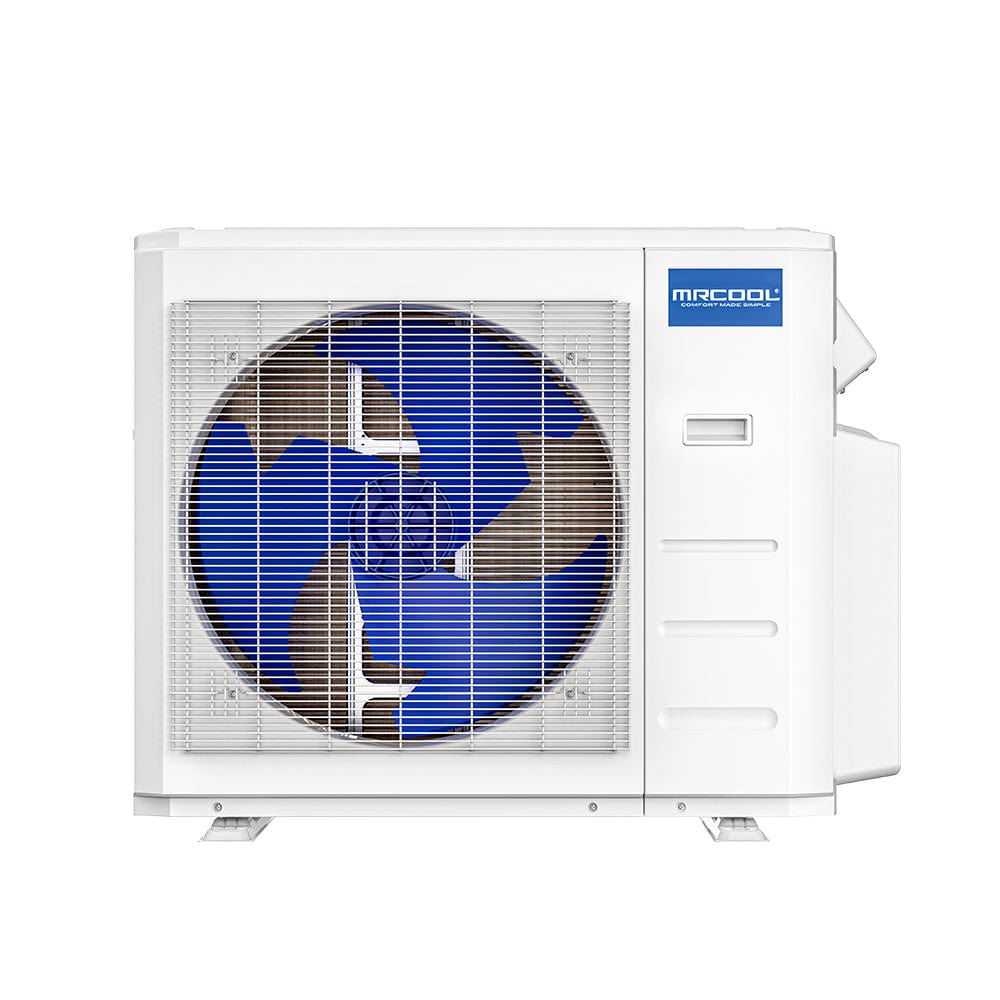

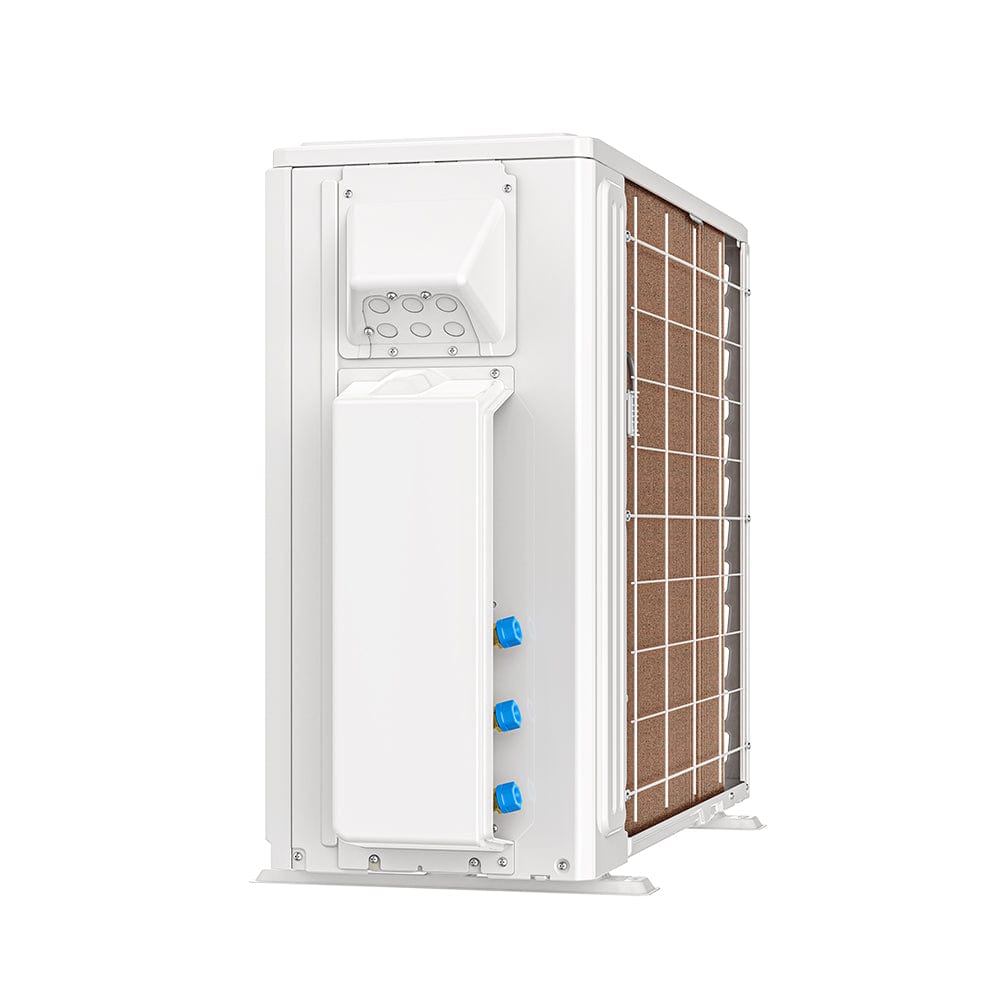

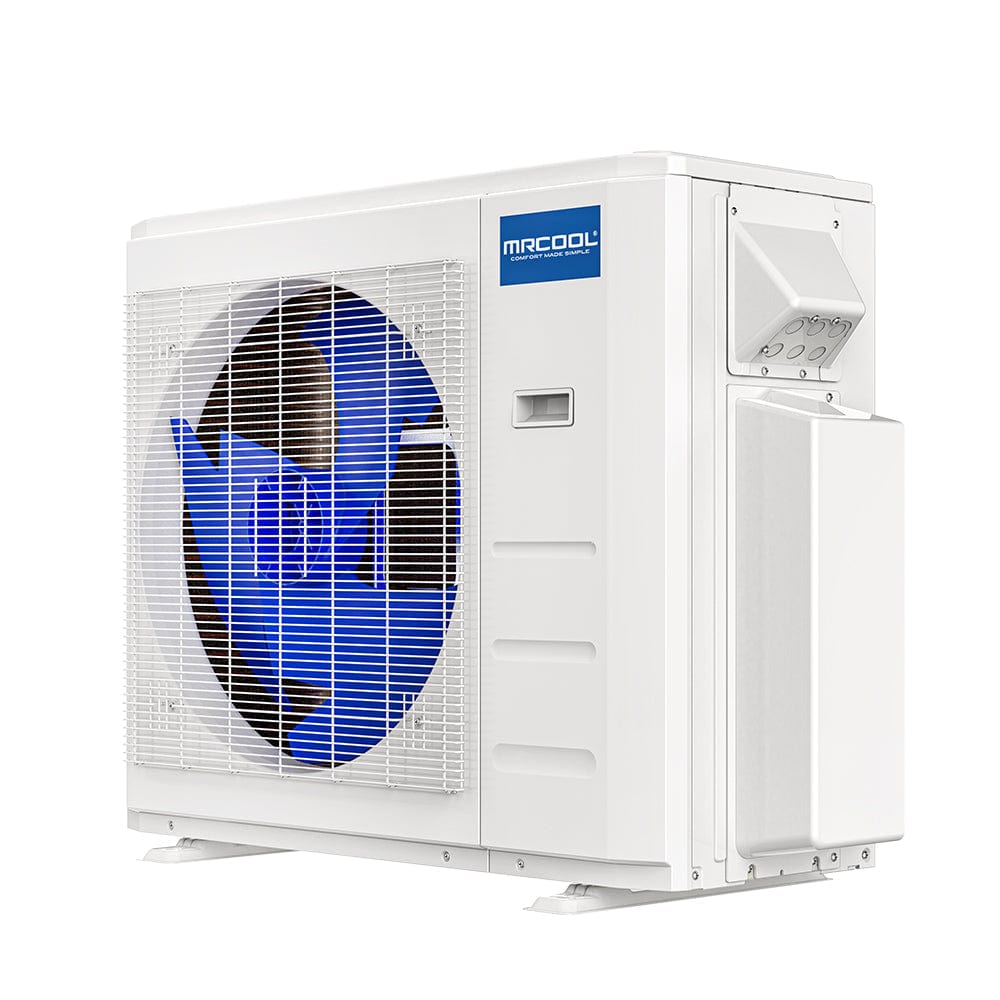

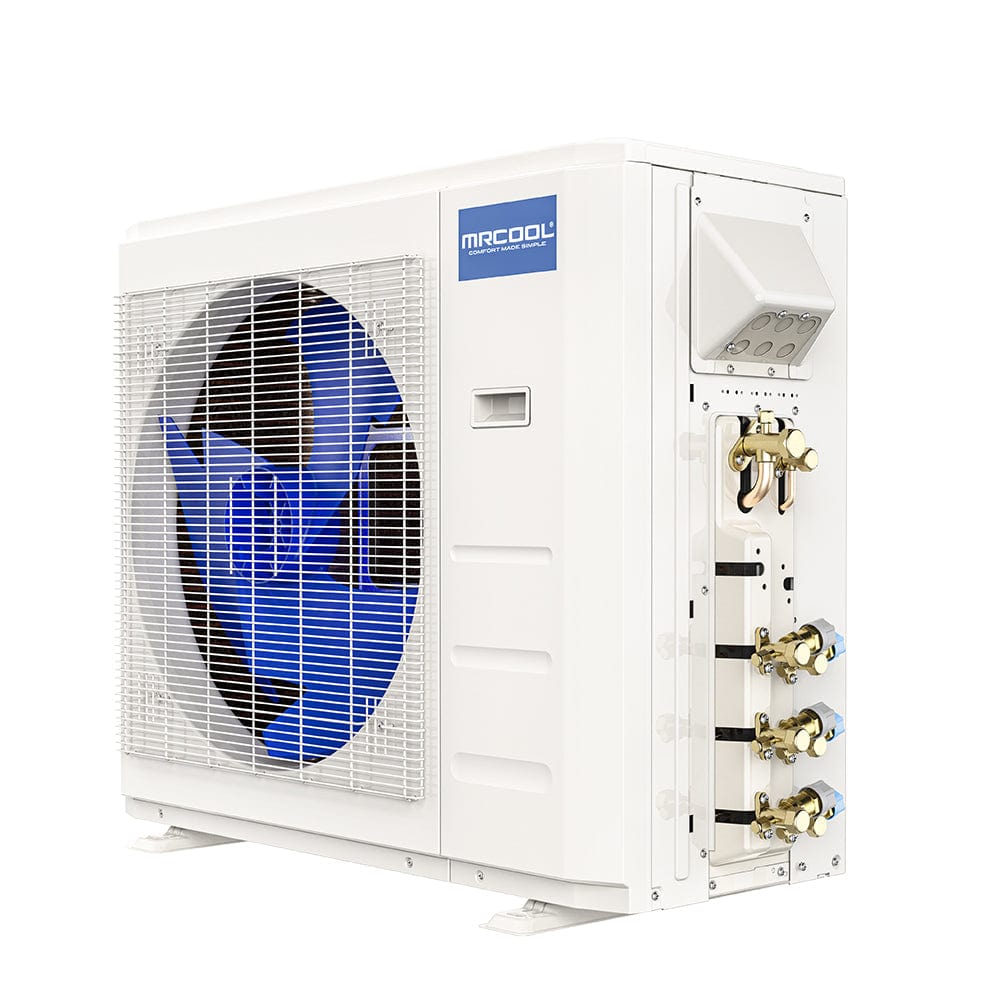

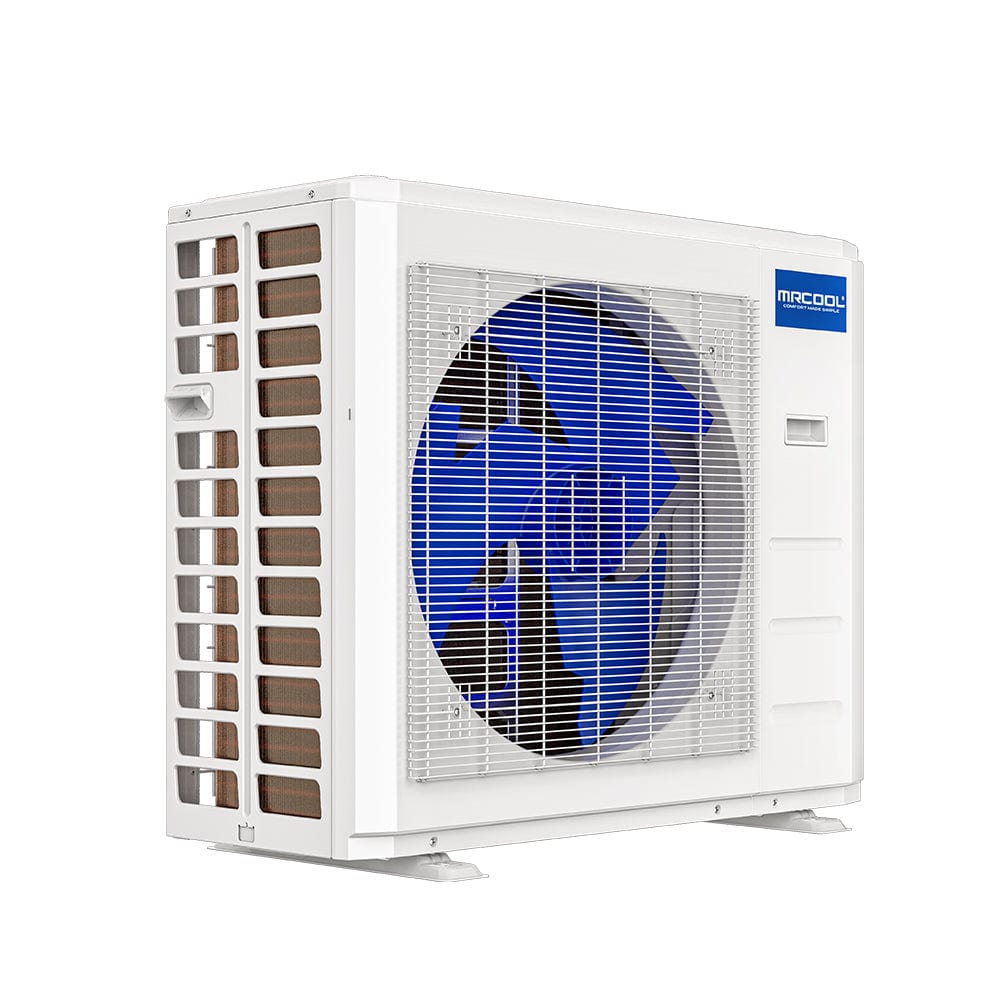

Condenser

  • Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -13°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

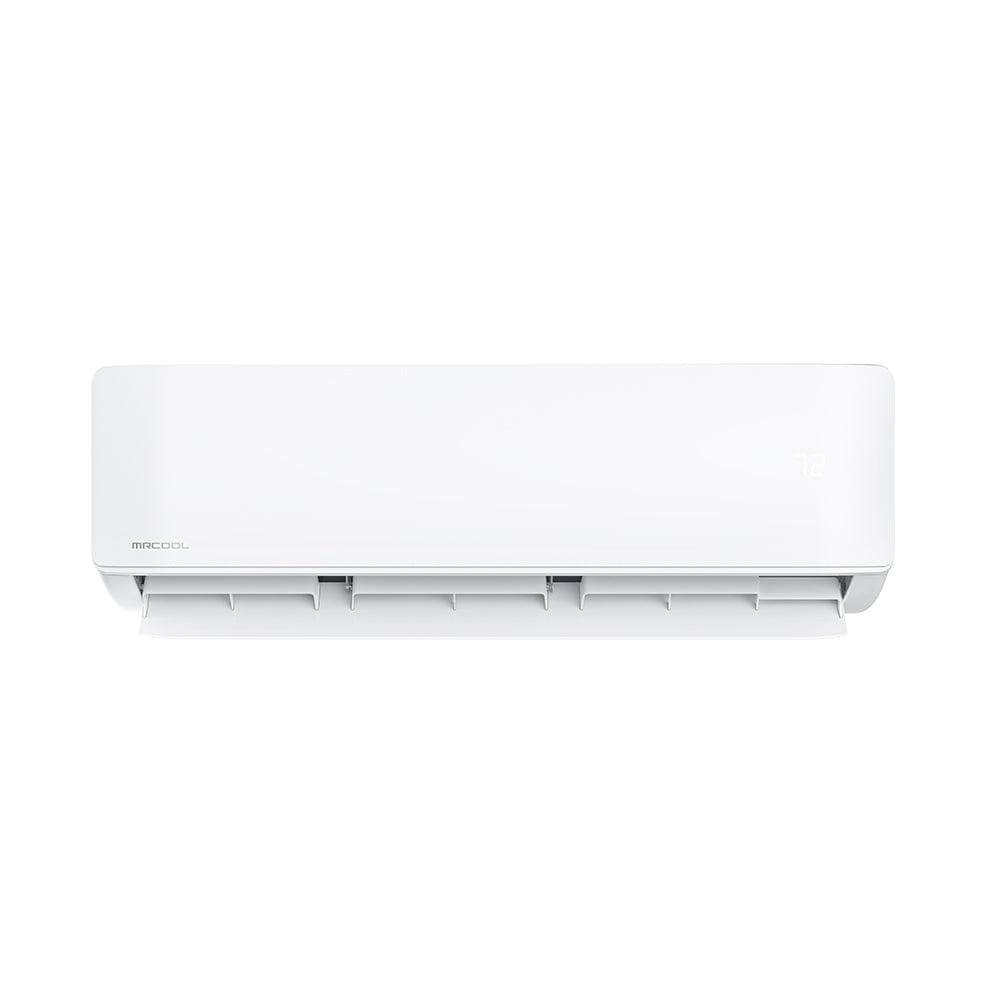

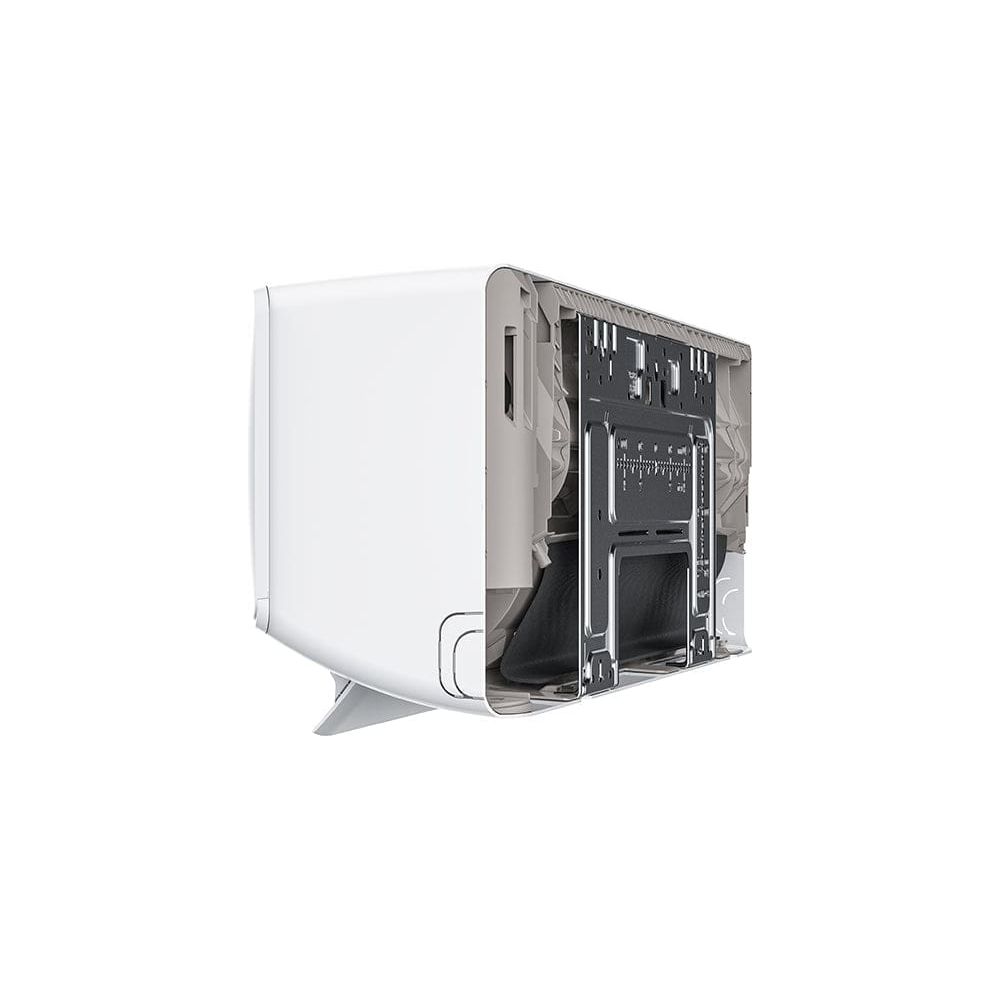

    Air Handler, 9K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

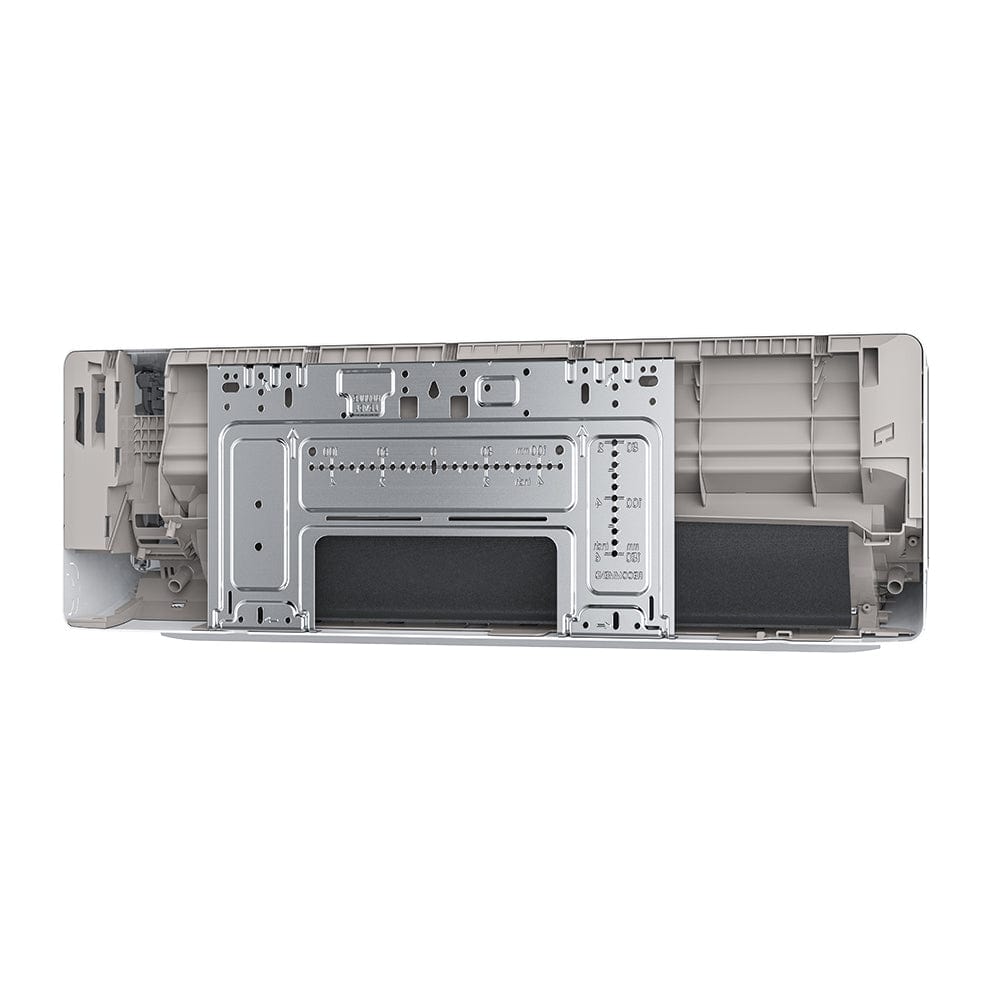

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 18K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 750 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

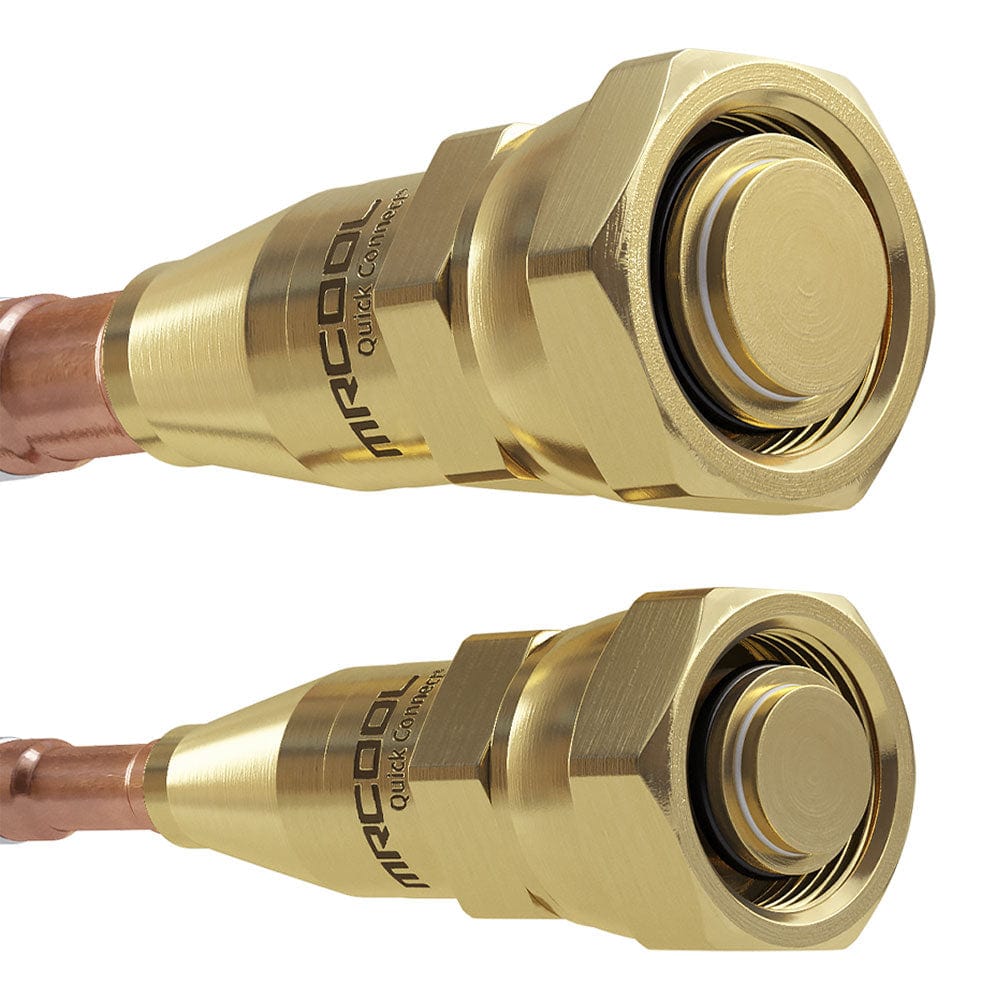

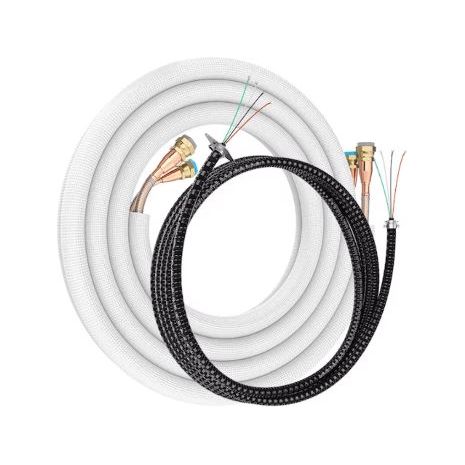

      Line Set 35 ft., Quantity 1
      • This 35 ft. copper line set connects the MRCOOL DIY Condenser to the MR COOL DIY Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
      • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

      Line Set 50 ft., Quantity 1
      • This 50 ft. copper line set connects the 4th Generation MRCOOL DIY Condenser to the MR COOL DIY Air Handlers - 9K, 12K and 18K.
      • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!


      Specifications of DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit,
      DIYM227HPW01C15:


      Condenser Specifications

      Product Dimensions 37.24"W x 16.14"D x 31.89"H
      Cooling Capacity 27,000 BTU
      Heating Capacity 27,000 BTU
      Zone Capacity 3
      Min Ambient Cool 5F ~ 122F
      Min Ambient Heat -13F ~ 75.2F
      SEER 22
      EER 12
      Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
      Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


      Air Handler 9K BTU

      Product Dimensions 31.57"W x 7.44"D x 11.69"H
      Mount Type Wall
      Cooling Capacity 9,000 BTU
      Heating Capacity 9,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto - auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep


      Air Handler 18K BTU

      Product Dimensions 42.52"W x 8.90"D x 13.19"H
      Mount Type Wall
      Cooling Capacity 18,000 BTU
      Heating Capacity 18,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto - auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep


      Line Set

      Length 35 Feet
      Liquid Line Size 1/4"
      Suction Line Size 1/2"


      Line Set

      Length 50 Feet
      Liquid Line Size 1/4"
      Suction Line Size 1/2"
      Installation Manual
      Product Brochure
      Performance Specifications
      Warranty
      Energy Guide
      AHRI Certificate
