MRCOOL DIY Mini Split - 24,000 BTU 2
Zone Ductless Air Conditioner and Heat
Pump with 35 ft. and 50 ft. Install Kit DIYM227HPW02C15

MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit, DIYM227HPW02C15

Upgrade your comfort with the MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft.

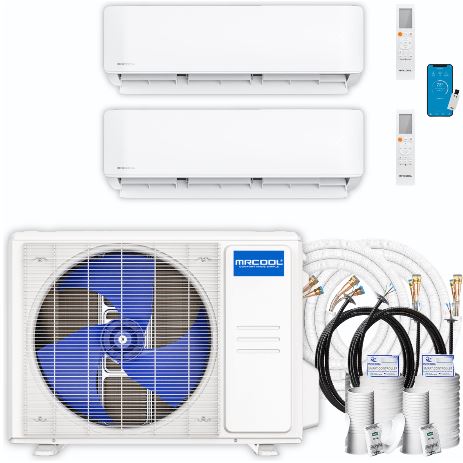

and 50 ft. Install Kit, DIYM227HPW02C15. This 4th Generation system is equipped to efficiently cool and heat two separate rooms, offering you the versatility and convenience you need. In this package, you'll receive a robust DIY 27,000 BTU Multi-Zone Condenser, two 12,000 BTU Wall Mounted Air Handlers, two Remotes, and a combination of 35 ft. and 50 ft. Installation Kits, ensuring you have everything necessary for a seamless setup.

One of the standout features of the MRCOOL Mini Split is its self-installation capability, allowing you to set up the system without professional help. The enhanced Wi-Fi engineering ensures that the installation process is quick and easy. You can enjoy precise control over your indoor climate without the need for specialized tools or costly equipment, making it an ideal solution for DI

Y enthusiasts.

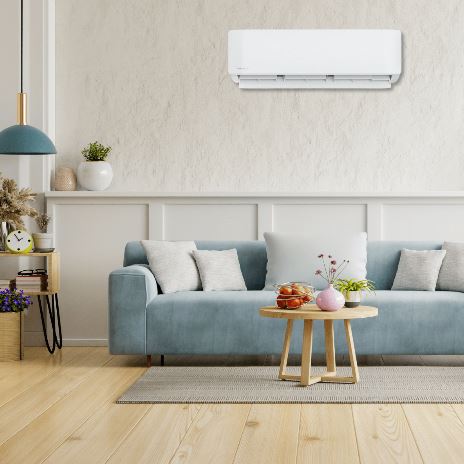

Designed to integrate seamlessly into any living space, the ductless air handlers provide efficient heating and cooling without sacrificing aesthetics. With the MRCOOL DIY Mini Split, you can create a comfortable environment tailored to your needs, all while enjoying the satisfaction of a do-it-yourself installation.

Package Includes

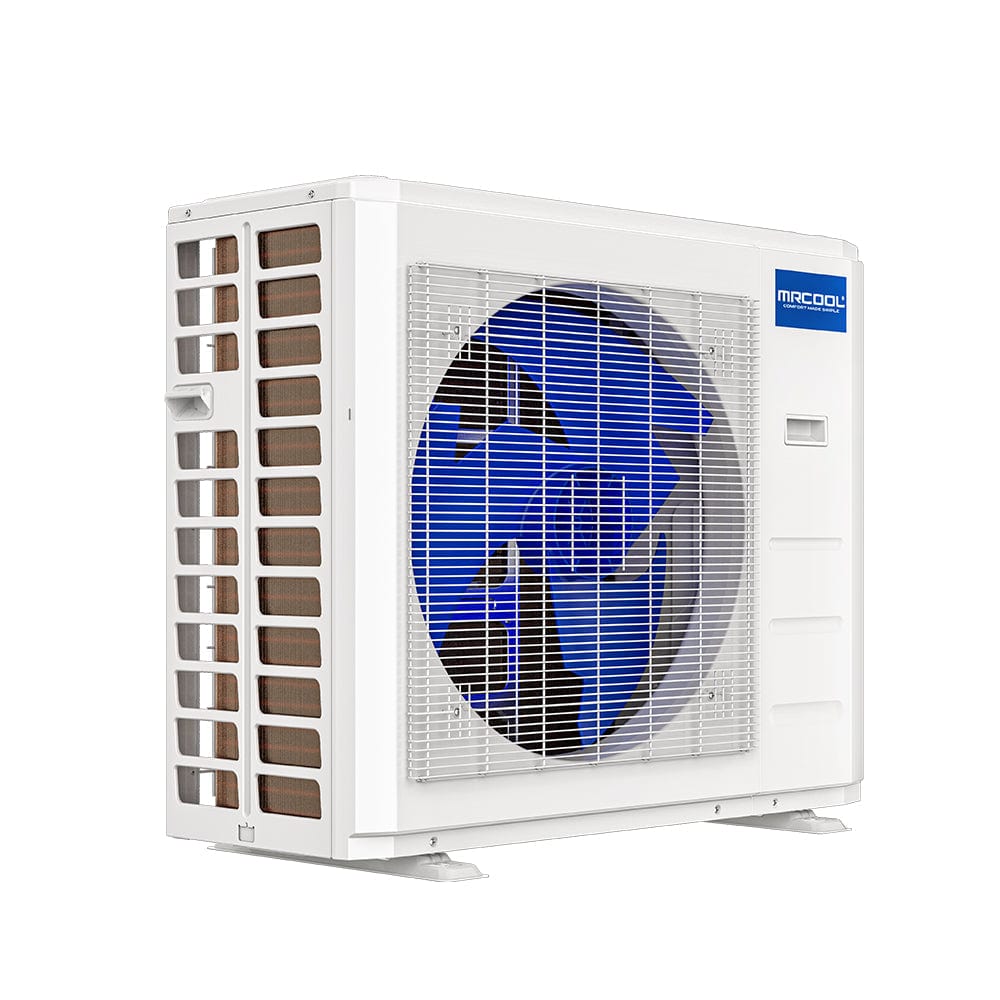

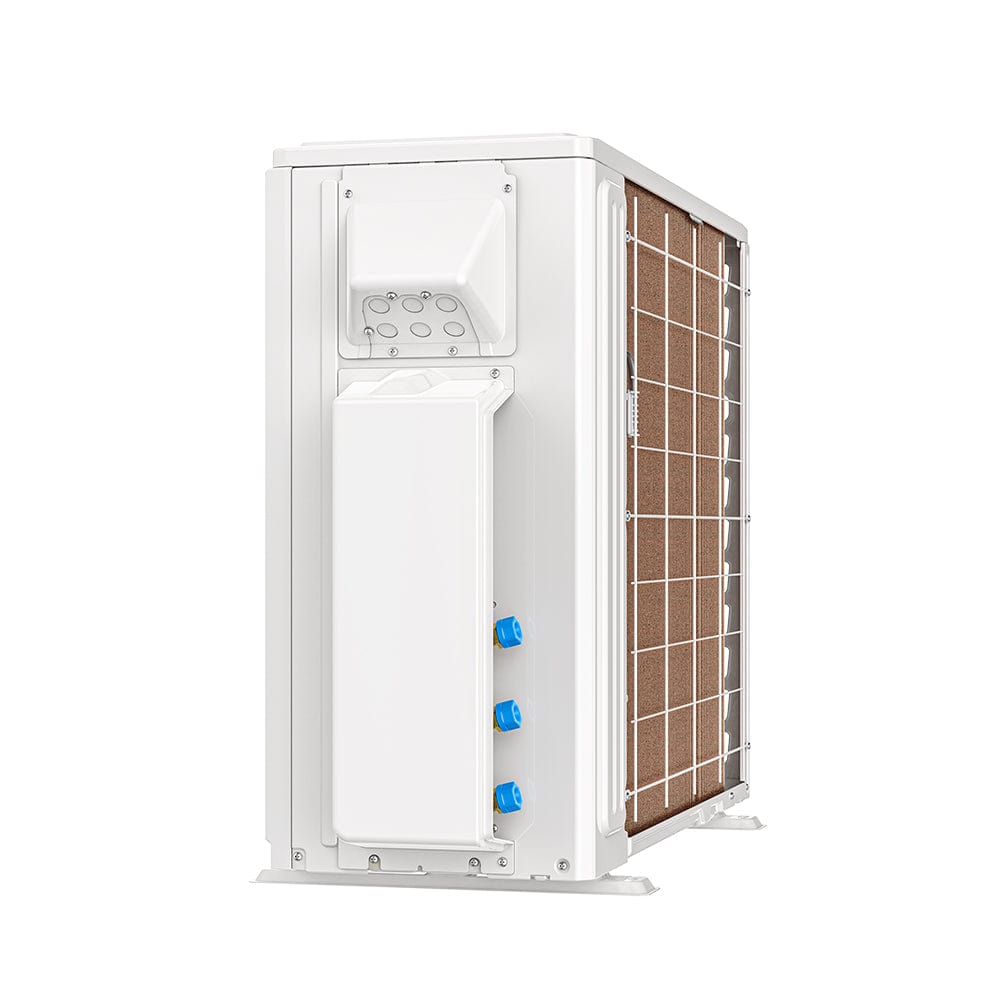

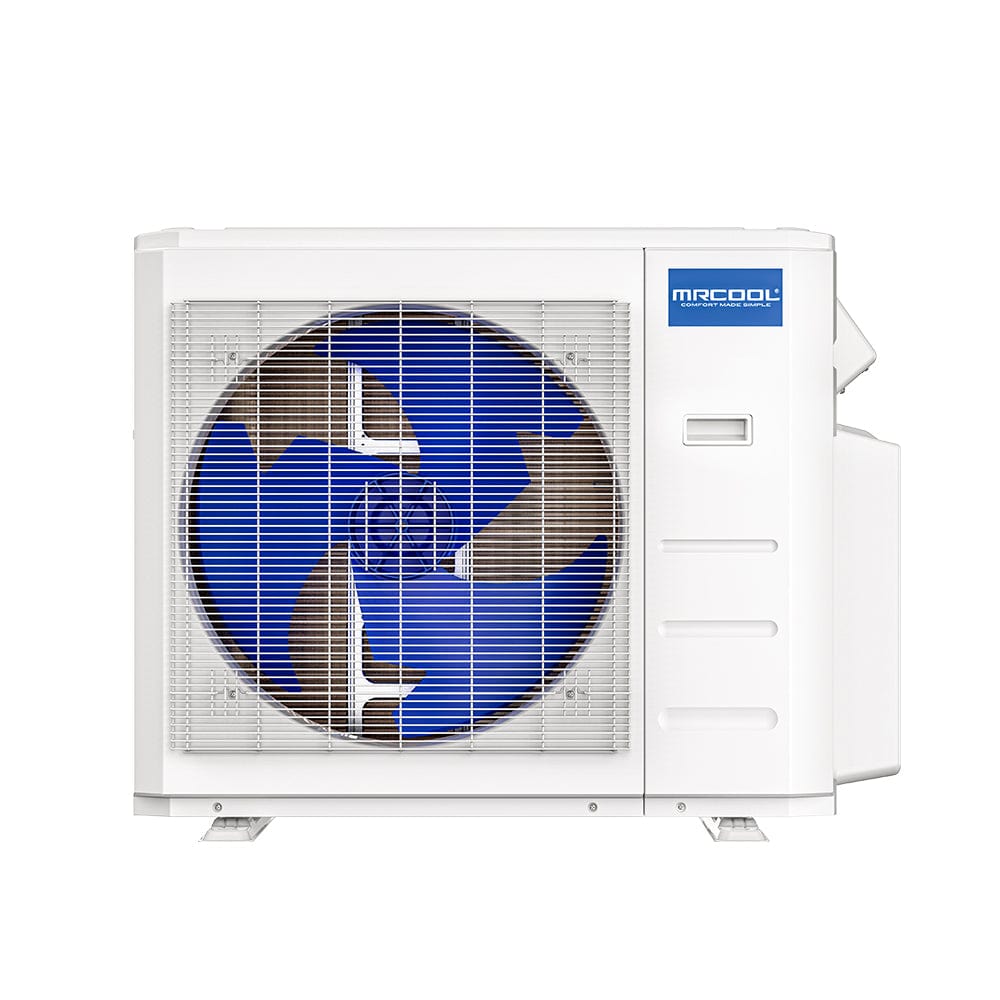

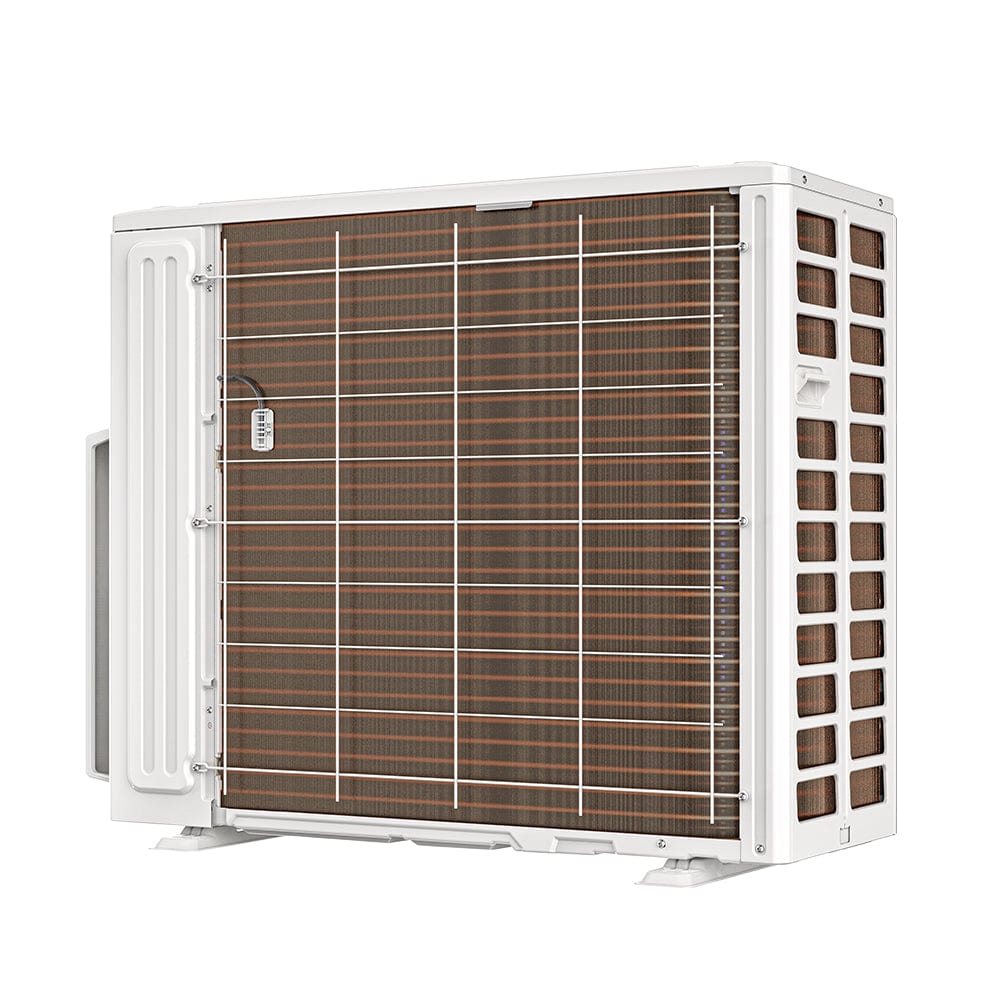

Condenser

Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
Works In All Environments. The ability to heat even when temperatures drop to -13°F.
Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

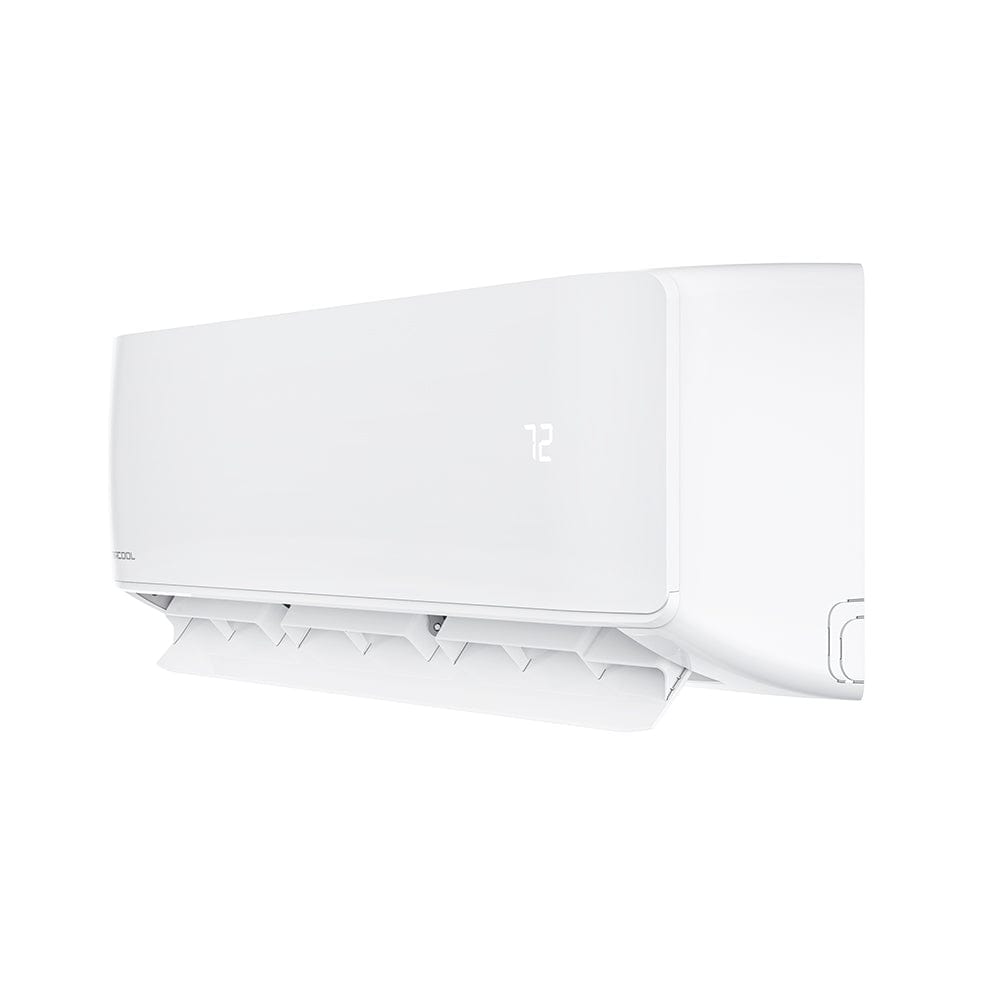

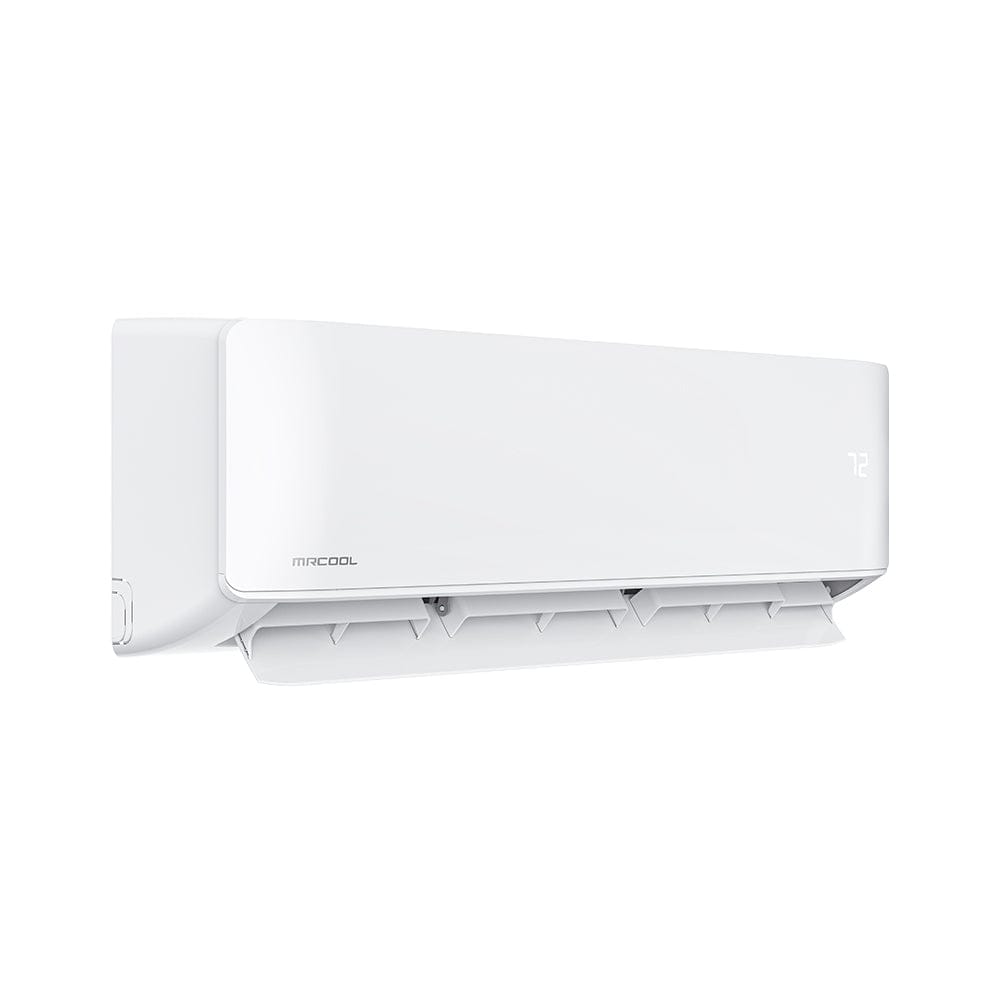

Air Handler, 12K BTU, Quantity 2

Large Coverage Area. Handler covers an area up to 500 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

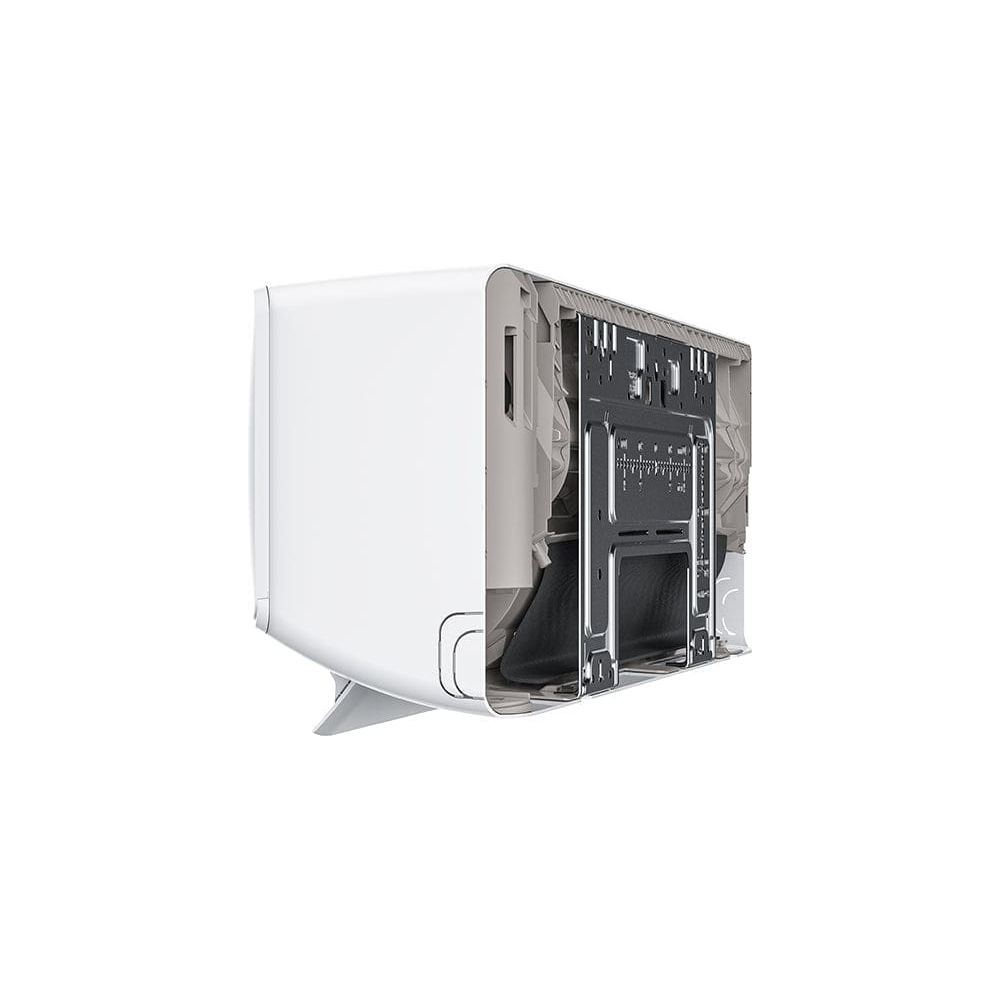

Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Line Set 35 ft., Quantity 1

This 35 ft. copper line set connects the MRCOOL DIY Condenser to the MR COOL DIY Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

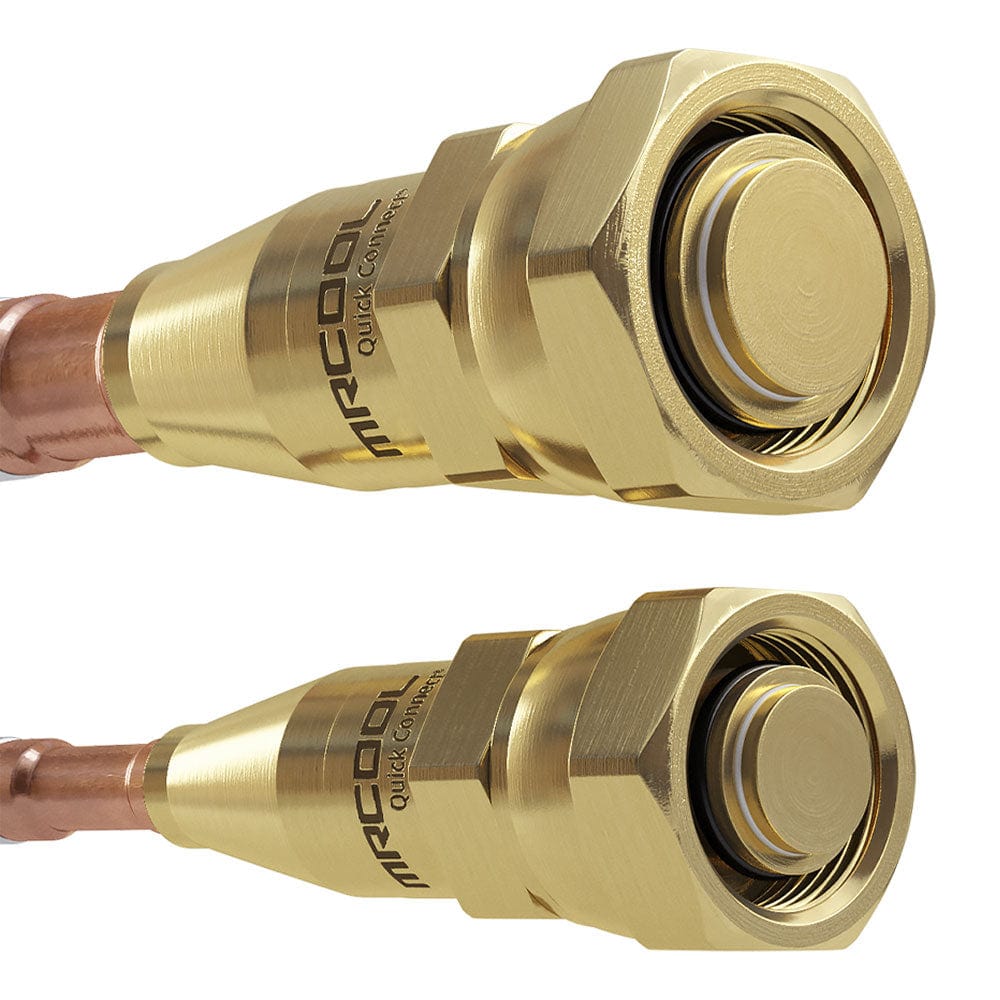

Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Line Set 50 ft., Quantity 1

This 50 ft. copper line set connects the 4th Generation MRCOOL DIY Condenser to the MR COOL DIY Air Handlers - 9K, 12K and 18K.
Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Additional Line Sets & Coupler

If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

What does this package include?

This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.

Specifications of MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit, DIYM227HPW02C15:

Condenser Specifications

Product Dimensions

37.24"W x 16.14"D x 31.89"H

Cooling Capacity

27,000 BTU

Heating Capacity

27,000 BTU

Zone Capacity

Min Ambient Cool

5F ~ 122F

Min Ambient Heat

-13F ~ 75.2F

SEER

EER

Voltage

Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)

Registered Warranty

7 Years Replacement on Condenser, 5 Years Parts

Air Handler 12K BTU

Product Dimensions

31.57"W x 7.44"D x 11.69"H

Mount Type

Wall

Cooling Capacity

12,000 BTU

Heating Capacity

12,000 BTU

Registered Warranty

5 Years Parts

Modes

Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep

Line Set

Length	35 Feet
Liquid Line Size	1/4"
Suction Line Size	1/2"

Line Set

Length	50 Feet
Liquid Line Size	1/4"
Suction Line Size	1/2"

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate

Home Mini Split MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit, DIYM227HPW02C15

MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit, DIYM227HPW02C15

Name: MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. and 50 ft. Install Kit, DIYM227HPW02C15
Brand: MRCOOL
SKU: DIYM227HPW02C15
Price: 3799.0 USD
Availability: InStock

by MRCOOL

SKU DIYM227HPW02C15

In stock | Shipping ETA: to

Save $2,983.00

$6,782.00

$3,799.00

INDOOR UNIT TYPE

Availability: 100 in stock, ready to be shipped
