     MRCOOL DIY Mini Split - 24,000 BTU 2
    Zone Ductless Air Conditioner and Heat
      Pump with 16 ft. and 50 ft. Install Kit,
    DIYM227HPW02C04

Transform your indoor environment with the MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump, DIYM227HPW02C04. This advanced 4th Generation system is engineered to provide efficient cooling and heating for two distinct areas, making it the perfect solution for homes or offices that require customizable climate control. Included in this comprehensive package are a powerful DIY 27,000 BTU Multi-Zone Condenser, two 12,000 BTU Wall Mounted Air Handlers, and an installation kit featuring both 16 ft. and 50 ft. options, ensuring flexibility for your specific installation needs.

One of the standout features of this system is its DIY installation capability. Designed with the homeowner in mind, the MRCOOL Mini Split allows you to take charge of your installation, eliminating costly professional fees while providing a straightforward setup process. Equipped with state-of-the-art technology and easy-to-use controls, you can conveniently manage each zone's temperature and energy usage directly from your smartphone or tablet.

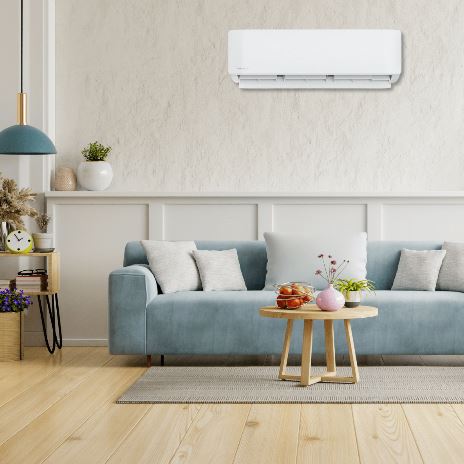

Sleek and unobtrusive, the ductless air handlers fit seamlessly into any décor while delivering powerful performance. Whether you’re cooling down a bedroom or heating up a living room, this system offers energy-efficient solutions to ensure year-round comfort. Say goodbye to bulky ductwork and hello to modern convenience with the MRCOOL DIY Mini Split!


Specifications of MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 50 ft. Install Kit, DIYM227HPW02C04:

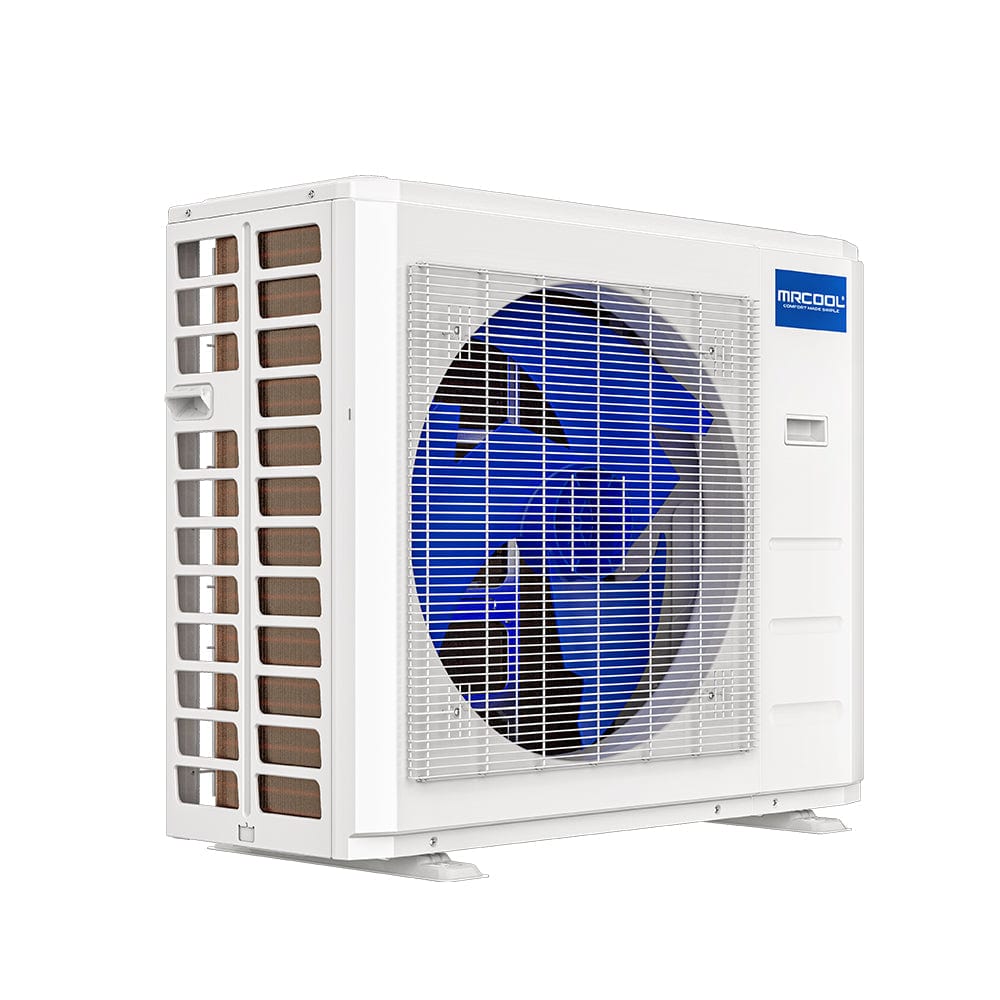

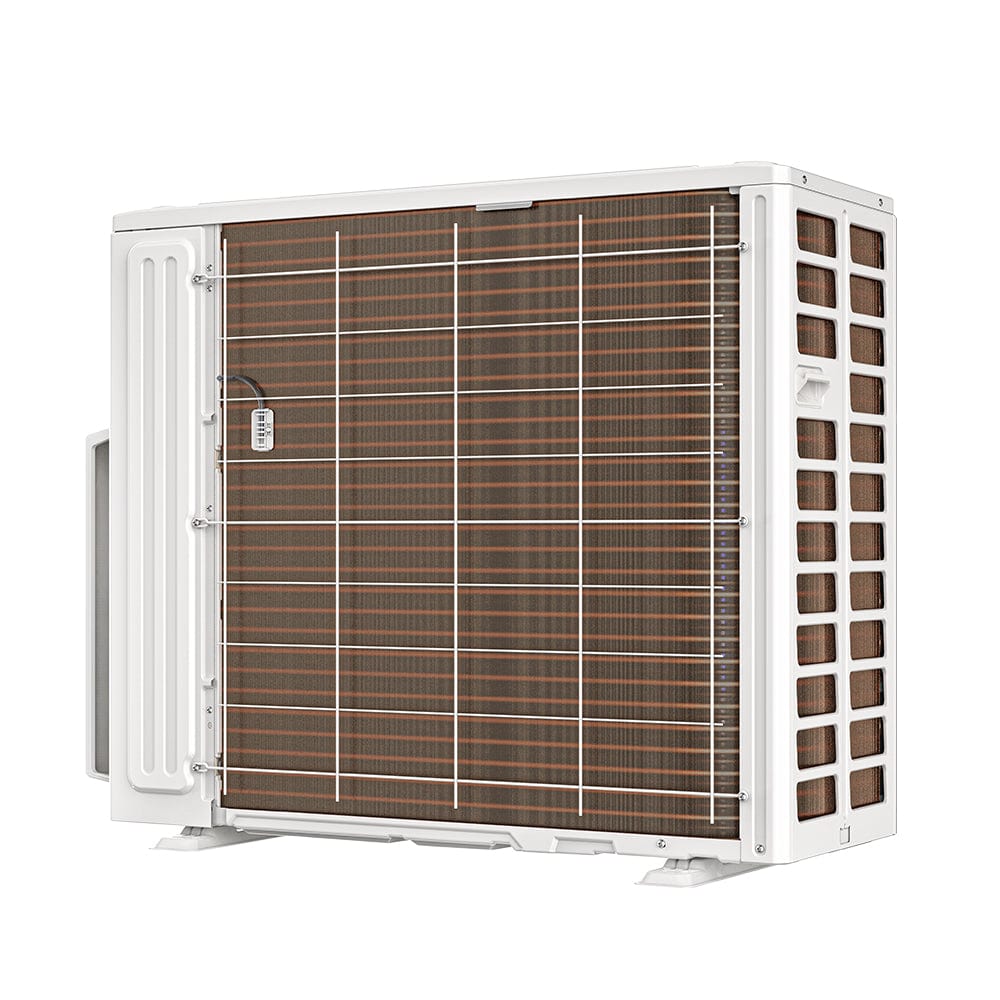

Condenser Specifications

Product Dimensions 35.04"W x 13.46"D x 26.50"H
Cooling Capacity 18,000 BTU
Heating Capacity 19,000 BTU
Zone Capacity 2
Min Ambient Cool 5F ~ 122F
Min Ambient Heat -13F ~ 75.2F
SEER 21
EER 12.5
Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty
 7 Years Replacement on Condenser, 5 Years Parts

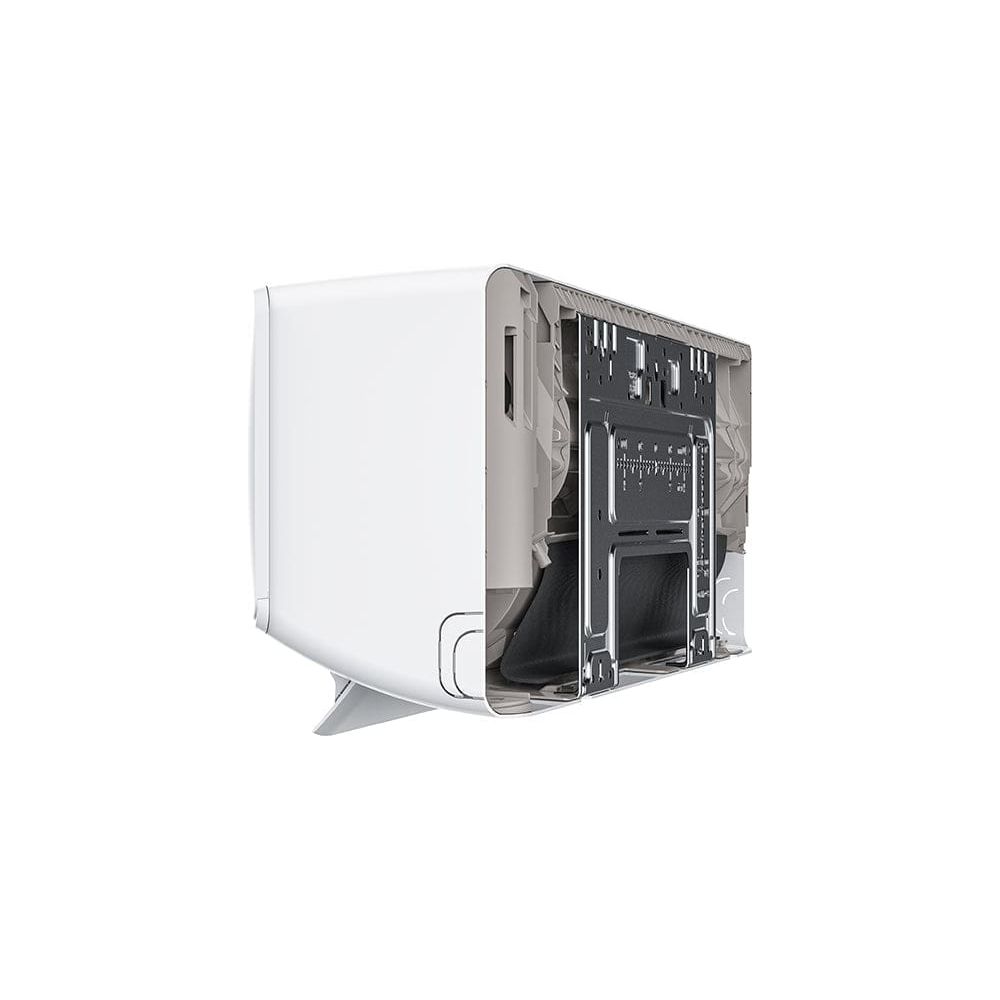

Air Handler 12K BTU

Product Dimensions 31.57"W x 7.44"D x 11.69"H
Mount Type Wall
Cooling Capacity 12,000 BTU
Heating Capacity 12,000 BTU
Registered Warranty 5 Years Parts
Modes Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep


Line Set

Length 16 Feet
Liquid Line Size 1/4"
Suction Line Size 1/2"


Line Set

Length 50 Feet
Liquid Line Size 1/4"
Suction Line Size 1/2"
Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate




This 4th Generation MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 50 ft. Install Kit, DIYM227HPW02C04 includes everything you need to cool and heat two different rooms. You'll be sent: DIY 27,000 BTU Multi-Zone Condenser, two 12,000 BTU Wall Mounted Air Handler, two Remotes, and one 16 ft. and 50 ft. Installation Kits. The best part about all of this is that you can install it yourself! This MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 50 ft. Install Kit, DIYM227HPW02C04 includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.


MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 50 ft. Install Kit, DIYM227HPW02C04

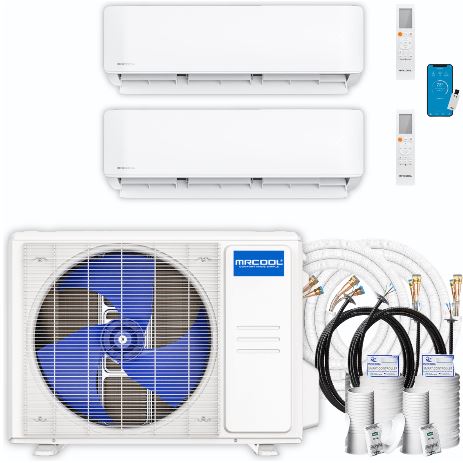

Package Includes

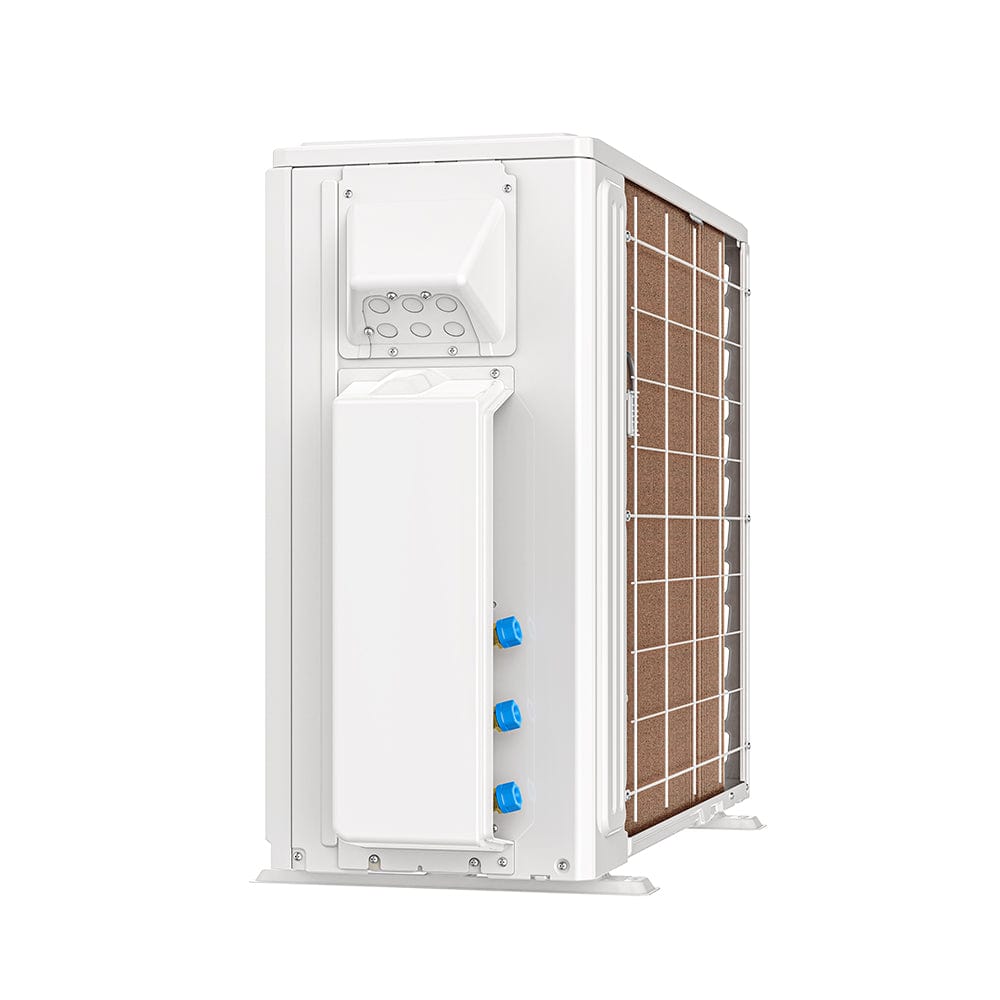

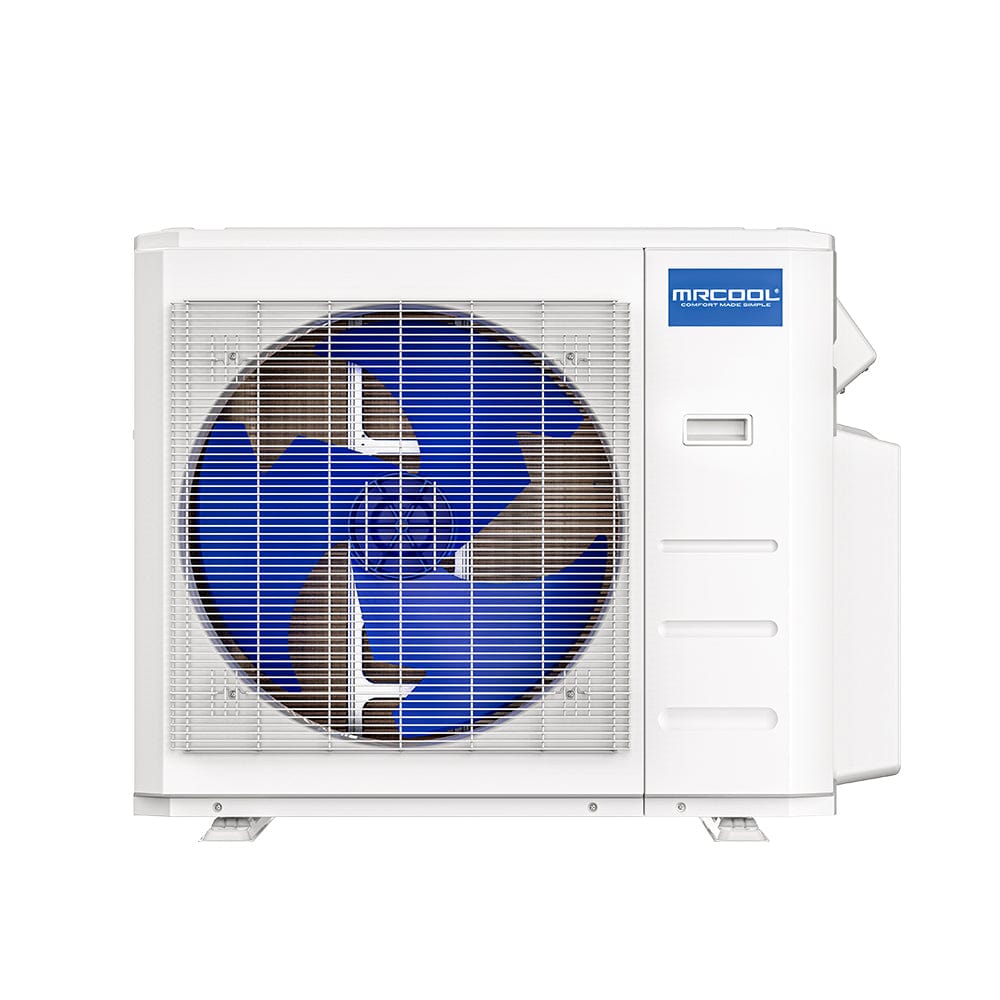

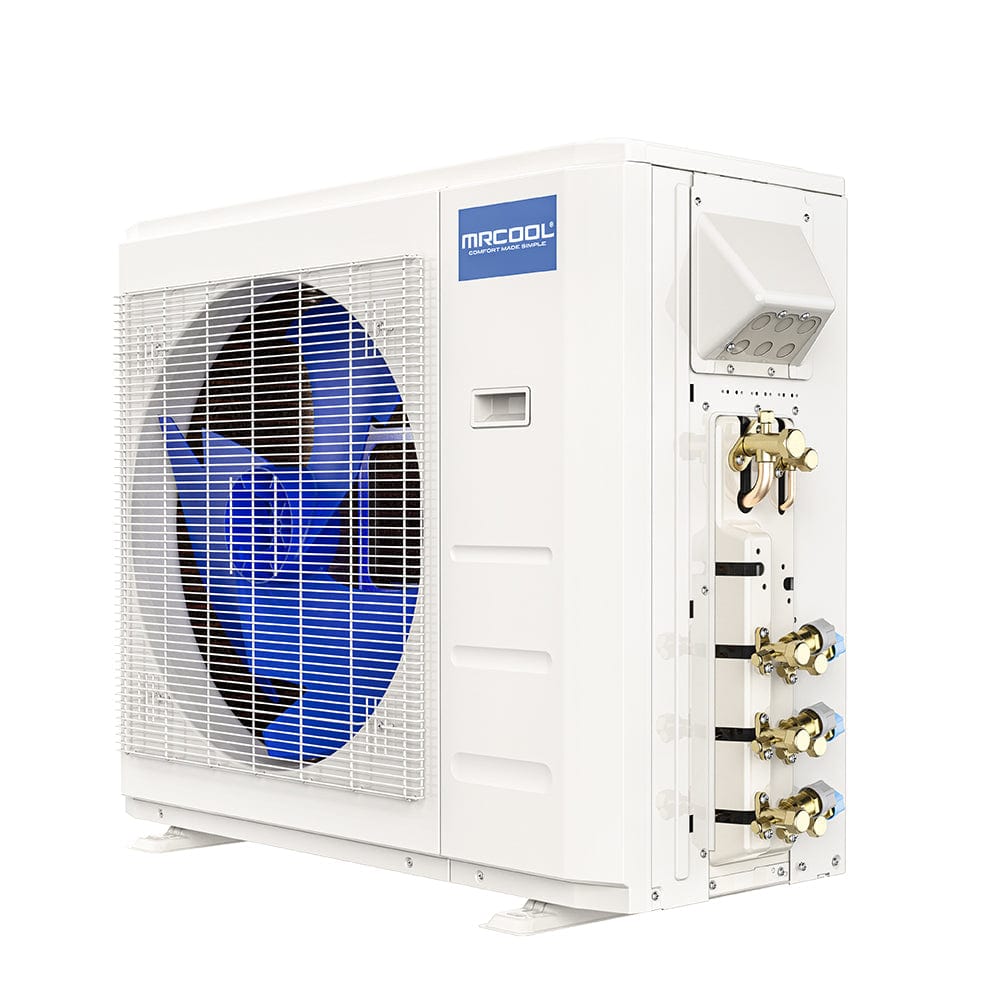

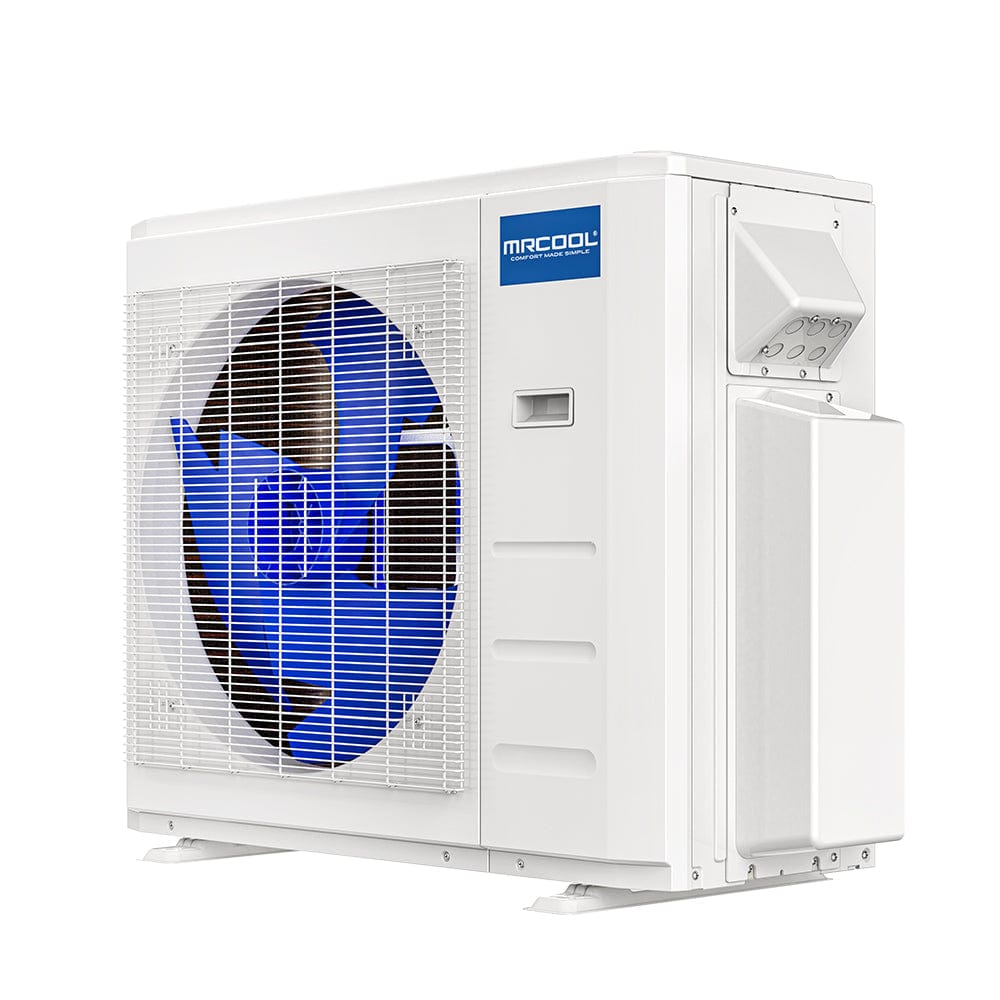

Condenser

  • Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -13°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

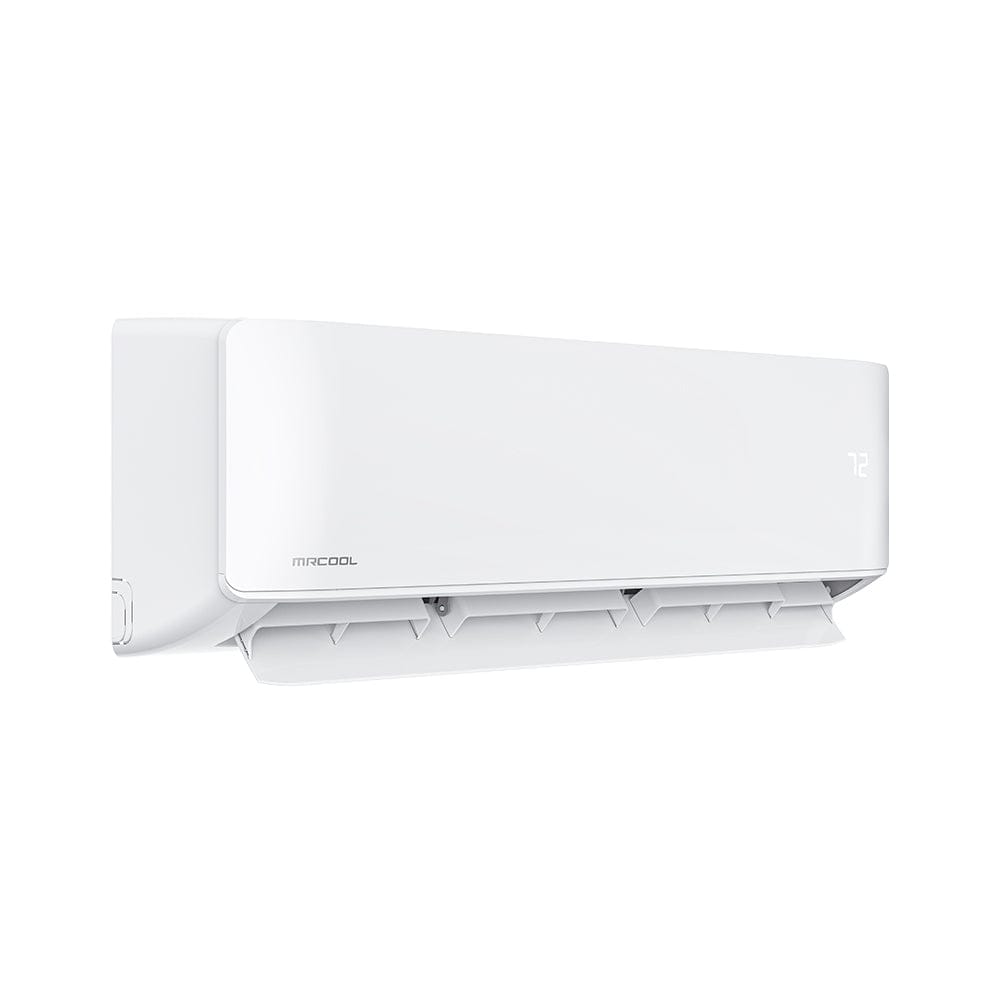

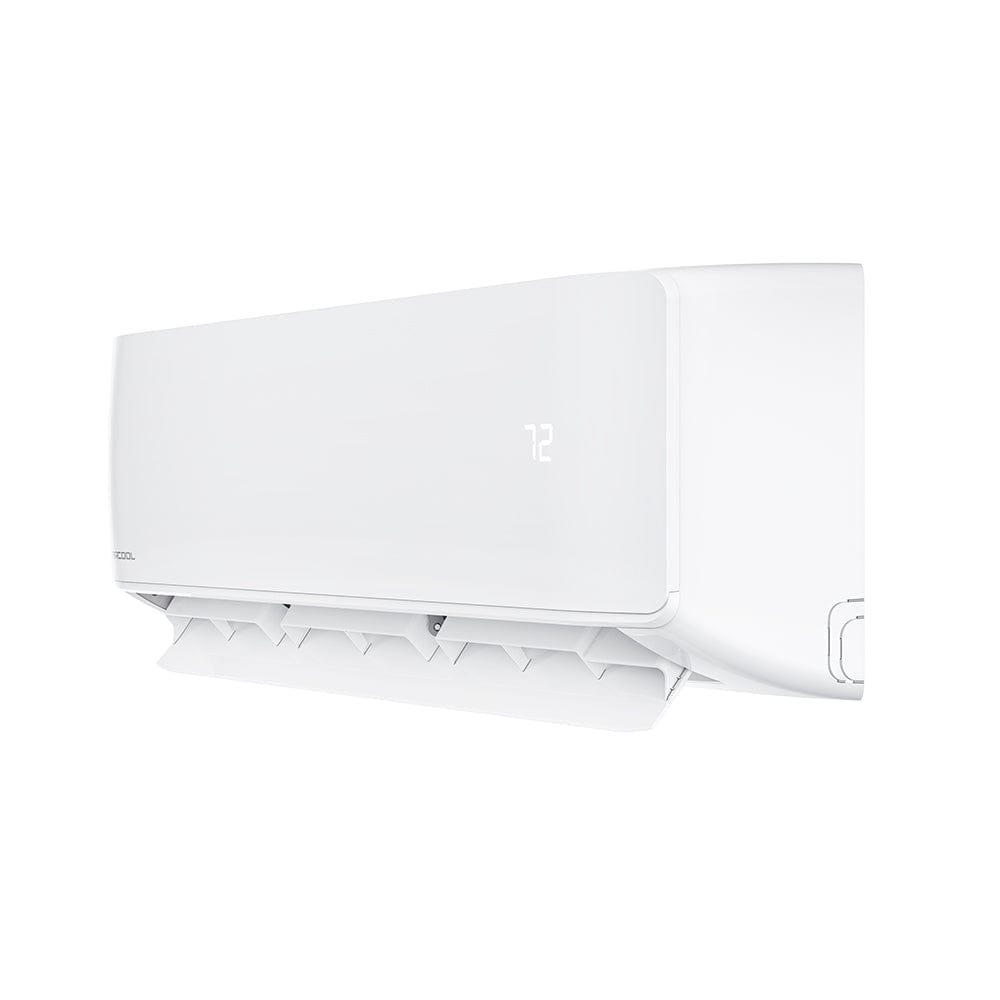

    Air Handler, 12K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

        Line Set 16 ft., Quantity 1

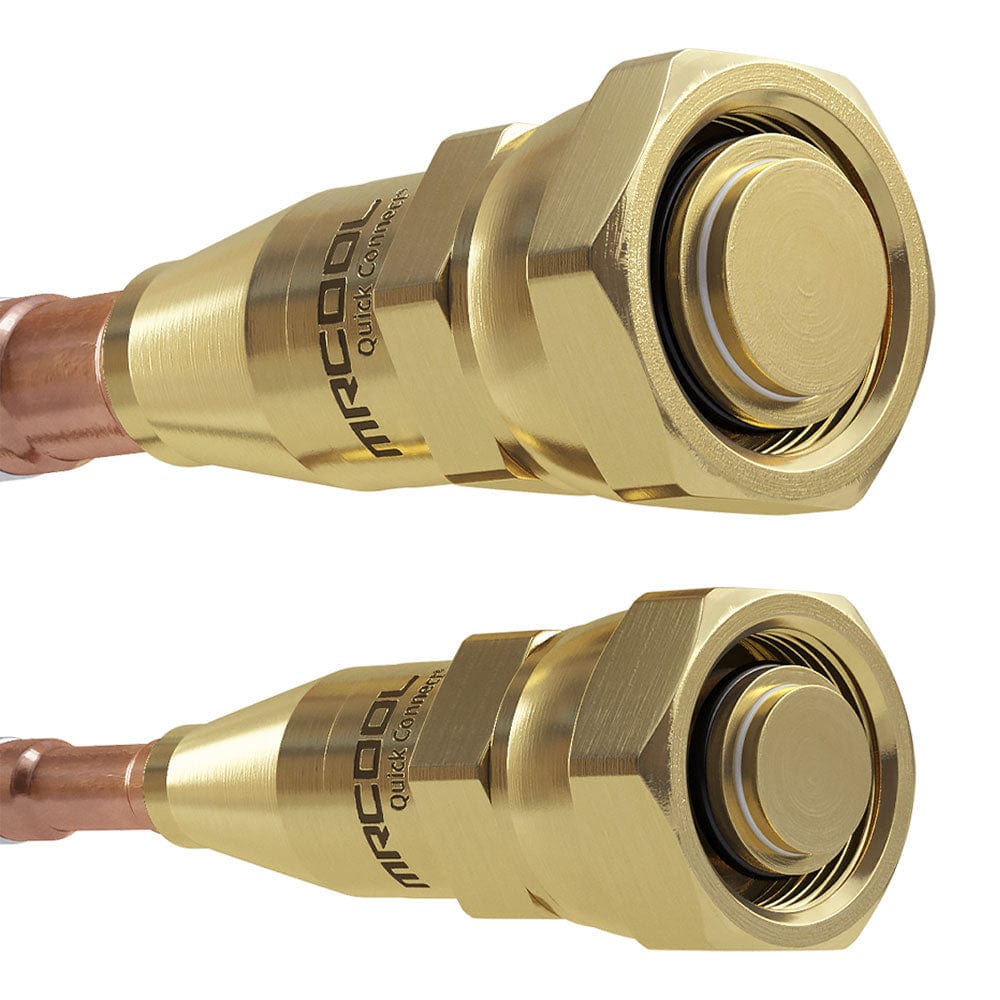

        • This 16 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
        • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
        • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

        Line Set 50 ft., Quantity 1
        • This 50 ft. copper line set connects the 4th Generation MRCOOL DIY Condenser to the MR COOL DIY Air Handlers - 9K, 12K and 18K.
        • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
        • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

        Additional Line Sets & Coupler

        If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

        What does this package include?

        This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.
