 MRCOOL DIY Mini Split - 24,000 BTU 2
    Zone Ductless Air Conditioner and Heat
      Pump with 16 ft. and 25 ft. Install Kit,
 DIYM227HPW02C01

      Experience exceptional comfort with the MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump, DIYM227HPW02C01. This 4th Generation system is engineered to provide both cooling and heating for two distinct spaces in your home or office, making it a versatile choice for year-round comfort. The package includes a powerful DIY 27,000 BTU Multi-Zone Condenser, two 12,000 BTU Wall Mounted Air Handlers, and an installation kit with both 16 ft. and 25 ft. options, giving you everything you need for a seamless setup.

      Designed for easy installation, this system eliminates the need for professional assistance, allowing you to save on labor costs while enjoying the benefits of a high-efficiency HVAC solution. The MRCOOL DIY Mini Split features advanced technology that allows for precise temperature control in each zone, ensuring personalized comfort wherever you are.

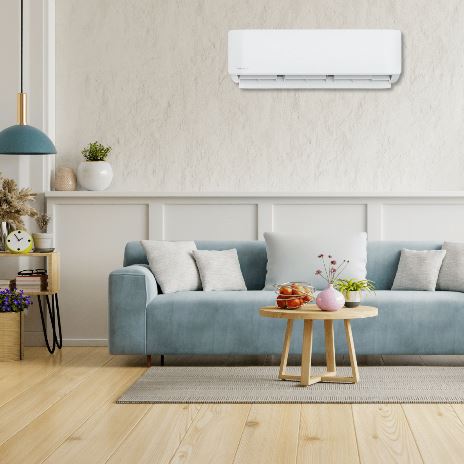

      The sleek, ductless design of the air handlers means you can enjoy efficient cooling and heating without the bulk of traditional HVAC systems. Whether you're setting up a new room or upgrading your existing climate control, the MRCOOL DIY Mini Split is flexible enough to adapt to your needs, ensuring a comfortable environment all year long.

      Specifications of MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 25 ft. Install Kit, DIYM227HPW02C01:

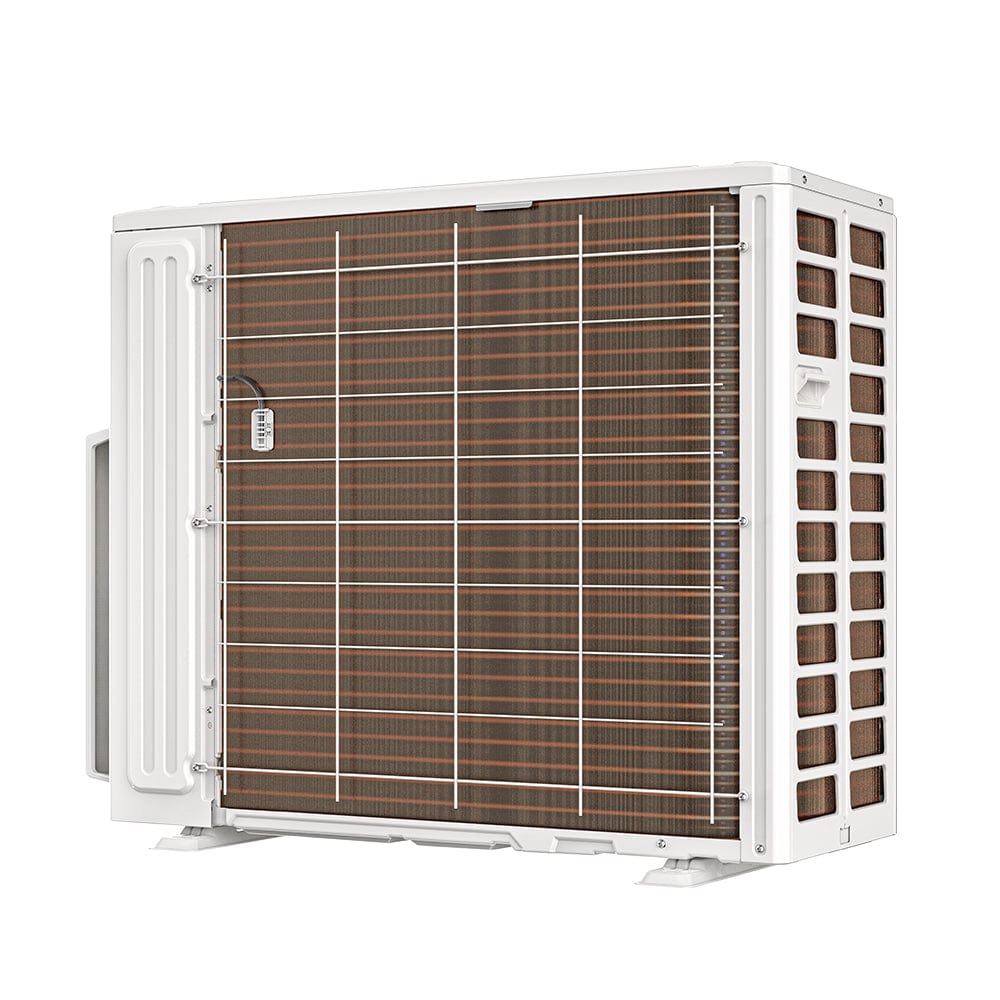

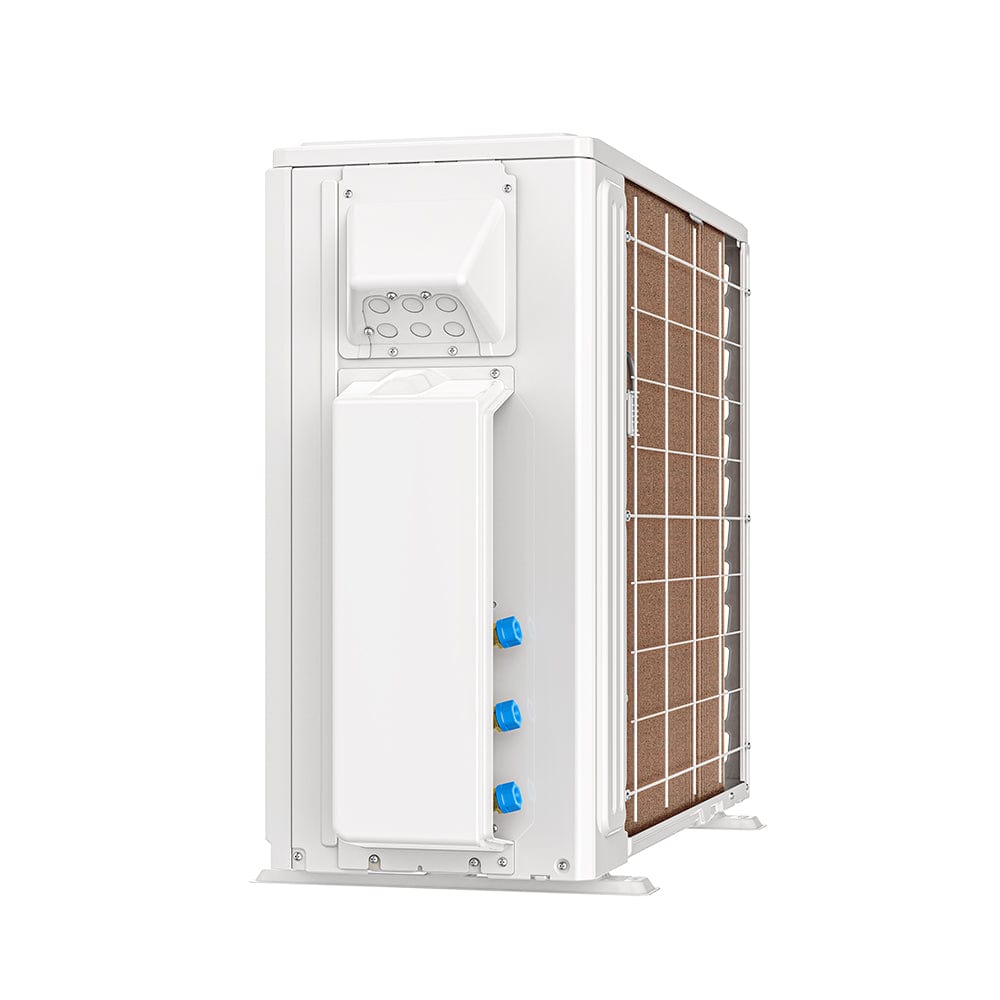

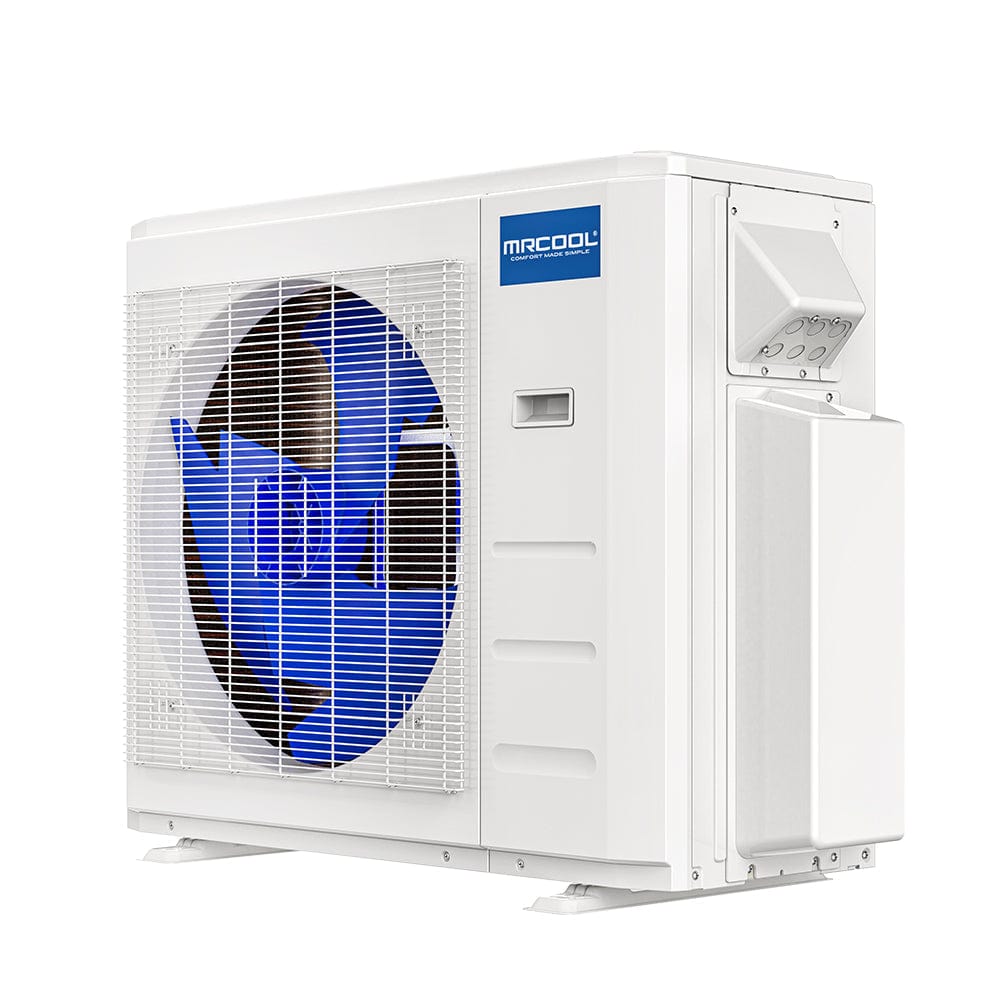

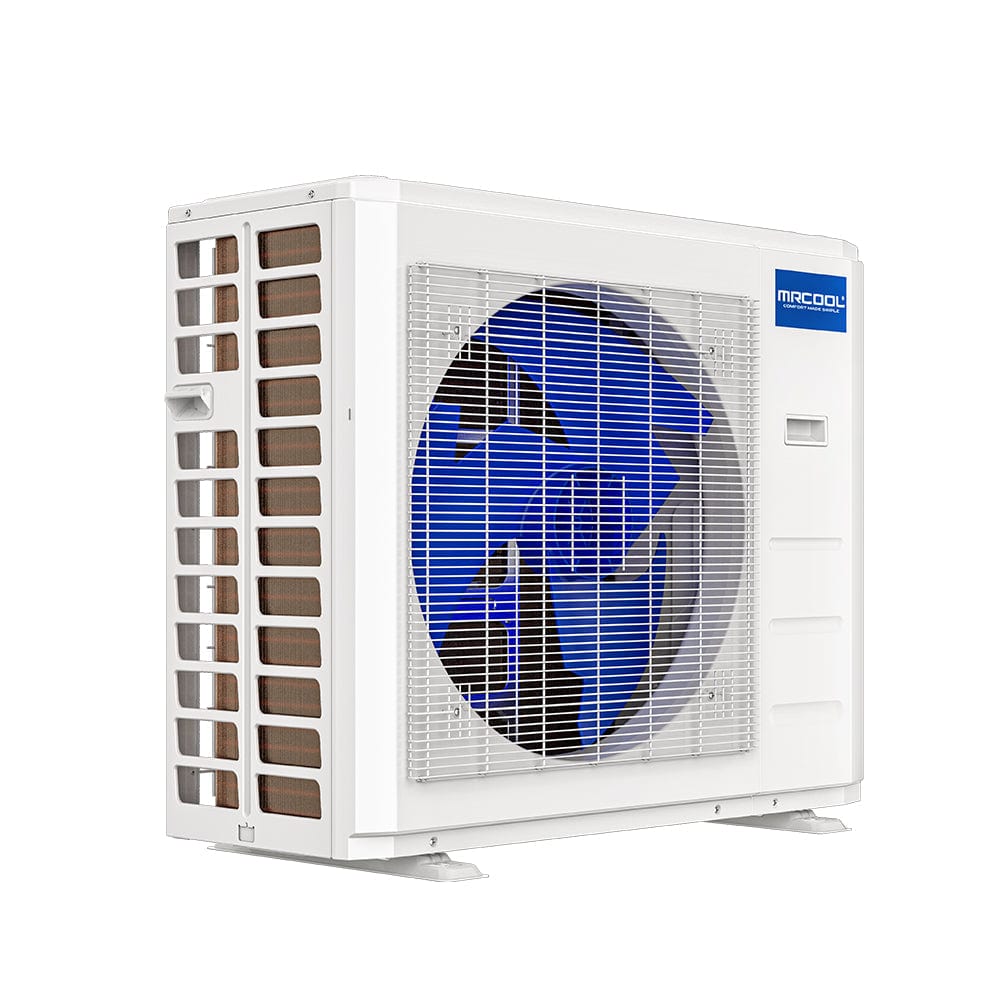

      Condenser Specifications

      Product Dimensions 37.24"W x 16.14"D x 31.89"H
      Cooling Capacity 27,000 BTU
      Heating Capacity 27,000 BTU
      Zone Capacity 3
      Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
      Min Ambient Heat -13F ~ 75.2F
      SEER 22
      EER 12
      Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
      Registered Warranty
      		 7 Years Replacement on Condenser, 5 Years Parts

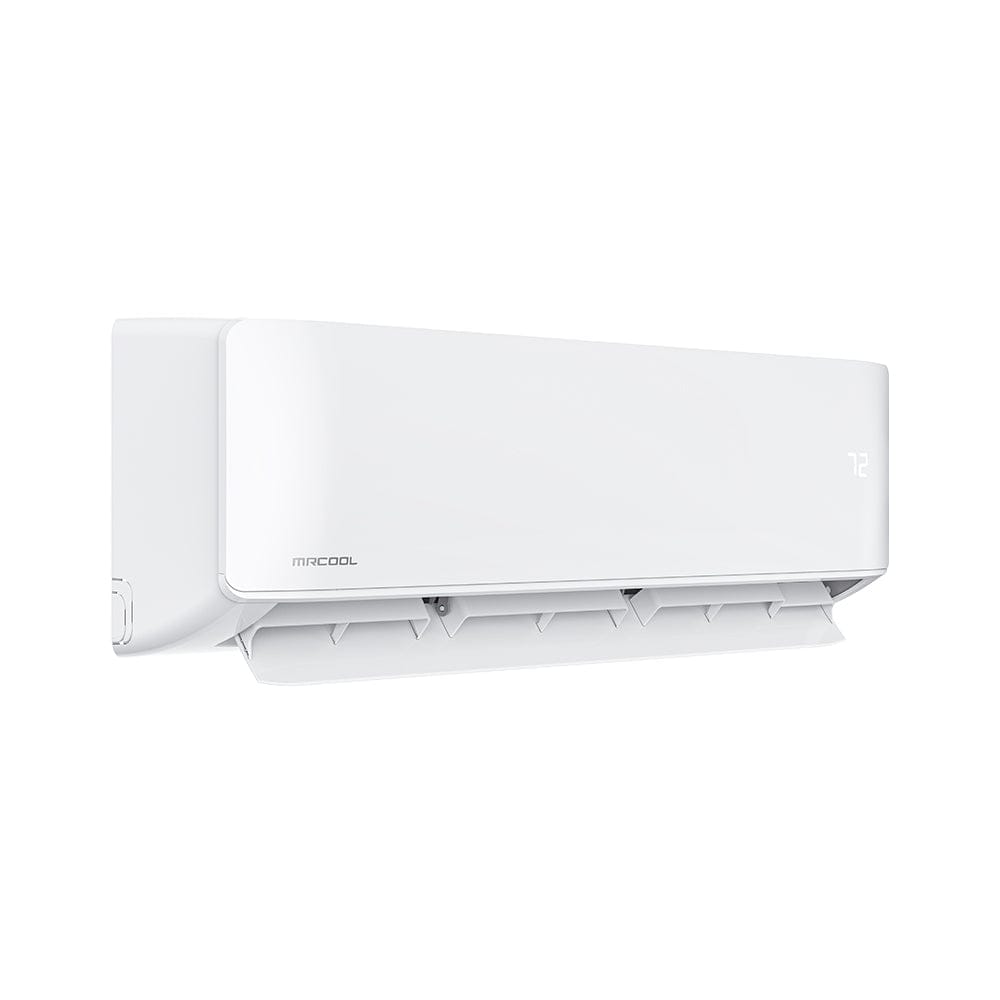

      Air Handler 12K BTU

      Product Dimensions 31.57"W x 7.44"D x 11.69"H
      Mount Type Wall
      Cooling Capacity 12,000 BTU
      Heating Capacity 12,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto - auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep


      Line Set

      Length 16 Feet
      Liquid Line Size 1/4"
      Suction Line Size 1/2"


      Line Set

      Length 25 Feet
      Liquid Line Size 1/4"
      Suction Line Size 1/2"
      Installation Manual
      Product Brochure
      Performance Specifications
      Warranty
      Energy Guide
      AHRI Certificate




      MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 25 ft. Install Kit, DIYM227HPW02C01

      This 4th Generation MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 25 ft. Install Kit, DIYM227HPW02C01 includes everything you need to cool and heat two different rooms. You'll be sent: DIY 27,000 BTU Multi-Zone Condenser, two 12,000 BTU Wall Mounted Air Handler, two Remotes, and one 16 ft. and 25 ft. Installation Kits. The best part about all of this is that you can install it yourself!

      MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner

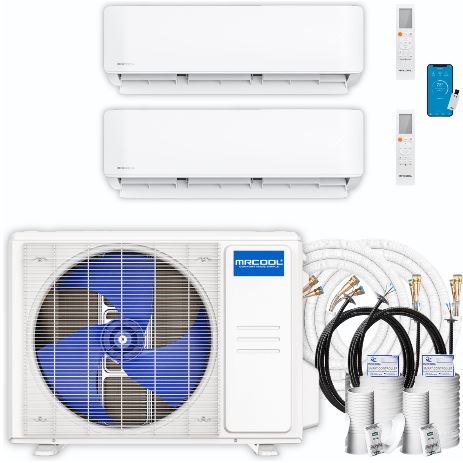

      Package Includes

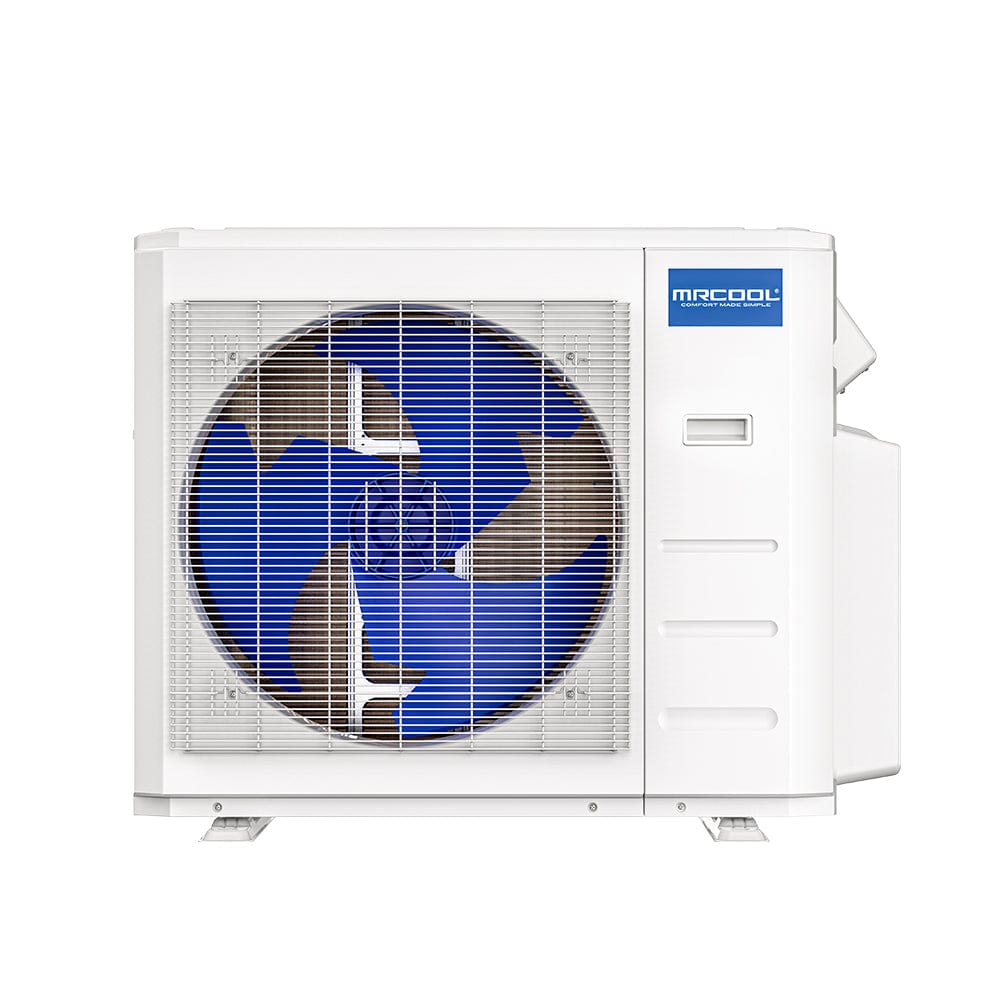

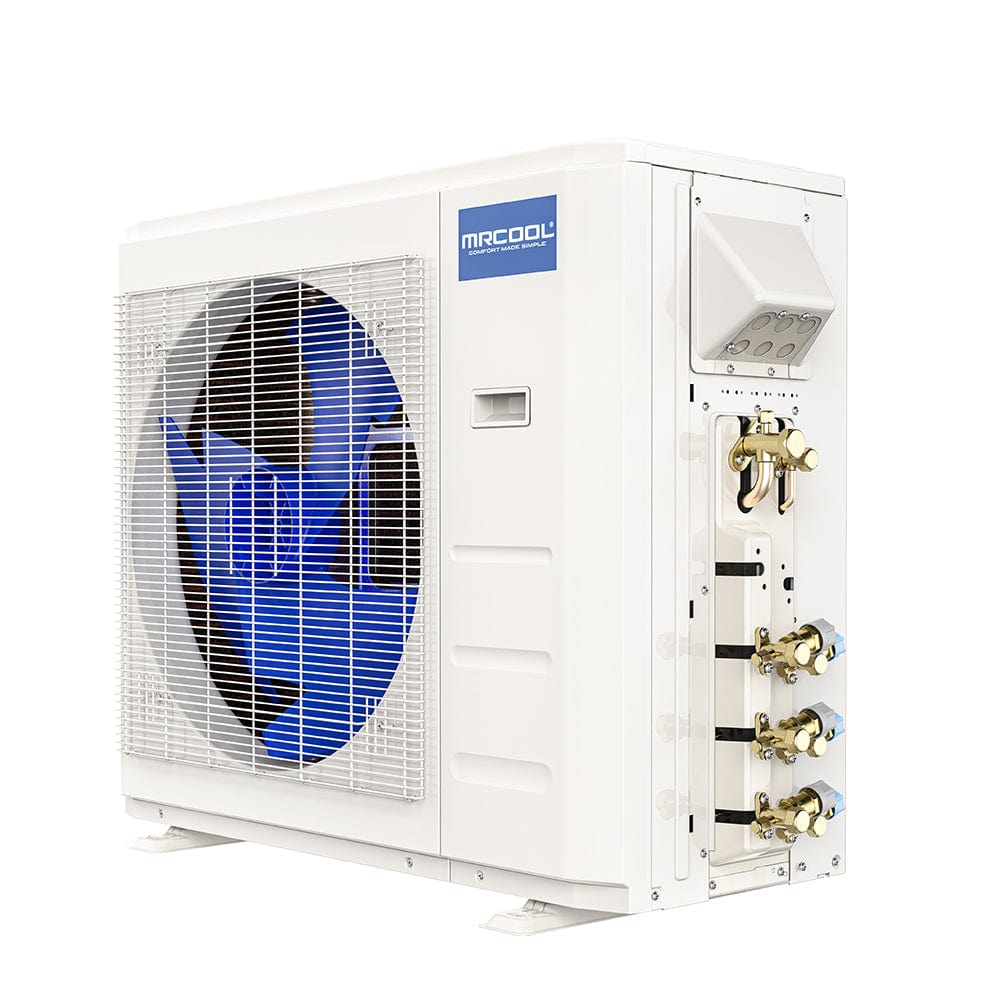

      Condenser

      • Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
      • Works In All Environments. The ability to heat even when temperatures drop to -13°F.
      • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

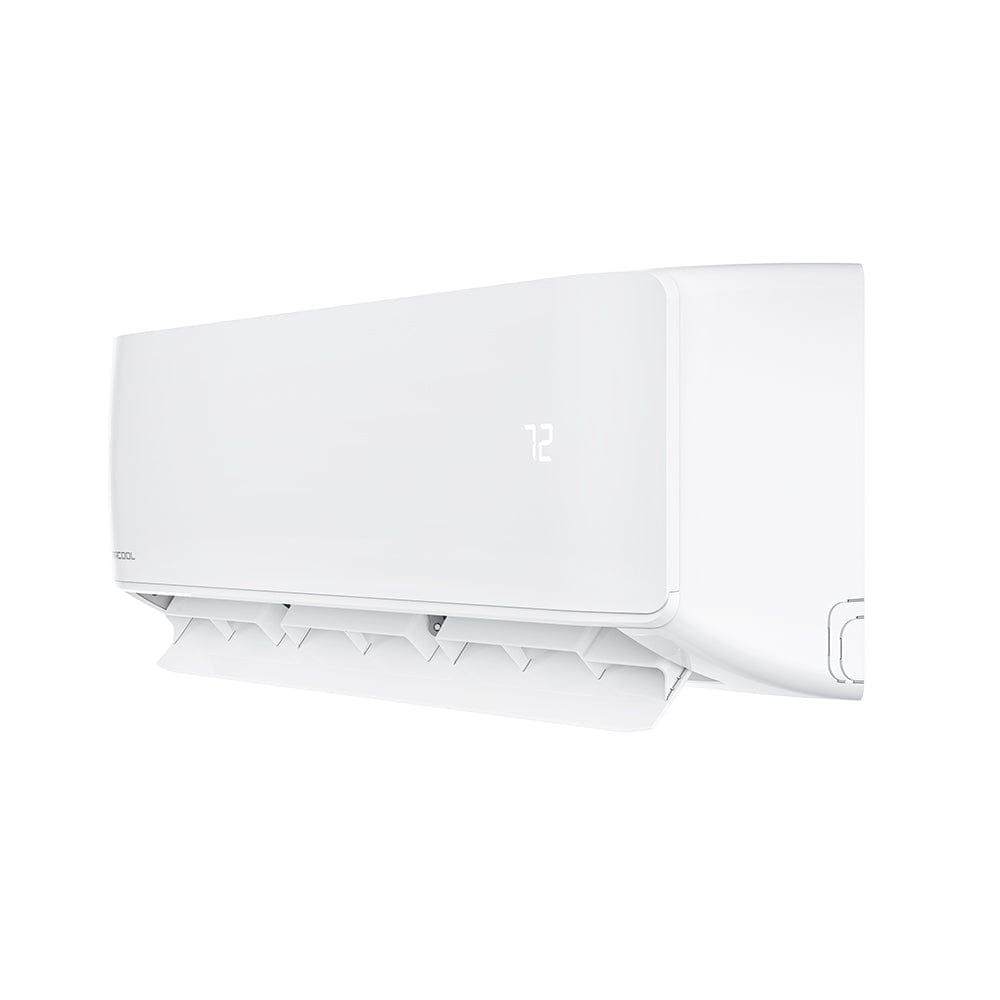

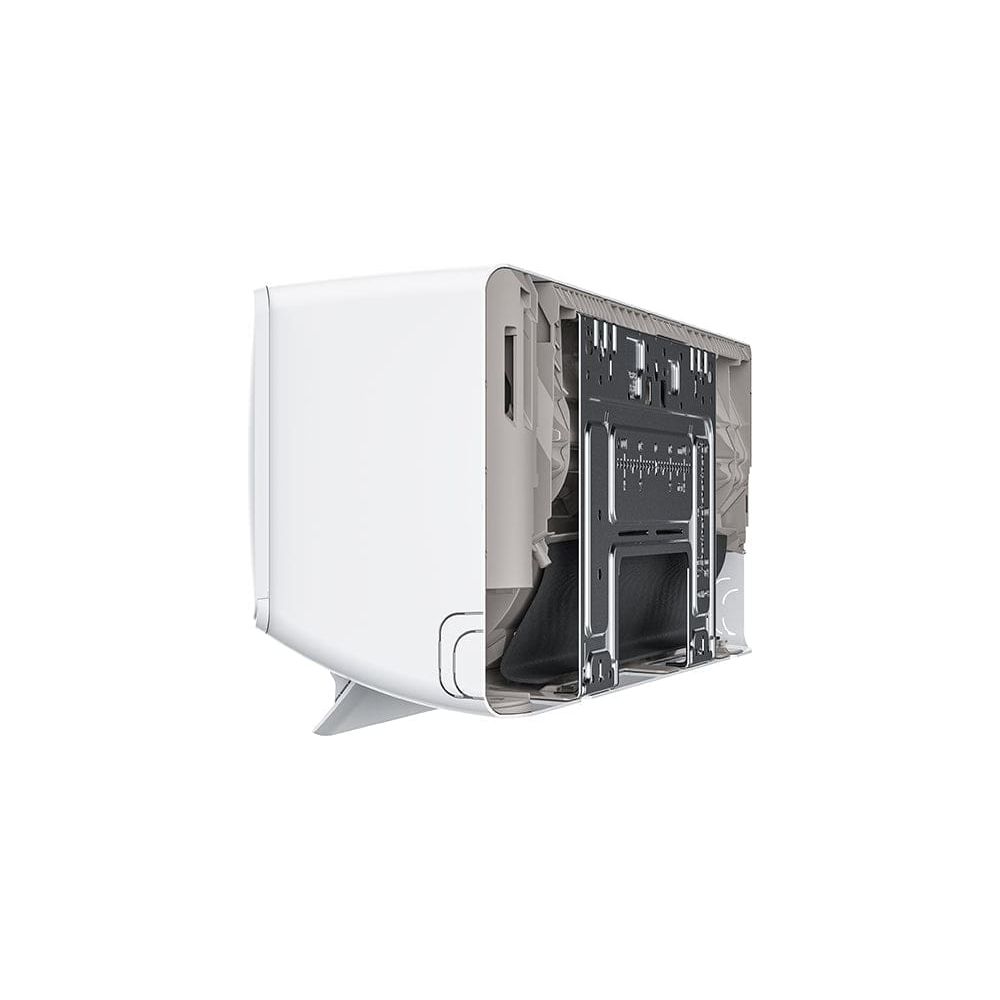

        Air Handler, 12K BTU, Quantity 2

        • Large Coverage Area. Handler covers an area up to 500 sq. ft.
        • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
        • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
        • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

            Line Set 16 ft., Quantity 1
            • This 16 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

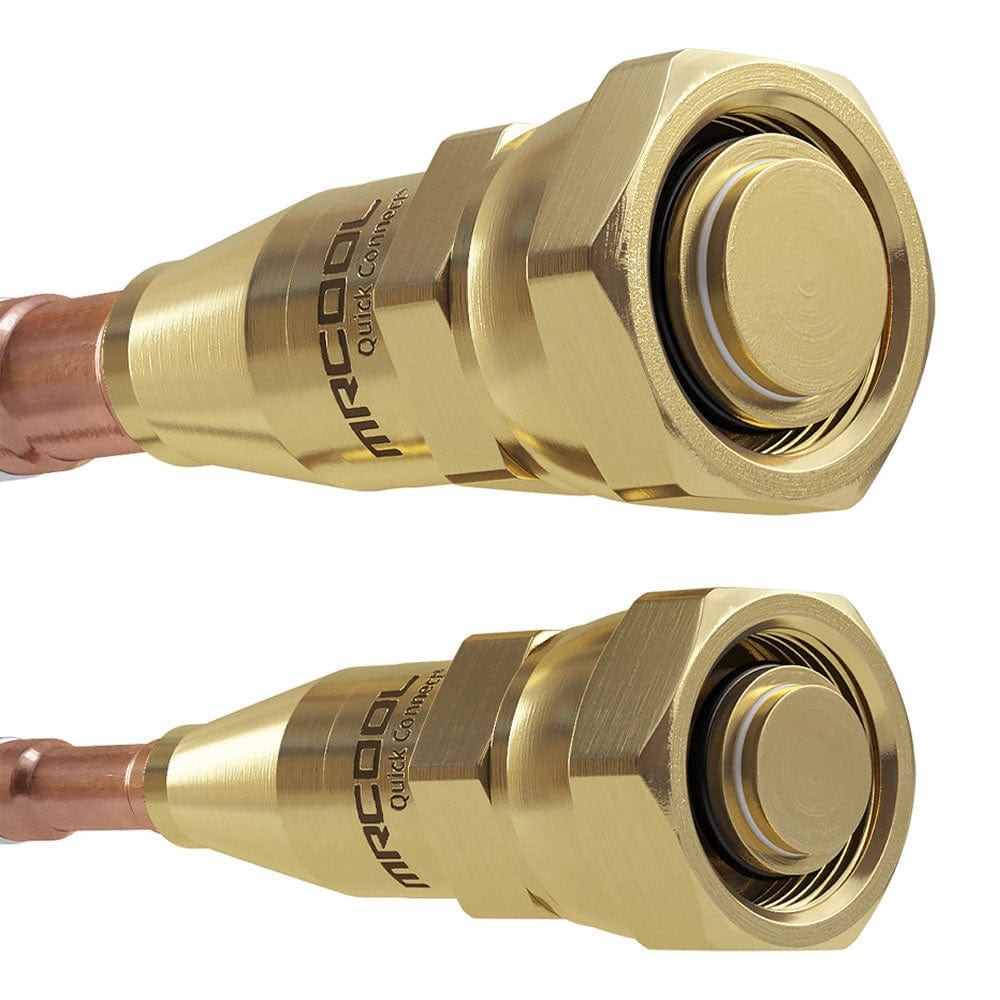

            • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
            • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

            Line Set 25 ft., Quantity 1
            • This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
            • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
            • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
