MRCOOL DIY Mini Split - 21,000 BTU 2
Zone Ductless Air Conditioner and Heat
Pump with 16 ft. and 35 ft. Install Kit, DIYM218HPW01C02

Enhance your home's climate control with the MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 35 ft. Install Kit, DIYM218HPW01C02. This complete system is designed for DIY installation, giving you the tools you need to efficiently cool and heat two separate rooms without the hassle of hiring a professional. The package includes an 18,000 BTU multi-zone condenser, a 9,000 BTU wall-mounted air handler, a 12,000 BTU wall-mounted air handler, two remotes, and installation kits of both 16 ft. and 35 ft., making setup straightforward and convenient.

As a 4th Generation MRCOOL DIY Mini Split, this system features advanced Wi-Fi technology that streamlines the installation process and allows you to manage your home’s temperature from your smartphone. This flexibility ensures that you can easily adapt the system to virtually any space, eliminating the need for specialized tools or costly equipment. Whether you're in one room or another, maintaining the perfect climate has never been easier.

With its efficient heating and cooling capabilities, the MRCOOL DIY Mini Split not only enhances your home comfort but also integrates seamlessly into your living space with a sleek design. Enjoy the independence of controlling two zones individually, allowing for tailored comfort to fit your preferences. Experience the satisfaction of a DIY installation while benefiting from a modern heating and cooling solution that will transform your home into a haven of comfort.

Package Includes

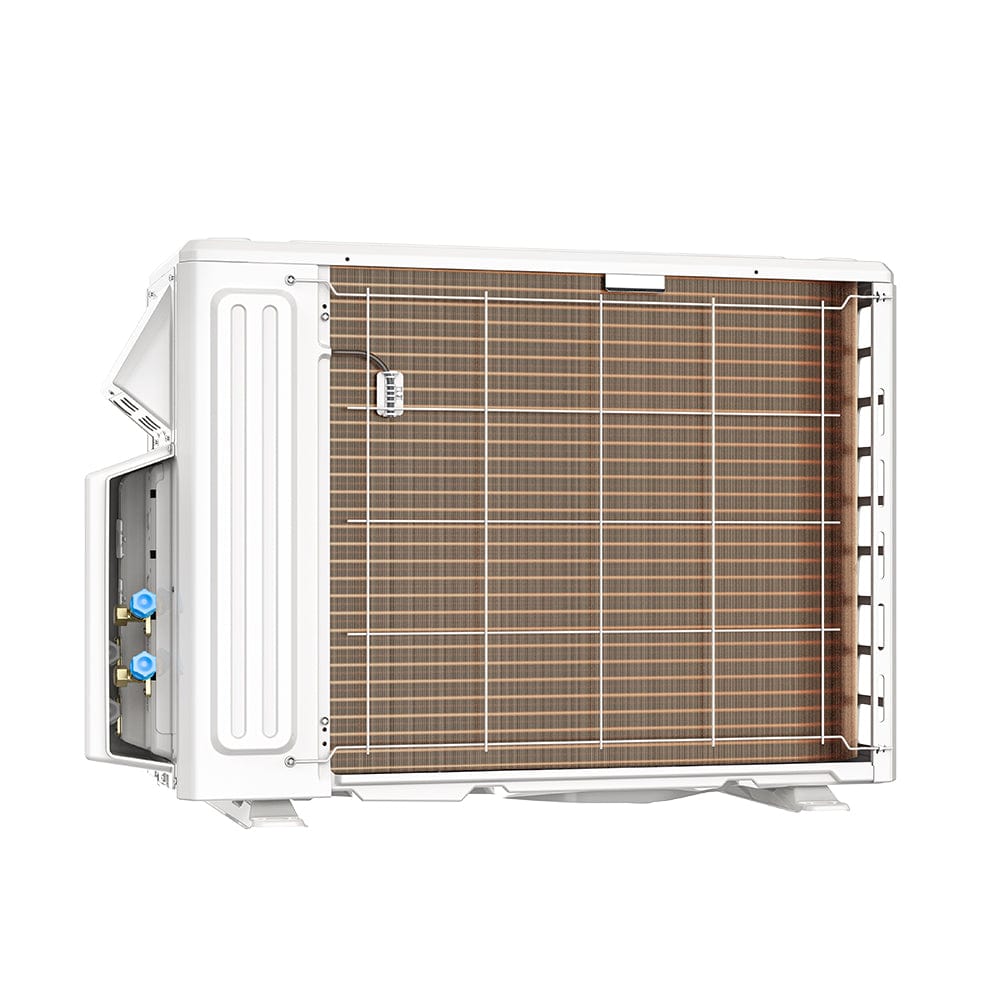

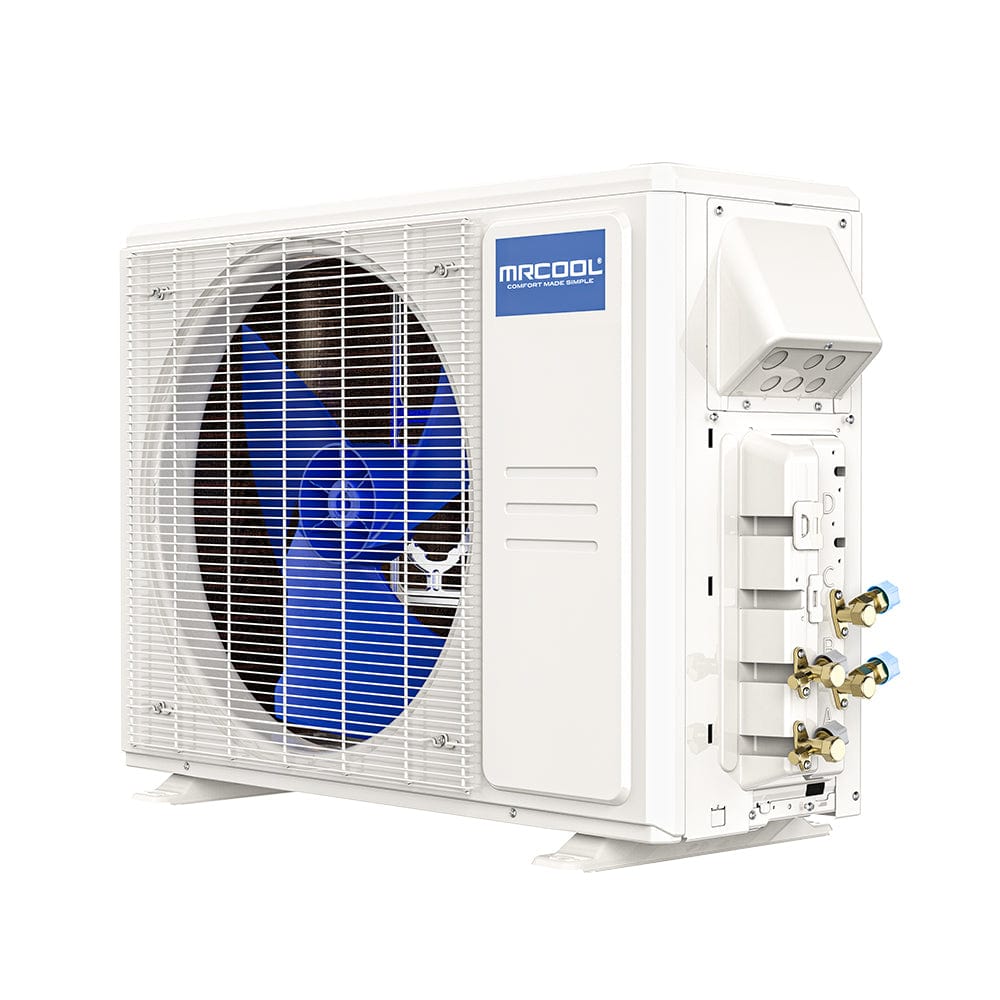

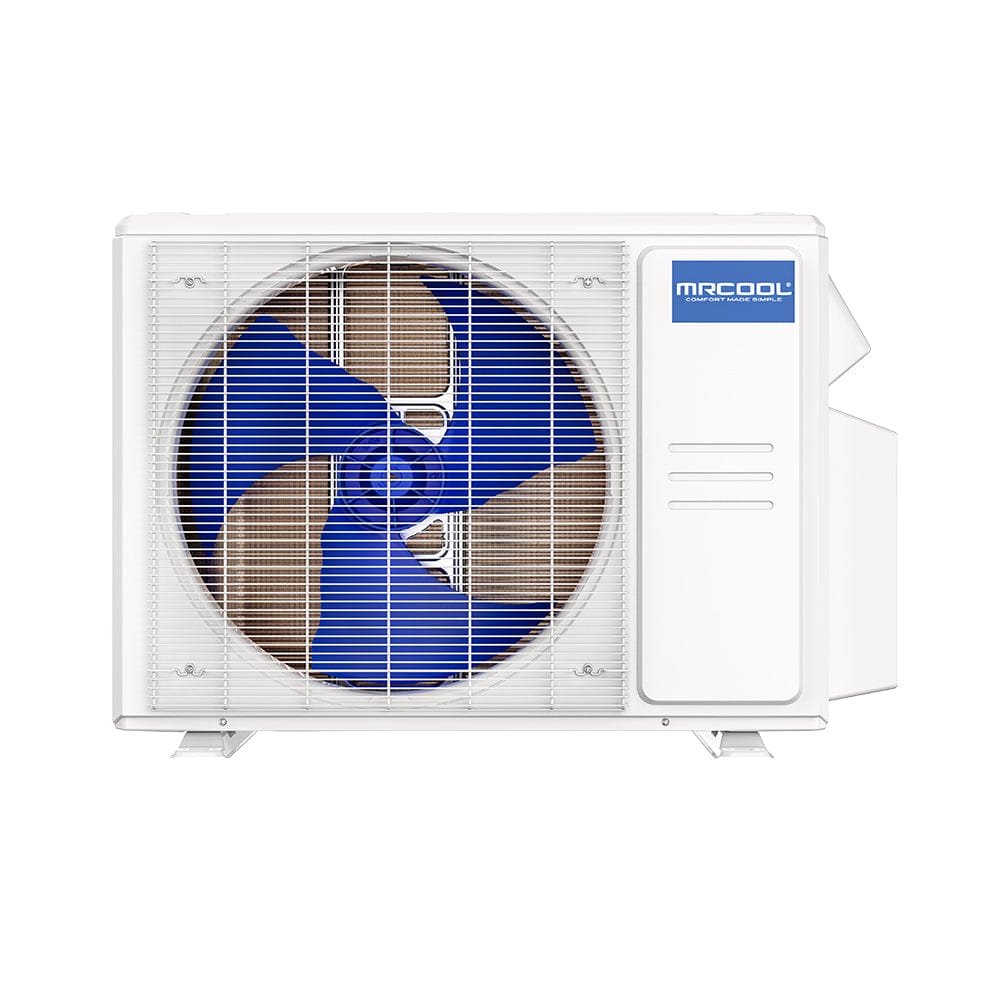

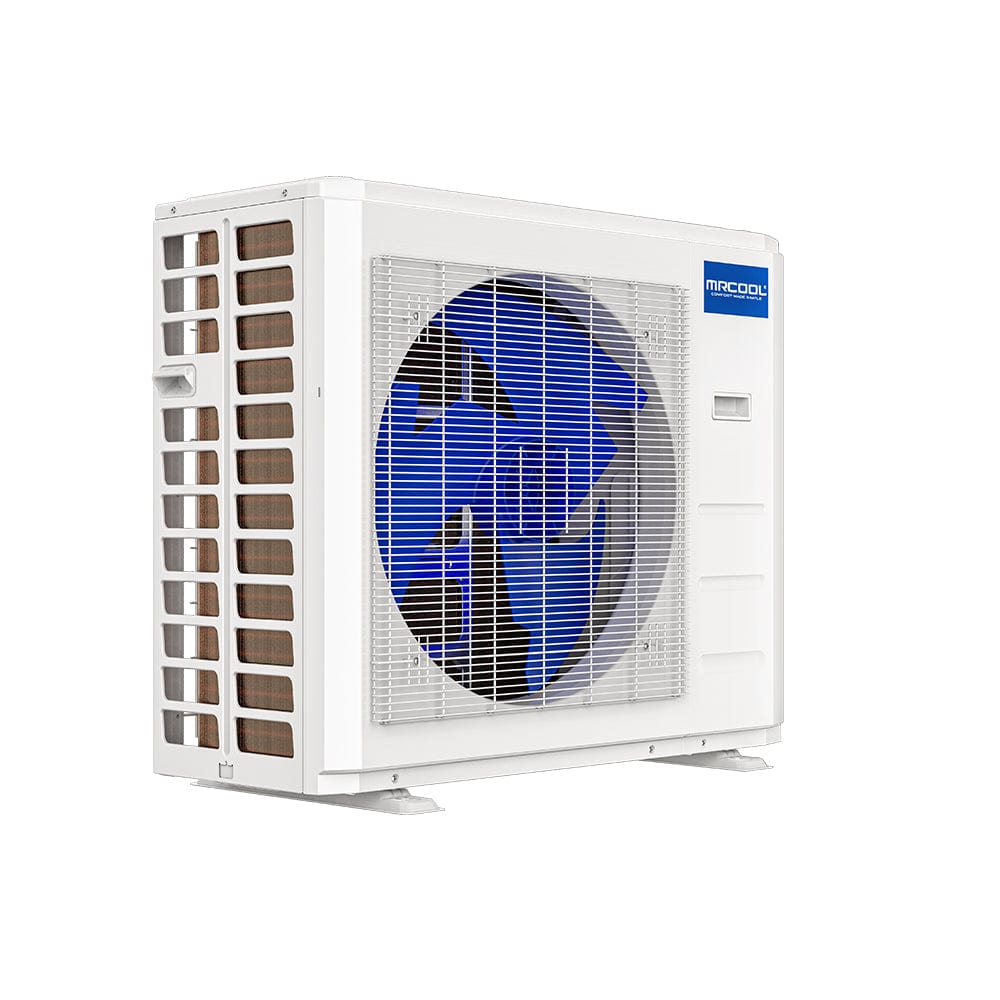

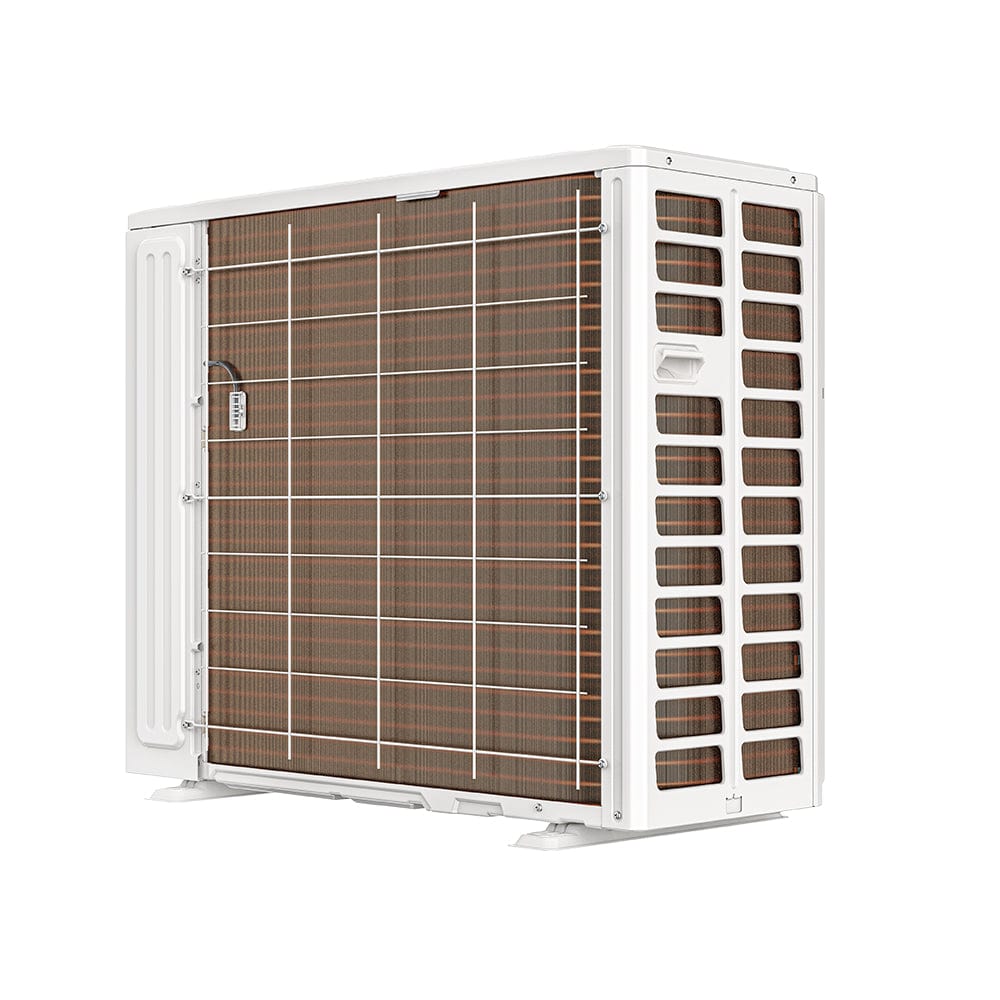

Condenser

Energy Efficient. This 2 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21 SEER efficiency rating.
Works In All Environments. The ability to heat even when temperatures drop to 5°F.
Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

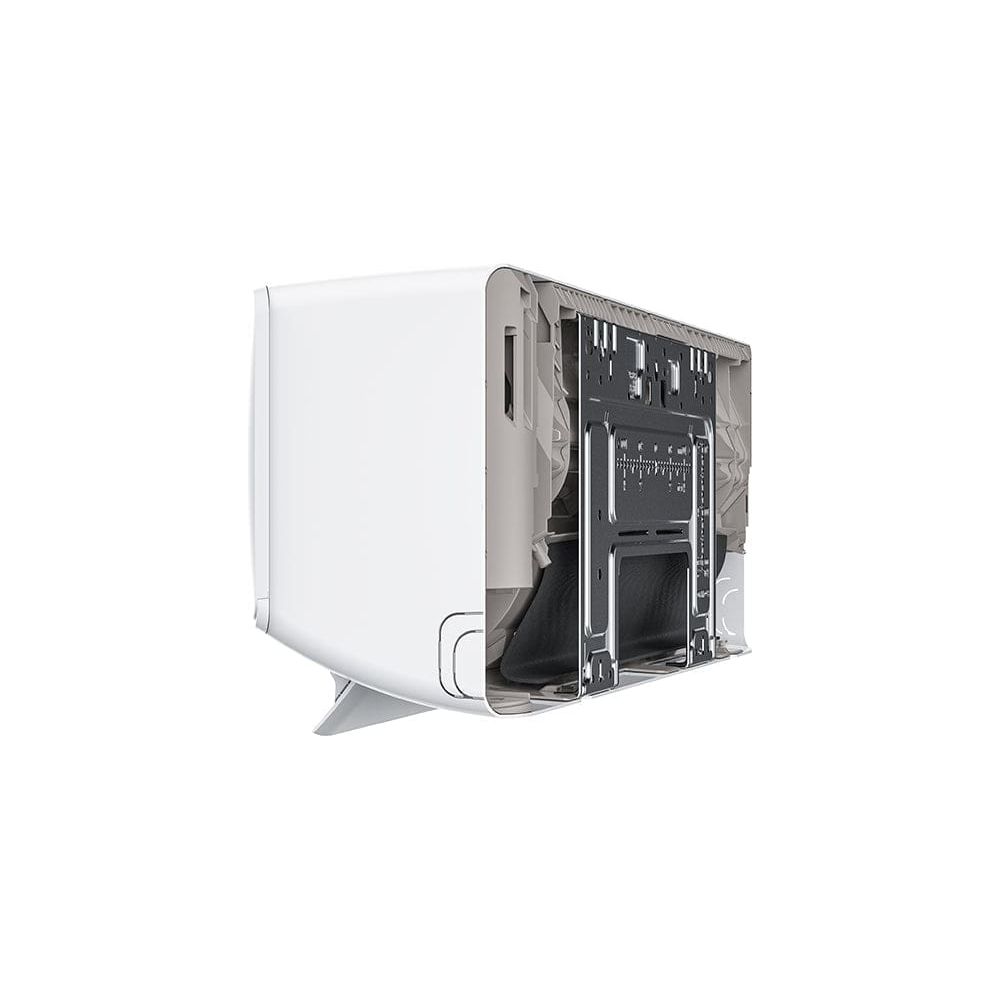

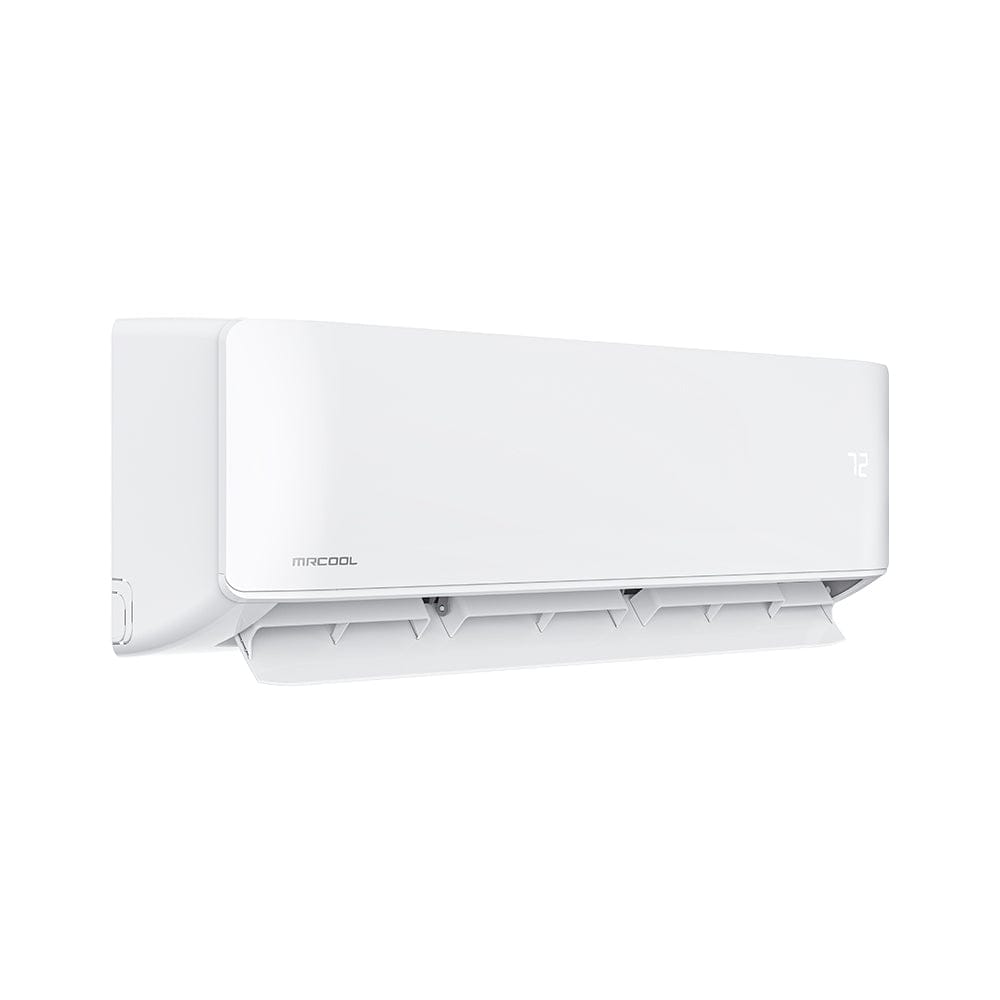

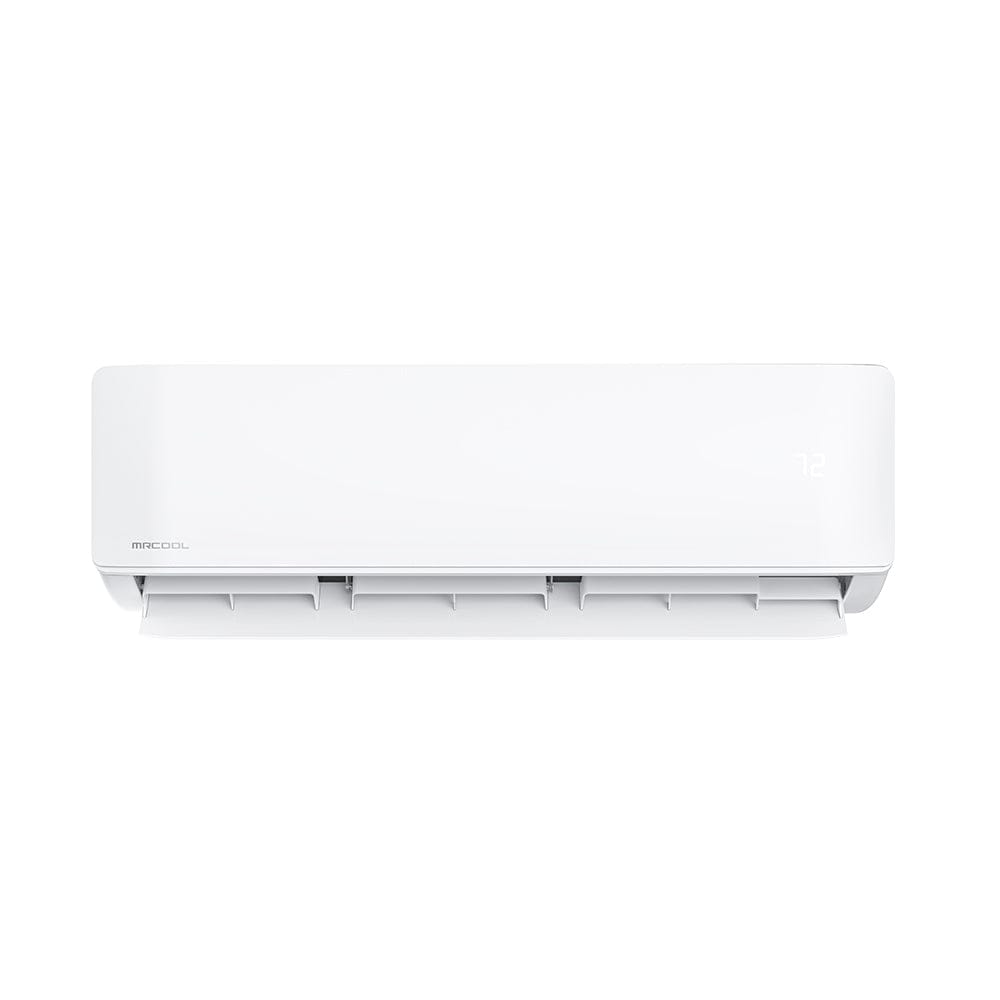

Air Handler, 9K BTU, Quantity 1

Large Coverage Area. Handler covers an area up to 375 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Air Handler, 12K BTU, Quantity 1

Large Coverage Area. Handler covers an area up to 500 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

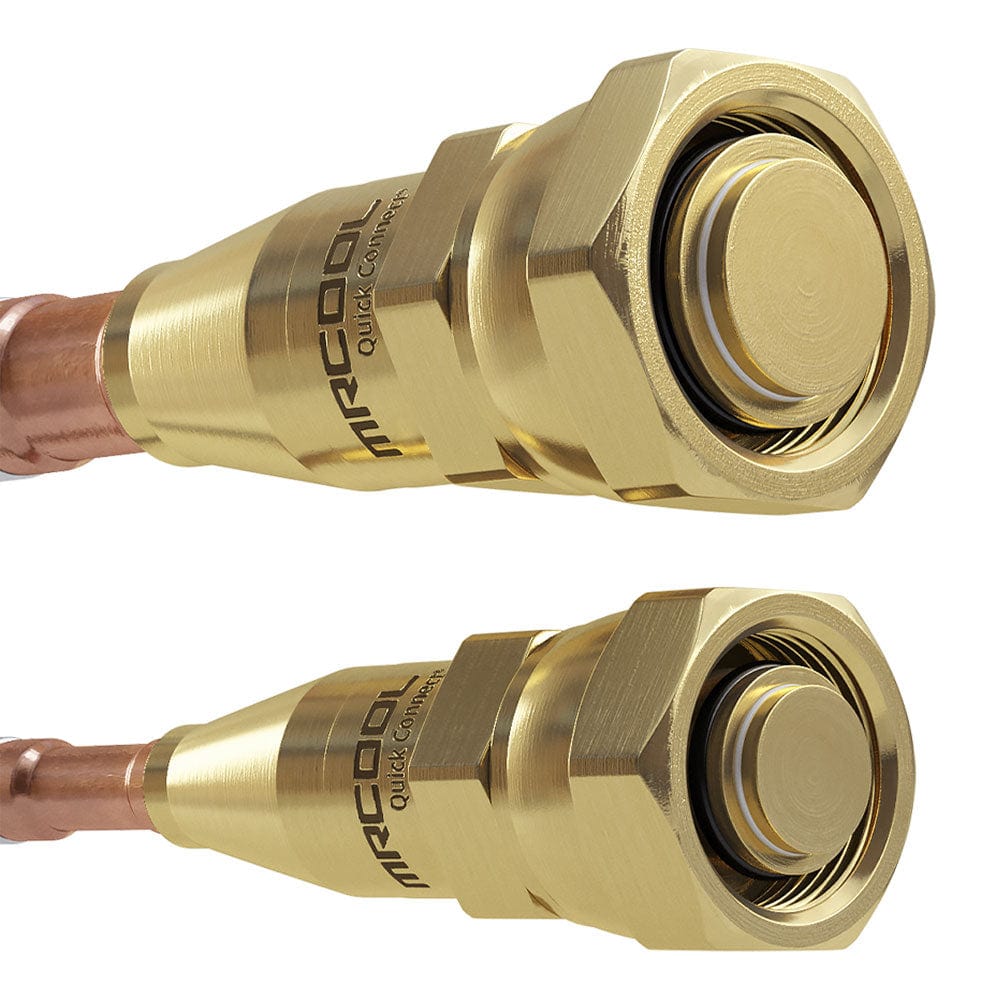

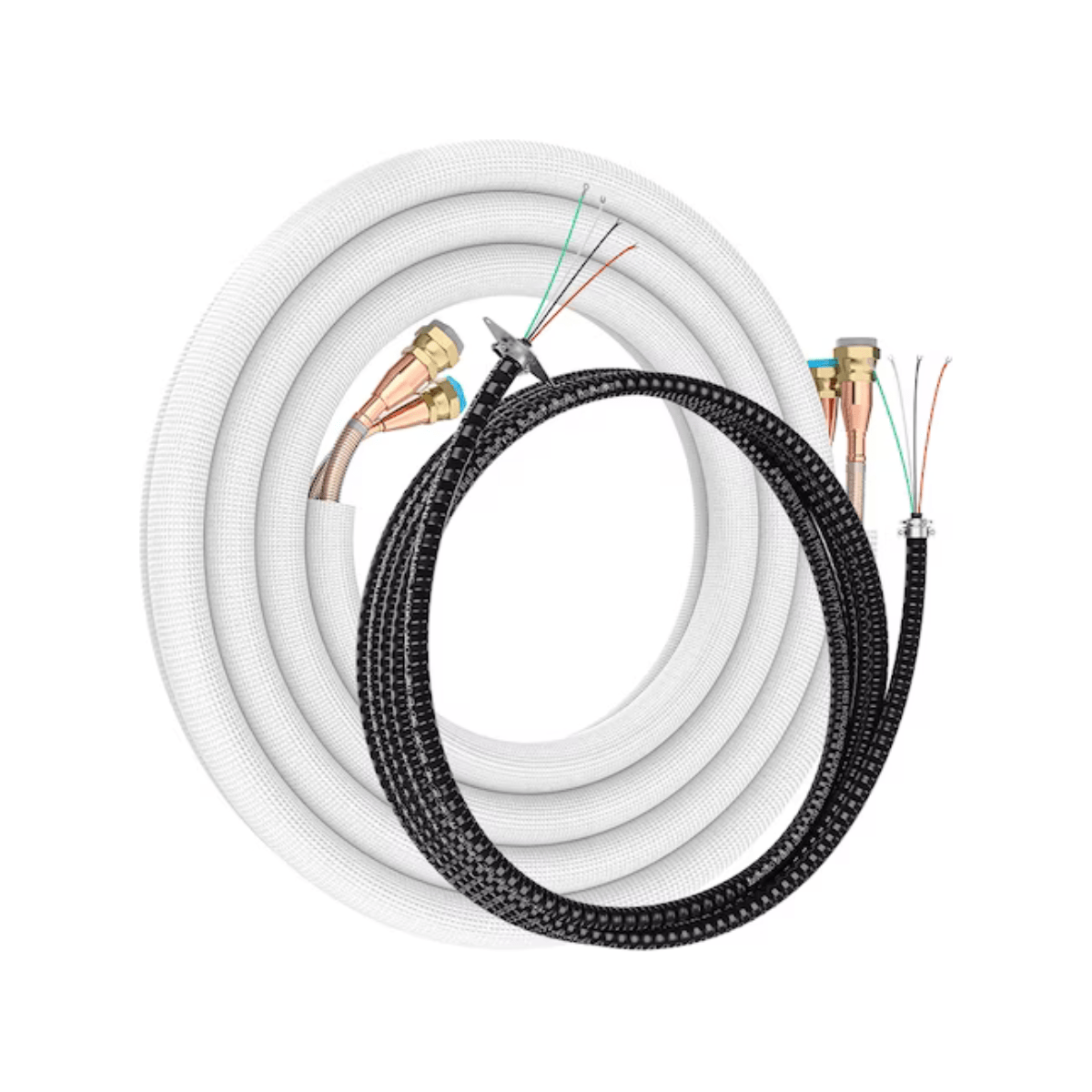

Line Set 16 ft., Quantity 1

This 16 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Line Set 35 ft., Quantity 1

This 35 ft. copper line set connects the MRCOOL DIY Condenser to the MR COOL DIY Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Specifications of MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 35 ft. Install Kit, DIYM218HPW01C02:

Condenser Specifications

Product Dimensions

35.04"W x 13.46"D x 26.50"H

Cooling Capacity

18,000 BTU

Heating Capacity

19,000 BTU

Zone Capacity

Min Ambient Cool

5F ~ 122F

Min Ambient Heat

-13F ~ 75.2F

SEER

EER

12.5

Voltage

Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)

Registered Warranty

7 Years Replacement on Condenser, 5 Years Parts

Air Handler 9K BTU

Product Dimensions

31.57"W x 7.44"D x 11.69"H

Mount Type

Wall

Cooling Capacity

9,000 BTU

Heating Capacity

9,000 BTU

Registered Warranty

5 Years Parts

Modes

Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep

Air Handler 12K BTU

Product Dimensions	31.57"W x 7.44"D x 11.69"H
Mount Type	Wall
Cooling Capacity	12,000 BTU
Heating Capacity	12,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep

Line Set

Length	16 Feet
Liquid Line Size	1/4"
Suction Line Size	1/2"

Line Set

Length	35 Feet
Liquid Line Size	1/4"
Suction Line Size	1/2"

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
