      MRCOOL DIY Mini Split - 18,000 BTU 2
      Zone Ceiling Cassette Ductless Air
      Conditioner and Heat Pump with 16
     and 35 ft. Install Kit,

MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 and 35 ft. Install Kit, DIYM218HPC00C02 SAMPLE PHOTO

Transform your indoor environment with the MRCOOL DIY Mini Split 18,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump. Perfect for homes or offices needing efficient climate control, this versatile system can cool or heat two separate zones with ease. With its compact ceiling cassette design, it fits seamlessly into any ceiling, allowing for unobtrusive installation while providing powerful air conditioning performance. The system comes complete with a 16 and 35 ft. install kit, ensuring you have everything you need for a quick, straightforward setup.

The MRCOOL DIY system features an impressive SEER rating for maximum energy efficiency, which translates to significant savings on your energy bills. The intuitive controls allow you to easily adjust settings for optimal comfort in both zones. Ideal for spaces that require different temperature settings, this system is perfect for managing home offices, guest rooms, or open-plan living areas. With MRCOOL's innovative technology, you can enjoy precise climate control that adapts to your lifestyle.

Specifications of MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 and 35 ft. Install Kit, DIYM218HPC00C02:


Condenser

Product Dimensions 35.04"W x 13.46"D x 26.50"H
Cooling Capacity 18000 BTU
Heating Capacity 19000 BTU
Zone Capacity 2
Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
Heat Mode - Outdoor Operating Temperature Range -13F ~ 75.2F
SEER2 21.2
EER2 12.5
HSPF2 9.6
Voltage Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


Air Handler 9K BTU

Product Dimensions 50.31"W x 13.19"D x 8.98"H
Mount Type Ceiling Cassette
Cooling Capacity 9,000 BTU
Heating Capacity 9,000 BTU
Registered Warranty 5 Years Parts
Modes Auto (Auto selects Cool, Heat or Fan-Only)
Cool
Heat
Dry
Fan Only
Sleep


Line Set

Length 16 feet
Liquid Line Size 1/4"
Suction Line Size 1/2"

Line Set

Length 35 feet
Liquid Line Size 1/4"
Suction Line Size 1/2"

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate



This 4th Generation MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 and 35 ft. Install Kit, DIYM218HPC00C02 includes everything you need to cool and heat your home, office, or more. MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 and 35 ft. Install Kit, DIYM218HPC00C02 will be sent: 18K BTU Multi-Zone Condenser, two 9K BTU Ceiling Cassette Air Handlers, and a remote, lineset, and communication wire for each air handler. The best part about all of this is that you can install it yourself! The MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 and 35 ft. Install Kit, DIYM218HPC00C02 is flexible enough to be installed virtually anywhere without hiring an expensive HVAC technician or the need to use expensive, specialized equipment.

MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 and 35 ft. Install Kit, DIYM218HPC00C02

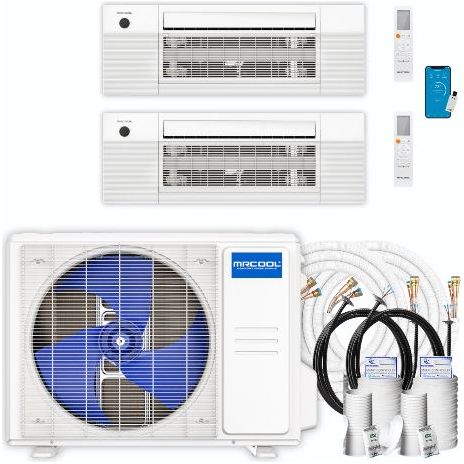

 Mini Split System Includes

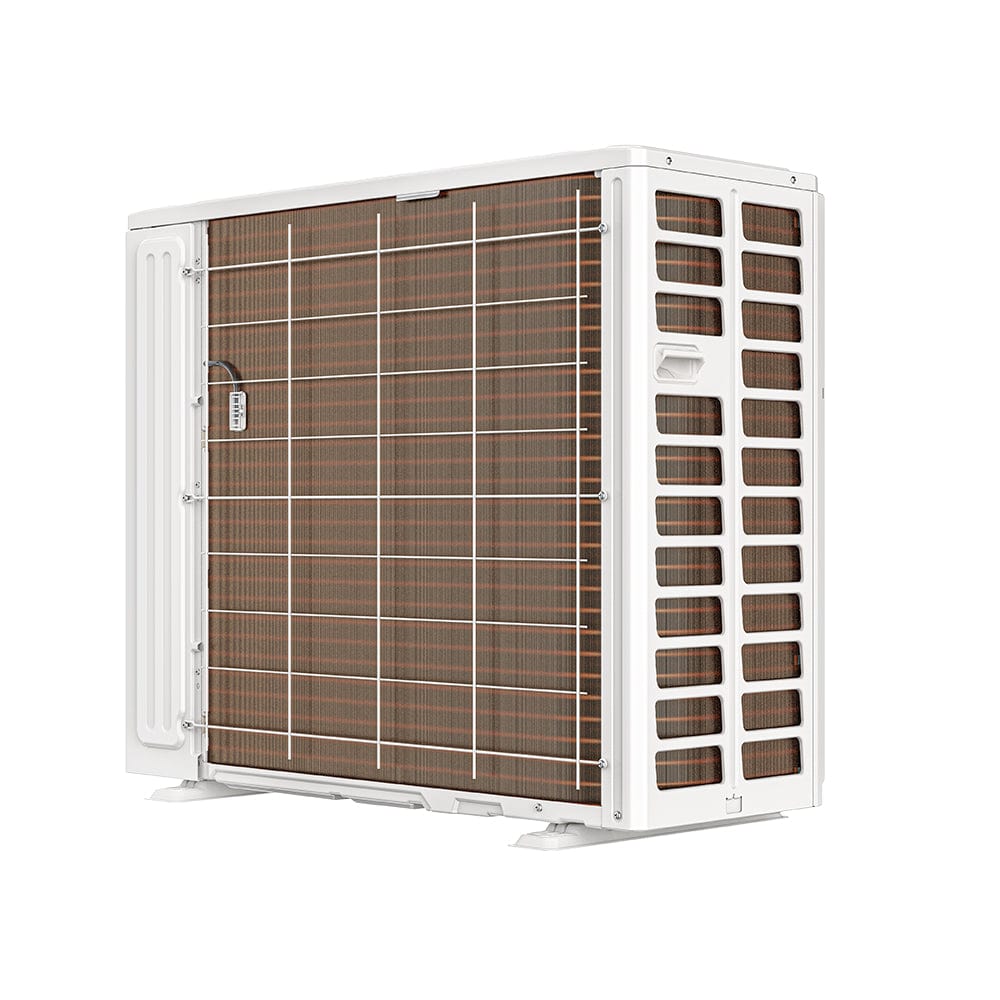

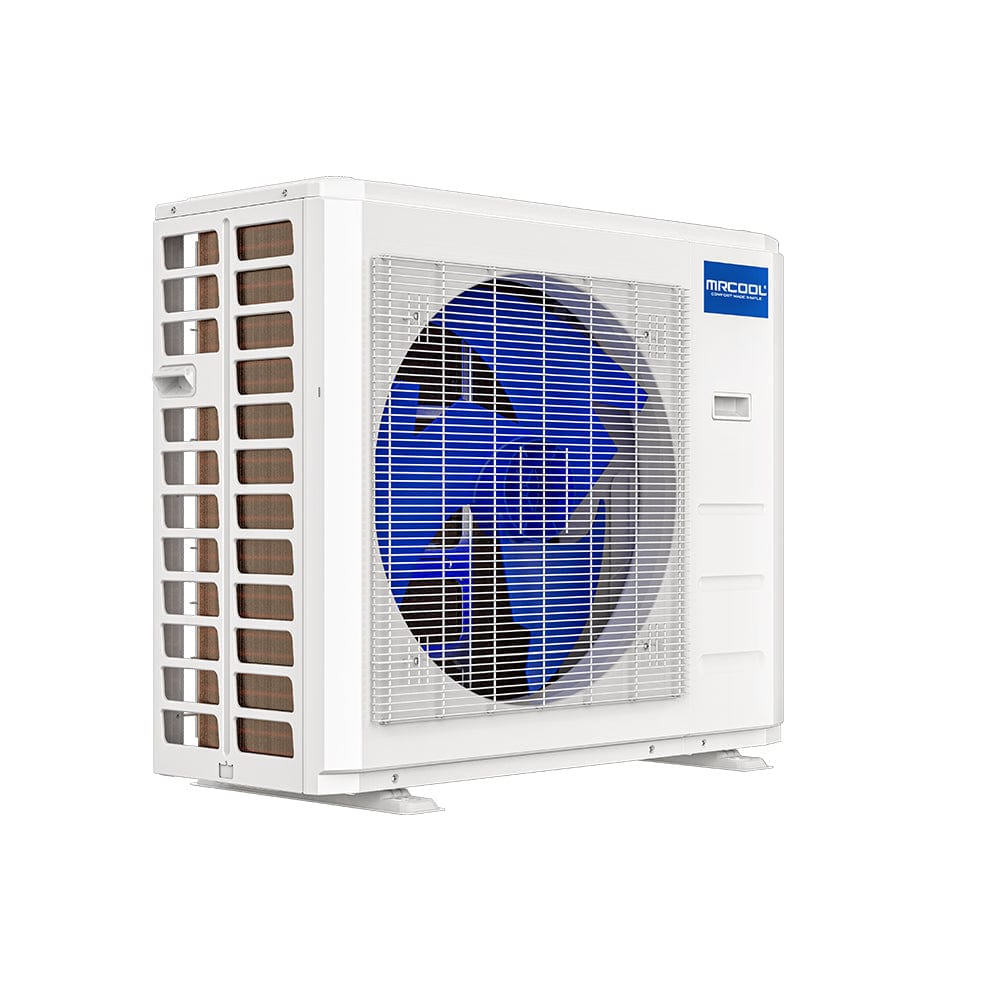

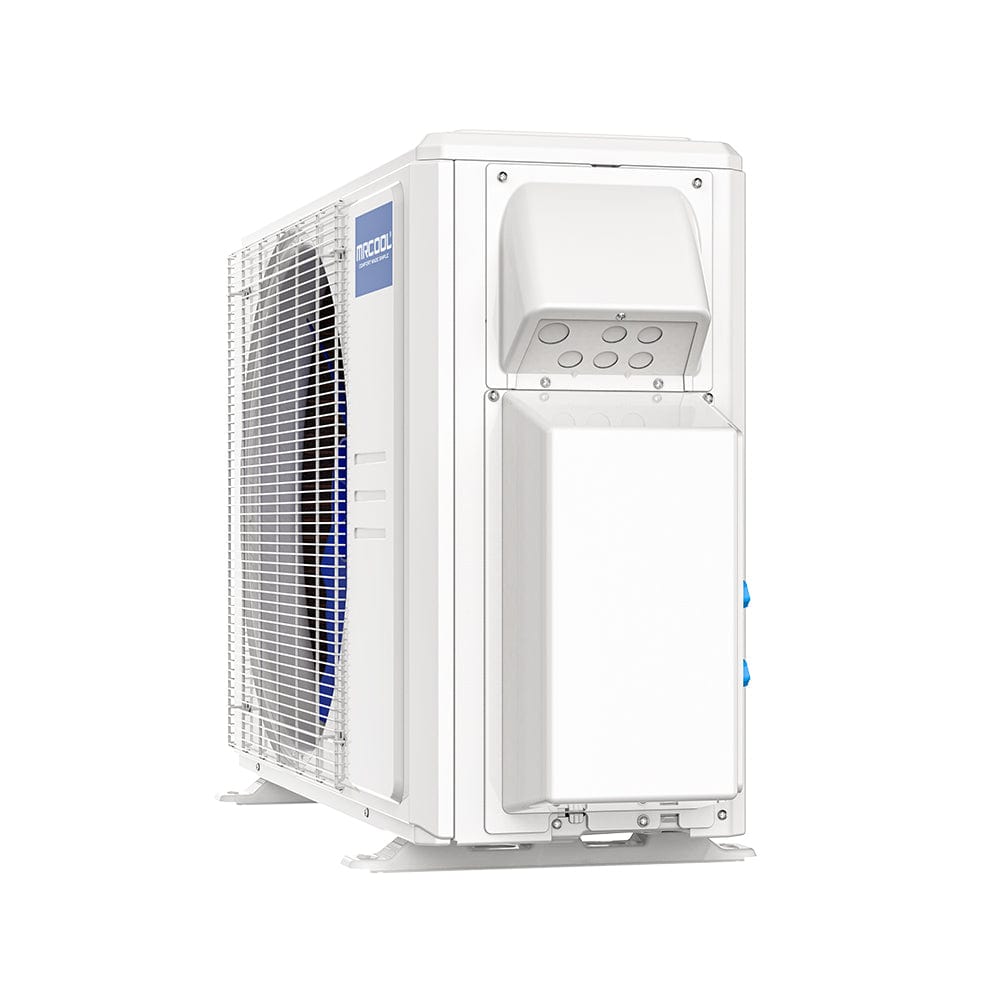

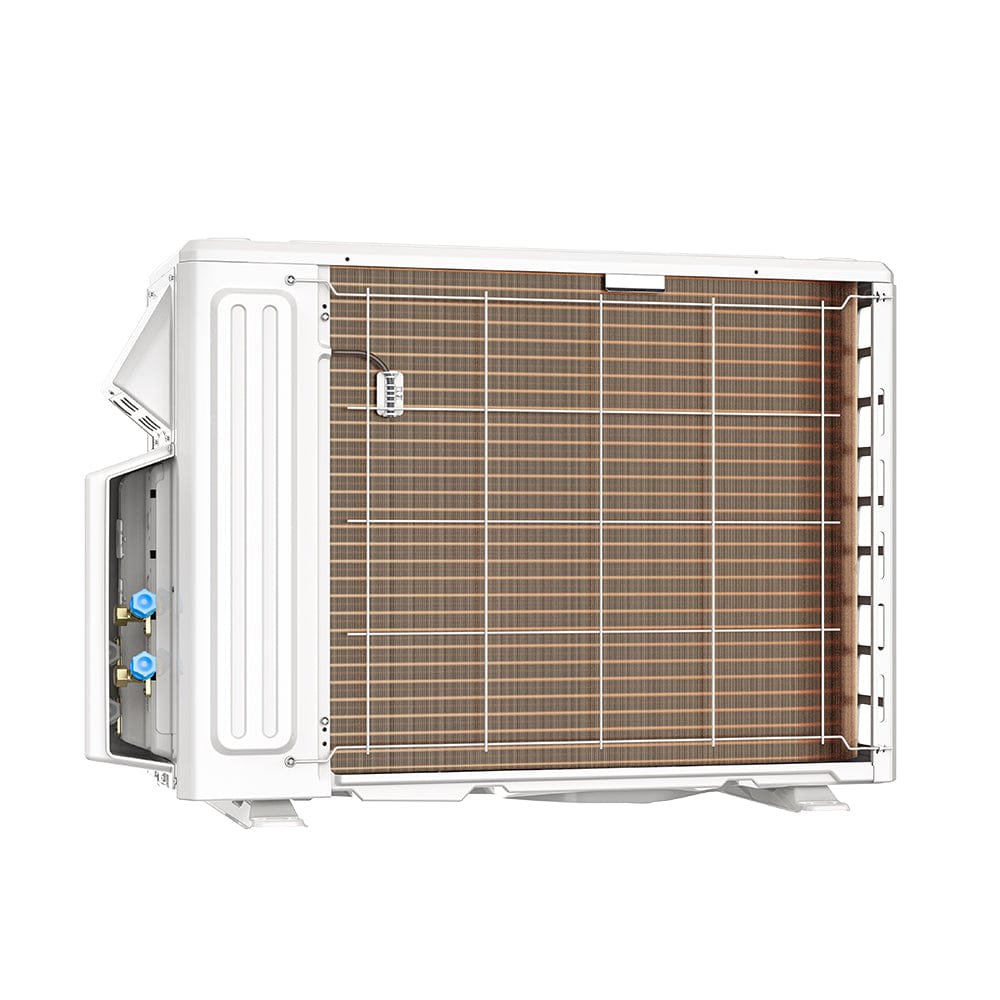

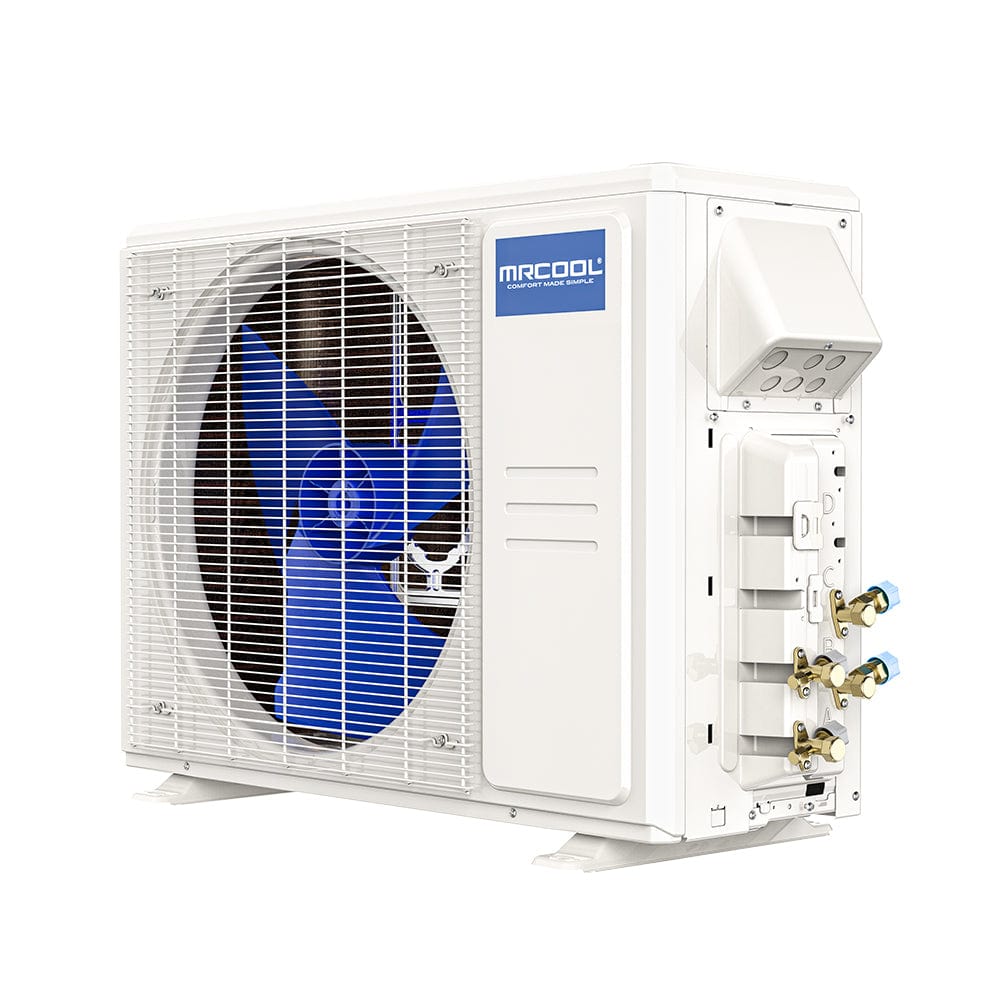

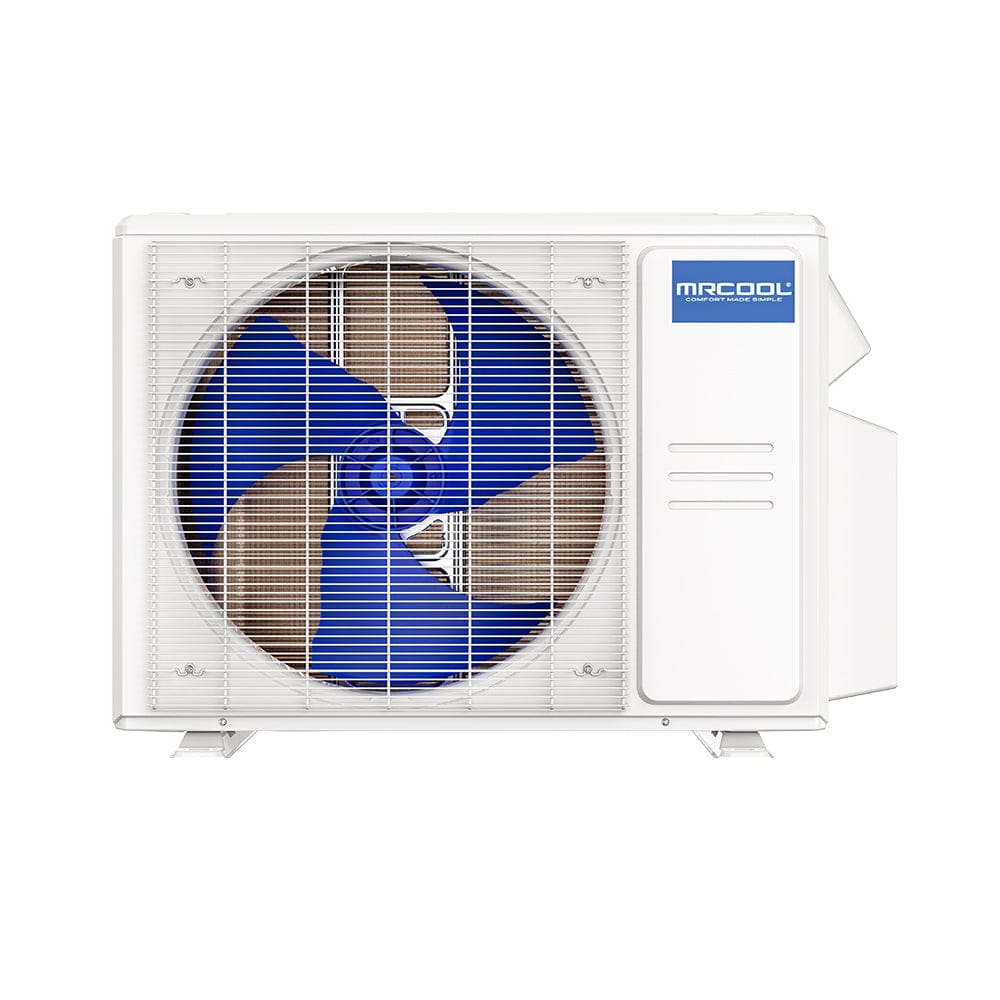

Condenser 18K BTU
  • Energy Efficient. This 18K BTU condenser is capable of producing an impressive 21.2 SEER2 efficiency rating. And yes... this qualifies for major savings using energy or tax rebates!
  • Works In Extreme Temperature. The ability to heat even when temperatures drop to -13°F.
  • Cool and Heat Worry-Free. The condenser comes with a 7-year compressor and 5-year parts warranty. Want lifetime coverage on the compressor? Simply register into the MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 and 35 ft. Install Kit, DIYM218HPC00C02 Care Program to get the lifetime warranty!

    Air Handler 9K BTU

    • Vast Coverage Area. The cassette covers an area between 180 to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
    • Out of Sight Design. This unit has low profile installation for out-of-sight heating & cooling.
    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists
    • Easy Air Filter Access. By activating the Elevation function, the filter panel will lower for easy air filter maintenance.

      Line Set
      • Pre-Charged. These line sets of MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 16 and 35 ft. Install Kit, DIYM218HPC00C02 comes pre-charged with the precise amount of R-410A refrigerant.
      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
