MRCOOL Advantage 3rd Gen 36,000 BTU 3 Ton Ductless Mini Split Air Conditioner and Heat Pump, A-36-HP-23

Introducing the MRCOOL Advantage 3rd Gen 36,000 BTU 3 Ton Ductless Mini Split Air Conditioner and Heat Pump, A-36-HP-230B—the ultimate solution for comprehensive climate control in larger spaces. With an impressive efficiency rating of up to 16 SEER, this system ensures you enjoy consistent, high-performance comfort without the burden of skyrocketing energy bills. Its competitive pricing makes it an exceptional choice for homeowners seeking both quality and affordability.

Engineered for reliability, the MRCOOL Advantage features a high-performance condenser paired with a sleek wall-mounted air handler. This perfect combination enhances both cooling and heating capabilities while operating quietly to maintain a serene indoor atmosphere. Utilizing eco-friendly R-410A refrigerant, it aligns with the values of environmentally conscious consumers who wish to maintain a comfortable home while minimizing their carbon footprint.

Furthermore, the MRCOOL Advantage is equipped with the innovative SmartHVAC WiFi control module, allowing you to easily manage your indoor climate from anywhere. Whether at home or on the go, adjust settings seamlessly via your smartphone or tablet. Compatible with Amazon Alexa and Google Assistant, this system provides the ultimate in convenience and smart home integration. Choose the MRCOOL Advantage for an energy-efficient, reliable, and intelligent heating and cooling solution tailored to your lifestyle.

Key Features

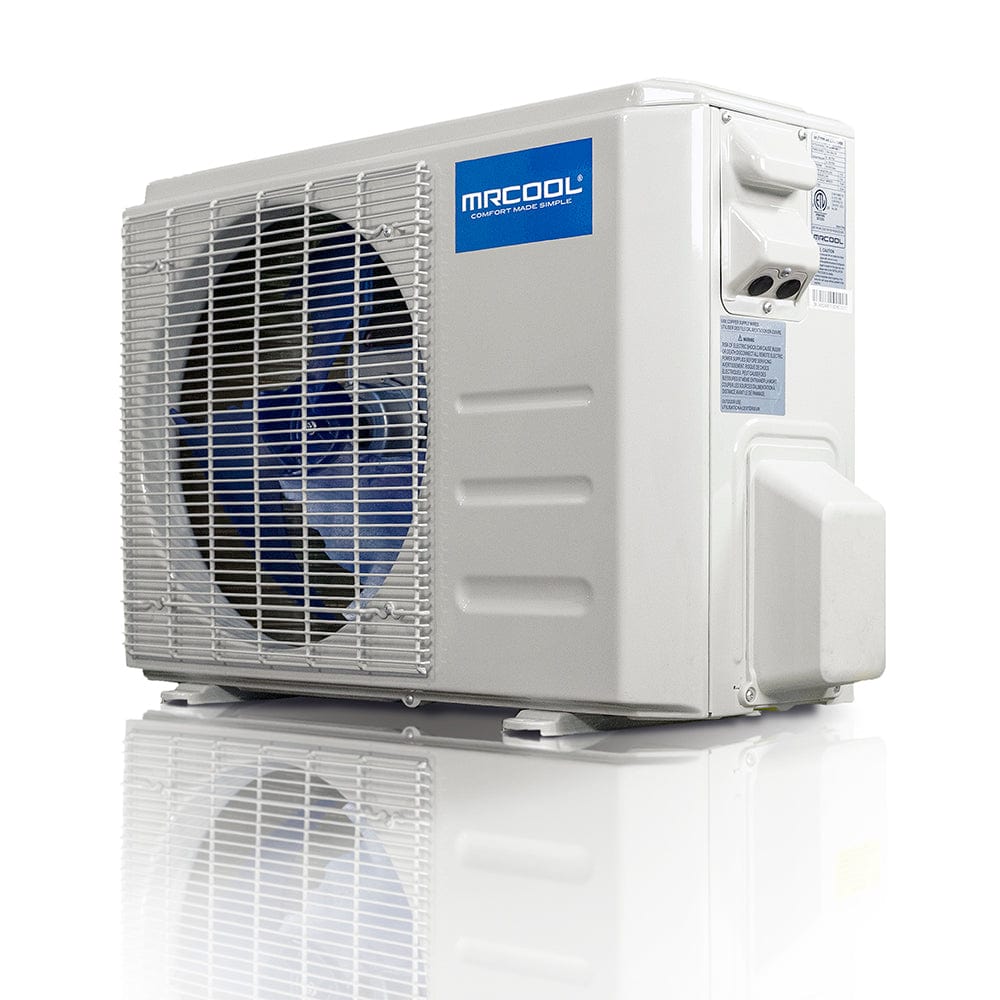

Installation kit included MRCOOL Advantage 3rd Gen 36,000 BTU 3 Ton Ductless Mini Split Air Conditioner and Heat Pump, A-36-HP-230B SIDE VIEW

Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion

The new 3rd generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.

Installation by a licensed professional required where applicable

1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional

R-410A environmentally friendly refrigerant

Sleep mode, louver position memory, and auto restart functions

Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor

PRODUCT SPECIFICATIONS:

Product Dimensions

86.81"W x 27.24"D x 46.14"H

Product Weight

186.5 lbs

Condenser Dimensions

37.24"W x 16.14"D x 31.89"H

Condenser Weight

143.3 lbs

Air Handler Dimensions

49.57"W x 11.1"D x 14.25"H

Air Handler Weight

43.2 lbs

Freight Class

300

Mount Type

Wall

Unit Type

Mini-Split

SEER

EER

8.5

HSPF

CFM

853/647/471

Tonnage

Cooling Capacity

36000 BTU

Heating Capacity

36000 BTU

Voltage

Requires a minimum of 208V-230V/60HZ/25-35A (please check your home meets this electrical requirement prior to purchase)

Phase

Cycle

60 Hz

Color

White

Phase

Max Fuse Breaker

35 A

Min Circuit Ampacity

25 A

Max Coverage Area

1500 sq ft

Zone Capacity

Refrigerant Type

R-410A

Refrigerant Volume

119.9 oz

Decibel Rating

52/44/36 dBA

Decibel Rating Low

36 dBA

Decibel Rating High

52 dBA

Air Flow Direction

4-Way

Speed

Oscillation

Yes

Inverter

Yes

Min Ambient Heat

5 Degrees F

Line Set Length

16ft

Liquid Line Fitting

1/2 Inches

Liquid Line Size

3/8 Inches

Suction Line Fitting

3/4 Inches

Suction Line Size

5/8 Inches

Control Type

LED

Filter Type

Washable

Overload Protection

Yes

Adjustable Thermostat

Yes

Modes

Quiet Mode
Fan Only
Auto Cool

Wifi Compatibility

Yes

App Compatibility

Yes

Compatible with:

iOS
Android

Includes

Remote Control
Batteries

Certifications

UL
CSA
ETL

Registered Warranty

1-Year Compressor, 2-Year Parts and 1-Year Remote

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Restricted States

GU, PR, VI
