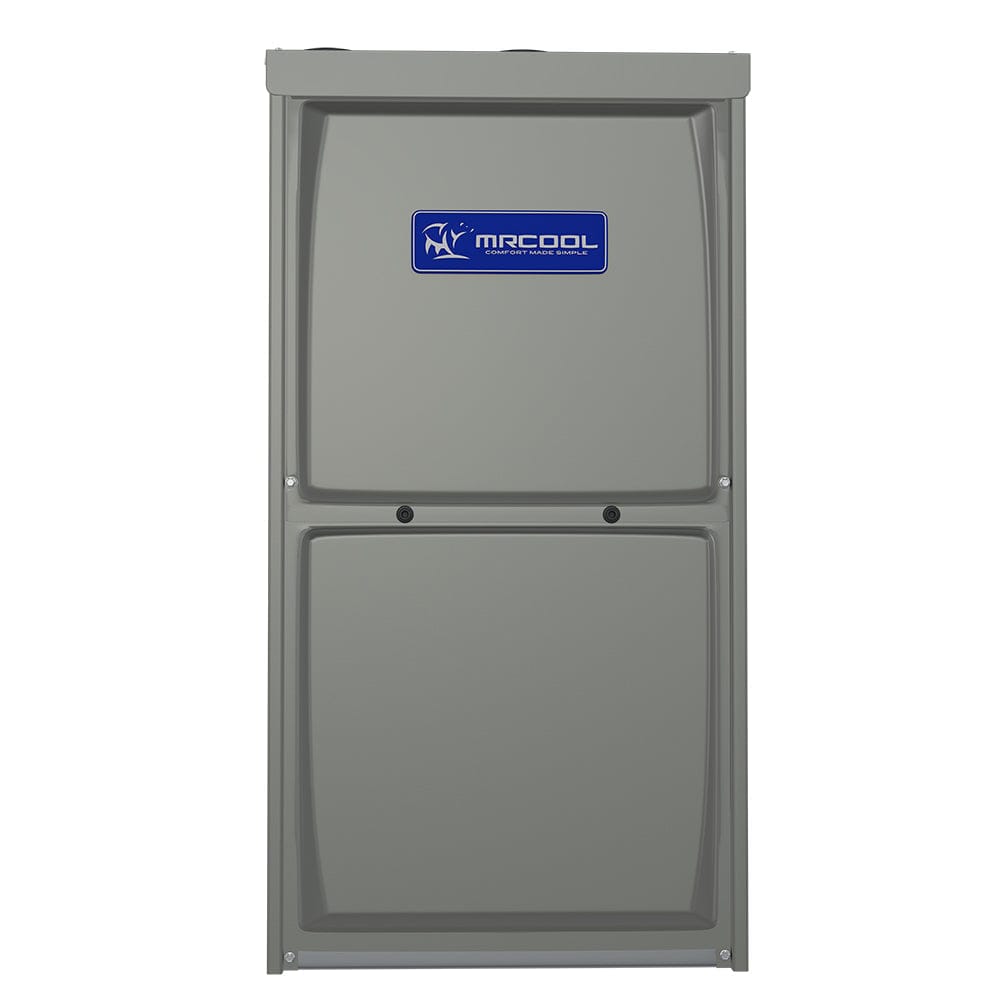

MRCOOL 96% AFUE 3 Ton 70,000 BTU Multi-Position Multi-Speed Gas Furnace, MGM96SE070B3XA
The MRCOOL 96% AFUE 3 Ton 70,000 BTU Multi-Position Multi-Speed Gas Furnace, MGM96SE070B3XA is the perfect option to expertly warm your home no matter how harsh the weather conditions. This quiet-running, energy-efficient unit MRCOOL 96% AFUE 3 Ton 70,000 BTU Multi-Position Multi-Speed Gas Furnace, MGM96SE070B3XA is designed to be used in an up-flow or horizontal configuration and offers low NOx. With a 96% AFUE, this furnace will save on utility costs thanks to the multi-speed high-efficiency blower motor. When matched with the proper cooling equipment, you can experience enhanced cooling SEER ratings as well. It features a durable build and finishes with an aluminized steel primary heat exchanger with crimped non-welded construction. For optimal operation, the furnace offers aluminized steel in-shot burners for a smooth ignition process and a durable silicon nitride ignitor. The single-stage gas valve delivers heating to your home quickly. The 33-inch compact design, left or right utility connection and zero-step horizontal conversion make this furnace easy to install. MRCOOL 96% AFUE 3 Ton 70,000 BTU Multi-Position Multi-Speed Gas Furnace, MGM96SE070B3XA features standardized widths for easy coil fit and is design-certified for direct and non-direct applications. MRCOOL 96% AFUE 3 Ton 70,000 BTU Multi-Position Multi-Speed Gas Furnace, MGM96SE070B3XA is easily vented with PVC pipe and features a removable floor base for bottom return air. The optional LP kit allows for an easy conversion to use liquid propane. For easy maintenance, the furnace has an easily removable slide-out blower. For peace of mind, MRCOOL 96% AFUE 3 Ton 70,000 BTU Multi-Position Multi-Speed Gas Furnace, MGM96SE070B3XA offers a 10-year parts warranty and a lifetime heat exchanger warranty on this furnace.
Specifications of MRCOOL 96% AFUE 3 Ton 70,000 BTU Multi-Position Multi-Speed Gas Furnace, MGM96SE070B3XA:
Product Dimensions |
17.5"W x 29"D x 33"H |
Product Weight |
129 lbs |
AFUE |
96% |
CFM |
1200
|
Positions |
Upflow, Horizontal |
Tonnage |
3 Ton |
Fuel Type |
Gas |
BTU Input |
66000
|
BTU Output
|
63900
|
Voltage |
120V/60Hz/15A
|
Phase |
1 |
Cycle |
60Hz
|
Max Fuse Breaker |
15 |
Full Load |
6.8 |
Gas Connection Size |
1/2 in |
AHRI Certified |
Yes |
Warranty |
Registered 10 Year Parts Warranty |
