MRCOOL MRCOOL Universal Series Heat Pump 36K BTU Condenser 2-3 Ton, MDUO18024036 Condenser MDUO18024036

MRCOOL Universal Series Heat Pump 36K BTU Condenser 2-3 Ton, MDUO18024036

by MRCOOL
SKU MDUO18024036
In stock | ETA: to
Save $994.00
$2,999.00
$2,005.00

Notify me when back in stock

FREE EXPRESS SHIPPING Process orders in 1 business day
STRESS FREE RETURNS 2 Year Returns
Primum Quality Top Tier Products, Even Better Customer Care
5 Year Warranty We Believe In Our Products & Our Team
Professional Services Get service quotes the same day
Product Image

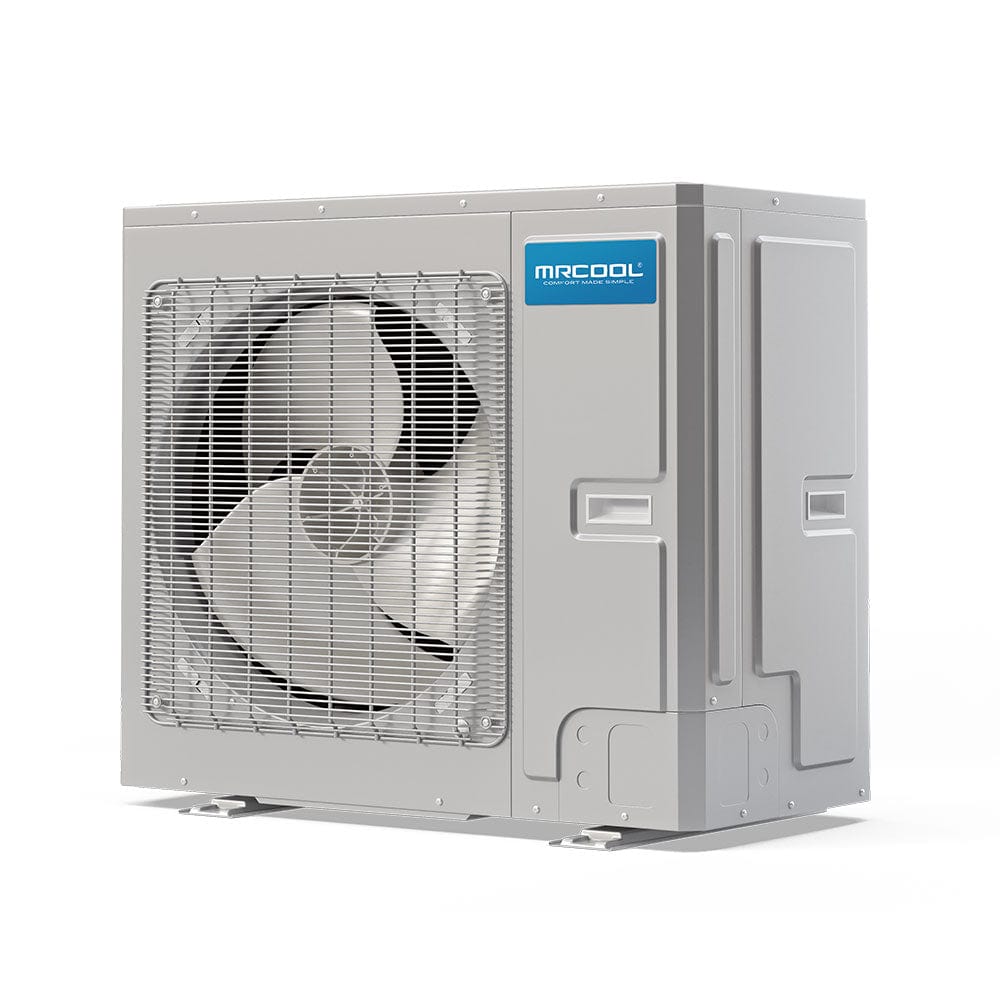

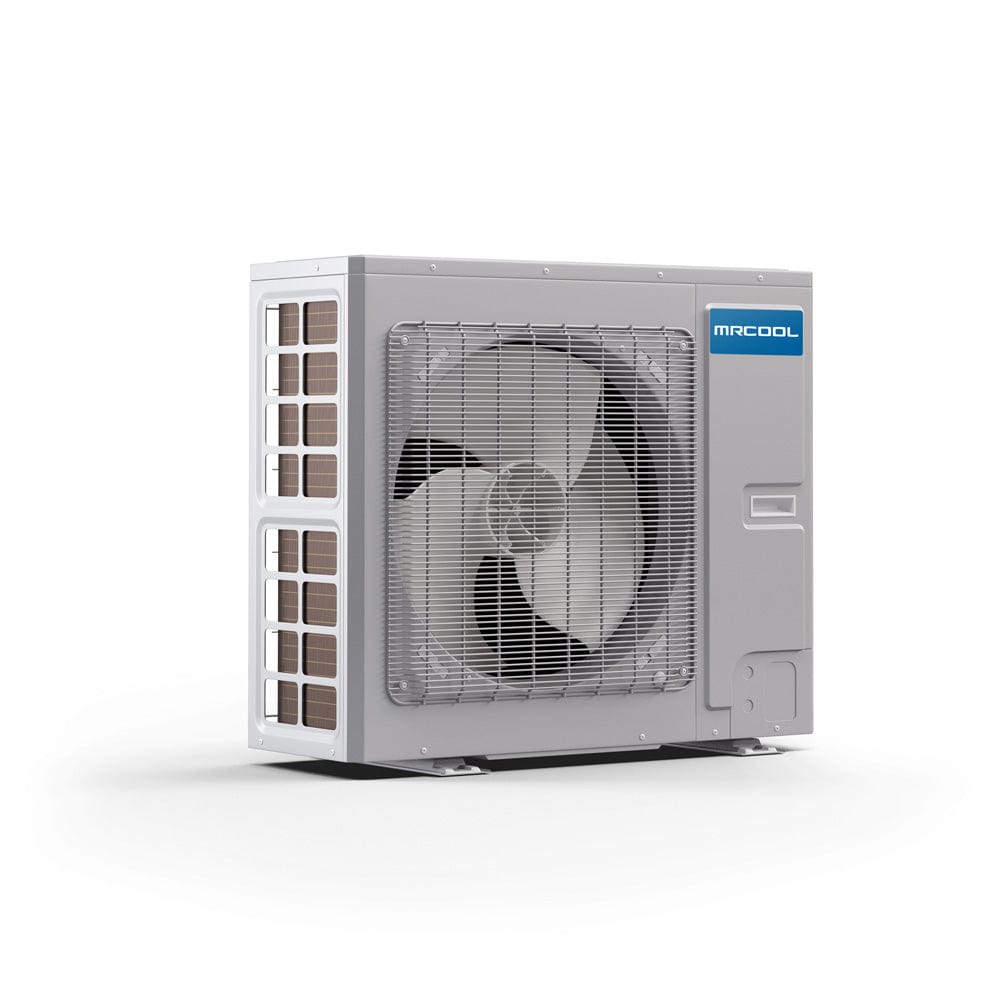

MRCOOL Universal Series Heat Pump 36K BTU Condenser 2-3 Ton, MDUO18024036
$2,999.00 $2,005.00

CUSTOMER SPOTLIGHT
FREE EXPRESS SHIPPING

Process orders in 1 business day

Stress Free Returns

2 Year Returns

Primum Quality

Top Tier Products, Even Better Customer Care

5 Year Warranty

We Believe In Our Products & Our Team

MRCOOL Universal Series Heat Pump 36K BTU Condenser 2-3 Ton

MRCOOL would like to introduce you to the future of HVAC with its new 20 SEER Ultra-Heat Inverter Unitary Condensing Unit. This unit provides superb comfort while running at an extremely quiet dB, rapid cooling and heating, and maximum savings while running on end. Don't be stuck in the past with your traditional system, think ahead with MRCOOL.

Key Features

  • Up to 20 SEER
  • Ultra Wide Operating Temperature Range
  • Gas Furnace Not Required
  • Slim design allows more storage for warehouse inventory
  • Compatible with any third party air handler and thermostat including WiFi/Nest
  • Ideal for zero lot line homes, strict sound restriction, conventional installations, and unit replacements
  • Rapid cooling and heating
  • Internal Fan Blade Creates Low Noise
  • Maximum savings while running
  • Factory Charged
  • ETL and AHRI certified

PRODUCT SPECIFICATIONS:

Product Dimensions 37"W x 18-1/8"D x 32-1/4"H
Product Weight 217.2 lbs
SEER up to 20
Max SEER 20
EER 11
HSPF 10
CFM 3470
Tonnage 2-3 Ton
Cooling Capacity 36,000 BTU
Heating Capacity 36,000 BTU
Electrical Requirements Requires a minimum of 208V-230V/60HZ/24A-35A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 35 A
Min Circuit Ampacity 24 A
Color Gray
Refrigerant Type R-410A
Refrigerant Volume 148.8 oz
Decibel Rating 57 dBA
Inverter DC
Min Ambient Cool 5F - 129.2F
Min Ambient Heat -22F - 75.2F
Lineset Included No
Line Set Length 15ft, 25ft, 35ft, 50ft
Max Lineset Length 164 FT / 5
Lineset Fitting Type Pre-Flared/Sweat & Quick Connect
Liquid Line Size 3/8 in
Suction Line Size 3/4
Compressor Motor Type Inverter Rotary
Condenser Fan Motor Type Direct Drive
Condenser Fan Motor RPM 820
Metering Device EEV
Auxiliary Heater Available Yes
Certifications ETL
Energy Star
AHRI
Warranty 10 Year Registered Limited Warranty
5 Years Parts
Restricted States No

Free Express Shipping on All orders within the USA

30 Day Free Returns on all orders
