Description

Pioneer® Diamante Ultra 24,000 BTU 20
SEER2 Ductless Mini-Split Inverter++
Energy-Star Wi-Fi Air Conditioner Heat
Pump Full Set 230V with 16 Ft. Kit

Pioneer® Diamante Ultra 24,000 BTU 20 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 230V with 16 Ft. Kit COMPLETE SET

Enhance your home's comfort with the Pioneer® Diamante Ultra 24,000 BTU 20 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump. Featuring advanced Inverter++ technology, this system delivers energy-efficient cooling and heating, saving you money while maintaining consistent temperatures year-round. The high 20 SEER2 rating ensures exceptional performance, keeping your space comfortable without wasting energy.

With Wi-Fi connectivity, you can easily adjust the temperature remotely from your smartphone, providing convenience and control wherever you are. The 230V system comes with a full set and a 16 ft. installation kit, making setup straightforward. This unit is perfect for any room, offering efficient climate control with modern features.

Features of Pioneer® Diamante Ultra 24,000 BTU 20 SEER2 Ductless Mini-Split Inverter++Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 230V with 16 Ft. Kit:

Technical Information

Performance Data

Power Supply: 230V, 60Hz, 1Ph
Cooling Rated Capacity: 23,000 BTU/h (1.9 Ton)
Rated Power Input (Cooling): 1920W
Cooling SEER2: 20 BTU/W.h
Cooling EER2: 12.5 BTU/W.h
Heating Rated Capacity: 24,000 BTU/h (2 Ton)
Rated Power Input (Heating): 2050W
Heating HSPF2: 9 BTU/W.h
Heating C.O.P.: 3.2 W/W
Refrigerant Type: R410A
Recommended Application Area: 600~950 Sq.Ft

Indoor Unit Data

Part Number: WT024GLFI22HLD
Air Flow (Hi): 735 / 618 / 529 CFM
Sound Level (Hi/Med/Lo/Mute): 45/40/35/31 dB(A)
Net Dimensions (WDH): 43-3/8 x 8-3/4 x 13-1/8 Inches
Carton Dimensions (WDH): 45-7/8 x 11-5/8 x 16 Inches
Net / Gross Weight: 30.9 / 35.3 Lbs

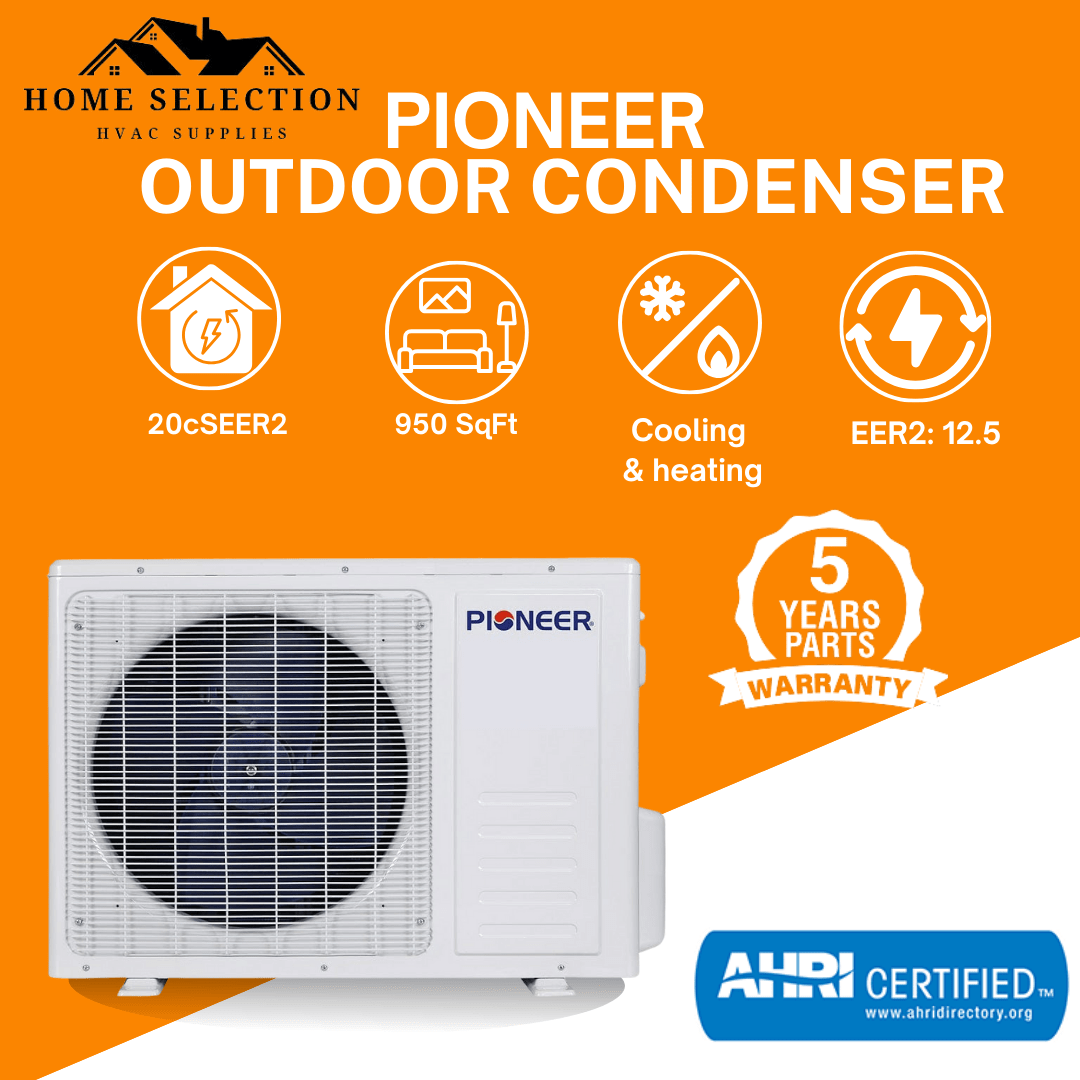

Outdoor Unit Data

Part Number: YN024GLFI22RPD
Sound Level: 58 dB(A)
Net Dimensions (WDH): 35-7/8 x 15-5/8 x 31-5/8 Inches
Carton Dimensions (WDH): 40-1/2 x 19-1/8 x 33-1/2 Inches
Net / Gross Weight: 104.7 / 119.1 lbs
Electrical Circuit Size: 20A (double-pole)

Manuals & Documents

Pioneer® Diamante Ultra 24,000 BTU 20
SEER2 Ductless Mini-Split Inverter++
Energy-Star Wi-Fi Air Conditioner Heat
Pump Full Set 230V with 16 Ft. Kit

Summary

Ultra High-Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
Cooling capacity: 23,000 BTU/H with 20 SEER2 / 12.5 EER2 efficiency
Heating capacity: 24,000 BTU/H with 9.0 HSPF2 / 3.2 COP efficiency
Voltage: 208/230V, 60Hz, 1Ph
High Wall Mounted Air Conditioning & Heating System
Variable Speed DC Inverter Operation Mode
Low Ambient Unit (-13°F)
Wireless Internet Access Included (Via Free Smartphone App)
AHRI Estimated Annual Operating Costs:

Cooling: $152.00
Heating: $507.00

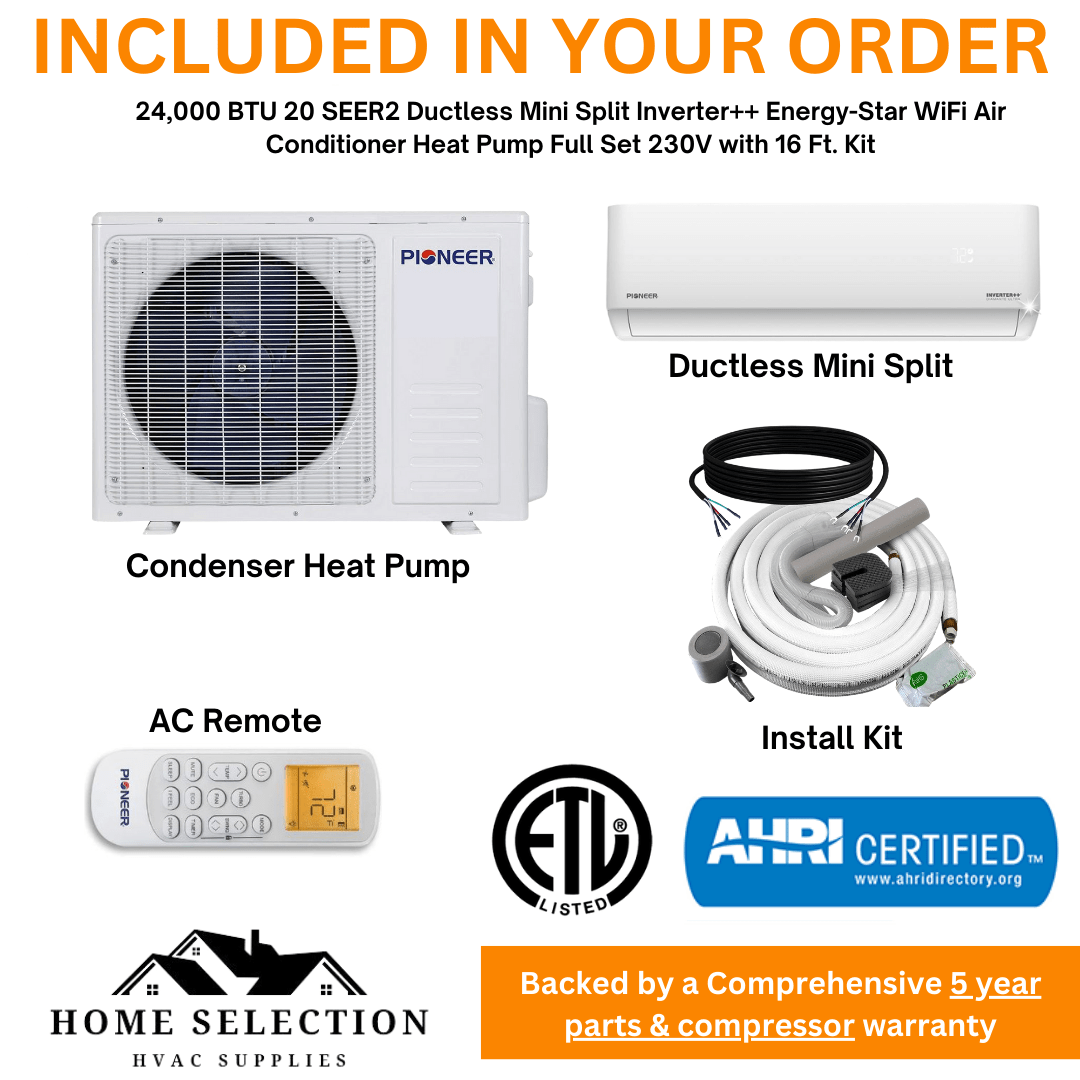

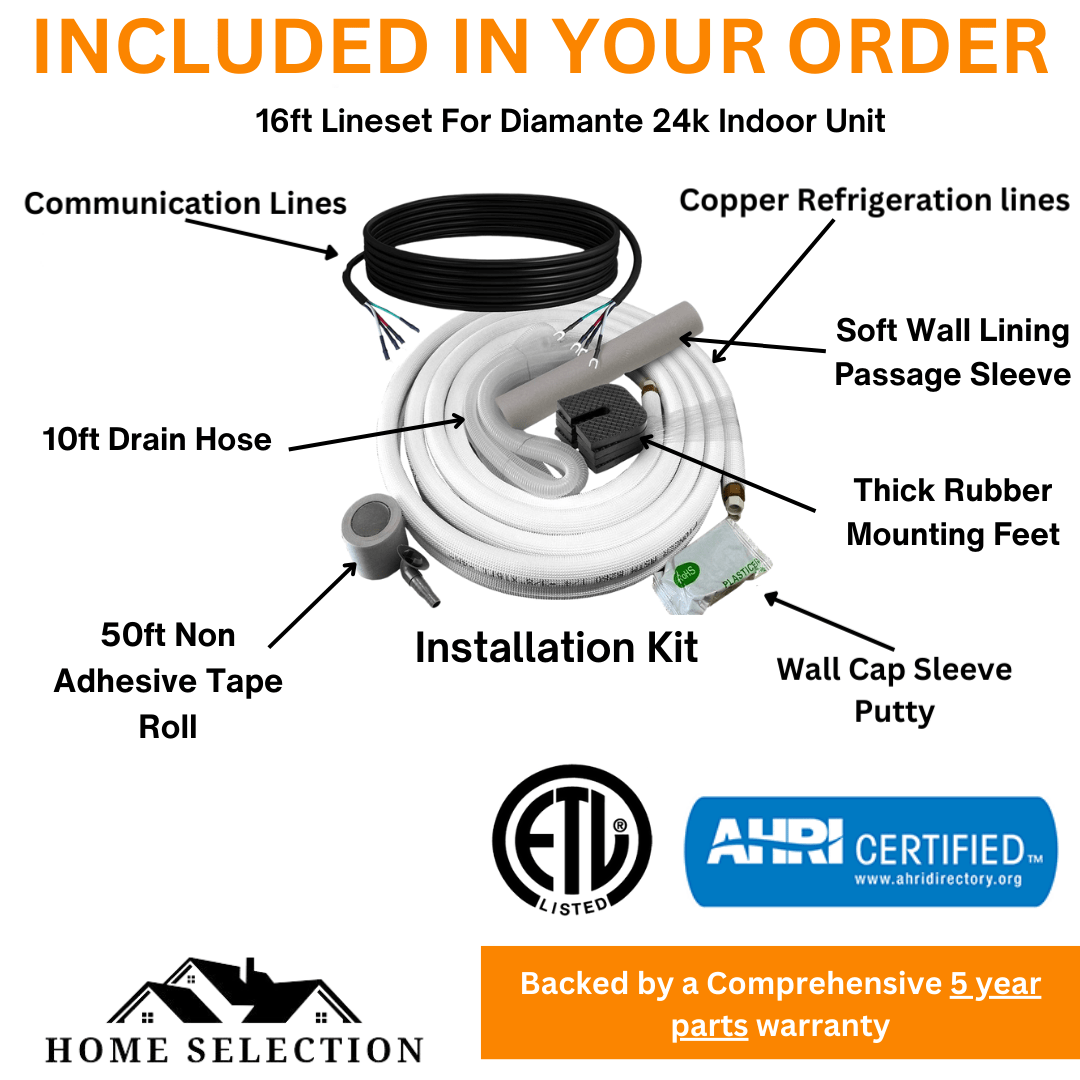

What's Included

Indoor Unit
Outdoor Unit
Wireless Remote Control (with wall holder and batteries)
Internet Control Module
16 Ft. Copper Lines
16 Ft. Electrical Wire
10 Ft. Drain for indoor/outdoor
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Installation Manual
User’s Manual

Our Guarantee

5 years Warranty for Parts (Extendable to up to 7 years)
5 years for Compressor (Extendable to up to 10 years)
