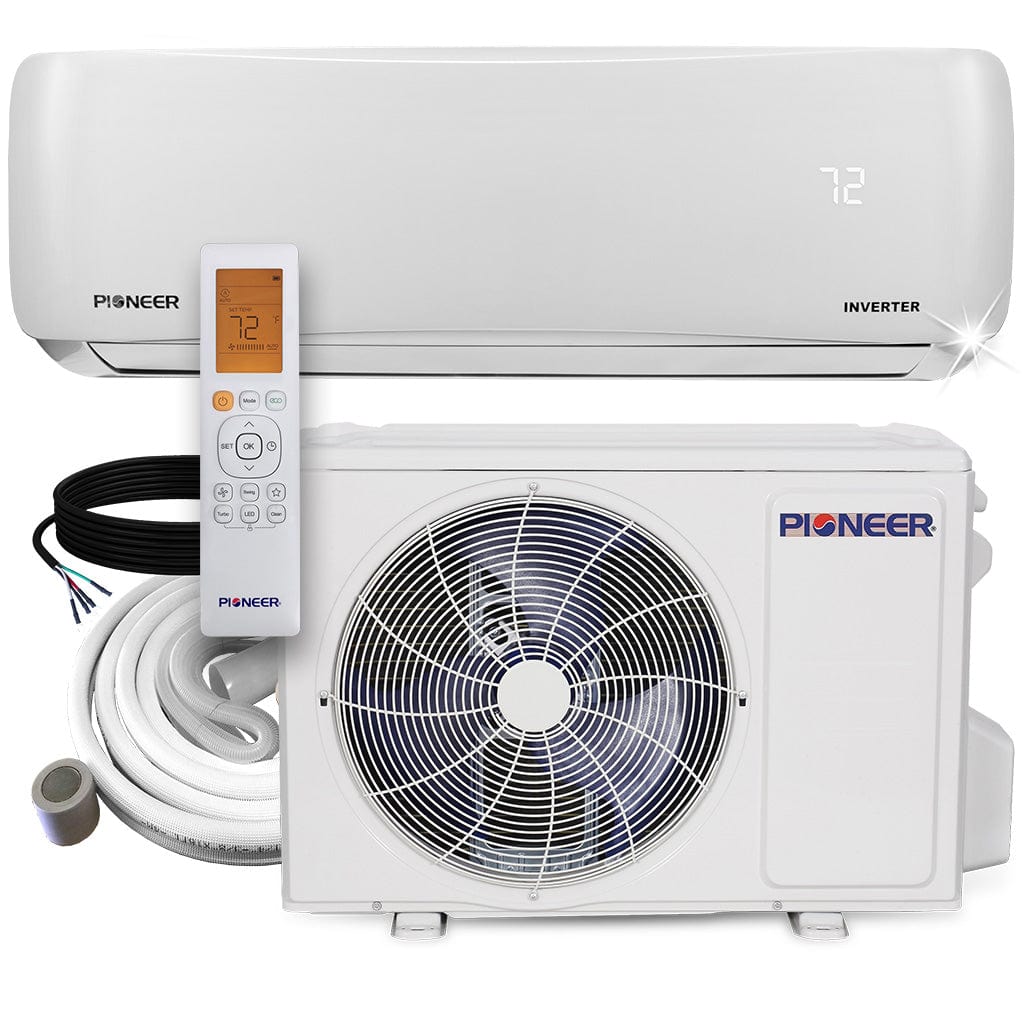

Pioneer® 9,000 BTU 24 SEER2 Ductless
Mini-Split Inverter+Energy-Star Air
Conditioner Heat Pump System Full
Set 230V
Cool down efficiently with Pioneer's 9,000 BTU ductless air conditioner and heat pump system. Featuring a 24 SEER2 rating, this Energy-Star certified unit provides powerful climate control while saving energy and reducing costs. Perfect for any space with its compact size and convenient 230V power source.
Features Pioneer® 9,000 BTU 24 SEER2 Ductless Mini-Split Inverter+Energy-Star Air Conditioner Heat Pump System Full Set 230V:
Technical Information
Certifications
Performance Data
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 9,000 BTU/h
-
Cooling Capacity Range: 3,548~11,400 BTU/h
-
Cooling SEER2: 24 BTU/W.h
-
Cooling EER2 (95F): 14 BTU/W.h
-
Heating Rated Capacity: 10,000 BTU/h
-
Heating Capacity Range: 3,976~12,477 BTU/h
- Heating HSPF2 (Region IV/V): 11.4 / 8.6 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.80 / 2.18 W/W
- Refrigerant Type: R410a
- Suitable Area: 200~350 Sq.F

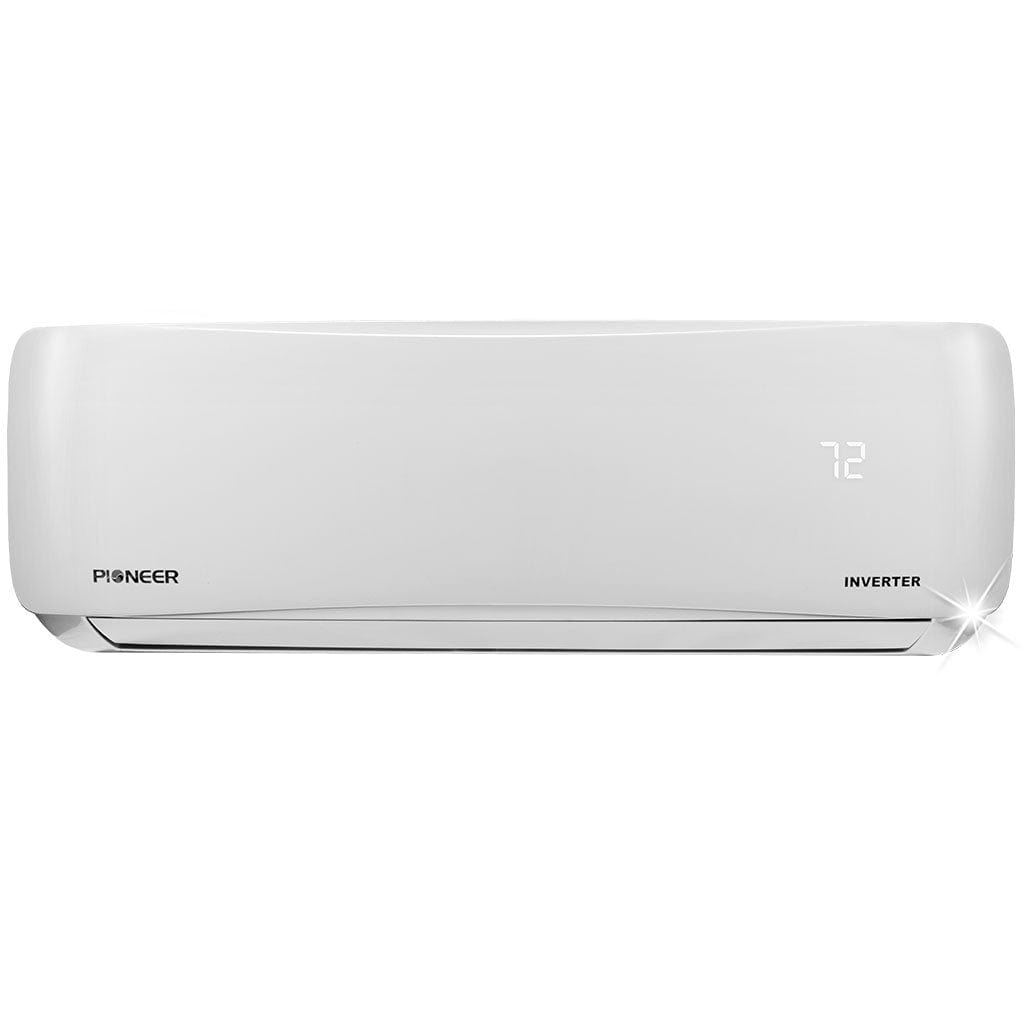

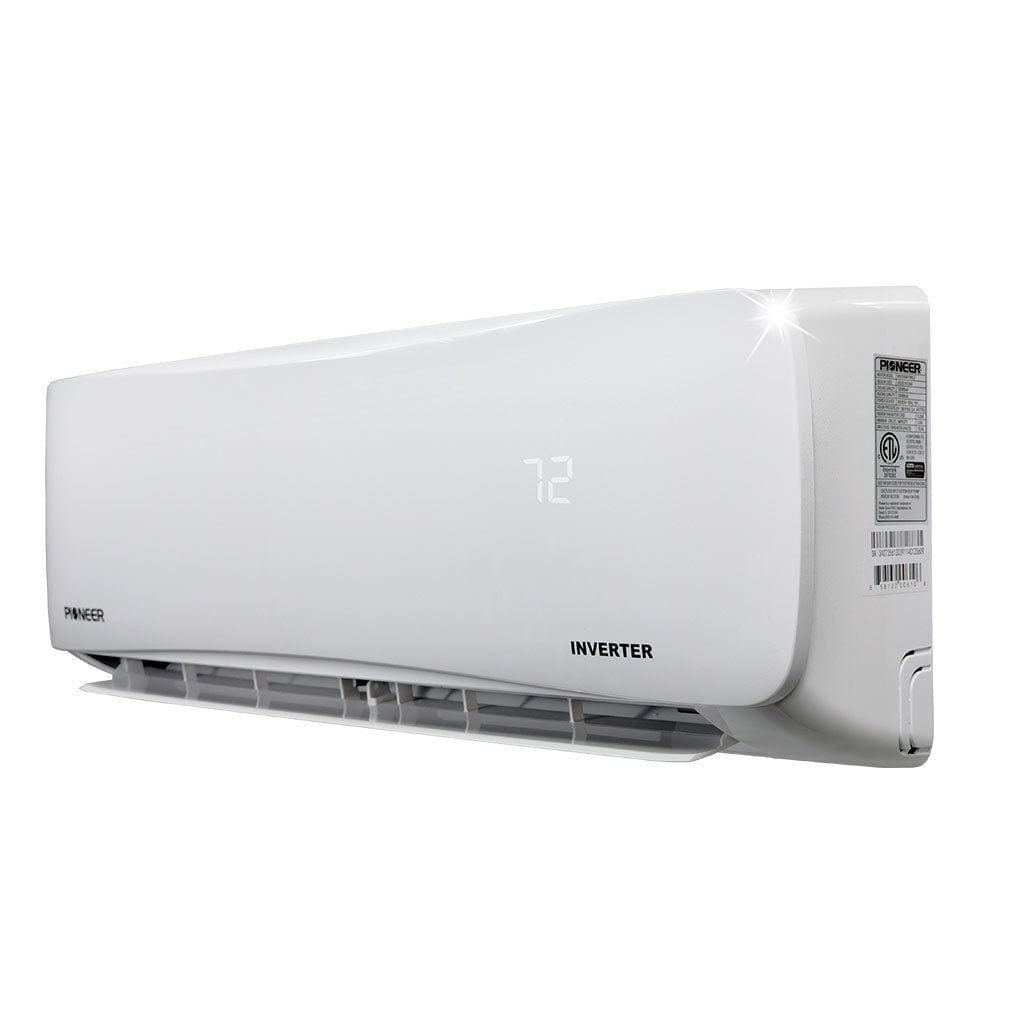

Indoor Unit Data
-
Model Number: WS009GMFI22HLE
- Air Flow (Hi/Med/Lo): 265 / 205 / 141 CFM
- Sound Level (Hi/Lo): 39.0 / 24.5 dB(A)
- Net Dimensions (WDH): 31.5 x 7.3 x 11.6 Inches
- Carton Dimensions (WDH): 34.5 x 11.2 x 14.7 Inches
- Net / Gross Weight: 18 / 22 Lbs

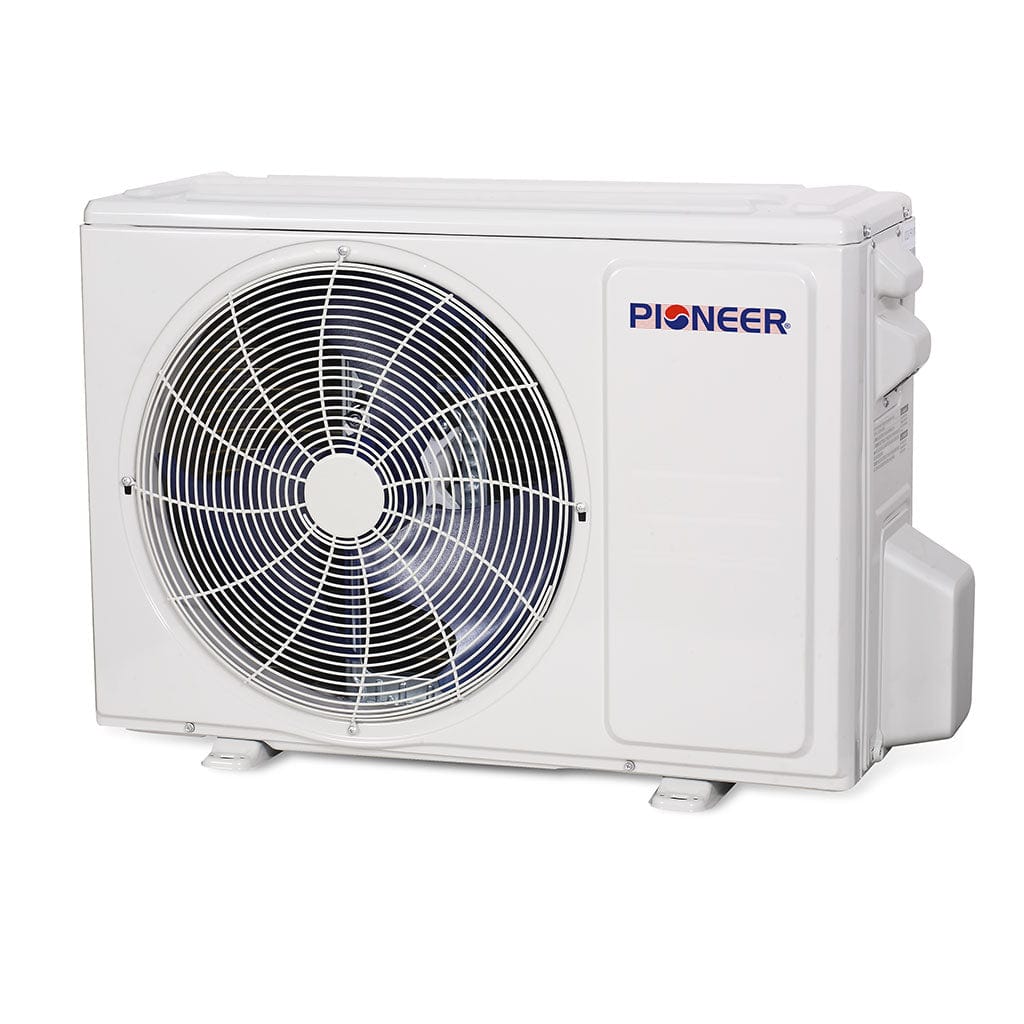

Outdoor Unit Data
-
Model Number: YN009GMFI22RPE
- Sound Level: 54.5 dB(A)
-
Breaker Needed: 15A (double-pole)
- Net Dimensions (WDH): 30.2 x 11.8 x 21.8 Inches
- Carton Dimensions (WDH): 34.9 x 13.2 x 24 Inches
- Net / Gross Weight: 64 / 69 Lbs
Manuals & Downloads
Pioneer® 9,000 BTU 24 SEER2 Ductless
Mini-Split Inverter+Energy-Star Air
Conditioner Heat Pump System Full
Set 230V
Summary
- Ultra High-Efficiency Inverter++ ductless mini split heat pump system
- Cooling capacity: 9,000 BTU/H with 24 SEER2 / 14 EER2 efficiency
-
Heating capacity: 9,800 BTU/H with 11.4 HSPF2 / 3.8 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
-
Customizable length copper line set with flare connections
-
Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $50.00
- Heating: $187.00
What's Included
- Indoor Unit
- Outdoor Unit

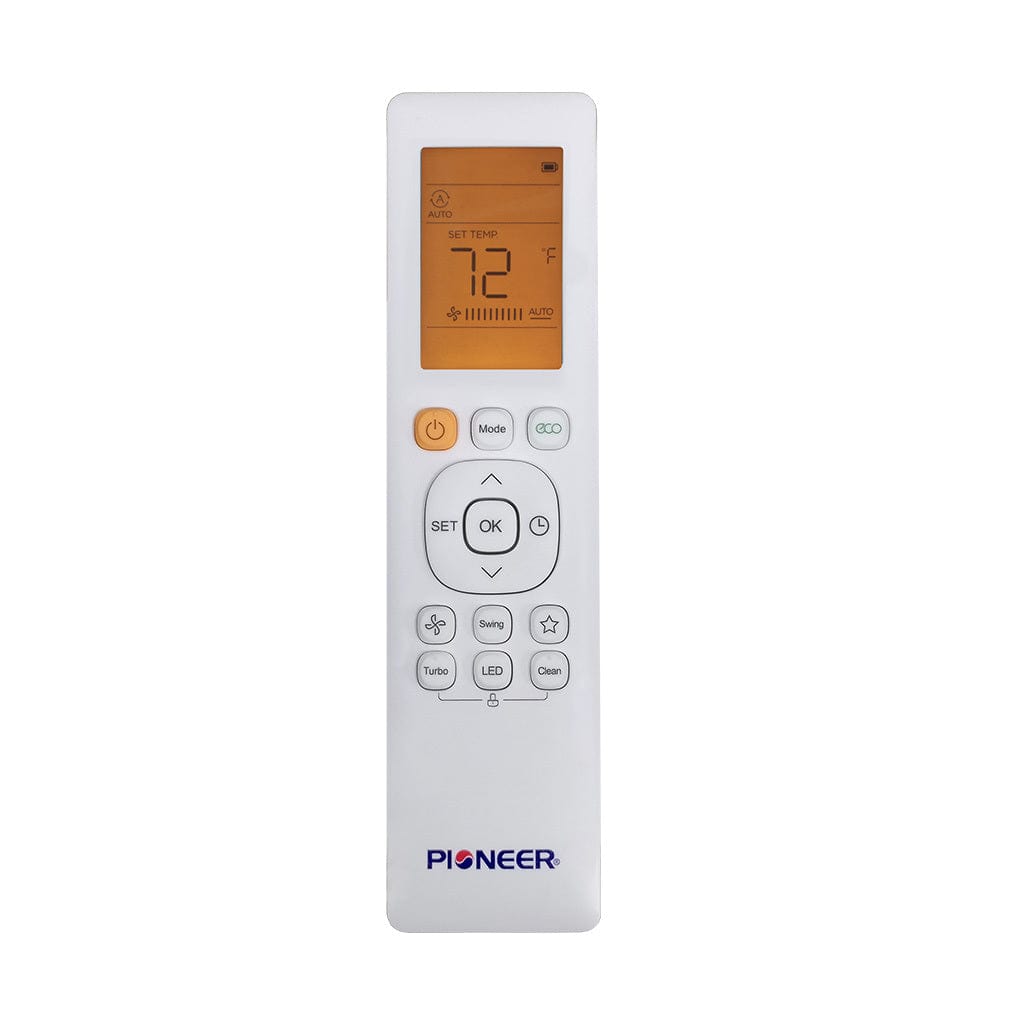

- Wireless Remote Control

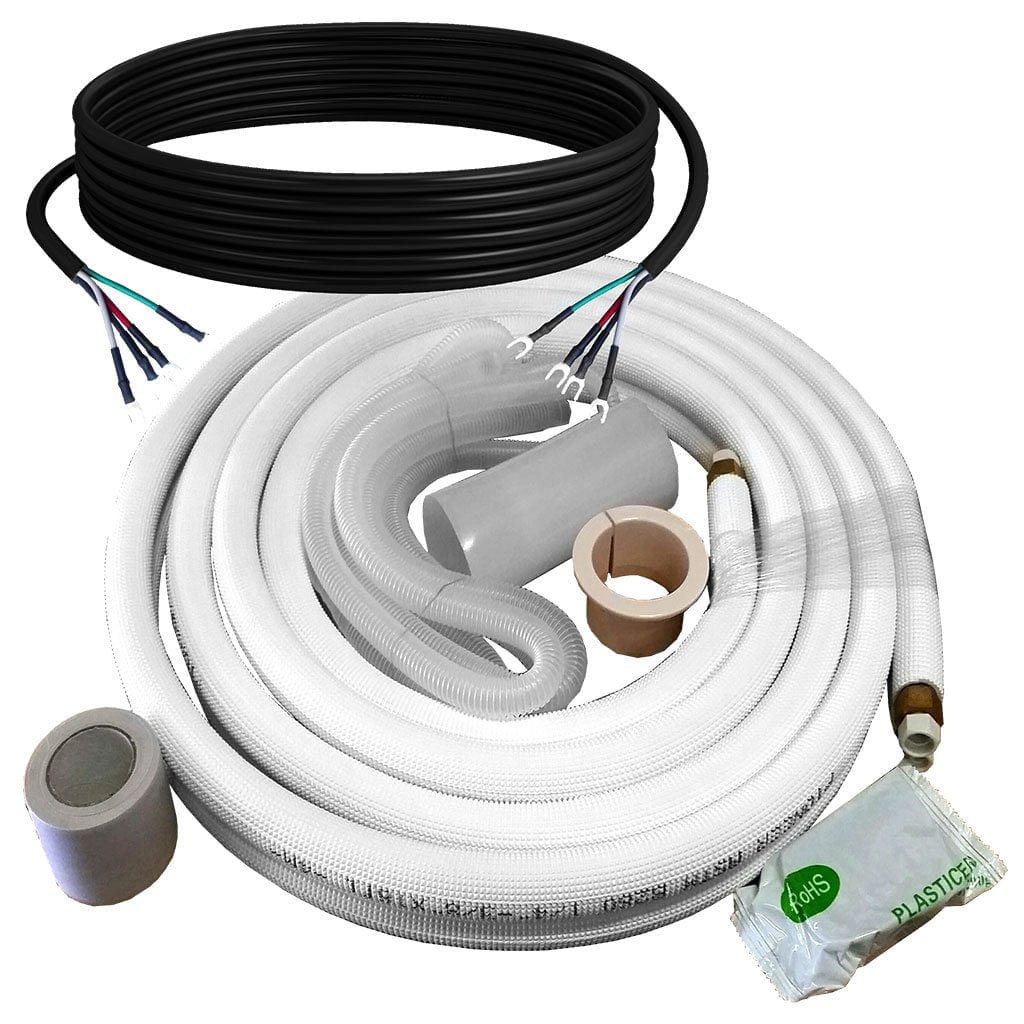

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5-year parts limited warranty
- 5-year compressor limited warranty
