        Pioneer® 36,000 BTU 19 SEER2
      Floor/Ceiling Mini-Split Inverter+ Air
      Conditioner Heat Pump System Full
          Set 230V


Pioneer® 36,000 BTU 19 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V







Upgrade your home’s comfort with the Pioneer® 36,000 BTU 19 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V. This powerful system is designed to provide both cooling and heating with superior energy efficiency. The advanced inverter technology ensures quiet, consistent operation while delivering precise temperature control, making it the perfect solution for any space.

The Pioneer® 36,000 BTU Floor/Ceiling Mini-Split System is built to meet your year-round comfort needs. With a high 19 SEER2 rating, it efficiently cools or heats your space, keeping energy costs low while maintaining an ideal indoor climate. Whether it’s a home or office, this system blends seamlessly with your space and provides flexible installation options.

With its full 230V setup, the Pioneer® 36,000 BTU Mini-Split delivers reliable performance and comfort. Experience reduced energy consumption and quiet operation while enjoying the best in climate control.




Features of Pioneer® 36,000 BTU 19 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V:

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 36,000 BTU/h
  • Cooling Capacity Range: 11,476~36,000 BTU/h
  • Cooling SEER2: 19.0 BTU/W.h
  • Cooling EER2: 8.5 BTU/W.h
  • Heating Rated Capacity: 38,000 BTU/h
  • Heating Capacity Range: 11,467~38,000 BTU/h
  • Heating HSPF2 (Region IV/V): 9.0 / 7.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 2.68 / 1.8 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 900~1,350 Sq.F

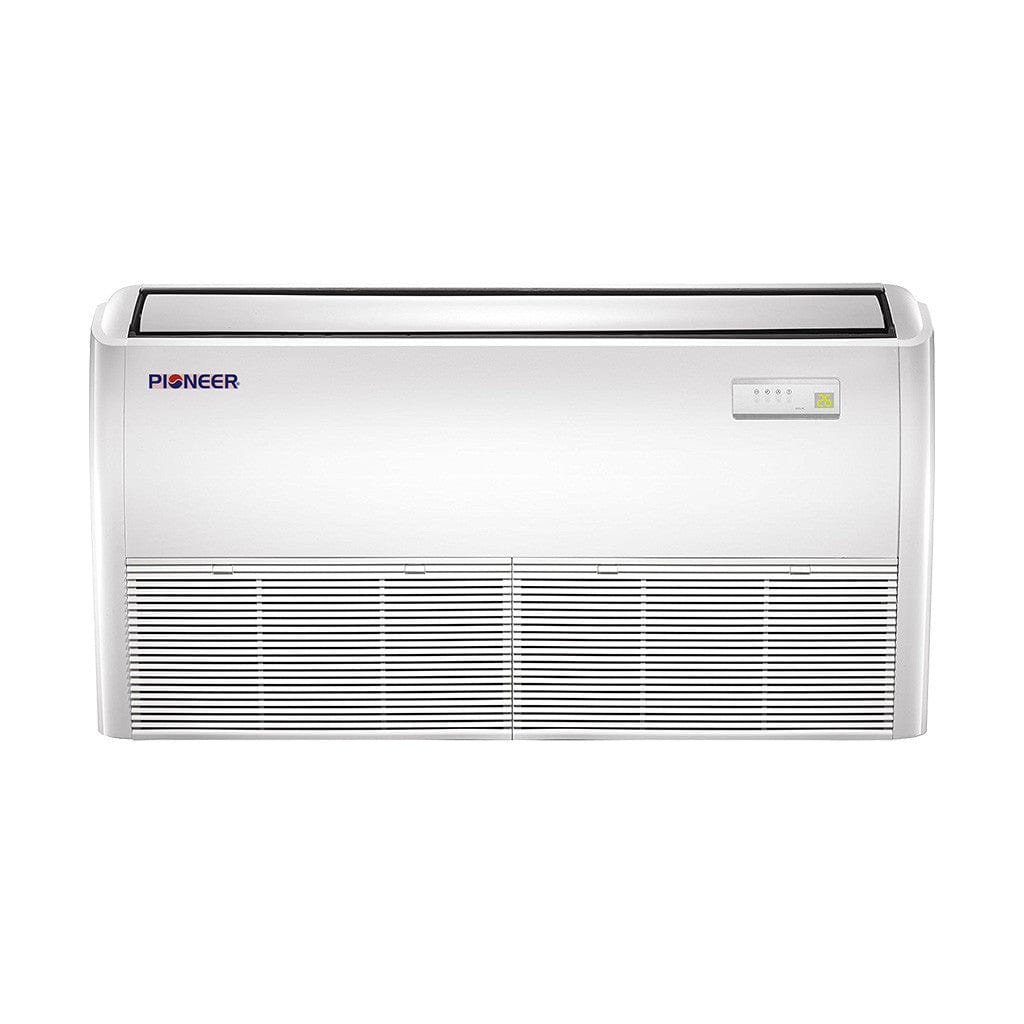

Indoor Unit Data

  • Model: UB036GMFILCFHD
  • Air Flow (Hi/Med/Lo): 1,036 / 917 / 638 CFM
  • Sound Level (Hi/Med/Lo): 51.5 / 48.0 / 40.5 dB(A)
  • Net Dimensions (WDH): 50.5 x 26.5 x 9.3 Inches
  • Carton Dimensions (WDH): 53.5 x 29.8 x 12.4 Inches
  • Net / Gross Weight: 69 / 82 Lbs

Outdoor Unit Data

  • Part Number: YN036GMFI18RUE
  • Sound Level: 63.5 dB(A)
  • Breaker Needed: 40A (double-pole)
  • Net Dimensions (WDH): 37.3 x 16.2 x 31.8 Inches
  • Carton Dimensions (WDH): 42.8 x 19.6 x 34.0 Inches
  • Net / Gross Weight: 155.4 / 166.2 Lbs

Manuals & Downloads


          Pioneer® 36,000 BTU 19 SEER2
     Floor/Ceiling Mini-Split Inverter+ Air
      Conditioner Heat Pump System Full
                               Set 230V

Summary

  • Ultra High-Efficiency Inverter++ floor/ceiling split heat pump system
  • Cooling capacity: 36,000 BTU/H with 19.0 SEER2 / 8.5 EER2 efficiency
  • Heating capacity: 38,000 BTU/H with 9.0 HSPF / 2.68 C.O.P.2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Floor/Ceiling Flex Mount Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode

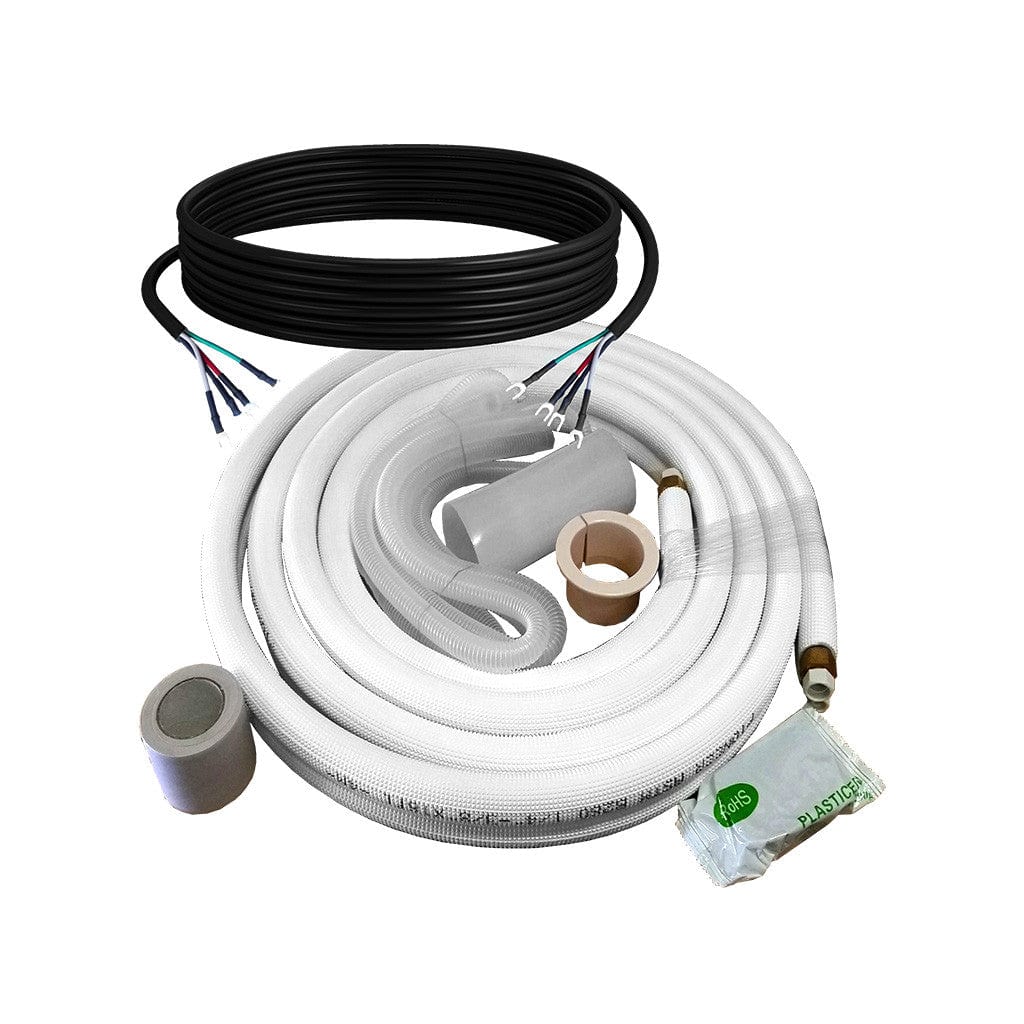

  • Customizable length copper line set with flare connections
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $280.00
    • Heating: $803.00

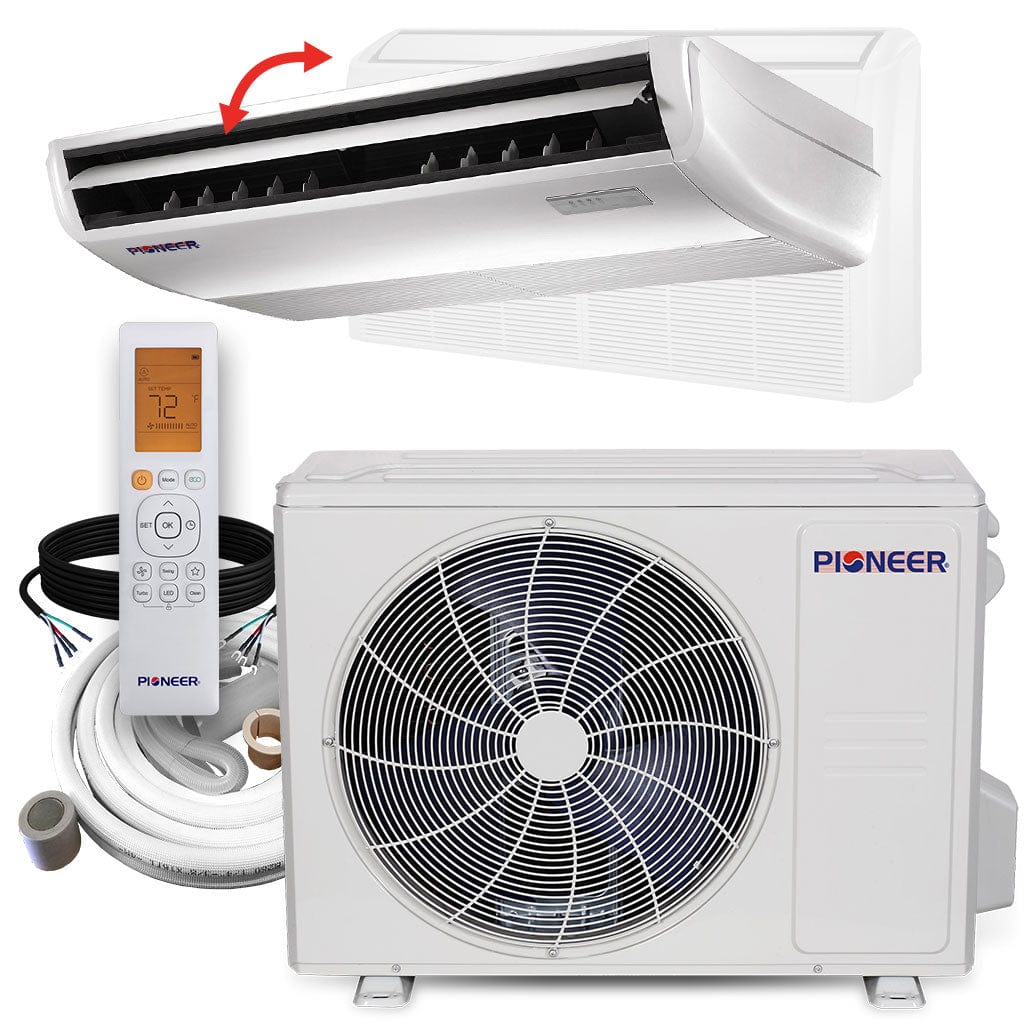

What's IncludedPioneer® 36,000 BTU 19 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V FRONT VIEW

  • Indoor Unit
  • Outdoor Unit

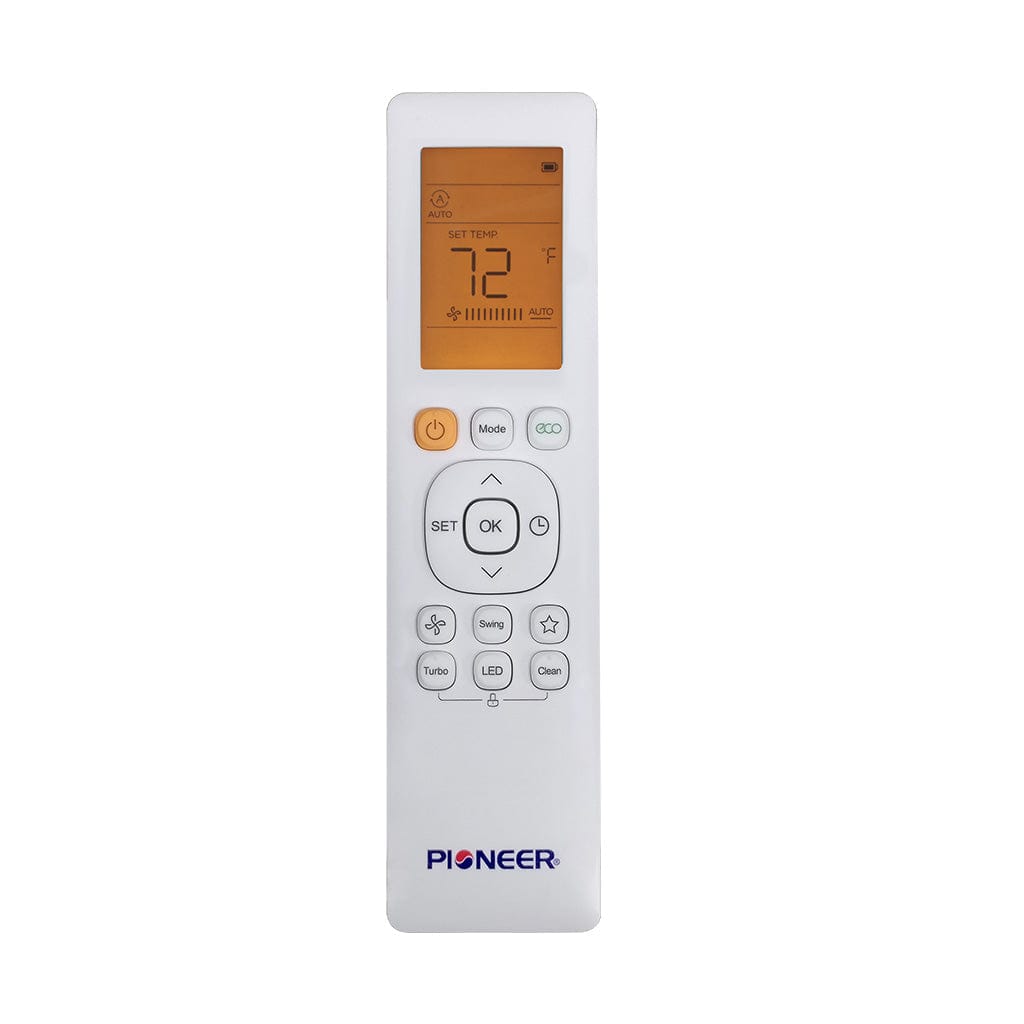

  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5-year parts limited warranty
  • 5-year compressor limited warranty

Free Express Shipping on All orders within the USA

Read Our Shipping Policy Here

30 Day Free Returns on all orders

Read about our Returns Policy Here
