   Pioneer® 36,000 BTU 15.8 SEER2 Ceiling
     Concealed Ducted Mini-Split Inverter+
    Air Conditioner Heat Pump System Full
  Set 230V

Pioneer® 36,000 BTU 15.8 SEER2 Ceiling Concealed Ducted Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V COMPLETE SET

Upgrade your home’s climate control with the Pioneer® 36,000 BTU 15.8 SEER2 Ceiling Concealed Ducted Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V. Designed for high-efficiency cooling and heating, this system uses advanced inverter technology to provide consistent comfort year-round. With its 15.8 SEER2 rating, you’ll benefit from energy savings while enjoying a comfortable environment no matter the season.

The Pioneer® 36,000 BTU Ceiling Concealed Ducted Mini-Split system is ideal for spaces where discreet installation is key. Its concealed ducted design allows for maximum comfort without sacrificing aesthetics, blending seamlessly into your home or office. Whether it’s a large living room or commercial space, this system is built to handle larger areas with ease.

With the Pioneer® 36,000 BTU Ducted Mini-Split, enjoy quiet operation, improved air quality, and superior temperature control. This full set 230V system is the perfect solution for anyone looking for a reliable, high-performance HVAC system that saves energy and enhances indoor comfort.


Features Pioneer® 36,000 BTU 15.8 SEER2 Ceiling Concealed Ducted Mini-Split Inverter+Air Conditioner Heat Pump System Full Set 230V:

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 36,000 BTU/h
  • Cooling Capacity Range: 20,379~36,000 BTU/h
  • Cooling SEER2: 15.8 BTU/W.h
  • Cooling EER2: 8.8 BTU/W.h
  • Heating Rated Capacity: 40,000 BTU/h
  • Heating Capacity Range: 12,765~40,000 BTU/h
  • Heating HSPF2 (Region IV/V): 8.8 / 7 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.30 / 1.91 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 900~1,350 Sq.F

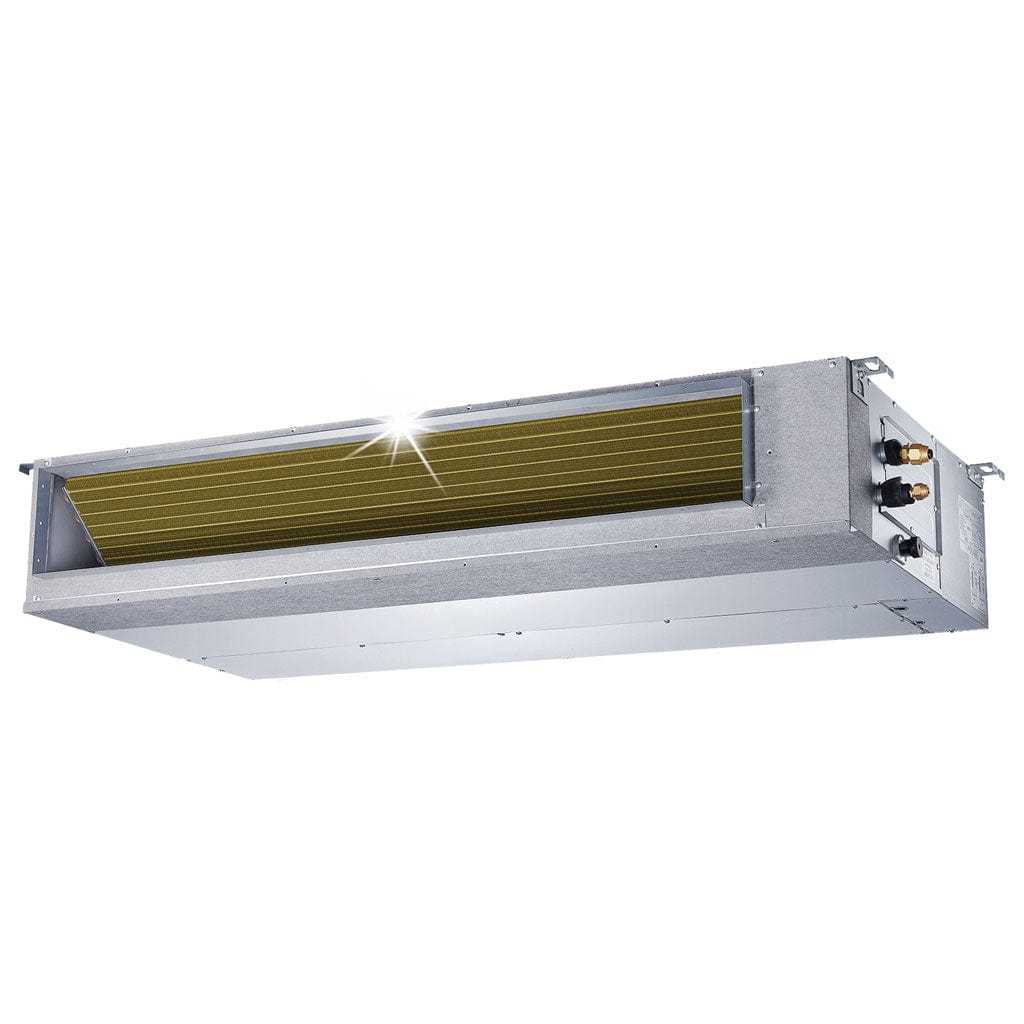

Indoor Unit DataPioneer® 36,000 BTU 15.8 SEER2 Ceiling Concealed Ducted Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V SIDE VIEW

  • Part Number: RB036GMFILDFHD
  • Air Flow (Hi/Med/Lo): 1,082 / 912 / 703 CFM
  • External Static Pressure: 0 ~ 0.64 Inch WC
  • Sound Level (Hi/Med/Lo): 48.0 / 43.5 / 40.5 dB(A)
  • Net Dimensions (WDH): 53"-1/2 x 30"-1/2 x 9"-3/4
  • Carton Dimensions (WDH): 61"-3/4 x 31"-5/8 x 13"
  • Net / Gross Weight: 110.9 / 128.1 Lbs

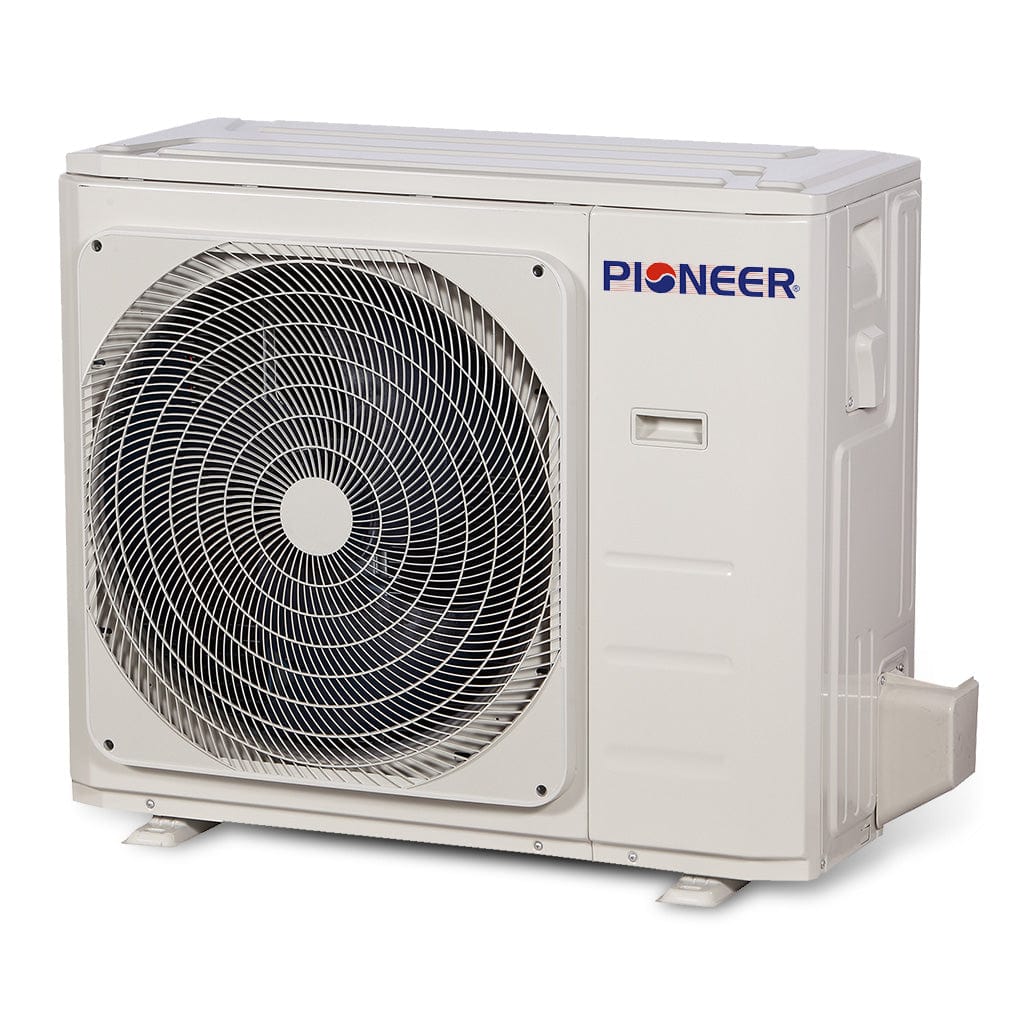

Outdoor Unit Data

  • Part Number: YN036GMFI18RUE
  • Sound Level: 63.5 dB(A)
  • Breaker Needed: 40A (double-pole)
  • Net Dimensions (WDH): 37"-1/4 x 16"-1/8 x 31"-7/8
  • Carton Dimensions (WDH): 42"-7/8 x19"-5/8 x 34"-7/8
  • Net / Gross Weight: 155.4 / 166.2 Lbs

Manuals & Downloads


   Pioneer® 36,000 BTU 15.8 SEER2 Ceiling
     Concealed Ducted Mini-Split Inverter+
    Air Conditioner Heat Pump System Full
                               Set 230V

Summary

  • High-Efficiency Inverter+ ceiling concealed duct split heat pump system
  • Cooling capacity: 36,000 BTU/H with 15.8 SEER2 / 8.8 EER2 efficiency
  • Heating capacity: 40,000 BTU/H with 8.8 HSPF2 / 3.3 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Ceiling Concealed Ducted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $285.00
    • Heating: $735.00

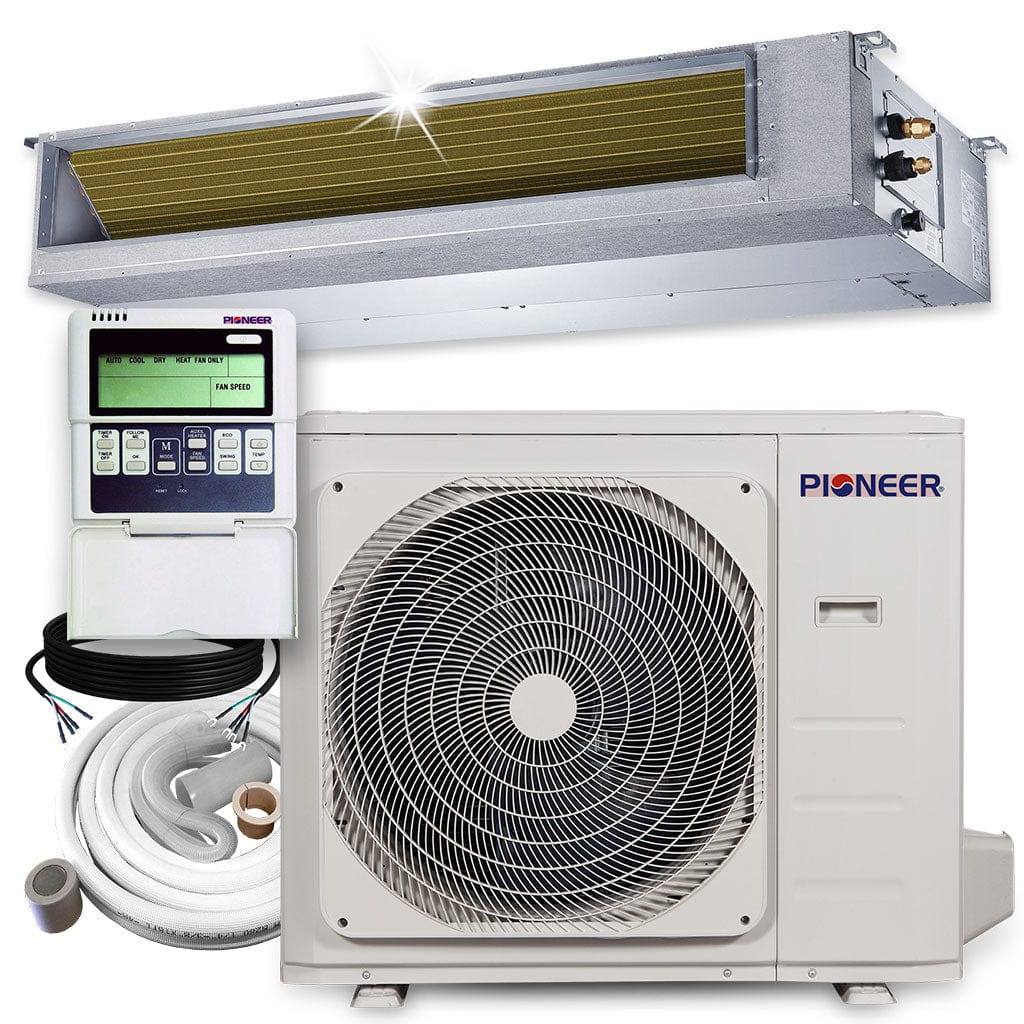

What's IncludedPioneer® 36,000 BTU 15.8 SEER2 Ceiling Concealed Ducted Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V SIDE VIEW

  • Indoor Unit
  • Outdoor Unit

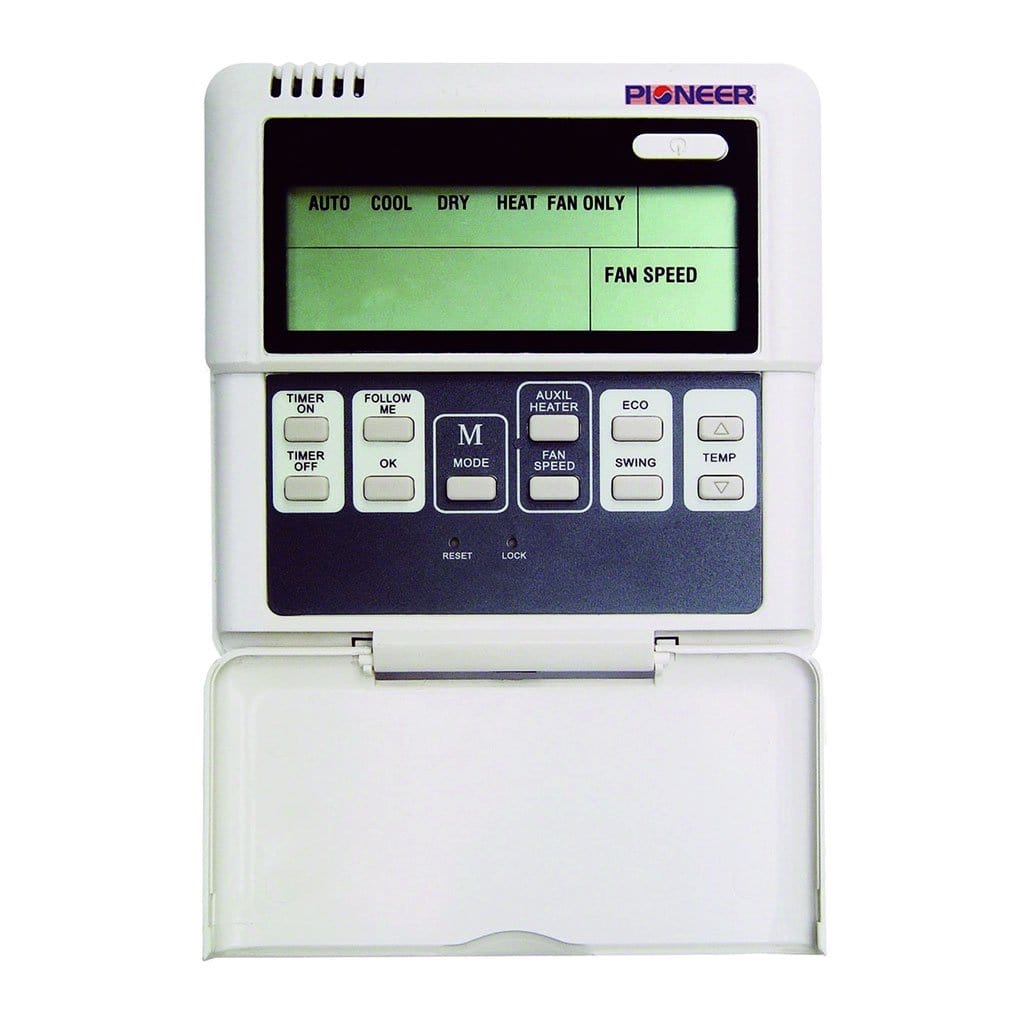

  • Wire Remote Control

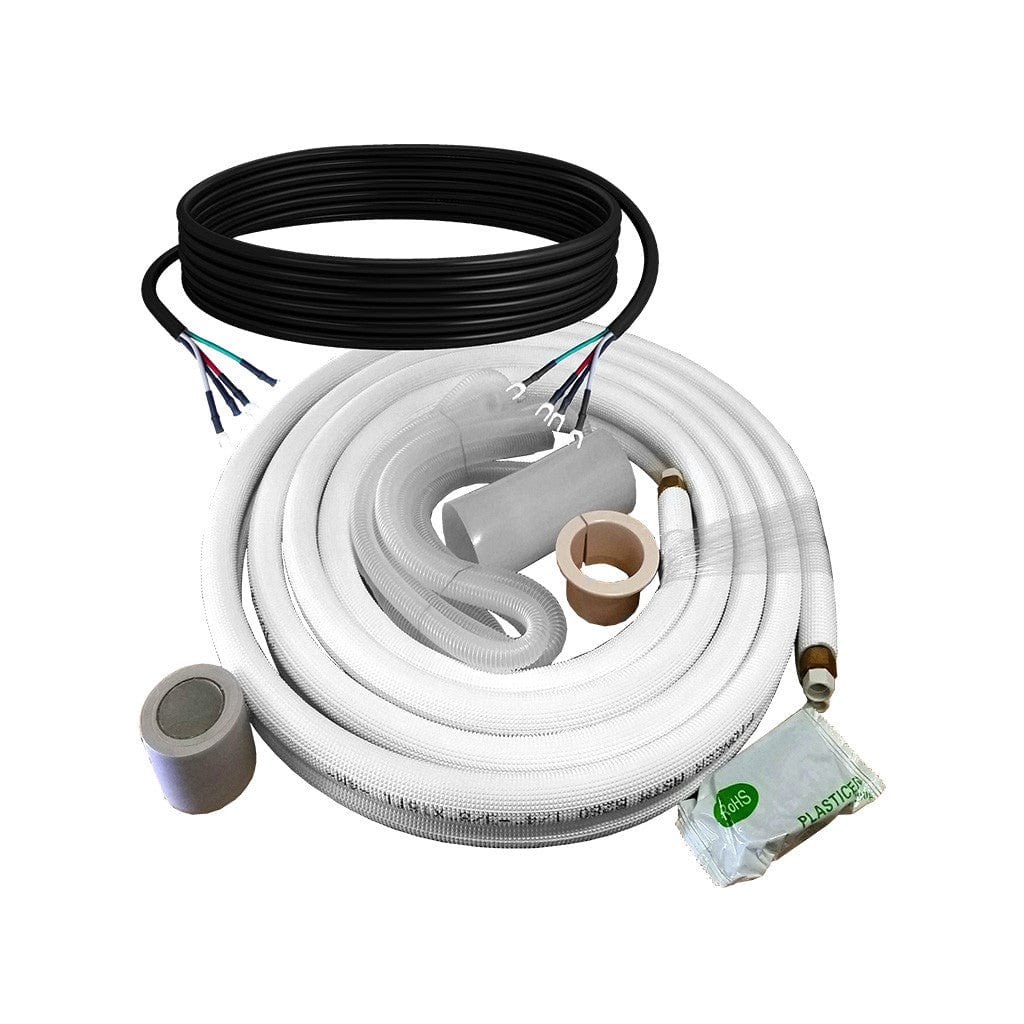

  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5-year parts limited warranty
  • 5-year compressor limited warranty
