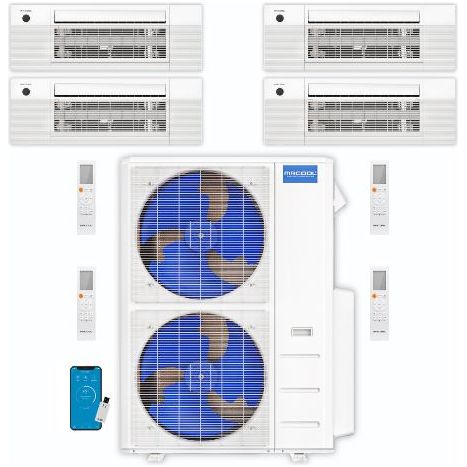

MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump

MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP12121218

Transform your indoor climate with the MRCOOL DIY Mini Split - 54,000 BTU 4 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-448HP12121218. Imagine a comfortable environment tailored to your needs across four different zones, all while enjoying the satisfaction of a DIY installation!

This cutting-edge 4th Generation MRCOOL system features a robust 54,000 BTU Multi-Zone Condenser, complemented by three 12,000 BTU Ceiling Cassette Air Handlers and one powerful 18,000 BTU Ceiling Cassette Air Handler. With four remotes included, you can easily adjust settings in each zone, ensuring personalized comfort throughout your space.

Embrace the convenience of the MRCOOL DIY Mini Split system, designed to give you exceptional climate control while allowing for effortless installation!
Package Includes

This package does not include linesets, don't forgot to scroll up and add them!

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU Rating of the Condenser.

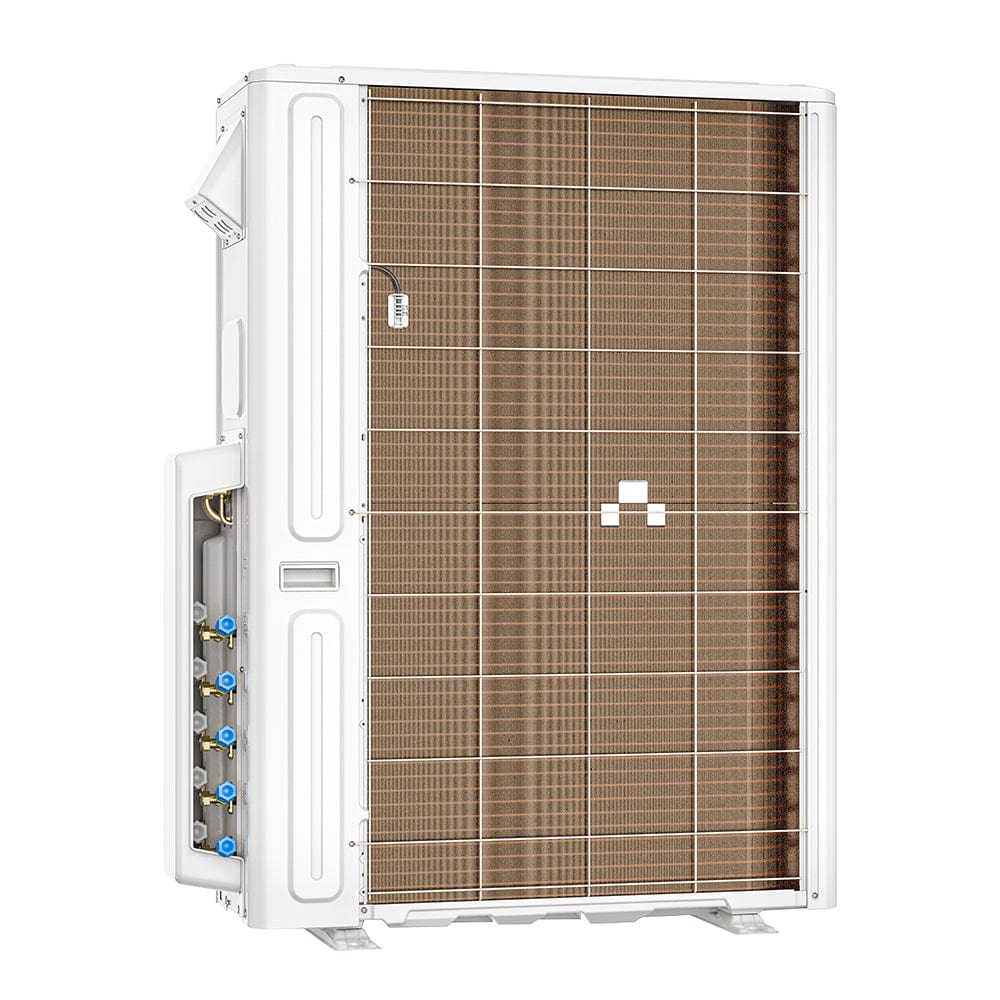

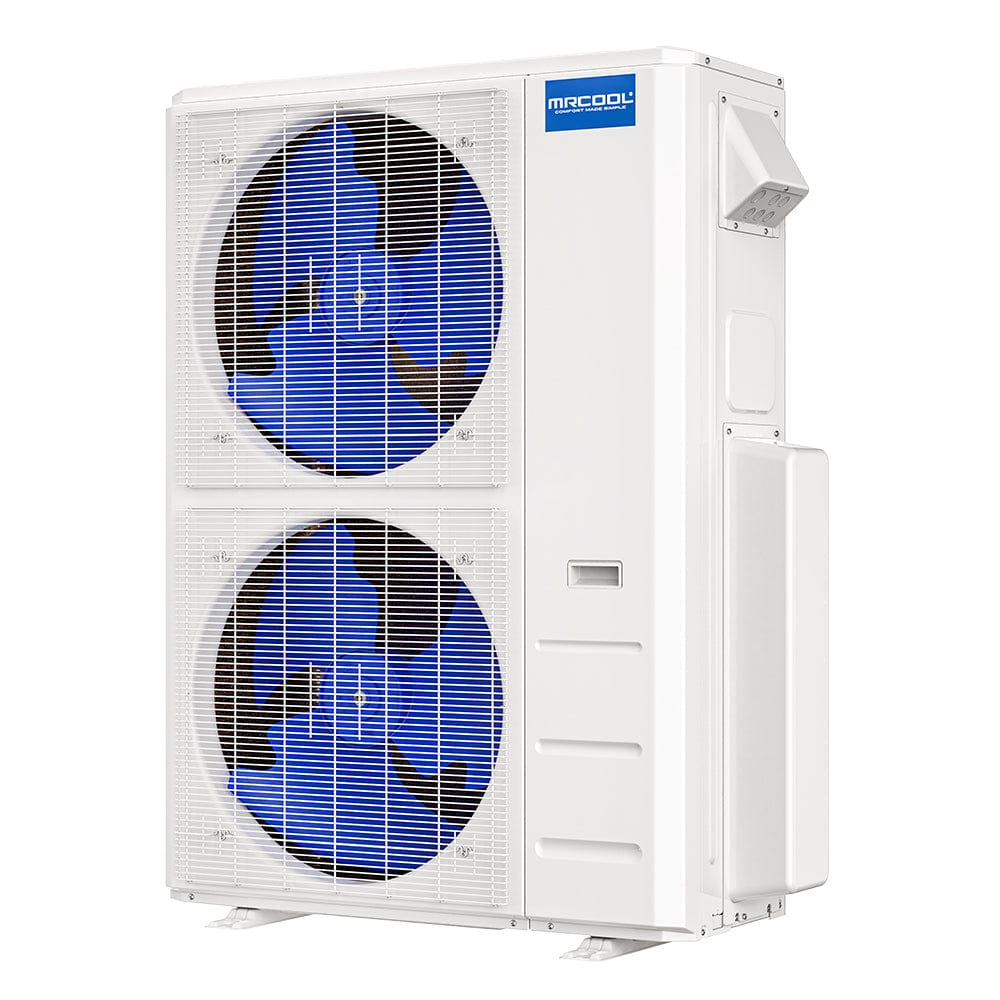

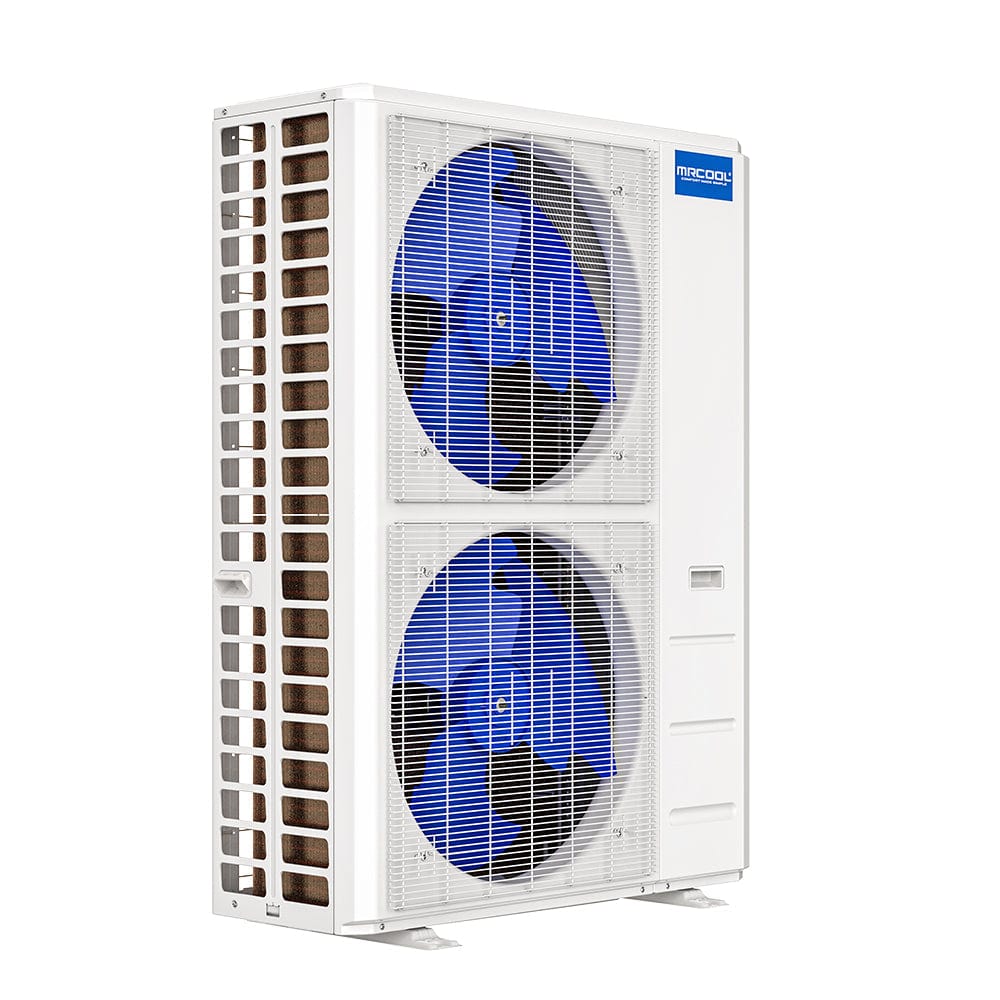

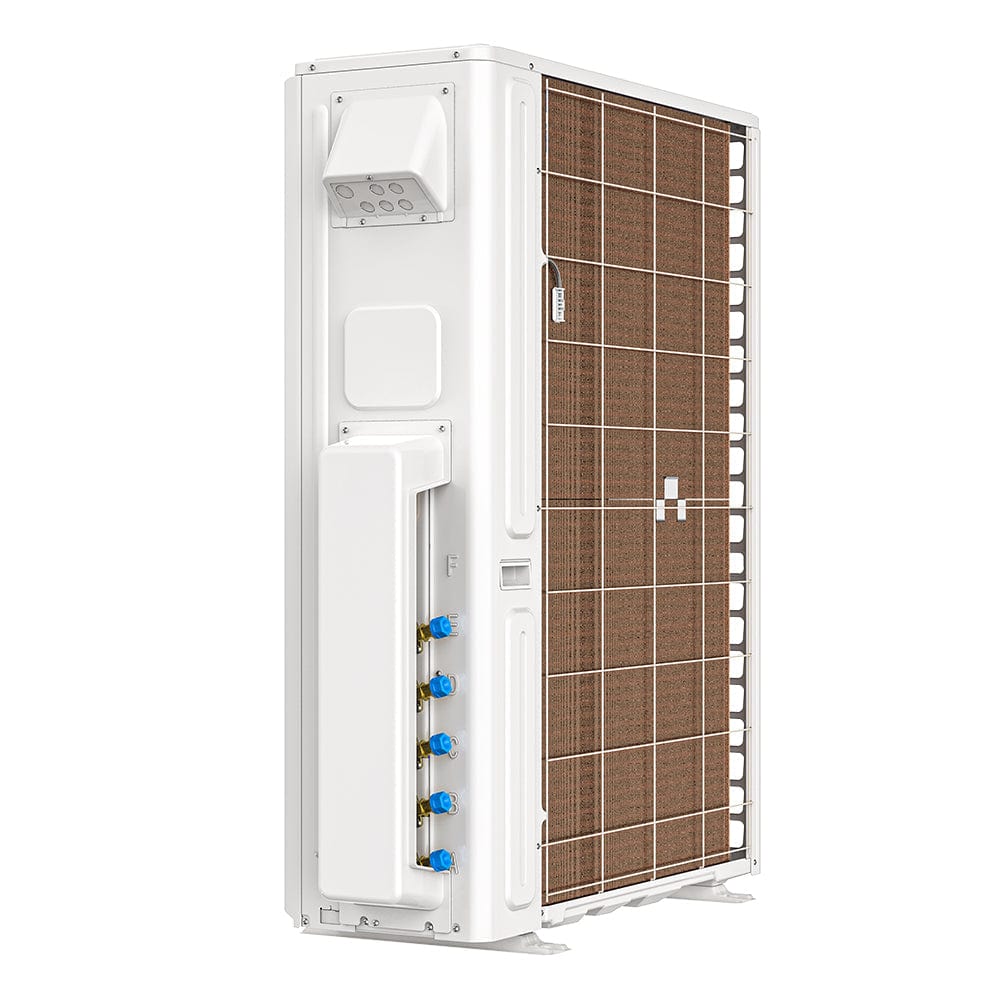

Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach 5°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

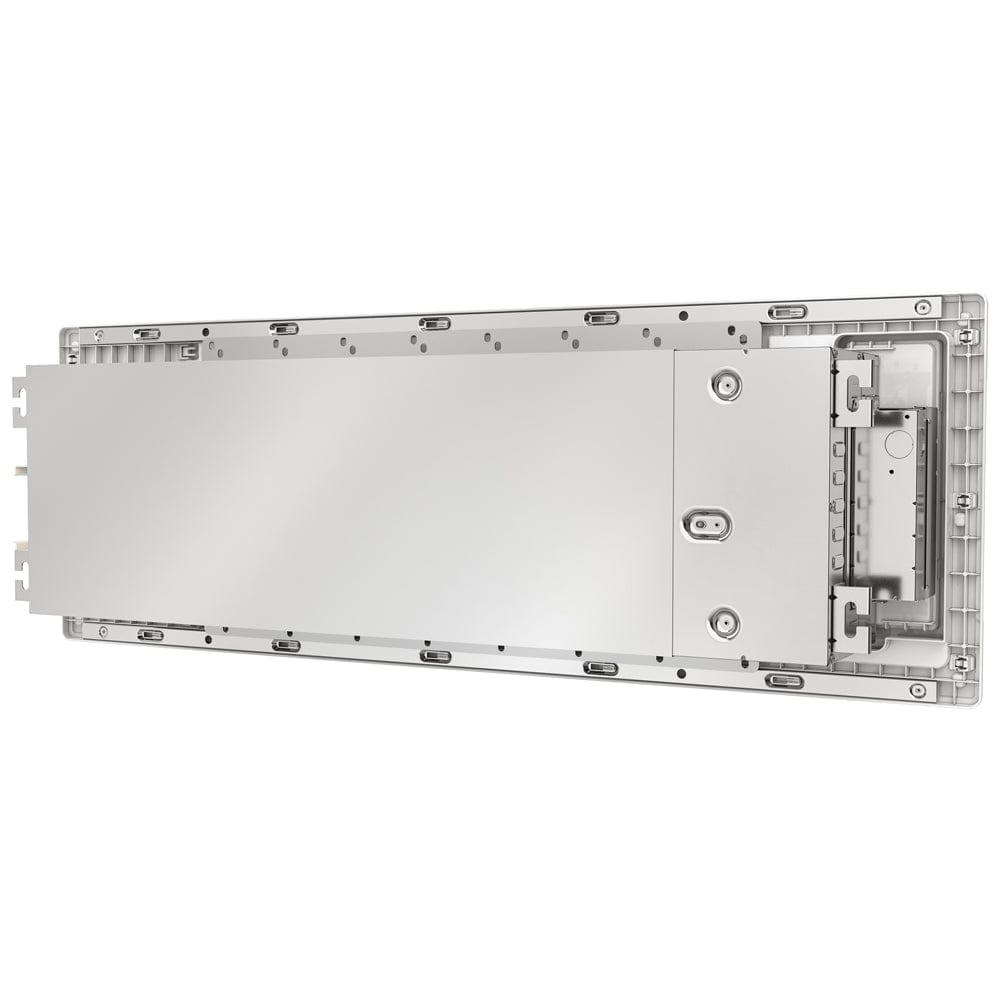

    Air Handler, 12K BTU, Quantity 3

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

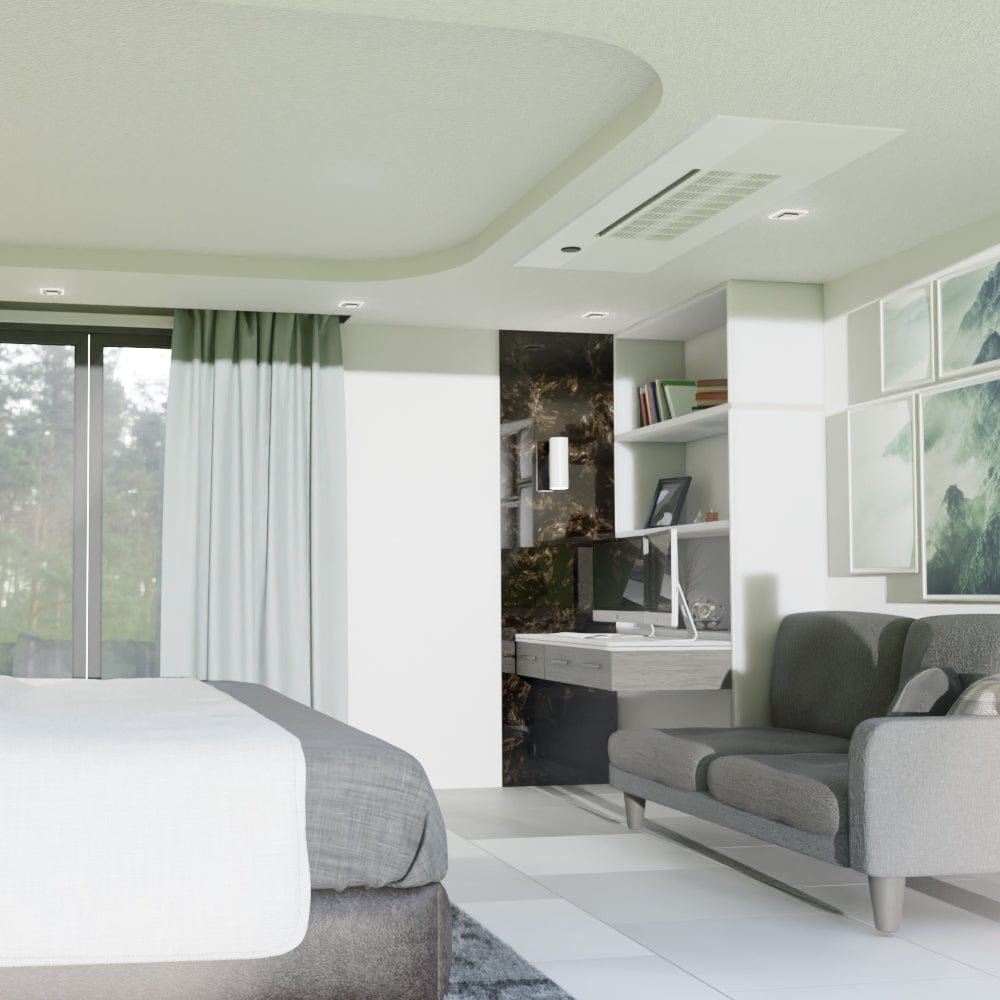

    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.

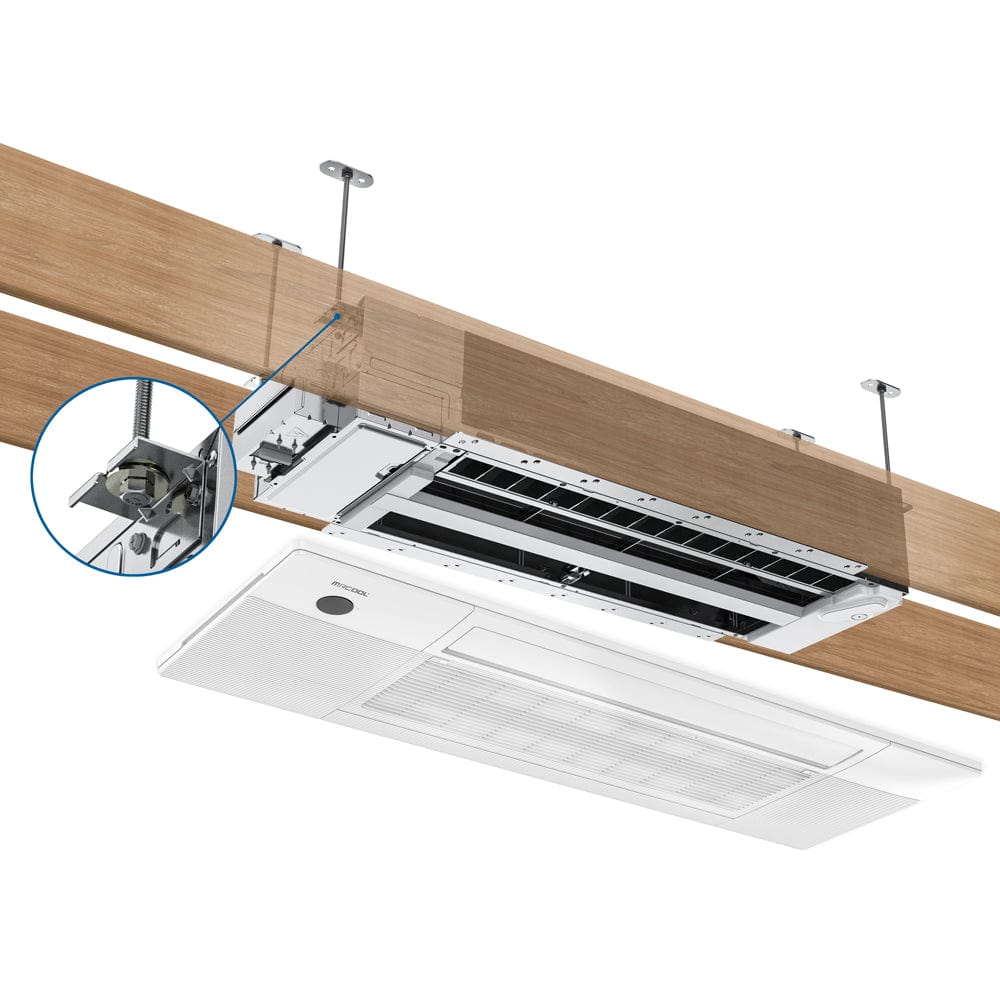

    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists

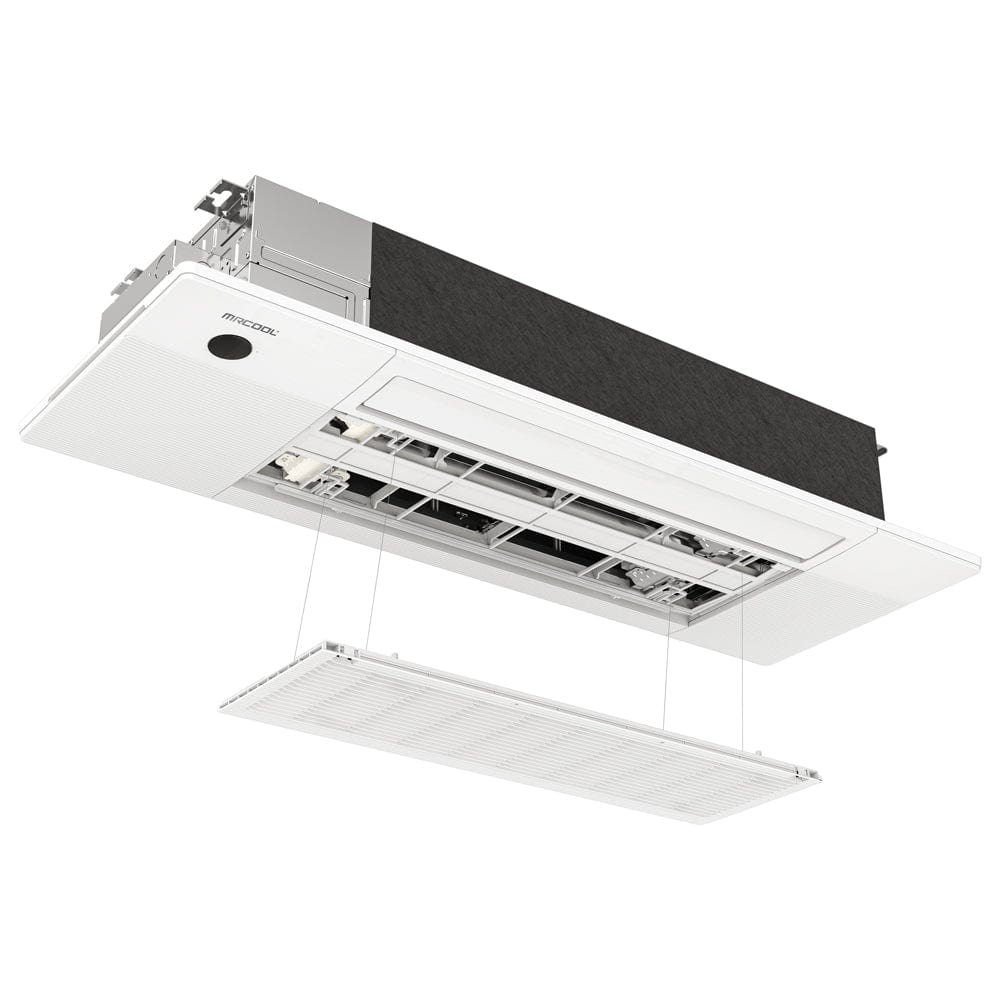

    • Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

    Air Handler, 18K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 750 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists
    • Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

            PRODUCT SPECIFICATIONS:
            Condenser

            Product Dimensions 37.48"W x 16.34"D x 52.48"H
            Cooling Capacity 48,000 BTU
            Heating Capacity 48,000 BTU
            Zone Capacity 2
            Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
            Heat Mode - Outdoor Operating Temperature Range 5F ~ 75.2F
            SEER 20.5
            EER 11
            Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
            Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts

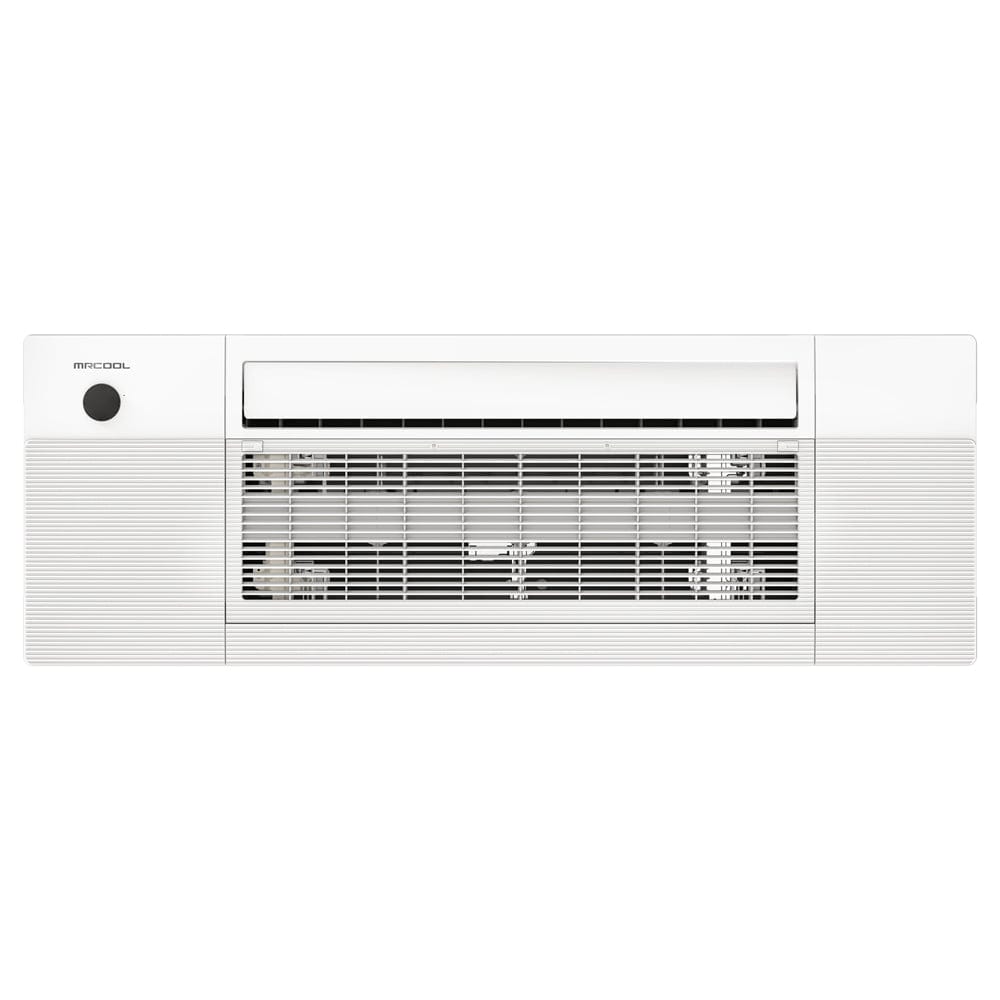

            Air Handler 12K BTU

            Product Dimensions 50.31"W x 13.19"D x 8.98"H
            Mount Type Ceiling Cassette
            Cooling Capacity 12,000 BTU
            Heating Capacity 12,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - Auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep


            Air Handler 18K BTU

            Product Dimensions 50.31"W x  13.19"D x  8.98"H
            Mount Type Ceiling Cassette
            Cooling Capacity 17,000 BTU
            Heating Capacity 19,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - Auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep
            Installation Manual
            Product Brochure
            Performance Specifications
            Warranty
            Energy Guide
            AHRI Certificate
