      MRCOOL DIY Mini Split - 51,000 BTU
   4 Zone Ductless Air Conditioner and
        Heat Pump with 16 ft. Install Kit,
     DIYM448HPW08C00



Achieve unparalleled comfort in your home with the MRCOOL DIY Mini Split - 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM448HPW08C00. Imagine cooling and heating four different spaces effortlessly, allowing you and your family to enjoy personalized climate control throughout the year. This advanced system combines efficiency with user-friendly installation, making it an excellent choice for modern households.

This fourth-generation MRCOOL Mini Split includes a robust DIY 51,000 BTU Multi-Zone Condenser, paired with four individual air handlers, ensuring optimal heating and cooling performance tailored to each room's unique needs. The 16 ft. installation kit simplifies the setup process, empowering you to take control of your home's climate without the need for professional installation. Each unit is designed for sleek integration into your home’s decor, providing comfort without sacrificing style.

With the MRCOOL DIY Mini Split, managing your home’s climate is easy and rewarding. The clear installation instructions give you the confidence to set up and operate this cutting-edge heating and cooling solution on your own. Don’t miss the chance to enhance your home’s comfort and energy efficiency—experience the convenience and performance of this innovative system today!


Specifications of MRCOOL DIY Mini Split - 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM448HPW08C00:

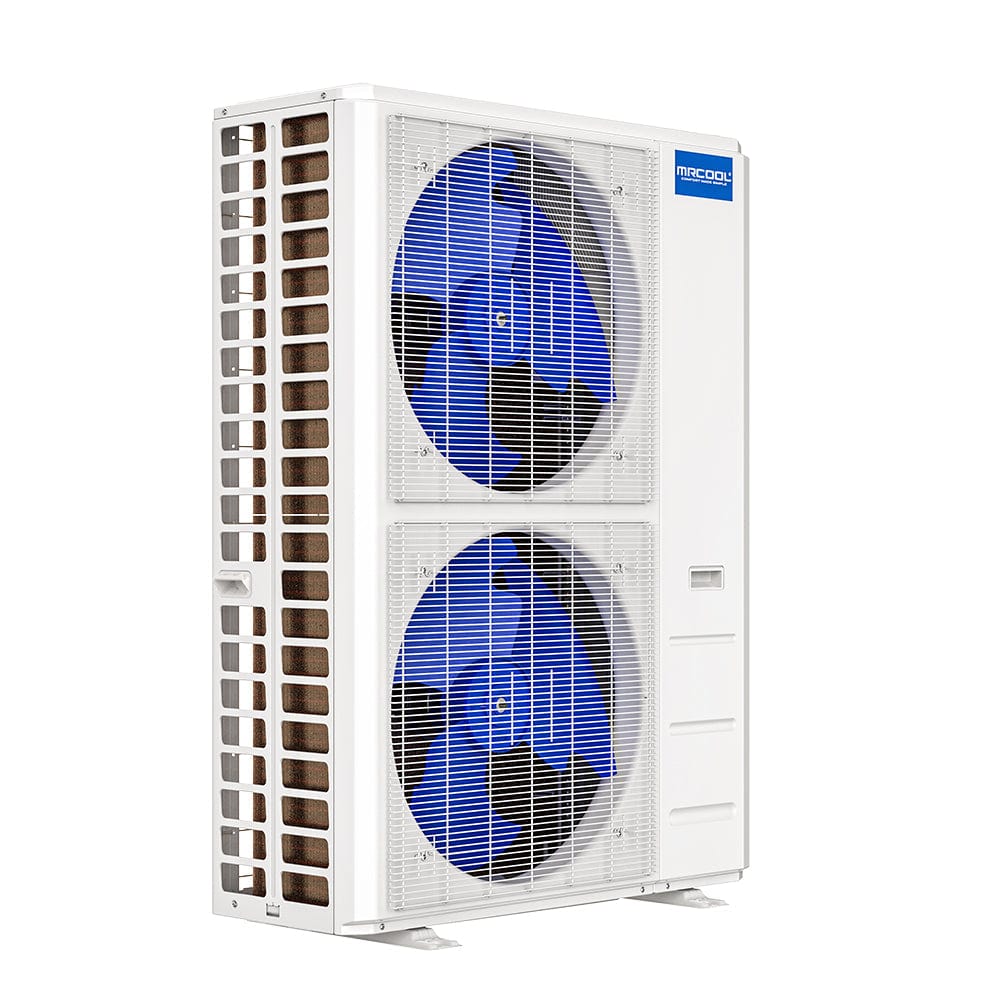

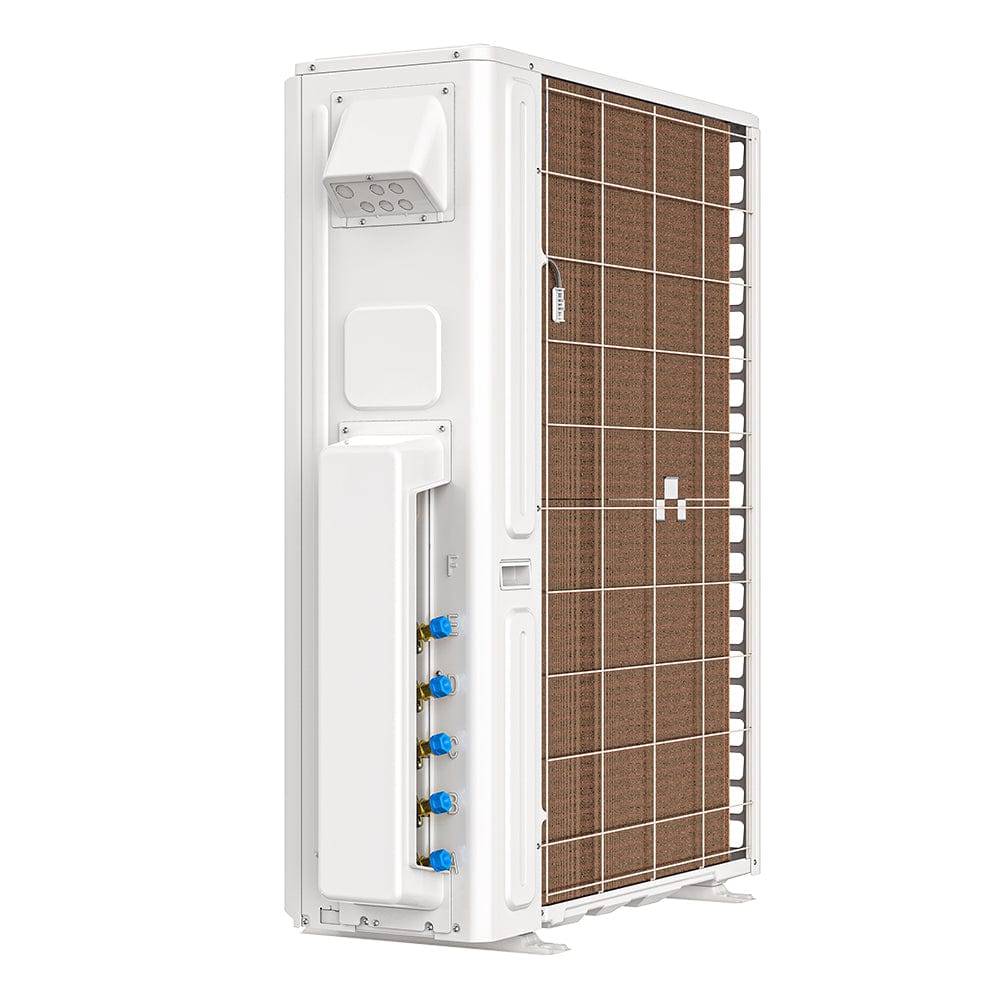

Condenser Specifications

Product Dimensions 37.48"W x 16.34"D x 52.48"H
Cooling Capacity 48,000 BTU
Heating Capacity 48,000 BTU
Zone Capacity 5
Min Ambient Cool 5F ~ 122F
Min Ambient Heat 5F ~ 75.2F
SEER 20.5
EER 11
Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)C
Registered Warranty
 7 Years Replacement on Condenser, 5 Years Parts

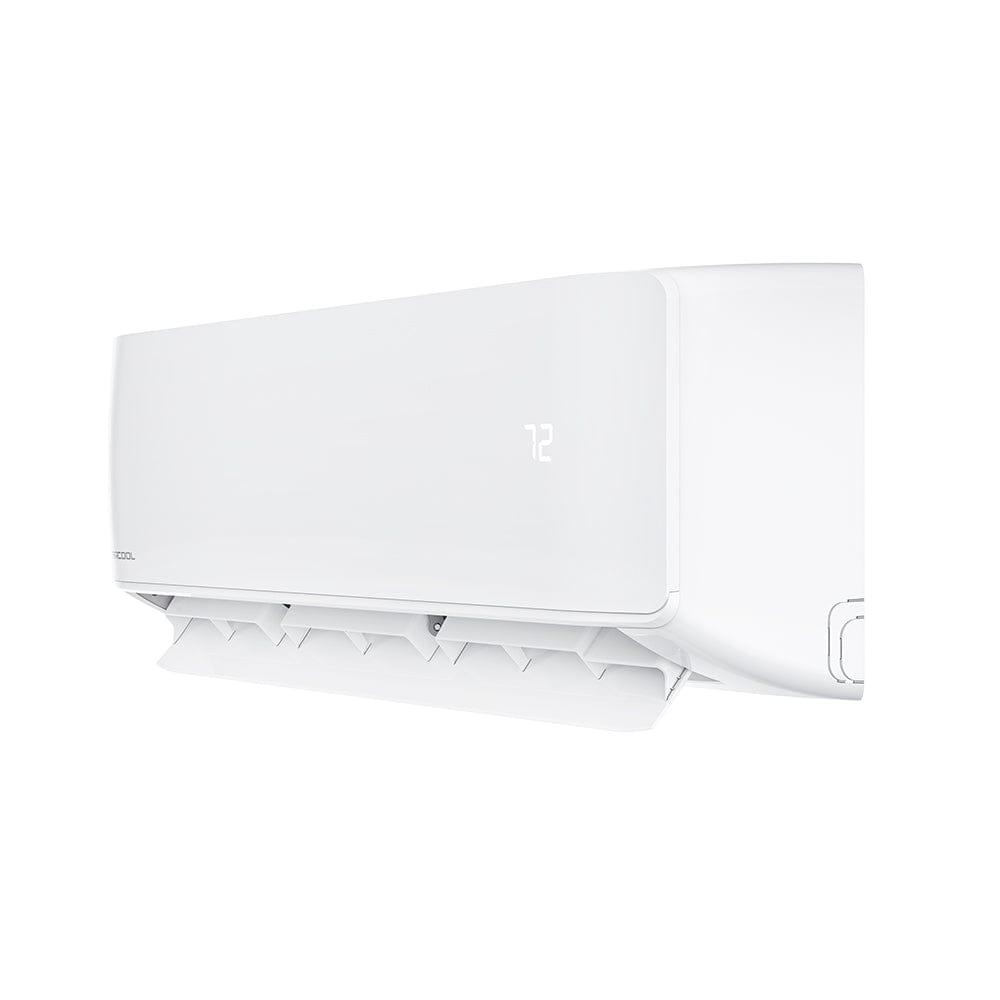

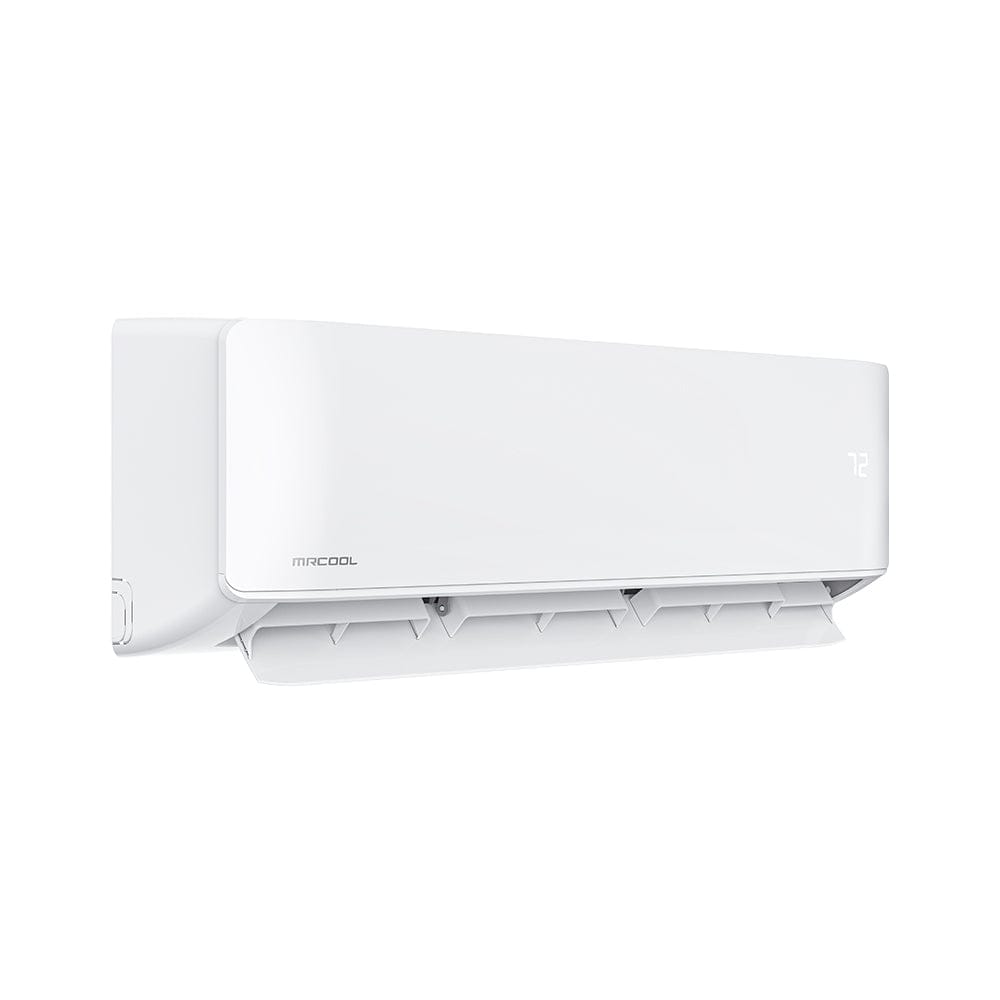

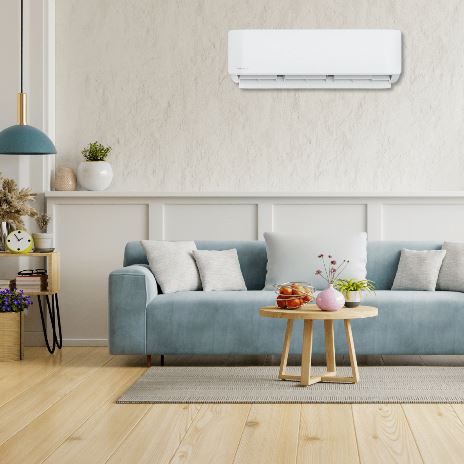

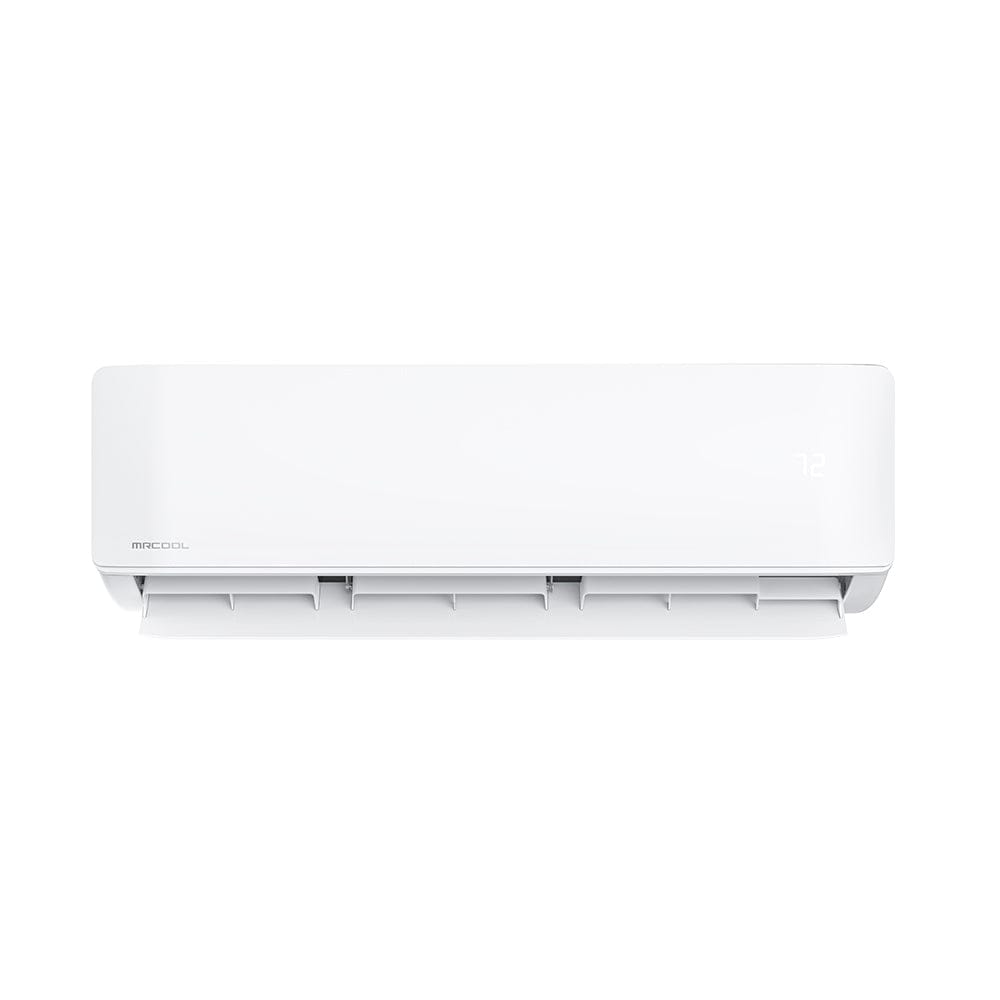

Air Handler 9K BTU

Product Dimensions 31.57"W x 7.44"D x 11.69"H
Mount Type Wall
Cooling Capacity 9,000 BTU
Heating Capacity 9,000 BTU
Registered Warranty
 5 Years Parts
Modes Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep


Air Handler 24K BTU

Product Dimensions 42.52"W x 8.90"D x 13.19"H
Mount Type Wall
Cooling Capacity 23,000 BTU
Heating Capacity 25,000 BTU
Registered Warranty
 5 Years Parts
Modes Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep


Line Set

Length 16 Feet
Liquid Line Size 3/8"
Suction Line Size 5/8"


Line Set

Length 16 Feet
Liquid Line Size 1/4"
Suction Line Size 1/2"
Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate



This 4th Generation MRCOOL DIY Mini Split - 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM448HPW08C00 Split includes everything you need to cool and heat four different rooms. MRCOOL DIY Mini Split - 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM448HPW08C00 will be sent: DIY 48,000 BTU Multi-Zone Condenser, three 9,000 BTU Wall Mounted Air Handler, one 24,000 BTU Wall Mounted Air Handler, four Remotes, and four 16 ft. Installation Kits. The best part about all of MRCOOL DIY Mini Split - 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM448HPW08C00 is that you can install it yourself!
MRCOOL DIY Mini Split - 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM448HPW08C00

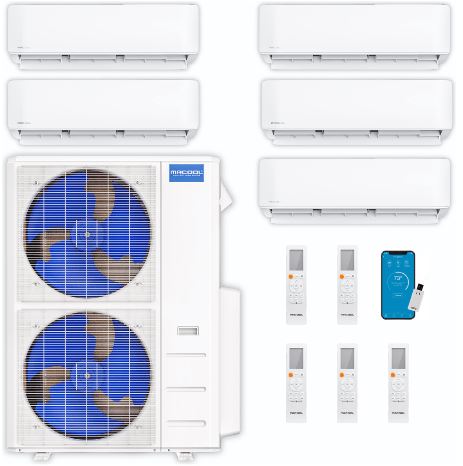

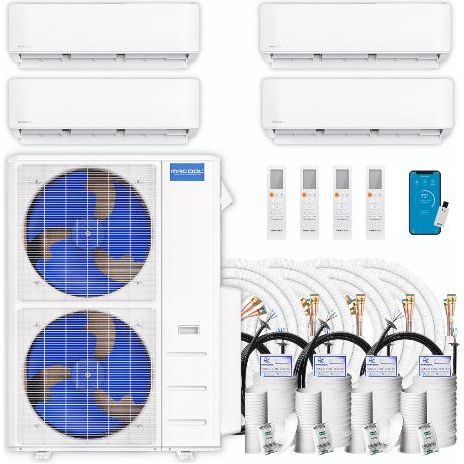

 Package Includes

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 48K BTU rating of the Condenser.

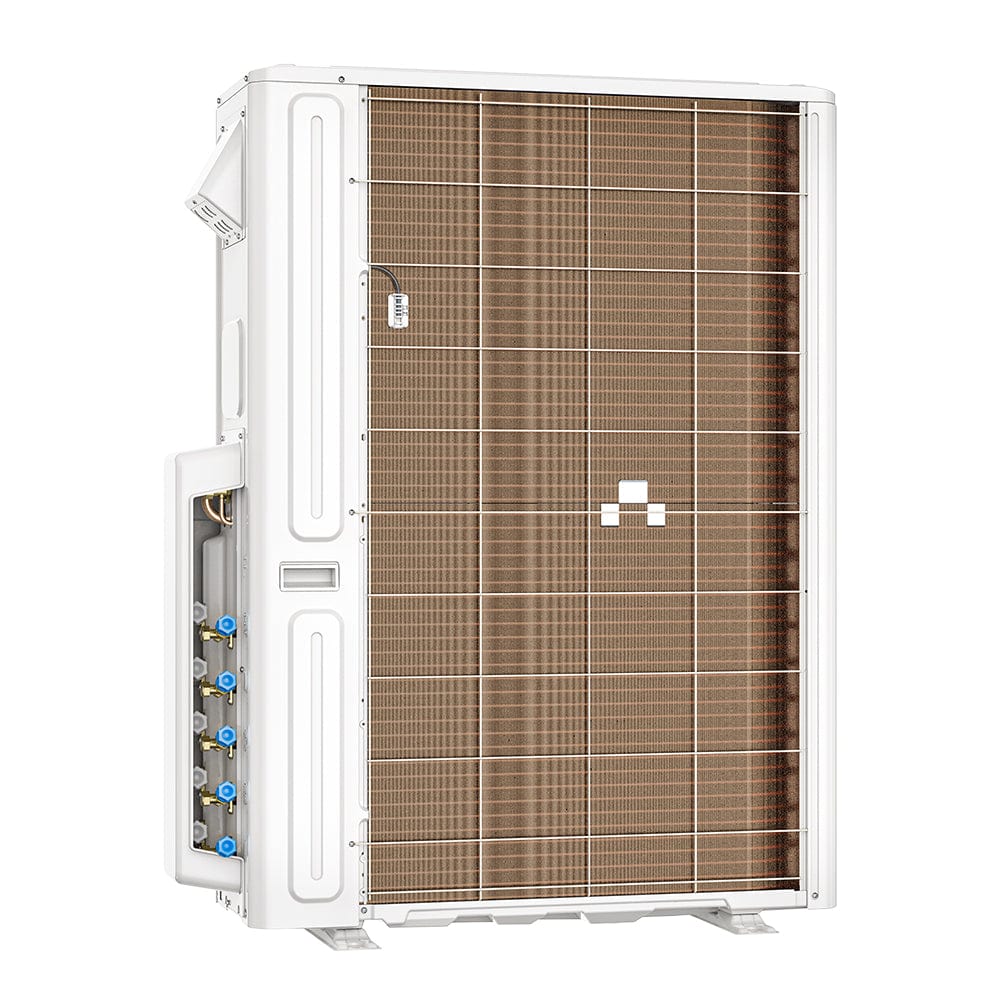

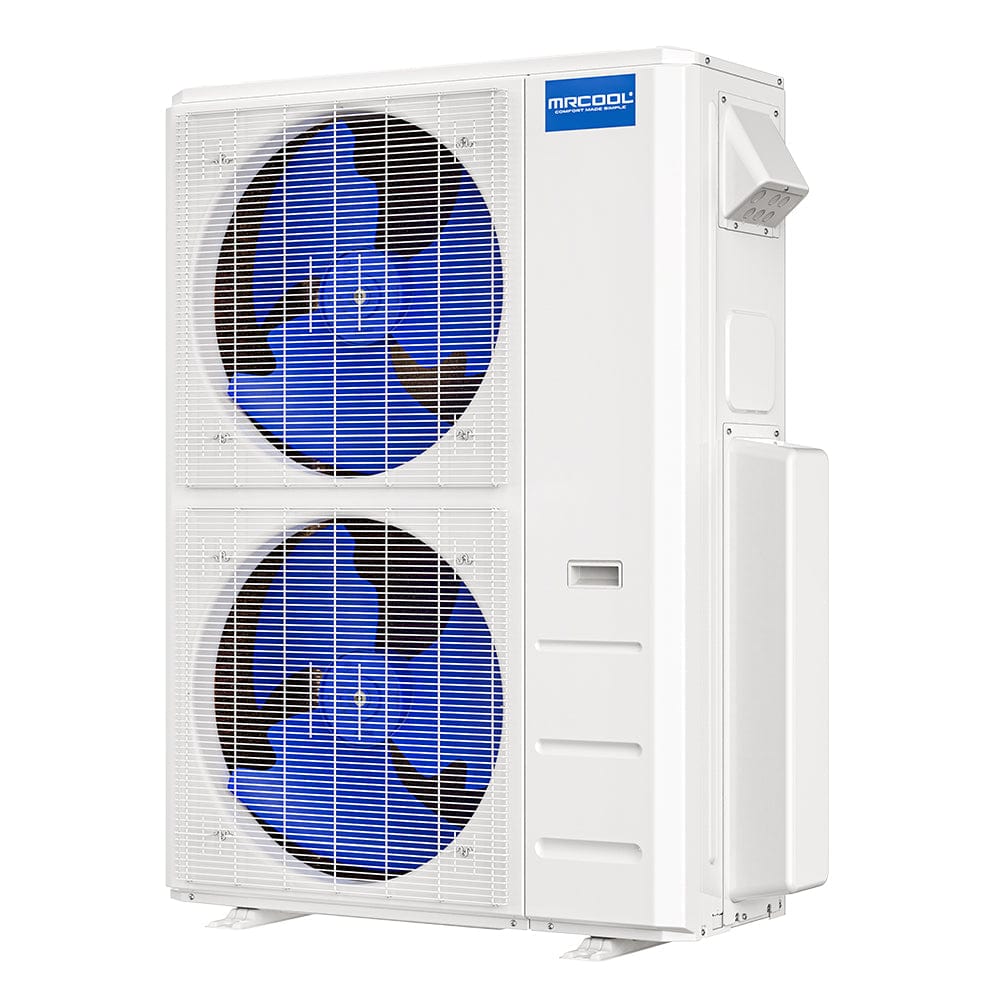

Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to 5°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL DIY Mini Split - 51,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM448HPW08C00 Care Program to get the lifetime warranty!

    Air Handler, 9K BTU, Quantity 3

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 24K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 1,000 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

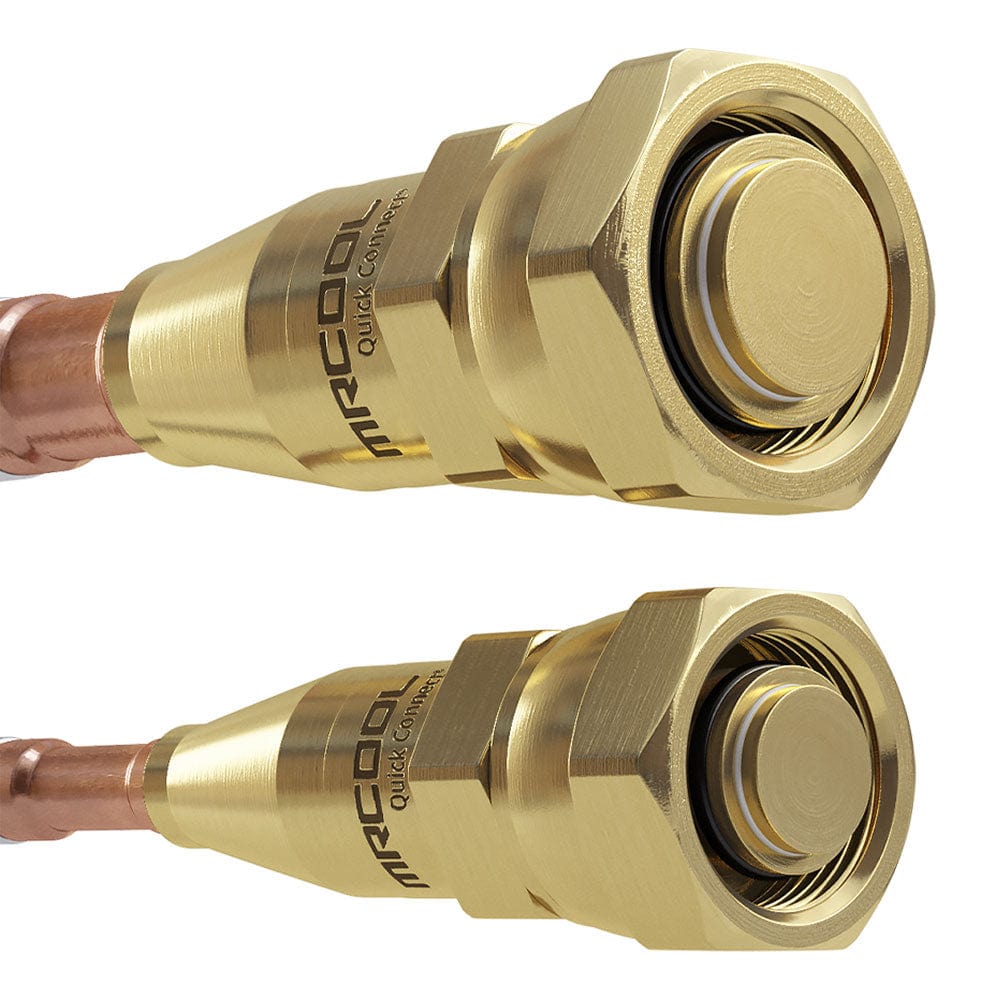

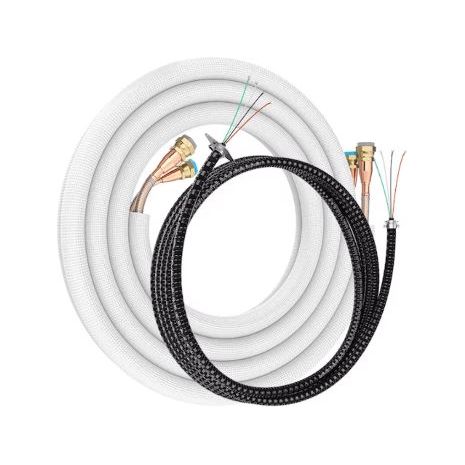

    Line Set 16 ft., Quantity 4
    • This 16 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
    • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
    • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
