MRCOOL DIY Mini Split - 42,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump

 MRCOOL DIY Mini Split - 42,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump, DIY-B-336HP090924

Elevate your home comfort with the MRCOOL DIY Mini Split - 42,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump. This versatile system is designed to effectively cool and heat three distinct areas of your home, providing personalized climate control tailored to your preferences.

Your package includes a DIY 36,000 BTU Multi-Zone Condenser, two 9,000 BTU wall-mounted air handlers, one 24,000 BTU wall-mounted air handler, and three remotes for easy operation. This all-in-one solution comes with everything you need for optimal performance and energy efficiency.

What makes the MRCOOL Mini Split stand out is its hassle-free DIY installation. You can set it up yourself, eliminating the need for professional help and saving you time and money. Enjoy flexible placement options and year-round comfort without complicated tools or expensive equipment!

 Package Includes

This package does not include linesets, don't forgot to scroll up and add them!

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 36K BTU Rating of the Condenser.

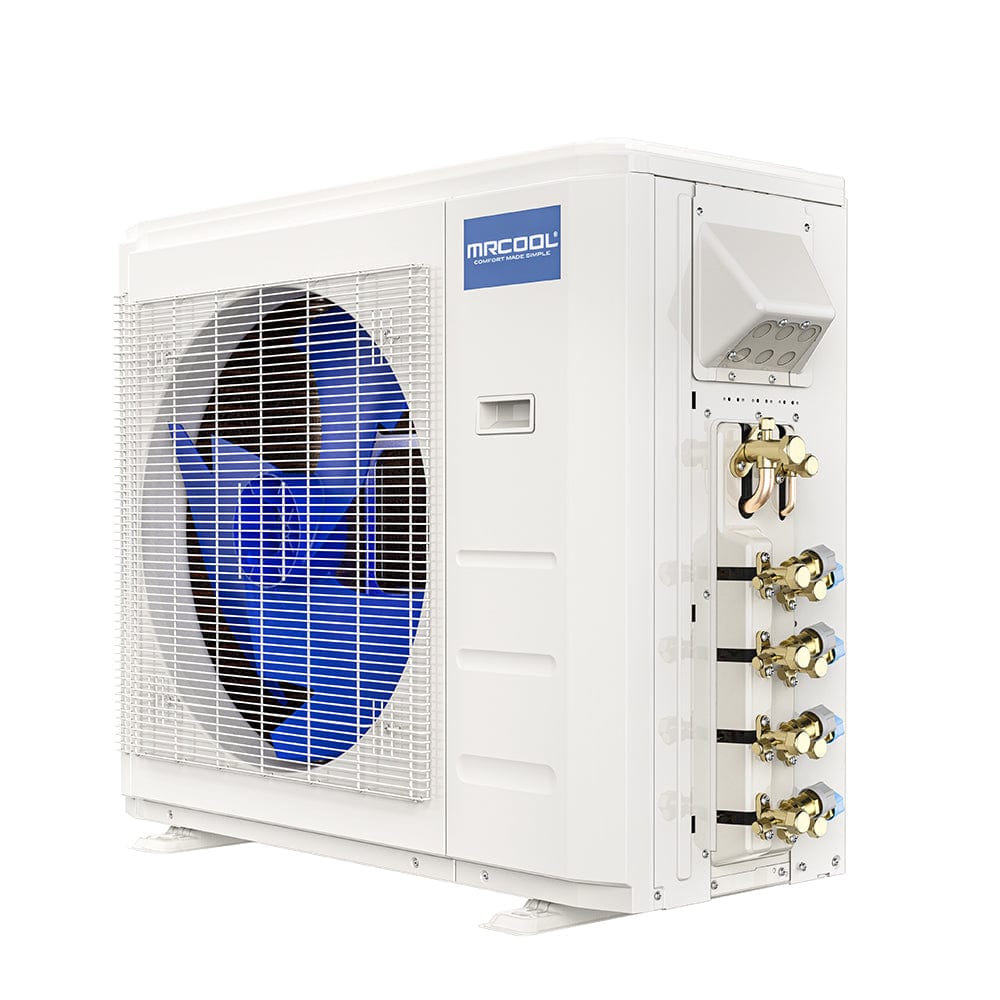

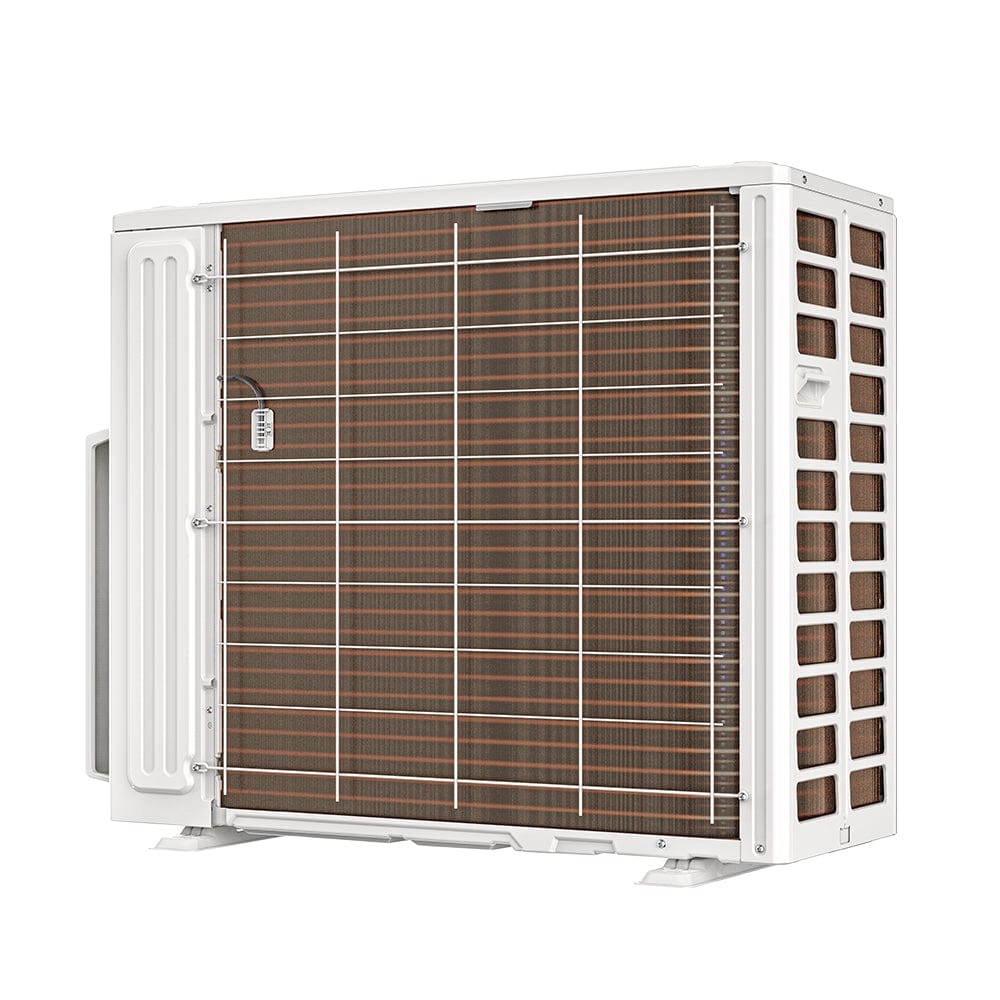

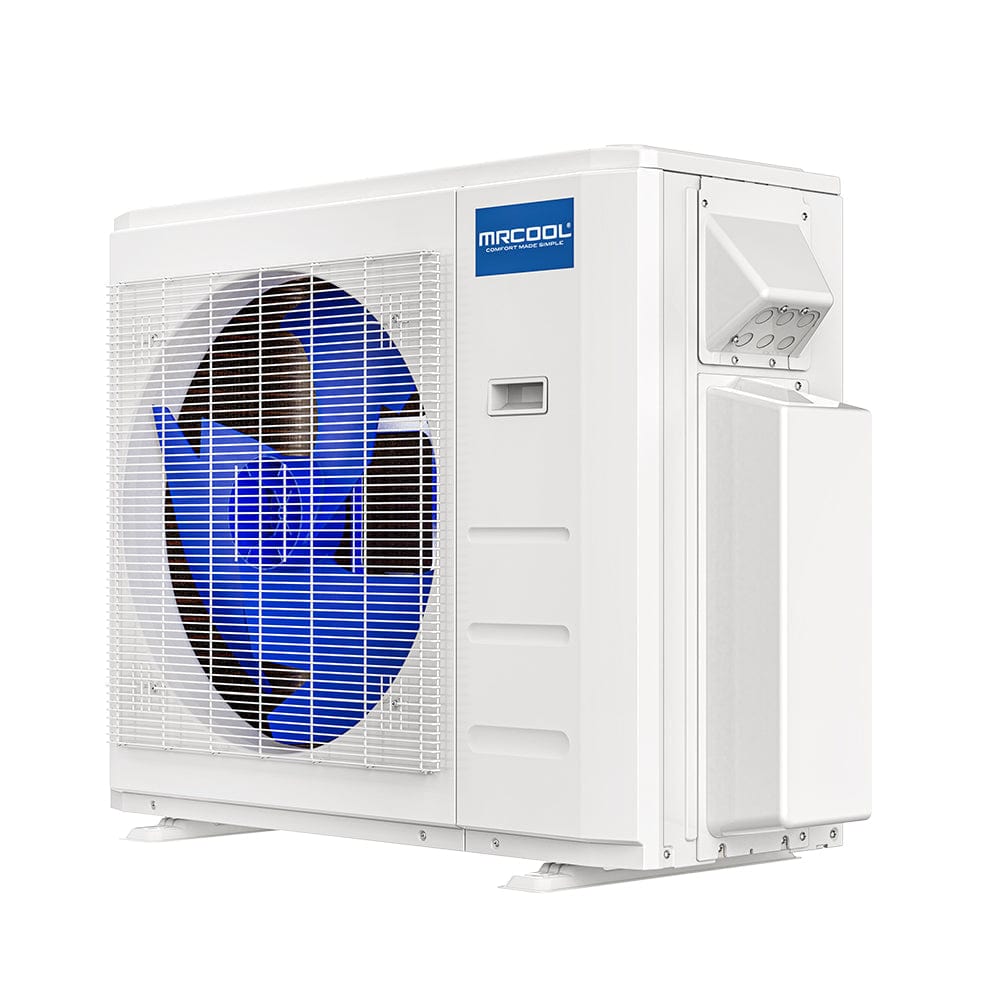

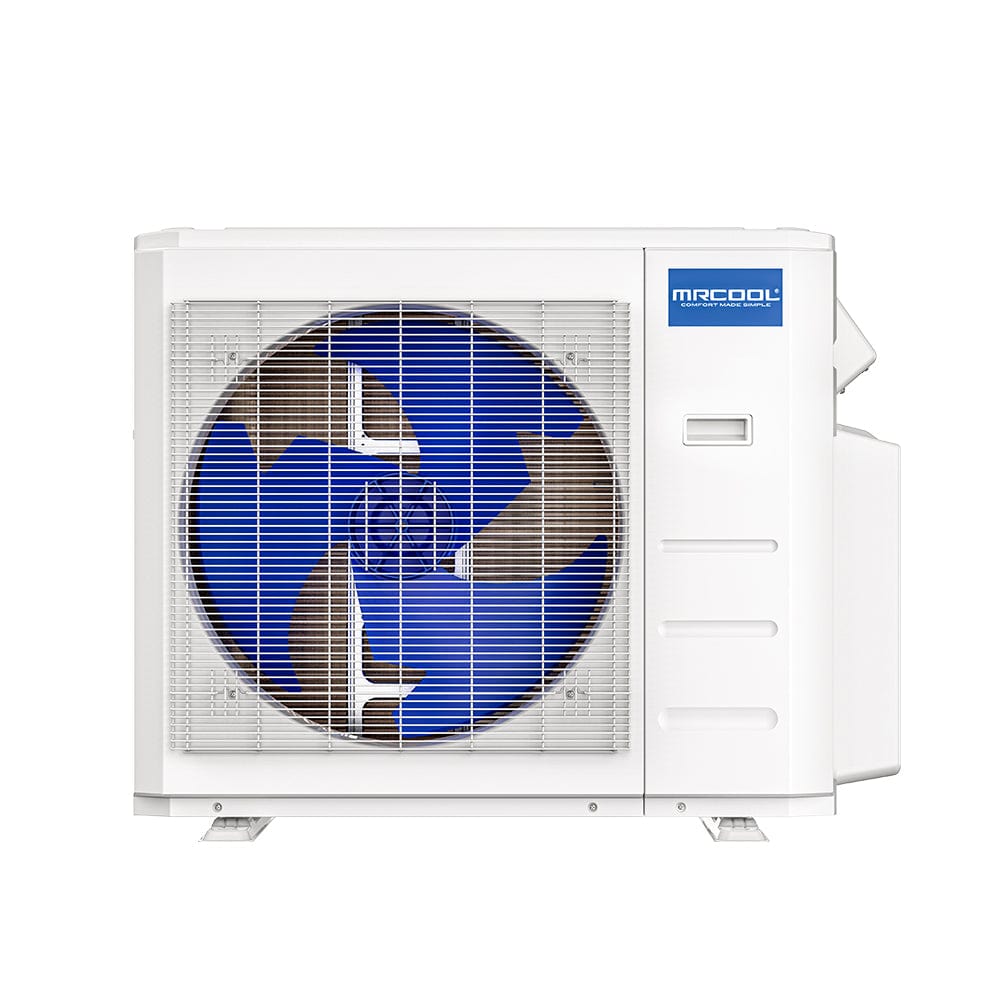

Condenser

  • Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

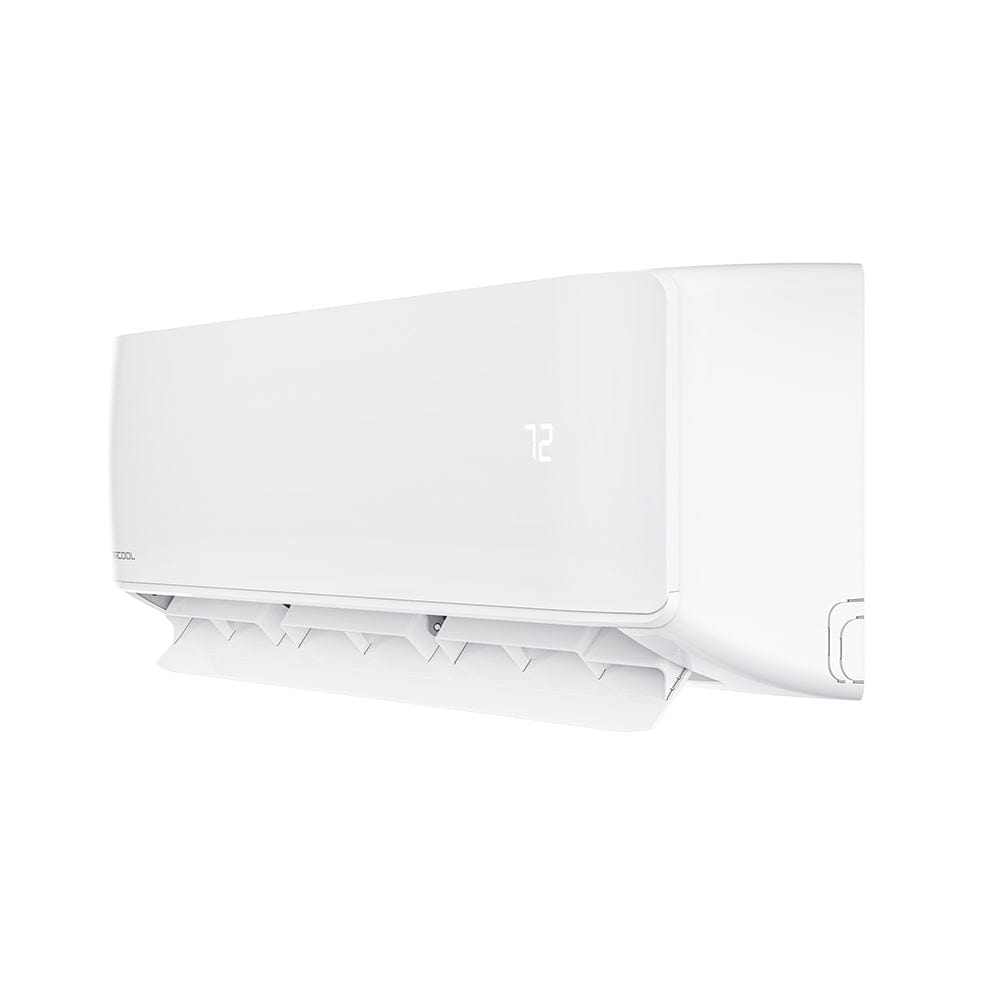

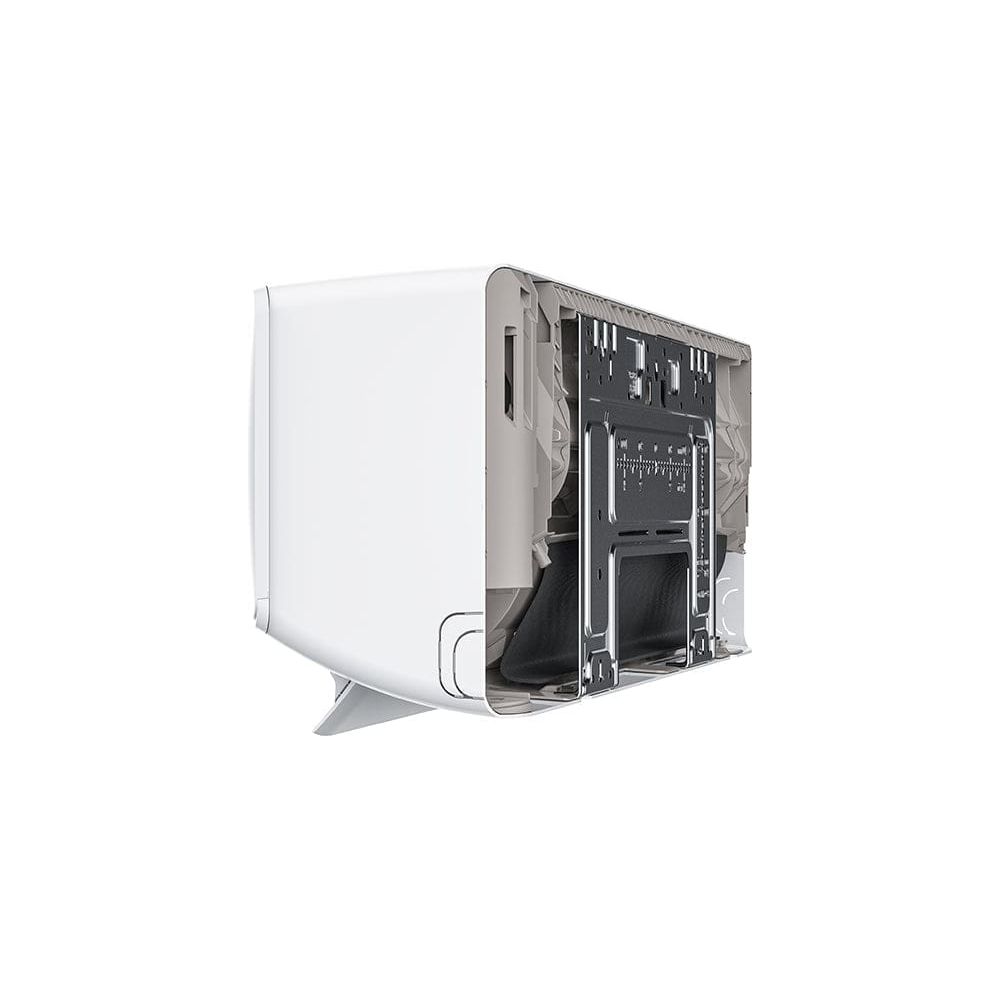

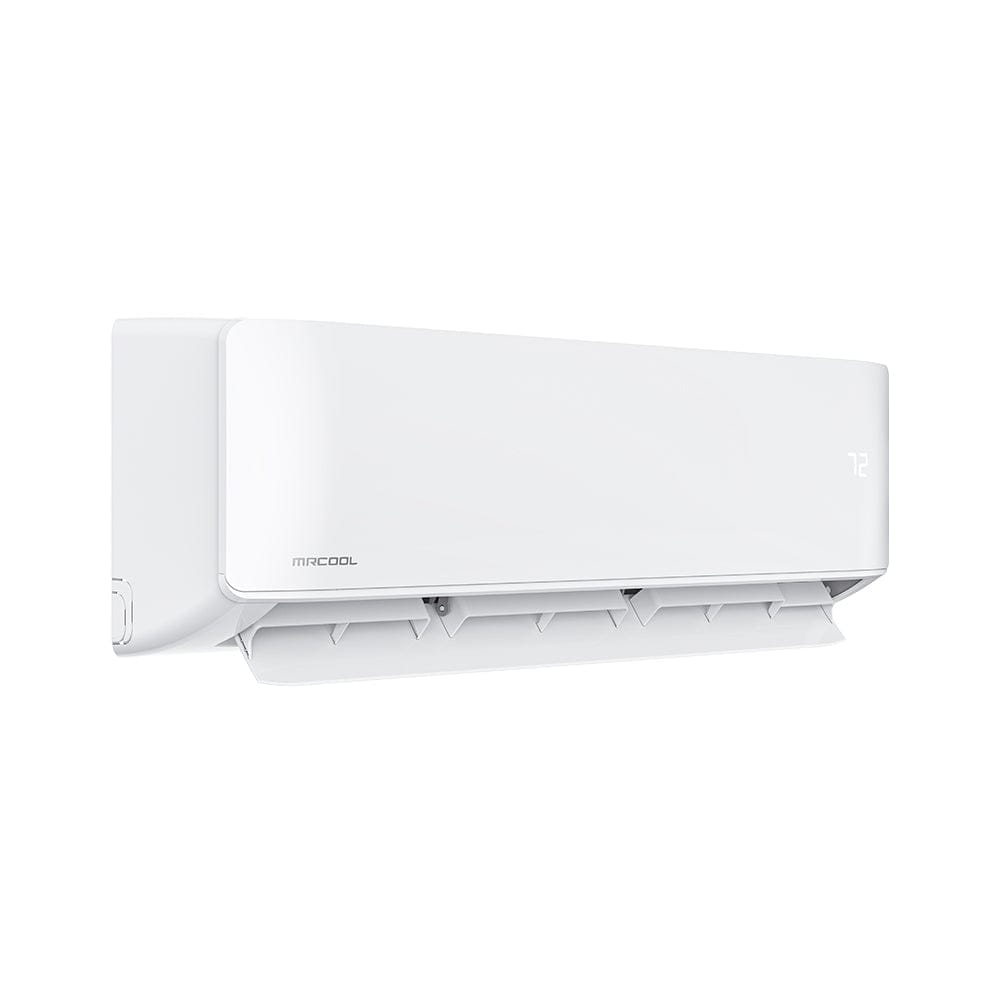

    Air Handler, 9K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 24K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 1000 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

      PRODUCT SPECIFICATIONS:
      Condenser

      Product Dimensions 37.24"W x 16.14"D x 31.89"H
      Cooling Capacity 36,000 BTU
      Heating Capacity 36,000 BTU
      Zone Capacity 4
      Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
      Heat Mode - Outdoor Operating Temperature Range -13F ~ 75.2F
      SEER 21.5
      EER 10.5
      Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
      Registered Warranty
      		 7 Years Replacement on Condenser, 5 Years Parts


      Air Handler 9K BTU

      Product Dimensions 31.57"W x 7.44"D x 11.69"H
      Mount Type Wall
      Cooling Capacity 9,000 BTU
      Heating Capacity 9,000 BTU
      Registered Warranty
      		 5 Years Parts
      Modes Auto - auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep


      Air Handler 24K BTU

      Product Dimensions 42.52"W x 8.90"D x 13.19"H
      Mount Type Wall
      Cooling Capacity 23,000 BTU
      Heating Capacity 25,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto - auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep
      Installation Manual
      Product Brochure
      Performance Specifications
      Warranty
      Energy Guide
      AHRI Certificate
