MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit


MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM436HPW01C00

Elevate your home’s comfort with the MRCOOL DIY Mini Split - 39,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump. Imagine enjoying perfectly regulated temperatures in four different rooms, ensuring personalized comfort for every family member year-round. This advanced system is designed specifically for DIY enthusiasts, allowing you to effortlessly manage your indoor climate while taking pride in a straightforward self-installation.

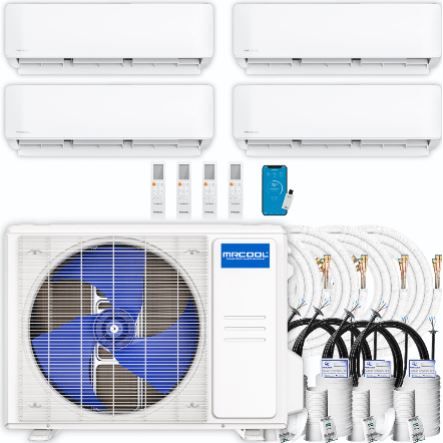

The MRCOOL DIY Mini Split package includes everything you need: a DIY 36,000 BTU Multi-Zone Condenser, three 9,000 BTU wall-mounted air handlers, one 12,000 BTU wall-mounted air handler, four remotes, and four 16 ft. installation kits. This comprehensive setup is equipped with enhanced Wi-Fi engineering for quick and easy setup, allowing for flexibility in installation without the need for specialized tools or expensive equipment. The sleek design of the wall-mounted units integrates seamlessly into your home decor.

Experience the satisfaction of completing a successful DIY project while significantly improving your home’s energy efficiency. With the MRCOOL DIY system, you can create a tailored climate that suits your lifestyle and enhances your comfort. Don’t miss the chance to upgrade your living space with this convenient and efficient solution!



Package Includes

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 36K BTU rating of the Condenser.

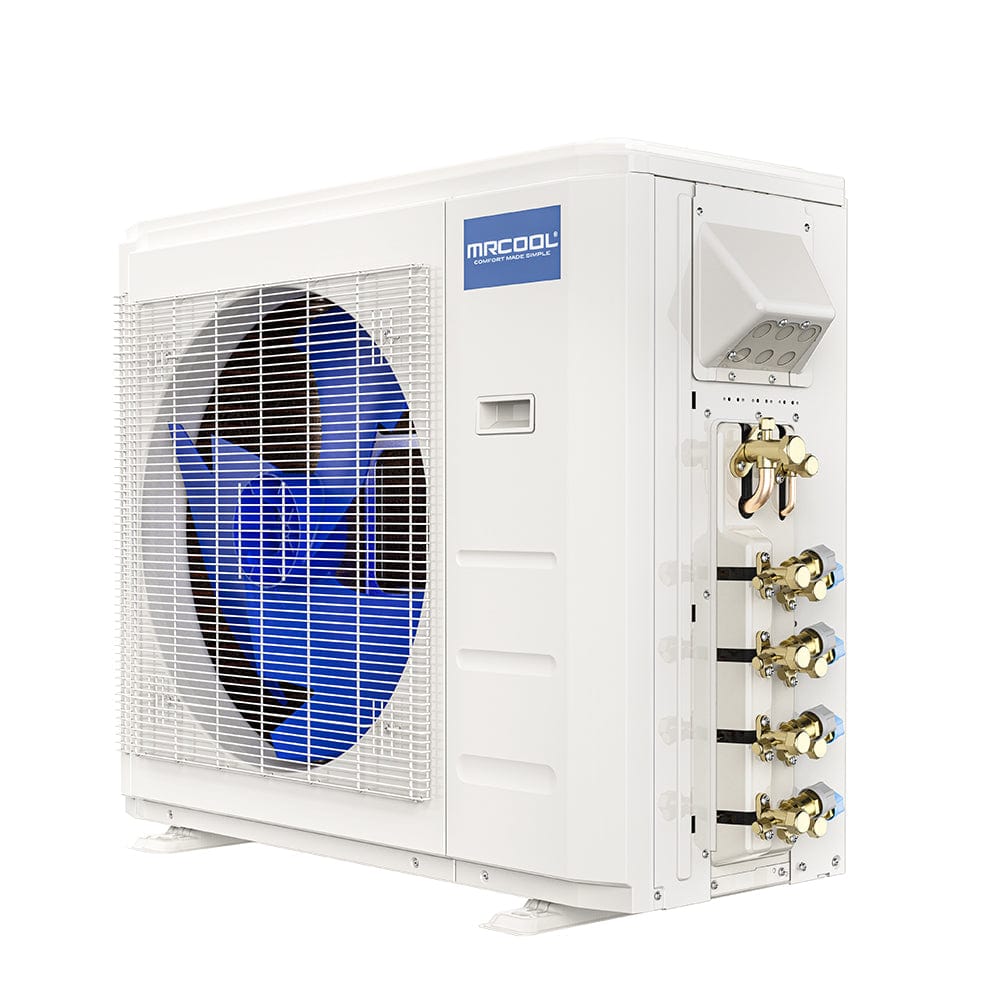

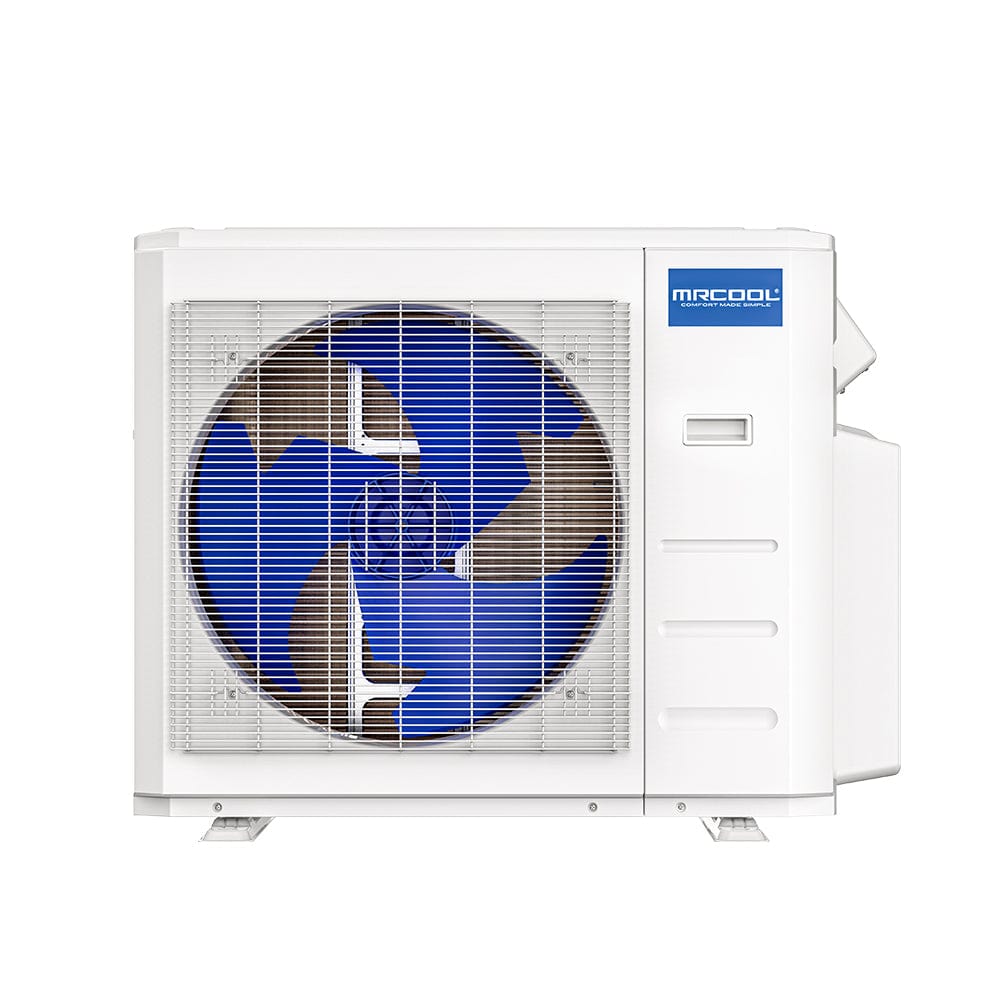

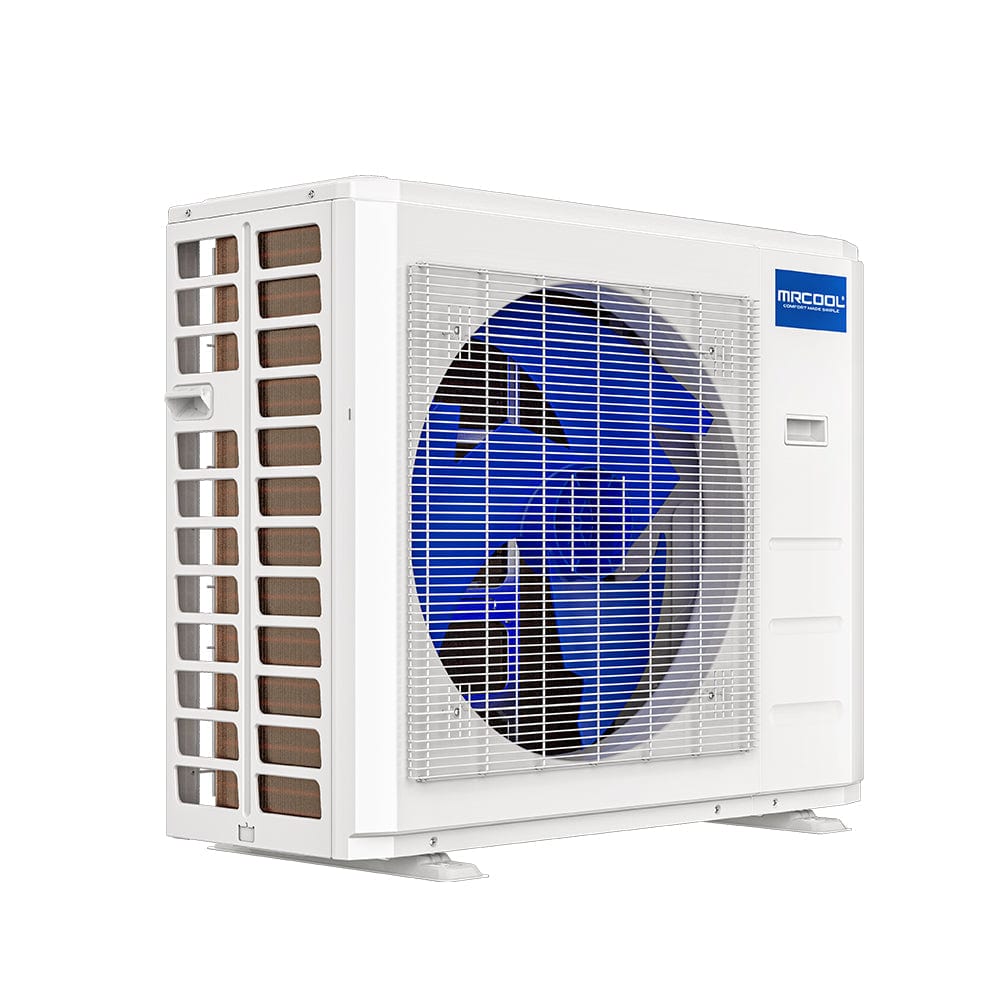

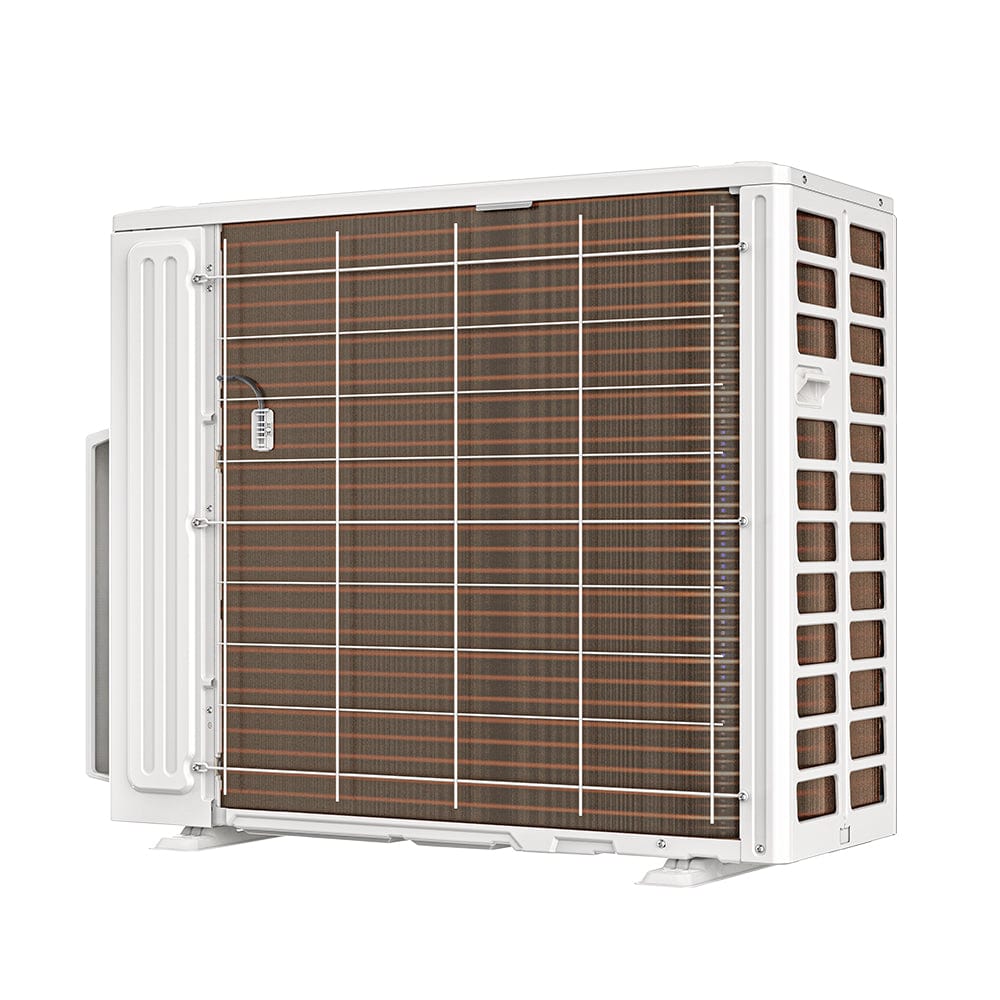

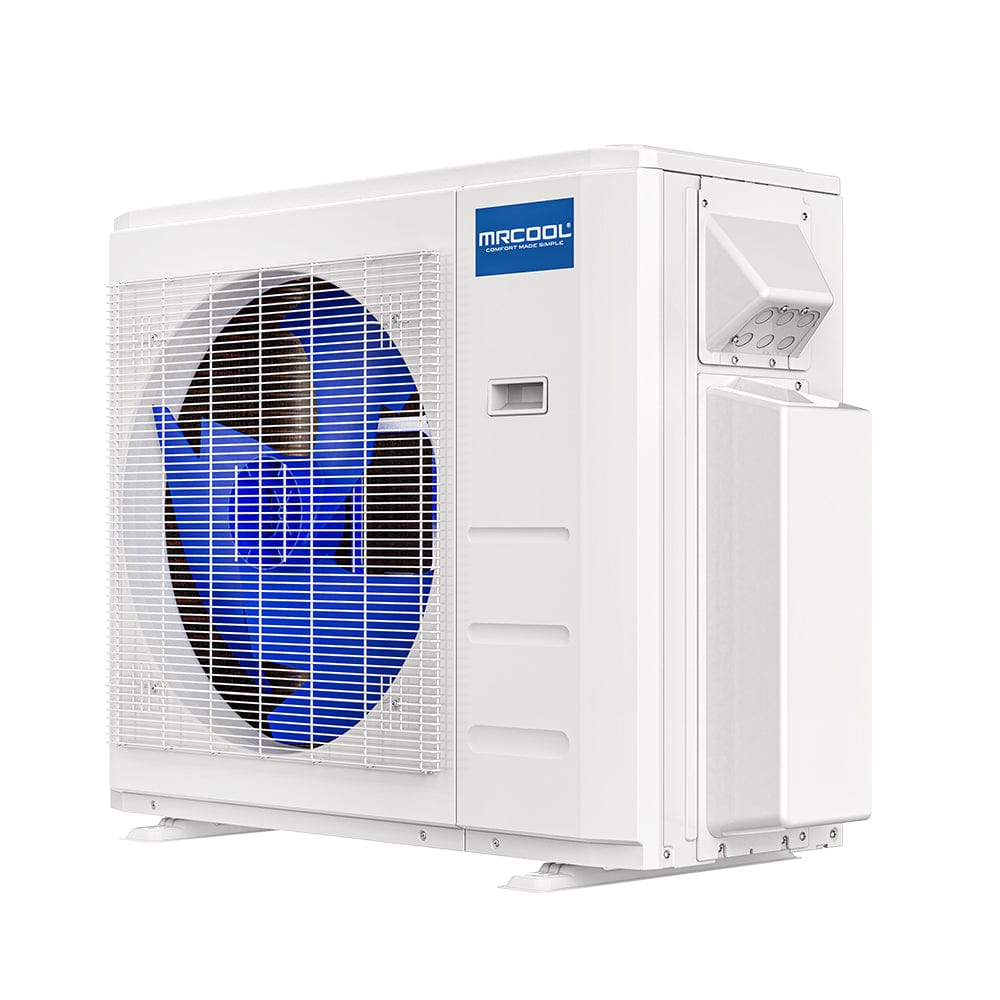

Condenser

  • Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -13°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

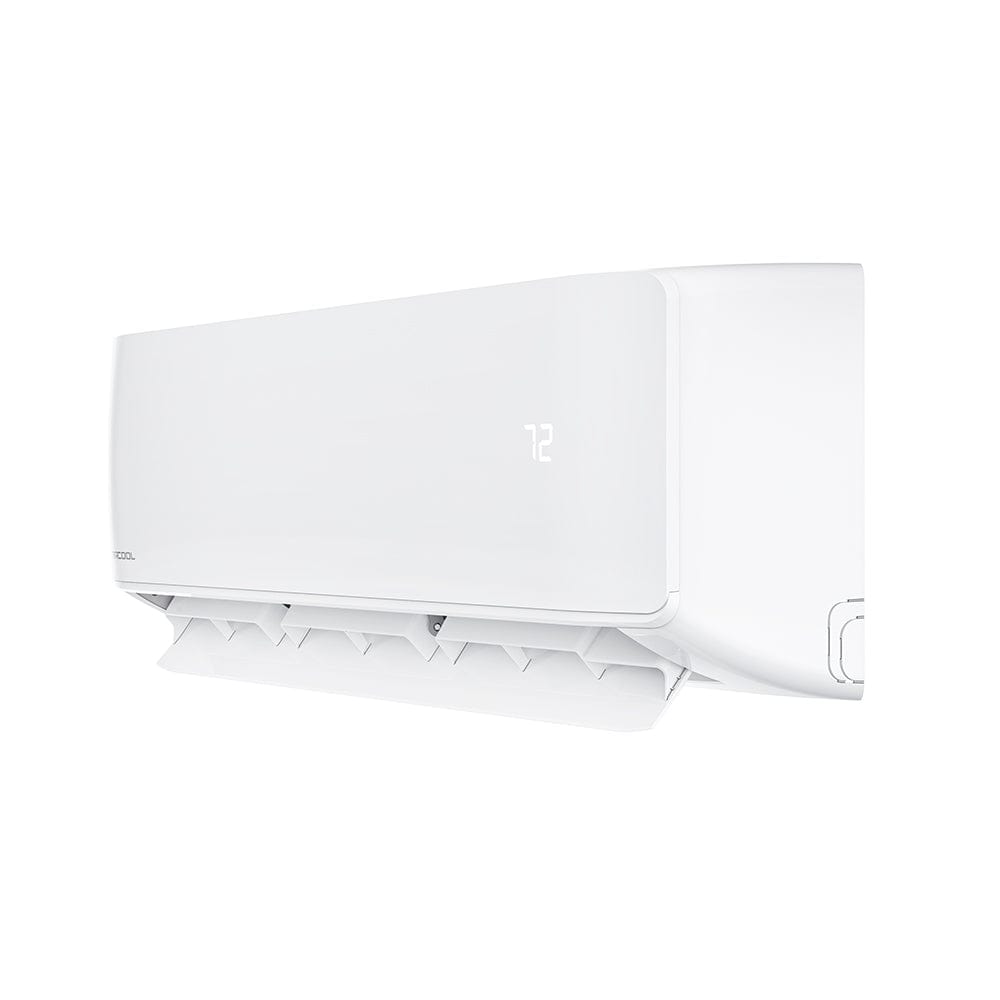

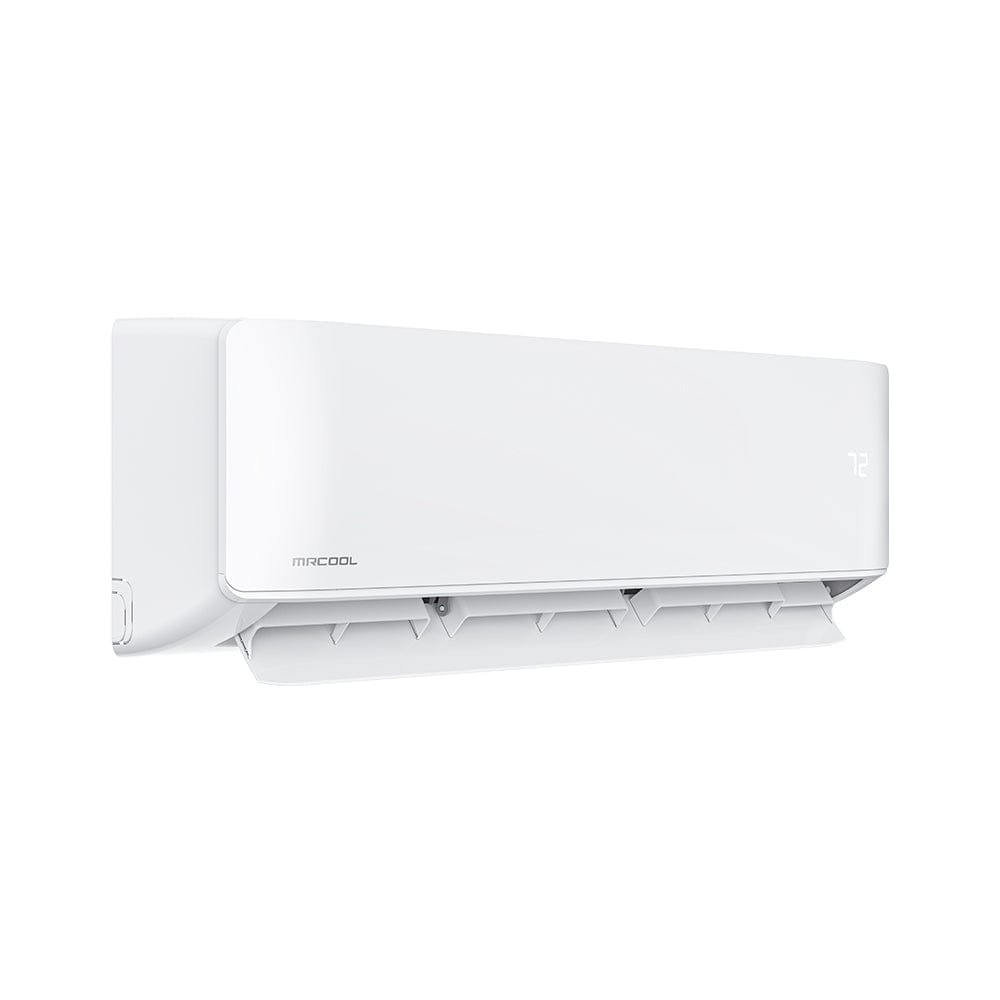

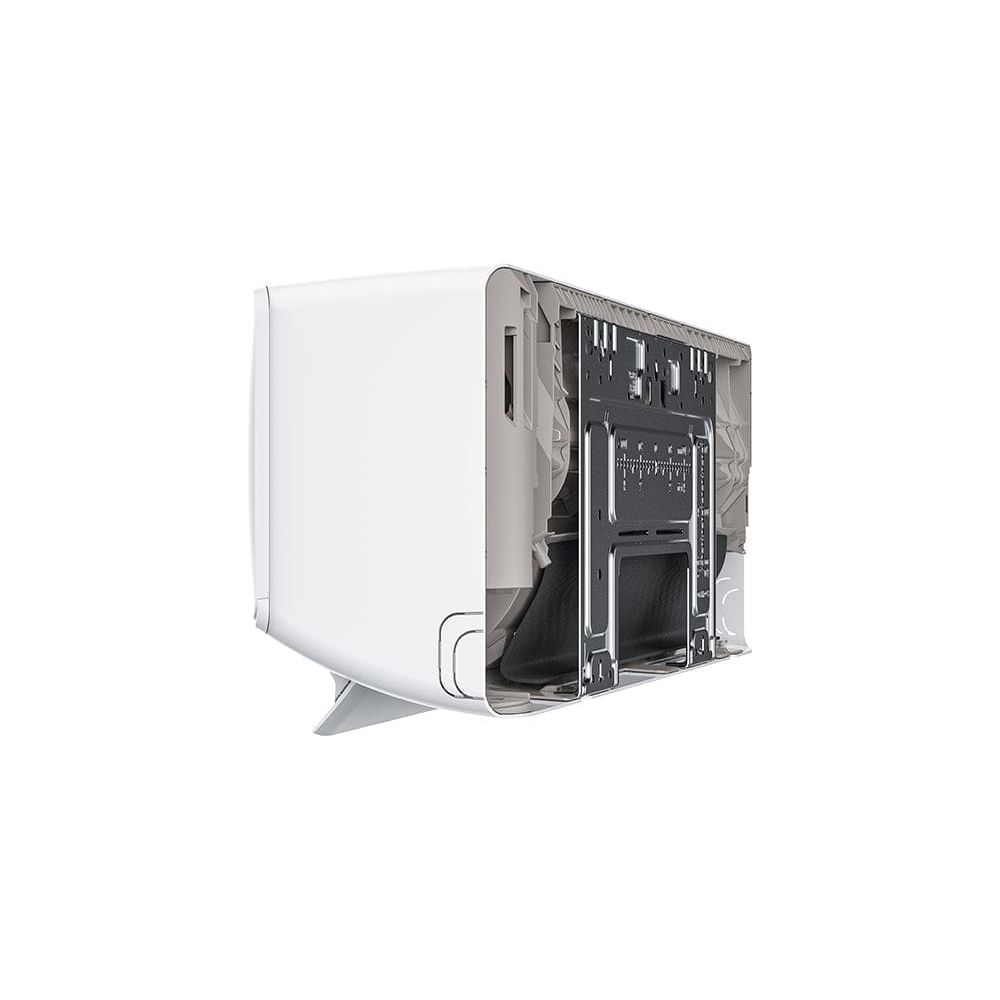

    Air Handler, 9K BTU, Quantity 3

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 12K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

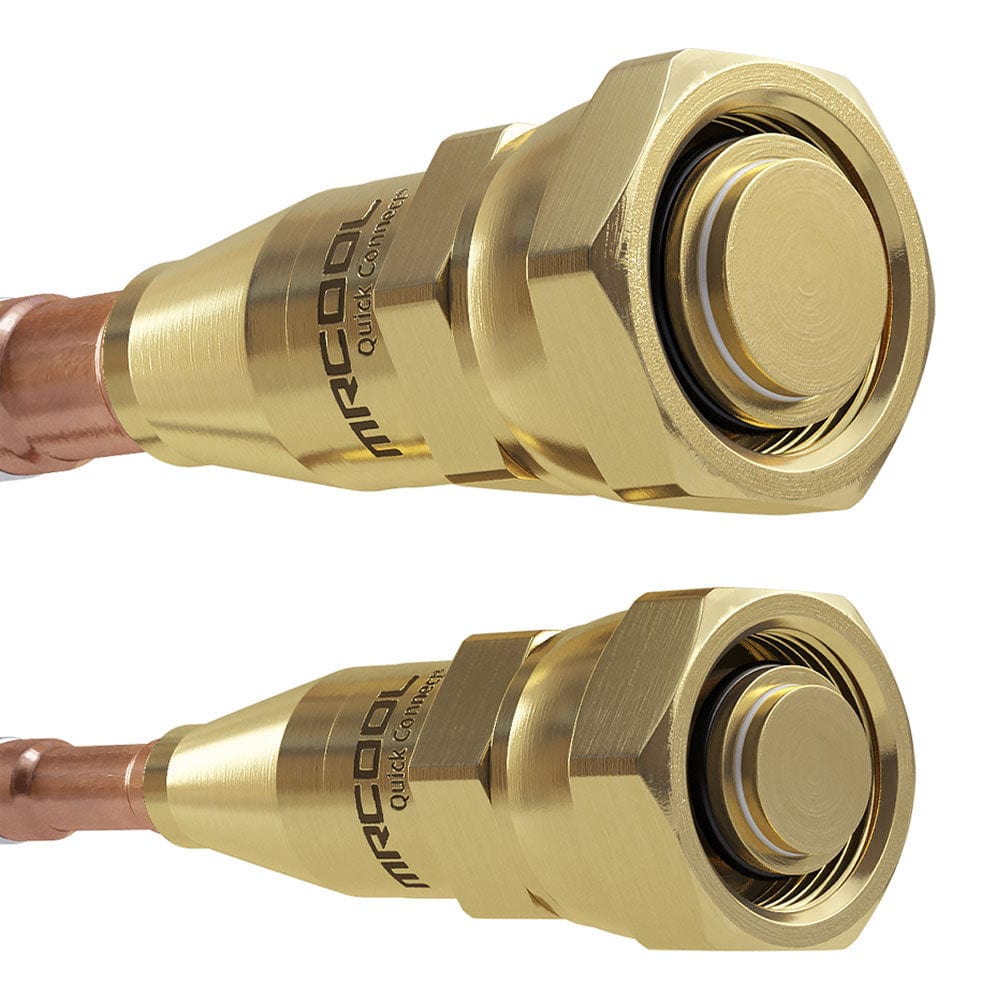

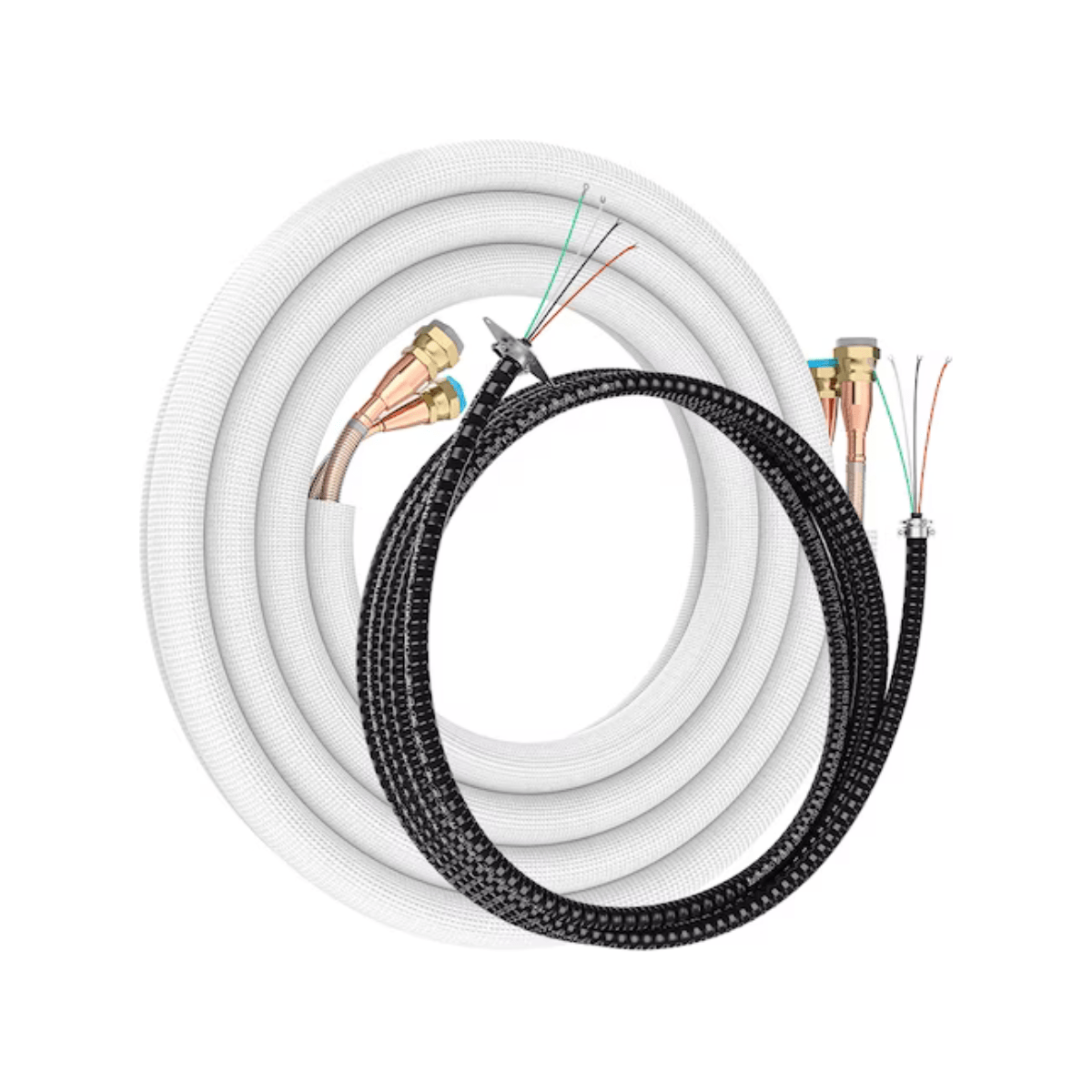

        Line Set 16 ft., Quantity 4

        • This 16 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
        • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
        • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

        Additional Line Sets & Coupler

        If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

        What does this package include?

        This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.

            PRODUCT SPECIFICATIONS:
            Condenser Specifications

            Product Dimensions 37.24"W x 16.14"D x 31.89"H
            Cooling Capacity 36,000 BTU
            Heating Capacity 36,000 BTU
            Zone Capacity 4
            Min Ambient Cool 5F ~ 122F
            Min Ambient Heat -13F ~ 75.2F
            SEER 21.5
            EER 10.5
            Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
            Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


            Air Handler 9K BTU

            Product Dimensions 31.57"W x 7.44"D x 11.69"H
            Mount Type Wall
            Cooling Capacity 9,000 BTU
            Heating Capacity 9,000 BTU
            Registered Warranty
            5 Years Parts
            Modes Auto - auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep


            Air Handler 12K BTU

            Product Dimensions 31.57"W x 7.44"D x 11.69"H
            Mount Type Wall
            Cooling Capacity 12,000 BTU
            Heating Capacity 12,000 BTU
            Registered Warranty 5 Years Parts
            Modes Auto - auto selects from Cool, Heat or Fan-Only
            Dry - dehumidify
            Cool
            Heat
            Fan Only
            Quiet
            Sleep


            Line Set

            Length 16 Feet
            Liquid Line Size 1/4"
            Suction Line Size 1/2"
            Installation Manual
            Product Brochure
            Performance Specifications
            Warranty

            Energy Guide
            AHRI Certificate
