MRCOOL DIY Mini Split - 36,000 BTU 4
Zone Ductless Air Conditioner and
Heat Pump with 50 ft. Install Kit,
DIYM436HPW00C194

Enhance your home’s comfort with the MRCOOL DIY Mini Split - 36,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM436HPW00C194. This innovative system is specifically designed to efficiently cool and heat four distinct rooms, allowing you to create a tailored climate for every space in your home.

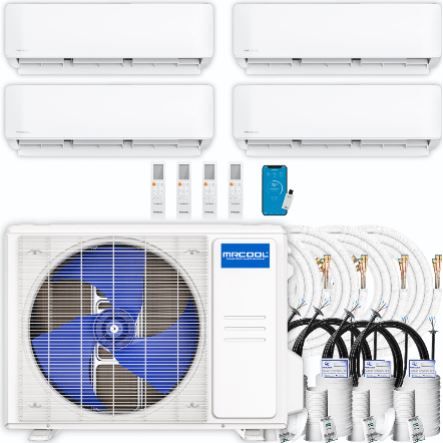

The package includes a DIY 36,000 BTU Multi-Zone Condenser, four 9,000 BTU Wall Mounted Air Handlers, four Remotes, and four 50 ft. Installation Kits. With everything you need for setup included, you can easily customize each room’s temperature and enjoy a comfortable atmosphere all year round. The enhanced Wi-Fi capabilities further streamline the installation process and offer you convenient remote control over your system.

One of the key benefits of the MRCOOL DIY Mini Split is its user-friendly installation process. You can take charge of the installation without the need for specialized tools or professional help, making it an economical choice. Experience the flexibility and comfort of this system and enjoy perfect temperatures throughout your home!

MRCOOL DIY Mini Split - 36,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM436HPW00C194

Package Includes

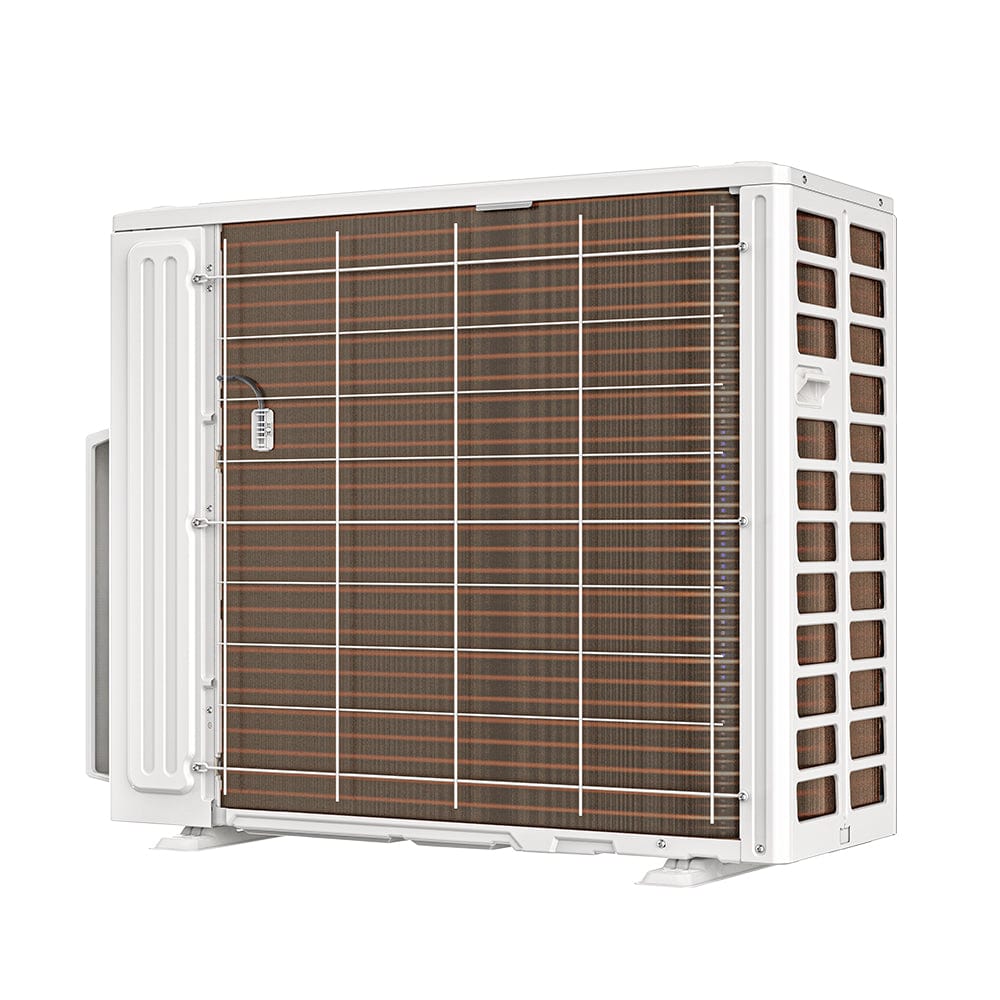

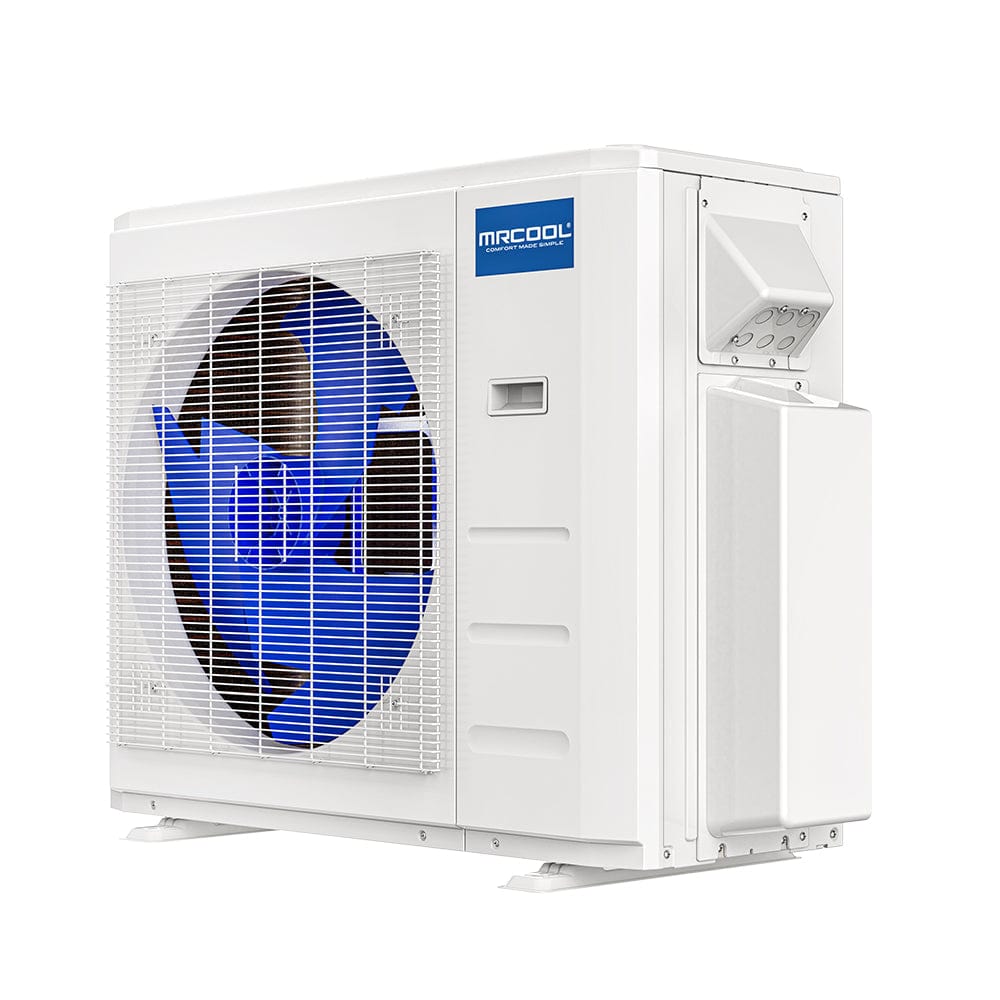

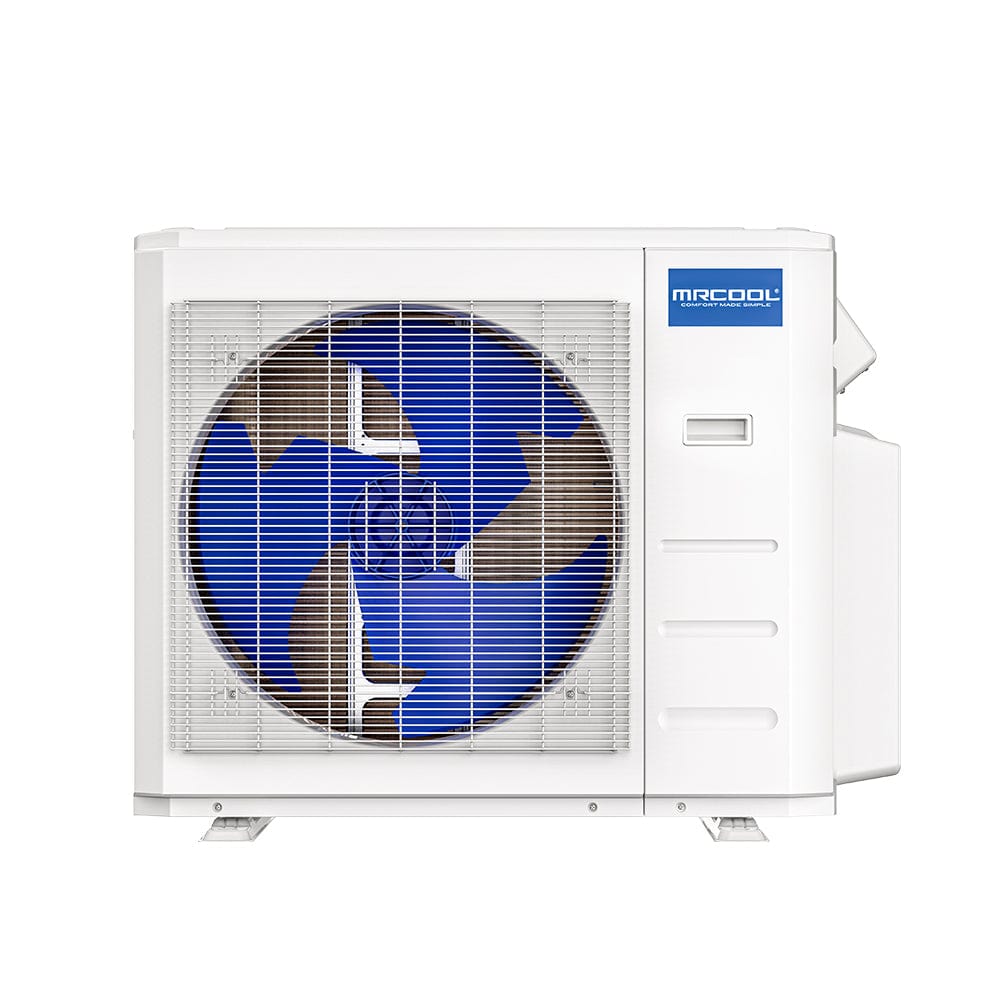

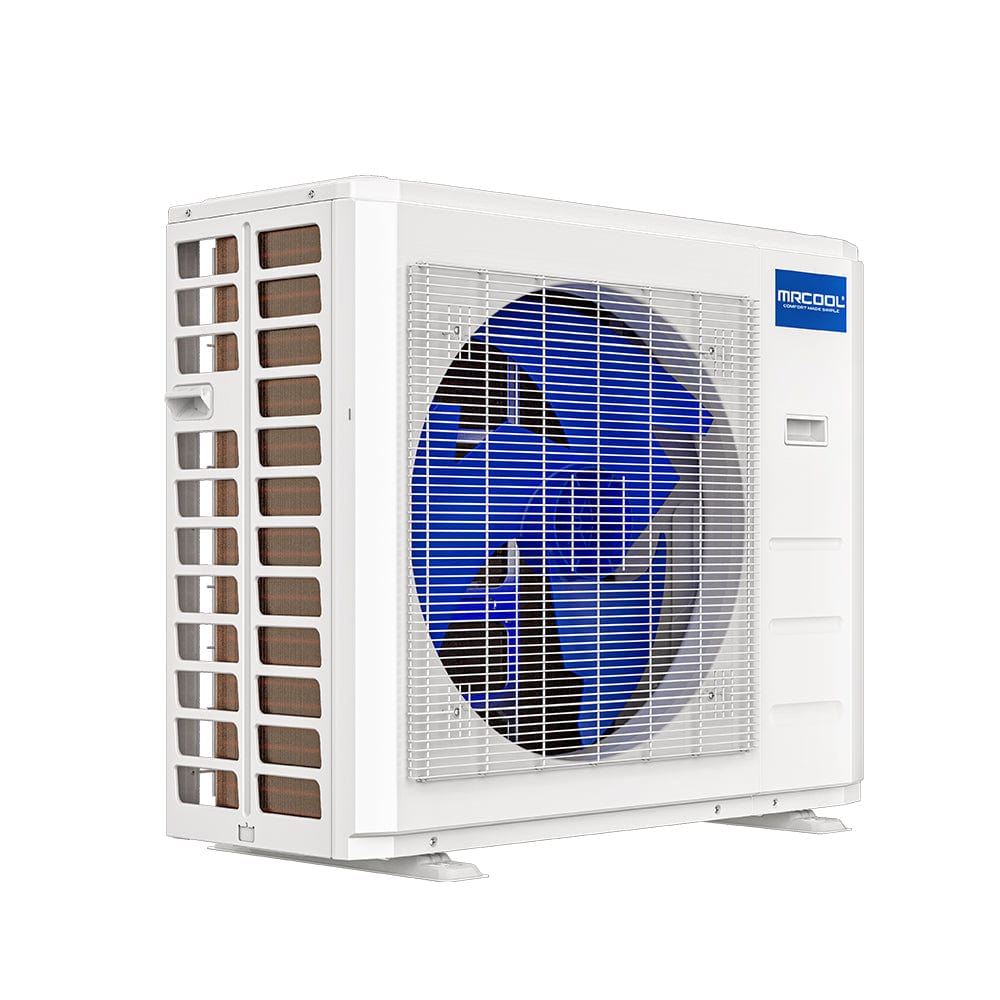

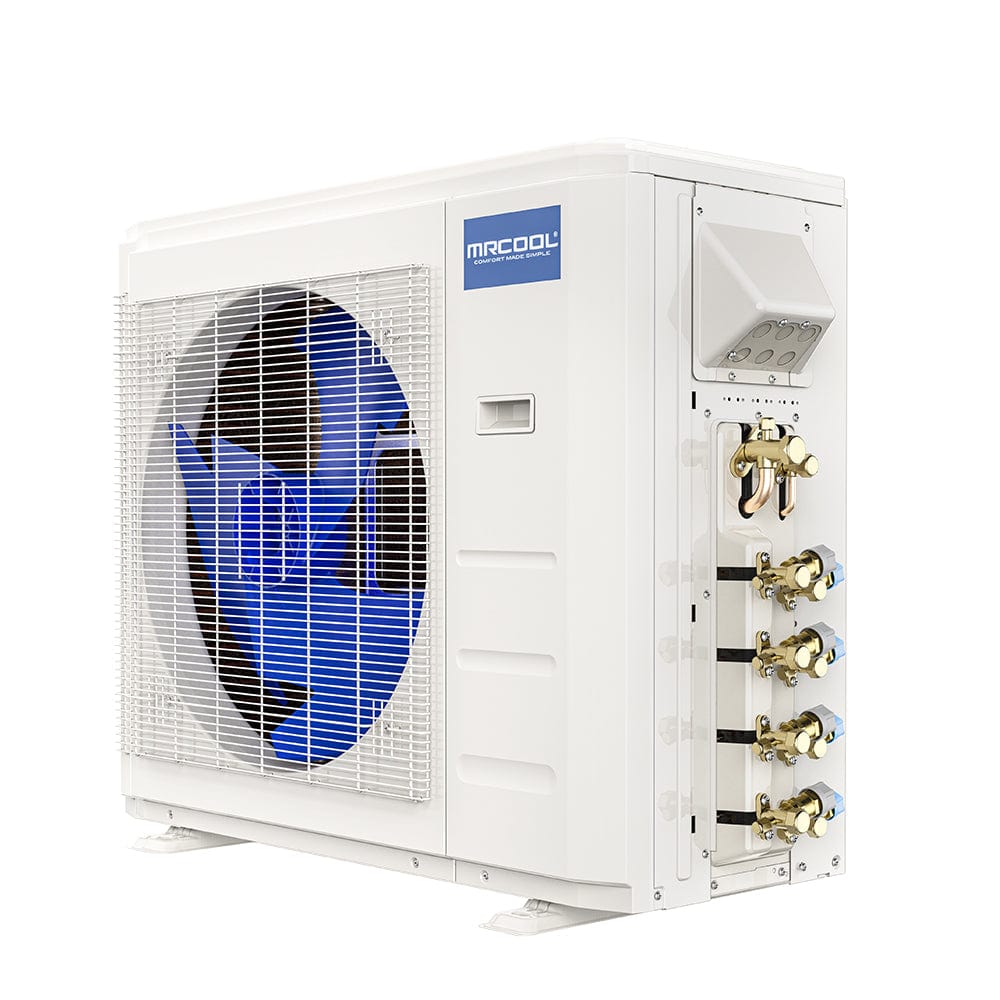

Condenser

Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
Works In All Environments. The ability to heat even when temperatures drop to -13°F.
Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL DIY Mini Split - 36,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM436HPW00C194 Care Program to get the lifetime warranty!

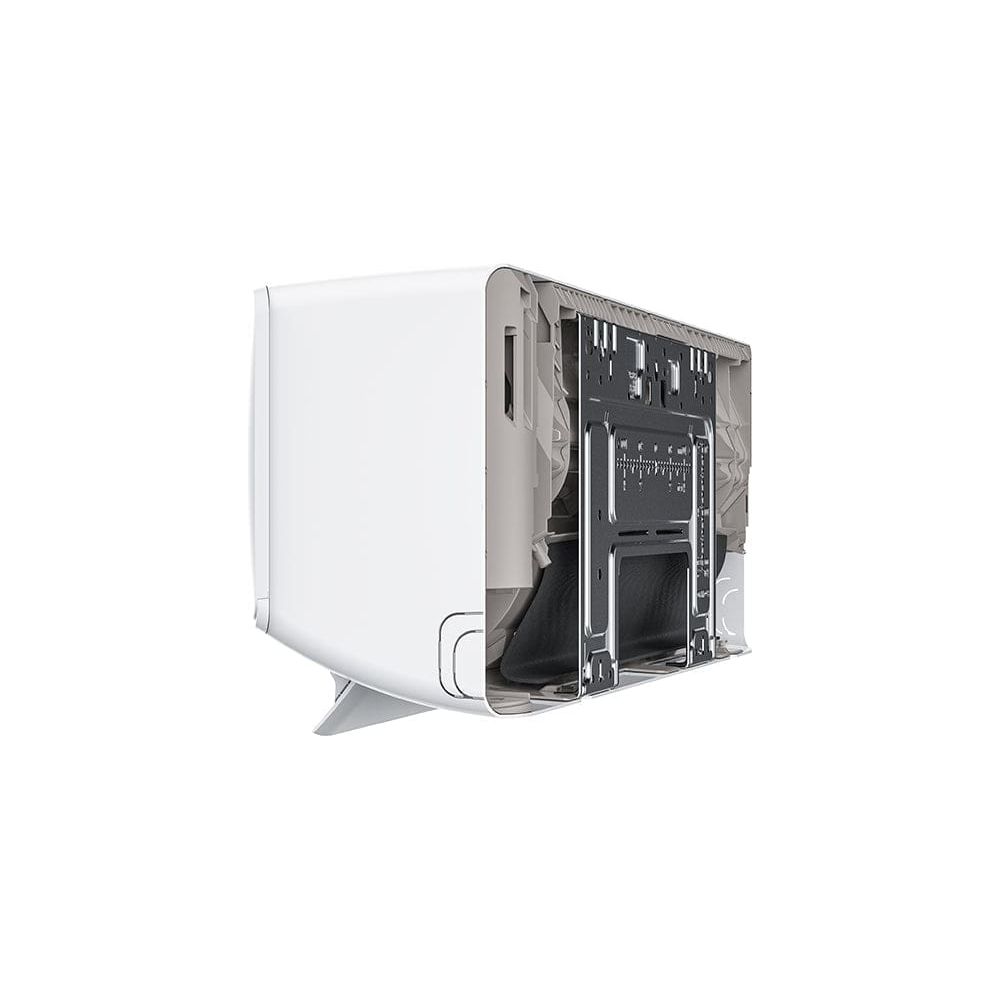

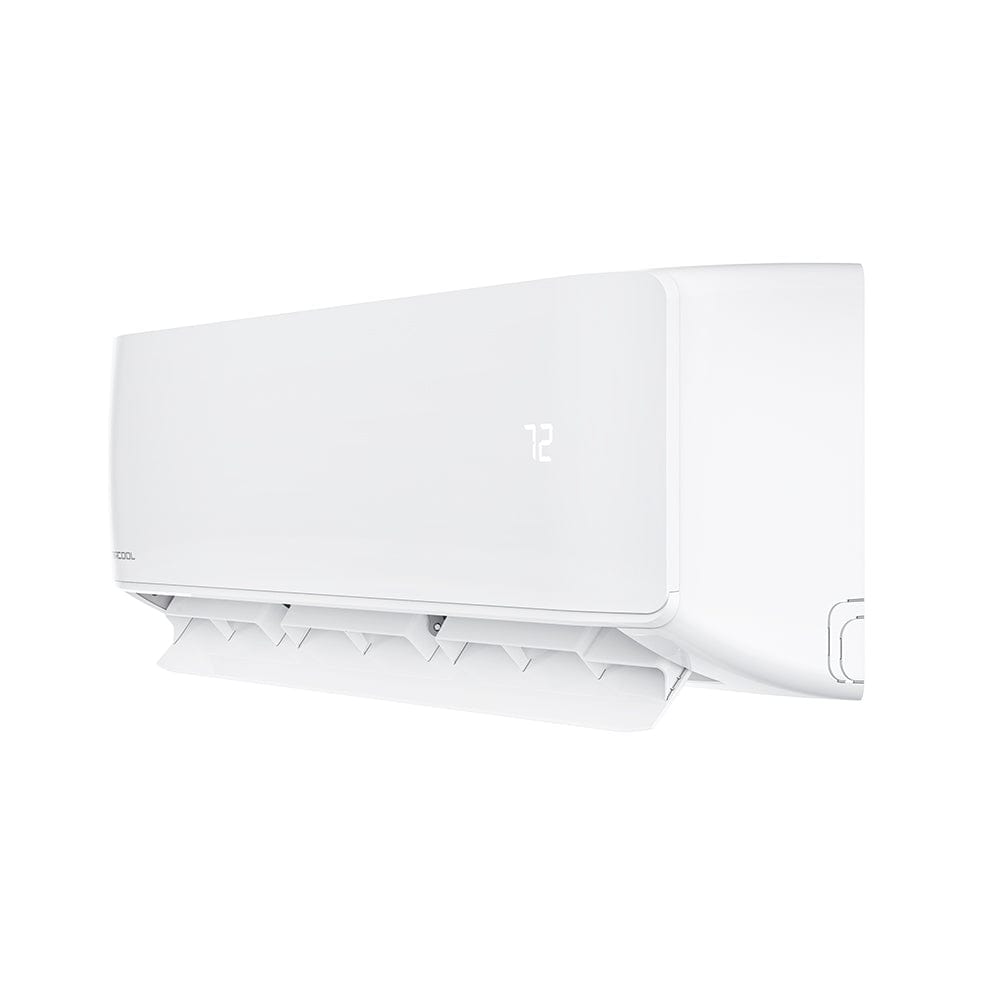

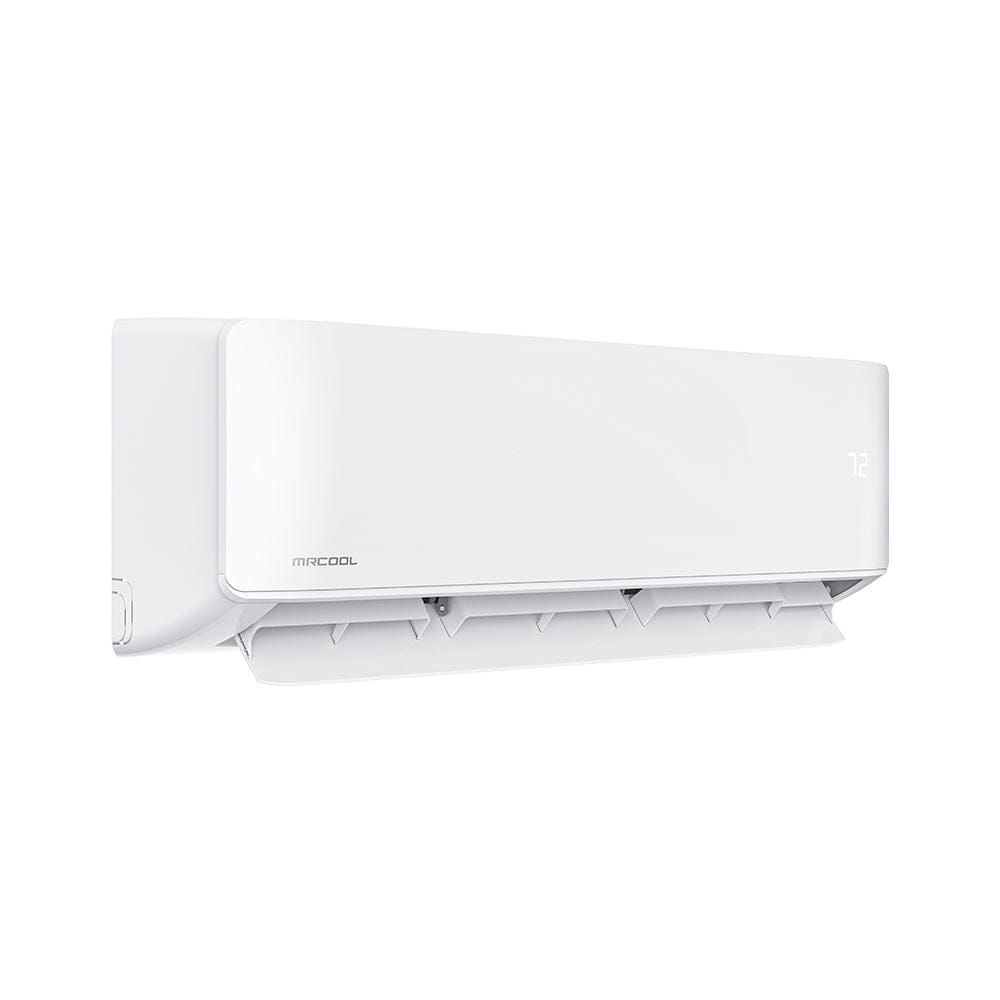

Air Handler, 9K BTU, Quantity 4

Large Coverage Area. Handler covers an area up to 375 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Line Set 50 ft., Quantity 4

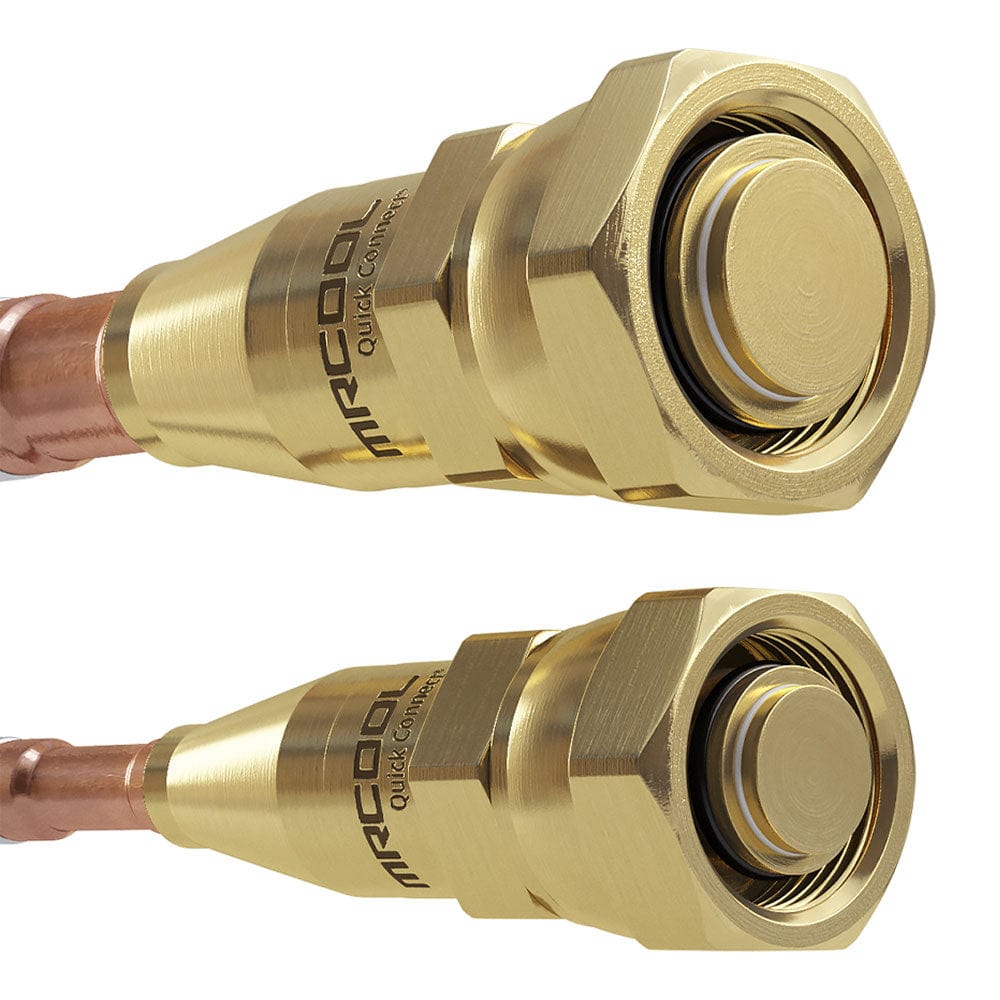

This 50 ft. copper line set connects the 4th Generation MRCOOL Condenser to the MR COOL Air Handlers - 9K, 12K and 18K.
Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Additional Line Sets & Coupler

If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

What does this package include?

This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.

Specifications of MRCOOL DIY Mini Split - 36,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM436HPW00C194:

Condenser Specifications

Product Dimensions

37.24"W x 16.14"D x 31.89"H

Cooling Capacity

36,000 BTU

Heating Capacity

36,000 BTU

Zone Capacity

Min Ambient Cool

5F ~ 122F

Min Ambient Heat

-13F ~ 75.2F

SEER

21.5

EER

10.5

Voltage

Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)

Registered Warranty

7 Years Replacement on Condenser, 5 Years Parts

Air Handler 9K BTU

Product Dimensions

31.57"W x 7.44"D x 11.69"H

Mount Type

Wall

Cooling Capacity

9,000 BTU

Heating Capacity

9,000 BTU

Registered Warranty

5 Years Parts

Modes

Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep

Line Set

Length

50 Feet

Liquid Line Size

1/4"

Suction Line Size

1/2"
