     MRCOOL DIY Mini Split - 36,000 BTU 3
   Zone Ductless Air Conditioner and Heat
      Pump with 35 ft. Install Kit,
       DIYM336HPW06C49


Transform your living space into a haven of comfort with the MRCOOL DIY Mini Split - 36,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM336HPW06C49. This versatile system is designed to efficiently cool and heat three separate rooms, ensuring that everyone can enjoy their ideal temperature year-round. Say goodbye to uneven heating and cooling and hello to personalized comfort in every corner of your home.

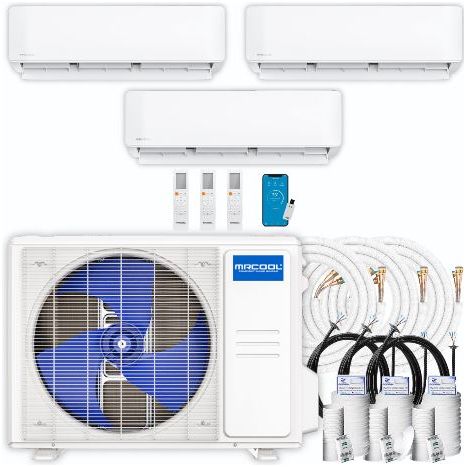

The package includes everything you need for installation: a 36,000 BTU Multi-Zone Condenser, three 12,000 BTU Wall Mounted Air Handlers, three remotes for convenient control, and three 35 ft. installation kits. With these components, you have everything at your fingertips to create a comfortable environment tailored to your needs.

One of the standout features of the MRCOOL DIY Mini Split is its user-friendly installation process. You can set it up without professional help, allowing you to save on labor costs while enjoying the satisfaction of a successful DIY project. The system’s design is optimized for easy installation, making it a practical choice for homeowners looking to enhance their climate control capabilities.

MRCOOL DIY Mini Split - 36,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM336HPW06C49

Package Includes

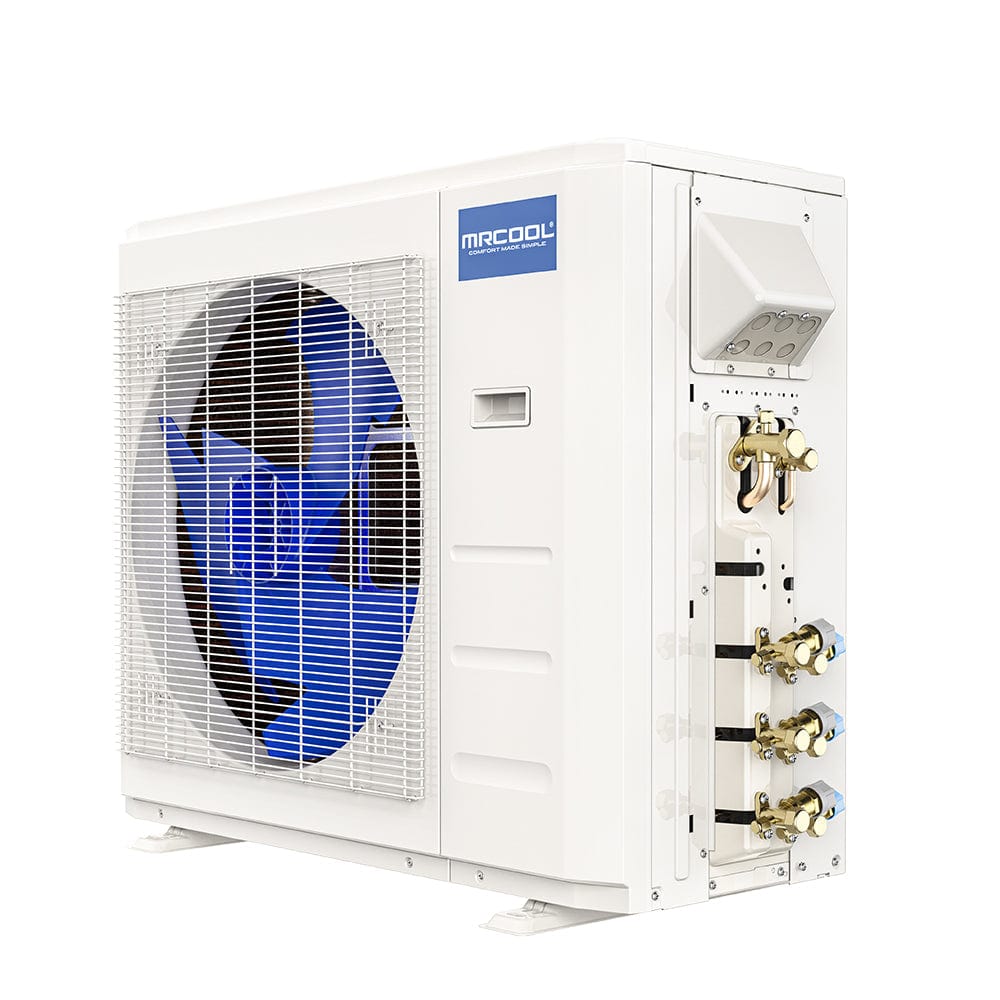

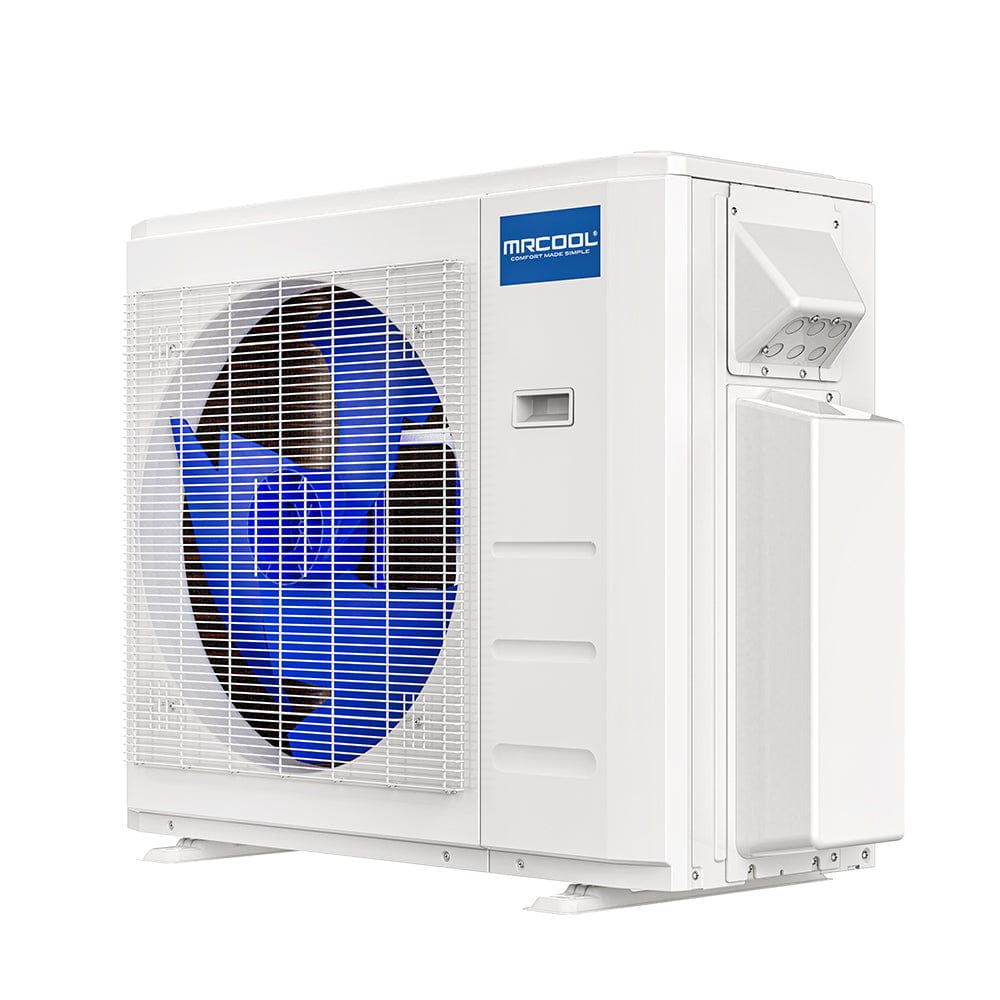

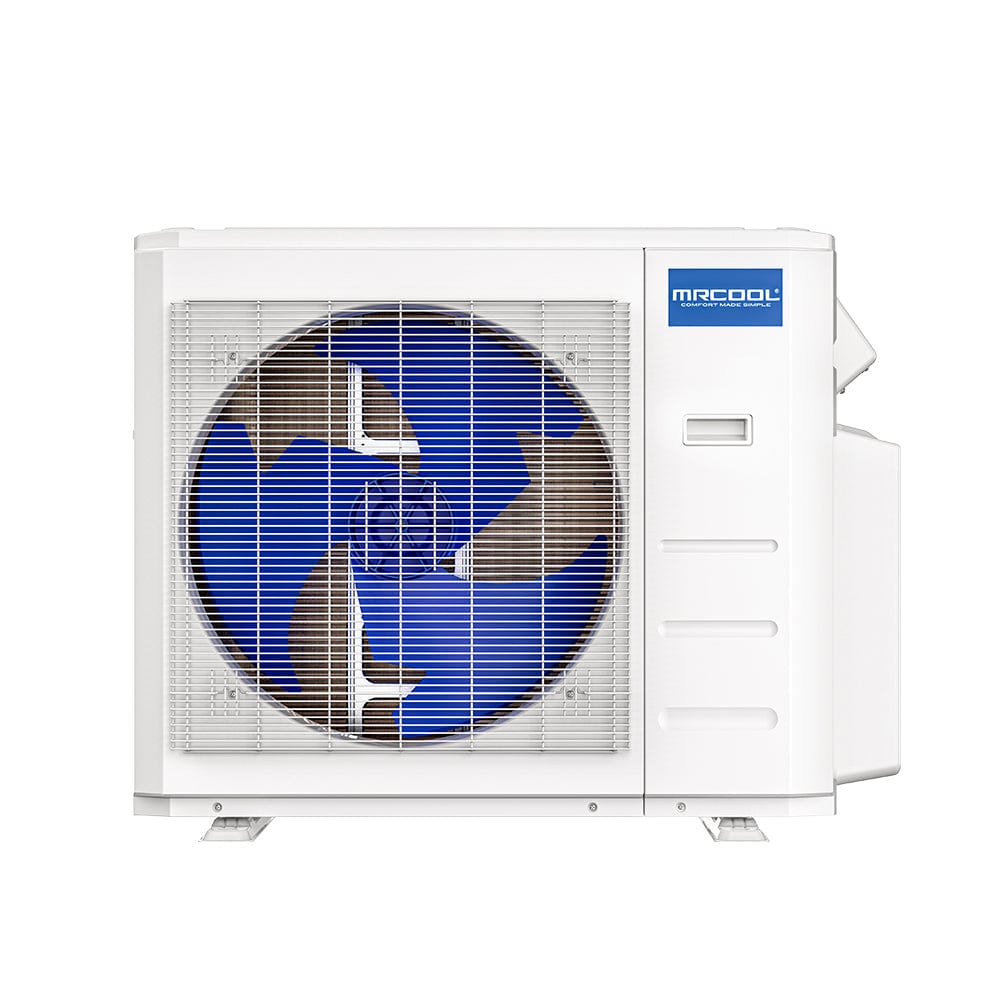

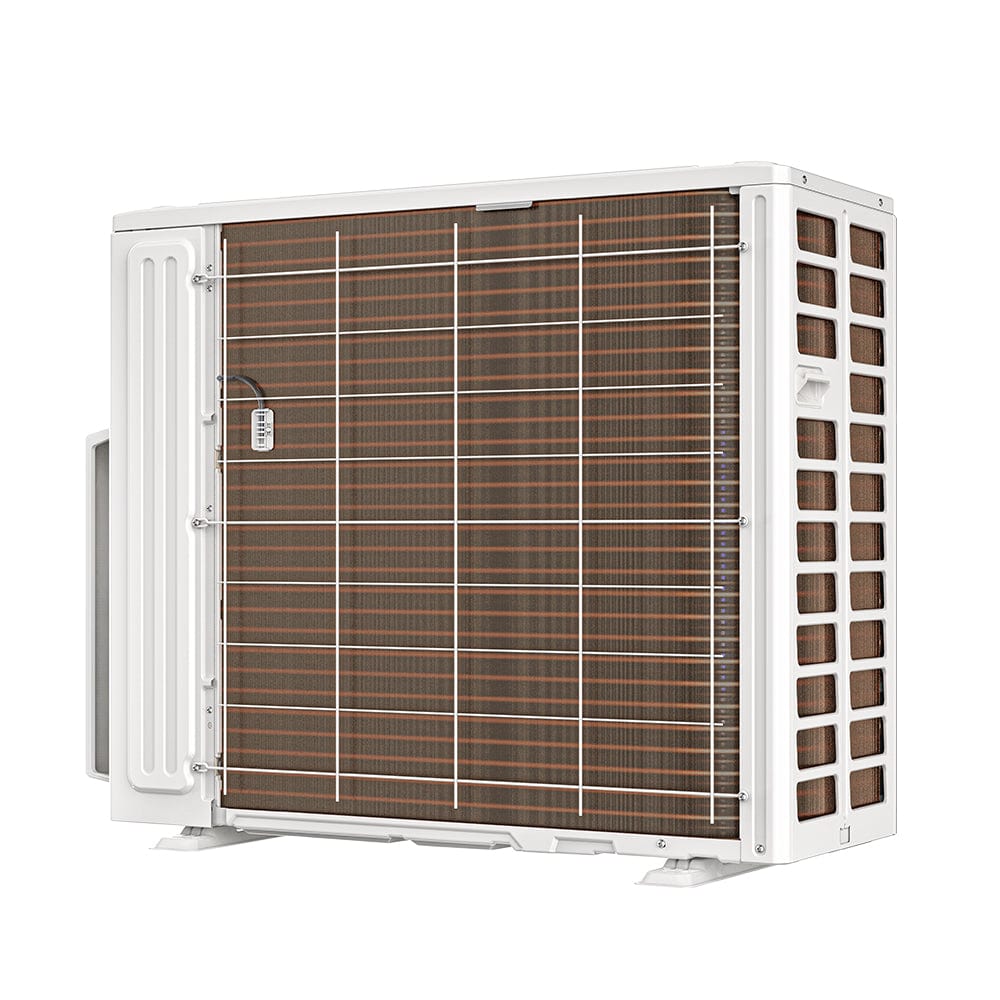

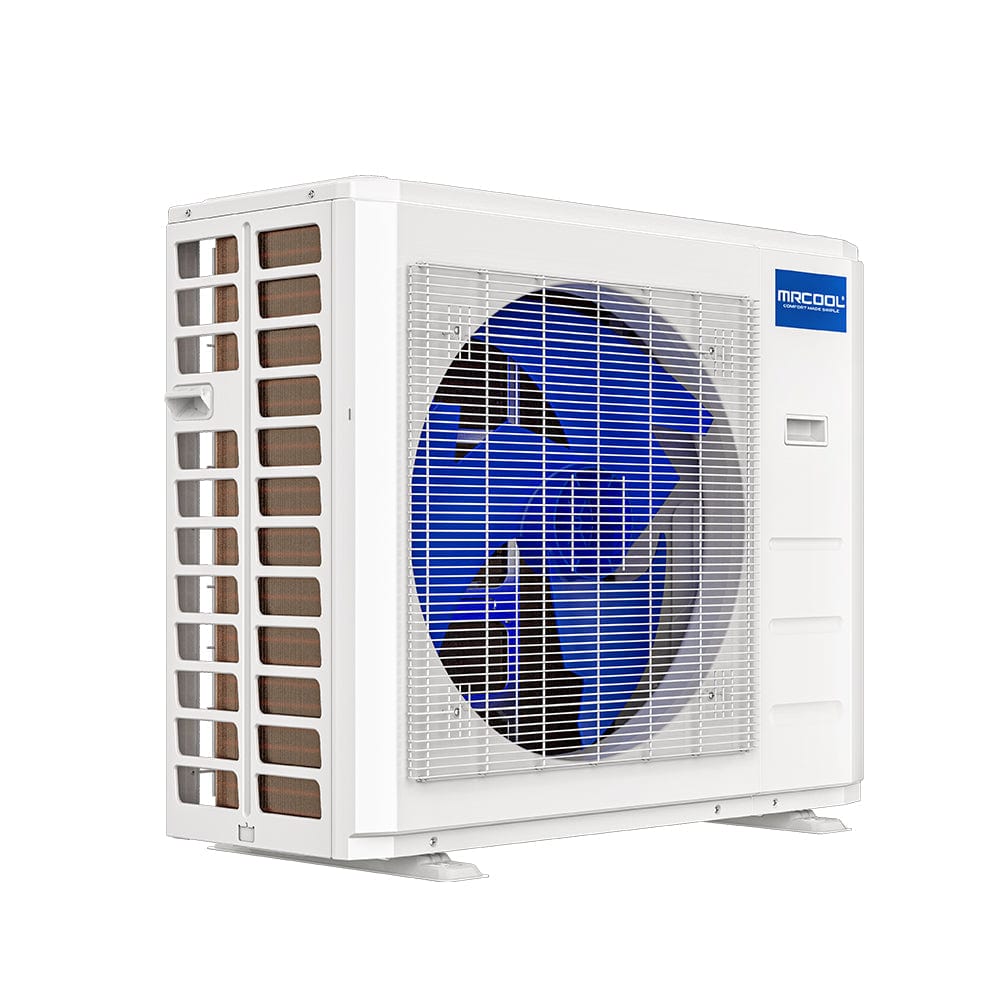

Condenser

  • Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to 5°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register for the MRCOOL DIY Mini Split - 36,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM336HPW06C49 Care Program to get a lifetime warranty!

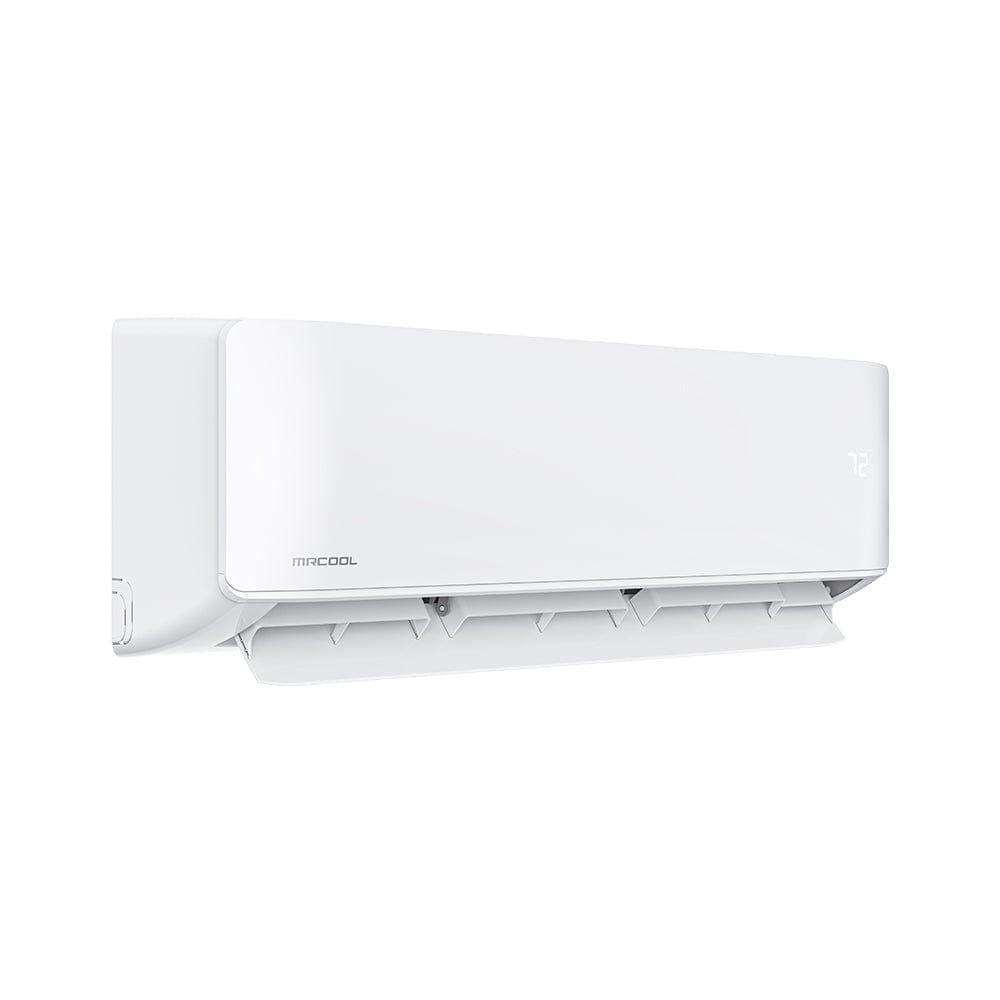

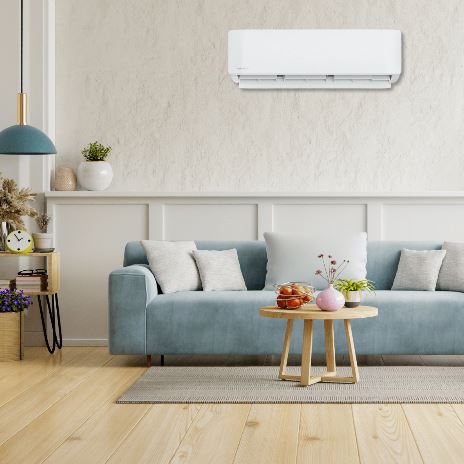

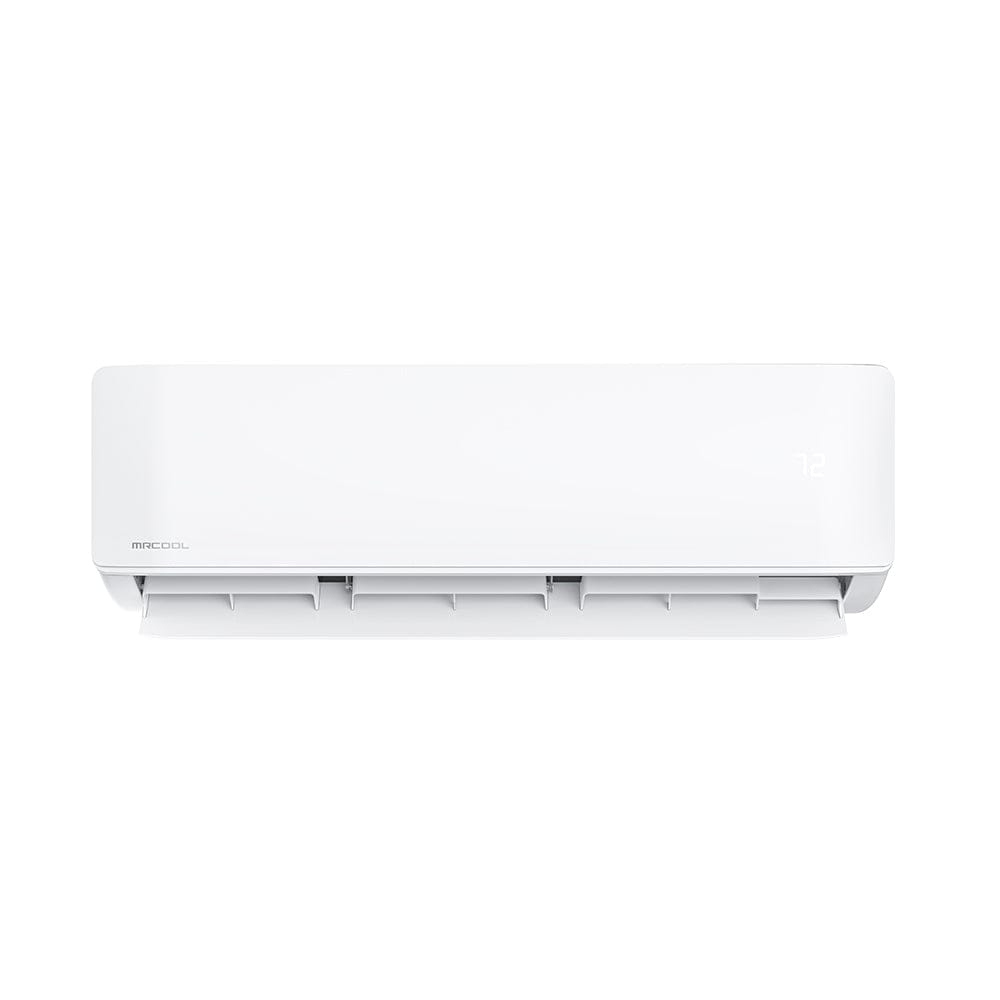

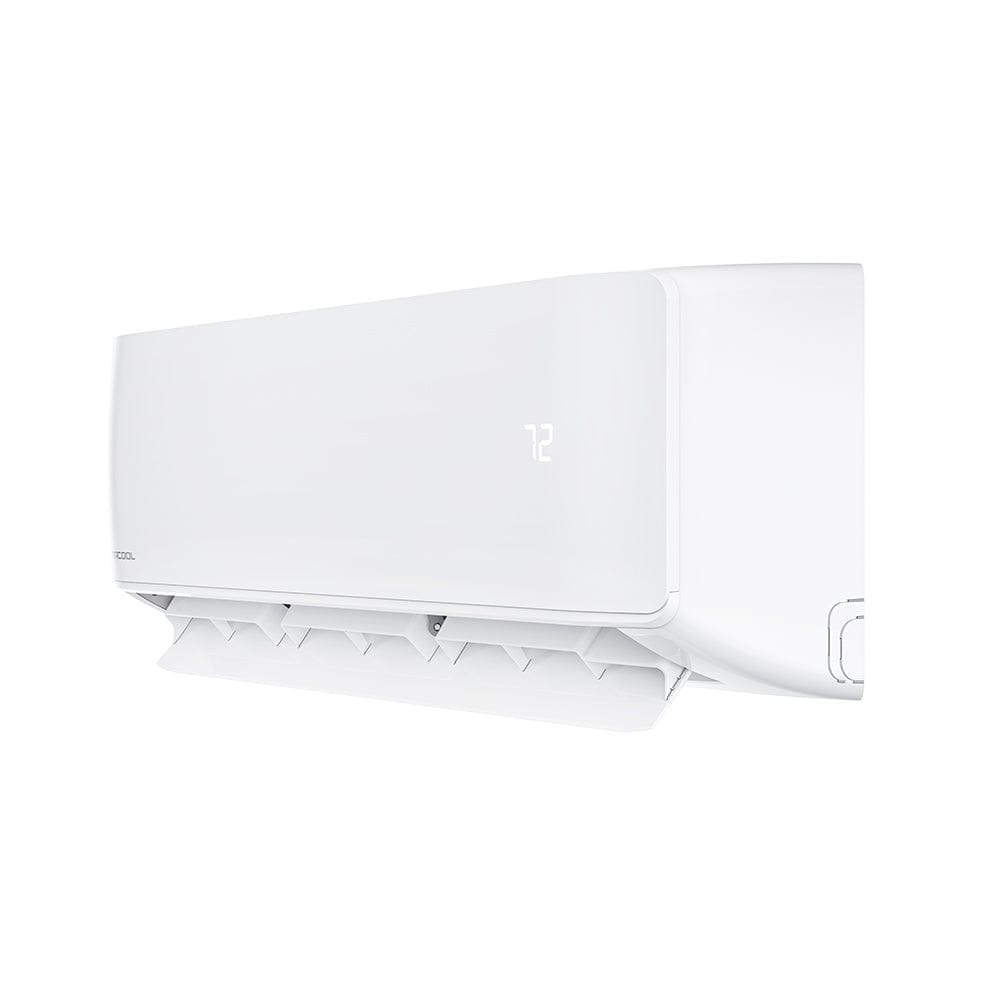

    Air Handler, 12K BTU, Quantity 3

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also can be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

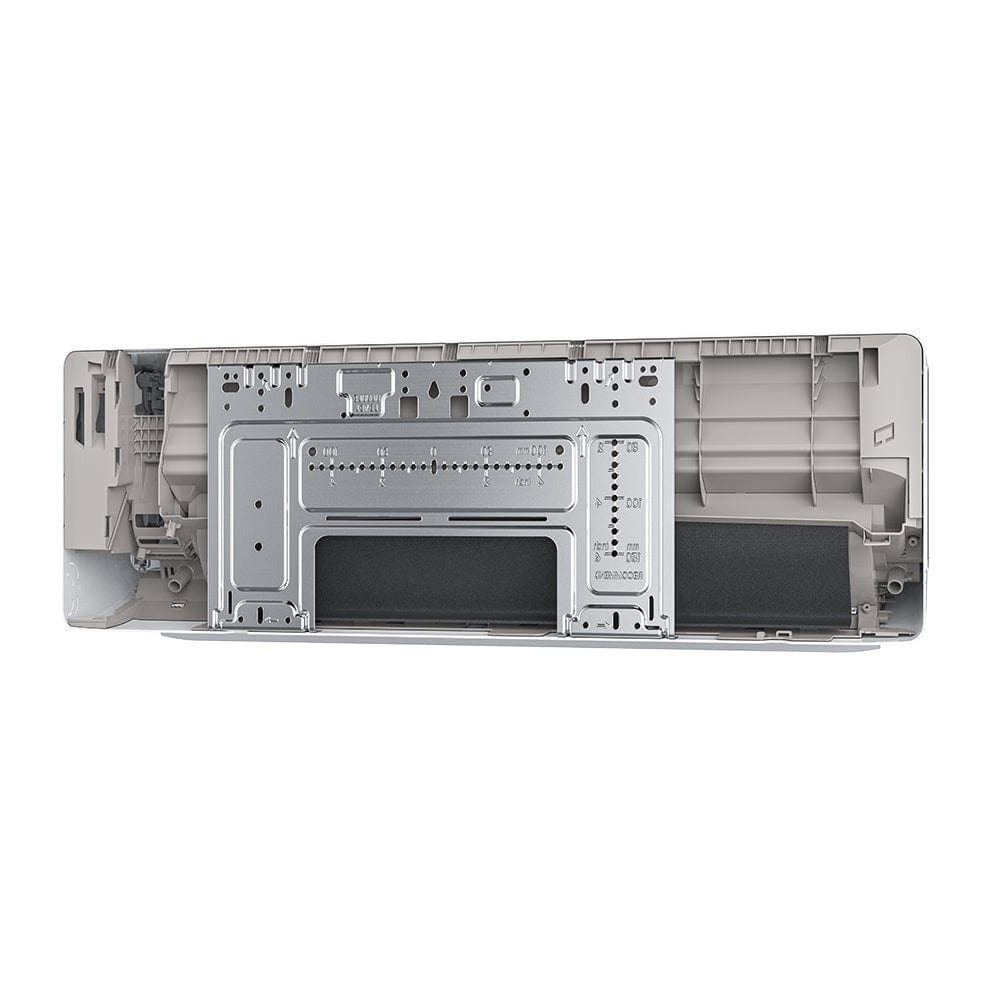

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

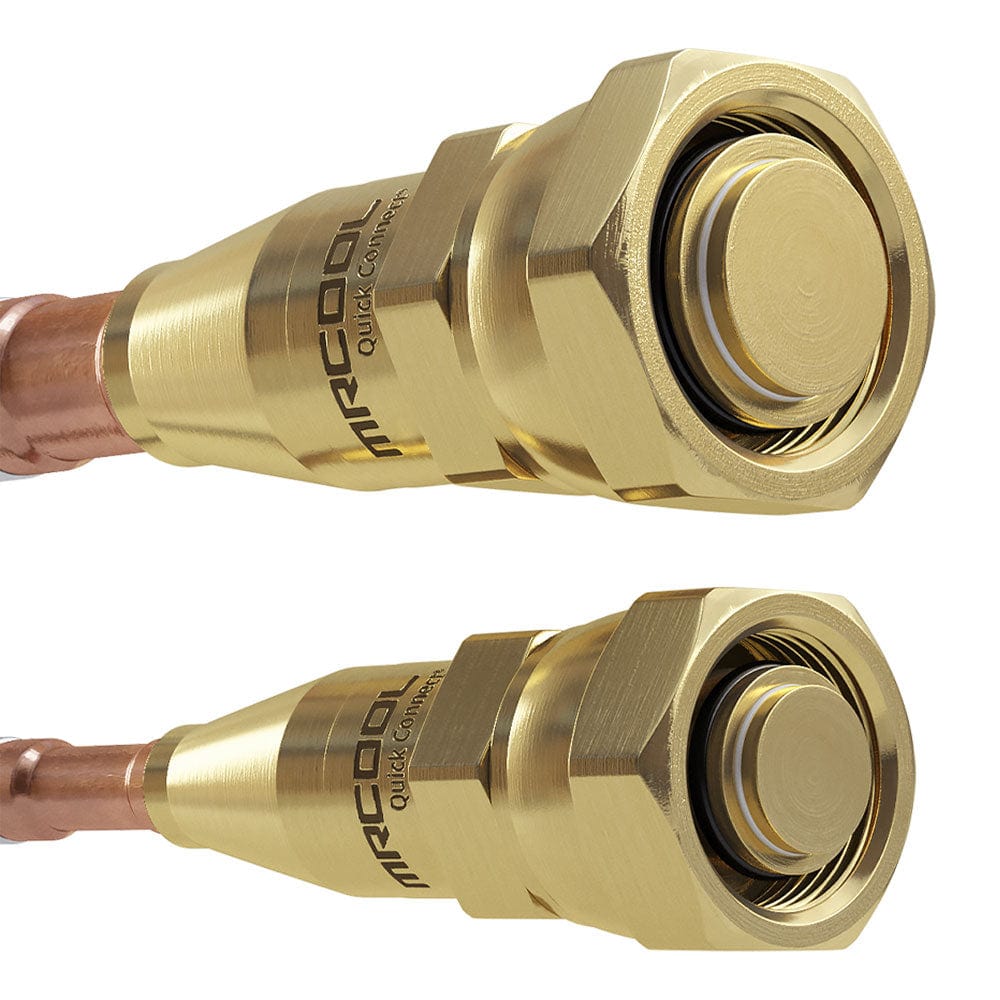

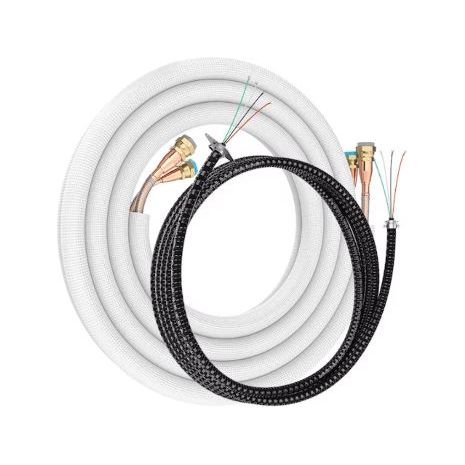

        Line Set 35 ft., Quantity 3

        • This 35 ft. copper line set connects the MRCOOL DIY Mini Split - 36,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM336HPW06C49 DIY Condenser to the MR COOL DIY Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
        • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
        • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

        Additional Line Sets & Coupler

        If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.


        Specifications of MRCOOL DIY Mini Split - 36,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM336HPW06C49:


        Condenser Specifications

        Product Dimensions 37.24"W x 16.14"D x 31.89"H
        Cooling Capacity 36,000 BTU
        Heating Capacity 36,000 BTU
        Zone Capacity 2
        Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
        Heat Mode - Outdoor Operating Temperature Range -13F ~ 75.2F
        SEER 21.5
        EER 10.5
        Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
        Registered Warranty
        7 Years Replacement on Condenser, 5 Years Parts


        Air Handler 12K BTU

        Product Dimensions 31.57"W x 7.44"D x 11.69"H
        Mount Type Wall
        Cooling Capacity 12,000 BTU
        Heating Capacity 12,000 BTU
        Registered Warranty 5 Years Parts
        Modes Auto - auto selects from Cool, Heat or Fan-Only
        Dry - dehumidify
        Cool
        Heat
        Fan Only
        Quiet
        Sleep


        Line Set

        Length 35 Feet
        Liquid Line Size 1/4"
        Suction Line Size 1/2"
        Installation Manual
        Product Brochure
        Performance Specifications
        Warranty
        Energy Guide
        AHRI Certificate
