MRCOOL DIY Mini Split - 36,000 BTU 3 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump

 MRCOOL DIY Mini Split - 36,000 BTU 3 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-336HP090918

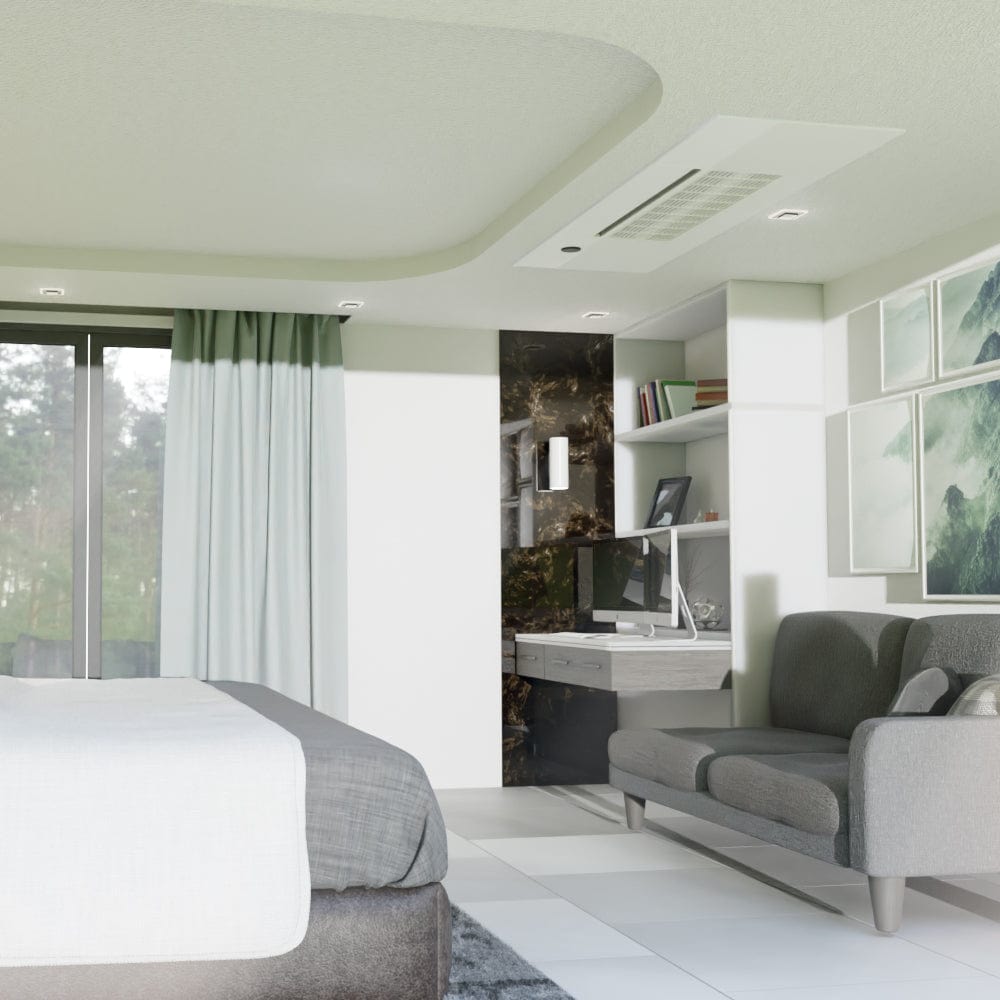

Experience customizable comfort with the MRCOOL DIY Mini Split - 36,000 BTU 3 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump, DIY-BC-336HP090918. Designed to efficiently cool and heat three distinct spaces in your home, this advanced system provides you with the flexibility to create the perfect environment in every room. Plus, with its DIY installation feature, you can set it up effortlessly without needing professional help.

This 4th Generation MRCOOL Mini Split includes a powerful 36,000 BTU Multi-Zone Condenser, two 9,000 BTU Ceiling Cassette Air Handlers, and one 18,000 BTU Ceiling Cassette Air Handler. Accompanied by three remotes, you can easily control the temperature in each zone to suit your specific comfort needs. Whether you're looking to chill a cozy bedroom or warm up a larger living area, this system delivers optimal performance tailored to your lifestyle.

The best part of the MRCOOL DIY Mini Split is that you can install it yourself! With straightforward instructions and all necessary components included, setting up your air conditioning and heating system has never been easier. Enjoy the benefits of energy-efficient comfort in your home while saving on installation costs.
Package Includes

This package does not include linesets, don't forgot to scroll up and add them!

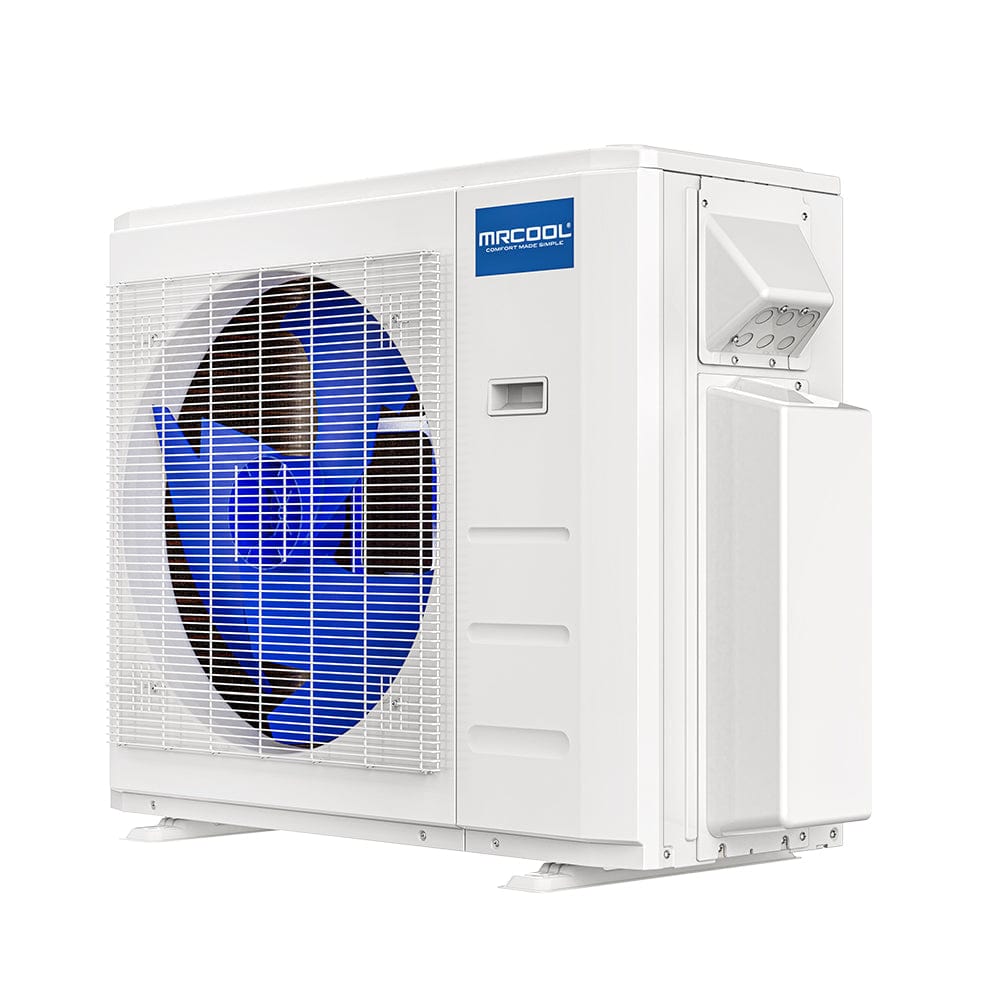

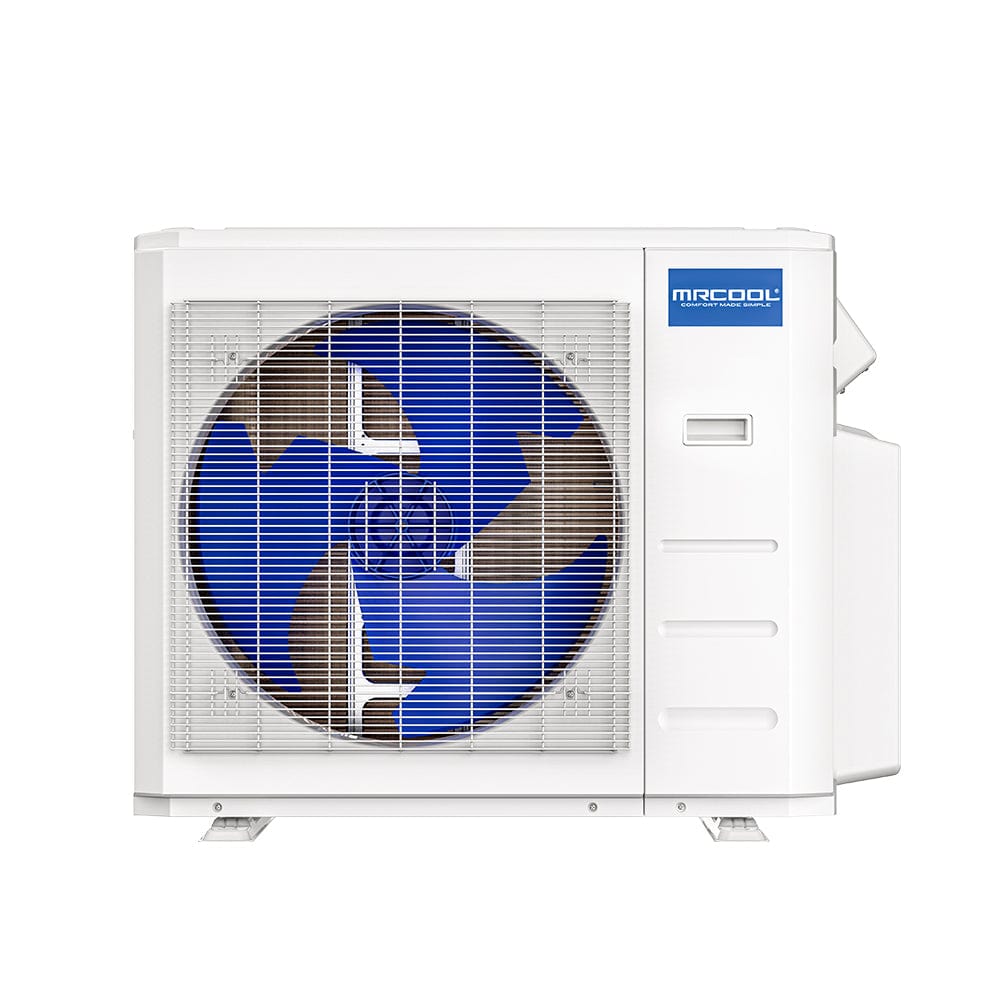

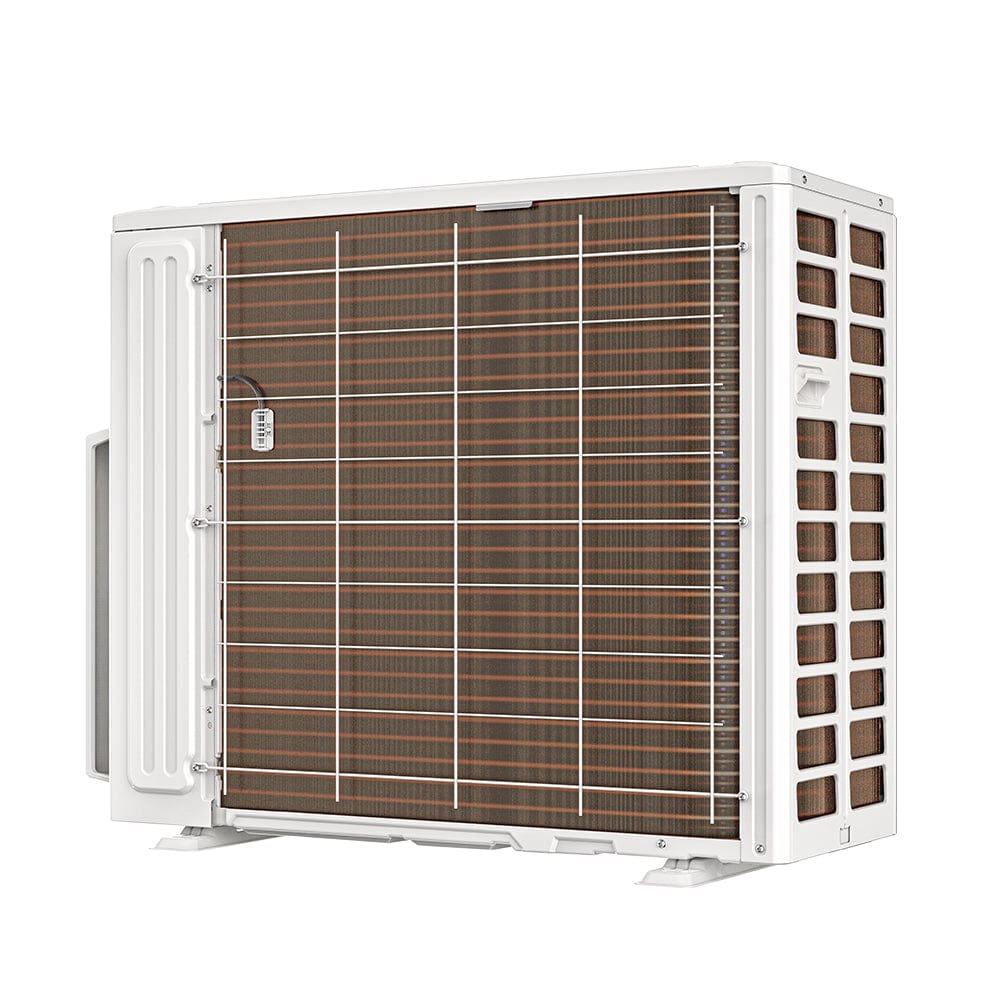

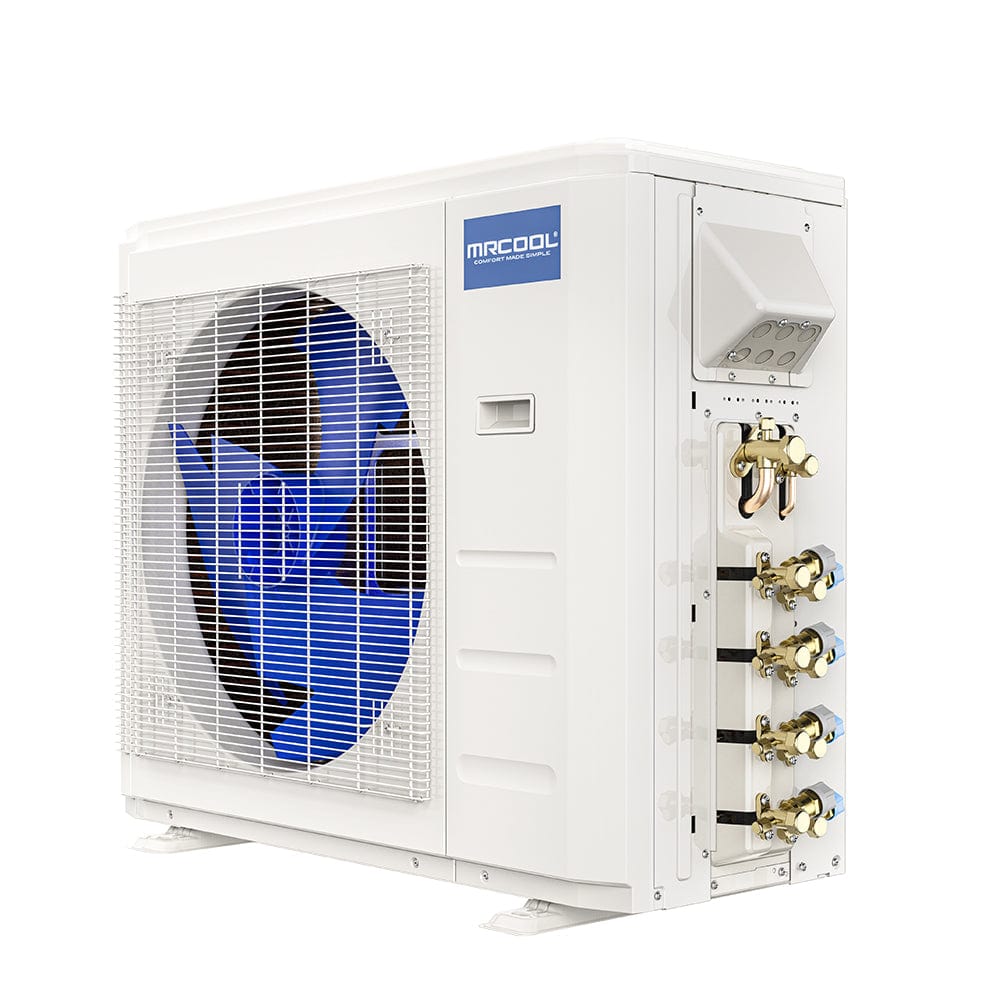

Condenser

  • Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

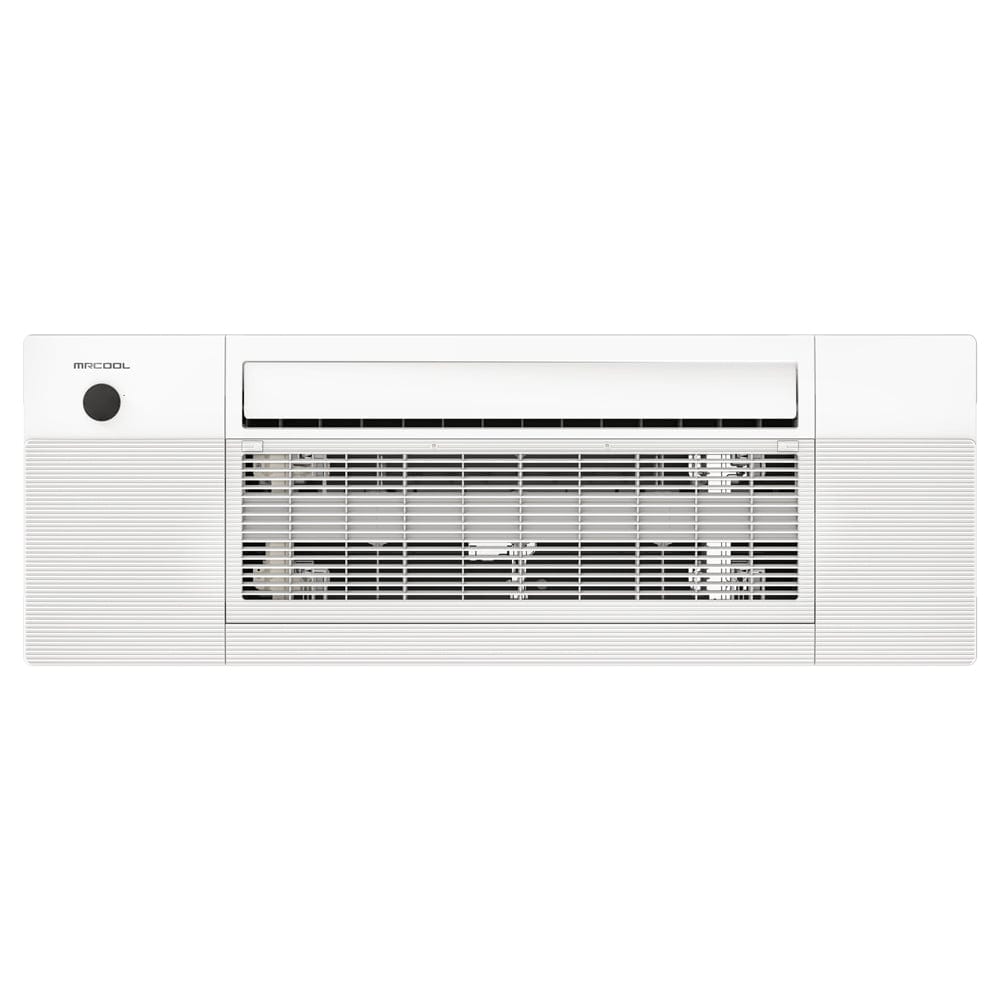

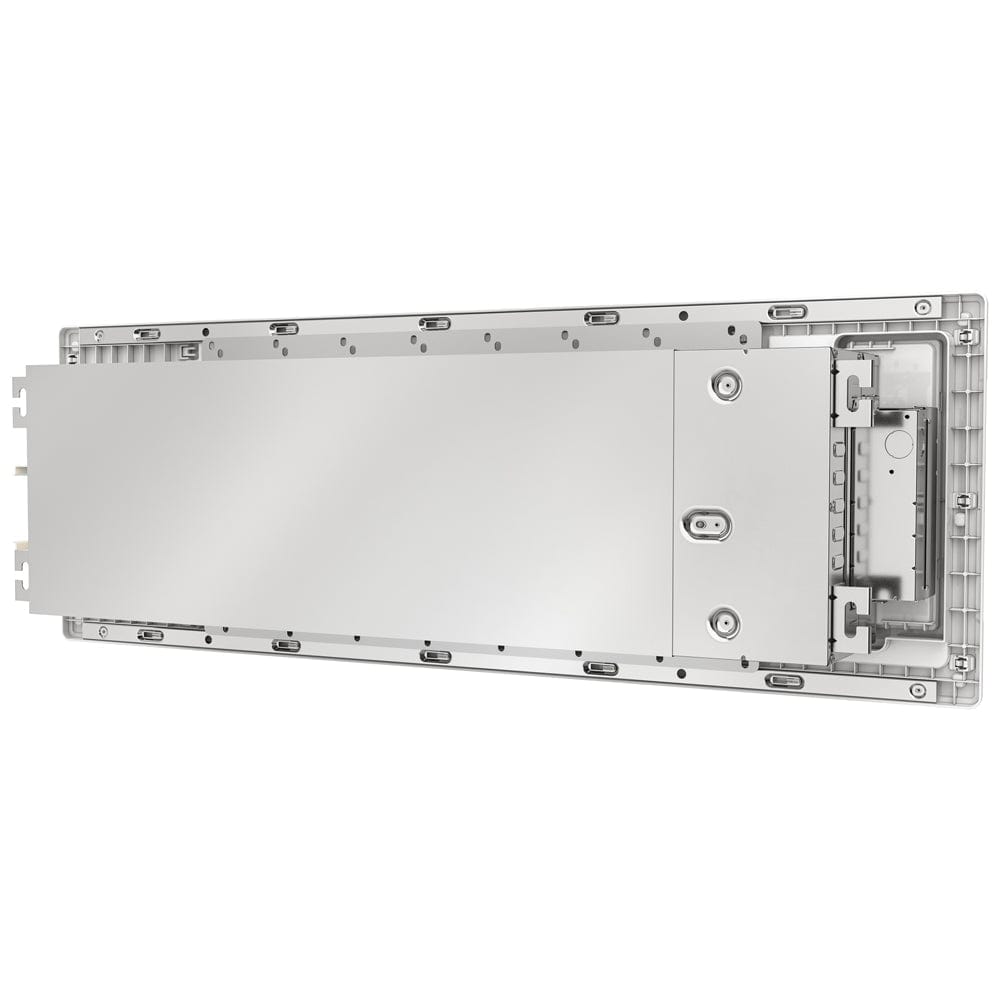

    Air Handler, 9K BTU, Quantity 2

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.

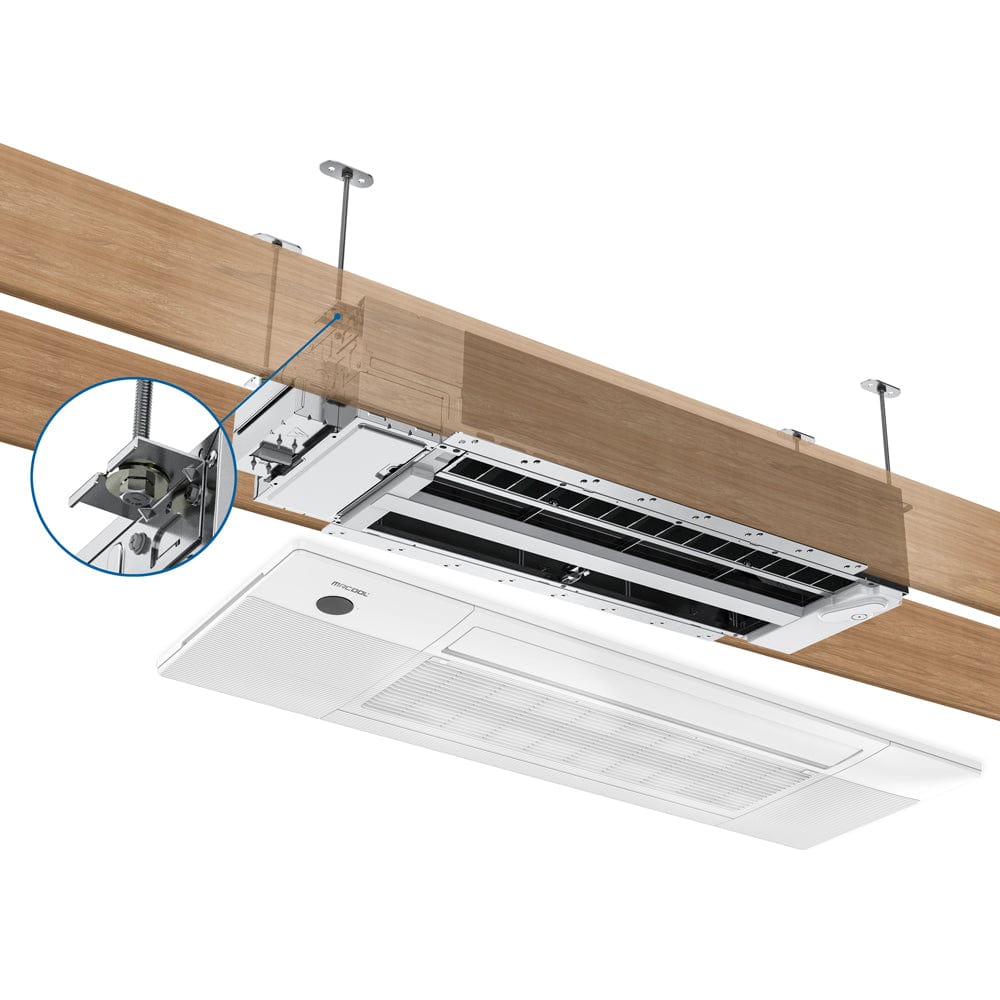

    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists

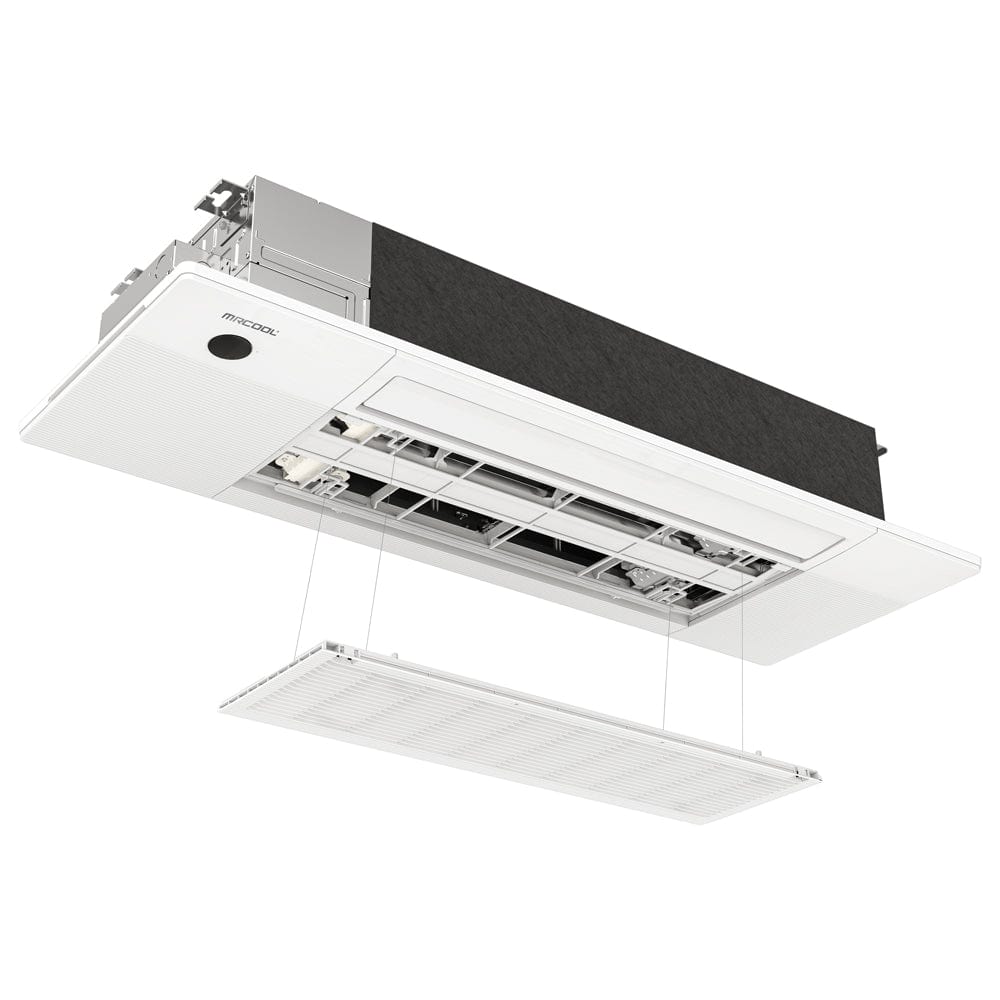

    • Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

    Air Handler, 18K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 750 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
    • Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists
    • Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.

      PRODUCT SPECIFICATIONS:
      Condenser

      Product Dimensions 37.24"W x 16.14"D x 31.89"H
      Cooling Capacity 36,000 BTU
      Heating Capacity 36,000 BTU
      Zone Capacity 4
      Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
      Heat Mode - Outdoor Operating Temperature Range -13F ~ 75.2F
      SEER 21.5
      EER 10.5
      Voltage Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
      Registered Warranty
      		 7 Years Replacement on Condenser, 5 Years Parts


      Air Handler 9K BTU

      Product Dimensions 50.31"W x 13.19"D x 8.98"H
      Mount Type Ceiling Cassette
      Cooling Capacity 9,000 BTU
      Heating Capacity 9,000 BTU
      Registered Warranty
      		 5 Years Parts
      Modes Auto - Auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep


      Air Handler 18K BTU

      Product Dimensions 50.31"W x 13.19"D x 8.98"H
      Mount Type Ceiling Cassette
      Cooling Capacity 17,000 BTU
      Heating Capacity 19,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto - Auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep
      Installation Manual
      Product Brochure
      Performance Specifications
      Warranty
      Energy Guide
      AHRI Certificate
