MRCOOL DIY Mini Split - 36,000 BTU 2
Zone Ductless Air Conditioner and Heat
Pump with 25 ft. and 35 ft. Install Kit,DIYM236HPW03C08

Elevate your home comfort with the MRCOOL DIY Mini Split - 36,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. and 35 ft. Install Kit, DIYM236HPW03C08. Designed for efficient cooling and heating, this system allows you to manage the climate in two separate rooms, providing you with customizable comfort year-round. With the ease of DIY installation, you can enjoy professional-level climate control without the need for a contractor.

This 4th Generation MRCOOL Mini Split system includes a powerful 36,000 BTU Multi-Zone Condenser along with two 18,000 BTU Wall Mounted Air Handlers. Each handler comes with its own remote, giving you complete control over the temperature in each zone independently. The included installation kits—one measuring 25 ft. and the other 35 ft.—offer flexibility for placement, allowing you to optimize the setup for your space's unique requirements.

The best part of the MRCOOL DIY Mini Split is that you can install it yourself! The kit comes complete with all the necessary components and easy-to-follow instructions, making setup straightforward and accessible for anyone. Enjoy energy-efficient climate control tailored to your preferences, all while saving on installation costs.

MRCOOL DIY Mini Split - 36,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. and 35 ft. Install Kit, DIYM236HPW03C08

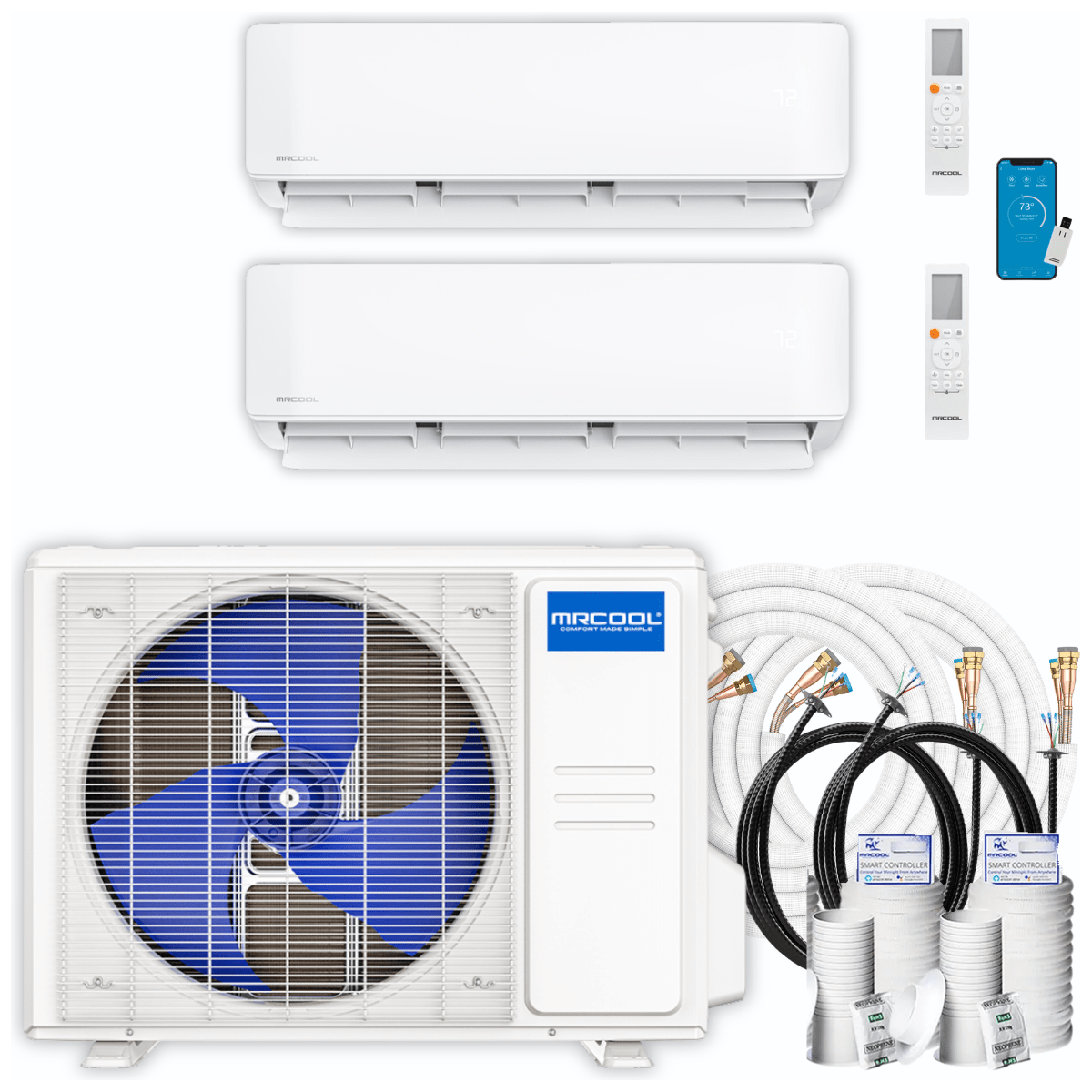

Package Includes

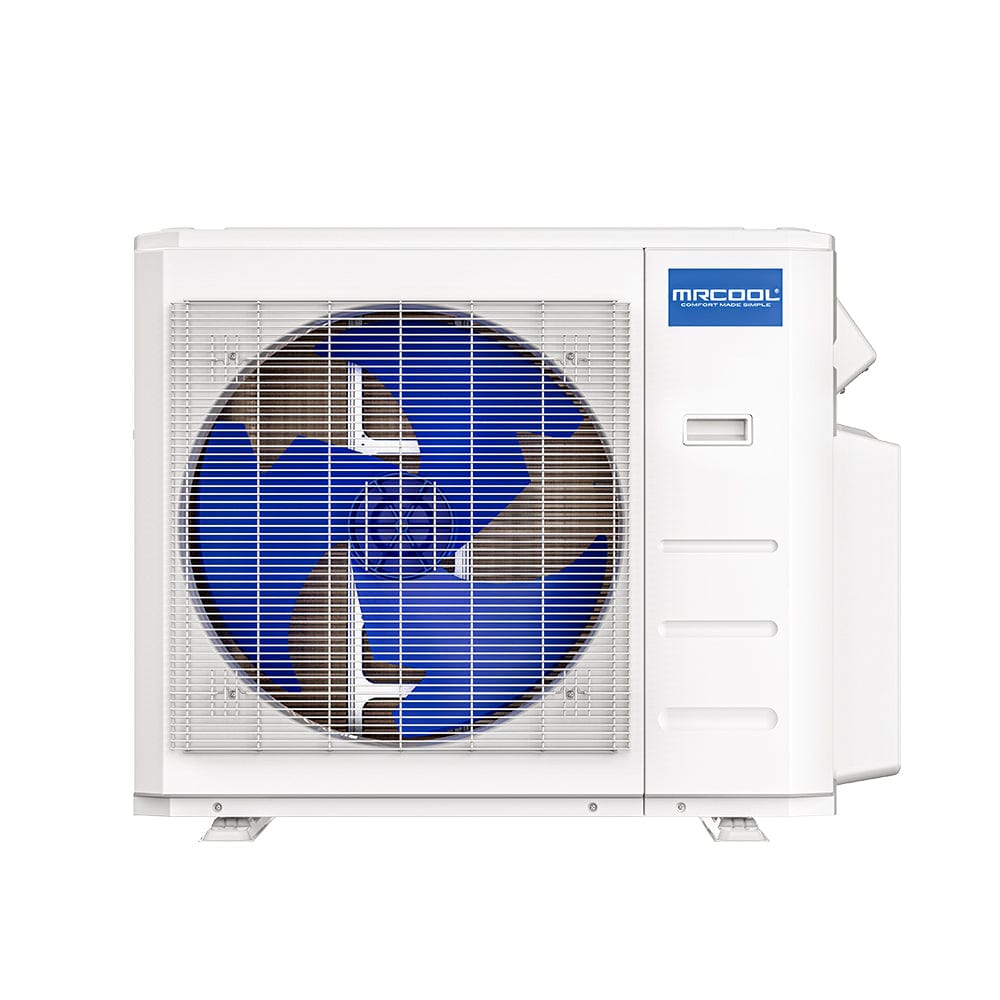

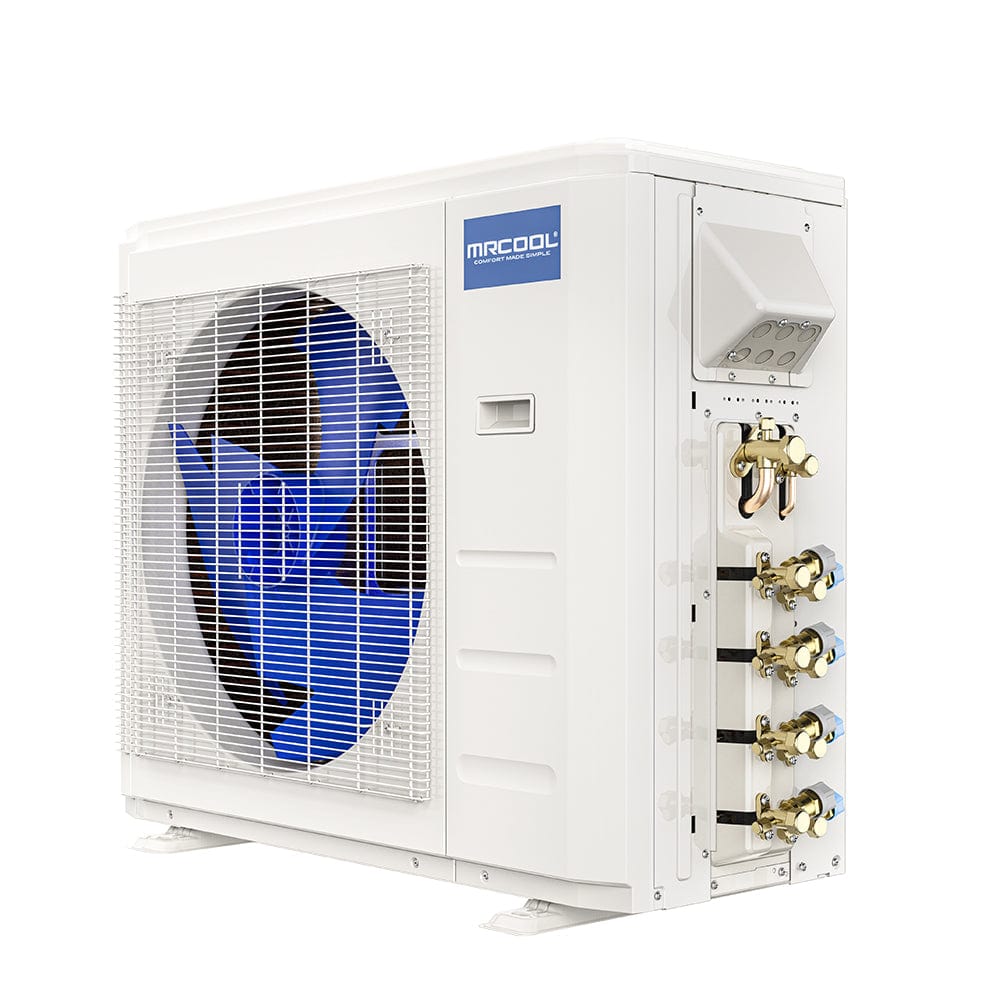

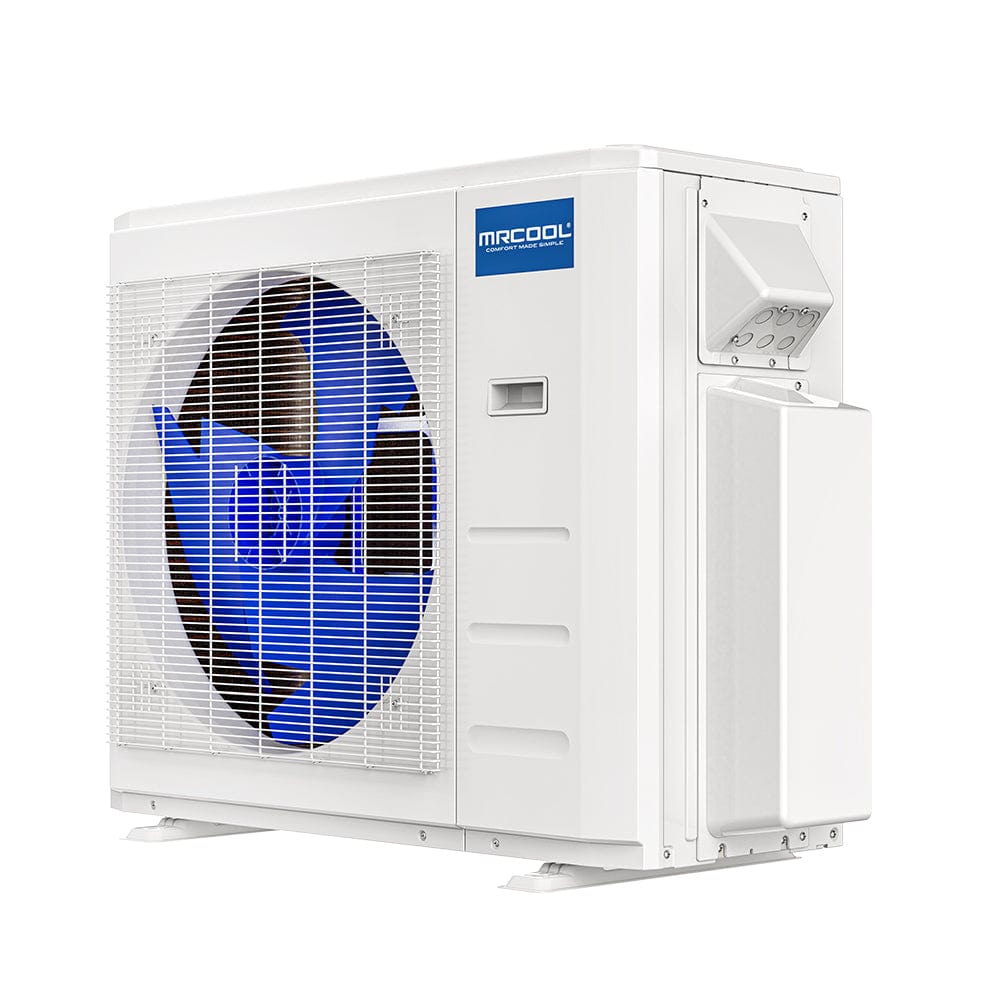

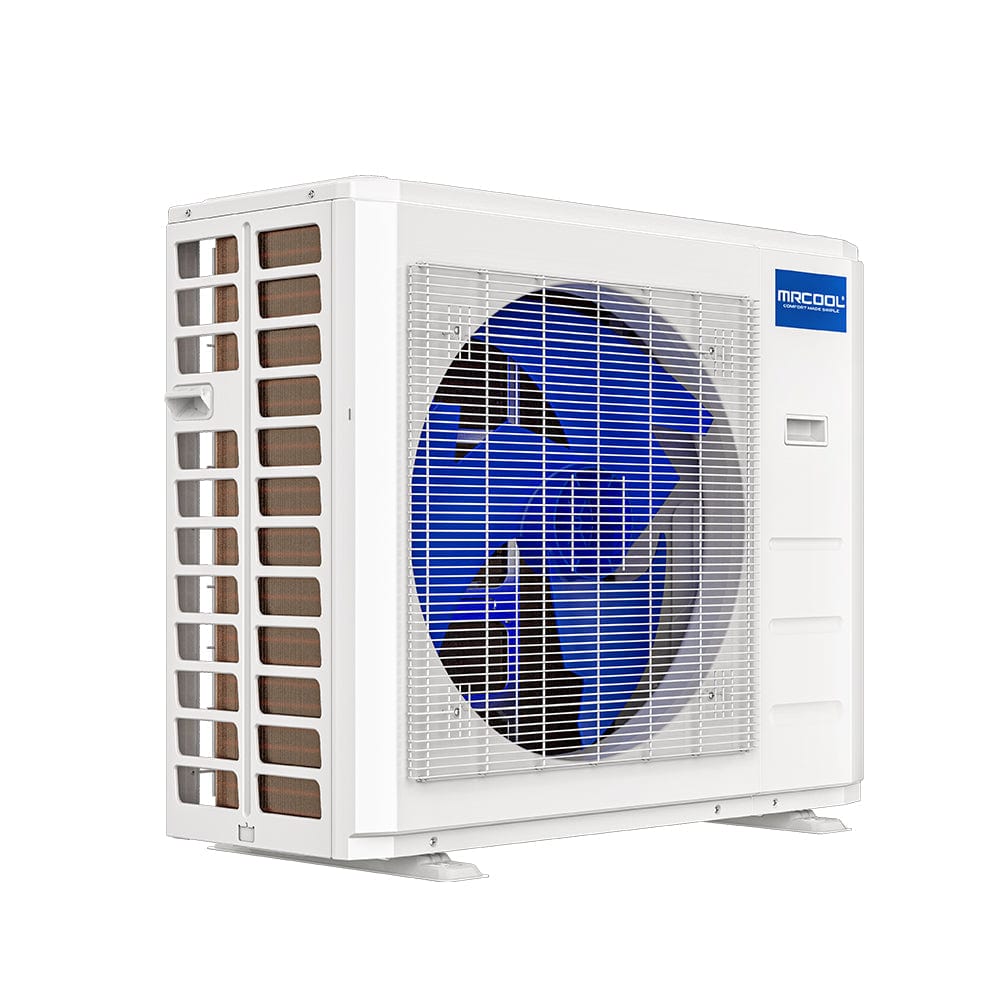

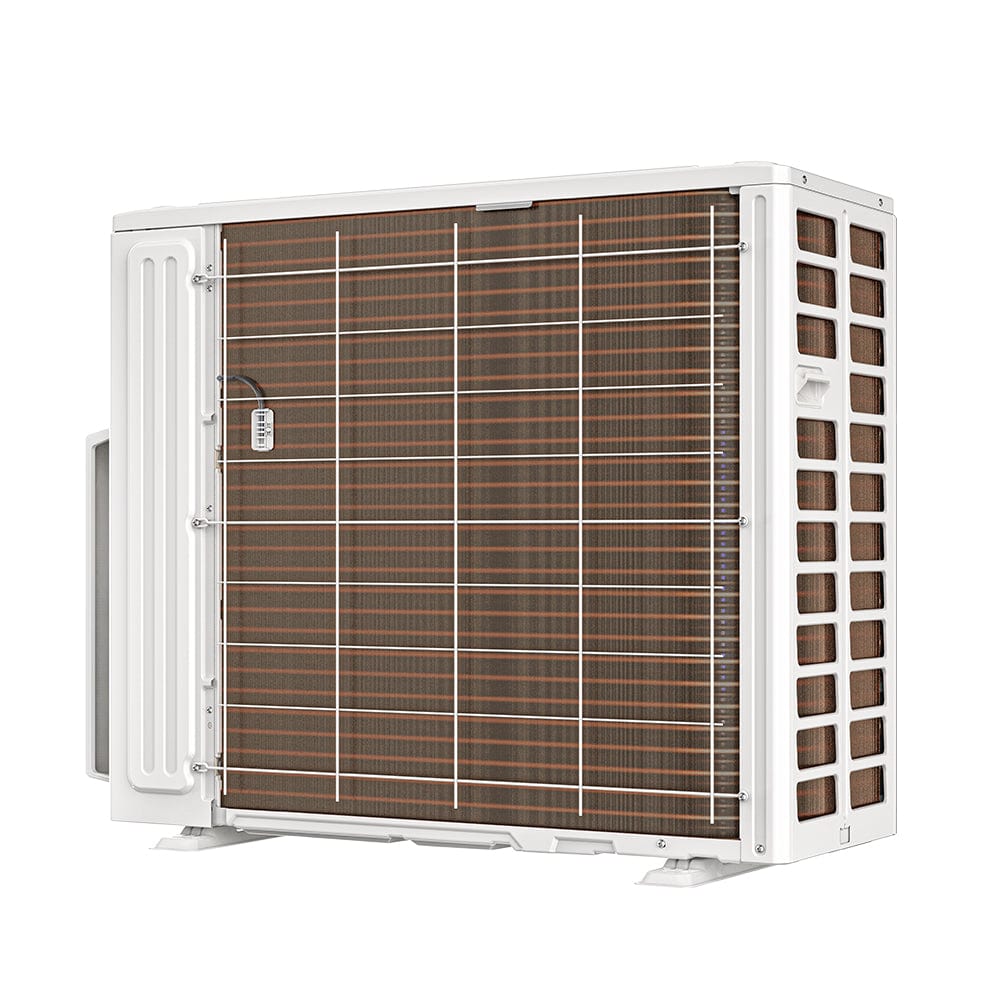

Condenser

Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
Works In All Environments. The ability to heat even when temperatures drop to -13°F.
Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

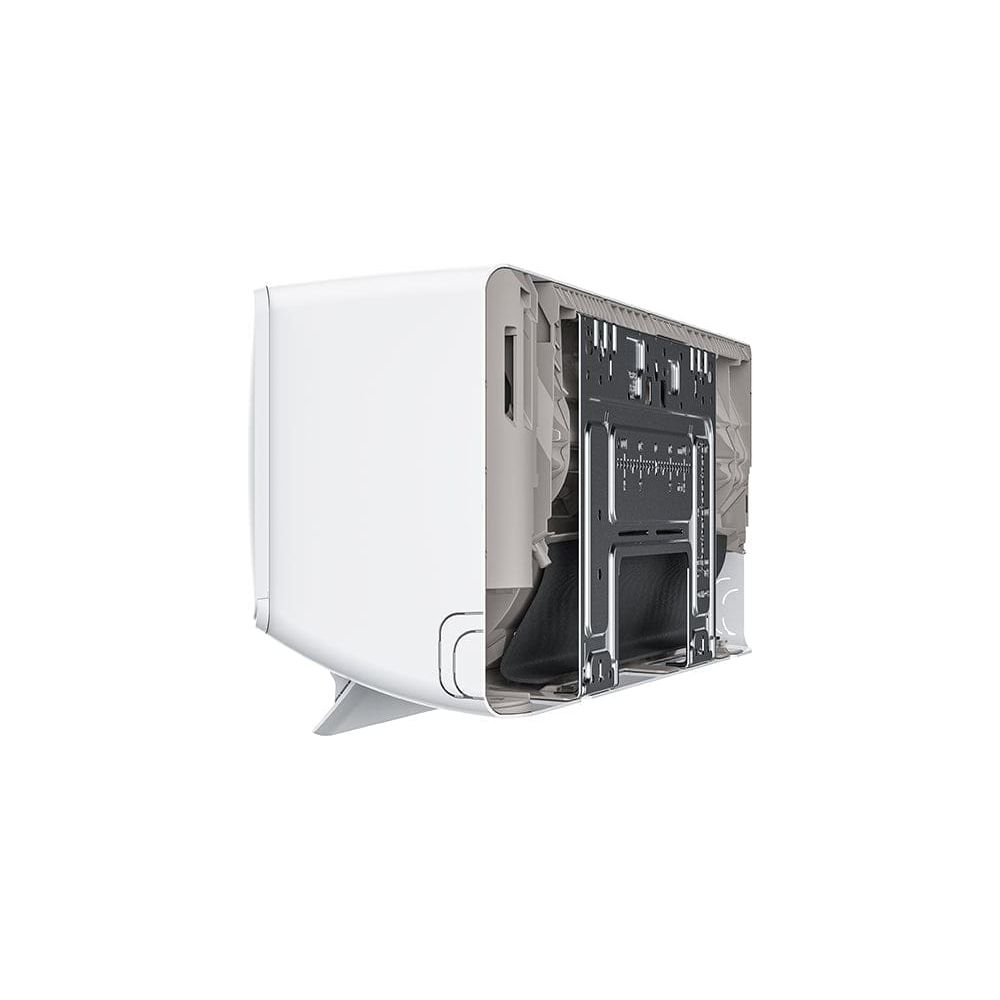

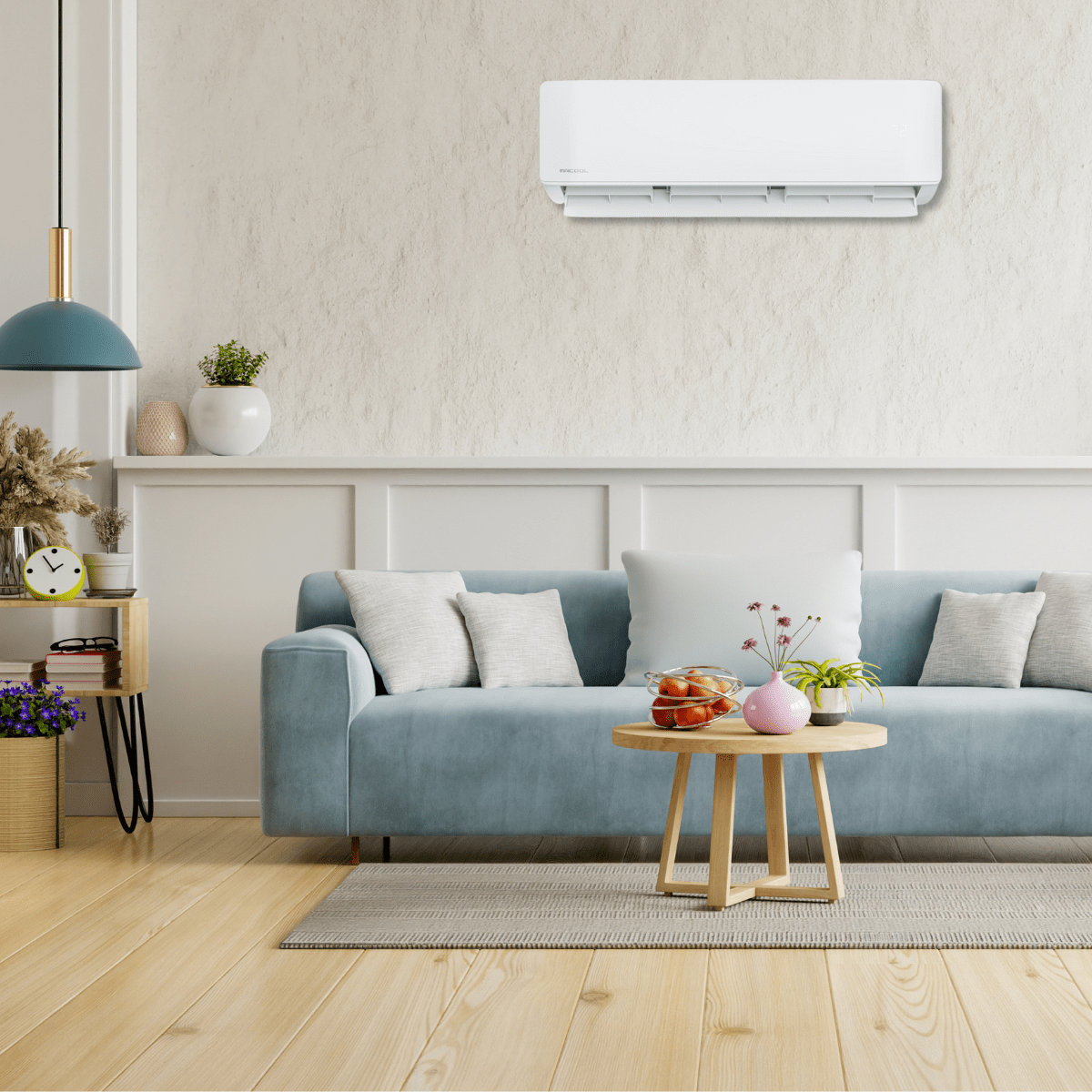

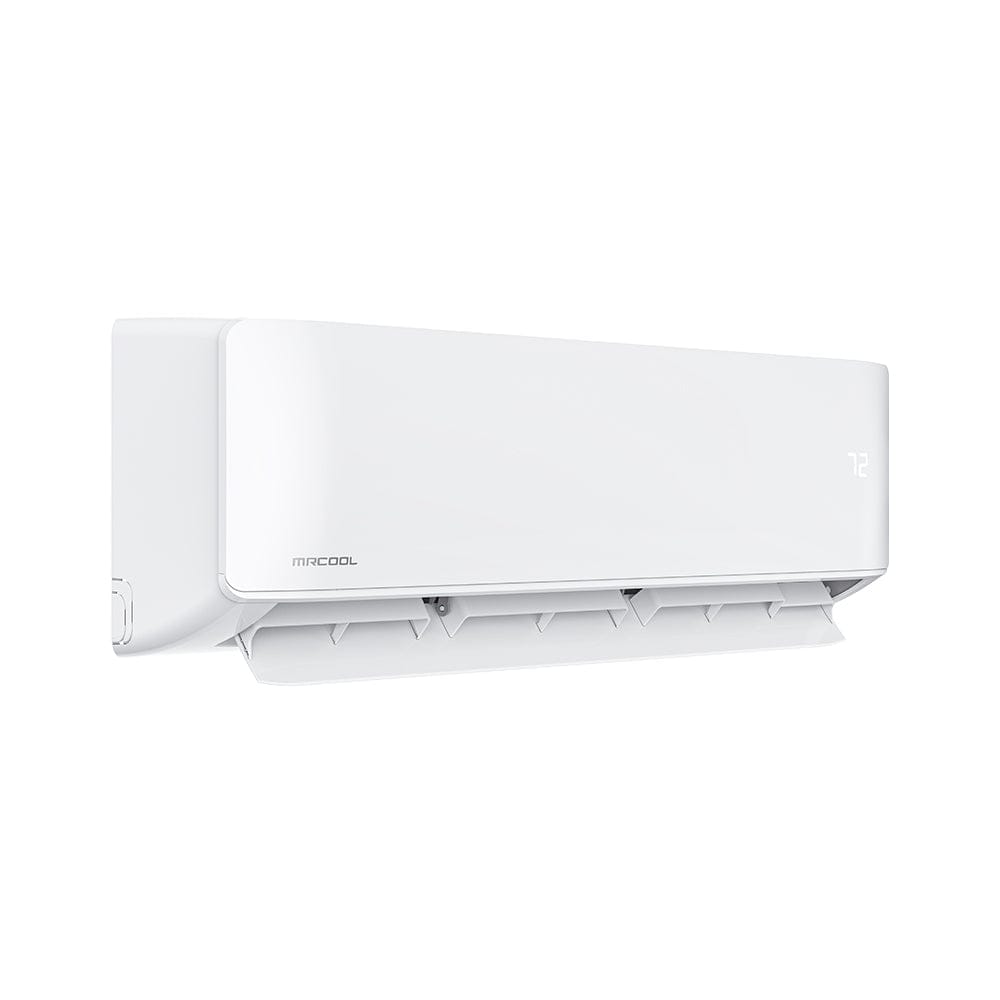

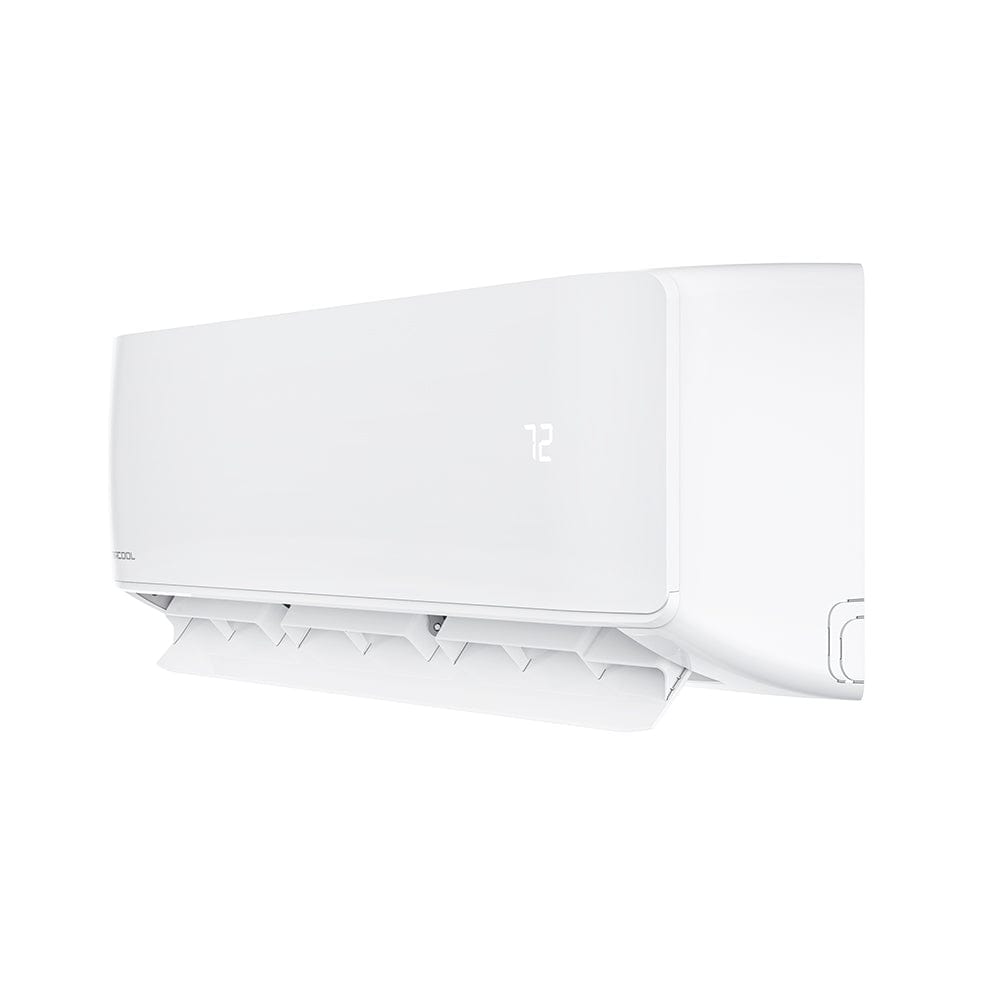

Air Handler, 18K BTU, Quantity 2

Large Coverage Area. Handler covers an area up to 750 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

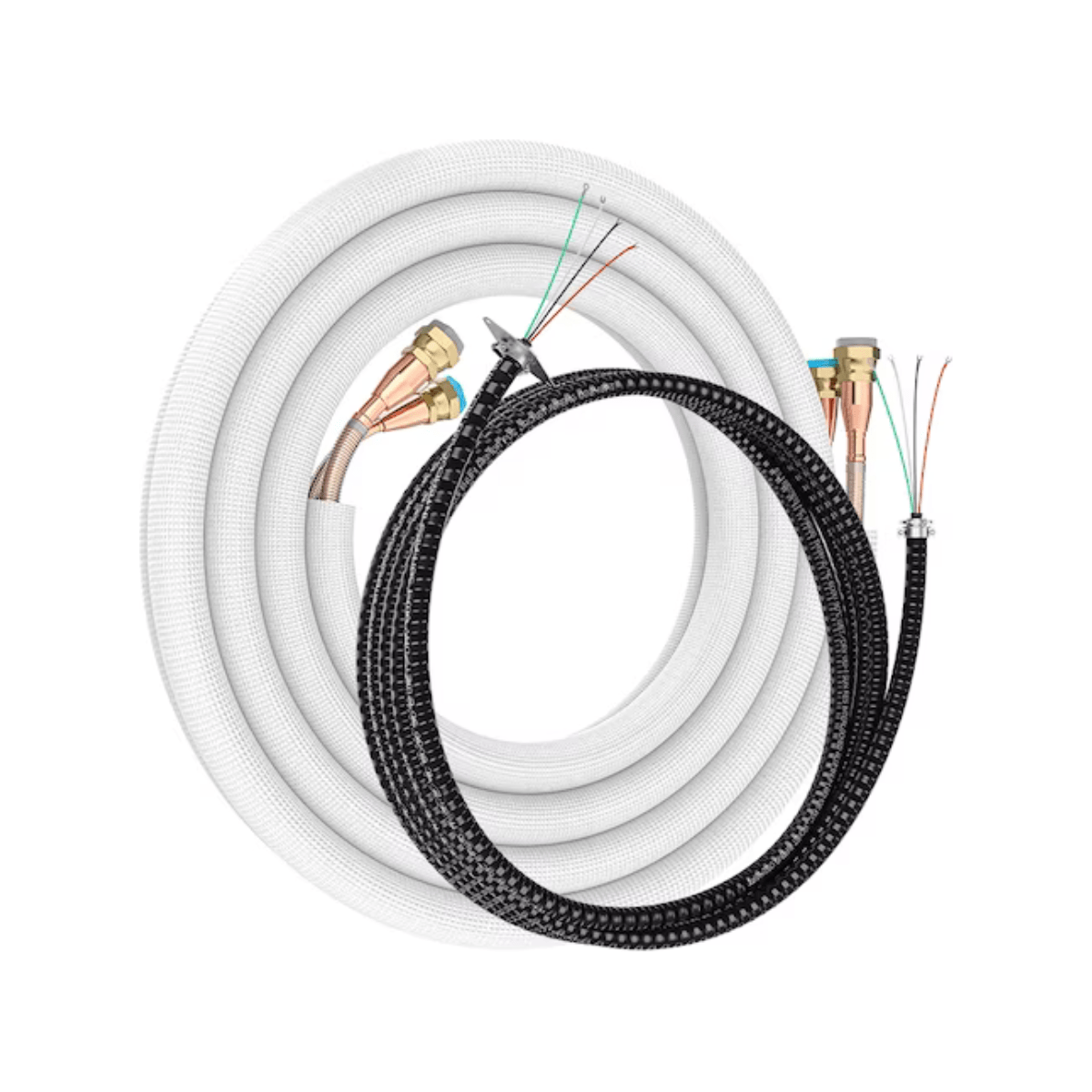

Line Set 25 ft., Quantity 1

This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

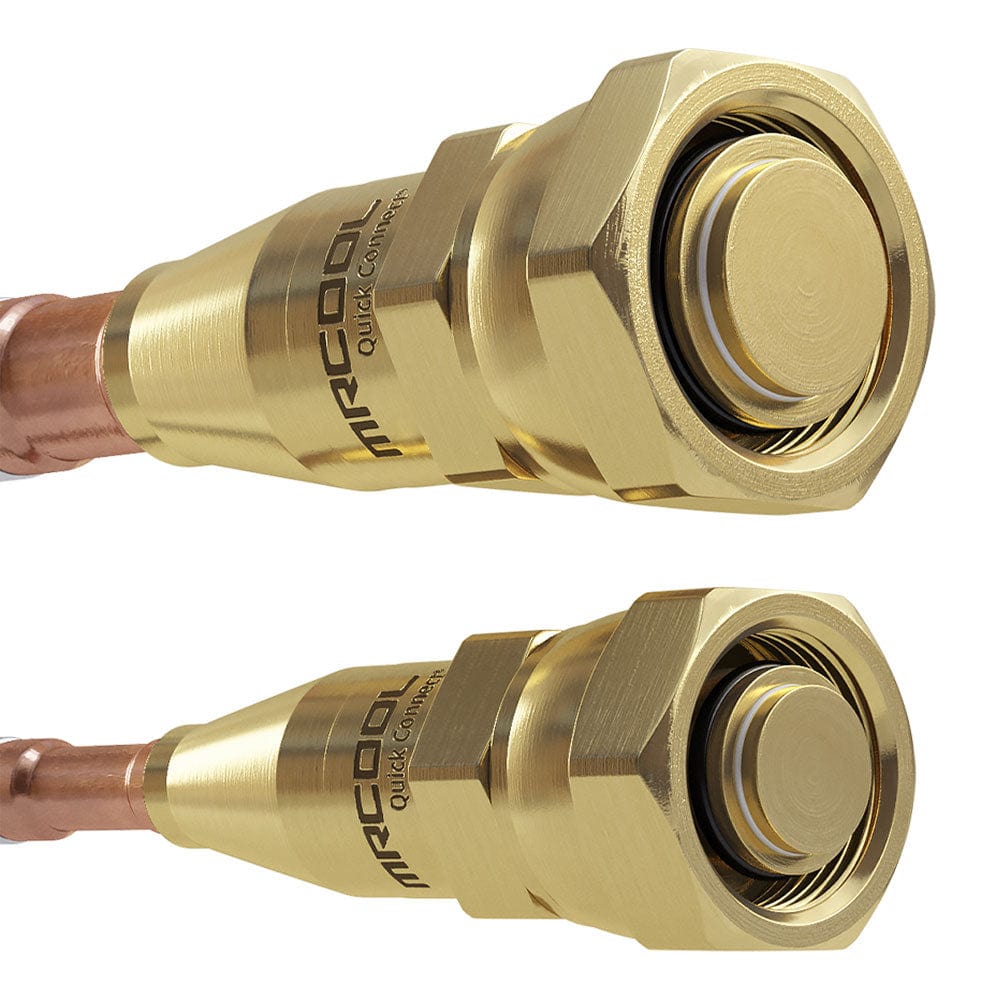

Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Line Set 35 ft., Quantity 1

This 35 ft. copper line set connects the MRCOOL DIY Condenser to the MR COOL DIY Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Additional Line Sets & Coupler

If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

Specifications of MRCOOL DIY Mini Split - 36,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. and 35 ft. Install Kit, DIYM236HPW03C08:

Condenser Specifications

Product Dimensions

37.24"W x 16.14"D x 31.89"H

Cooling Capacity

36,000 BTU

Heating Capacity

36,000 BTU

Zone Capacity

Min Ambient Cool

5F ~ 122F

Min Ambient Heat

-13F ~ 75.2F

SEER

21.5

EER

10.5

Voltage

Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)

Registered Warranty

7 Years Replacement on Condenser, 5 Years Parts

Air Handler 18K BTU

Product Dimensions	42.52"W x 8.90"D x 13.19"H
Mount Type	Wall
Cooling Capacity	18,000 BTU
Heating Capacity	18,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep

Line Set

Length	25 Feet
Liquid Line Size	1/4"
Suction Line Size	1/2"

Line Set

Length	35 Feet
Liquid Line Size	1/4"
Suction Line Size	1/2"
