MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit

Effortlessly maintain the ideal temperature in two rooms with the MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM227HPW01C13. This 4th Generation MRCOOL Mini Split system is designed for efficient heating and cooling, featuring a DIY 27,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, one 18,000 BTU Wall Mounted Air Handler, two remotes, and two 35 ft. installation kits. Perfect for those who want a powerful climate solution for different spaces, it’s also an ideal DIY project.

With Wi-Fi connectivity, the MRCOOL DIY Mini Split allows you to control the temperature and settings from anywhere, using your smartphone or tablet. Its innovative design means no specialized tools or extensive technical knowledge is required for installation, making it one of the most user-friendly mini-split systems available. Simply follow the included instructions, and you’ll have a fully functional system in no time.

Bring year-round comfort to your home with the MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless AC and Heat Pump, combining powerful, reliable climate control with the satisfaction of a DIY installation.

MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM227HPW01C13

Package Includes

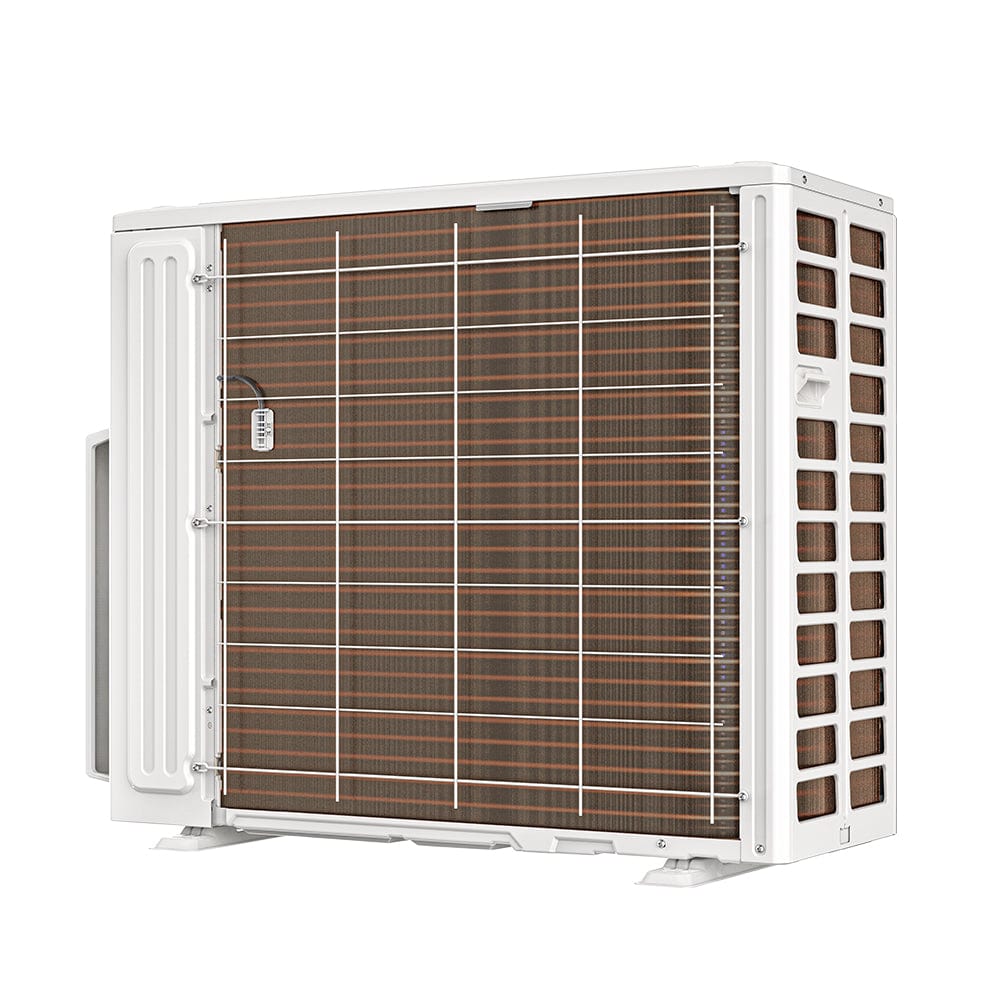

Condenser

Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
Works In All Environments. The ability to heat even when temperatures drop to -13°F.
Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM227HPW01C13 Care Program to get the lifetime warranty!

Air Handler, 9K BTU, Quantity 1

Large Coverage Area. Handler covers an area up to 375 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Air Handler, 18K BTU, Quantity 1

Large Coverage Area. Handler covers an area up to 750 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Line Set 35 ft., Quantity 2

This 35 ft. copper line set connects the 4th Generation MRCOOL Condenser to the MR COOL Air Handlers - 9K, 12K and 18K.
Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Specifications of MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 35 ft. Install Kit, DIYM227HPW01C13:

Condenser Specifications

Product Dimensions

37.24"W x 16.14"D x 31.89"H

Cooling Capacity

27,000 BTU

Heating Capacity

27,000 BTU

Zone Capacity

Cool Mode - Outdoor Operating Temperature Range

5F ~ 122F

Heat Mode - Outdoor Operating Temperature Range

-13F ~ 75.2F

SEER

EER

Voltage

Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)

Registered Warranty

7 Years Replacement on Condenser, 5 Years Parts

Air Handler 9K BTU

Product Dimensions

31.57"W x 7.44"D x 11.69"H

Mount Type

Wall

Cooling Capacity

9,000 BTU

Heating Capacity

9,000 BTU

Registered Warranty

5 Years Parts

Modes

Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep

Air Handler 18K BTU

Product Dimensions

42.52"W x 8.90"D x 13.19"H

Mount Type

Wall

Cooling Capacity

18,000 BTU

Heating Capacity

18,000 BTU

Registered Warranty

5 Years Parts

Modes

Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep

Line Set

Length

35 Feet

Liquid Line Size

1/4"

Suction Line Size

1/2"
