MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit

Transform your home’s climate control with the MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM227HPW01C07. This 4th Generation system is expertly designed to provide efficient heating and cooling for two distinct rooms, ensuring your comfort in any season. The package includes a DIY 27,000 BTU Multi-Zone Condenser, a 9,000 BTU Wall Mounted Air Handler, an 18,000 BTU Wall Mounted Air Handler, two remotes, and two 25 ft. installation kits, making it a comprehensive solution for your indoor climate needs.

What truly sets the MRCOOL DIY Mini Split apart is its user-friendly self-installation capability. With enhanced Wi-Fi engineering, setting up your system is a breeze, allowing you to connect and control your climate settings right from your smartphone or tablet. This flexibility means you can install the system in various configurations, adapting to the specific layout of your home without the need for specialized tools or professional installation services.

Elevate your comfort and enjoy the satisfaction of a DIY project with the MRCOOL DIY Mini Split. Experience efficient, customizable climate control that fits seamlessly into your lifestyle and enhances your home’s comfort all year round!

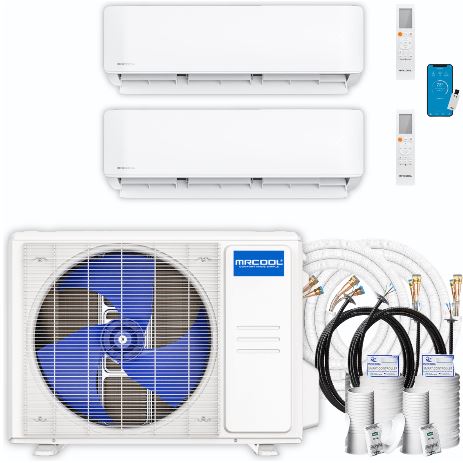

Package Includes

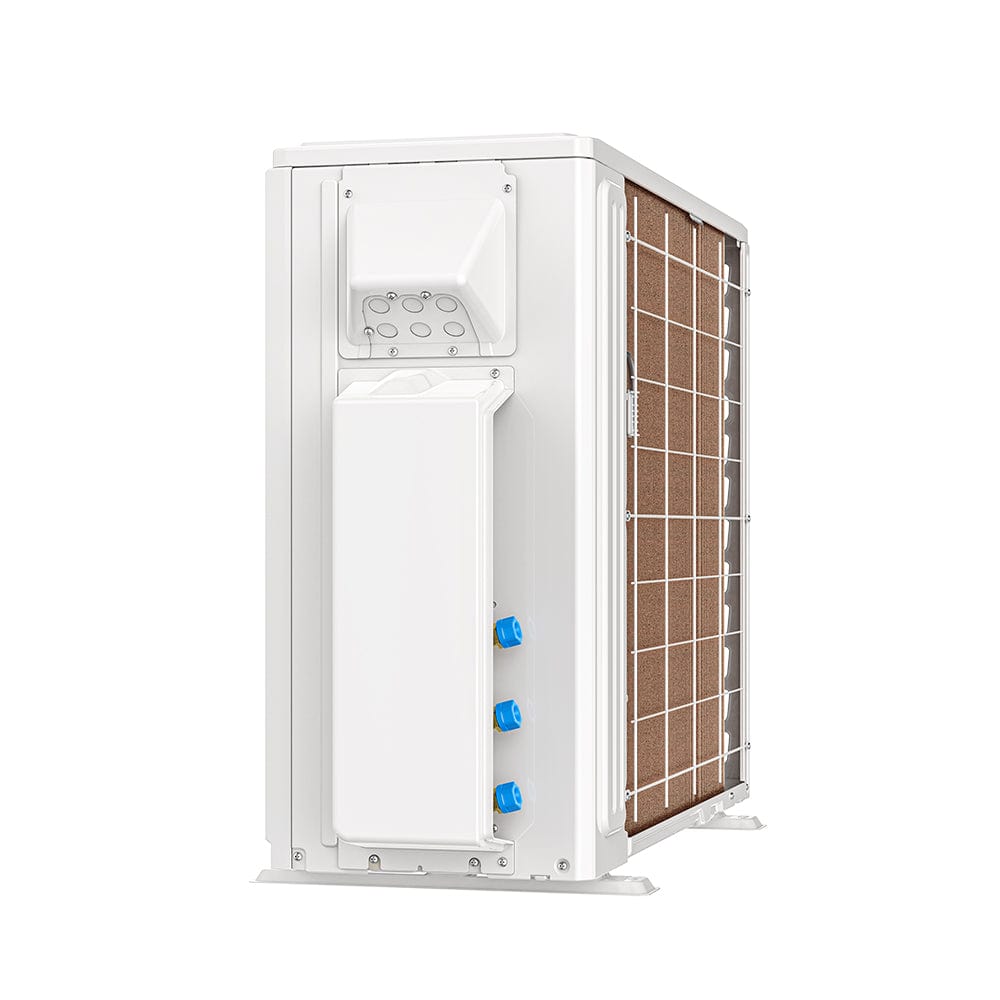

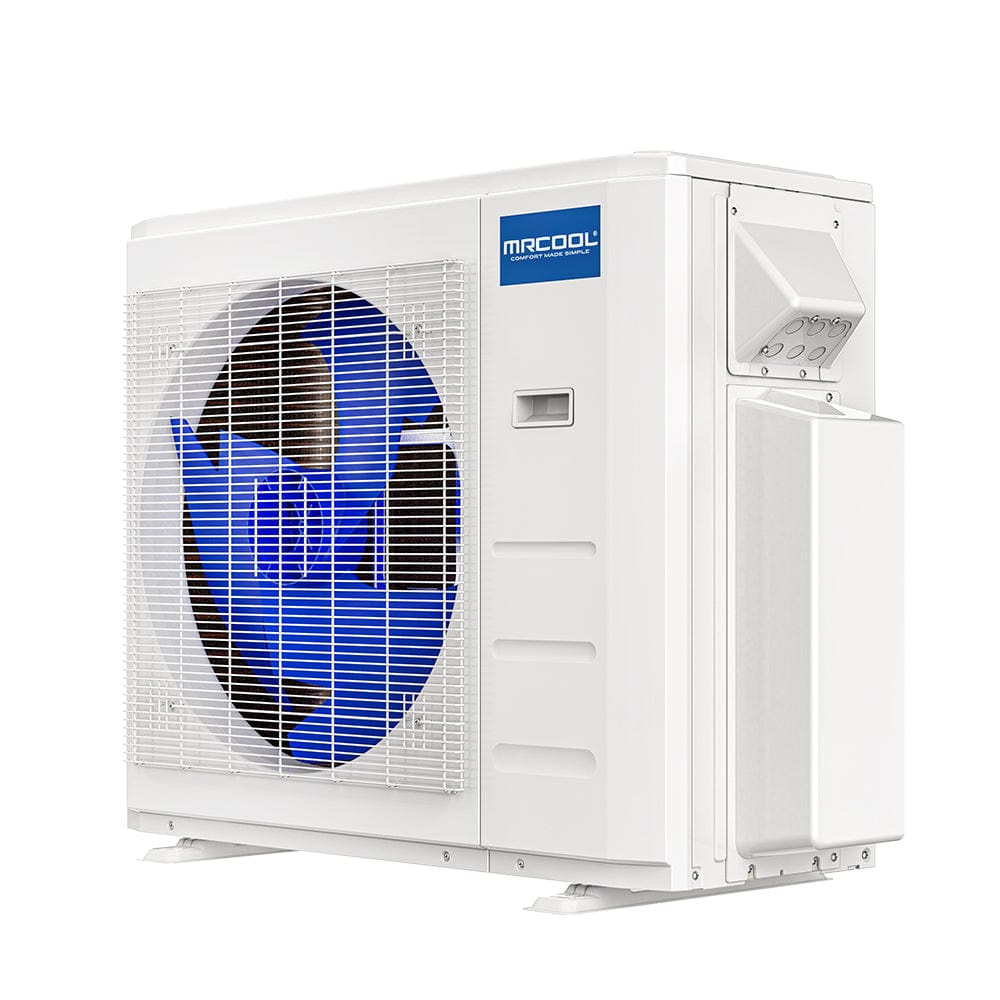

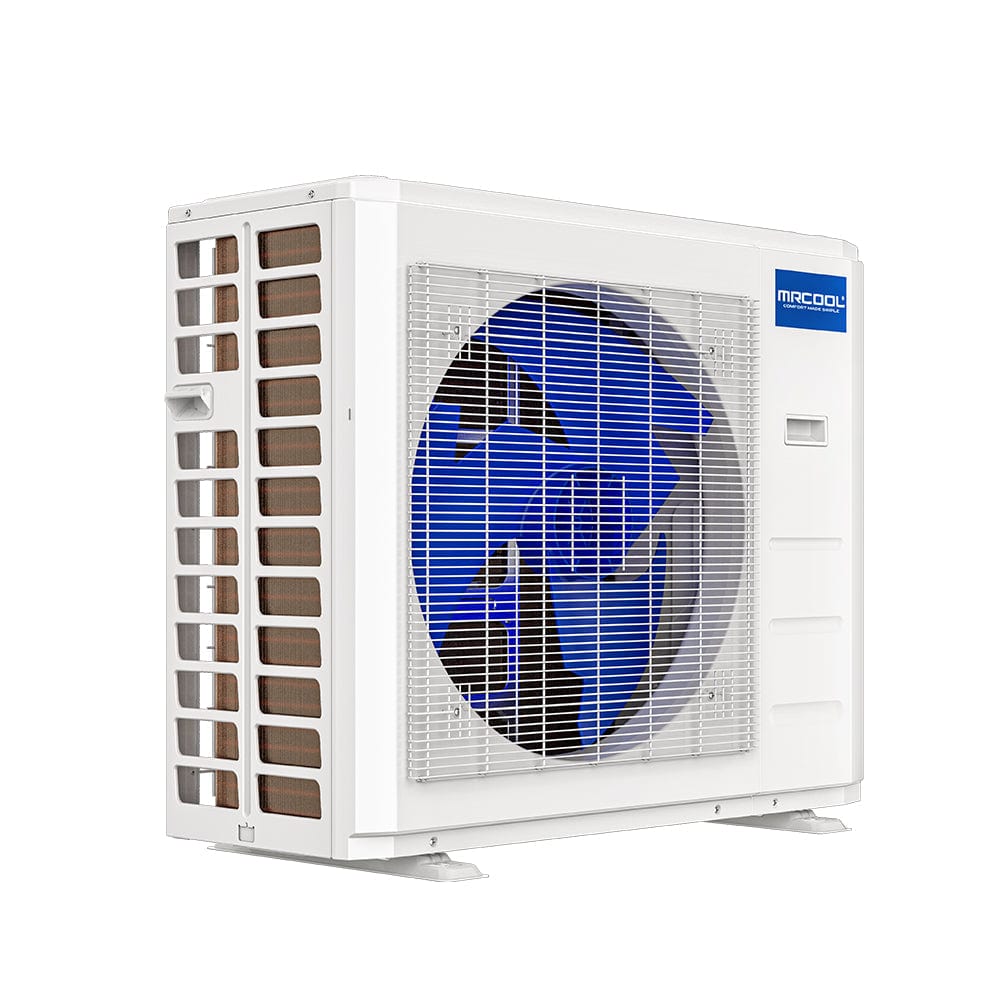

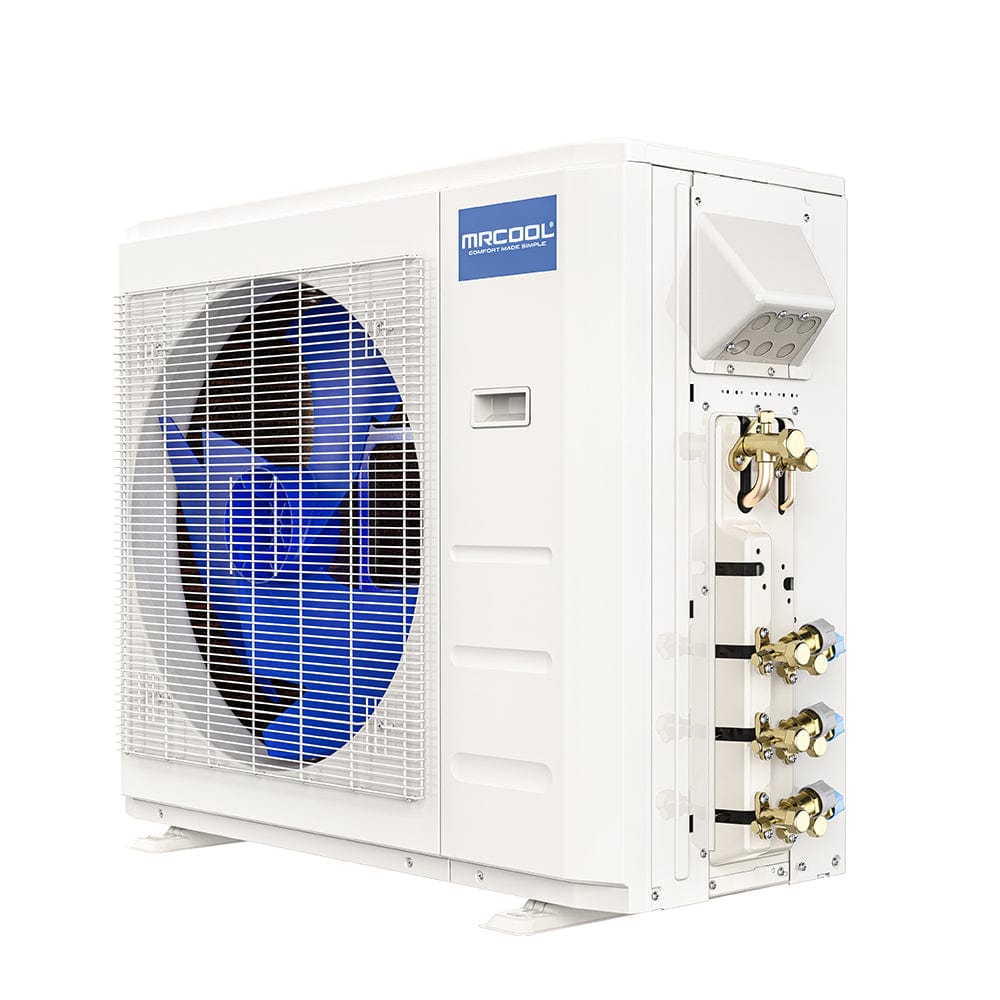

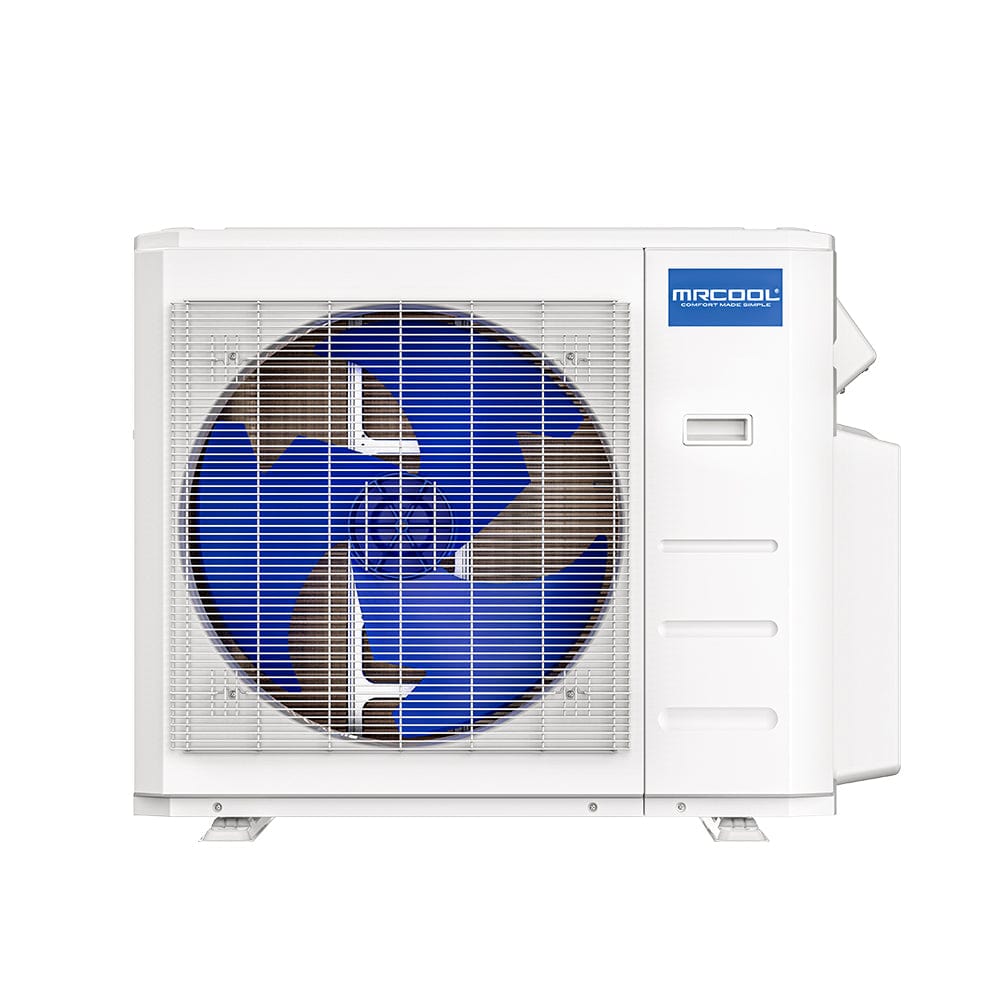

Condenser
  • Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop to -13°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

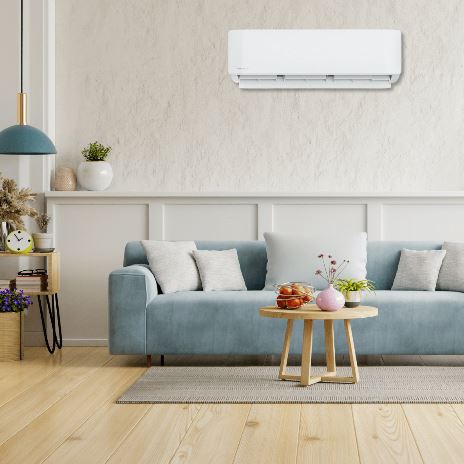

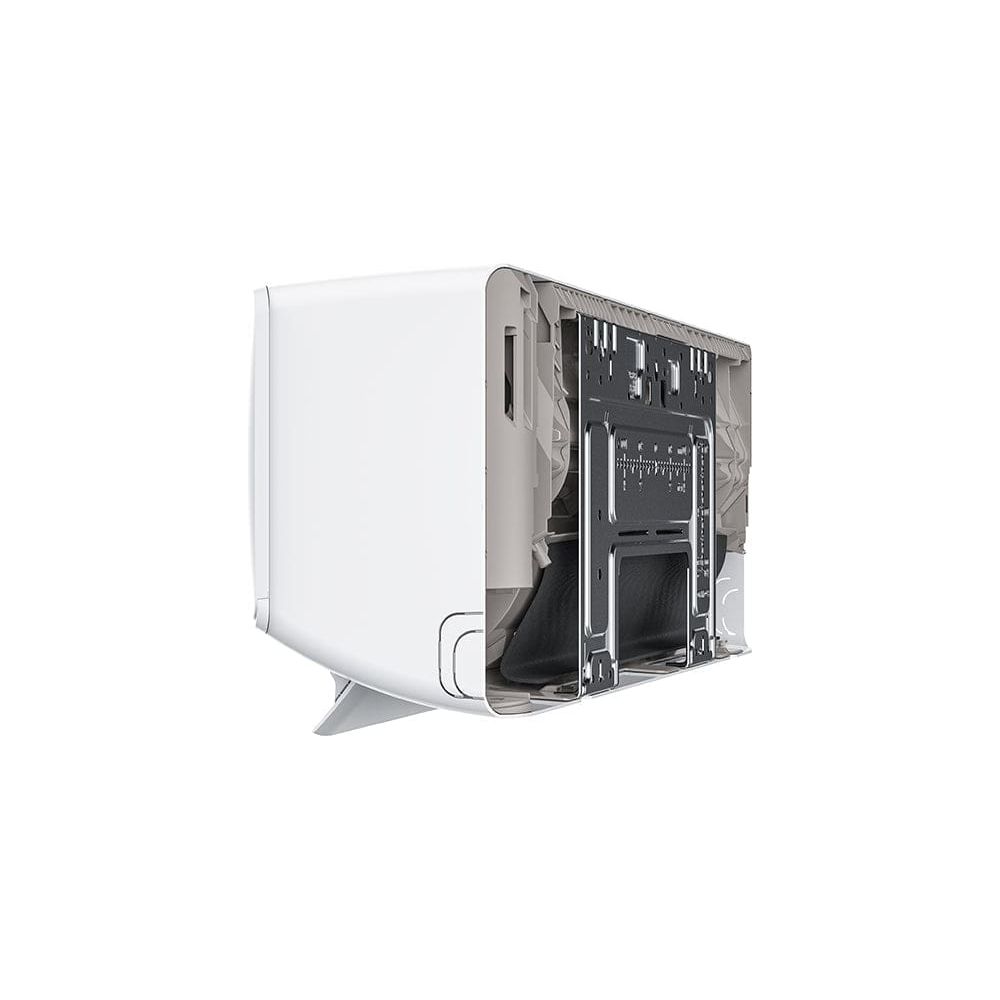

    Air Handler, 9K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

    Air Handler, 18K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 750 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

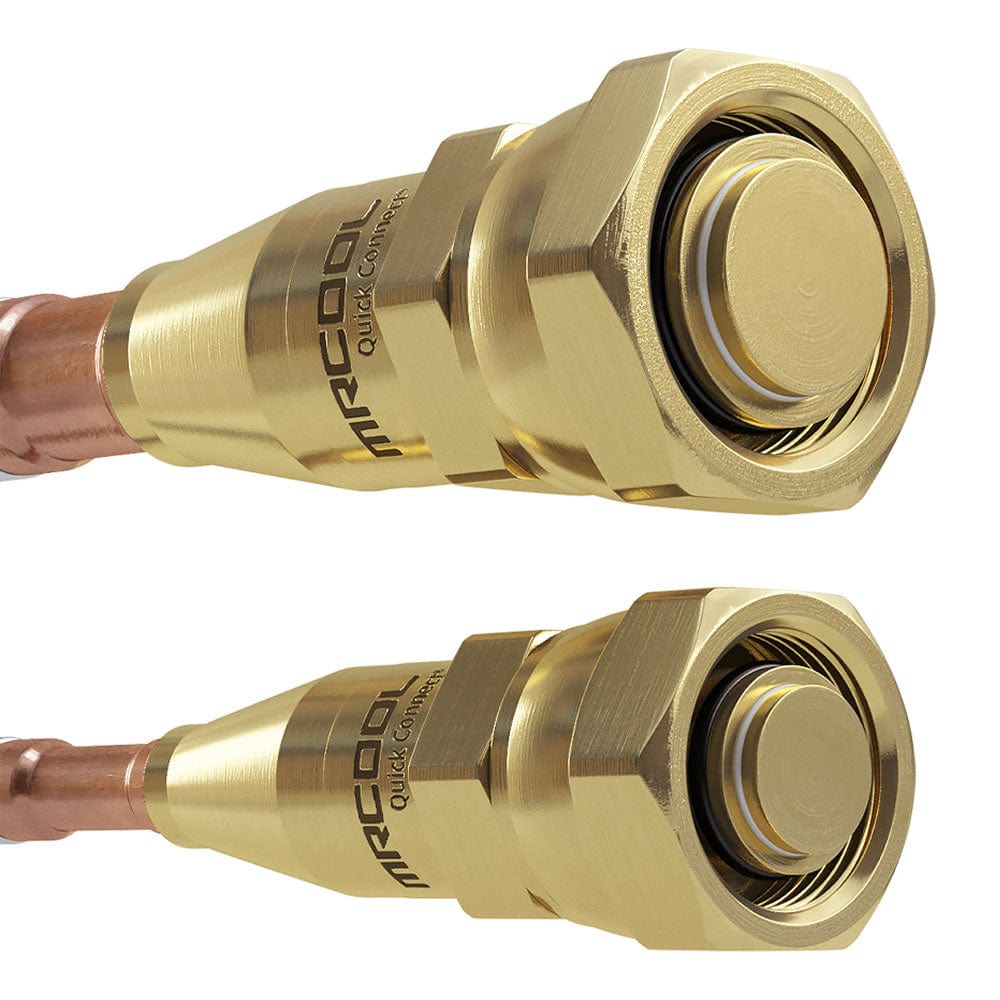

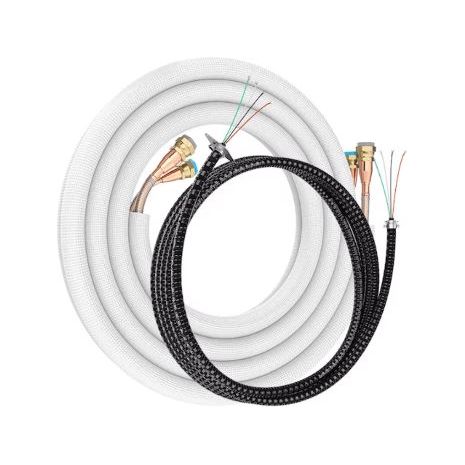

      Line Set 25 ft., Quantity 2
      • This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
      • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

      Additional Line Sets & Coupler

      If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

      What does this package include?

      This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.

          PRODUCT SPECIFICATIONS:
          Condenser Specifications

          Product Dimensions 37.24"W x 16.14"D x 31.89"H
          Cooling Capacity 27,000 BTU
          Heating Capacity 27,000 BTU
          Zone Capacity 3
          Min Ambient Cool 5F ~ 122F
          Min Ambient Heat -13F ~ 75.2F
          SEER 22
          EER 12
          Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
          Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


          Air Handler 9K BTU

          Product Dimensions 31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity 9,000 BTU
          Heating Capacity 9,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Air Handler 18K BTU

          Product Dimensions 42.52"W x 8.90"D x 13.19"H
          Mount Type Wall
          Cooling Capacity 18,000 BTU
          Heating Capacity 18,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Line Set

          Length 25 Feet
          Liquid Line Size 1/4"
          Suction Line Size 1/2"
          Installation Manual
          Product Brochure
          Performance Specifications
          Warranty
          Energy Guide
          AHRI Certificate
