MRCOOL DIY Mini Split - 24,000 BTU 2
Zone Ductless Air Conditioner and Heat
Pump with 25 ft. and 35 ft. Install Kit,
DIYM227HPW02C08
Transform your indoor climate with the MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. and 35 ft. Install Kit, DIYM227HPW02C08. This state-of-the-art 4th Generation system offers an efficient solution for cooling and heating two different rooms, making it perfect for homes or offices needing customized temperature control. Included in the package are a powerful DIY 27,000 BTU Multi-Zone Condenser, two 12,000 BTU Wall Mounted Air Handlers, two Remotes, and installation kits of 25 ft. and 35 ft., providing everything necessary for a seamless setup.
What makes the MRCOOL system stand out is its DIY installation feature, empowering you to take control of your environment without the hassle of hiring professionals. Enhanced Wi-Fi engineering ensures that setup is not only straightforward but also incredibly flexible, allowing for installation in various locations without the need for specialized tools or costly equipment. You’ll be enjoying your desired comfort level in no time!
Designed with a modern aesthetic, the ductless air handlers fit discreetly into any room, delivering efficient heating and cooling while preserving your home’s decor. Whether you’re aiming to cool down a sun-drenched living room or warm up a cozy bedroom, the MRCOOL DIY Mini Split provides the versatility and performance you need for complete comfort throughout the year.
Package Includes
- MRCOOL DIY Multi-Zone 3-Zone Condenser, 4th Gen Series, DIY-MULTI3-27HP230C
- MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25 (x2)
- MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412
- MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C

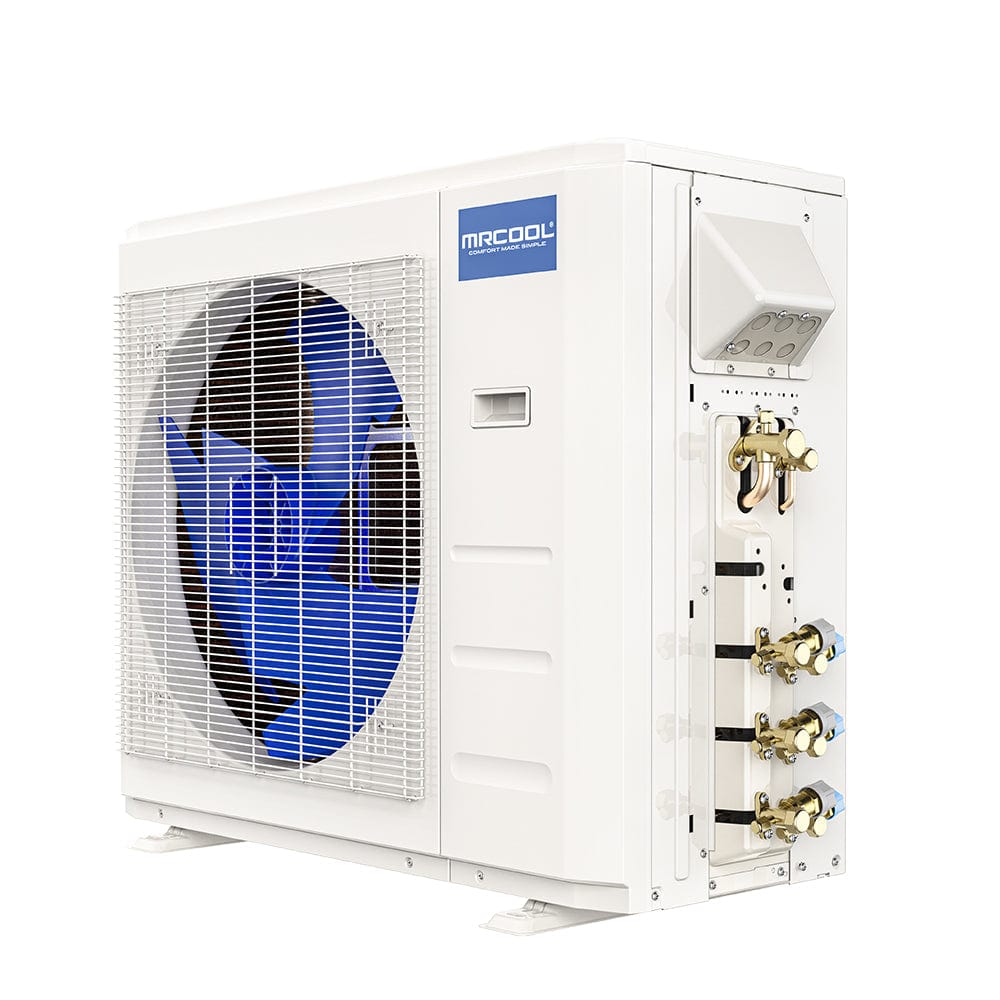

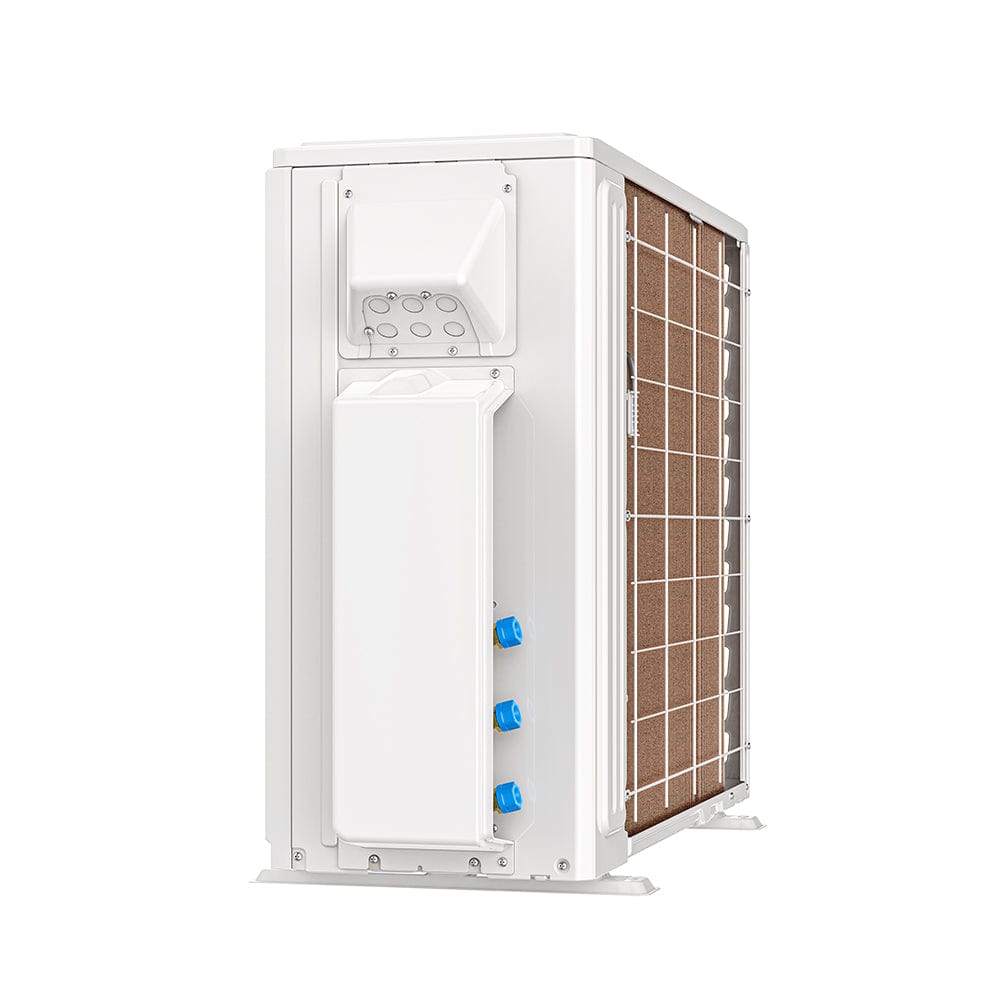

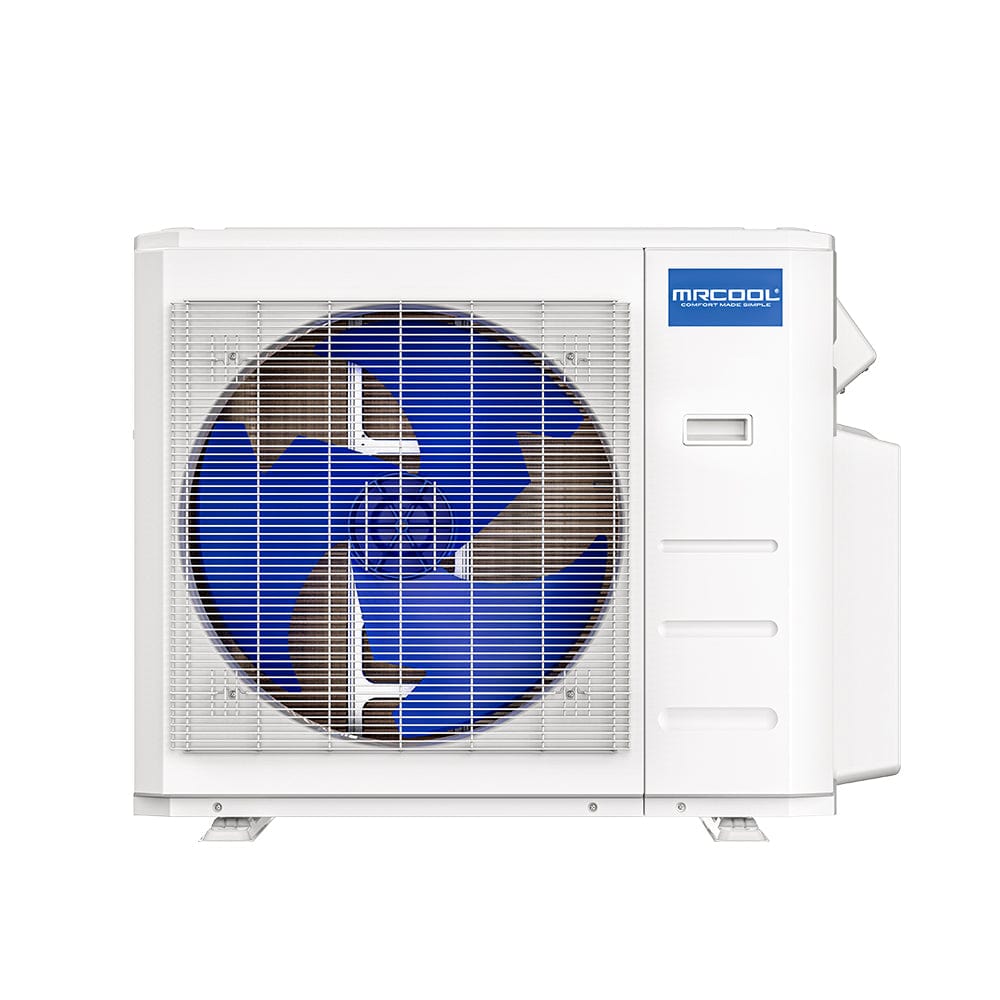

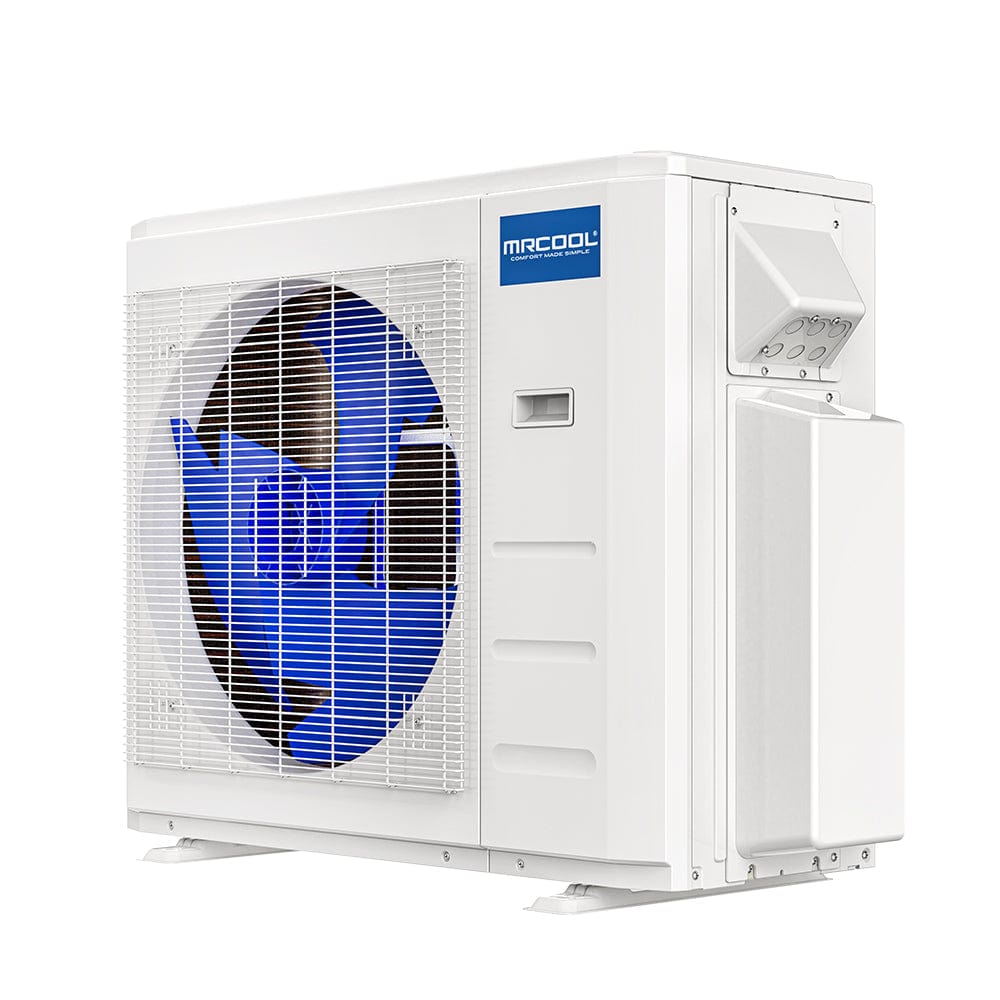

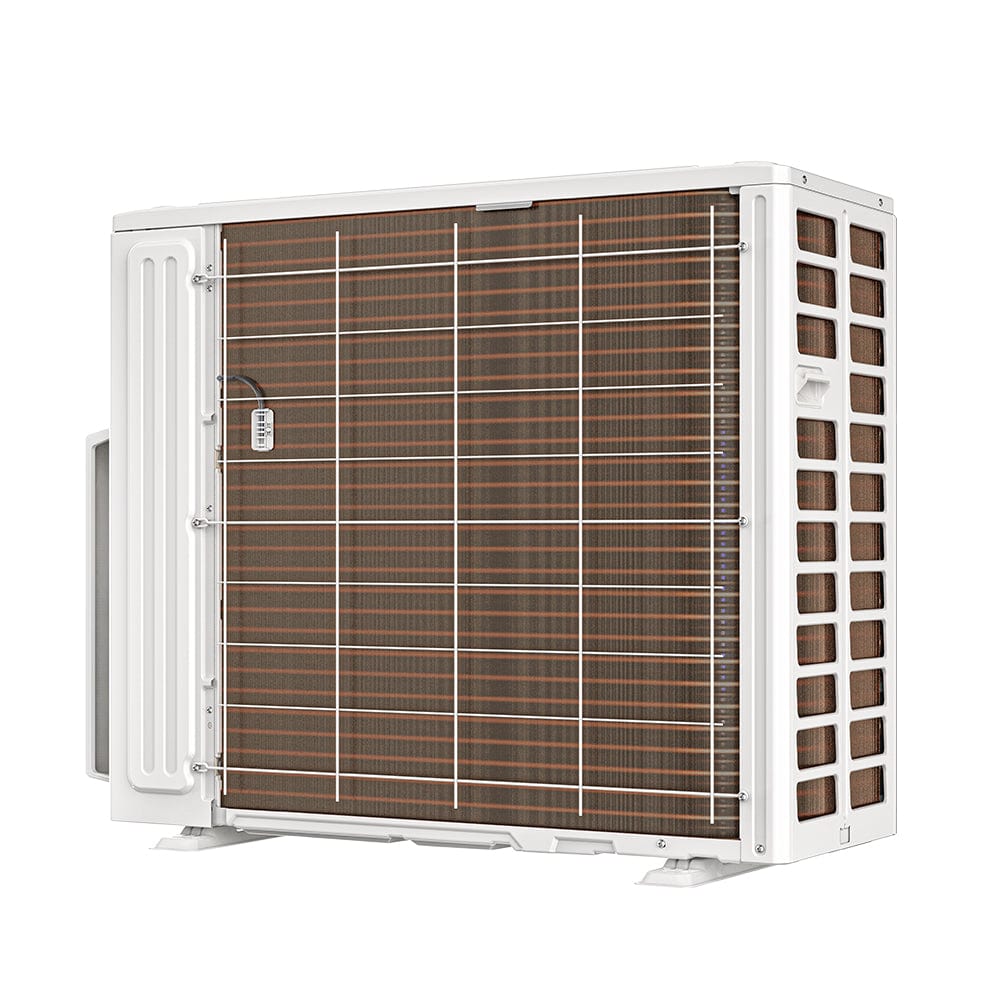

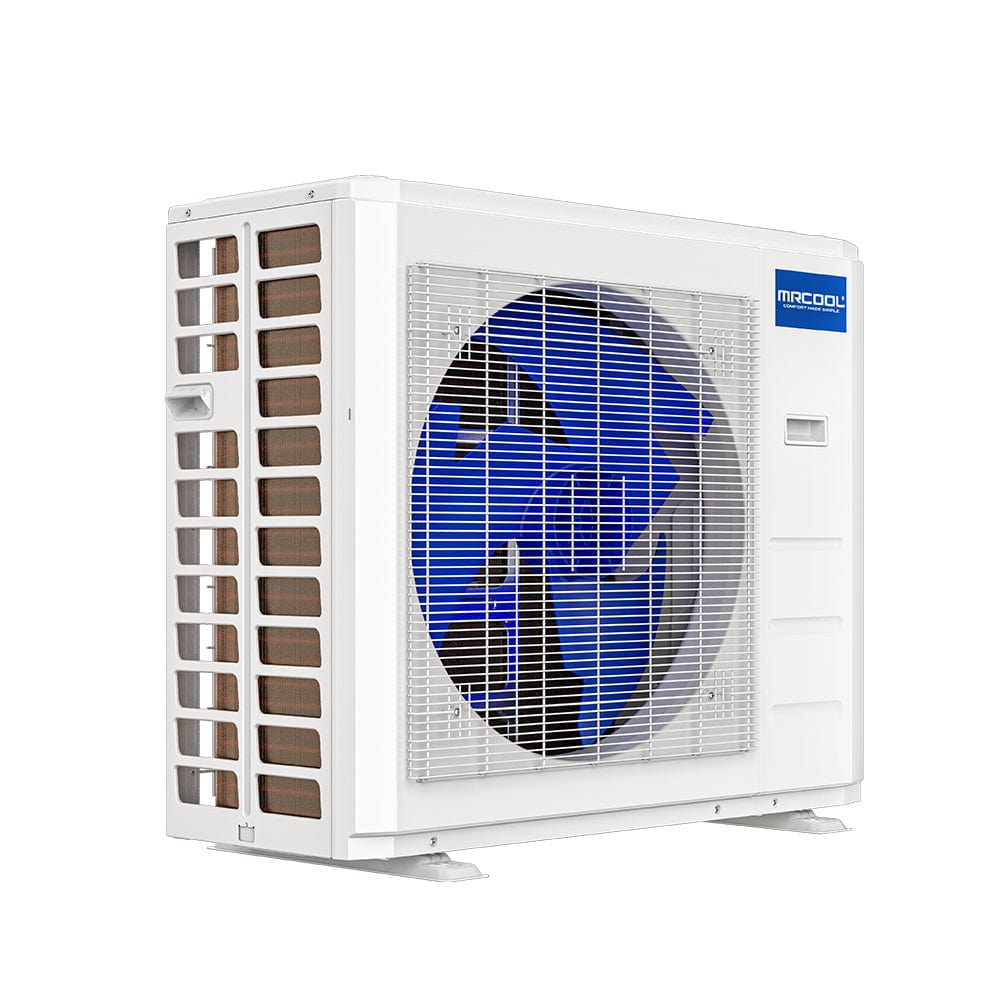

Condenser
- Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
- Works In All Environments. The ability to heat even when temperatures drop to -13°F.
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

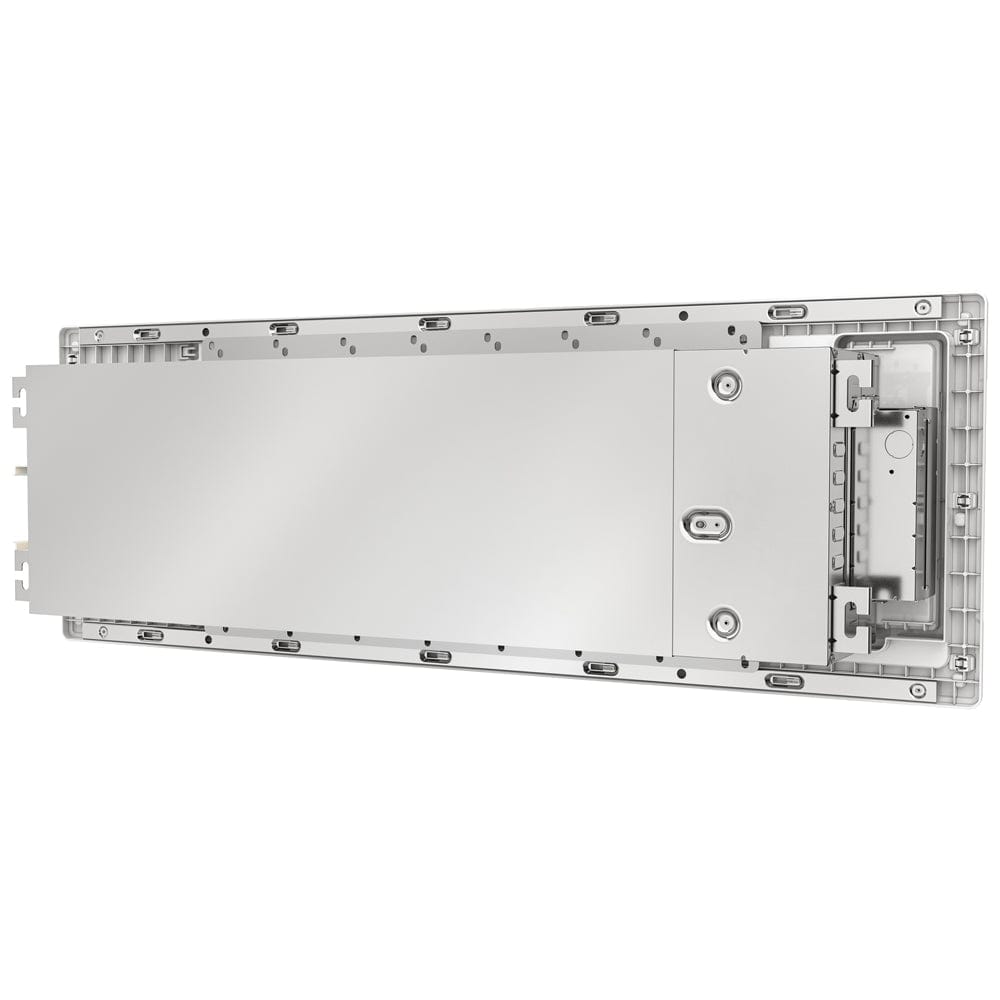

Air Handler, 12K BTU, Quantity 2
- Large Coverage Area. Handler covers an area up to 500 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Line Set 25 ft., Quantity 1
-
This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
- Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
Line Set 35 ft., Quantity 1
-
This 35 ft. copper line set connects the MRCOOL DIY Condenser to the MR COOL DIY Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
- Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
Additional Line Sets & Coupler
If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.
What does this package include?
This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.
Specifications of MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. and 35 ft. Install Kit, DIYM227HPW02C08:
Condenser Specifications
Product Dimensions | 37.24"W x 16.14"D x 31.89"H |
Cooling Capacity | 27,000 BTU |
Heating Capacity | 27,000 BTU |
Zone Capacity | 3 |
Min Ambient Cool | 5F ~ 122F |
Min Ambient Heat | -13F ~ 75.2F |
SEER |
22 |
EER |
12 |
Voltage | Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase) |
Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 12K BTU
Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
Mount Type | Wall |
Cooling Capacity | 12,000 BTU |
Heating Capacity |
12,000 BTU |
Registered Warranty | 5 Years Parts |
Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Line Set
Length | 25 Feet |
Liquid Line Size |
1/4" |
Suction Line Size | 1/2" |
Line Set
Length | 35 Feet |
Liquid Line Size |
1/4" |
Suction Line Size | 1/2" |
