MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM218HPW01C07

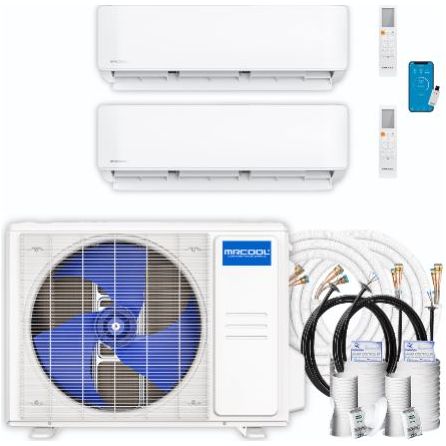

Transform your home’s climate control with the MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM218HPW01C07. This 4th Generation system provides all the essential components to efficiently cool and heat two separate rooms, ensuring your comfort throughout the year. You’ll receive a DIY 18,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, one 12,000 BTU Wall Mounted Air Handler, two remotes, and two 25 ft. installation kits, making it a comprehensive solution for your home.

The real advantage of the MRCOOL DIY Mini Split is its effortless installation process, empowering you to take control of your home’s comfort without the need for professional assistance. Enhanced Wi-Fi engineering simplifies setup, allowing you to connect and configure your system quickly and easily. Its flexible design ensures it can be installed almost anywhere, eliminating the need for specialized tools or costly equipment.

Experience the satisfaction of a DIY installation while enjoying the consistent comfort that the MRCOOL DIY Mini Split provides. It's the ideal choice for modern living, combining advanced technology with user-friendly features to enhance your indoor environment.

Package Includes

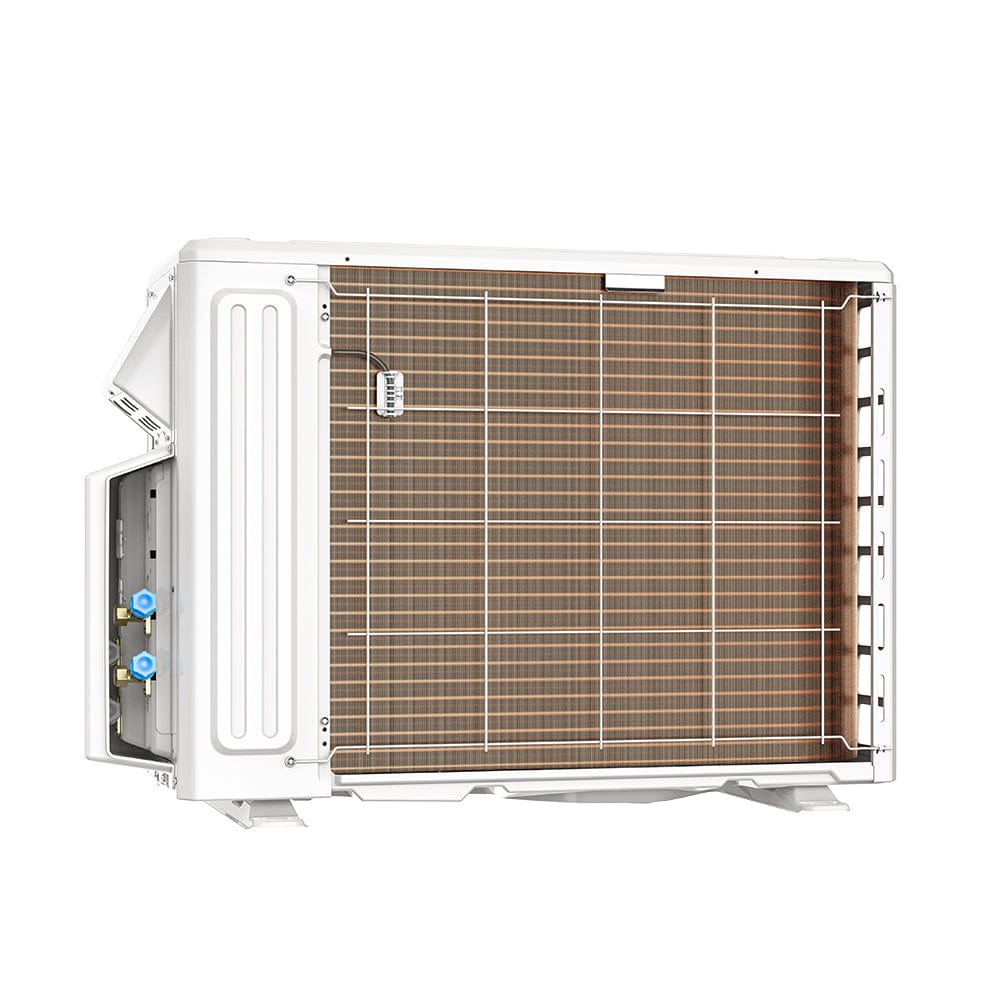

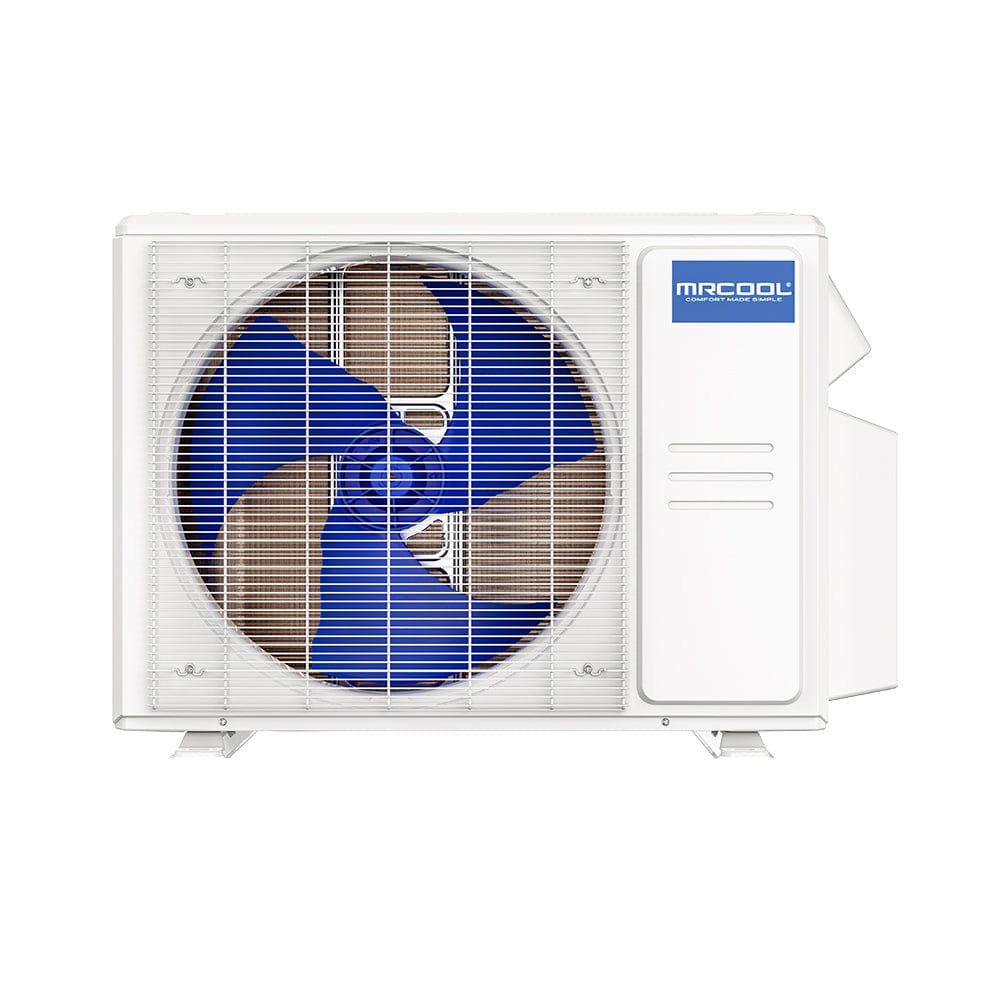

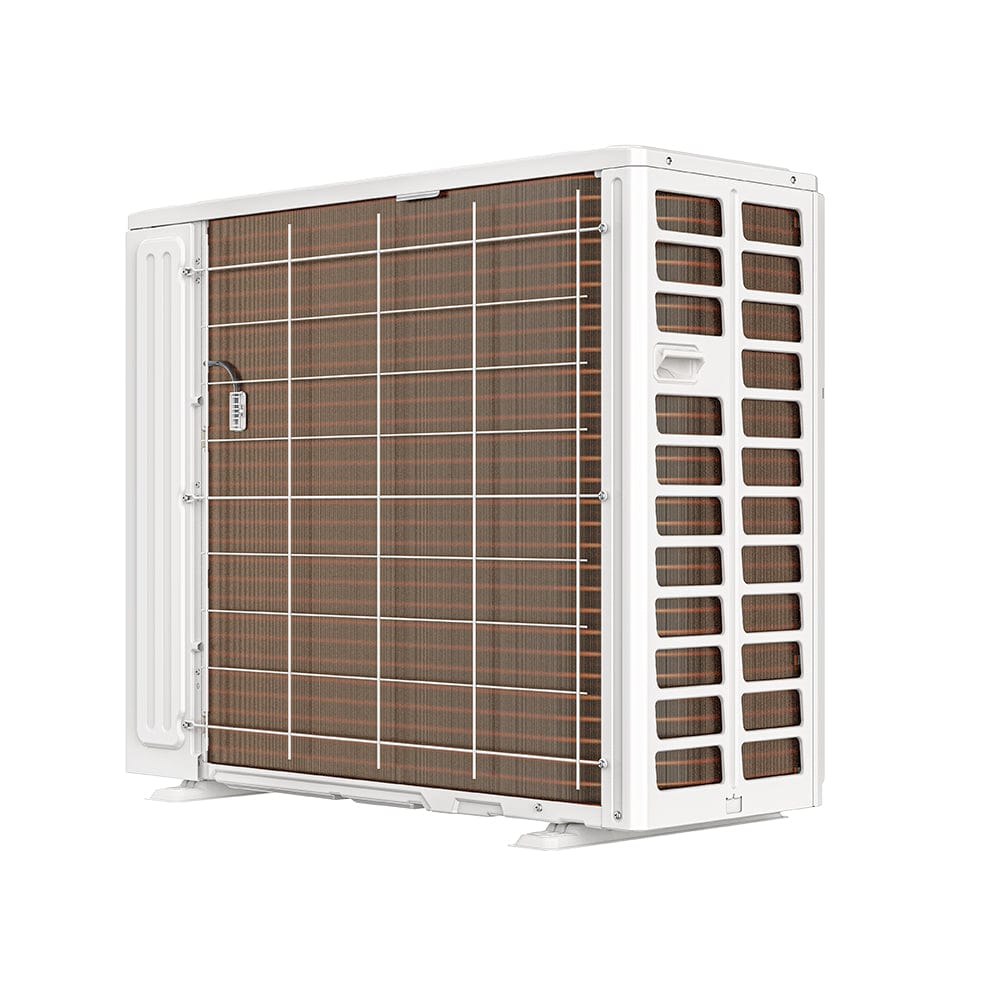

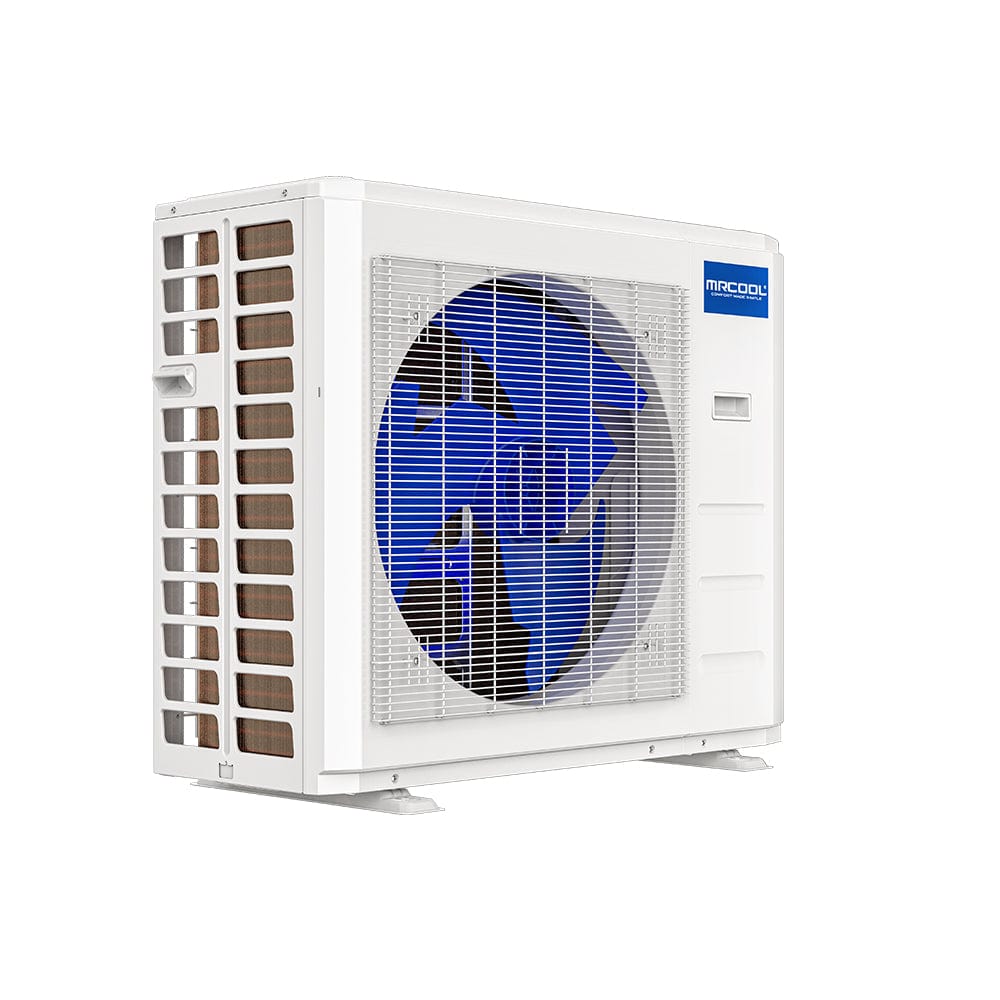

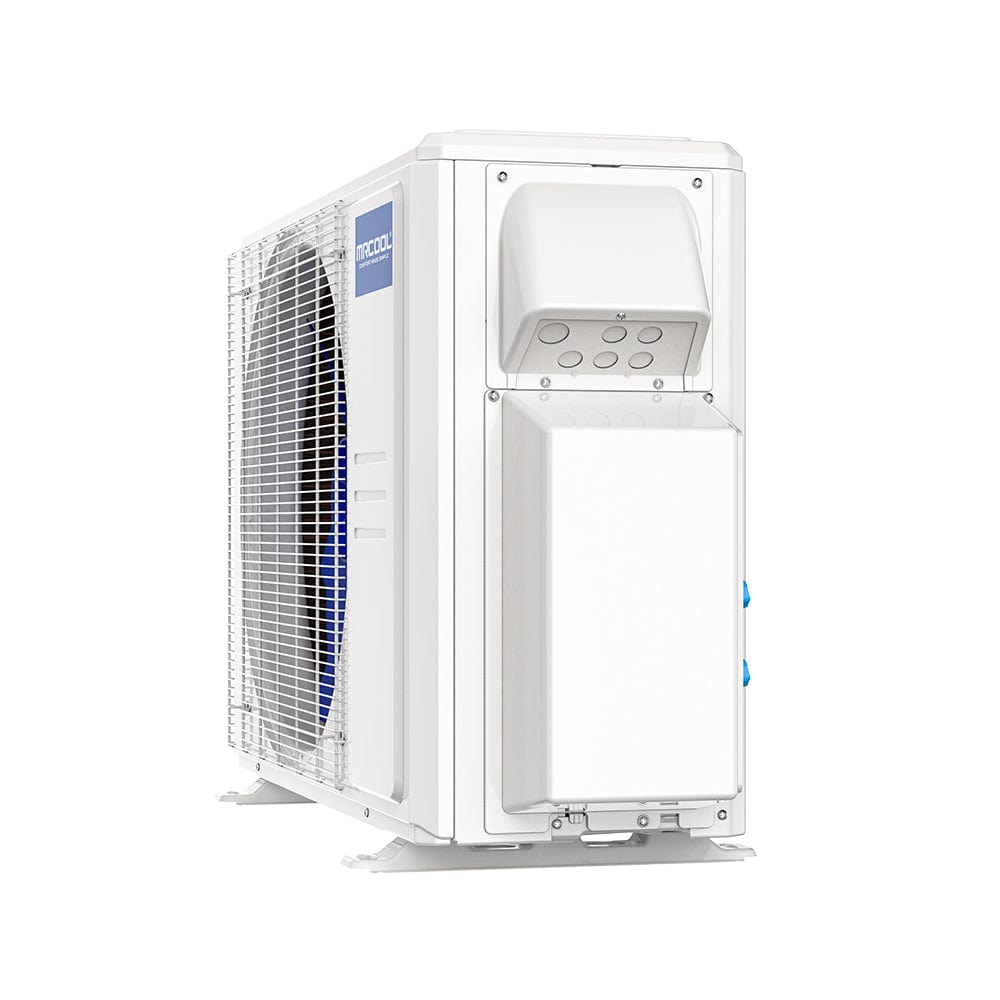

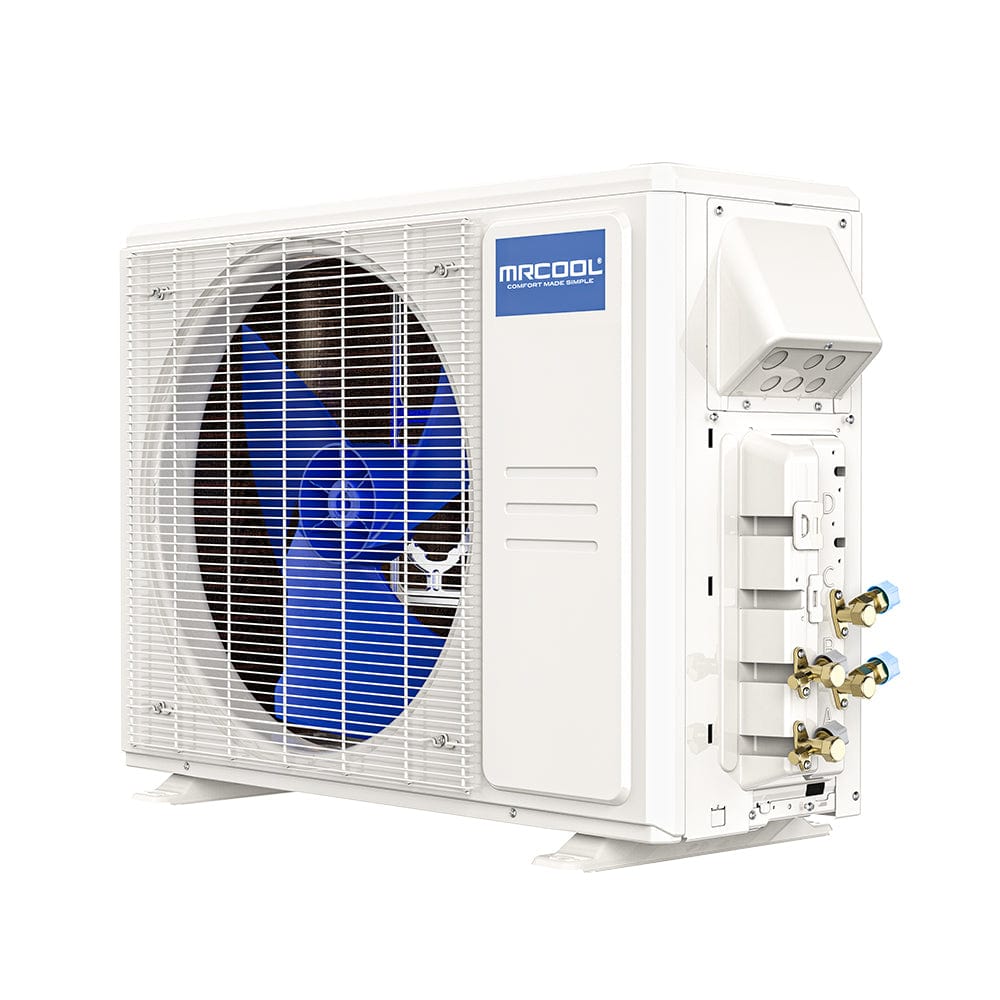

Condenser

Energy Efficient. This 2 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21 SEER efficiency rating.
Works In All Environments. The ability to heat even when temperatures drop to -13°F.
Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

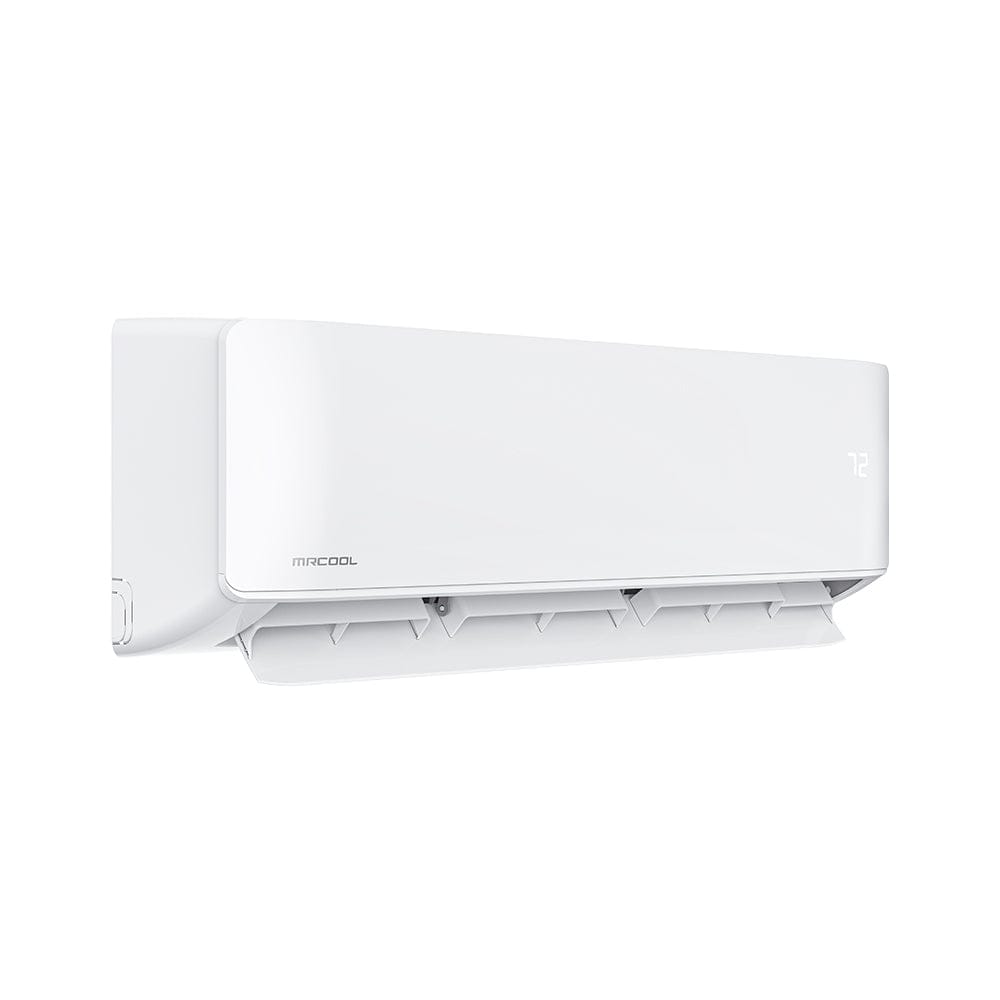

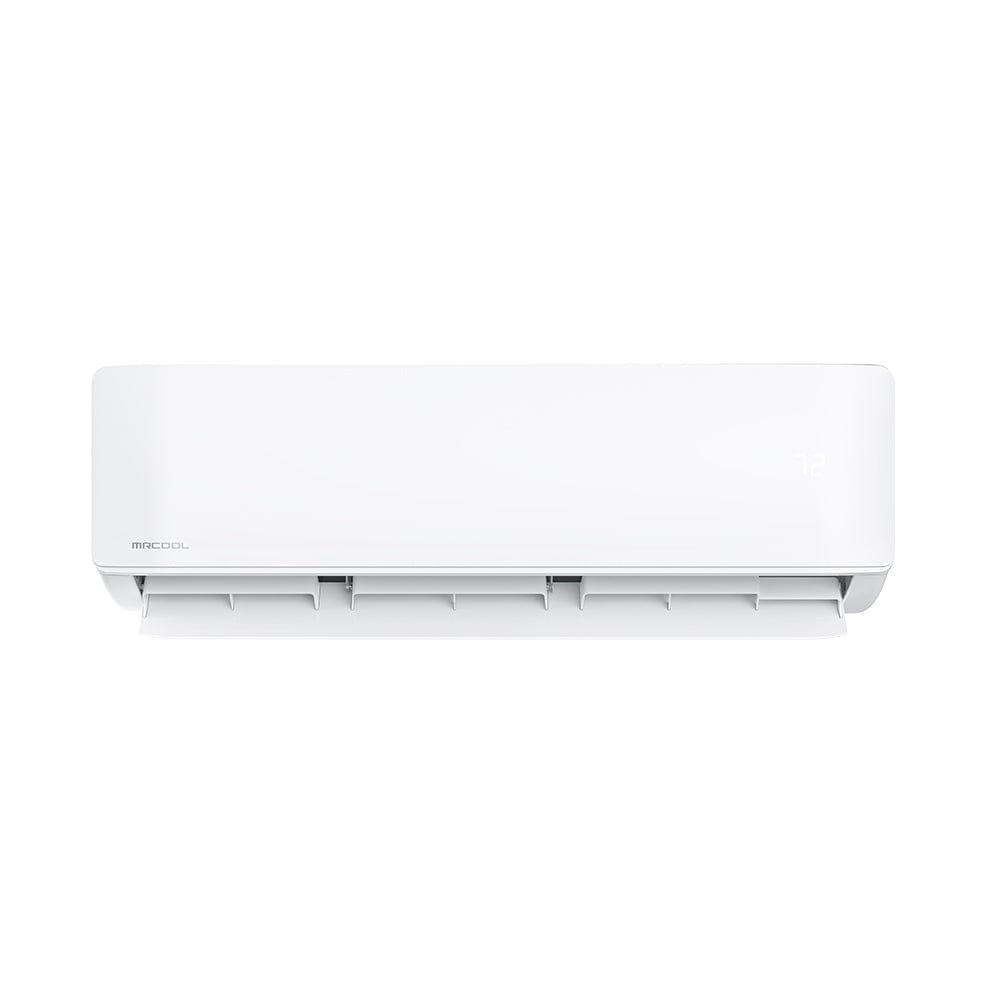

Air Handler, 9K BTU, Quantity 1

Large Coverage Area. Handler covers an area up to 375 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

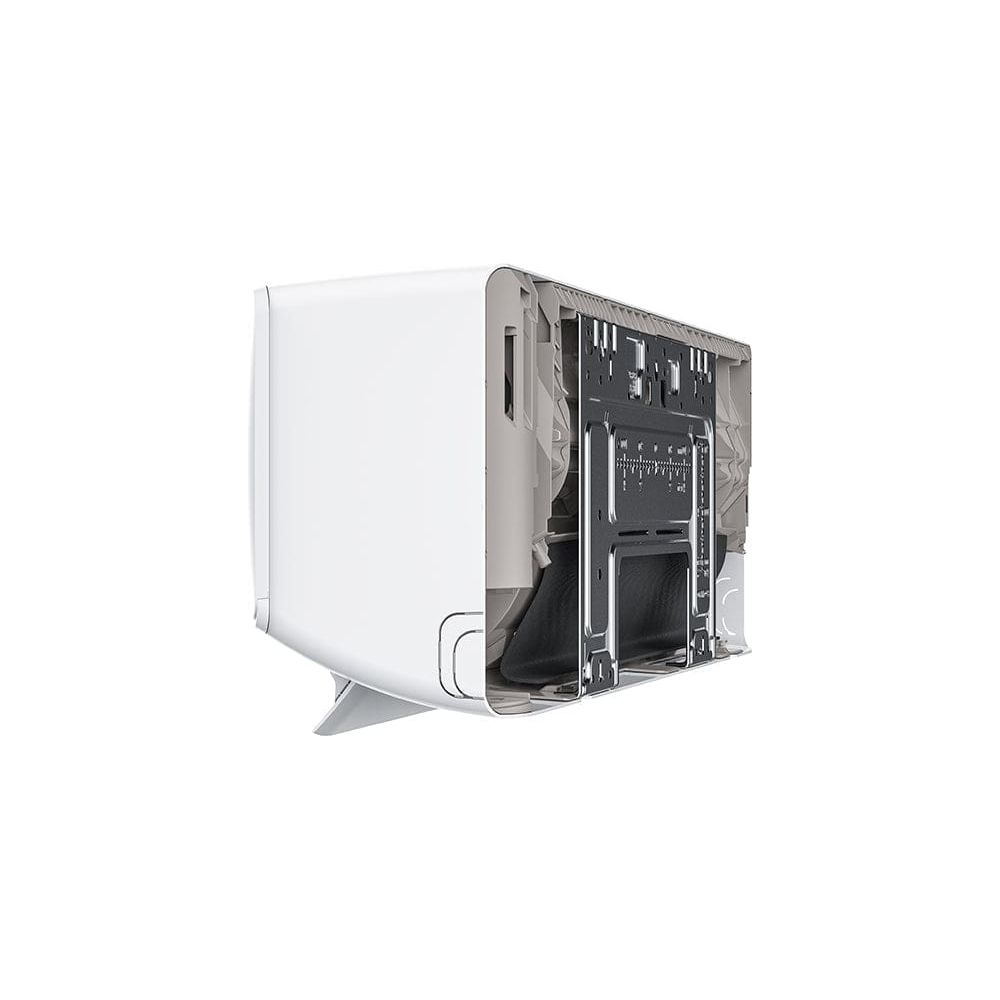

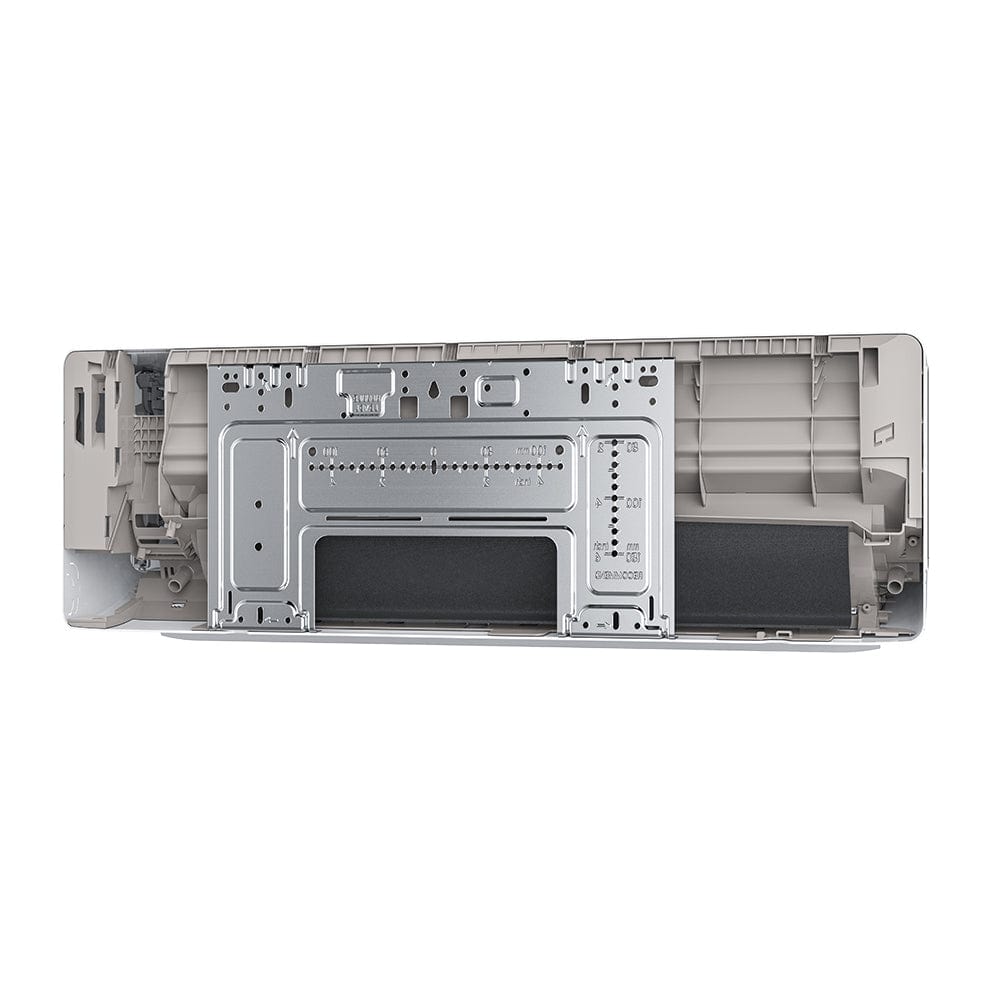

Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

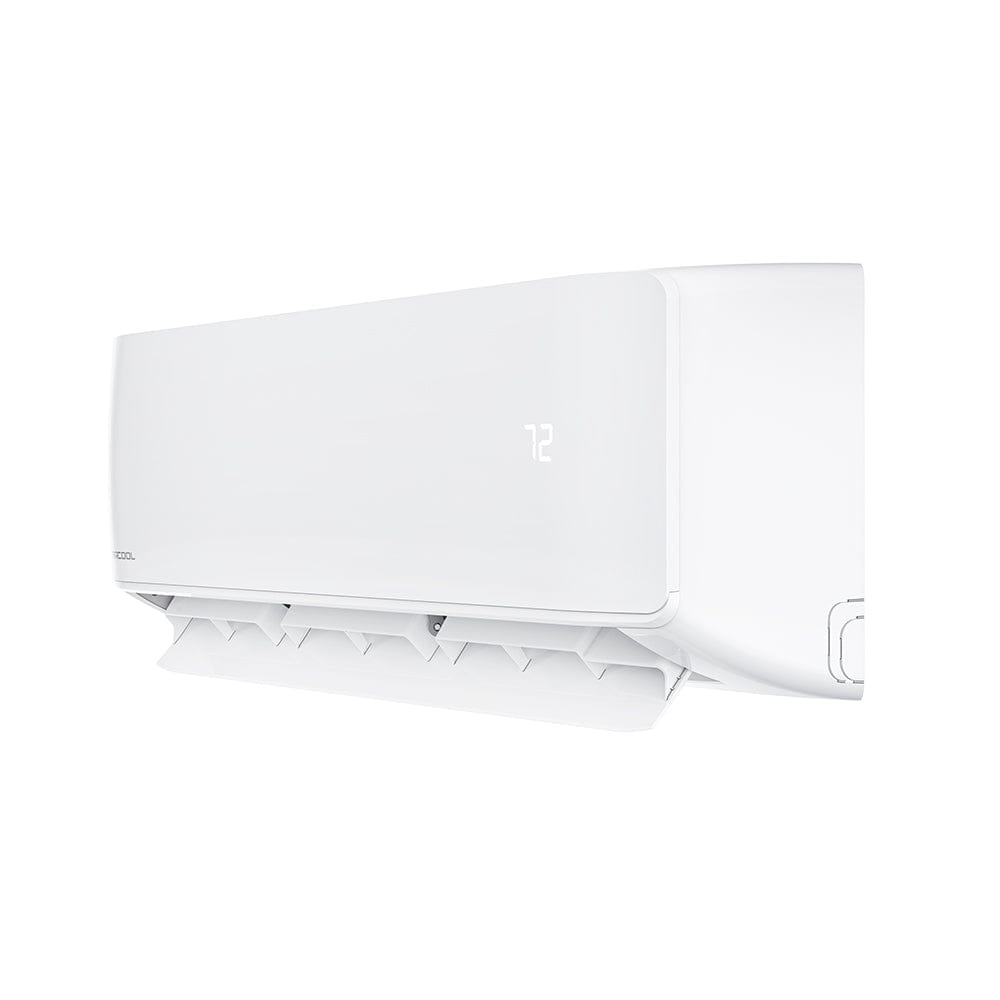

Air Handler, 12K BTU, Quantity 1

Large Coverage Area. Handler covers an area up to 500 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

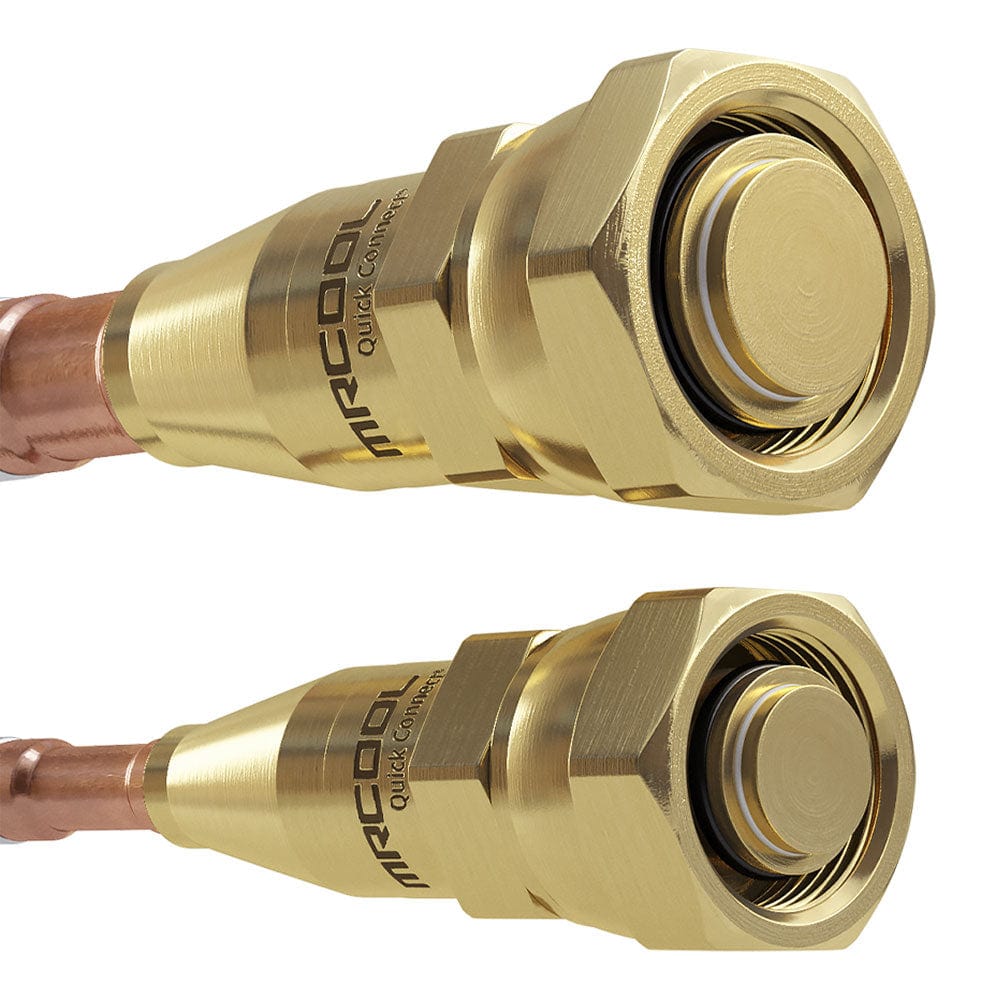

Line Set 25 ft., Quantity 2

This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Additional Line Sets & Coupler

If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

What does this package include?

This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.

PRODUCT SPECIFICATIONS:
Condenser Specifications

Product Dimensions	35.04"W x 13.46"D x 26.50"H
Cooling Capacity	18,000 BTU
Heating Capacity	19,000 BTU
Zone Capacity	2
Min Ambient Cool	5F ~ 122F
Min Ambient Heat	-13F ~ 75.2F
SEER	21
EER	12.5
Voltage	Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty	7 Years Replacement on Condenser, 5 Years Parts

Air Handler 9K BTU

Product Dimensions	31.57"W x 7.44"D x 11.69"H
Mount Type	Wall
Cooling Capacity	9,000 BTU
Heating Capacity	9,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep

Air Handler 12K BTU

Product Dimensions	31.57"W x 7.44"D x 11.69"H
Mount Type	Wall
Cooling Capacity	12,000 BTU
Heating Capacity	12,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep

Line Set

Length	25 Feet
Liquid Line Size	1/4"
Suction Line Size	1/2"

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
