MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM218HPW01C00

MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM218HPW01C00

by MRCOOL
SKU DIYM218HPW01C00
In stock | ETA: to
Save $895.36
$3,693.36
$2,798.00

Notify me when back in stock

FREE EXPRESS SHIPPING Process orders in 1 business day
STRESS FREE RETURNS 2 Year Returns
Primum Quality Top Tier Products, Even Better Customer Care
5 Year Warranty We Believe In Our Products & Our Team
Professional Services Get service quotes the same day
Product Image
MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM218HPW01C00
$3,693.36 $2,798.00

CUSTOMER SPOTLIGHT
FREE EXPRESS SHIPPING

Process orders in 1 business day

Stress Free Returns

2 Year Returns

Primum Quality

Top Tier Products, Even Better Customer Care

5 Year Warranty

We Believe In Our Products & Our Team

    MRCOOL DIY Mini Split - 21,000 BTU 2
    Zone Ductless Air Conditioner and
       Heat Pump with 16 ft. Install Kit,
     DIYM218HPW01C00

This 4th Generation MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM218HPW01C00 includes everything you need to cool and heat two different rooms. MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM218HPW01C00 be sent: DIY 18,000 BTU Multi-Zone Condenser, 9,000 BTU Wall Mounted Air Handler, 12,000 BTU Wall Mounted Air Handler, two Remotes, and two 16 ft. Installation Kits. The best part about all of MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM218HPW01C00 is that you can install it yourself! This MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM218HPW01C00 includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM218HPW01C00 is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.


MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM218HPW01C00

Package Includes

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 18K BTU Rating of the Condenser.

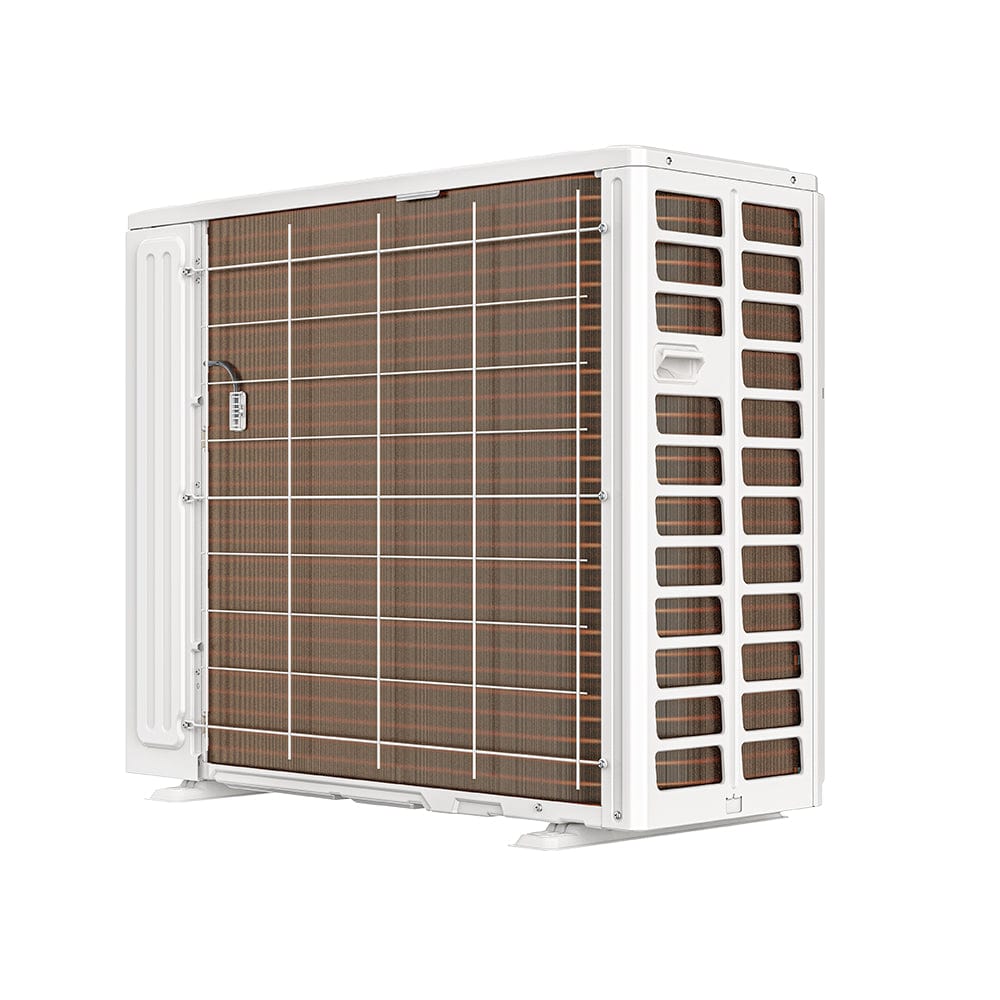

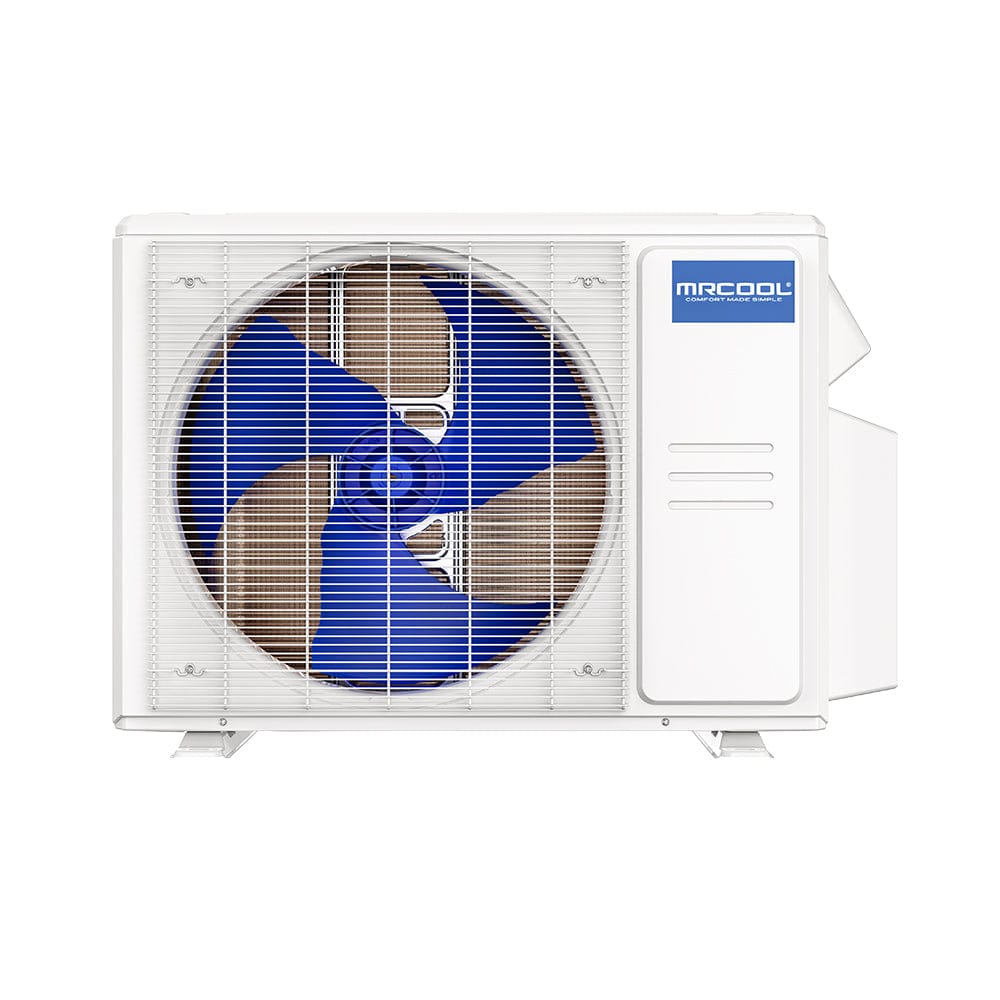

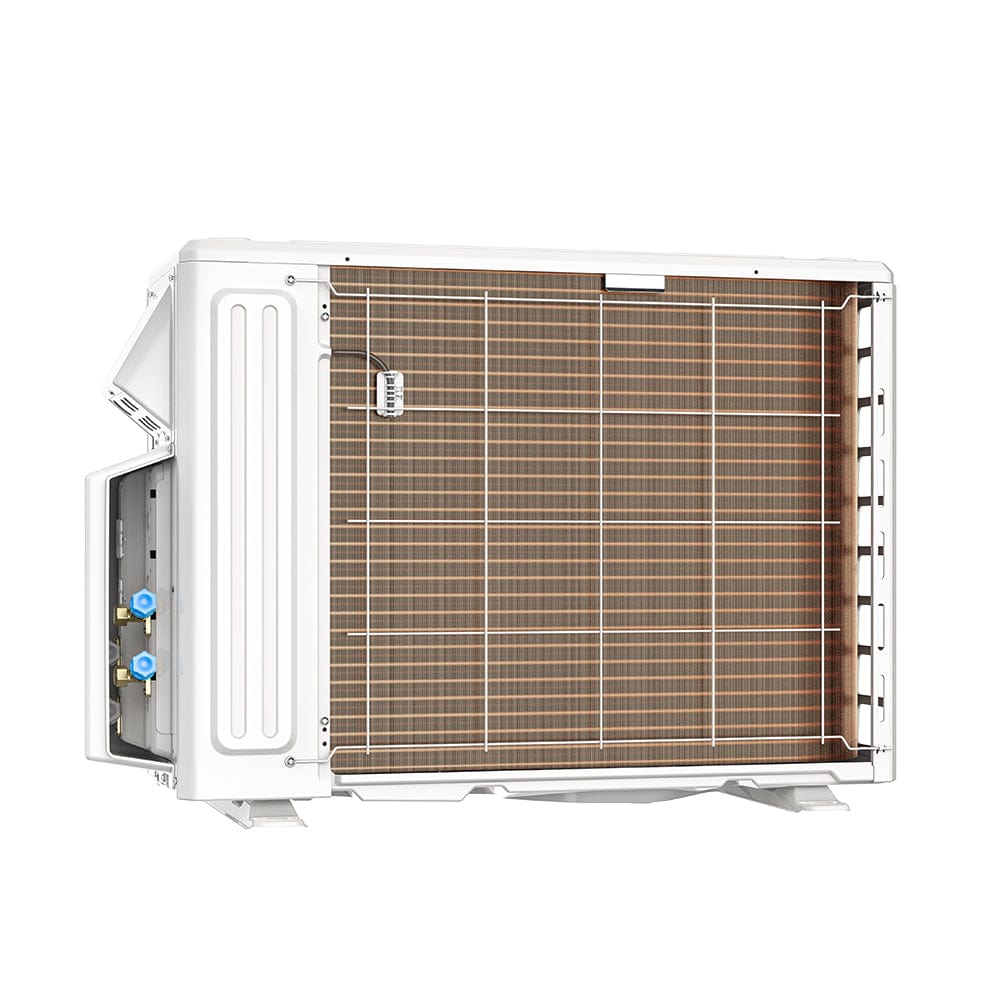

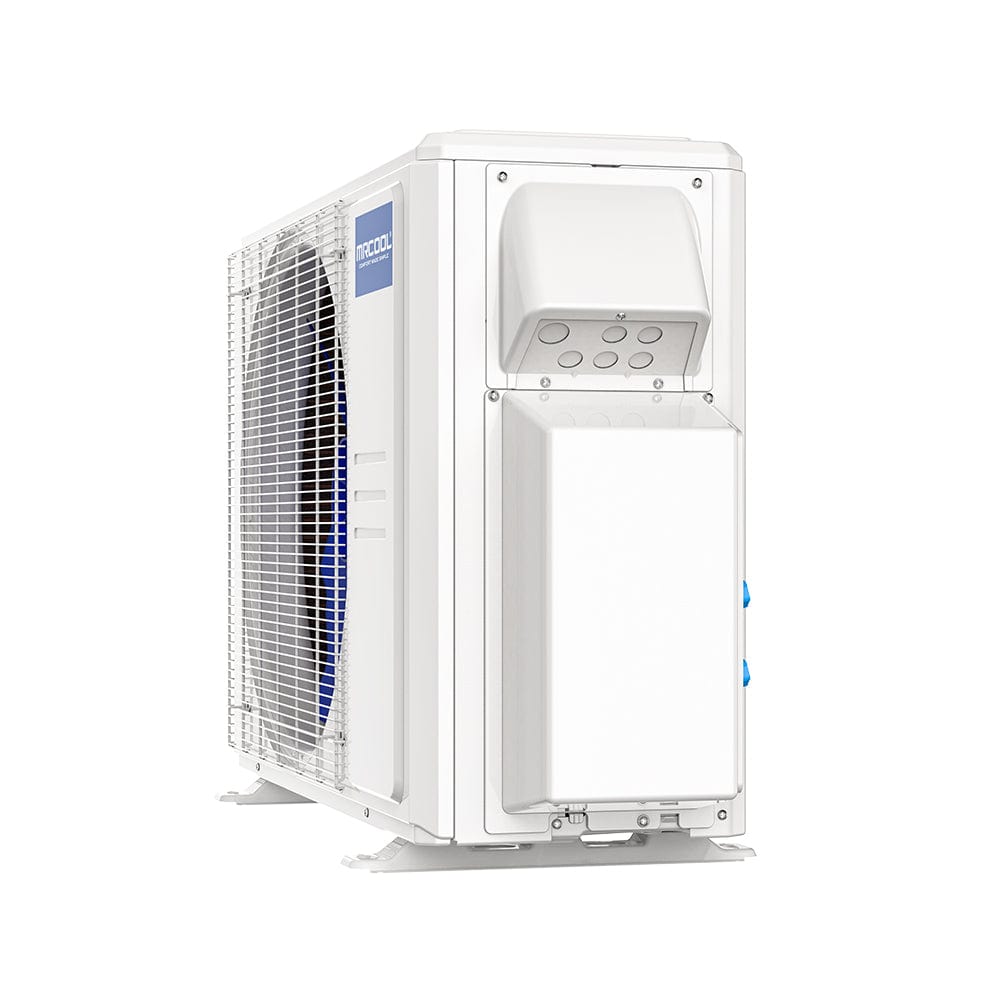

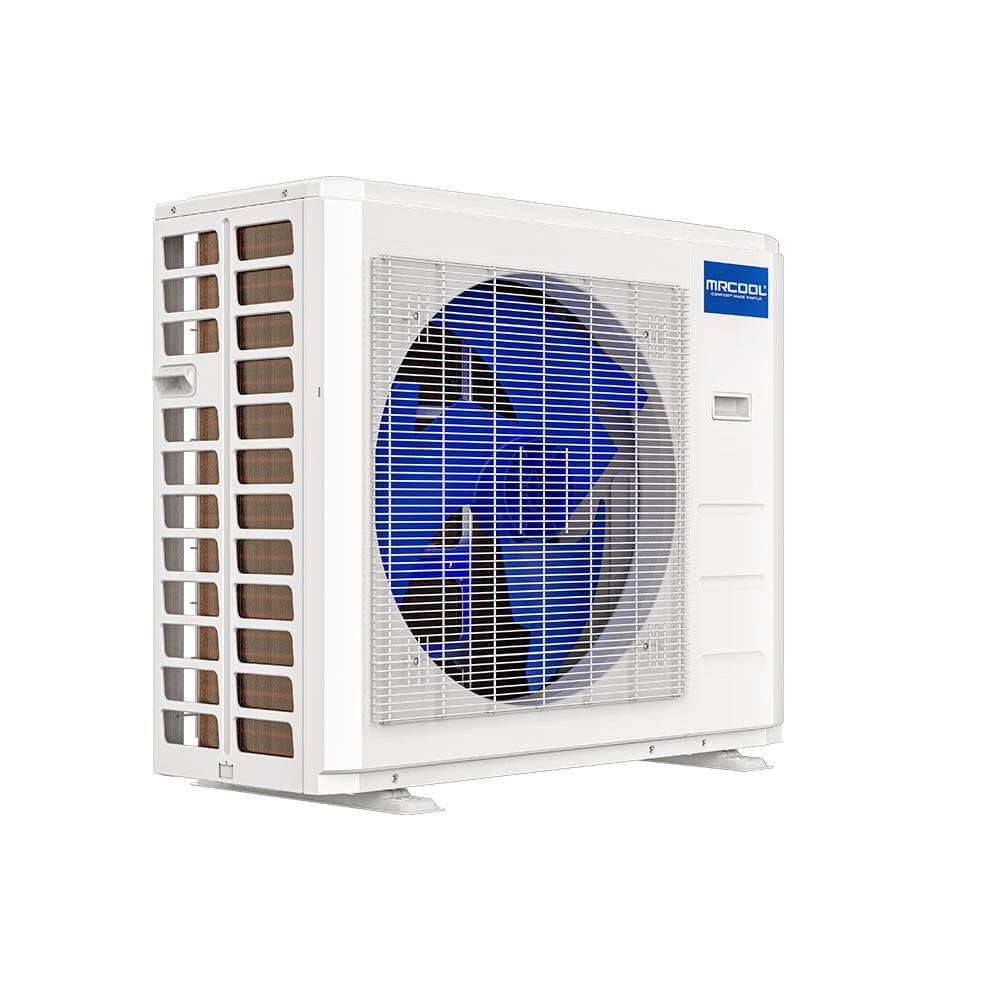

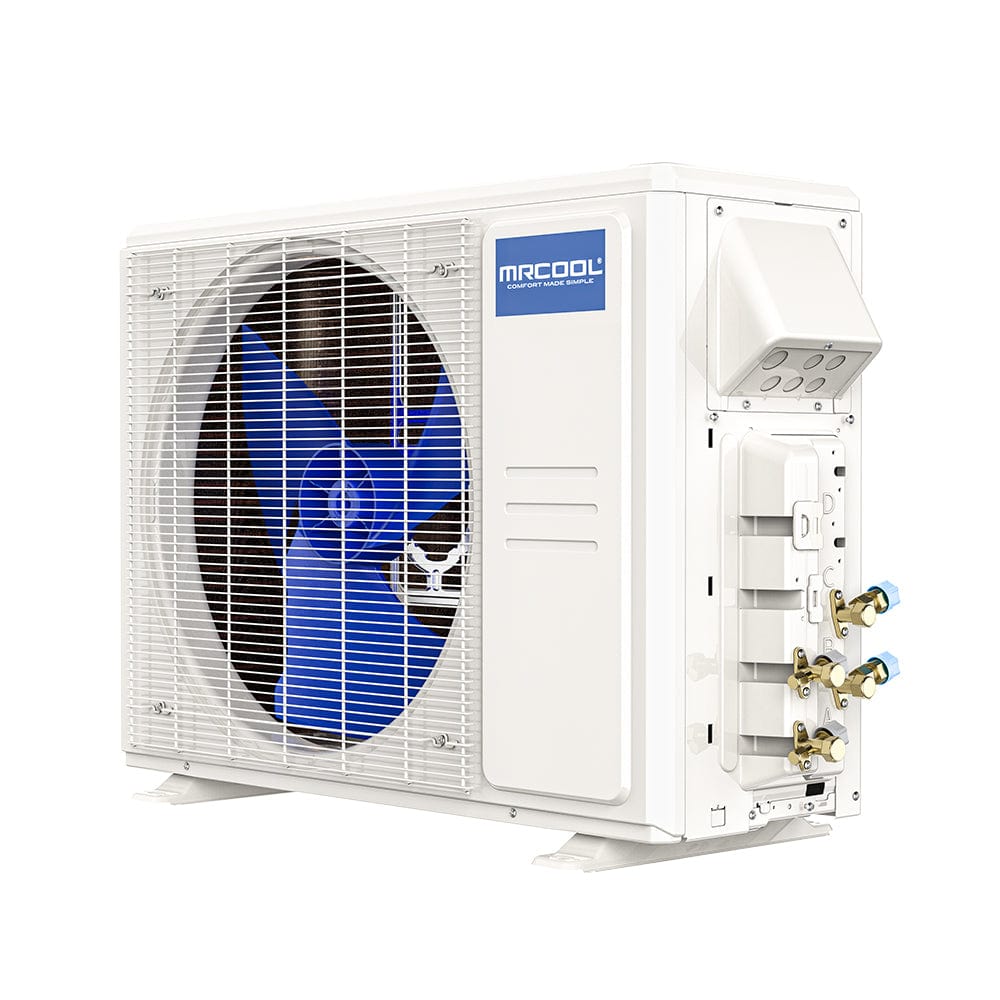

Condenser
  • Energy Efficient. This 2 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21 SEER efficiency rating.
  • Works In All Environments. The ability to heat even when temperatures drop as low as -13°F.
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

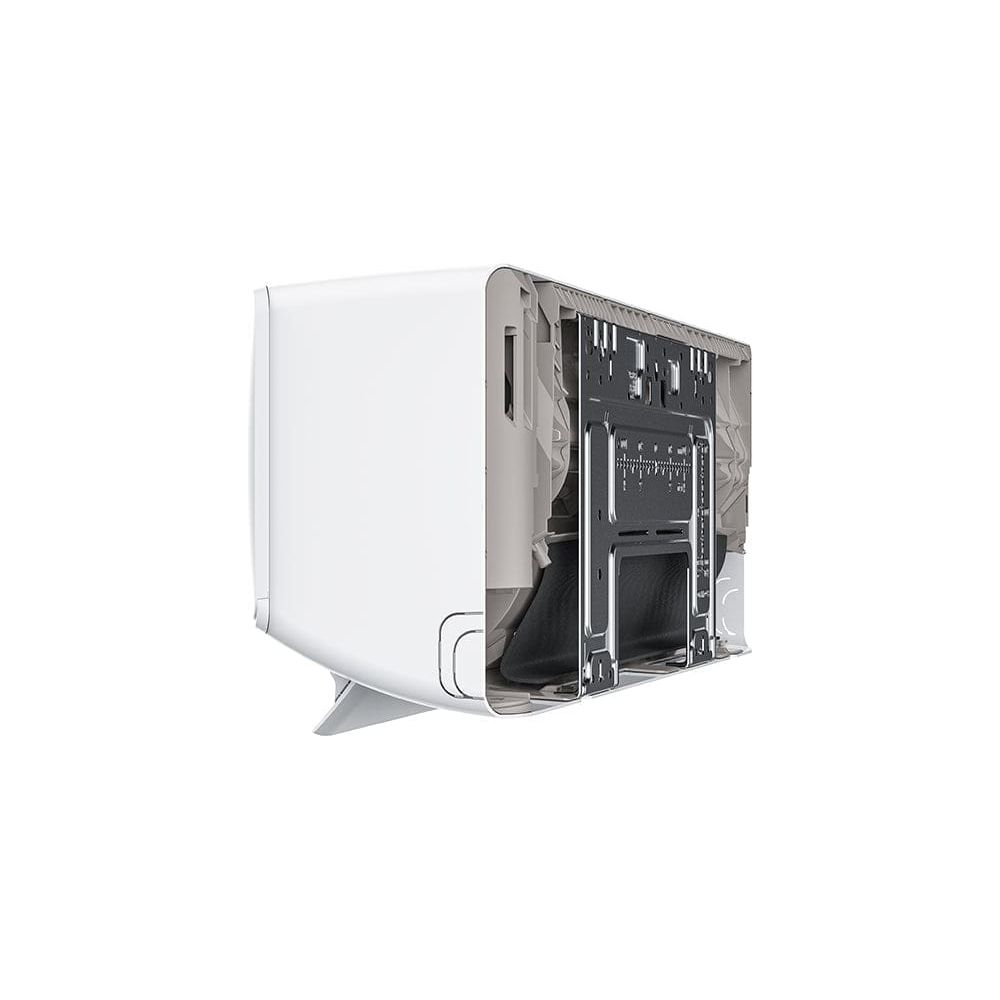

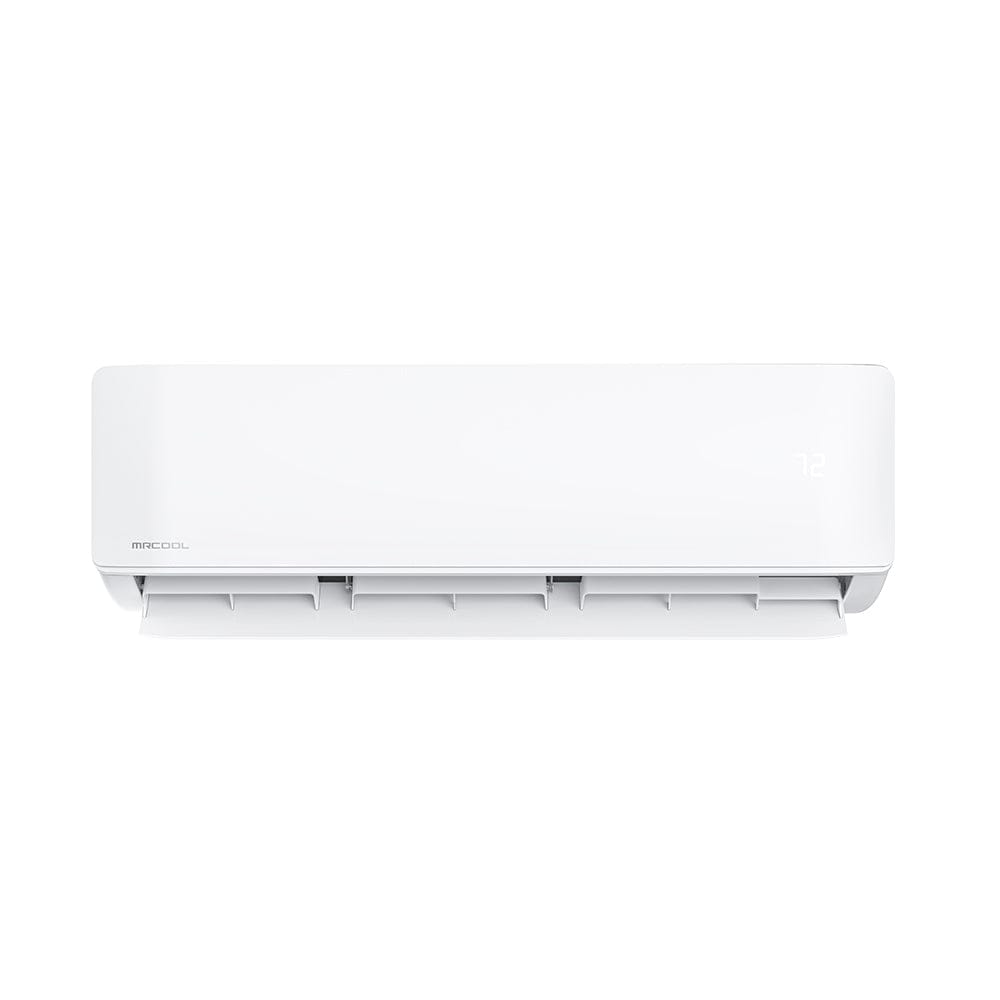

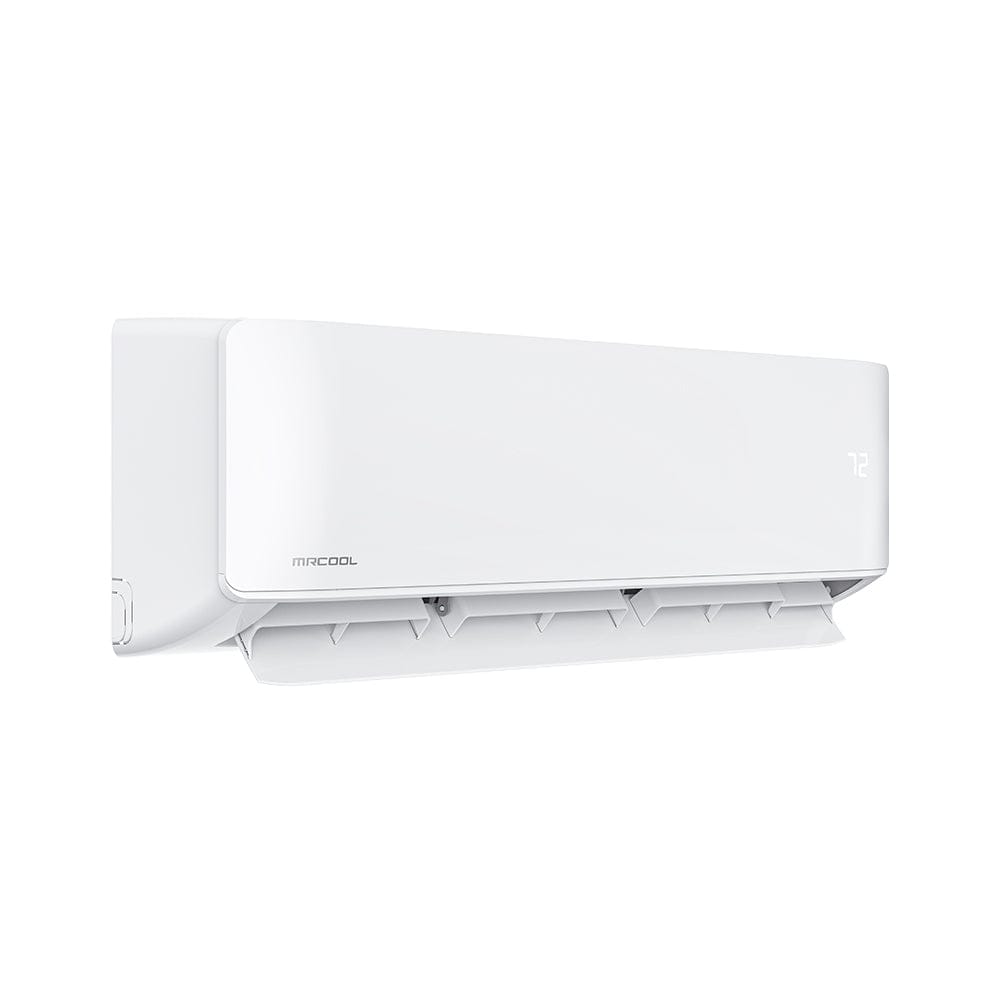

    Air Handler, 9K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 375 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

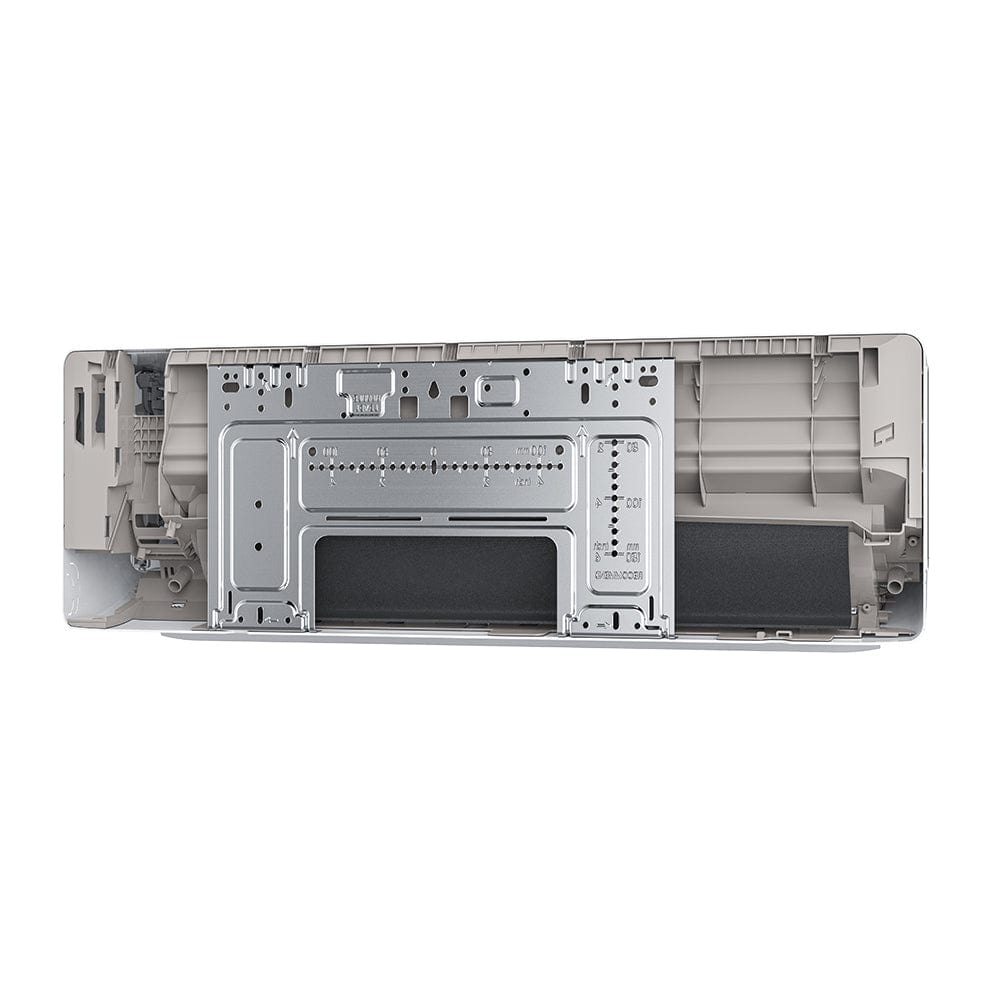

    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

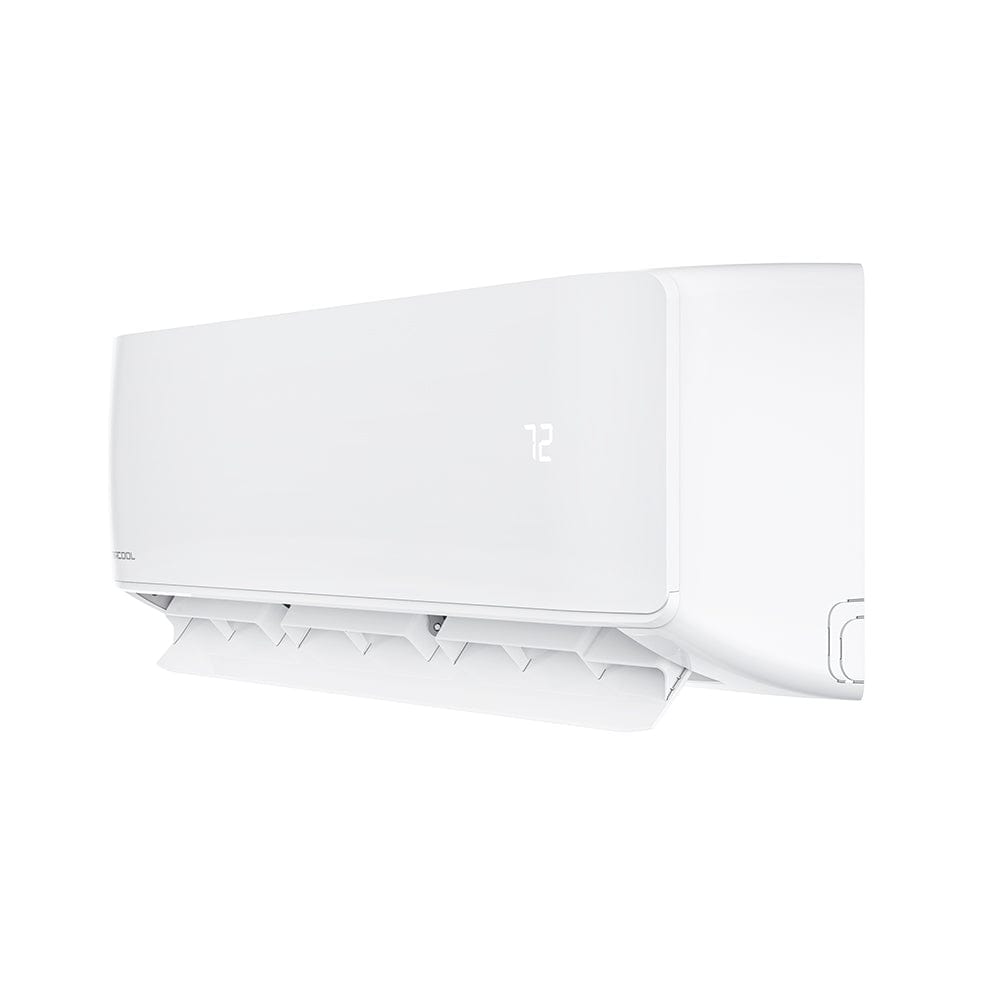

    Air Handler, 12K BTU, Quantity 1

    • Large Coverage Area. Handler covers an area up to 500 sq. ft.
    • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
    • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
    • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

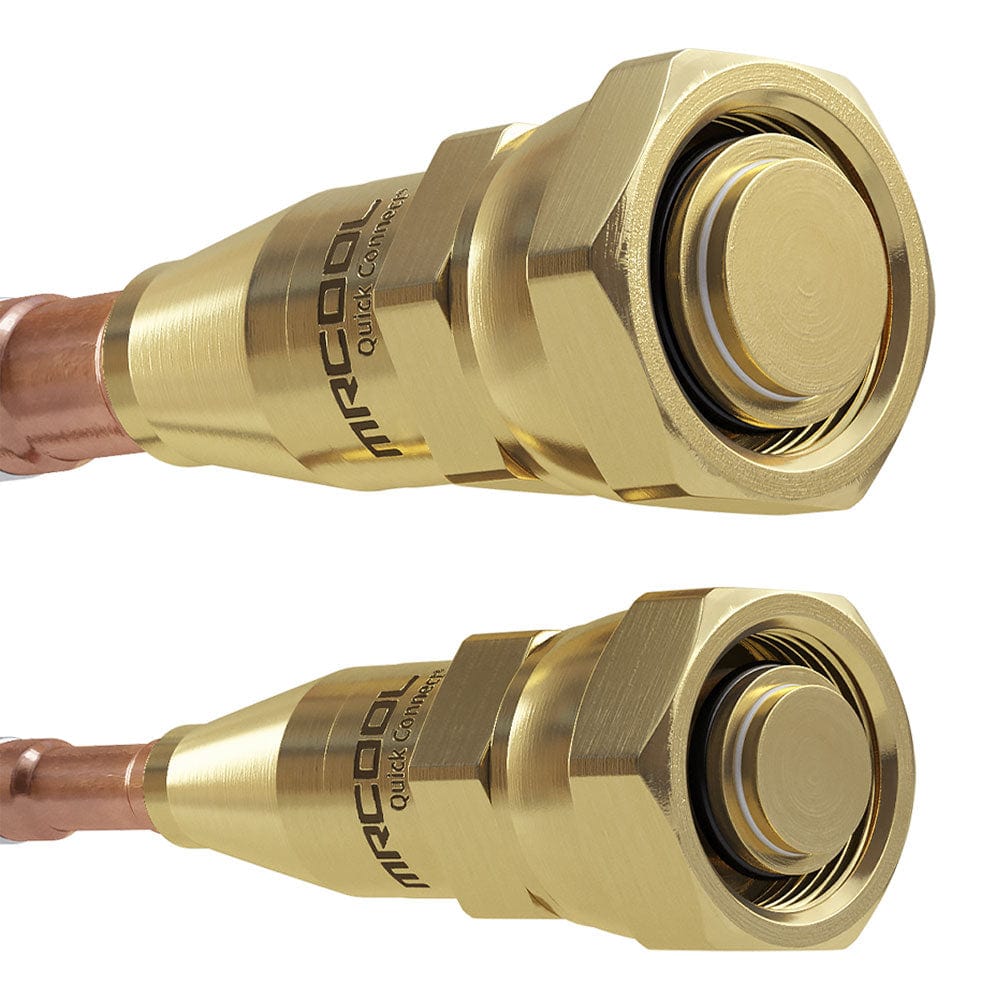

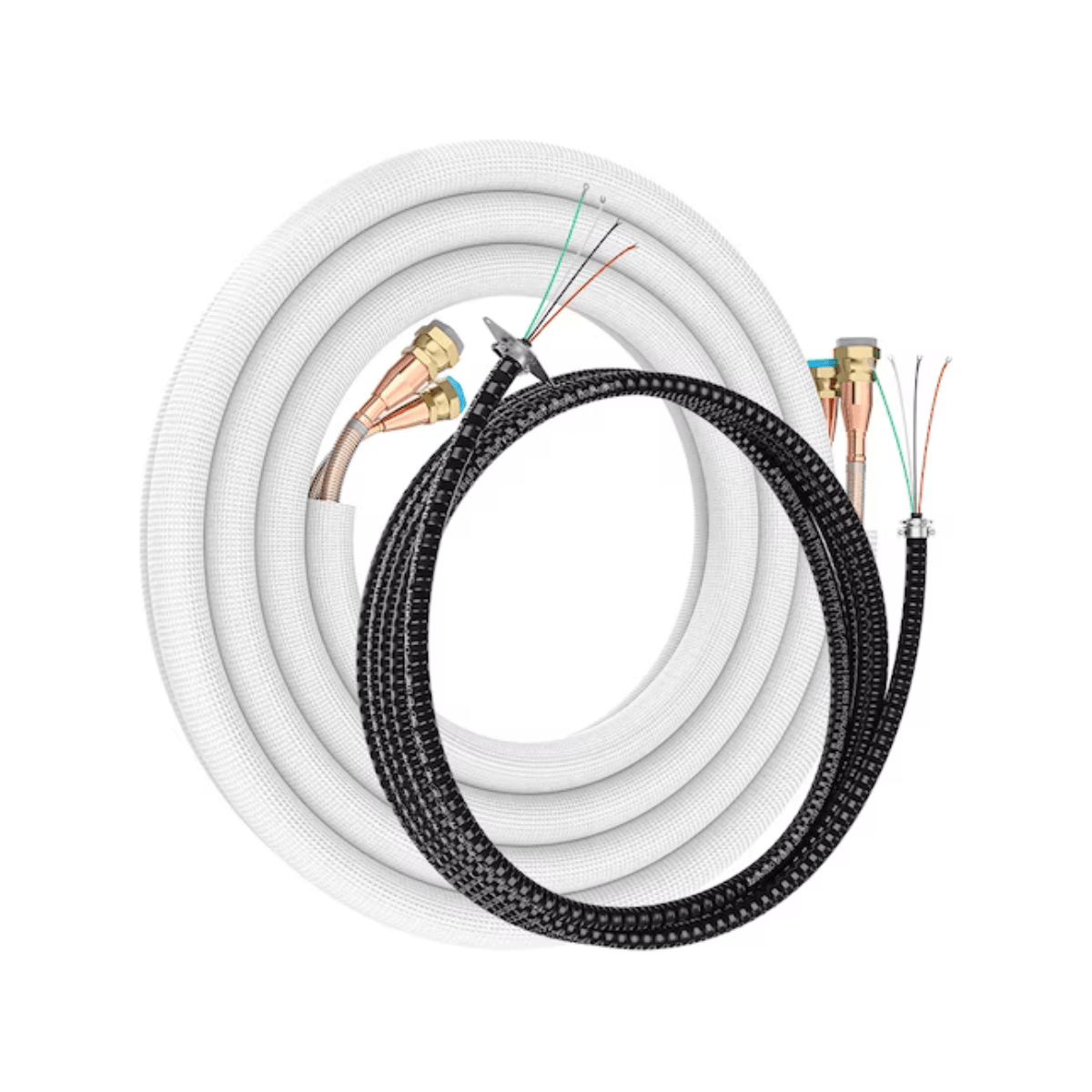

      Line Set 16 ft., Quantity 2
      • This 16 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
      • Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
      • DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

      Additional Line Sets & Coupler

      If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.


      Specifications of MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM218HPW01C00:

      Condenser

      Product Dimensions 35.04"W x 13.46"D x 26.50"H
      Cooling Capacity 18,000 BTU
      Heating Capacity 19,000 BTU
      Zone Capacity 2
      Min Ambient Cool 5F ~ 122F
      Min Ambient Heat -13F ~ 75.2F
      SEER 21
      EER 12.5
      Voltage Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
      Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


      Air Handler 9K BTU

      Product Dimensions 31.57"W x 7.44"D x 11.69"H
      Mount Type Wall
      Cooling Capacity 9,000 BTU
      Heating Capacity 9,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto - auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep


      Air Handler 12K BTU

      Product Dimensions 31.57"W x 7.44"D x 11.69"H
      Mount Type Wall
      Cooling Capacity 12,000 BTU
      Heating Capacity 12,000 BTU
      Registered Warranty 5 Years Parts
      Modes Auto - auto selects from Cool, Heat or Fan-Only
      Dry - dehumidify
      Cool
      Heat
      Fan Only
      Quiet
      Sleep


      Line Set

      Length 16 Feet
      Liquid Line Size 1/4"
      Suction Line Size 1/2"
      Installation Manual
      Product Brochure
      Performance Specifications
      Warranty
      Energy Guide
      AHRI Certificate
