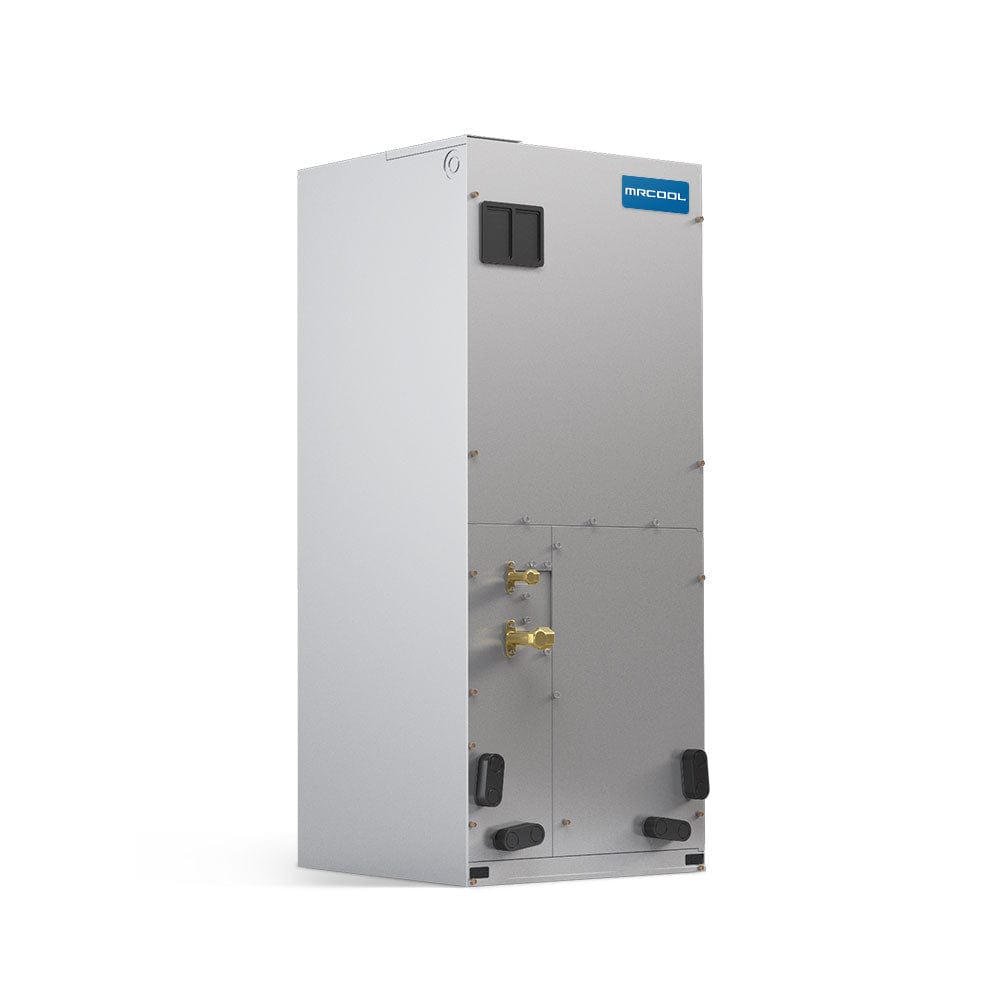

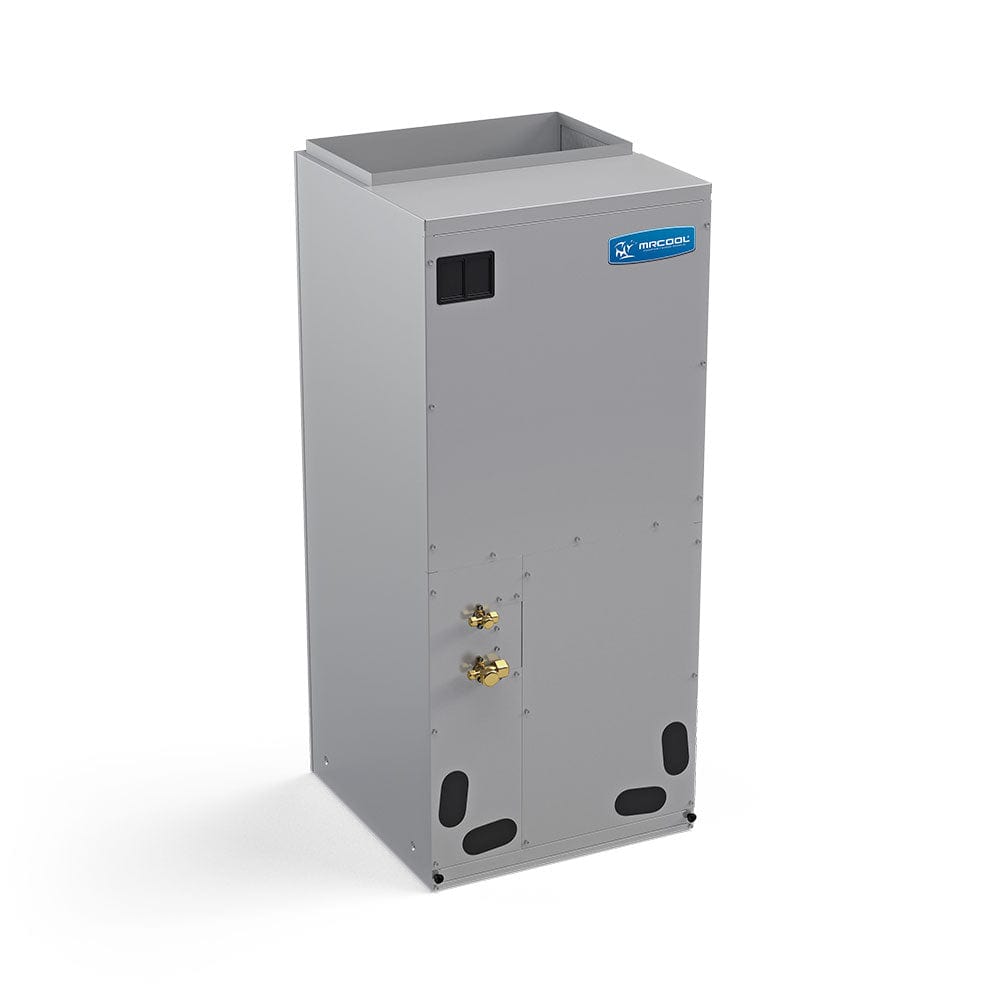

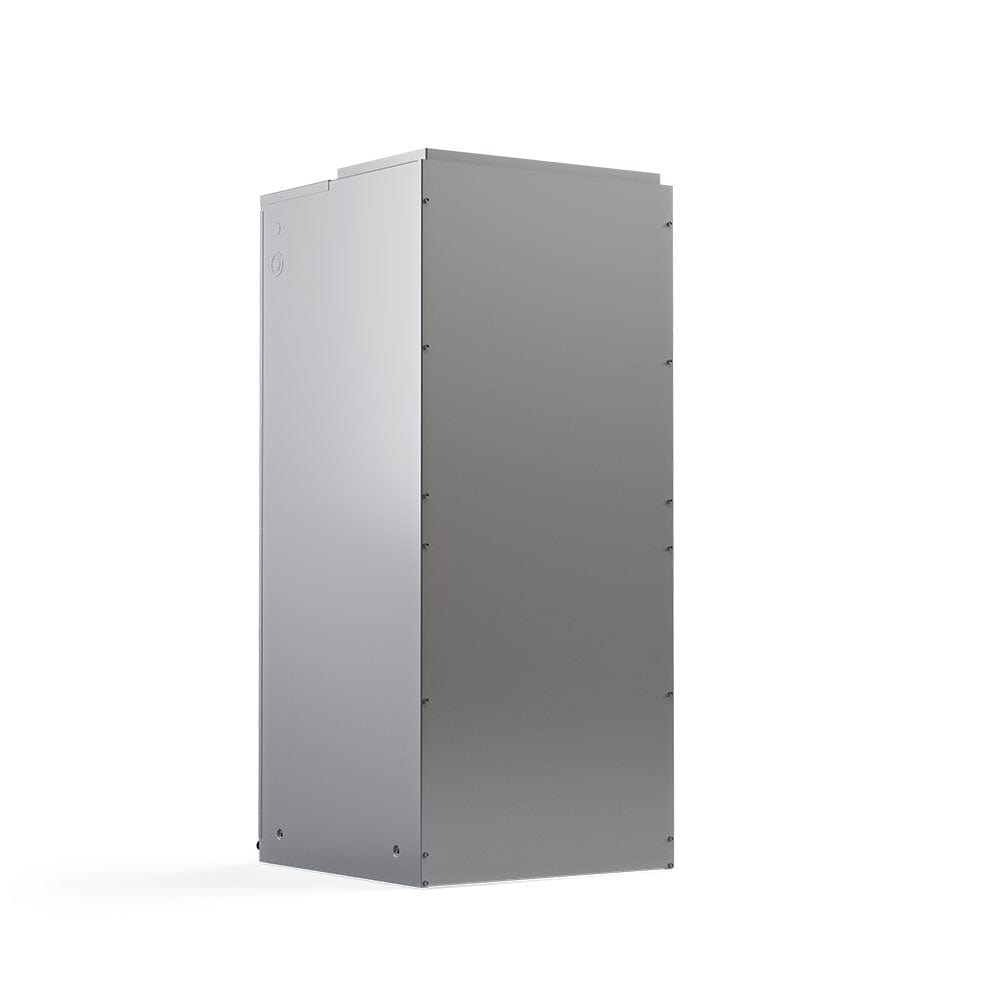

MRCOOL Universal High ESP 36,000 BTU Air Handler

Elevate your home comfort with the MRCOOL Universal High ESP 36,000 BTU Air Handler (MDUI18024036E), expertly engineered for high static pressure applications, including manufactured or mobile homes. If your system faces restrictions in the ductwork that challenge traditional air handlers, this high-ESP model is your solution.

Equipped with a robust and energy-efficient DC fan motor, this air handler features specially designed fan blades that ensure quiet operation while delivering exceptional performance. Experience the peace of mind that comes with efficient, reliable airflow, even in demanding conditions. Whether upgrading your existing system or installing a new one, this air handler promises to enhance your indoor environment with optimal comfort and efficiency.

The unit is capable of reaching a maximum static pressure of 250Pa. It offers multiple installation positions (vertical, horizontal left, or horizontal right) for an easy fit into many applications. The Universal High-ESP Air Handler also uses a durable metal filter that is both easy to clean and corrosion resistant to ensure it has a long service life.

Key Features

Up to 20 SEER

High Efficient Energy Saving DC Fan Motor

Internal Fan Blade Creates Low Noise

R-410A environmentally friendly refrigerant

3 Connection Types: Patented Pre Charged No-Vac, Sweat Braze Fitting and Flare Fitting

AHRI Certified & ETL listed

High Efficient Energy Saving DC Fan Motor

Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker

Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration

Multi-Position Installation: Upflow or Horizontal

10 Year Registered Limited Warranty

2 Step Condensation Protection

PRODUCT SPECIFICATIONS:

Product Dimensions

21.25"W x 21.25"D x 48.25"H

Product Weight

156.5 lbs

SEER

Up to 20

EER

HSPF

CFM

1,000

Tonnage

2-3 Ton

Cooling Capacity

36,000 BTU

Heating Capacity

36,000 BTU

Electrical Requirements

Requires a minimum of 208V-230V/60HZ/4A-15A (please check your home meets this electrical requirement prior to purchase)

Phase

Cycle

60 Hz

Max Fuse Breaker

15 A

Min Circuit Ampacity

4 AMP

Color

Gray

Max Coverage Area

Up to 1,500

Refrigerant Type

R-410A

Decibel Rating

lnverter

Lineset Included

Line Set Length

15ft, 25ft, 35ft, 50ft

Liquid Line Size

3/8 in

Suction Line Size

3/4in

Filter Type

Washable

Filter Size

19-5/16 X 20-5/16 X 5/8

Auxiliary Heater Available

Yes

Auxiliary Heater Sizes

5kw / 8kw / 10kw

Overload Protection

Yes

Certifications

ETL Listed
Energy Star
AHRI

Warranty

10 Year Registered Limited Warranty
5 Years Limited Parts Warranty
