Pioneer Dual 18000 BTU 1.5-Ton 21.5 SEER Multi (2) Zone Ceiling Cassette-Mount Air Conditioner Heat Pump 230-Volt

Pioneer Dual 18000 BTU 1.5-Ton 21.5 SEER Multi (2) Zone Ceiling Cassette-Mount Air Conditioner Heat Pump 230-Volt

Summary

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer multi split systems are available in 4 versions; for 2, 3, 4 and 5 zones.

• Ultra-high efficiency inverter++ ductless multi split dual (2) zone capable heat pump system. Energy-star certified for best rebate eligibility. (x2) inside unit cooling capacity: (2x) 9,000 BTU/H nominal capacity, condensing system 18,000 BTU/H (Range: 4,950 minimum - 23,000 maximum) with 21.5 SEER efficiency
• Heating capacity: 19,000 BTU/H nominal (range 4,900 minimum - 23,000 maximum) with 10.6 HSPF efficiency
• Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)

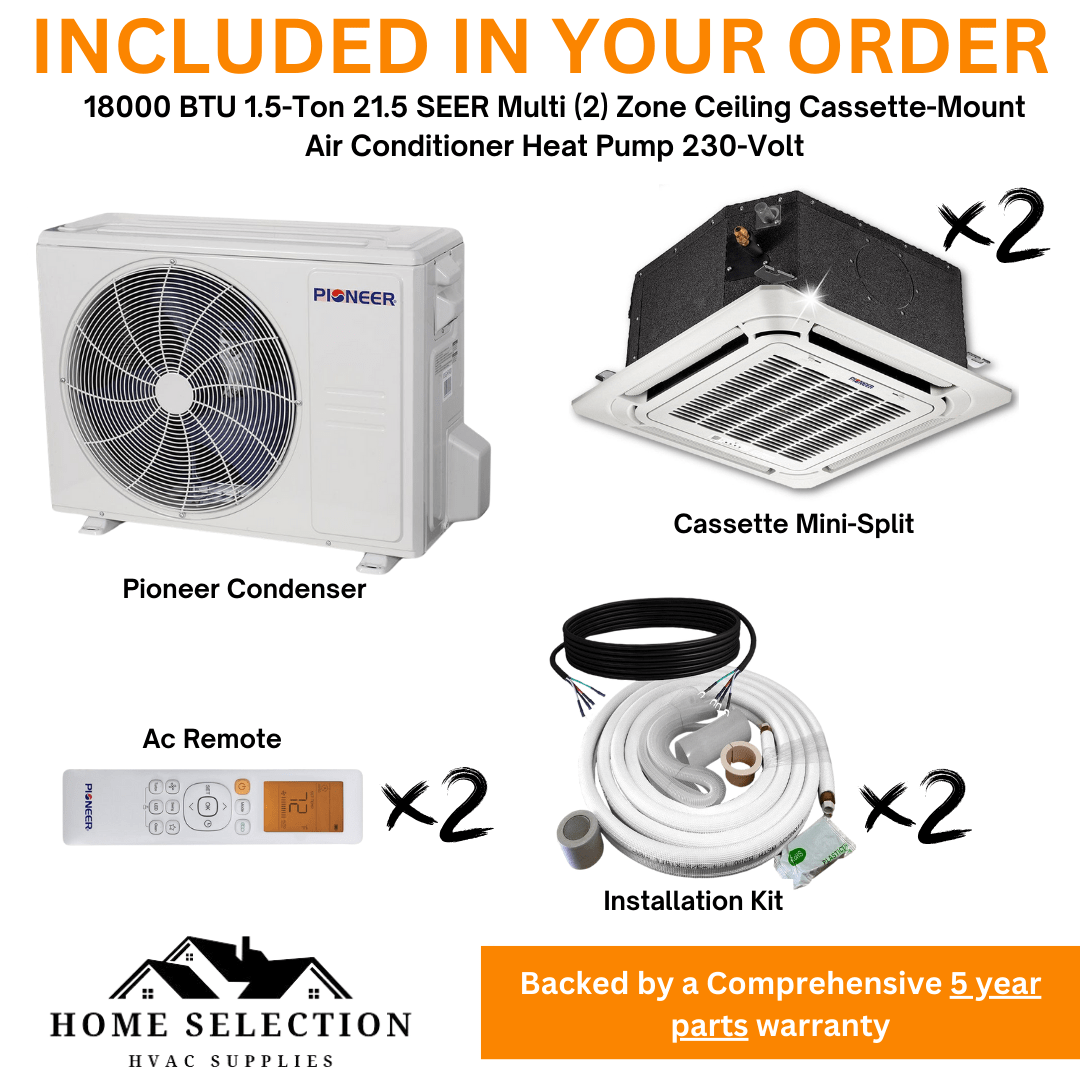

• Complete system set including: 2x indoor (fan coil) sections, outdoor (condenser) section, wireless remote controller with optional wi-fi, insulated flared line set with other installation accessories
• Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
• Low ambient system can heat down to -13°F ambient outdoor temperatures
• Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
• Certified by: ETL, AHRI, DOE for safety, performance and efficiency
• Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption

Outdoor Unit Manuals

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• AHRI Certificate
• Energy Guide

Indoor Unit Manuals

• Installation Manual
