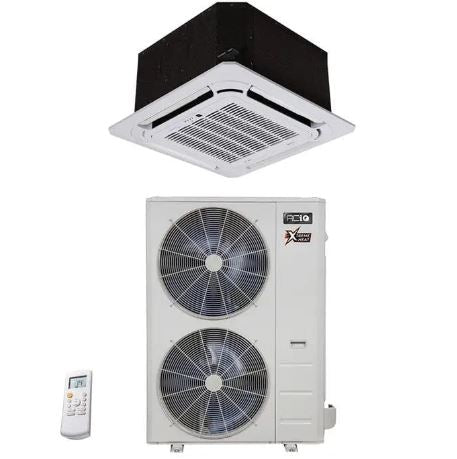

ACiQ 48,000 BTU 16.8 SEER Single Zone Platinum Ceiling Cassette Mini Split System w/ Extreme Heat ACIQ-48ZPL-HP230B

The ACiQ 48,000 BTU 16.8 SEER Single Zone Platinum Ceiling Cassette Mini Split System, model ACIQ-48ZPL-HP230B, is an advanced cooling and heating solution designed to provide optimal comfort in various environments. This high-capacity mini-split system features a remarkable efficiency rating of 16.8 SEER, making it a highly energy-efficient choice for both residential and commercial spaces. With its ability to deliver 48,000 BTUs of cooling power, this unit is particularly well-suited for larger rooms or open-concept areas, ensuring that every corner of the space remains cool and comfortable, even during the hottest months.

Additionally, this ceiling cassette system is equipped to handle extreme heat conditions, providing reliable performance even when temperatures soar. Its sleek design allows for easy installation in ceilings, maintaining a clean aesthetic while maximizing floor space. The unit operates quietly, ensuring minimal disruption, making it ideal for living rooms, offices, or any environment where noise levels need to be kept low.

Overall, the ACiQ 48,000 BTU platinum ceiling-mounted ac features mini-split system stands out as a versatile and powerful option for effective climate control.

Quick Specs:

Performance: Handles large rooms (depending on climate)
Temperature Range: Cools from -22°F to 122°F, heats from -22°F to 75°F
Build Quality: Gold fin full-protection coating
Quiet Operation: Runs quietly, even at full capacity

High Capacity, High Efficiency: The ACIQ-48ZPL-HP230B condenser, when paired with a wall-mounted, ceiling cassette, concealed duct, or floor mount air handler, offers exceptional efficiency with its dual rotary compressor and variable inverter technology.

Installation Note: Not a DIY unit; lacks quick connect line set connectors. Professional installation required. Additional materials like line sets, control wire, drain hose, whip, and disconnect are sold separately. A pro will need to add refrigerant and vacuum the lines. Automated cleaning function included, but manual filter cleaning is recommended.

Extreme Heat Base Pan Heater Technology

Each ACiQ condenser features Extreme Heat technology for maximum performance in extreme cold. The system includes a base pan heater to prevent ice buildup during heat pump operation. These features come standard with every multizone condenser, unlike competitors who charge extra.

Quality Construction and Efficiency

ACiQ products are built for durability and quiet operation. All multi-zone condensers come with base pan heaters. The variable inverter twin rotary compressor ensures reduced wear and higher efficiency, saving you money on energy bills.

Longevity and Warranty

ACiQ systems are designed for long-term reliability with low friction, variable inverter twin rotary compressors. Register your equipment at ACiQ.com to extend the warranty to 7 years for parts and 12 years for the compressor.

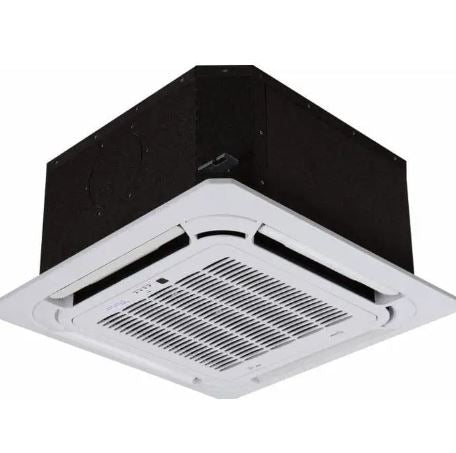

48,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler

For a discreet look, the ACiQ-24CC-HH-MB ceiling cassette air handler offers centralized air distribution with high-efficiency heating and cooling. Includes a hand-held remote control. Only the grille is visible once mounted.

Installation Considerations: Ceiling cassettes require creating a ceiling cavity and may need framing modifications. They include a factory-installed pump to lift condensation up to 14 feet, requiring a PVC drain system to route the condensation safely. Refrigerant and wiring connections are similar to wall-mounted units.

Features:

24,000 BTU heating/cooling capacity
Dry and fan modes available
Suitable for medium rooms in most climates
4-way air supply for even coverage
Handheld remote and decorative grille included

Quiet Comfort: Precision-engineered for maintaining set temperatures quietly, ensuring your peace is never disturbed.

PRODUCT SPECIFICATIONS

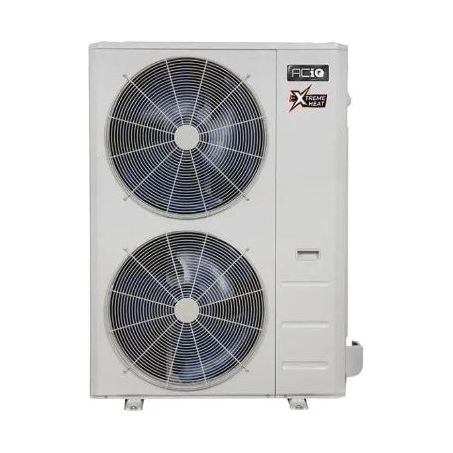

48,000 ACiQ Platinum series Single Zone Condenser w/ Extreme Heat
SKU	ACIQ-48ZPL-HP230B
Refrigerant Charge	25'
Weight (in lbs)	248.900000
Brand/Manufacturer	ACiQ
HSPF	10.7
HSPF2	8.5
Cooling BTU	48000 BTU
Heating BTU	53000 BTU
Decibel Level (dBA)	66.5
Electric Heat	Heat Pump
Refrigerant	R410A
SEER1 (Efficiency)	16-17
SEER2 (Efficiency)	17
Compressor Type	Rotary
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	50
Min. Breaker Size	42
Tonnage	4 Ton
BTU/Tonnage	48,000 BTU/4 Ton
Zone Compatibility	Single Zone
Height	52.48"
Width	37.48"
Depth	16.34"
Warranty	12 year compressor, 7 year parts with online registration
Resources
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm.
48,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler
SKU	ACIQ-48CC-HH-MB / ACIQ-CC-GRILLE-24
Weight (in lbs)	64.000000
Brand/Manufacturer	ACiQ
Controller	Wireless Included
Cooling BTU	48,000 BTU
Heating BTU	53,000 BTU
Maximum CFM	1170.59
Decibel Level (dBA)	55.5 max
Electric Heat	Heat Pump
Refrigerant	R410A
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	50
Min. Breaker Size	42
Tonnage	4 Ton
System Tonnage	4 Ton
BTU/Tonnage	48,000 BTU/4 Ton
Mini-Split Type	Ceiling Cassette
Zone Compatibility	Multi Zone, Single Zone
Height	11.30
Width	32.68
Depth	32.68"
Warranty	12 year compressor, 7 year parts with online registration
Resources
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm.
