30,000 BTU 18.6 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi

by ACIQ
SKU
In stock, ready to ship now
$2,238.00

Notify me when back in stock

BUSINESS INFORMATION

We are available 9am-7pm EST, 7 days a week. You can reach us at 800 270 0086. We are also available via live chat, email support@ahomeselection.com

Location: 38 Niagara Falls Blvd, Buffalo New York 14214, United States

FREE EXPRESS SHIPPING

We process orders within 1 business day or less

Stress Free Returns

Quick & Easy Returns

price Beat Guarantee

We wont just match the price, well beat it!

2 Year Free Warranty

Free 2 Year warranty on all products

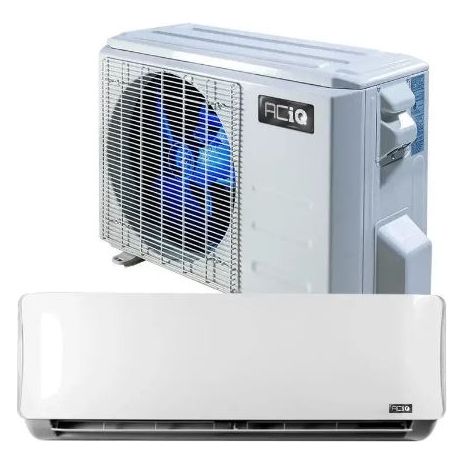

30,000 BTU 18.6 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi

ACiQ's mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. Single zone systems are the perfect choice for a basement or garage conversion, or any single space in your home that needs a boost. 30,000 BTU ACiQ Single Zone Condenser

OVERVIEW

The ACiQ Single Zone series ACiQ-30Z-HP230B heat pump condenser features inverter technology allowing for superior, adaptive performance. Whether you are in cooling or heat mode, the ACiQ-30Z-HP230 uses as little power as possible without sacrificing comfort. That's why we say that ACiQ brings intelligence to your heating and cooling needs.

QUICK FACTS

  • Intelligent comfort at an affordable cost
  • Ideal for up to a large room (depending on climate)
  • 30,000 BTU, 18.6 SEER2 wall mounted mini split
  • Efficient cooling from 5 F to 122 F outdoor temperatures
  • Efficient heating from 5 F to 86 F outdoor temperatures
  • Gold Fin full-protection coating
  • Quiet operation at even the highest workloads

30,000 BTU, 18.6 SEER2

At a rated capacity of 30,000 BTU, the output of the ACiQ-30Z-HP230 when paired with a matching air handler can easily cover a larger space in ideal climates. Thanks to the unit's high-efficiency rotary compressor and an inverter-integrated motor, the ACiQ-30Z-HP230B has an efficiency of 18.6 SEER2. With such a high system SEER rating, the system can heat and cool almost any space suitable for its output much more efficiently than most standard central split systems.

Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling. Base pan heaters come standard on every multi-zone condenser.

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

30,000 BTU ACiQ Single Zone Air Handler w/ WiFi

Enhanced Comfort

ACiQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The ACiQ-30W-HP230 single zone air handler can handle larger spaces using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night.

  • Able to cover up to a large sized room in ideal conditions
  • 30,000 BTU wall-mounted air handler with remote
  • Intelligent comfort at an affordable cost

Intelligent Heating and Cooling

The ACiQ-30W-HP230B air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.

WiFi Options

ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

Wall Mounted

Traditional wall-mounted air handlers are the most popular ductless choice  due to low cost and ease of installation.  Wall mounted units are located high on an outside wall, with refrigerant lines and condensation drain hose exiting the back through a 3" wall penetration.  Return air is brought in through vents in the top of the unit, and cooled or heated air exits the lower front through a sweepable louver.  Wall mounted air handlers are WiFi compatible and can be controlled by the free NetHome Plus app or by voice assistants such as Alexa or Google Home.

Smartphone App

In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.

Quiet Comfort

Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

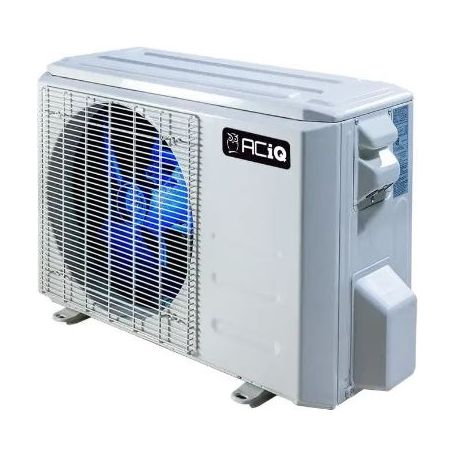

30,000 BTU ACiQ Single Zone Condenser
SKU ACiQ-30Z-HP230B
Refrigerant Charge 25'
Weight (in lbs) 158.950000
AHRI Certificate Number 210857313
Brand/Manufacturer ACiQ
HSPF 10
HSPF2 8.7
Cooling BTU 30000 BTU
Heating BTU 30000 BTU
Decibel Level (dBA) 60
Electric Heat Heat Pump
Refrigerant R410A
SEER2 (Efficiency) 18
Compressor Type Rotary
Liquid Line 3/8"
Suction Line 5/8"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 35
Min. Breaker Size 28
Tonnage 3 Ton
BTU/Tonnage 30,000 BTU/2.5 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Single Zone
Height 31.89"
Width 37.24"
Depth 16.14"
Warranty 12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm.

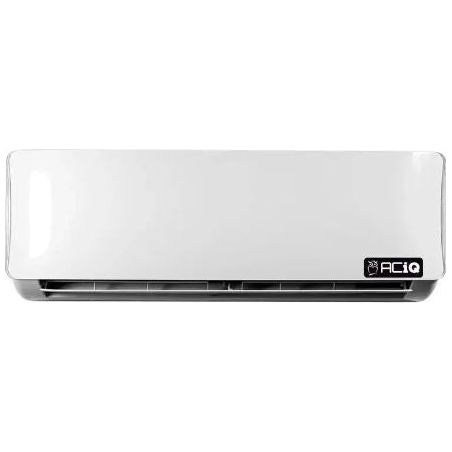

30,000 BTU ACiQ Single Zone Air Handler w/ WiFi
SKU ACiQ-30W-HP230B
Weight (in lbs) 50.490000
Brand/Manufacturer ACiQ
Cooling BTU 30000 BTU
Heating BTU 30000 BTU
Maximum CFM 795
Decibel Level (dBA) 60
Electric Heat Heat Pump
Refrigerant R410A
Liquid Line 3/8"
Suction Line 5/8"
Electrical 208/230V 1 Phase 60 Hz
BTU/Tonnage 30,000 BTU/2.5 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Single Zone
Height 14.25"
Width 49.57"
Depth 11.10"
Warranty 12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm.
