Overview

Summary

  • OUTDOOR SECTION ONLY for Quint (5) Zone Quantum/Free-Match Series
  • Ultra High Efficiency DC Inverter++ version
  • Cooling capacity: 48,000 BTU/H Nominal (Range: 11,600 MIN ~ 49,700 MAX) with 21.1 SEER2 / 11 EER2 efficiency
  • Heating capacity: 48,000 BTU/H Nominal (Range: 33,000 MIN ~ 53,900 MAX) with 9.5 HSPF2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Factory charged for up to 25’ line set per circuit
  • Whisper Quiet Operation
[[REFRIGERANT]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Communication Protocol: Current Loop
  • Min-Max Load Attached: 36,000~64,000 BTU/h
  • Cooling Rated Capacity: 48,000 BTU/h
  • Cooling Capacity Range: 11,600~49,700 BTU/h
  • Cooling SEER2 (Ductless): 21.1 BTU/W.h
  • Cooling EER2 (Ductless): 11.0 BTU/W.h
  • Heating Rated Capacity: 48,000 BTU/h
  • Heating Capacity Range: 33,000~52,900 BTU/h
  • Heating HSPF2 (Ductless): 9.5 BTU/W.h
  • Refrigerant Type: R410a
  • Suitable Area: 1,600~2,000 Sq.F
  • Sound Level: 62.0 dB(A)
  • Net Dimensions (WDH): 37.2 x 16.4 x 52.3 Inches
  • Carton Dimensions (WDH): 43.2 x 19.5 x 58.3 Inches
  •  Net / Gross Weight: 225 / 257 Lbs



Matching Indoor Models

Quint Zone Combinations

Rating Two Units Three units Four units Five units
Wall: 9 + 9 + 9 + 9 + 9 18 + 18 9 + 9 + 18 9 + 9 + 9 + 9 9 + 9 + 9 + 9 + 9
Ducted: 9 + 9 + 9 + 9 + 9 18 + 24 9 + 9 + 24 9 + 9 + 9 + 12 9 + 9 + 9 + 9 + 12
  24 + 24 9 + 12 + 12 9 + 9 + 9 + 18 9 + 9 + 9 + 9 + 18
    9 + 12 + 18 9 + 9 + 9 + 24 9 + 9 + 9 + 9 + 24
    9 + 12 + 24 9 + 9 + 12 + 12 9 + 9 + 9 + 12 + 12
    9 + 18 + 18 9 + 9 + 12 + 18 9 + 9 + 9 + 12 + 18
    9 + 18 + 24 9 + 9 + 12 + 24 9 + 9 + 9 + 18 + 18
    9 + 24 + 24 9 + 9 + 18 + 18 9 + 9 + 12 + 12 + 12
    12 + 12 + 12 9 + 9 + 18 + 24 9 + 9 + 12 + 12 + 18
    12 + 12 + 18 9 + 12 + 12 + 12 9 + 12 + 12 + 12 + 12
    12 + 12 + 24 9 + 12 + 12 + 18 9 + 12 + 12 + 12 + 18
    12 + 18 + 18 9 + 12 + 12 + 24 12 + 12 + 12 + 12 + 12
    12 + 18 + 24 9 + 12 + 18 + 18
    12 + 24 + 24 9 + 18 + 18 + 18
    18 + 18 + 18 12 + 12 + 12 + 12
    18 + 18 + 24 12 + 12 + 12 + 18
      12 + 12 + 12 + 24
      12 + 12 + 18 + 18

9,000 BTU Compatible Units

12,000 BTU Compatible Units

18,000 BTU Compatible Units

24,000 BTU Compatible Units

Min. / Max. Loading

32,000 / 48,000 BTU/h.

Limitations

Do not exceed two pieces of 24,000 BTU/h Indoor Unit

Notes

Every indoor unit attached will operate at a random, self regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity or OFF). Outdoor unit will also self regulate its output capacity, based on the total demand it reads from all of the simultaneously running indoor units at any given moment.

With multi split systems, the total demand from the outdoor unit, shall seldomly exceed 67% of the total available capacity of the combined indoor unit group due to load fluctuations. Although very seldom, if and when the total demand from the combined indoor group exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.

For high demand heating applications, max loading limits may need to be reduced by 10-15 % to avoid under-performance risks at some extreme conditions.

Manuals & Downloads

Free Express Shipping on All orders within the USA

30 Day Free Returns on all orders

Ask a Question?

Skip to content

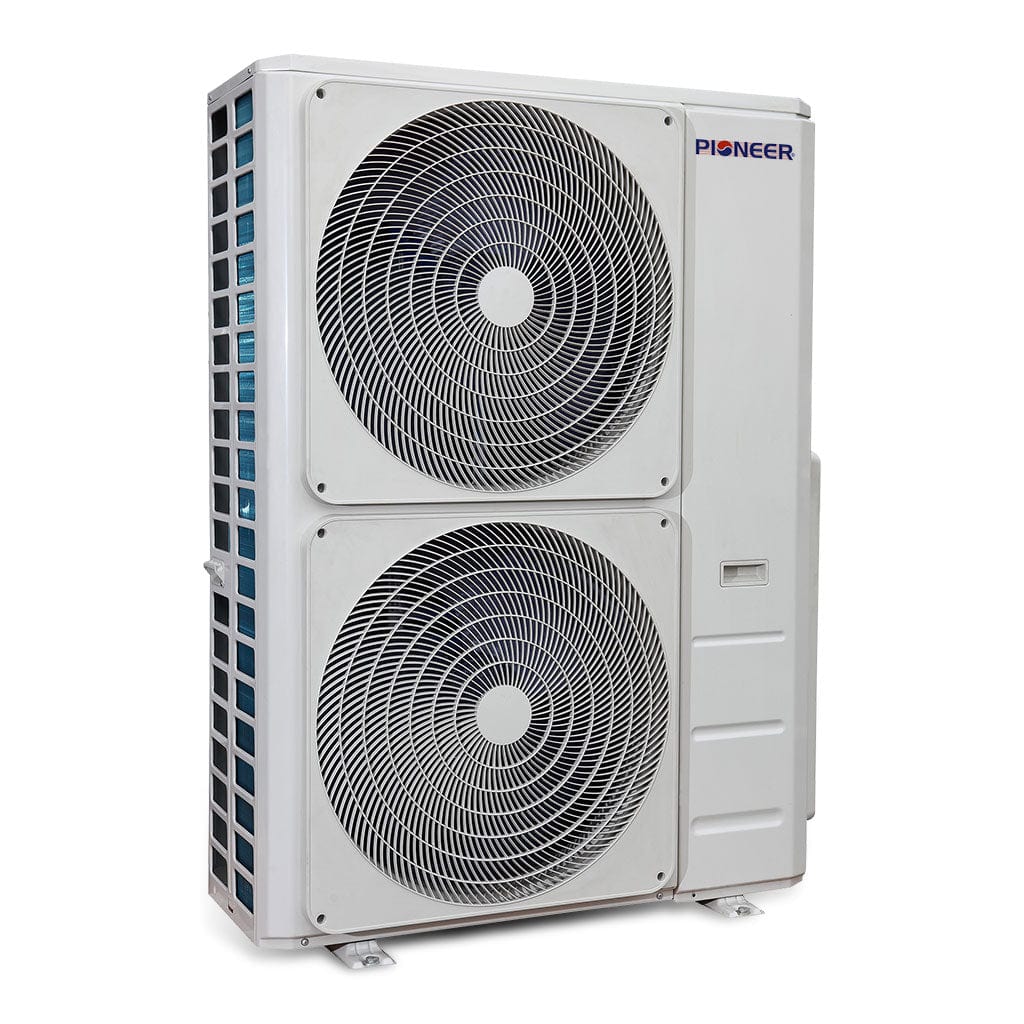

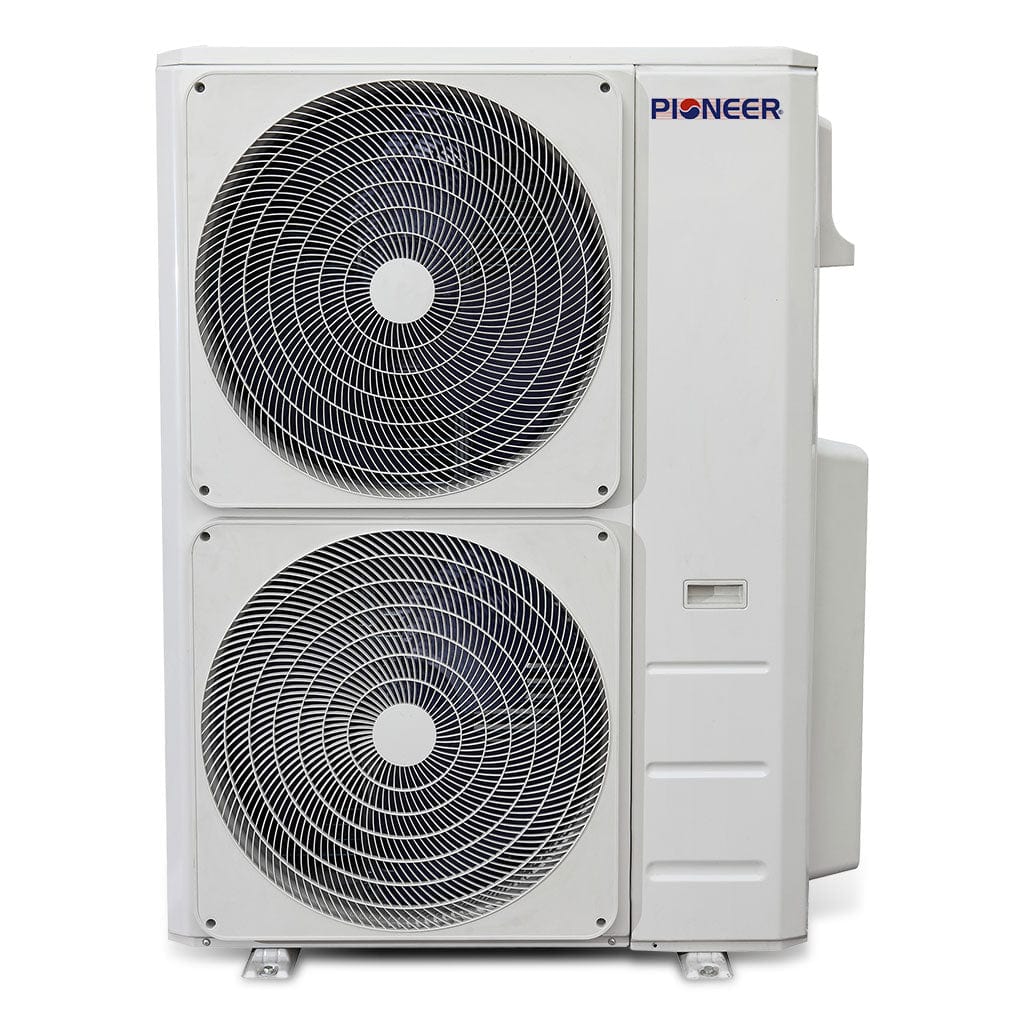

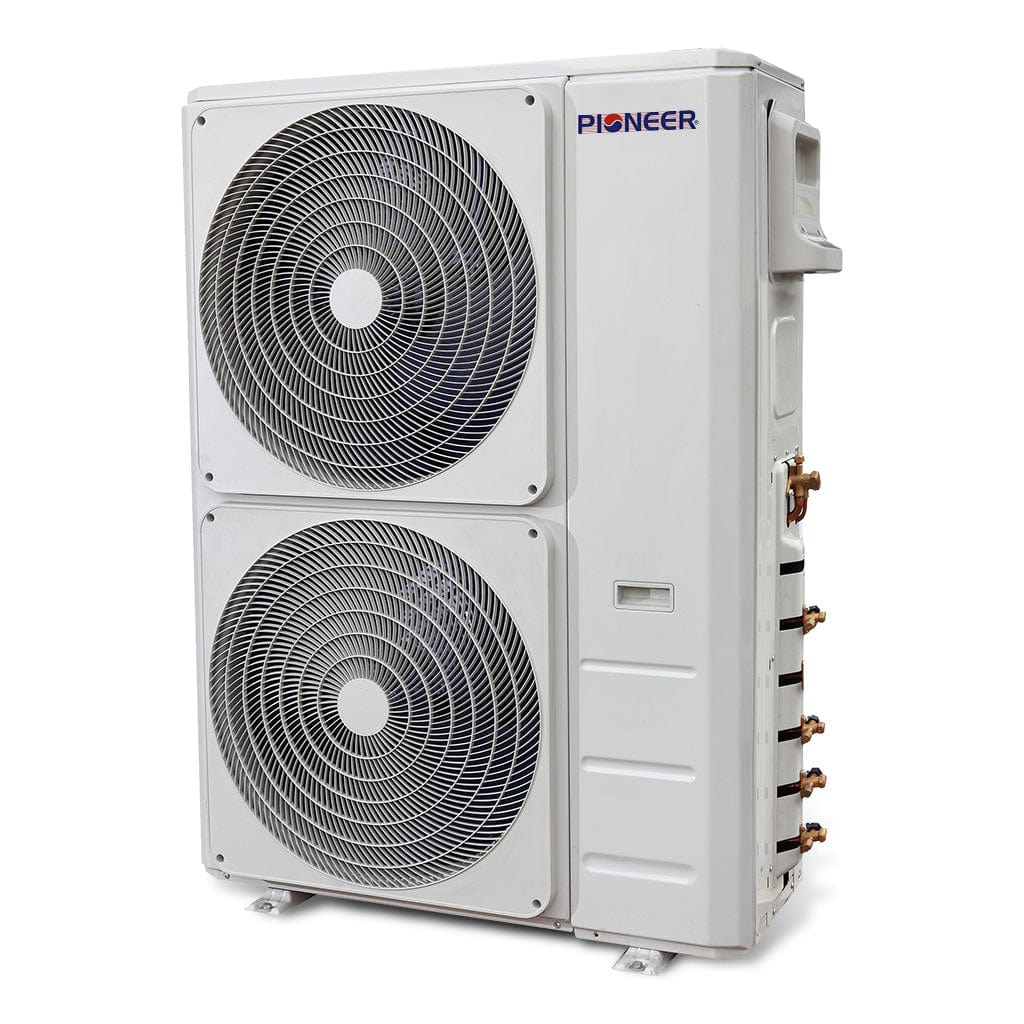

Pioneer® Quint (5) Zone Quantum Series Outdoor Section 21.1 SEER2 Multi Split Inverter+ Air Conditioner & Heat Pump 230V
