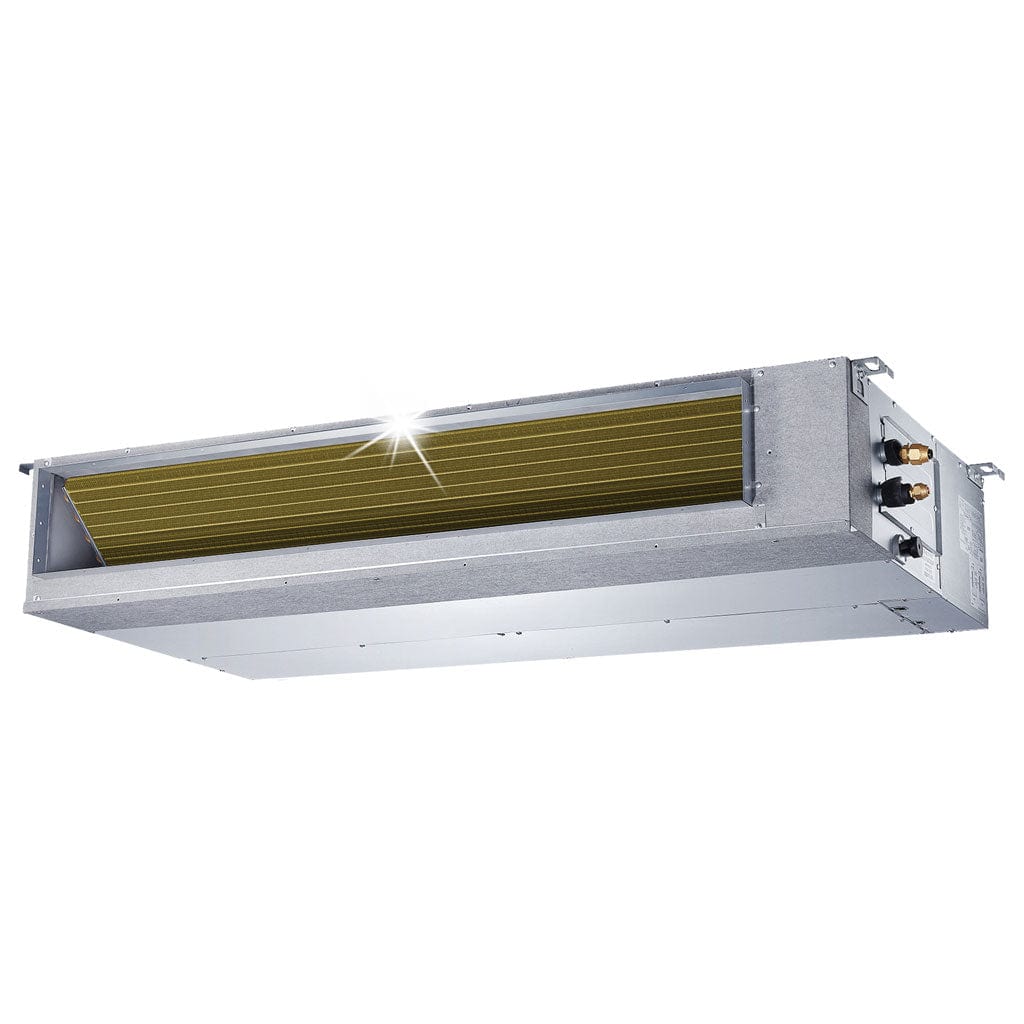

Pioneer® Multi Zone 9,000 BTU Quantum Series Concealed Ducted Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V

Pioneer® Multi Zone 9,000 BTU Quantum Series Concealed Ducted Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V COMPLETE SET

Overview

The Pioneer® Multi Zone 9,000 BTU Quantum Series Concealed Ducted Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V is the ideal choice for those seeking efficient, discreet climate control. This 9,000 BTU system is perfect for cooling and heating small to medium-sized rooms, with its concealed ducted design blending seamlessly into any space. Enjoy sleek and modern aesthetics while maintaining optimal comfort, making it an excellent option for residential or commercial environments.

Featuring Inverter++ technology, the Multi Zone 9,000 BTU Concealed Ducted system provides precise temperature control while optimizing energy efficiency. The variable-speed DC compressor adjusts based on demand, allowing for both energy savings and consistent performance. Whether cooling in the summer or using the heat pump during colder months, this system ensures that your indoor environment stays comfortable year-round.

With the ability to control multiple zones independently, the Pioneer® Multi Zone Concealed Ducted air conditioner and heat pump system allows for personalized comfort in different areas of your home or office. The advanced technology, coupled with its sleek, space-saving design, offers superior efficiency and an enhanced indoor experience.

Summary

Multi Zone Split Concealed Ducted Horizontal Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 9,000 BTU/Hr. (3/4 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit.

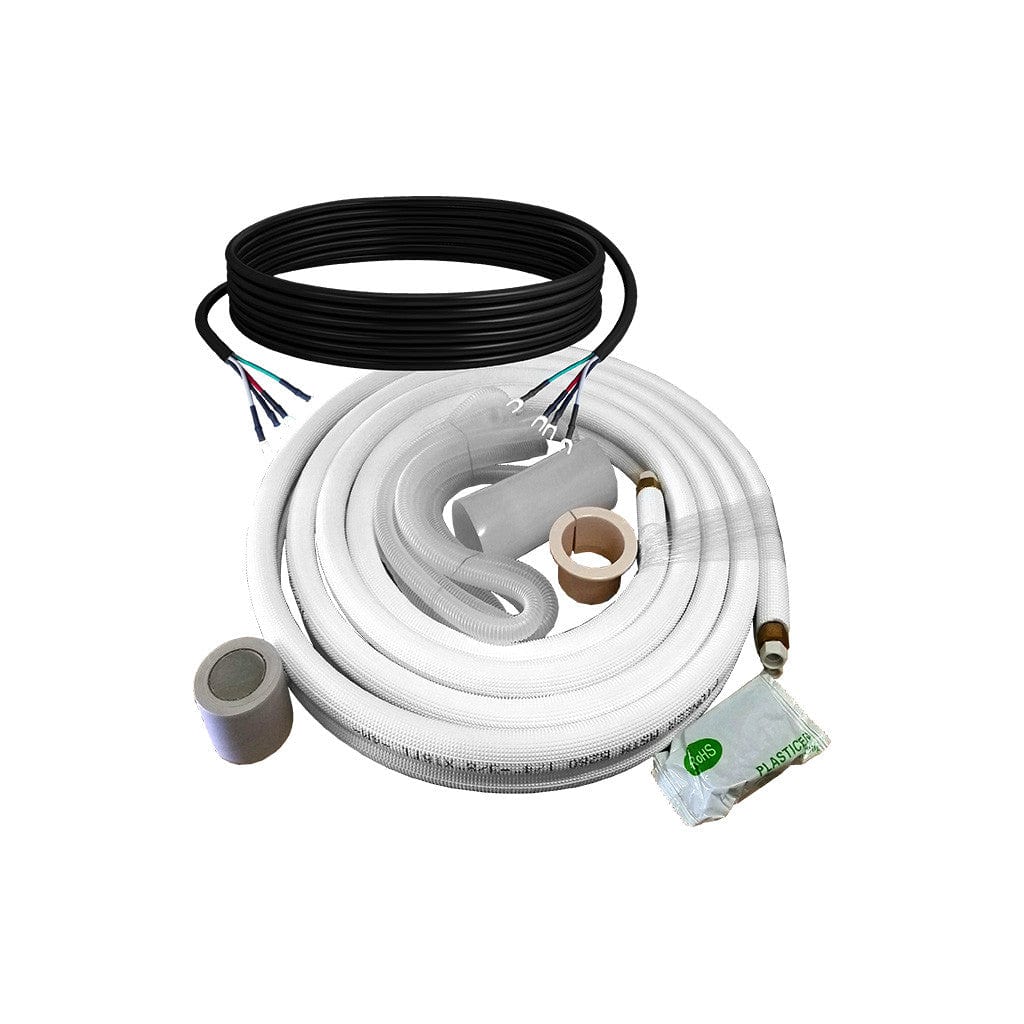

[[PIPINGKIT]]

Compatible Outdoor Units

Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the outdoor units we offer as follows:

Notes

  1. Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
  2. Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.
  3. Every order placed is first checked by our engineering and if there are any errors we will contact you and work with you to reselect for a correct matchup.
  4. Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

What's IncludedPioneer® Multi Zone 9,000 BTU Quantum Series Concealed Ducted Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V FRONT VIEW

  • Indoor Unit
  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling SEER: 20.5 BTU/w
  • Heating Rated Capacity: 10,000 BTU/h
  • Heating HSPF: 11.5 BTU/w
  • Suitable Area: 250~350 Sq.F
  • Air Flow (Hi/Med/Lo): 355 / 285 / 175 CFM
  • Sound Level (Hi/Med/Lo): 35.5 / 30.5 / 27.5 dB(A)
  • Net Dimensions (WDH): 27"-1/2 x 17"-3/4 x 7"-7/8
  • Carton Dimensions (WDH): 33"-7/8 x 21"-1/4 x 10"-7/8
  • Net / Gross Weight: 39 / 48 Lbs

Manuals & Downloads

Free Express Shipping on All orders within the USA

Read Our Shipping Policy Here

30 Day Free Returns on all orders

Read about our Returns Policy Here
