    Pioneer® Mini Split 18,000 BTU 2 Zone
   Ductless Air Conditioner and Heat Pump,
WYT020GLHI22M2-9W-9W

   Pioneer® Mini Split 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump, WYT020GLHI22M2-9W-9W

The Pioneer® Mini Split 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump (WYT020GLHI22M2-9W-9W) provides powerful and efficient cooling and heating for two separate rooms. This versatile system features two 9,000 BTU wall-mounted air handlers, each with its own remote control, allowing you to customize the temperature in different zones. The included 18,000 BTU multi-zone condenser ensures that both zones are powered efficiently, providing reliable performance year-round while minimizing energy consumption.

Ideal for homes or offices with multiple rooms, the Pioneer® Mini Split 18,000 BTU 2 Zone system utilizes advanced technology to provide optimal comfort and energy savings. Whether you're looking to cool your living room or warm up a bedroom, each zone can be controlled independently, giving you flexibility and convenience. The system is also designed for easy installation and comes complete with everything you need to get started, including the air handlers, remote controls, and condenser unit.

With its energy-efficient design and multi-zone capability, the Pioneer® Mini Split 18,000 BTU 2 Zone Ductless system is the perfect solution for anyone looking to optimize comfort in multiple areas of their home or office. Its sleek design, advanced features, and reliable performance make it a standout choice for homeowners and businesses alike.

Installing this system will require a professional HVAC technician.

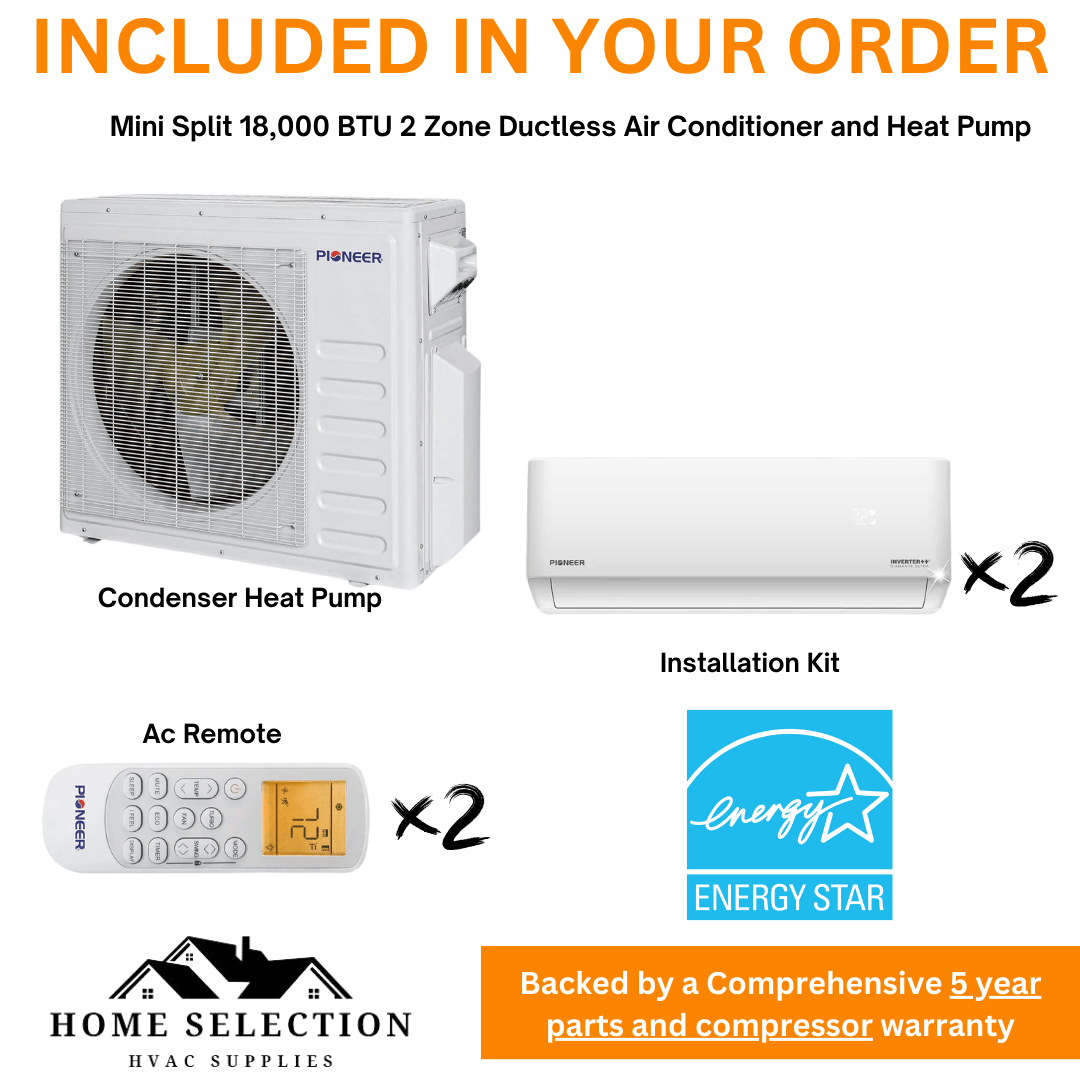

System Consists of:

  • YN020GLFI22M2D is the Pioneer® Diamante Ultra Series 22 SEER Dual Zone Air Conditioner and Heat Pump.
  • WT009GLFI22HLD-25 (x2), the Pioneer® 9,000 BTU Diamante Ultra 23 SEER Air Handler

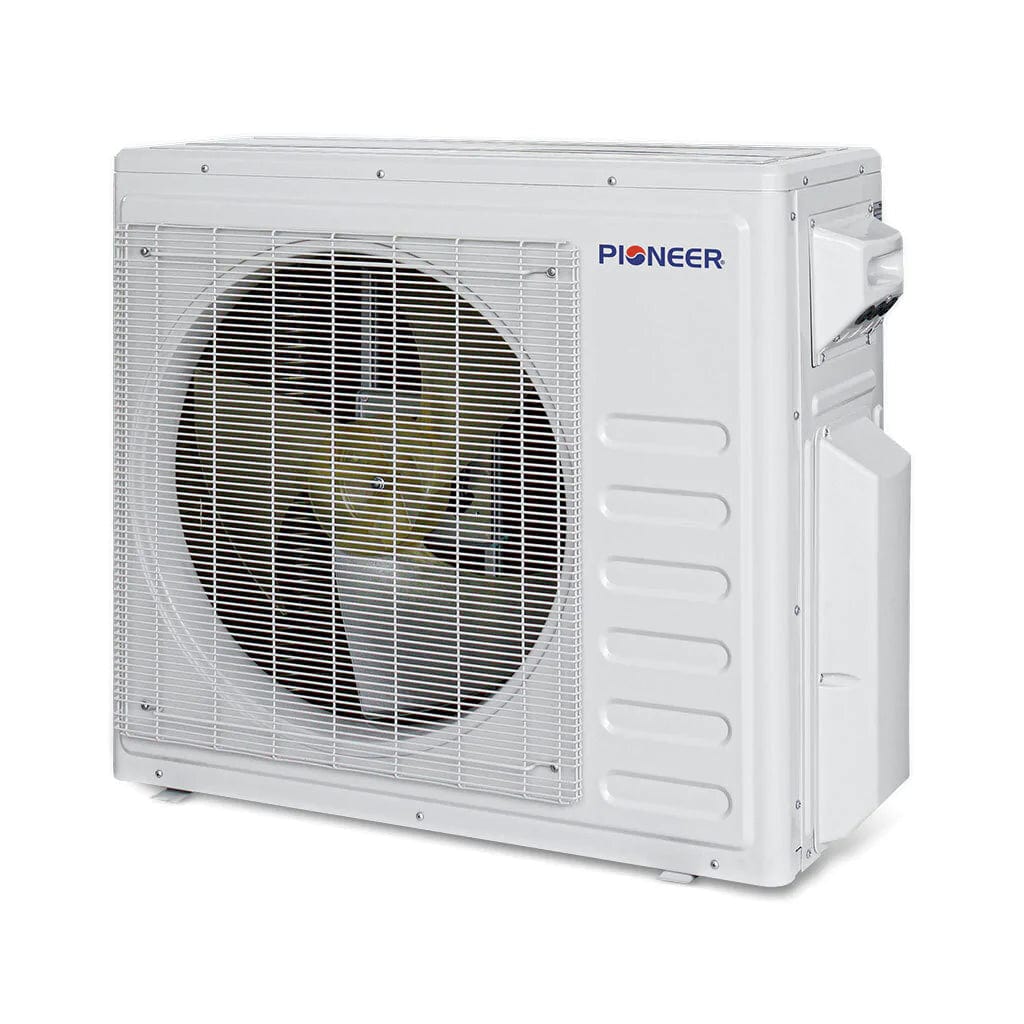

The condenser

  • Energy-conserving. When used in conjunction with specific Pioneer air handlers, this two-zone condenser may achieve an astounding 22 SEER efficiency rating.
  • Pioneer Mini Split 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump WYT020GLHI22M2-9W-9W operates in Every Setting. the capacity to chill down to 122°F and heat even in -4°F weather
  • Ironclad Guarantee. A five-year warranty is included with this condenser for additional peace of mind. You just need to register within ninety days to be protected!

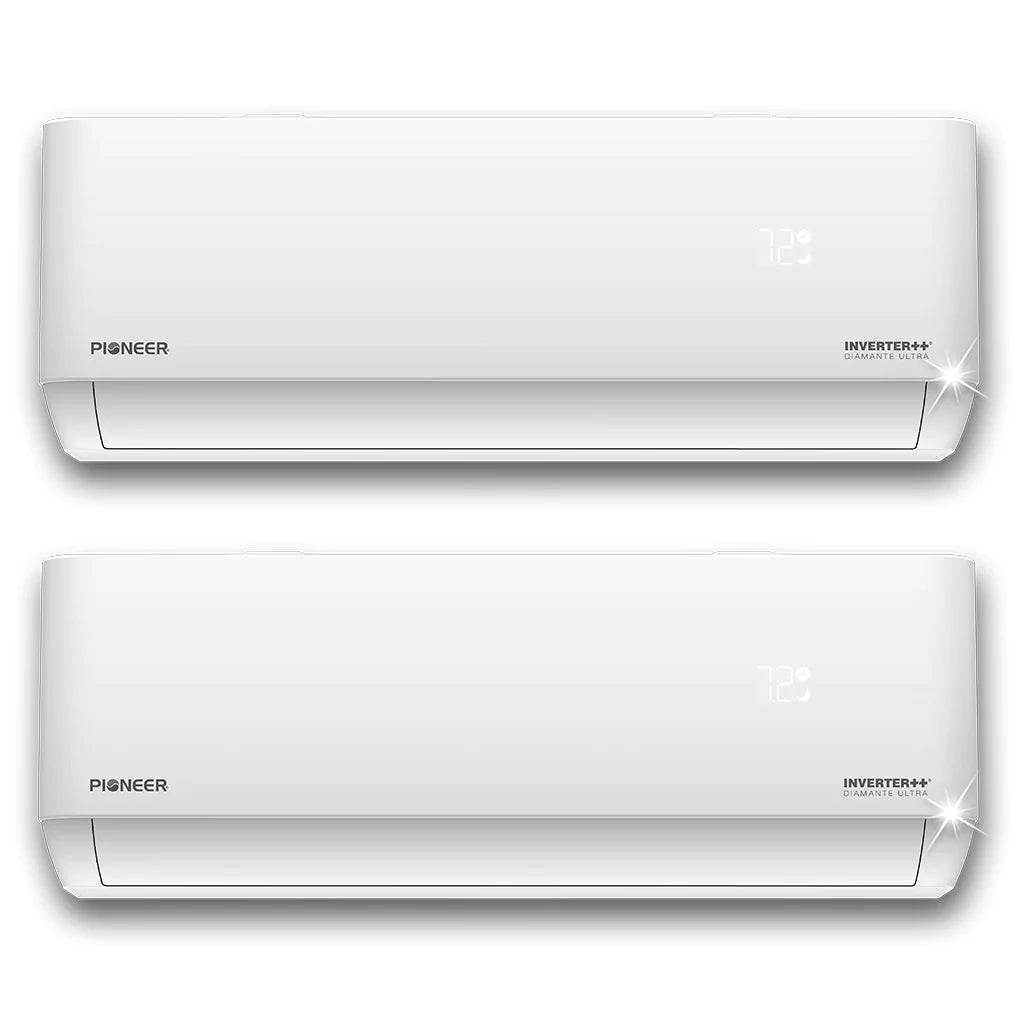

Air Handler, 9000 BTU, 2 piecesPioneer® Mini Split 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump, WYT020GLHI22M2-9W-9W COMPLETE SET

  • Lots of Coverage. A handler can cover up to 350 square feet. feet
  • Adaptable. incredibly adaptable and features several working modes, such as SLEEP, TURBO, HEAT, ECO, and COOL.
  • This Pioneer Mini Split 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump WYT020GLHI22M2-9W-9W is easy to Install. With the provided mounting plate, Pioneer Mini Split 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump WYT020GLHI22M2-9W-9W can be mounted to the majority of interior walls with ease due to its lightweight and small design.



PRODUCT SPECIFICATIONS:
Condenser

Product Dimensions 33"W x 14 7/8"D x 27 1/4"H
Cooling Capacity 17,000 BTU
Heating Capacity 19,600 BTU
Zone Capacity 2
SEER 22.0
Outdoor Ambient Range (Cool) 5°F~122°F
Outdoor Ambient Range (Heat) -4°F~86°F
Voltage Requires a minimum of 208V-230V/60HZ/15A (double-pole) (please check your home meets this electrical requirement prior to purchase)


Air Handler

Product Dimensions 32 1/4"W x 7 5/8"D x 12"H
Mount Type Wall
Cooling Capacity 9,000 BTU
Heating Capacity 9,500 BTU
Square Footage Coverage 350 Square Feet

Free Express Shipping on All orders within the USA

Read Our Shipping Policy Here

30 Day Free Returns on all orders

Read about our Returns Policy Here

Request A Quote

Skip to content
Pioneer® Mini Split 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump, WYT020GLHI22M2-9W-9W COMPLETE SET

Pioneer® Mini Split 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump, WYT020GLHI22M2-9W-9W

by Pioneer mini splits
SKU WYT020GLHI22M2-9W-9W-1
In stock | Shipping ETA: to
Save $741.00
$2,695.00
$1,954.00
