Pioneer® 9,000 BTU 115V Under-Bench RV Heat Pump Air Conditioner

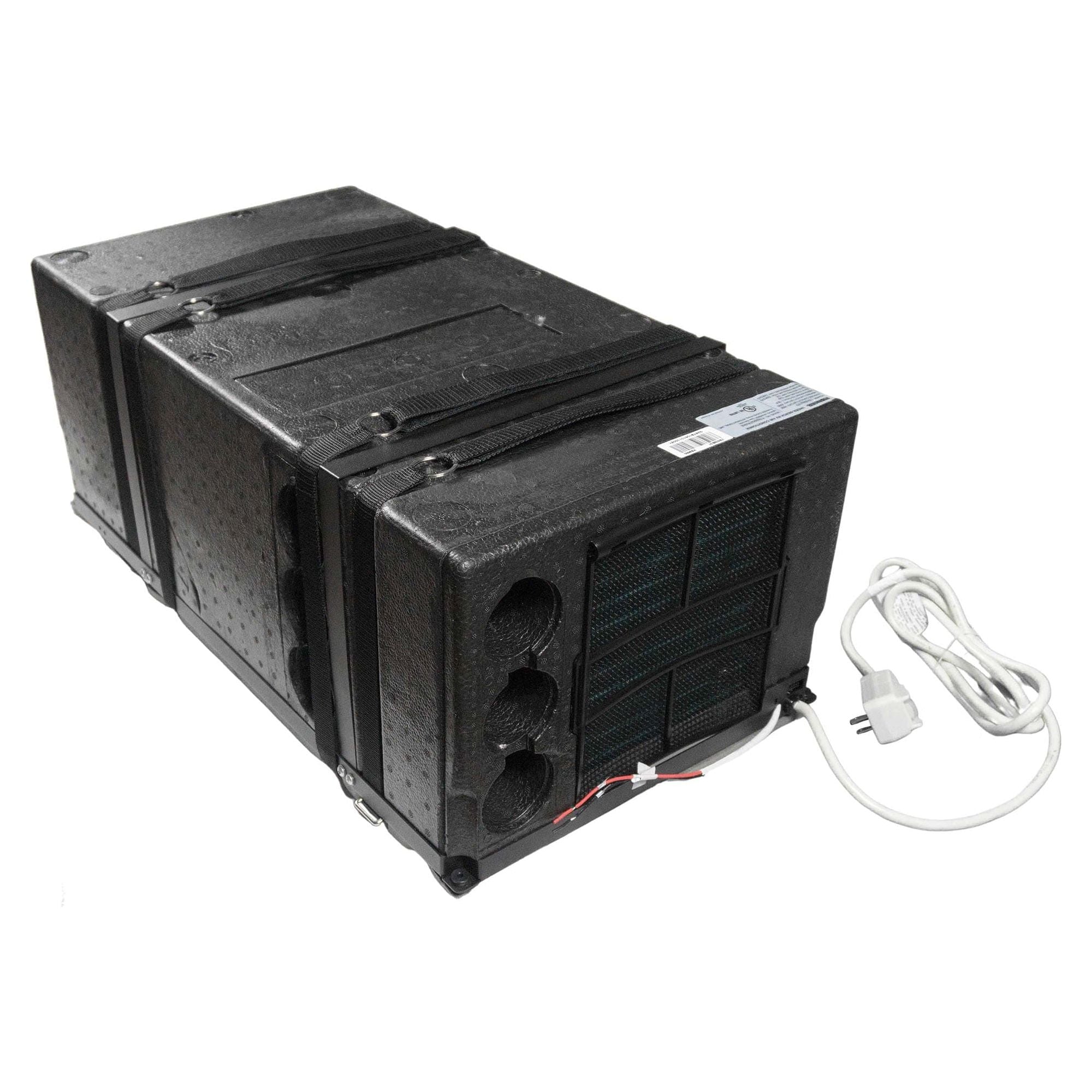

Pioneer® 9,000 BTU 115V Under-Bench RV Heat Pump Air Conditioner FULL VIEW

Overview

Take comfort on the road with the Pioneer® 9,000 BTU 115V Under-Bench RV Heat Pump Air Conditioner. Designed for under-the-bench installations, this compact and durable unit ensures your RV stays comfortable no matter the weather, with ultra-quiet performance and energy-efficient operation. Perfect for long-haul journeys, it provides reliable cooling and heating, making it your ideal travel companion.

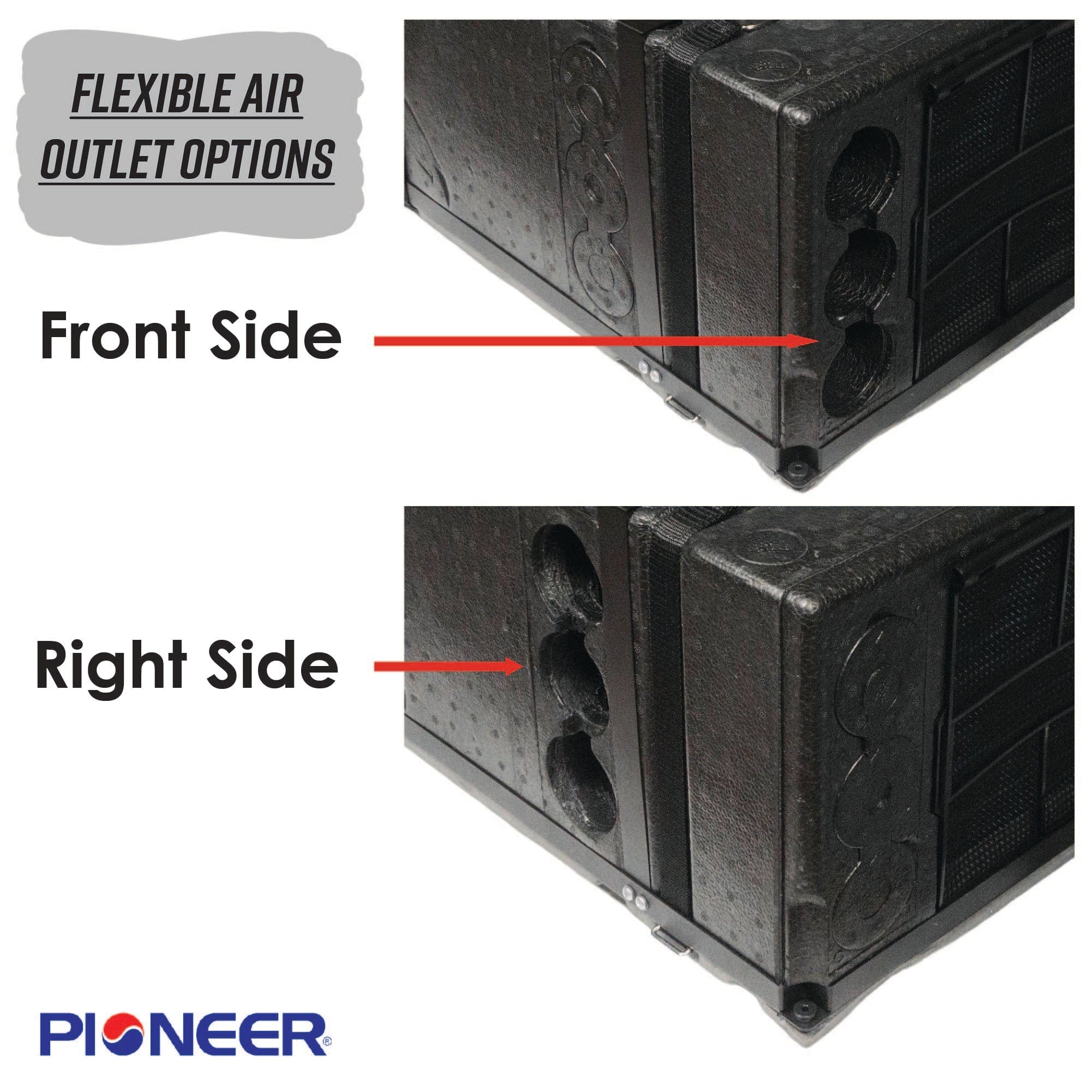

The Pioneer® 9,000 BTU RV Heat Pump features three ducts that can be attached to separate areas of the RV, allowing you to control the temperature in multiple zones. Easily manage the system using a wall-mounted thermostat or a handheld remote control for added convenience. With low power requirements and sleek, low-profile design, this unit fits seamlessly into your RV and ensures comfort without compromise.

Upgrade your RV’s climate control system with the Pioneer® 9,000 BTU Under-Bench Heat Pump—the perfect solution for travelers seeking convenience, quiet operation, and year-round comfort.


Summary

    • Cooling capacity: 9,000 BTU/H with 8.5 EER efficiency\
    • Heating capacity: 9,000 BTU/H with 2.6 C.O.P.
    • Voltage: 110~120V, 60Hz, 1Ph
    • Operational Temperature Range: 19 - 104°F
    • Pre-charged with R410a refrigerant and ready to install
    • UL Listed
    • Perfect for RVs, Skoolies, Tiny Homes, Camper Vans, or any home on wheels

    What's IncludedPioneer® 9,000 BTU 115V Under-Bench RV Heat Pump Air Conditioner

    • Pioneer RV Under-Bench Heat Pump AC System

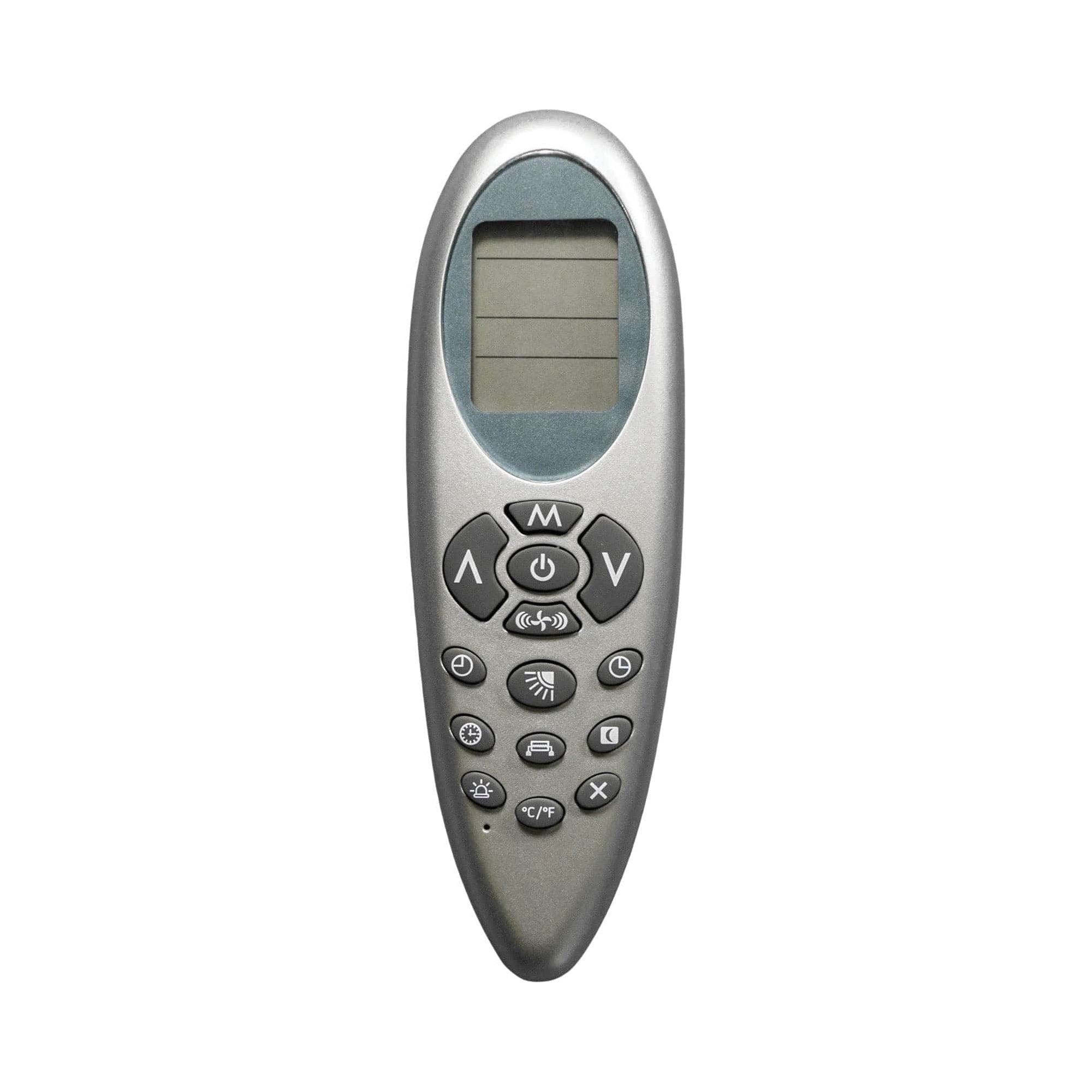

    • Handheld Remote Controller w/ batteries and cradle

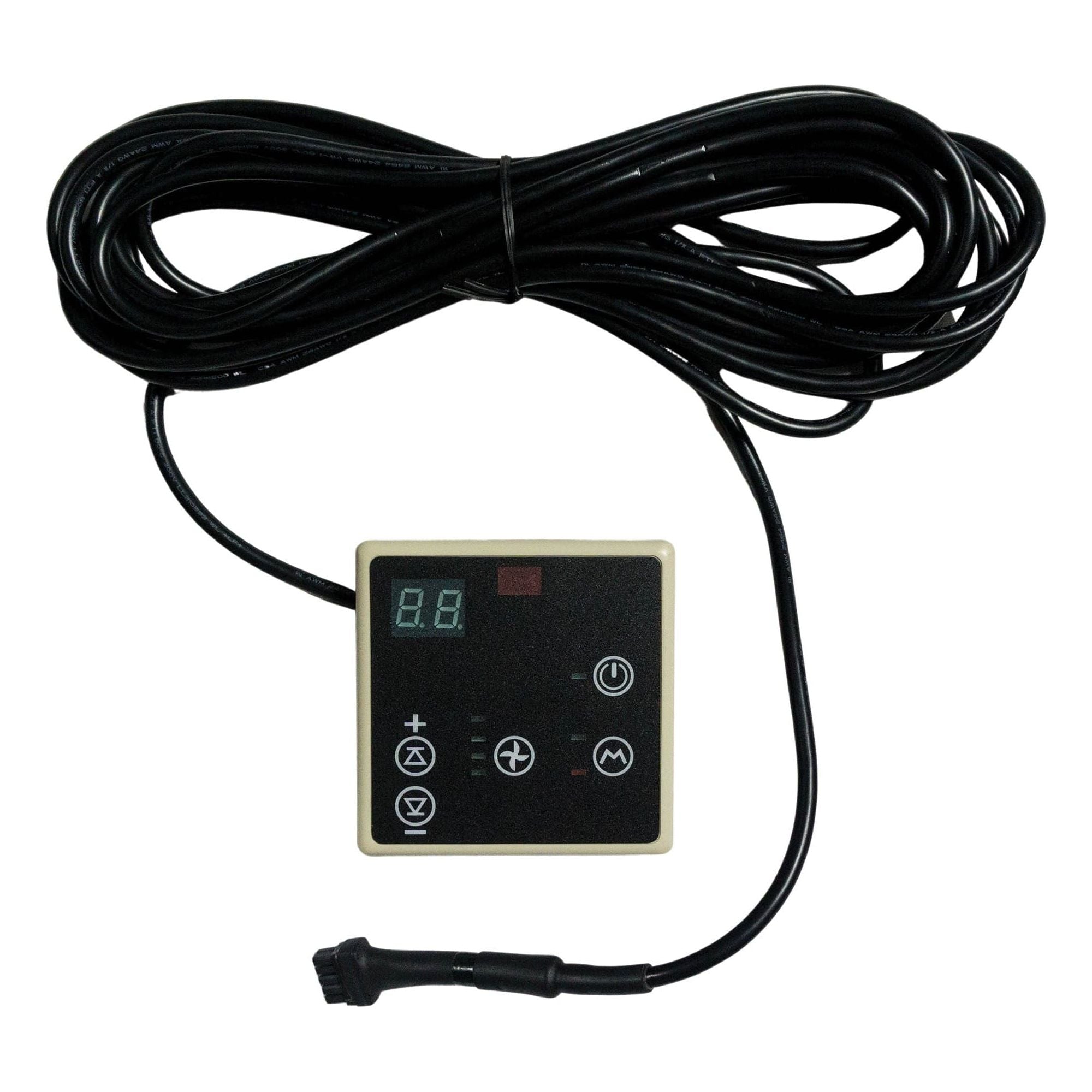

    • Wired Thermostat w/ cradle

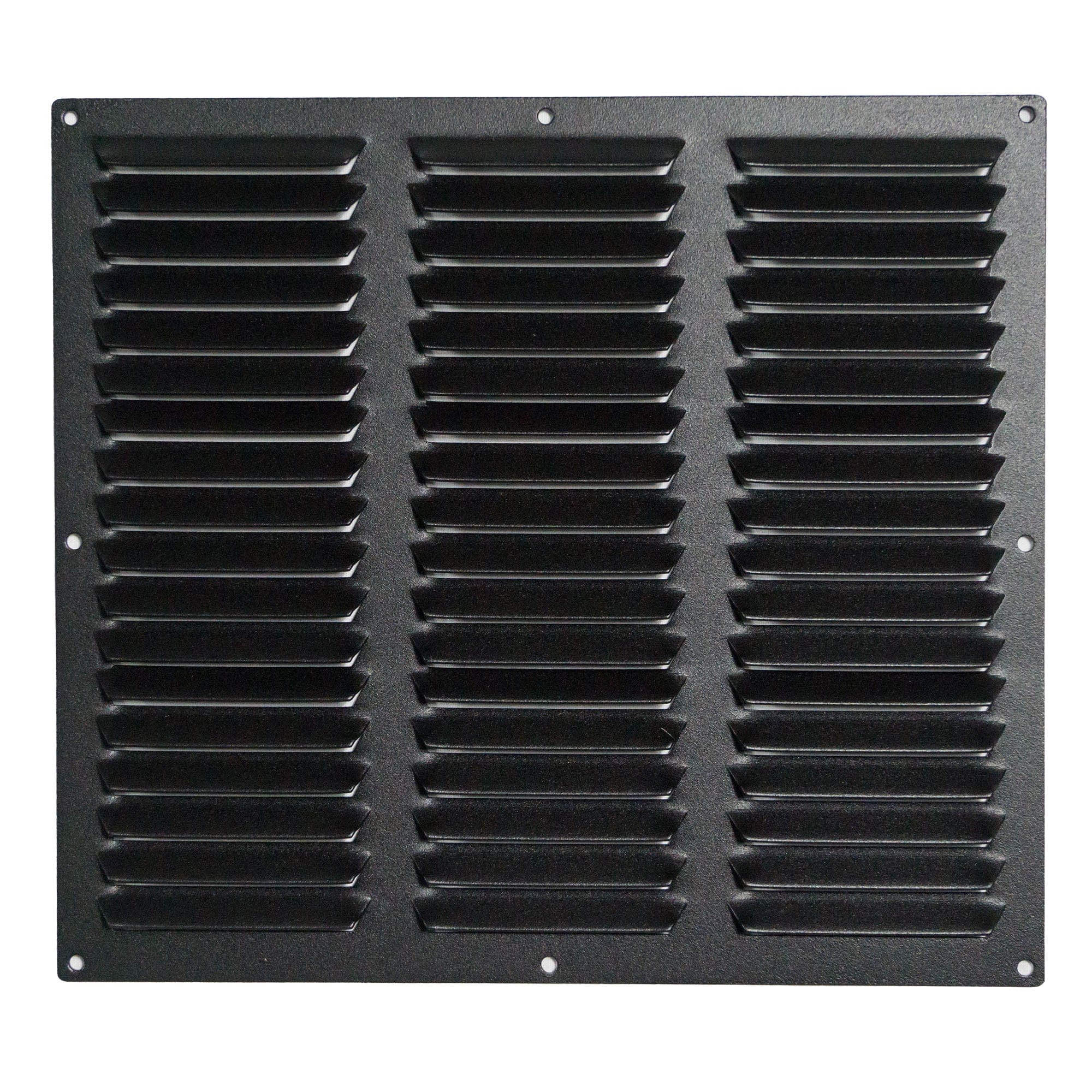

    • Highly Durable Metallic Return Air Grille
    • Drainage Tubing
    • Installation Hardware
    • Installation and User's Manual

    Our Guarantee

    • 5 year parts limited warranty
    • 5 year compressor limited warranty

    Technical Information

    Performance Data

    • Power Supply: 110~120V, 60Hz, 1Ph
    • Cooling Rated Capacity: 9,000 BTU/h
    • Cooling EER: 8.5 BTU/w
    • Cooling Consumption: 8.8A / 995W
    • Heating Rated Capacity: 9,000 BTU/h
    • Heating C.O.P.:  2.6 W/W
    • Heating Consumption: 7.2A / 810W
    • Refrigerant Type: R410A
    • Suitable Volume: 1,060 m3
    • Fan Speeds: 3 (Low/Med/High)

    Unit Physical Data

    • Treated Volume of Air (Max): 206 CFM
    • Water Protection Class: IPX-5
    • Noise Level: <40 dB(A)
    • Weight: 61 lbs

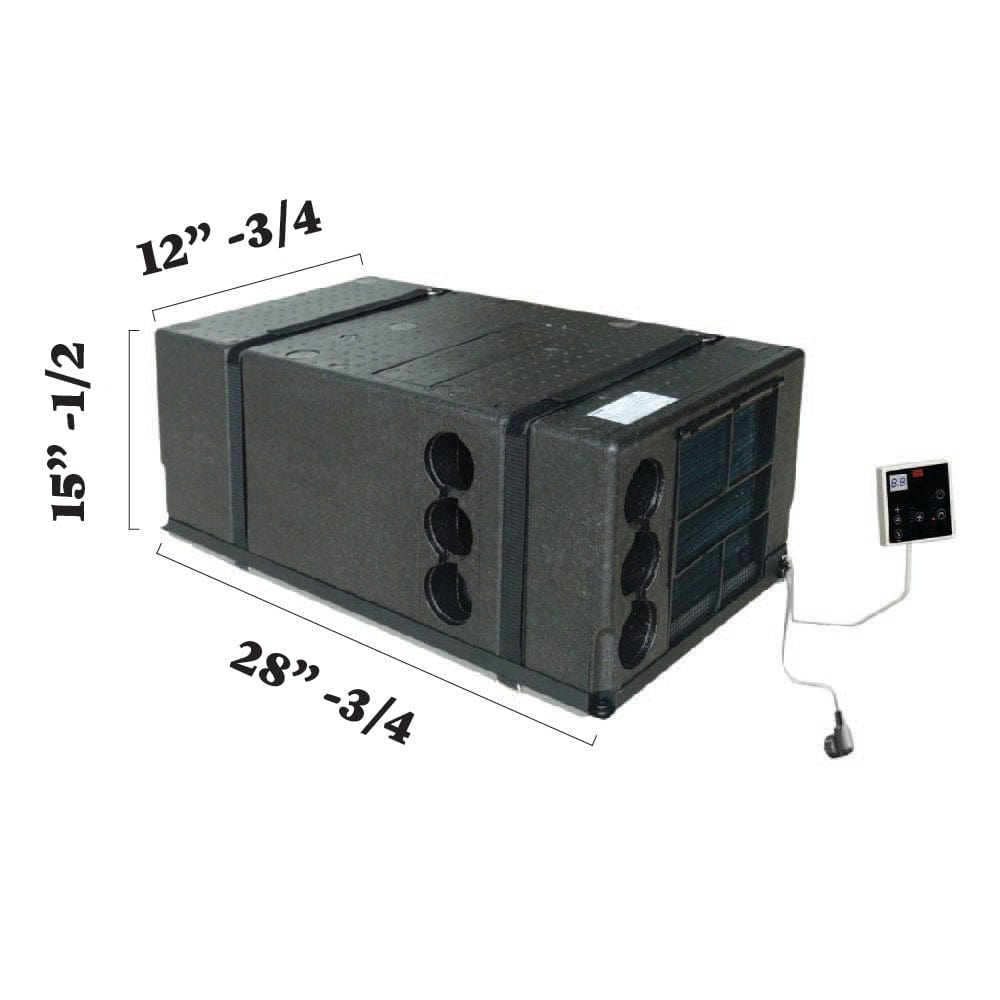

    • Dimensions (LDH): 28"-3/4 x 15"-1/2 x 12"-3/4

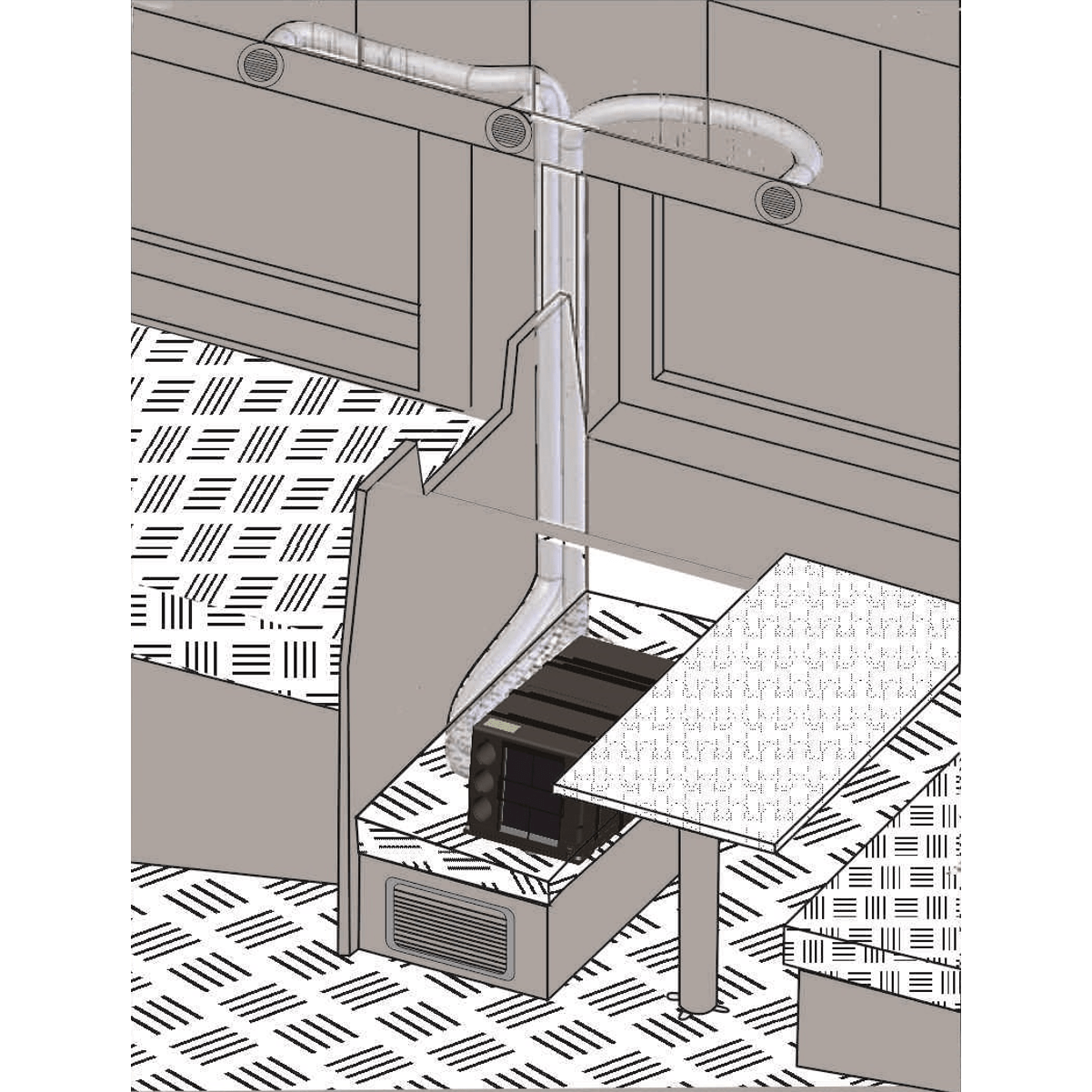

    Typical Installation

    Typical Installation Example of RV Heat Pump
