Pioneer® 56,000 BTU 17 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation

Pioneer® 56,000 BTU 17 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation COMPLETE SET

Overview

Experience the next level of comfort with the Pioneer® 56,000 BTU 17 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation. This advanced system combines cutting-edge inverter technology with a high SEER2 rating to deliver efficient, reliable cooling and heating for large spaces. Perfect for homes or offices, it ensures energy savings while maintaining optimal comfort year-round.

The Pioneer® 56,000 BTU Ducted Central Split system’s 2nd Generation technology offers smart, adaptive climate control that responds to your needs, providing quieter operation and improved performance. The system is designed for seamless integration into your home, with ducted installation that ensures even temperature distribution.

With its powerful performance and energy-efficient operation, the Pioneer® 56,000 BTU Ducted Central Split Inverter+ system is a perfect upgrade for any space. Invest in the future of home climate control with Pioneer® for unparalleled comfort and savings.

Summary

  • Ultra High Efficiency Inverter+ central ducted split heat pump system
  • Cooling capacity: 56,000 BTU/H with 17 SEER2 / 8.25 EER2 efficiency
  • Heating capacity: 56,000 BTU/H with 8.5 HSPF2 / 3.1 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Central Ducted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Communicating system with dedicated signal transmission
  • Includes Electric Strip Heater
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $422.00
    • Heating: $1184.00

[[SERIES]]

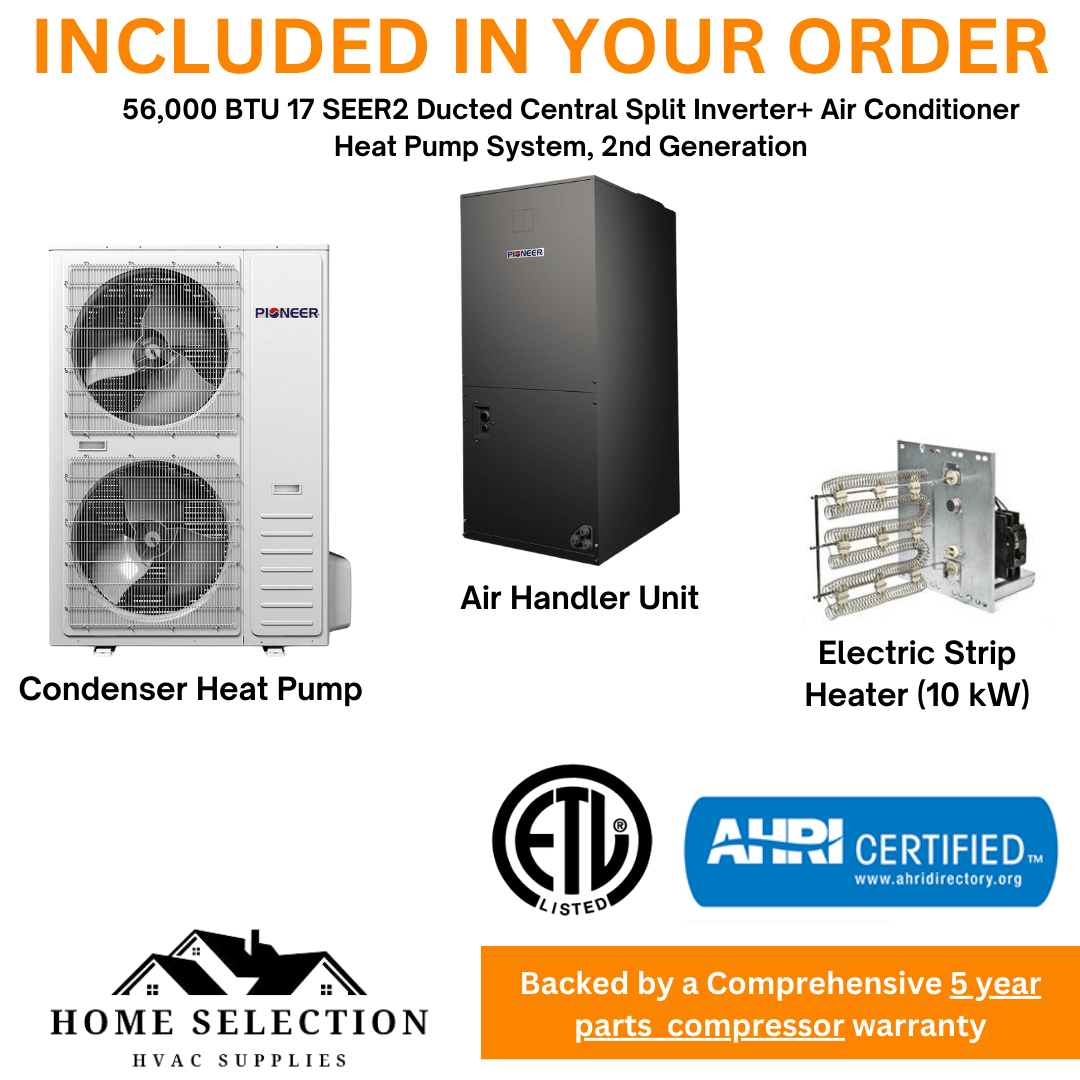

What's Included

  • Indoor Unit (Downflow-capable)
  • Outdoor Unit (Side-Discharge)
  • Electric Strip Heater (10 kW)
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 years compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Max Cooling Rated Capacity (Min~Max): 56,000 (18,300~59,400) BTU/h
  • Cooling SEER2: 17 BTU/W.h
  • Cooling EER2: 8.25 BTU/W.h
  • Max Heating Rated Capacity (Min~Max): 56,000 (17,600 ~ 57,500) BTU/h
  • Heating HSPF2 (Region IV): 8.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.1 / 1.86 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 2,000 Sq.F

Indoor Unit Data

  • Model: DR060GHFD18HT2
  • Air Flow: 1706 CFM
  • Sound Level: 60 dB(A)
  • Fan Motor Type: Multi-Speed ECM
  • Net Dimensions (WDH): 22 × 24 × 53-7/8 Inches
  • Carton Dimensions (WDH): 25-1/4 × 28 × 55-1/2 Inches
  • Net / Gross Weight: 187 / 214 Lbs

Outdoor Unit Data

  • Model: YH4860GHFD18R2
  • Sound Level: 65 dB(A)
  • Metering Device: EXV
  • Net Dimensions (WDH): 37-3/8 × 13-3/8 × 54-1/2 Inches
  • Carton Dimensions (WDH): 43-3/4 ×18-1/8 × 60-1/4 Inches
  • Net / Gross Weight: 251 / 278 Lbs

Manuals & Downloads

Free Express Shipping on All orders within the USA

Read Our Shipping Policy Here

30 Day Free Returns on all orders

Read about our Returns Policy Here

Request A Quote

Skip to content
Pioneer® 56,000 BTU 17 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation COMPLETE SET

Pioneer® 56,000 BTU 17 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation

by Pioneer mini splits
SKU DYR4860GMFI18R
In stock | Shipping ETA: to
Save $1,535.00
$7,086.00
$5,551.00

Notify me when back in stock
