         Pioneer® 48,000 BTU 18.9 SEER2
     Floor/Ceiling Mini-Split Inverter+ Air
      Conditioner Heat Pump System Full
      Set 230V

Pioneer® 48,000 BTU 18.9 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V COMPLETE SET

The Pioneer® 48,000 BTU 18.9 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V offers superior comfort and energy efficiency. With its advanced Inverter+ technology and impressive 18.9 SEER2 rating, this system provides powerful cooling and heating while helping you save on energy costs. Whether it's hot summer days or chilly winter nights, the Pioneer® 48,000 BTU Mini-Split ensures year-round climate control in any space.

Designed for flexible installation, the Pioneer® Floor/Ceiling Mini-Split allows you to enjoy the benefits of floor or ceiling mounting, optimizing airflow for better temperature distribution. The full 230V system is designed to handle large spaces efficiently, offering consistent and quiet performance.

Choose the Pioneer® 48,000 BTU Floor/Ceiling Mini-Split for unbeatable energy savings and superior climate control. Upgrade your home's HVAC system today with this high-performance, reliable solution for ultimate comfort.

Features of Pioneer® 48,000 BTU 18.9 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V:

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 48,000 BTU/h
  • Cooling Capacity Range: 15,861~48,000 BTU/h
  • Cooling SEER2: 18.9 BTU/W.h
  • Cooling EER2: 9.3 BTU/W.h
  • Heating Rated Capacity: 50,000 BTU/h
  • Heating Capacity Range: 21,780~57,300 BTU/h
  • Heating HSPF2 (Region IV/V): 10.0 / 7.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 2.5 / 1.85 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 1,350~1,800 Sq.F

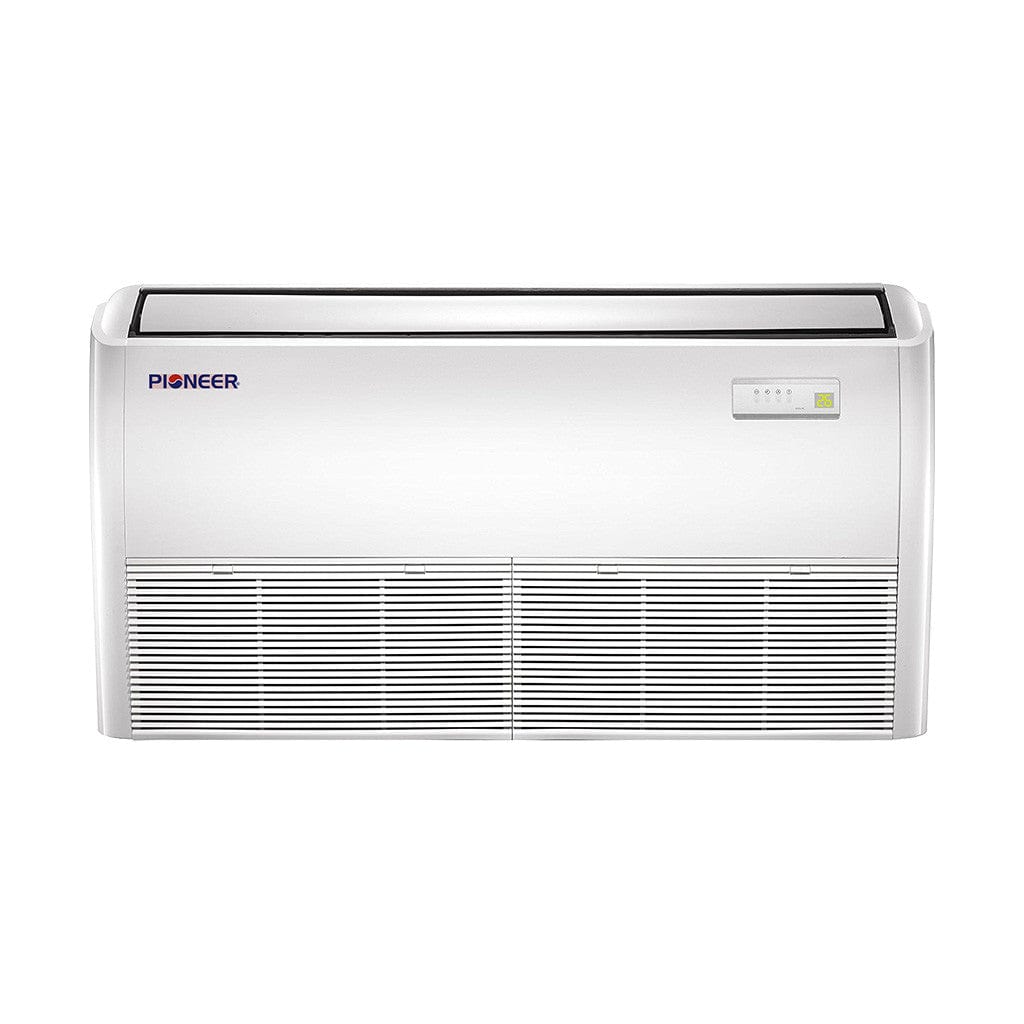

Indoor Unit DataPioneer® 48,000 BTU 18.9 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V FRONT VIEW

  • Model: UB048GMFILCFHD
  • Air Flow (Hi/Med/Lo): 1,320 / 1,200 / 1,120 CFM
  • Sound Level (Hi/Med/Lo): 55.0 / 49.5 / 44.5 dB(A)
  • Net Dimensions (WDH): 65.0 x 26.5 x 9.3 Inches
  • Carton Dimensions (WDH): 68.0 x 29.8 x 12.4 Inches
  • Net / Gross Weight: 87.7 / 102.3 Lbs

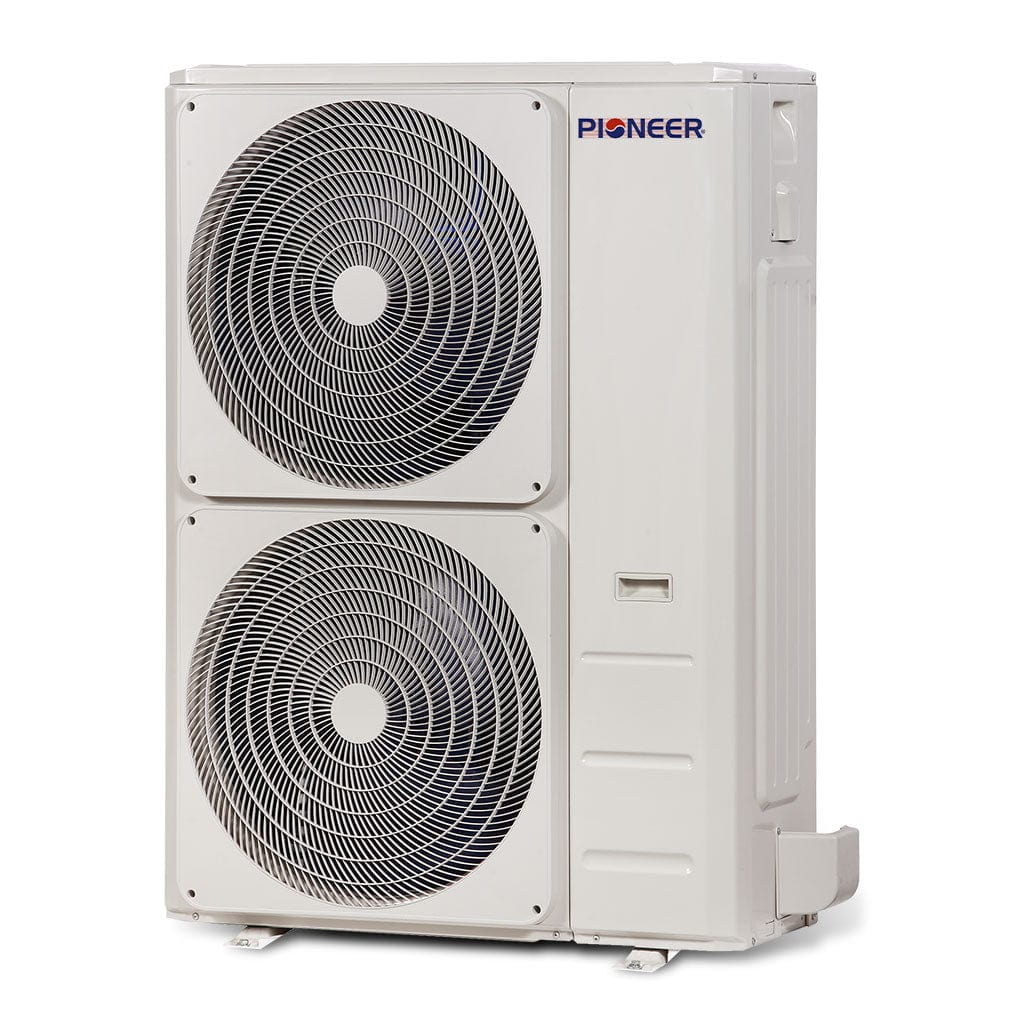

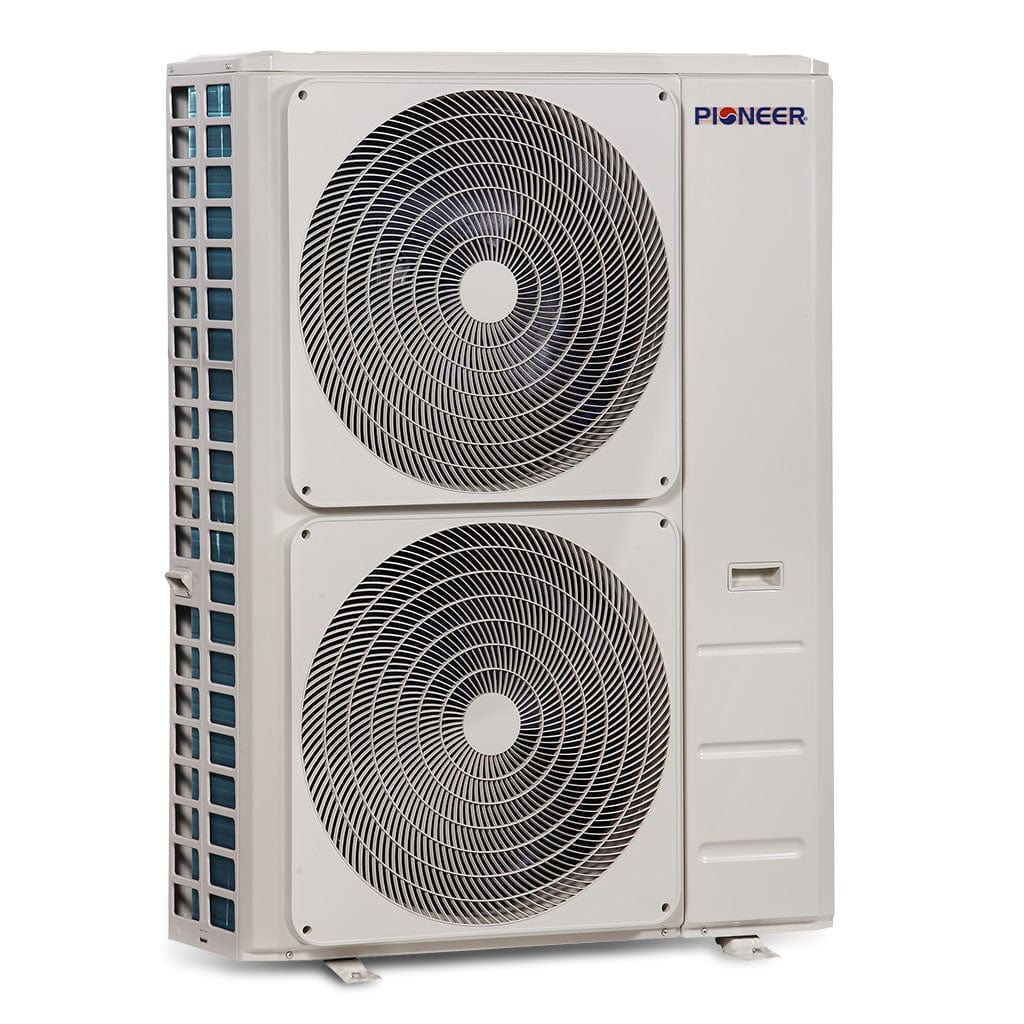

Outdoor Unit Data

  • Model: YN048GMFI18RUE
  • Breaker Needed: 40A (double-pole)
  • Sound Level: 65.0 dB(A)
  • Net Dimensions (WDH): 37.5 x 16.4 x 52.5 Inches
  • Carton Dimensions (WDH): 43.2 x 19.8 x 58.5 Inches
  • Net / Gross Weight: 219.1 / 249.1 Lbs

Manuals & Downloads


         Pioneer® 48,000 BTU 18.9 SEER2
     Floor/Ceiling Mini-Split Inverter+ Air
      Conditioner Heat Pump System Full
                              Set 230V

Summary

  • Ultra High-Efficiency Inverter++ floor/ceiling split heat pump system
  • Cooling capacity: 48,000 BTU/H with 18.9 SEER2 / 9.3 EER2 efficiency
  • Heating capacity: 50,000 BTU/H with 10.0 HSPF2 / 2.5 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Floor/Ceiling Flex Mount Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Energy-Star Cold-Climate Certified

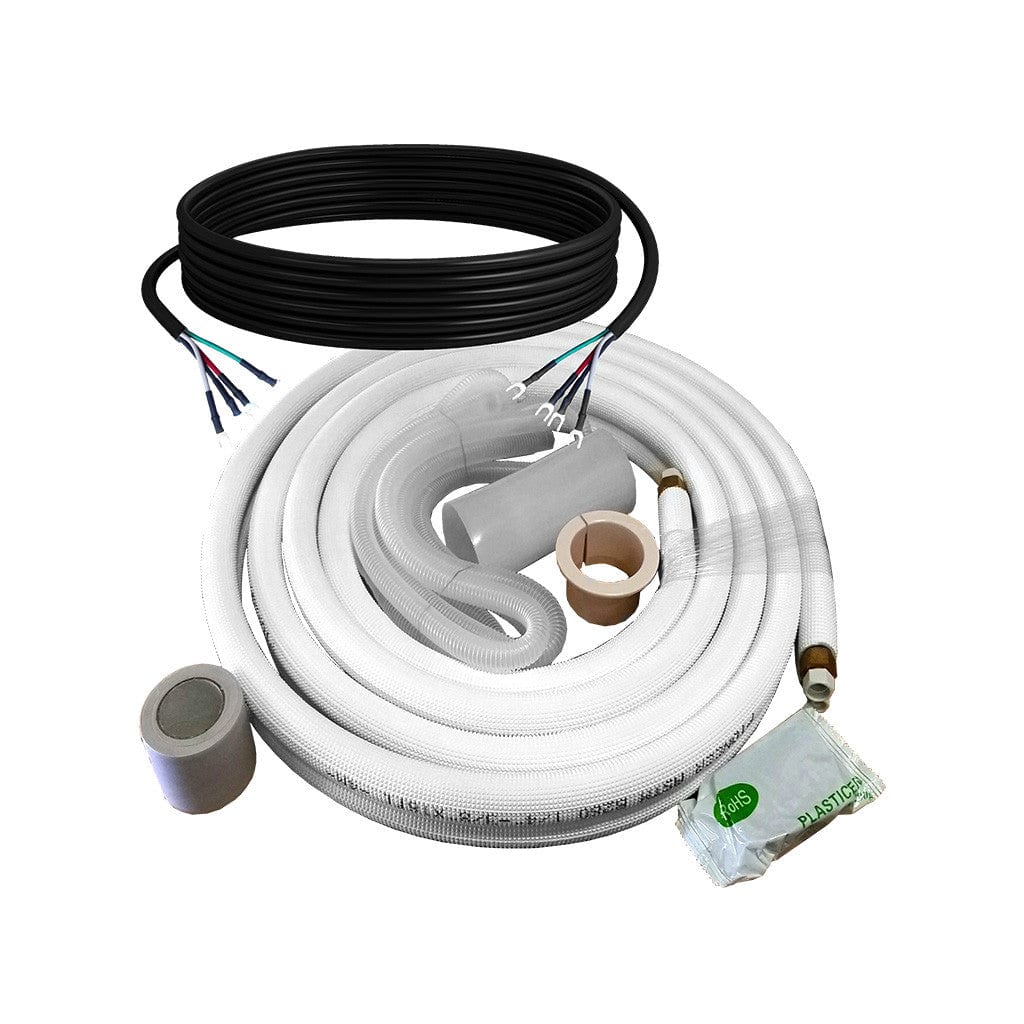

  • Customizable length copper line set with flare connections
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $352.00
    • Heating: $961.00

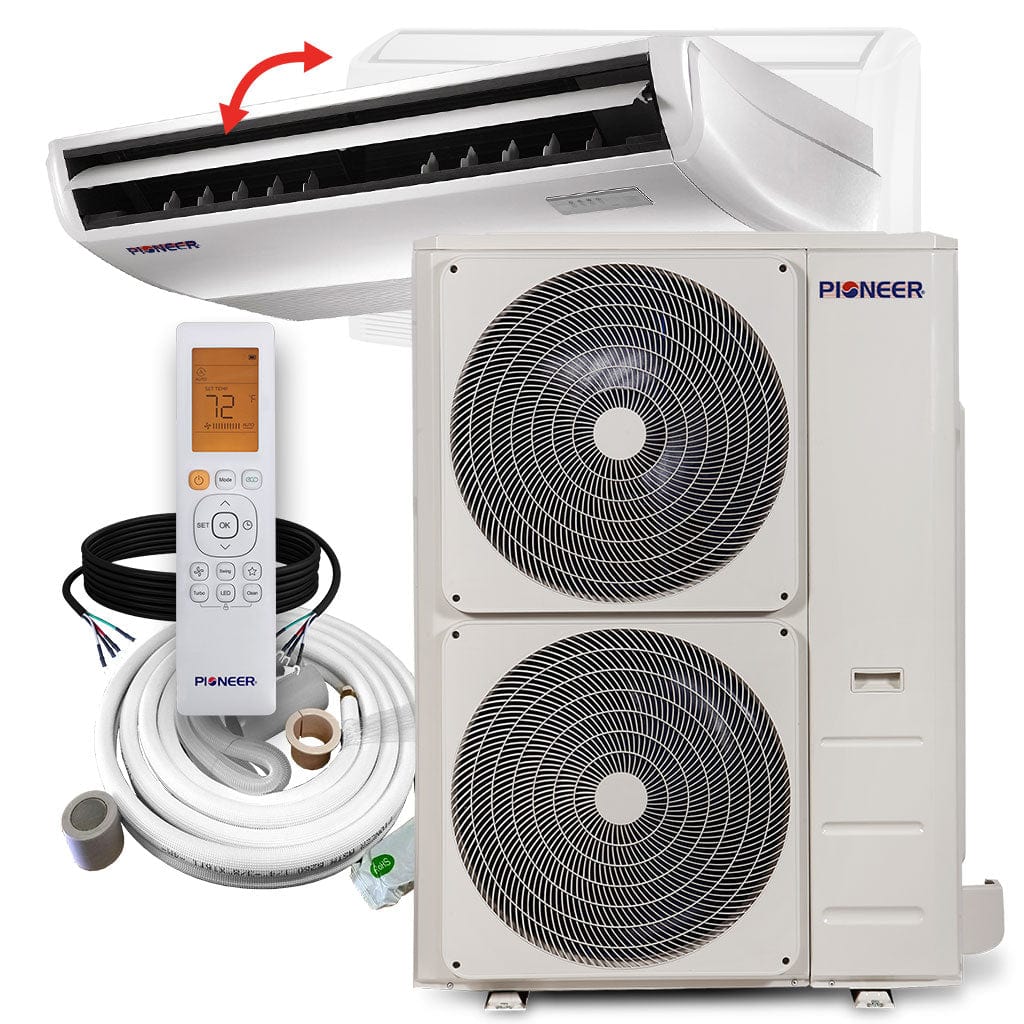

What's IncludedPioneer® 48,000 BTU 18.9 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V

  • Indoor Unit
  • Outdoor Unit

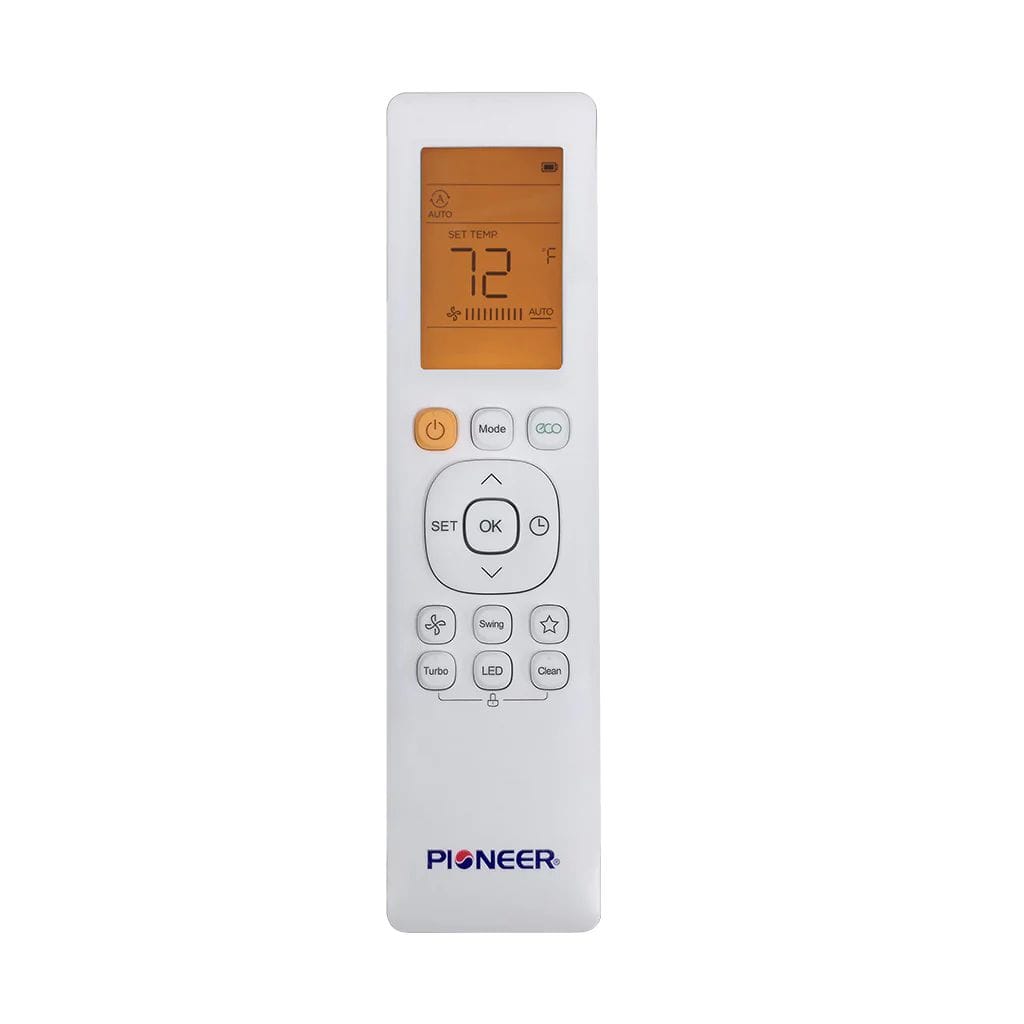

  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5-year parts limited warranty
  • 5-year compressor limited warranty

Free Express Shipping on All orders within the USA

Read Our Shipping Policy Here

30 Day Free Returns on all orders

Read about our Returns Policy Here

Request A Quote

Skip to content
★★★★★ Rated 4.8/5 by HVAC Professionals Trusted by Over 1,000 HVAC Technicians Nationwide
Pioneer® 48,000 BTU 18.9 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V COMPLETE SET

Pioneer® 48,000 BTU 18.9 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V

by Pioneer mini splits
SKU UYB048GMFILCBD-10
In stock | ETA: to
Save $2,924.00
$6,832.00
$3,908.00

Notify me when back in stock

FREE EXPRESS SHIPPING Process orders in 1 business day
STRESS FREE RETURNS 2 Year Returns
Primum Quality Top Tier Products, Even Better Customer Care
5 Year Warranty We Believe In Our Products & Our Team
Professional Services Get service quotes the same day
Pioneer® 48,000 BTU 18.9 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V
$6,711.00
$3,808.00
