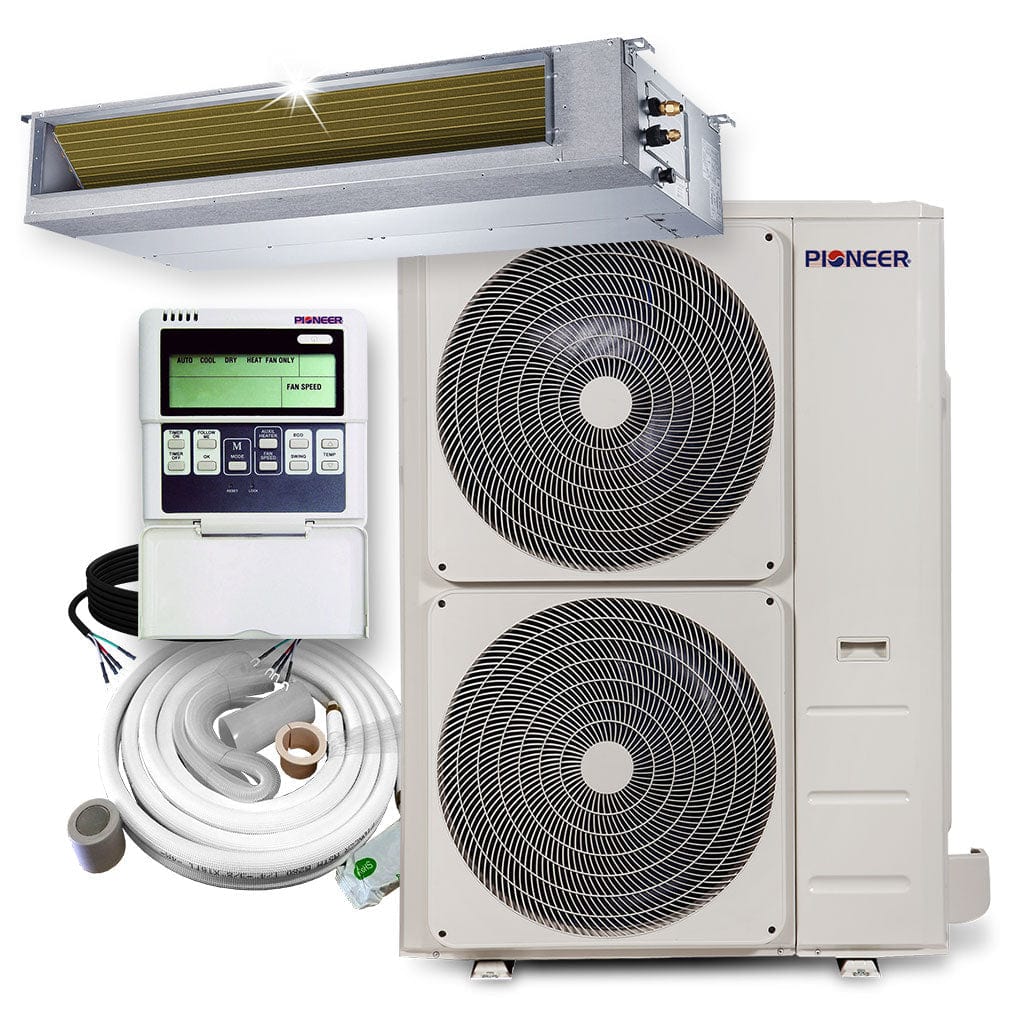

  Pioneer® 48,000 BTU 15.1 SEER2 Ceiling
    Concealed Ducted Mini-Split Inverter+
   Air Conditioner Heat Pump System Full  Set 230V

Pioneer® 48,000 BTU 15.1 SEER2 Ceiling Concealed Ducted Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V COMPLETE SET

Experience the ultimate in comfort and efficiency with the Pioneer® 48,000 BTU 15.1 SEER2 Ceiling Concealed Ducted Mini-Split Inverter+ Air Conditioner Heat Pump System. Designed to provide powerful cooling and heating while remaining discreet, this ceiling concealed system is perfect for those looking for efficient climate control without compromising space. With advanced Inverter+ technology, you can enjoy consistent temperatures and reduced energy consumption.

The Pioneer® 48,000 BTU Ceiling Concealed Mini-Split offers a sleek design that integrates easily into your home’s ceiling, giving you a clutter-free, quiet operation. Ideal for larger spaces, this 230V full set ensures optimal comfort while maintaining high energy efficiency with its 15.1 SEER2 rating.

Whether you're heating in the winter or cooling in the summer, the Pioneer® 48,000 BTU Ceiling Concealed Ducted System offers the perfect solution for year-round comfort. Enjoy enhanced performance, reliable operation, and cost savings with this top-tier system.


Features Pioneer® 48,000 BTU 15.1 SEER2 Ceiling Concealed Ducted Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V:

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 48,000 BTU/h
  • Cooling Capacity Range: 10,500~48,000 BTU/h
  • Cooling SEER2: 15.1 BTU/W.h
  • Cooling EER2: 8.5 BTU/W.h
  • Heating Rated Capacity: 50,000 BTU/h
  • Heating Capacity Range: 11,000~53,400 BTU/h
  • Heating HSPF2 (Region IV/V): 9.3 / 7.3 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.19 / 1.91 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 1,350~1,800 Sq.F

Indoor Unit DataPioneer® 48,000 BTU 15.1 SEER2 Ceiling Concealed Ducted Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V SIDE VIEW

  • Part Number: RB048GMFILDFHD
  • Air Flow (Hi/Med/Lo): 1,228 / 1,031 / 715 CFM
  • External Static Pressure: 0 ~ 0.64 Inch WC
  • Sound Level (Hi/Med/Lo): 52.0 / 50.0 / 49.0 dB(A)
  • Net Dimensions (WDH): 47"-1/4 x 34"-3/8 x 11"-3/4
  • Carton Dimensions (WDH): 55"-1/4 x 36" x 14"
  • Net / Gross Weight: 120 / 142 Lbs

Outdoor Unit Data

  • Part Number: YN048GMFI18RUE
  • Sound Level: 65 dB(A)
  • Breaker Needed: 40A (double-pole)
  • Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2
  • Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 58"-1/2
  • Net / Gross Weight: 219 / 249 Lbs

Manuals & Downloads


  Pioneer® 48,000 BTU 15.1 SEER2 Ceiling
    Concealed Ducted Mini-Split Inverter+
   Air Conditioner Heat Pump System Full
                               Set 230V

Summary

  • High-Efficiency Inverter+ ceiling concealed duct split heat pump system
  • Cooling capacity: 48,000 BTU/H with 15.1 SEER2 / 8.5 EER2 efficiency
  • Heating capacity: 49,500 BTU/H with 9.3 HSPF2 / 3.19 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Ceiling Concealed Ducted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $364.00
    • Heating: $1026.00

What's IncludedPioneer® 48,000 BTU 15.1 SEER2 Ceiling Concealed Ducted Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V SIDE VIEW

  • Indoor Unit
  • Outdoor Unit
  • Wire Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5-year parts limited warranty
  • 5-year compressor limited warranty

Free Express Shipping on All orders within the USA

Read Our Shipping Policy Here

30 Day Free Returns on all orders

Read about our Returns Policy Here
