Pioneer® 36,000 BTU 18 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation
Overview
Experience year-round comfort with the Pioneer® 36,000 BTU 18 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation. This advanced system offers efficient cooling and heating for large spaces, thanks to its high 18 SEER2 rating and state-of-the-art inverter technology. Enjoy optimal comfort while saving on energy costs with this powerful and quiet solution.
The Pioneer® 36,000 BTU Ducted Central Split Inverter+ system is perfect for those who need reliable climate control in larger homes or offices. Its 2nd Generation design enhances efficiency and performance, providing a seamless blend of high-tech functionality and user-friendly operation. With this system, you’ll experience quieter operation without sacrificing cooling or heating power.
Upgrade your home’s HVAC system with the Pioneer® 36,000 BTU Ducted Central Split to enjoy precise temperature control, improved air quality, and long-term savings. This system is the ultimate solution for those seeking an energy-efficient and reliable air conditioner heat pump system that delivers consistent comfort all year long.
Summary
- Ultra High Efficiency Inverter+ central ducted split heat pump system
- Cooling capacity: 36,000 BTU/H with 18.0 SEER2 / 9.55 EER2 efficiency
- Heating capacity: 36,000 BTU/H with 9.0 HSPF2 / 3.3 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
-
Central Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Energy-Star Cold-Climate Certified
-
Communicating system with dedicated signal transmission
- Includes 10 kW Electric Strip Heater w/ breaker
- AHRI Estimated Annual Operating Costs:
- Cooling: $264.00
- Heating: $730.00
[[SERIES]]
What's Included

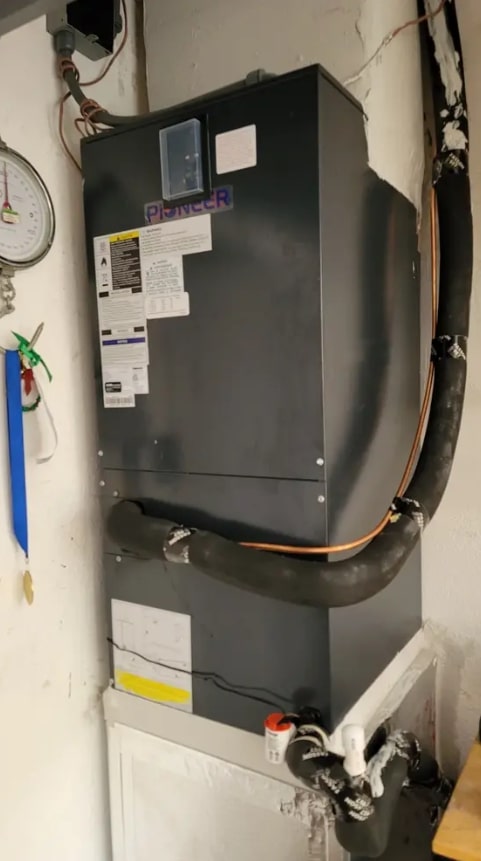

- Indoor Unit (Downflow-capable)
- Outdoor Unit (Side-Discharge)
- Electric Strip Heater (10 kW w/ breaker)
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 years compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Max Cooling Rated Capacity (Min~Max): 36,000 (11,800~36,800) BTU/h
-
Cooling SEER2: 18 BTU/W.h
-
Cooling EER2: 9.55 BTU/W.h
-
Max Heating Rated Capacity (Min~Max): 35,000 (8,900 ~ 38,200) BTU/h
-
Heating HSPF2 (Region IV): 9.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.3 / 2.1 W/W
- Refrigerant Type: R410a
- Suitable Area: 1,200 Sq.F
- Operating Temperatures: (-13°F - 75°F/Heating)/(5° - 122°F/Cooling)
Indoor Unit Data
- Model: DR036GHFD18HT2
- Air Flow: 1120 CFM
-
Sound Level: 57 dB(A)
-
Fan Motor Type: Multi-Speed ECM
- Net Dimensions (WDH): 19-5/8 × 21-5/8 × 46-1/8 Inches
- Carton Dimensions (WDH): 22-1/2 × 25-3/8 × 49-5/8 Inches
- Net / Gross Weight: 140 / 163 Lbs
Outdoor Unit Data
- Model: YH3036GHFD18R2
- Sound Level: 57 dB(A)
- Metering Device: EXV
- Net Dimensions (WDH): 37-3/8 x 13-3/8 x 33 Inches
- Carton Dimensions (WDH): 43-3/4 x 18-1/8 x 36-1/4 Inches
- Net / Gross Weight: 148 / 159 Lbs
