 Pioneer® 24,000 BTU 21 SEER2 Ductless
      Mini-Split Inverter+ Energy-Star
    Air Conditioner Heat Pump System Full
    Set 230V


Pioneer® 24,000 BTU 21 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Transform your home’s climate control with the Pioneer® 24,000 BTU 21 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V. Offering energy-efficient cooling and heating, this system is designed to provide maximum comfort while saving on energy costs. With an impressive 21 SEER2 rating, it delivers high performance and exceptional energy savings throughout the year.

The Pioneer® 24,000 BTU Ductless Mini-Split system features advanced Inverter++ technology, ensuring precise temperature control and quiet operation. Whether it's keeping your space cool during summer or warm in winter, this system adapts to your needs with efficiency and reliability. Installation is simple and straightforward, making it an ideal choice for homes, offices, or any space in need of a flexible HVAC solution.

Enjoy consistent comfort and peace of mind with the Pioneer® 24,000 BTU 21 SEER2 Ductless Mini-Split system, Energy-Star certified for maximum efficiency and cost savings. It’s the perfect solution for those who value performance, quiet operation, and eco-friendly living.


Features of Pioneer® 24,000 BTU 21 SEER2 Ductless Mini-Split Inverter+ Energy-Star Air Conditioner Heat Pump System Full Set 230V:

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 9,200~25,000 BTU/h
  • Cooling SEER2: 21 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 26,000 BTU/h
  • Heating Capacity Range: 10,350~26,410 BTU/h
  • Heating HSPF2 (Region IV/V): 9.0 / 6.8 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.05 / 1.92 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 600~950 Sq.F

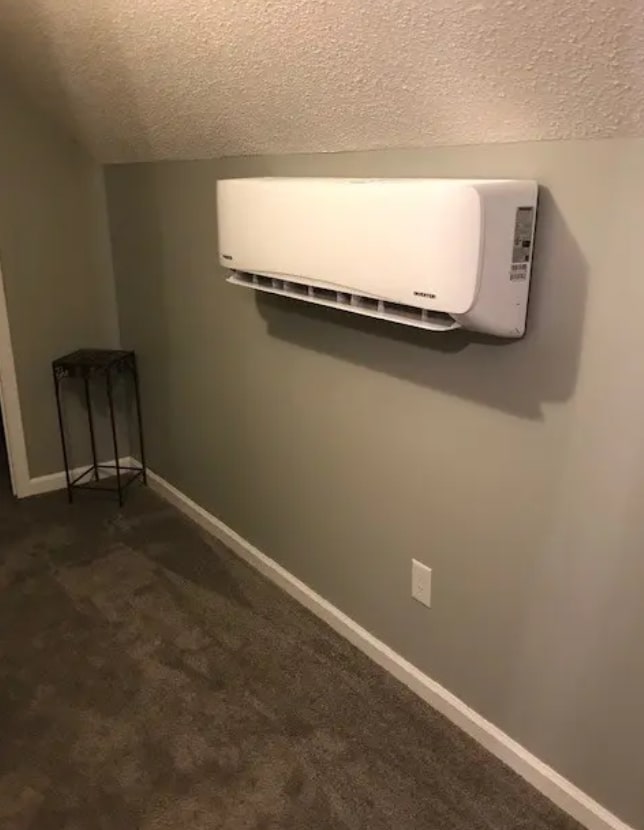

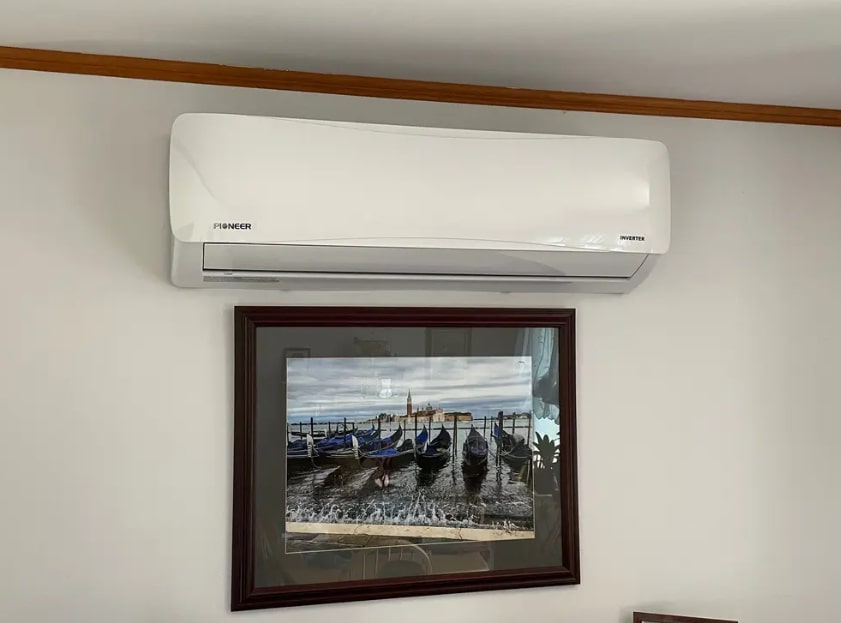

Indoor Unit Data

  • Part Number: WS024GMFI22HLE
  • Air Flow (Hi/Med/Lo): 618 / 471 / 324 CFM
  • Sound Level (Hi/Med/Lo): 47.5 / 42.0 / 32.0 dB(A)
  • Net Dimensions (WDH): 42.5 x 8.8 x 13.2 Inches
  • Carton Dimensions (WDH): 45.5 x 12.3 x 16.3 Inches
  • Net / Gross Weight: 30.2 / 37.9 Lbs

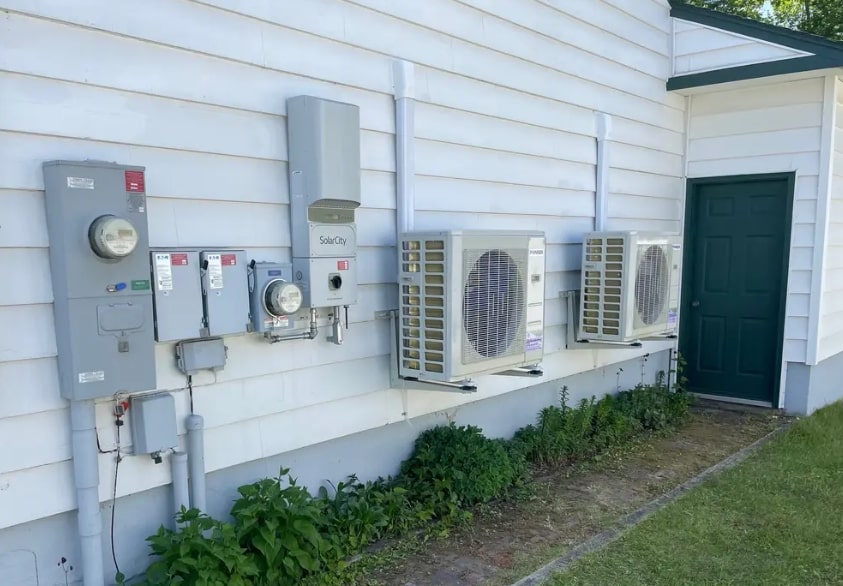

Outdoor Unit Data

  • Part Number: YN024GMFI22RPE
  • Breaker Needed: 25A (double-pole)
  • Sound Level: 61.0 dB(A)
  • Net Dimensions (WDH): 37.2 x 16.2 x 31.8 Inches
  • Carton Dimensions (WDH): 42.8 x 19.6 x 34.8 Inches
  • Net / Gross Weight: 124.8 / 134.9 Lbs

Manuals & Downloads


   Pioneer® 24,000 BTU 21 SEER2 Ductless
      Mini-Split Inverter+ Energy-Star
    Air Conditioner Heat Pump System Full
                                Set 230V

Summary

  • Ultra High-Efficiency Inverter++ ductless mini split heat pump system
  • Cooling capacity: 24,000 BTU/H with 21 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 26,000 BTU/H with 9.0 HSPF2 / 3.05 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $151.00
    • Heating: $550.00

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5-year parts limited warranty
  • 5-year compressor limited warranty

Free Express Shipping on All orders within the USA

Read Our Shipping Policy Here

30 Day Free Returns on all orders

Read about our Returns Policy Here

Request A Quote

Skip to content
Pioneer® 24,000 BTU 21 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V COMPLETE SET

Pioneer® 24,000 BTU 21 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

by Pioneer mini splits
SKU WYS024GMFI22RL-10
In stock | Shipping ETA: to
Save $950.00
$2,648.00
$1,698.00
