   Pioneer® 24,000 BTU 21.5 SEER2 8-Way
   Slim Cassette Mini-Split Air Conditioner
        Heat Pump System Full Set 230V

Pioneer® 24,000 BTU 21.5 SEER2 8-Way Slim Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V



Transform your space with the Pioneer® 24,000 BTU 21.5 SEER2 8-Way Slim Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V. This advanced system combines powerful cooling and heating capabilities with energy-efficient Inverter++ technology to provide customized comfort in any room. With a 21.5 SEER2 rating, it offers exceptional energy savings while maintaining a comfortable temperature year-round.

The Pioneer® 24,000 BTU 8-Way Slim Cassette Mini-Split is designed for versatility, featuring 8-way air flow to ensure even and consistent cooling or heating throughout the space. Its slim cassette design allows for discreet installation in the ceiling, maximizing floor space while providing optimal comfort. Perfect for homes, offices, or any environment in need of efficient climate control.

Enjoy superior performance and reliability with the Pioneer® 24,000 BTU 8-Way Slim Cassette Mini-Split system. With its 24,000 BTU output, Energy-Star certification, and advanced features, it is the ultimate solution for those looking to elevate their indoor climate while reducing energy costs.


Features of Pioneer® 24,000 BTU 21.5 SEER2 8-Way Slim Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V:

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 8,100~26,200 BTU/h
  • Cooling SEER2: 21.5 BTU /W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 25,000 BTU/h
  • Heating Capacity Range: 10,600~30,000 BTU/h
  • Heating HSPF2: 9.7 BTU/W.h
  • Heating C.O.P.2: 3.37 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 600~950 Sq.F

Pioneer® 36,000 BTU 19.2 SEER2 8-Way Slim Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V SIDE VIEW

Indoor Unit Data

  • Model: CB024GMFILDFHE
  • Air Flow (Hi/Med/Lo): 706 / 635 / 547 CFM
  • Sound Level (Hi/Med/Lo): 49.0 / 46.0 / 43.0 dB(A)
  • Net Dimensions (WDH): 32.6 x 32.6 x 8.2 Inches
  • Carton Dimensions (WDH): 35.8 x 35.8 x 9.8 Inches
  • Net / Gross Weight: 47.2 / 55.3 Lbs

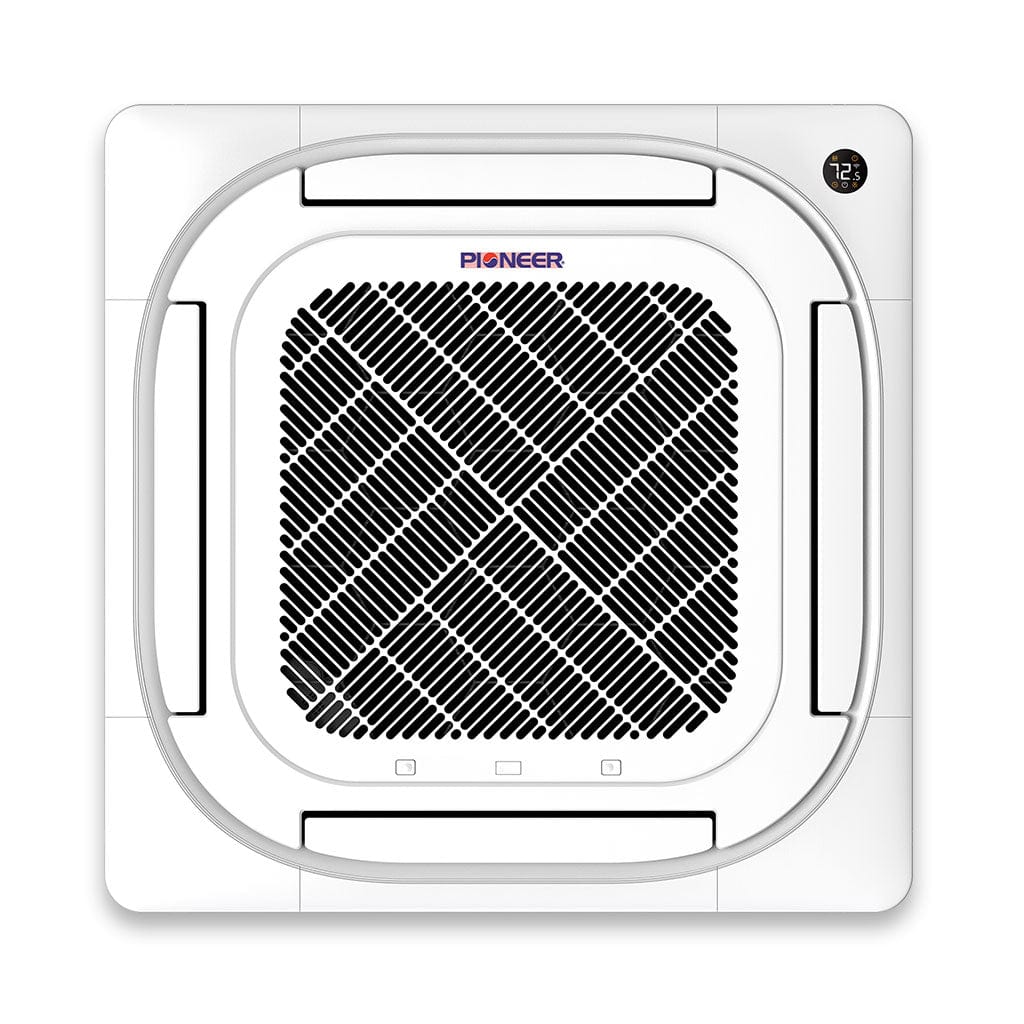

Panel Data

  • Net Dimensions (WDH): 37.7 x 37.7 x 2.2 Inches
  • Carton Dimensions (WDH): 40.8 x 40.8 x 3.5 Inches
  • Net / Gross Weight: 13.2 / 19.8 Lbs

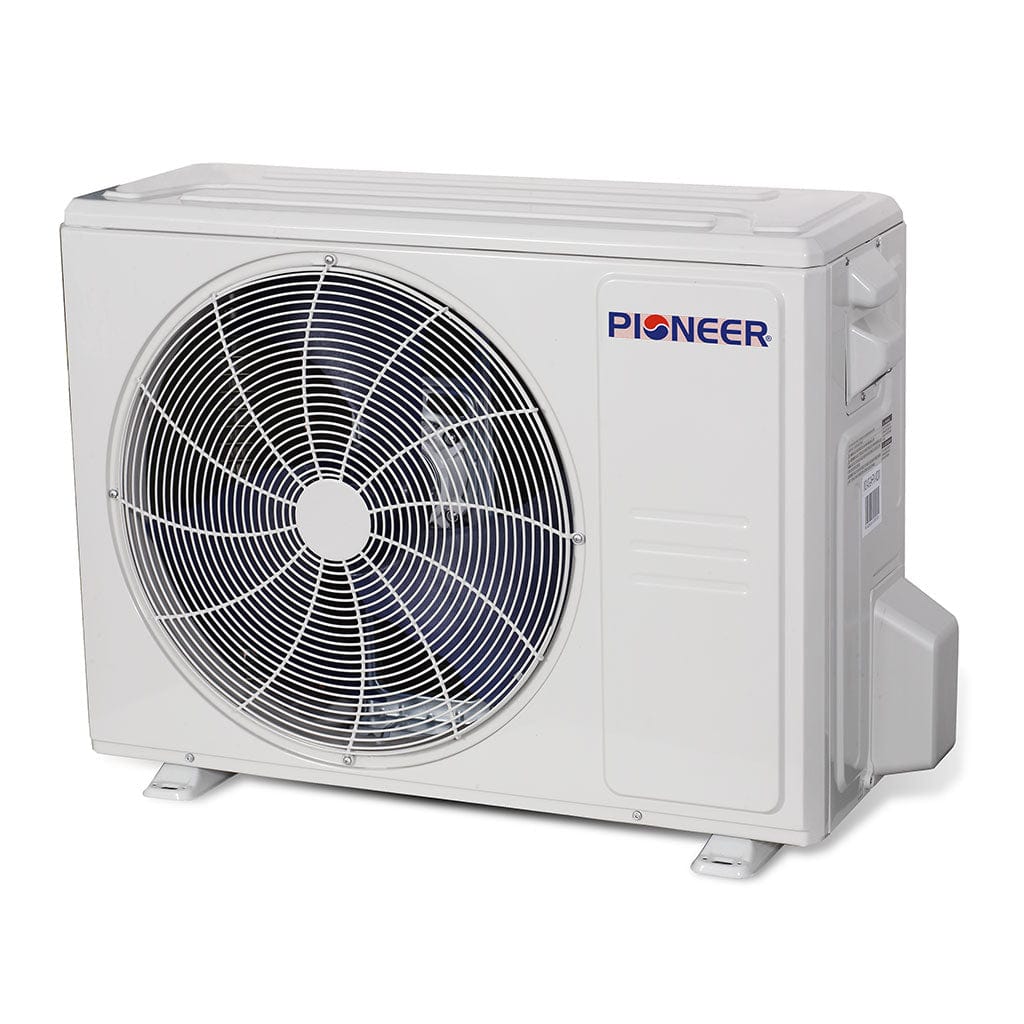

Outdoor Unit Data

  • Model: YN024GMFI22RPE
  • Breaker Needed: 25A (double-pole)
  • Sound Level: 61.0 dB(A)
  • Net Dimensions (WDH): 37.2 x 16.2 x 31.8 Inches
  • Carton Dimensions (WDH): 42.8 x 19.6 x 34.0 Inches
  • Net / Gross Weight: 124.8 / 134.9 Lbs

Manuals & Downloads


   Pioneer® 24,000 BTU 21.5 SEER2 8-Way
   Slim Cassette Mini-Split Air Conditioner
        Heat Pump System Full Set 230V



Summary

  • Ultra High-Efficiency Inverter++ ceiling cassette split heat pump system
  • Cooling capacity: 24,000 BTU/H with 21.5 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 25,000 BTU/H with 9.7 HSPF2 / 3.32 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Ceiling Compact Cassette Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode

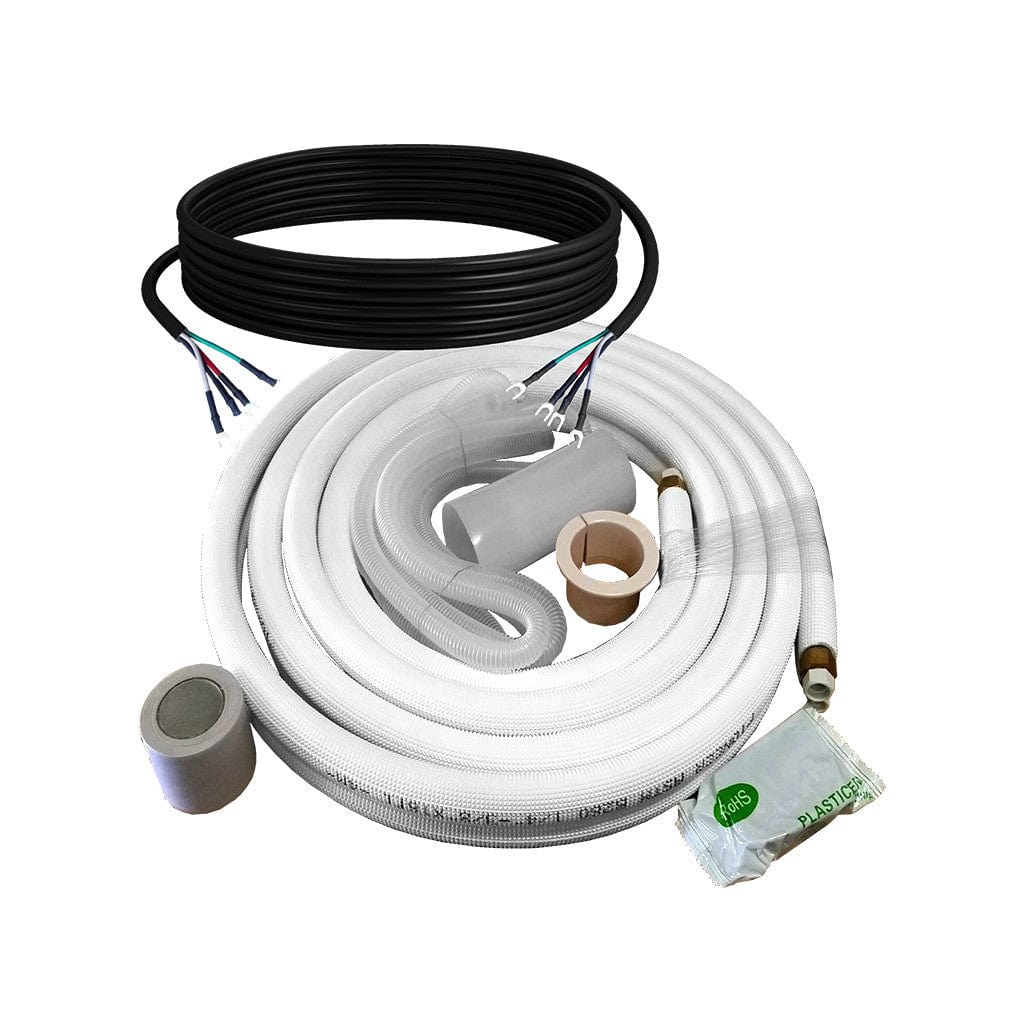

  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $153.00
    • Heating: $503.00
Pioneer® 24,000 BTU 21.5 SEER2 8-Way Slim Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V WIRES AND ACCESSORIES

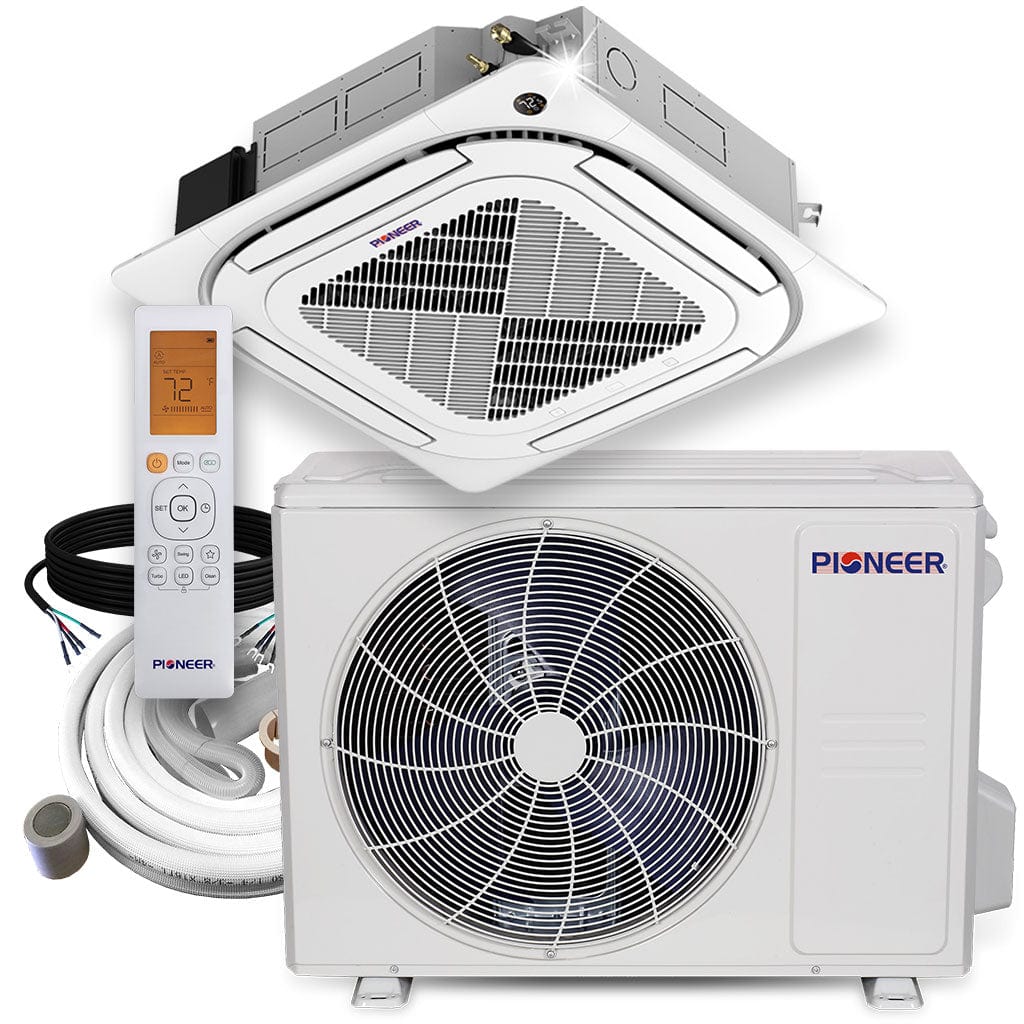

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Panel

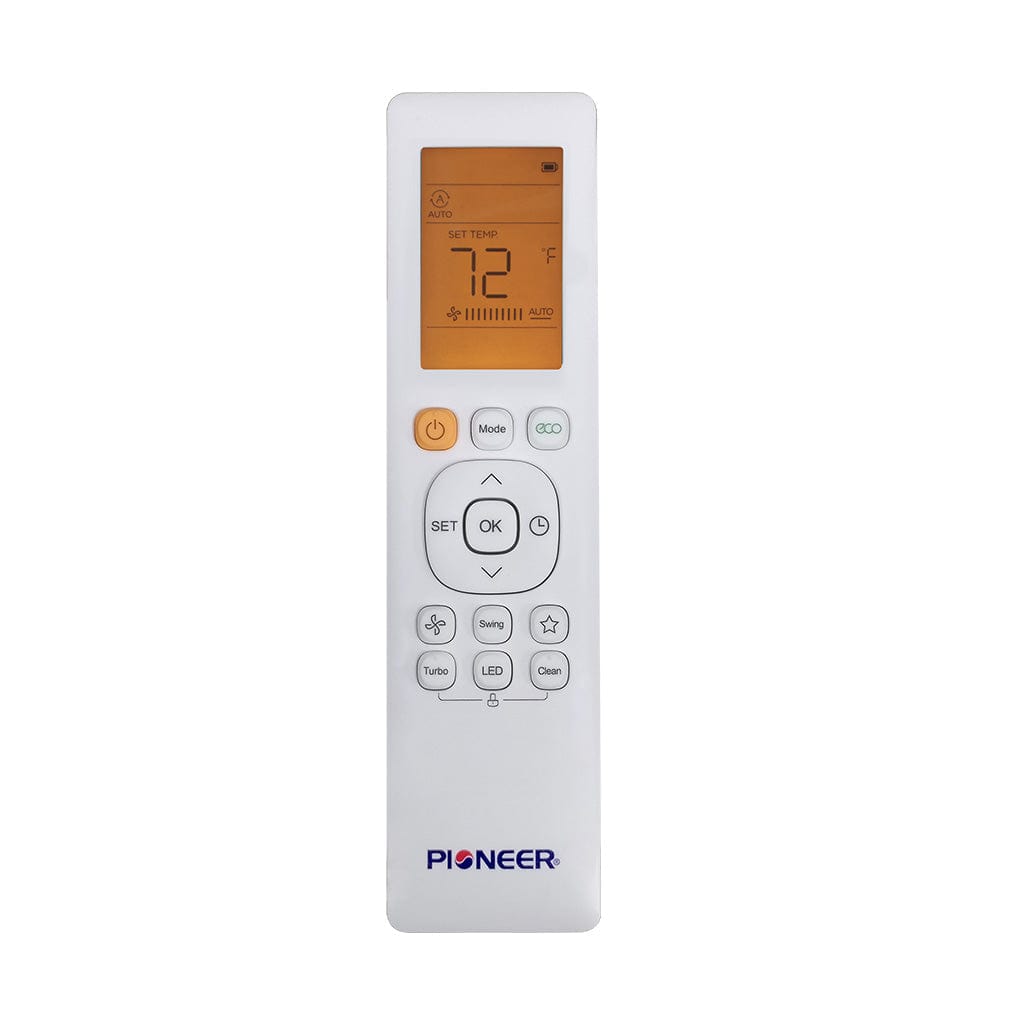

  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5-year parts limited warranty
  • 5-year compressor limited warranty

Free Express Shipping on All orders within the USA

Read Our Shipping Policy Here

30 Day Free Returns on all orders

Read about our Returns Policy Here

Request A Quote

Skip to content
Pioneer® 36,000 BTU 19.2 SEER2 8-Way Slim Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V COMPLETE SET

Pioneer® 24,000 BTU 21.5 SEER2 8-Way Slim Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V

by Pioneer mini splits
SKU CYB024GMFILCBD-10
In stock | Shipping ETA: to
Save $1,524.00
$3,672.00
$2,148.00

Notify me when back in stock
