          Pioneer® 18,000 BTU 23 SEER2
      Floor/Ceiling Mini-Split Inverter++
  Energy-Star Air Conditioner Heat Pump
     System Full Set 230V

Pioneer® 18,000 BTU 23 SEER2 FloorCeiling Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V COMPLETE SET


Elevate your home's comfort with the Pioneer® 18,000 BTU 23 SEER2 Floor/Ceiling Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V. This versatile system is designed for both floor and ceiling installation, offering flexible installation options while providing powerful cooling and heating performance. With an impressive 23 SEER2 rating, it ensures energy-efficient operation year-round, keeping your space comfortable without inflating your energy bills.

The Pioneer® 18,000 BTU 23 SEER2 Floor/Ceiling Mini-Split features advanced Inverter++ technology, which adjusts to your space’s needs for optimal temperature control and energy savings. Whether you're cooling in the summer or heating in the winter, this system offers reliable and consistent climate control. The Energy-Star certification ensures that you're making an eco-friendly choice that saves on utility costs.

Designed for maximum convenience and performance, the Pioneer® 18,000 BTU 23 SEER2 Floor/Ceiling Mini-Split is ideal for any home or office looking to improve comfort with an efficient, multi-functional HVAC system. Enjoy the benefits of flexible installation and superior energy savings with this high-performance air conditioner and heat pump system.

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance DataPioneer® 18,000 BTU 23 SEER2 FloorCeiling Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V FRONT VIEW

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 18,000 BTU/h
  • Cooling Capacity Range: 6,200~18,000 BTU/h
  • Cooling SEER2: 23.0 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 20,000 BTU/h
  • Heating Capacity Range: 8,100~20,000 BTU/h
  • Heating HSPF2 (Region IV/V): 10.0 / 7.7 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 2.92 / 2.08 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 400~650 Sq.F

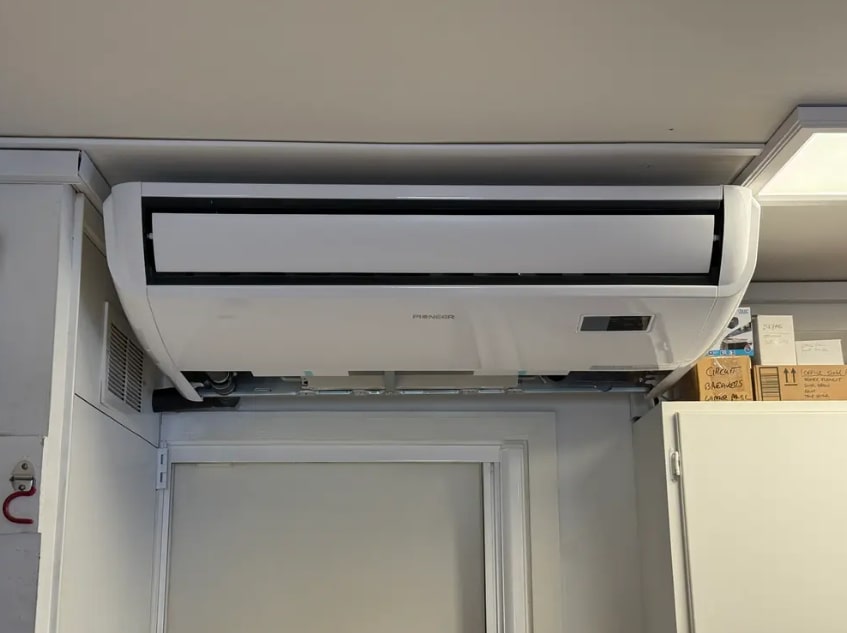

Indoor Unit Data

  • Model: UB018GMFILCFHD
  • Air Flow (Hi/Med/Lo): 548 / 485 / 420 CFM
  • Sound Level (Hi/Med/Lo): 47.0 / 44.0 / 39.0 dB(A)
  • Net Dimensions (WDH): 42.0 x 26.5 x 9.3 Inches
  • Carton Dimensions (WDH): 45.0 x 29.8 x 12.4 Inches
  • Net / Gross Weight: 57 / 68 Lbs

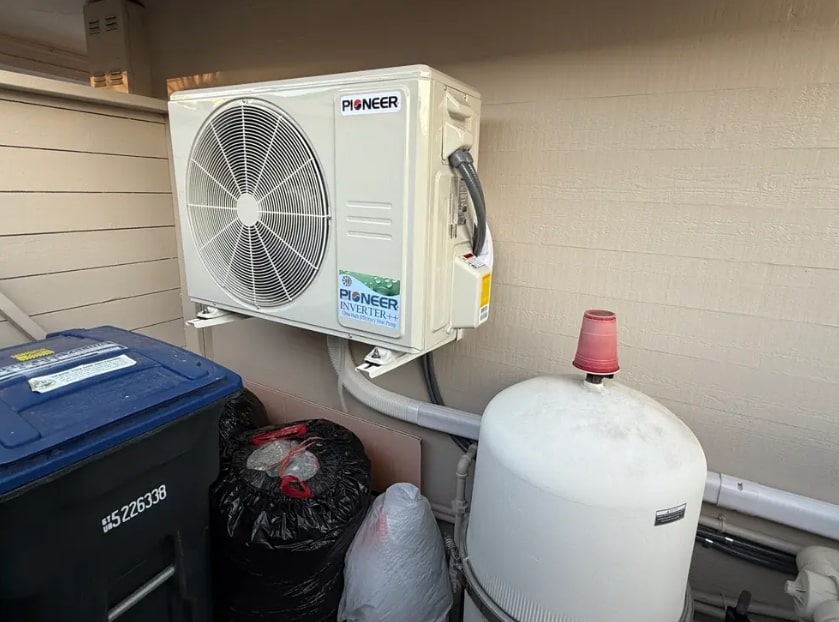

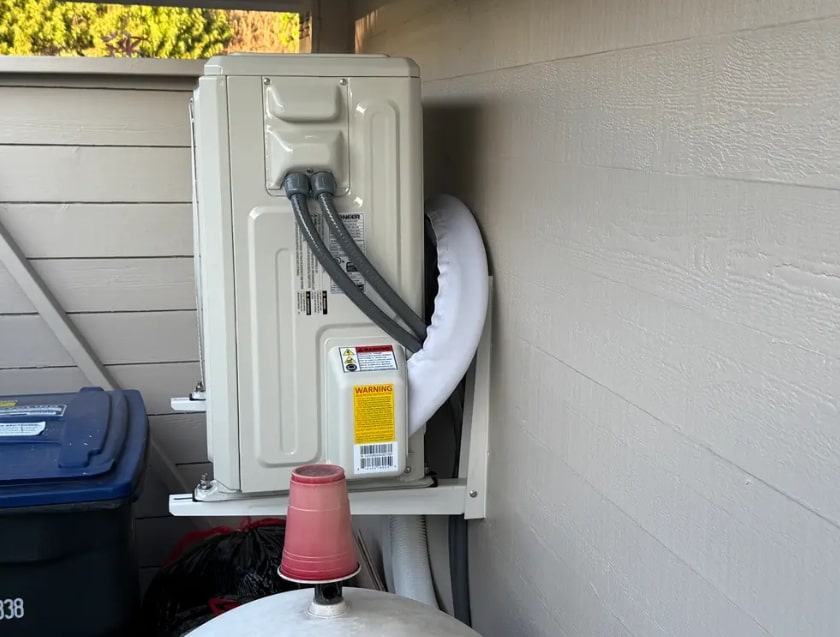

Outdoor Unit Data

  • Model: YN018GMFI22RPE
  • Sound Level: 60.0 dB(A)
  • Net Dimensions (WDH): 35 x 13.4 x 26.5 Inches
  • Carton Dimensions (WDH): 39.0 x 15.5 x 29.1 Inches
  • Net / Gross Weight: 94 / 101 Lbs
  • Breaker Needed: 20A (double-pole)

Manuals & Downloads


Summary

  • Ultra High-Efficiency Inverter++ floor/ceiling split heat pump system
  • Cooling capacity: 18,000 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 20,000 BTU/H with 10.0 HSPF2 / 2.92 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Floor/Ceiling Flex Mount Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $113.00
    • Heating: $346.00

What's IncludedPioneer® 18,000 BTU 23 SEER2 FloorCeiling Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V FRONT VIEW

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty
