Overview

Summary

  • Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
  • Cooling capacity: 12,000 BTU/H with 21.5 SEER efficiency
  • Heating capacity: 12,000 BTU/H with 10.5 HSPF efficiency
  • Voltage: 110~120V, 60 Hertz, 1 Ph
  • Ceiling Compact Cassette Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $70.00
    • Heating: $231.00
[[SERIES]]

What's Included

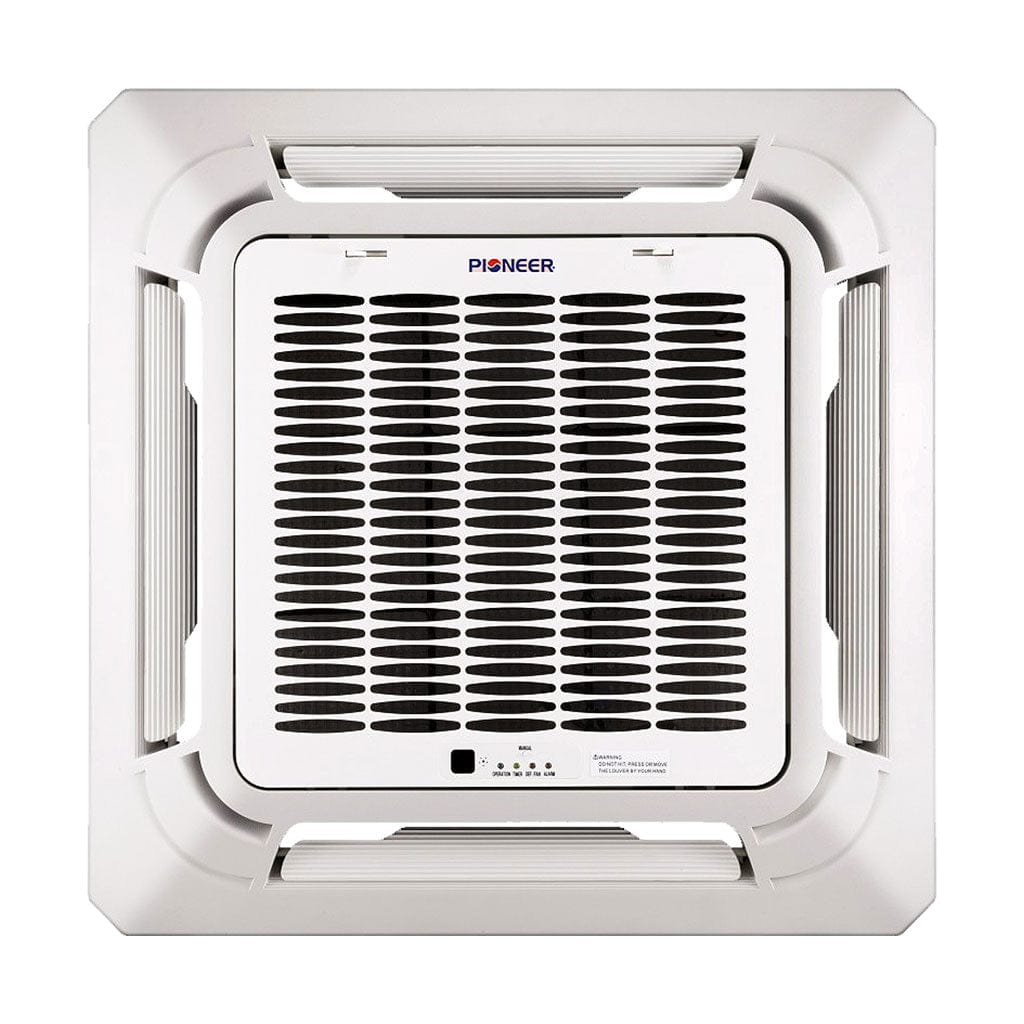

  • Indoor Unit

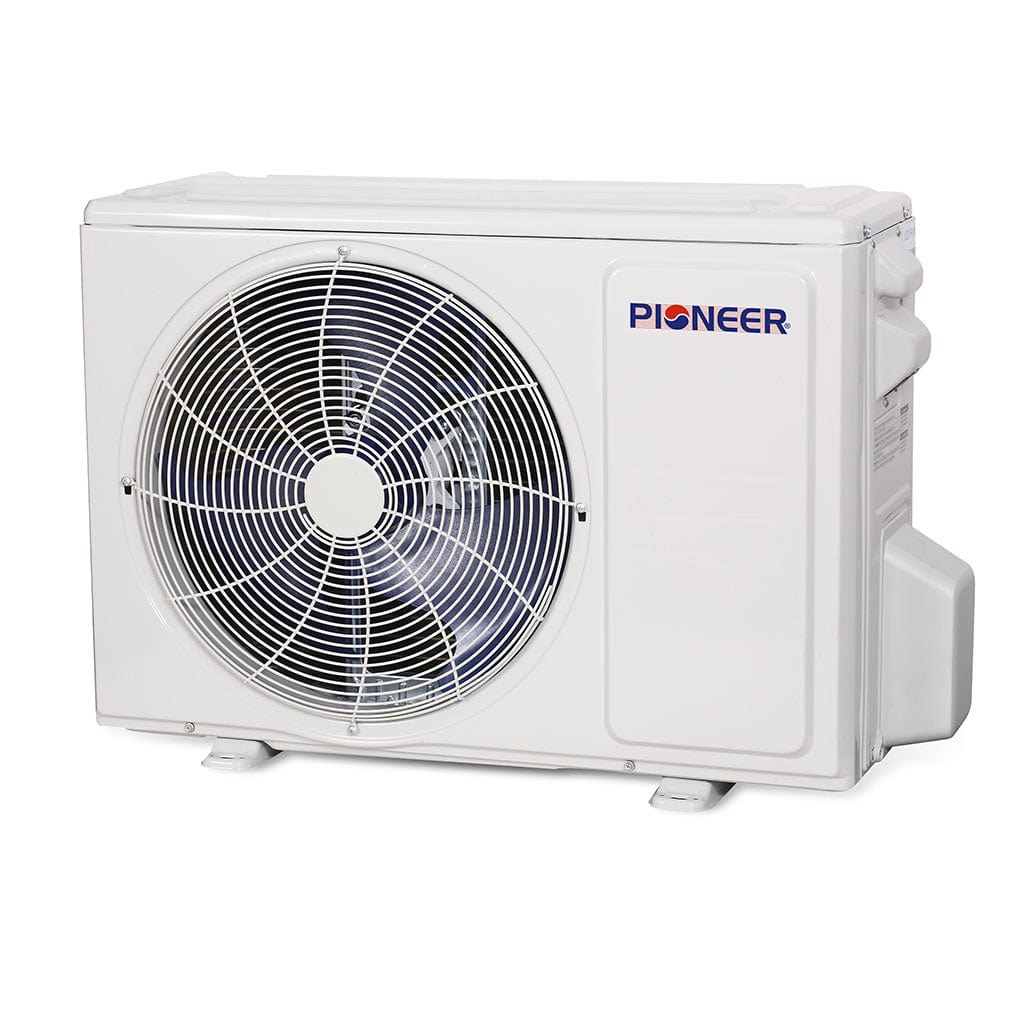

  • Outdoor Unit
  • Panel

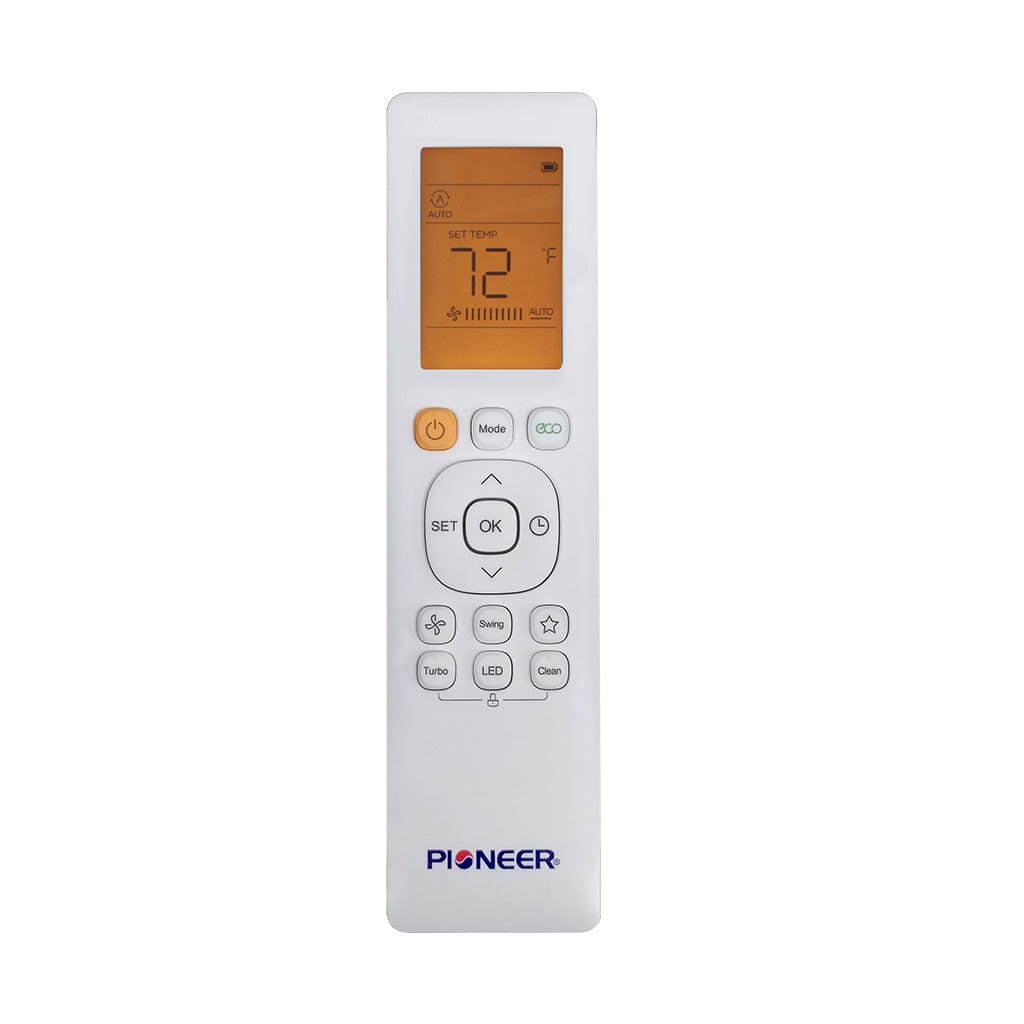

  • Wireless Remote Control

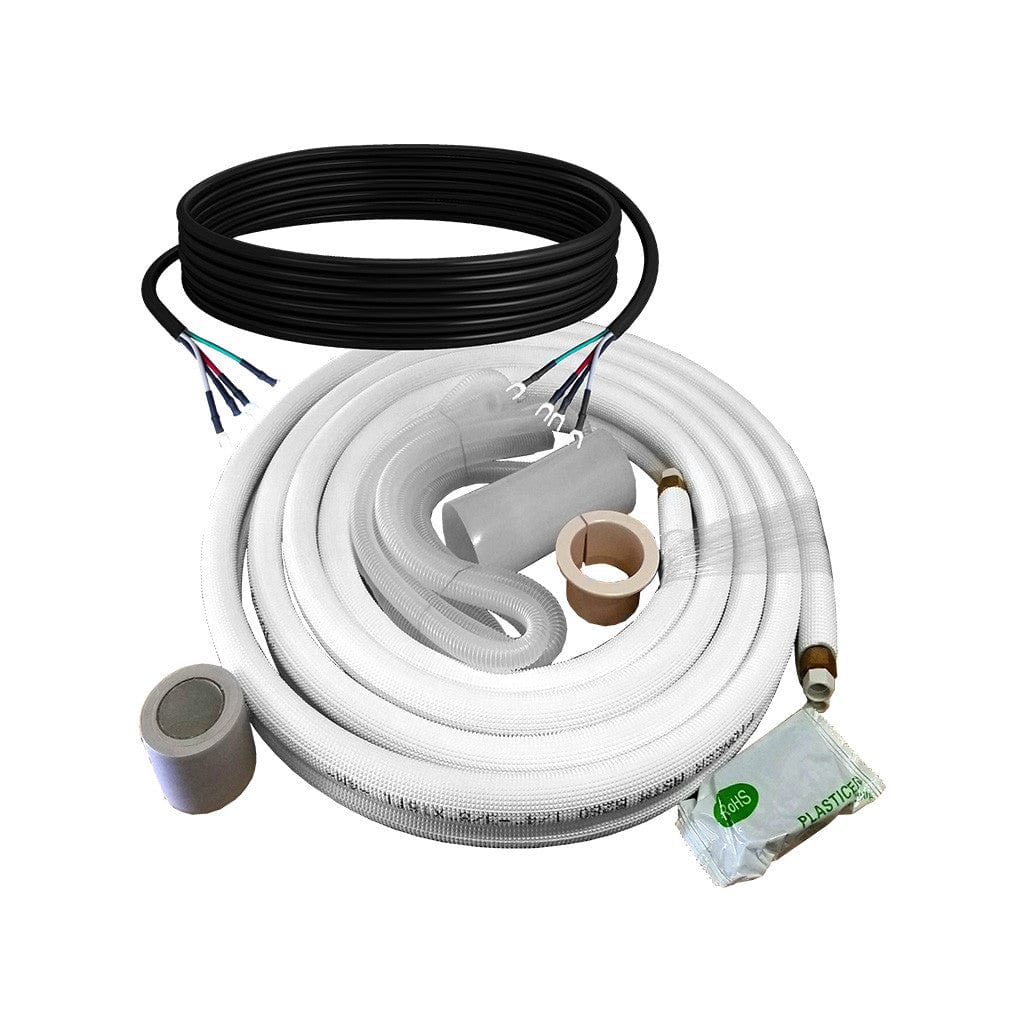

  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 110~120V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 4,200~17,000 BTU/h
  • Cooling SEER: 21.5 BTU/w
  • Heating Rated Capacity: 12,000 BTU/h
  • Heating Capacity Range: 4,300~17,100 BTU/h
  • Heating HSPF: 10.5 BTU/w
  • Refrigerant Type: R410a
  • Suitable Area: 350~450 Sq.F

Indoor Unit Data

  • Model: CB012GMFILCFHD
  • Air Flow (Hi/Med/Lo): 379 / 309 / 261 CFM
  • Sound Level (Hi/Med/Lo): 43.0 / 39.0 / 36.0 dB(A)
  • Net Dimensions (WDH): 22.5 x 22.5 x 10.3 Inches
  • Carton Dimensions (WDH): 25.8 x 25.8 x 11.5 Inches
  • Net / Gross Weight: 35 / 41 Lbs

Panel Data

  • Net Dimensions (WDH): 25.5 x 25.5 x 2.0 Inches
  • Carton Dimensions (WDH): 28.0 x 28.0 x 5.0 Inches
  • Net / Gross Weight: 6 / 10 Lbs

Outdoor Unit Data

  • Model: YN012AMFI22RPD
  • Sound Level: 57.5 dB(A)
  • Net Dimensions (WDH): 31.5 x 13.2 x 21.7 Inches
  • Carton Dimensions (WDH): 36.2 x 15.4 x 24.3 Inches
  • Net / Gross Weight: 81 / 88 Lbs

Manuals & Downloads

Free Express Shipping on All orders within the USA

30 Day Free Returns on all orders

Ask a Question?

Skip to content

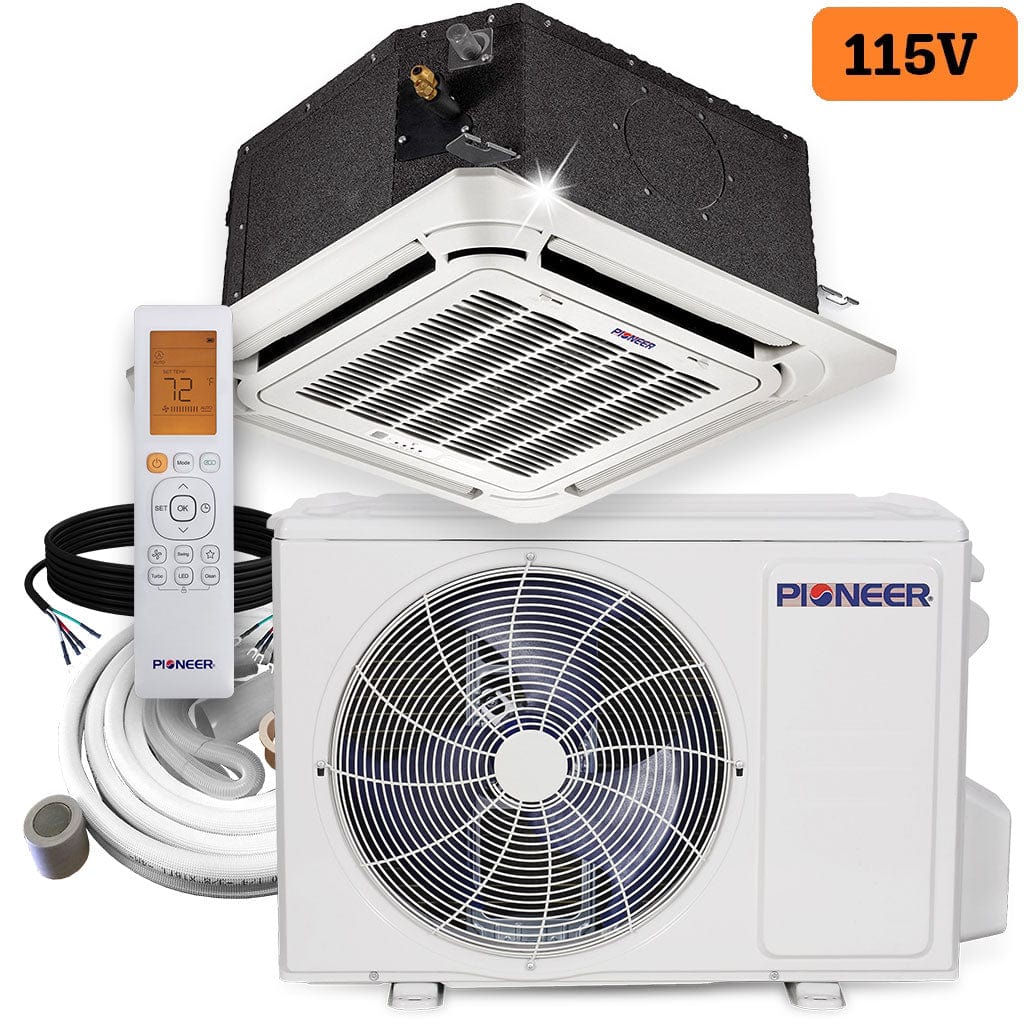

Pioneer® 12,000 BTU 21.5 SEER 115V SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set

by Pioneer
SKU CYB012AMFILCAD-10
In stock, ready to ship now
Save $117.00
Original Price $2,488.00
Current Price $2,371.00
