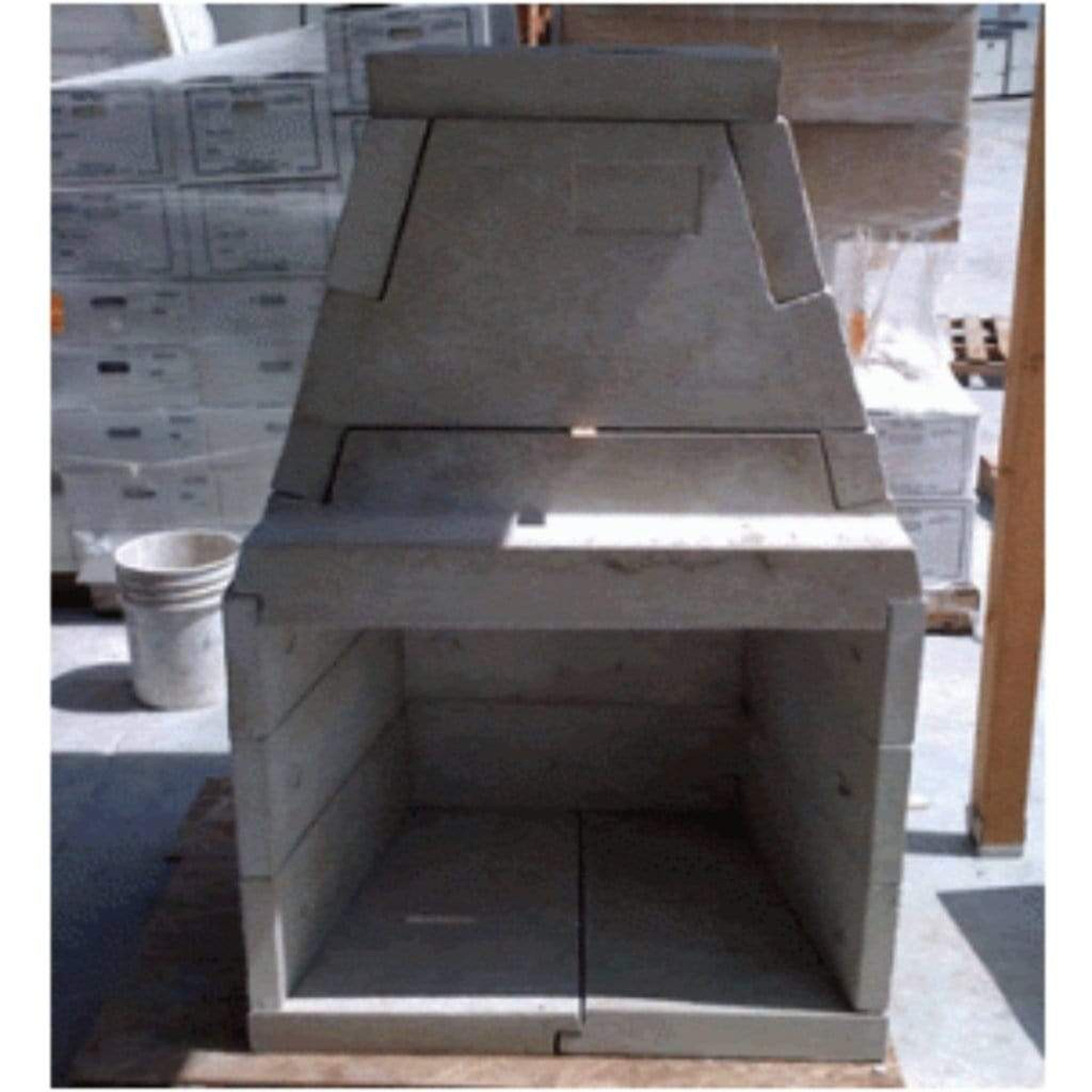

Mason-Lite 44" Pre-Cast Masonry Firebox Kit for 12" Class A UL103 Chimney System with Height Kit
Recommended Accessories
ACiQ Heavy Duty Wall Brackets
$197.06
John D. "Great service! Highly recommend."
Jane S. "Saved $50 on my order."
Mike T. "Fast and reliable support."
Have you ever dreamed of the radiant warmth of a masonry fireplace in your bedroom? Or, do you dream of an outdoor fireplace where you can gather together with friends and loved ones? Dreams can come true with Mason-Lite masonry fireplaces. Our factory-built masonry fireboxes are affordable, easy to handle, and consistent in quality. A masonry fireplace adds luxury and increases the value of your home.
Recreating the tradition of the hearth and the elegance & romance of the flame, Mason-Lite captures the essence of the fireplace masonry artists have been crafting for centuries. And, with a proven history of superior quality, lightweight fireplaces for indoor and outdoor projects, it’s no wonder Mason-Lite is one of the industry leaders of modular concrete fireplaces.
At Mason-Lite, we use the finest aggregate materials available to build our lightweight modular concrete fireplaces. One of the main ingredients is pumice, a natural-fired volcanic rock with tremendous strength.
Its lightweight attributes are second to none, and because of its pre-fired beginnings, pumice retains heat better than any natural aggregate available. The best sources for USA pumice are in the western states, convenient to Mason-Lite’s California-based production facilities. Pumice is formed when gas-rich, frothy magma rapidly cools, creating air pockets that contribute to its remarkable lightweight properties.
Because it is only half the weight and half the cost of traditional masonry fireplaces, Mason-Lite Lightweight Masonry Fireplace Systems help you realize your dream of having a fireplace in your master bedroom, upstairs retreat, or even your outdoor patio, without major building infrastructure reinforcement. The restful flicker and comfortable glow of the fire will provide you with years of treasured memories.
With the help of ICC-ES, Mason-Lite developed the structural testing and performance criteria (AC375) that would comply with the International Building Code (IBC), the International Residential Code (IRC), and the International Fuel Gas Code (IFGC). This allows building officials throughout the US to confirm that Mason-Lite fireplaces meet these stringent codes.
Model | MFP44-RM |
Finished Opening Width | 41" (W) x 21.5" (D) x 30.5" (H) |
Total Unit Height | 62.25" |
Footprint | 48" x 28" |
Flue Diameter - Class A | 12" ID |
Clearance to Combustibles* (Sides and Back) | 2" |
Framing Width | 52" (W) x 30" (D) x 64.25" (H) |
Floor Area(48x28) | 9.33 sq. ft. |
Fireplace Weight | 1954 lbs. |
Mortar and Rebar | 67 lbs. |
Ready Mix | 200 lbs. |
Metal Chimney weight per foot | 10 lbs. |
Installation Type | Flush Installation / Corner / Internal Wall / Full Projection |
Warranty | Limited lifetime warranty |
Product Inclusions:
Refractory Mortar |
Rebar and T-Bar |
Optional Accessories
MFP44SHBL Split Herringbone Brick liner Mason-Lite offers true firebrick panels for quick and easy installation. Two color options: Standard Buff and Red |
|
MFP44FRBL Full Running Bond Brick liner Mason-Lite offers true firebrick panels for quick and easy installation. Two color options: Standard Buff and Red |
|
MFP44SRBL Split Running Bond Brick liner Mason-Lite offers true firebrick panels for quick and easy installation. Two color options: Standard Buff and Red |
|
MFPB44 6" Structural Metal BaseOur 6” and 8” bases are used for installations on combustible floors or second story applications. |
|
MFP4-AK Combustion Air Kit Because homes are being built so tight, many jurisdictions are requiring additional outside air to make up for negative air pressure. For convenience, the kit comes pre-drilled for this application. |
|
MFP-Arc Masonry Arch The masonry arch kit consists of 2 pieces that can easily be mortared in to give a custom look. |
|
MFP44-HK Height Kit This Height Kit consists of a rear wall and two side walls that will increase the height opening by 8" from the standard opening (giving a Rumford look). With the new size opening be sure to check the Chimney Size Chart to ensure proper flu size. |
|
12ATGAPD Anchor Plate w/ Damper Dampers are required for indoor applications. Mason-Lite offers several damper options: metal anchor plate/damper for masonry chimney; cast iron damper (damper blocks included); anchor plate/damper for metal chimney |
|
Premium Chimney Shrouds Mason Lite’s Decorative steel and copper chimney pots offer an alternative to unsightly factory flue caps and terminations, improving the aesthetics of chimney tops |
Attention: You may need a residential building permit to install a Mason-Lite Fireplace. Consult local jurisdictions before you get started!
