A comprehensive air filtration system intended for integration with inline duct fans, such as the CLOUDLINE Series, is designed to facilitate the circulation of fresh air by preventing the ingress of particles like dust and dirt in intake applications. Each AC Infinity air filter box is constructed from 1mm thick cold-rolled steel and is finished with a matte black powder coating. This robust outer structure is complemented by aluminum duct flanges, ensuring durability and resilience against adverse weather conditions. Its low-maintenance design incorporates a hinge-sealed door that features a slide lock, allowing for convenient access to the internal chamber. Furthermore, the door is lined with a soft neoprene layer, which secures the filter in position while effectively preventing dust from entering.

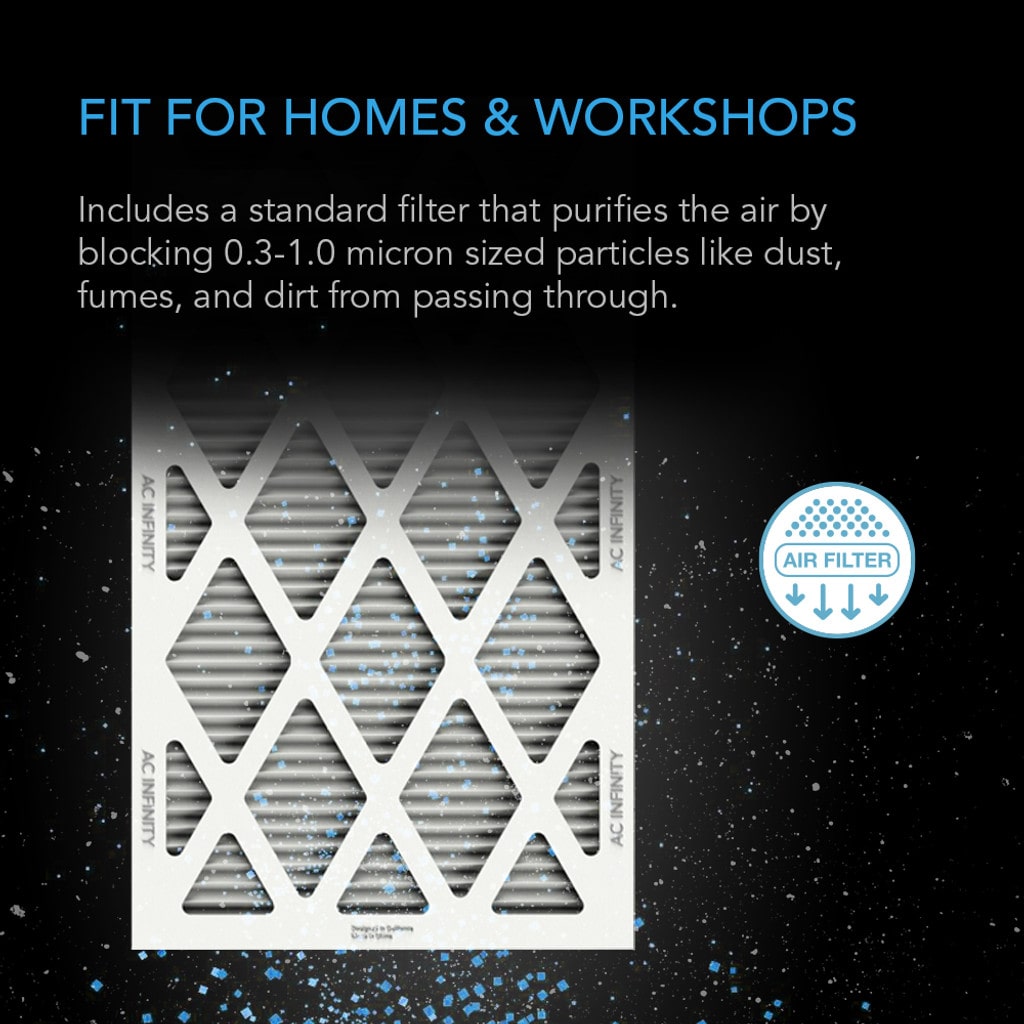

Each air filter box accepts standard MERV filter replacements that slide into the inner chamber’s filter slot. Comes included with a high-efficacy pleated air filter, capable of trapping 0.3-1.0 micron-sized particles such as:
The duct flanges fit with matching sized 8” inline fans and enable a streamlined installation to create high efficiency filtration in HVAC and grow applications. Attaching the AC Infinity air filter box in the starting end of your ductwork will dramatically reduce suspending particles in the air inside your home. Use with a high static pressure fan like the CLOUDLINE Series of duct fans is highly recommended to ensure maximum filtration.
Product Identification | |
Manufacturer | AC Infinity Inc. |
Product Name | Air Filter Box 8" |
Product Model | AC-AFB8 |
UPC Code | 819137021716 |
Product and Mounting Dimensions | |
Duct Opening Size | 7.79 in. (19.8 cm) |
Total Dimensions | 22.51 x 11.57 x 13.93 in. (57.1 x 29.4 x 35.4 cm) |
Flange Length | 3.23 in. (8.2 cm) |
Product Performance and Technical Specs | |
Box Material | Steel |
Flange Material | Aluminum |
Finish | Matte Black |
Filter Size | Accepts 14 x 20 x 1” |
Minimum Airflow Range | 402-604 CFM |
Maximum Airflow | 1600 CFM |
Compatible Fan Models | CLOUDLINE S8, CLOUDLINE T8 |
